Honeywell RLV430 User manual

RLV430
Programmable Thermostat
Owner’s
Guide
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page -1 Monday, August 31, 2009 1:16 PM

Overview
About your new thermostat ................................................................... 1
Controls ................................................................................................. 2
Display................................................................................................... 3
Installation
Installation guidelines ............................................................................ 4
Wiring .................................................................................................... 5
Mounting the thermostat........................................................................ 6
Setting the clock and day ...................................................................... 7
Configuration ......................................................................................... 7
Operation
Automatic (Auto) mode.......................................................................... 8
Economy (Econo) mode......................................................................10
Manual (Man) mode ............................................................................ 12
Appendices
Resetting the thermostat (default settings)..........................................12
In case of difficulty...............................................................................13
Power outage ......................................................................................14
Specifications ...................................................................................... 14
Limited warranty .................................................................................. 15
Table of contents
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 0 Monday, August 31, 2009 1:16 PM

RLV430
1
This thermostat is designed to control an electric heating system such as a
baseboard heater, a radiant ceiling, a convector or a fan-forced heater.
The thermostat CANNOT be used with:
• a resistive load under 1.25 A
• a resistive load over 14.6 A
• a system driven by a contactor or a relay (inductive load)
• a central heating system
SUPPLIED PARTS
• One (1) thermostat
• Two (2) 6-32 mounting screws
• Two (2) solderless connectors
About your new thermostat
Do you need assistance?
We are here to help.
Call 1-800-468-1502.
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 1 Monday, August 31, 2009 1:16 PM

Owner’s Guide
2
Controls
Mode button
(see pages 8, 10, 12 )
Day button
Hour button
Program button
Minute button
Up and Down buttons
Return button
Backlit screen *
* The screen is backlit for 12 seconds when you press any button.
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 2 Monday, August 31, 2009 1:16 PM

RLV430
3
Display
Room temperature
Heating intensity indicator
Time and day
Mode indicator
(see pages 8, 10 &12 )
Appears when the
setpoint temperature
is displayed
Appears if the
thermostat is configured
for a fan-forced heater
(see page 7)
Appears when power to
the thermostat is cut off
(see page 14)
* To display the set temperature (setpoint), press the Up or Down button
once. The thermostat will display the setpoint temperature instead of the
room temperature for 5 seconds.
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 3 Monday, August 31, 2009 1:16 PM

Owner’s Guide
4
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN
POWER PANEL TO AVOID ELECTRICAL SHOCK.
All cables and connections must comply with local electrical
codes.
This thermostat has tinned copper wires for line and load connec-
tions. Special CO/ALR solderless connectors must be used if
these wires will be connected to aluminium conductors.
Install the thermostat onto an electrical box.
Install the thermostat about 1.5 m (5’) high, on an inside wall facing
the heater.
Avoid locations where there are air drafts (such as the top of a
staircase or an air outlet), dead air spots (such as behind a door),
or direct sunlight.
Do not install the thermostat on a wall that conceals chimney or
stove pipes.
The thermostat wires are not polarized; either wire can be con-
nected to the load or to the power supply.
Installation guidelines
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 4 Monday, August 31, 2009 1:16 PM

RLV430
5

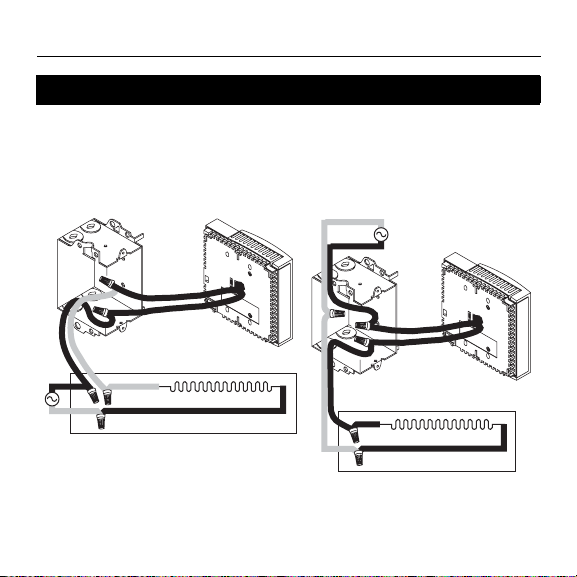

Connect the thermostat wires to the power and to the load using
solderless connectors for copper wires.
Wiring
2-wire Installation 4-wire Installation
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 5 Monday, August 31, 2009 1:16 PM

Owner’s Guide
6
Push the excess wires back inside the
electrical box.
Secure the thermostat to the electrical
box using the provided screws. Insert the
screws through either the right or left pair
of mounting holes on the thermostat.
NOTE: If there is a protective film or
sticker on the thermostat’s screen, peel it
off.
Apply power to the heating system. Verify the installation by checking
that the heater can be turned on by raising the setpoint using the Up
button and off by lowering the setpoint using the Down button.
Keep the thermostat's air vents clean and free from obstructions.
Mounting the thermostat
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 6 Monday, August 31, 2009 1:16 PM

RLV430
7
The clock must be set when the time is incorrect or flashes on the screen.
nPress the Day button to set the day.
oUse the Hour and Min buttons to set the clock.
pPress the button to exit.
nPress the Pgm button for 3 seconds. The first parameter is displayed.
oTo display the next parameter, press the Pgm button.
pTo modify the displayed parameter, press the Up or Down button.
qTo exit the menu, press the button or do not press any button for 1
minute.
* Place at Yes if you have a fan-forced heater (to prevent premature burnout of the motor).
Leave at No for better temperature regulation if you do not have a fan-forced heater.
Setting the clock and day
Configuration
Display Parameter Options Default setting
Temperature unit °C / °F °C
Time format 12 hr / 24 hr 24 hr
Fan*No / Yes No
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 7 Monday, August 31, 2009 1:16 PM

Owner’s Guide
8
In Automatic mode, the thermostat adjusts its temperature set-
point according to the period of the day. To place the thermostat in
this mode, press the Mode button until Auto appears on the
screen. The current period number also appears (unless the ther-
mostat has not been programmed with a schedule).
You can program up to 4 periods (Wake, Leave, Return or Sleep)
in a day. You can set 2 different programs: one for the weekdays
(Monday to Friday) and another one for the weekend (Saturday
and Sunday).
The thermostat uses the following default schedule:
Temporary Override
You can temporarily modify the setpoint temperature while the thermostat is in
Automatic mode using the Up or Down button. The new setpoint will be used until
the beginning of the next period. During the override, Auto flashes on the screen.
You can cancel the override by pressing the button.
Automatic mode
Monday to Friday Saturday & Sunday
Period Start Time Temperature Start Time Temperature
Wake 6:00 21.0°C (70°F) 6:00 21.0°C (70°F)
Leave 8:00 16.5°C (62°F) --:-- - -
Return 18:00 21.0°C (70°F) --:-- - -
Sleep 22:00 16.5°C (62°F) 22:00 16.5°C (62°F)
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 8 Monday, August 31, 2009 1:16 PM

RLV430
9
To modify the schedule:
nPress the Mode button until Auto appears on the screen.
oPress the Pgm button. Each time you press the Pgm button, the thermostat
displays one of the periods of the schedule in the following order:
pPress the Hour and Min buttons to set the start time of the displayed period.
NOTE: To cancel the period, press the Mode button. Instead of displaying
the start time of the period, the thermostat will display --:--. During operation,
the thermostat will skip that period.
qPress the Up or Down button to set the temperature.
rTo set another period in the same day, press the Pgm button and repeat
steps 3 and 4.
sPress the button to return to normal display.
Automatic mode (cont’d)
Weekdays
(MO TU WE TH FR)
Weekend
(SA SU)
12341234
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 9 Monday, August 31, 2009 1:16 PM

Owner’s Guide
10
To place the thermostat in Economy mode, press the Mode
button until Econo appears on the screen. The period number will
also appear after you have programmed the periods in the
Economy mode. This mode is ideal for weekend residences
(cottages) as it can be used to keep the temperature at an
economy level during most of your absence and raise the
temperature to a comfortable level by your usual arrival time. If
you do not show up at your cottage, the temperature will return to
the economy level until the following weekend.
The Economy mode has two periods which you can set as follows:
Economy mode
Period Temperature Start Time
1Set to a comfortable level
(e.g., 21.0°C / 70°F).
Set the day and time that you want the tem-
perature to start rising so that the comfort-
able level is reached by the time you arrive
(e.g., Friday at 3:00 pm).
2Set to an economy level
(e.g., 15.0°C / 59°F).
Set the day and time that you want the tem-
perature to start dropping to the economy
level if you do not show up (e.g., Friday at
8:00 pm).
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 10 Monday, August 31, 2009 1:16 PM

RLV430
11
The Economy mode can be used as follows:
Place the thermostat in Economy mode during your absence.
When you arrive, place the thermostat in Automatic mode or in Manual
mode before the temperature drops to the economy level.
When you leave, switch the thermostat back to Economy mode.
To program the two periods of the Economy mode:
nPress the Mode button until Econo appears on the screen.
oPress the Pgm button. Period 1 is displayed.
pPress the Hour and Min buttons to set the start time of the displayed period.
qPress the Up or Down button to set the temperature.
rPress the Pgm button to select Period 2.
sRepeat steps 3 through 5 to set Period 2.
tPress the button to end programming.
Temporary Override
You can temporarily override the current temperature using the Up or Down but-
ton. The new setpoint will be used until the end of the current period. Econo
flashes during the override. You can cancel the override by pressing the but-
ton.
Economy mode (cont’d)
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 11 Monday, August 31, 2009 1:16 PM

Owner’s Guide
12
To place the thermostat in Manual mode, press the Mode button
until Man appears on the screen. In this mode, any modification
to the temperature must be done manually. Press the Up or
Down button to set the temperature. The default setting is
21.0°C (70°F).
WARNING: All parameters, except the clock (time and day), return to their default
settings when the thermostat is reset.
nPress the Mode button until Econo appears on the screen.
oPress the button for 6 seconds.
pThe thermostat will display rSt (reset) for 2 seconds to indicate it is reset
and will then return to normal display.
Manual mode (permanent override of schedule)
Resetting the thermostat (default settings)
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 12 Monday, August 31, 2009 1:16 PM

RLV430
13
In case of difficulty
PROBLEM SOLUTIONS
Thermostat is hot.
This condition is normal. Ensure that the heater
capacity does not exceed the thermostat’s maximum
load.
Wrong temperature is
displayed.
Correct it if any of the following situations exists:
• The thermostat is exposed to an air draft.
• The thermostat is located near or above a heat
source such as a light dimmer.
Wrong time is displayed. The thermostat was without power for more than 5
hours.
Temperature does not
change according to the
programmed schedule.
Check that the thermostat is in Automatic mode.
Check the schedule and clock settings. If the thermo-
stat is configured in 12-hour format, ensure that PM
appears on the screen when afternoon times are dis-
played.
LP appears on the
screen or the screen is
blank despite there is no
power outage.
The thermal circuit breaker in the heater is opened.
This can happen if the heater is obstructed by furniture
or curtain and has overheated, or if the thermal circuit
breaker is defective or too sensitive.
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 13 Monday, August 31, 2009 1:16 PM

Owner’s Guide
14
During a power outage, the thermostat display remains lit for the first 2 minutes.
During this time, the LP (low power) indicator appears and all buttons are dis-
abled. Then the screen turns blank. The settings are stored in memory. When
power returns, the thermostat returns to the mode of operation preceding the
power outage. If the power failure has exceeded 5 hours, the clock and date must
be re-adjusted.
Supply: 120/240 V AC, 60 Hz
Minimum load: 1.25 A (resistive only)
300 W @ 240 V AC
150 W @ 120 V AC
Maximum load: 14.6 A (resistive only)
3500 W @ 240 V AC
1750 W @ 120 V AC
Display range: 0°C to 50.0°C (32°F to 99°F)
Setpoint range: 5.0°C to 30.0°C (41°F to 86°F)
Resolution: 0.5°C (1°F)
Storage temperature: -20°C to 50°C (-4°F to 120°F)
Approval:
Power outage
Specifications
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 14 Monday, August 31, 2009 1:16 PM

RLV430
15
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or mate-
rials, under normal use and service, for a period of one (1) year from the date of purchase by the con-
sumer. If at any time during the warranty period the product is determined to be defective or
malfunctions, Honeywell shall repair or replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you pur-
chased it, or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination
whether the product should be returned to the following address: Honeywell Return Goods, Dock
4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN 55422, or whether a replacement product
can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown
by Honeywell that the defect or malfunction was caused by damage which occurred while the product
was in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product within the terms stated above.
HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY,
FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF
THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT.
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE-YEAR
DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from state to
state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985
Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502. In Canada, write Retail Products ON15-
02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Scarborough, Ontario M1V 4Z9.
Limited warranty
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 15 Monday, August 31, 2009 1:16 PM

Owner’s Guide
16
Automation and Control Systems
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
Honeywell Limited
35 Dynamic Drive
Scarborough, Ontario M1V 4Z9
Printed in China
69-1855EF 08-09
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) ENG.fm Page 16 Monday, August 31, 2009 1:16 PM

Guide du
propriétaire
RLV430
Thermostat programmable
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) FRE.fm Page -1 Monday, August 31, 2009 1:13 PM

Vue d'ensemble
À propos de votre nouveau thermostat ................................................. 1
Commandes .......................................................................................... 2
Affichage ............................................................................................... 3
Installation
Consignes d'installation......................................................................... 4
Câblage ................................................................................................. 5
Installation du thermostat ...................................................................... 6
Réglage de l'heure et du jour ................................................................7
Configuration ......................................................................................... 7
Fonctionnement
Mode Automatique (Auto) .....................................................................8
Mode Économie (Econo)..................................................................... 10
Mode Manuel (Man) ............................................................................ 12
Annexes
Réinitialisation (réglages par défaut)...................................................12
Dépannage..........................................................................................13
Panne de courant ................................................................................ 14
Fiche technique ................................................................................... 14
Garantie limitée ................................................................................... 15
Table des matières
400-104-010-D_69-1855EF (RLV430 Honeywell TH104) FRE.fm Page 0 Monday, August 31, 2009 1:13 PM
