Advante H2O Alkaline+ User manual

Under Sink System

IMPORTANT
Thank you for purchasing our Advante H2O AlkalinePlus Under Sink System.
You have taken an important step toward improving the quality of your drinking and cooking
water. Advante H2O AlkalinePlus Under Sink System is crafted using only the finest materials and
workmanship, and will serve you reliably for many years to come when operated and maintained
according to the directions contained in this guide.
You have made a wise investment in providing quality water for you and your loved ones. Now
please take a few minutes to learn about all the features and benefits of your new System.
Remember to note down the Serial Number for eWarranty registration on www.duro.com.sg
1. Read this manual completely before attempting to install or use this product.
2. Replacement Filter Cartridges may be purchased from Advante reseller. For the location of the
reseller nearest you, or for additional purchase information, contact our Sales & Service
Centre at ([phone].
3. The actual capacity of your Filter Cartridge may vary from the rated capacity. This may be due
to the volume of contaminants or sediment actually present in your water supply.
For optimal performance, replace your Filter Cartridge upon the first occurrence of the
following:
- Annually
- The flow rate diminishes
- The rated capacity of the Filter Cartridge has been reached
- You notice a taste or odour recurrence
4. Do not use water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the System.
5. For use on cold water supply only.
6.
When replacing filters, use only Genuine Replacement Filters from ADVANTE.
7. Do not allow System to sit for extended lengths of time without being used (10 days or more).
If System must be left unused for more than 10 days, drain all water from the System and
remove the Filter Cartridges. Once you return, re-install Cartridges and flush for 15 minutes
prior to use (The flushed water can be used to water plants).
8. The contaminants or other substances removed or reduced by this System may not be in your
water supply.
9. Check for water leakage from System frequently for unexpected plumbing conditions.
10.When you stay away from home or office for period of time, please shut the Adaptor Valve.
CAUTION
Avoid placing the unit under direct
sunlight or freezing location.
Avoid placing the unit close to heat
source or place any hot object on the
body.

PRODUCT DESCRIPTION
HOT COLD
Connect the unit to a COLD water
source only. It is harmful to the filters
when connected to HOT water.
DO NOT USE any chemicals, abrasives,
bleach, detergents, solvents or metal
scouring pads on any part of the unit.
Avoid installing the unit in dusty
locations.
When using the unit for
the first time or
replacing filters, do
water flushing process to
each filter cartridge for
about 15 minutes, until
white, black or bubbly
water doesn’t come out
from the filter.
(Water flushing : a
process of cleaning
inside of the filter)
1. Water Inlet
2. Water Outlet
3. Sediment Filter
4. Pre Carbon Block Filter
8. Adaptor
9. Water Tube
10. PTFE Thread Seal Tape
5. UF Membrane
6. Antioxidant Alkaline Filter
7. Faucet

INSTALLATION
Caution: Please check the screw standard of water supply line under your sink. The
screw of the adaptor must be ½” standard screw. If it is of a different size, please
seek help from a plumber.
If there are obstacles in the open area under the sink, it is not possible to install the
faucet. Be sure to check the lower part of the sink before you mark out and drill the
hole on your sink or countertop.
¼” Tube Insert
¼” Ferrule
¼” Compression Nut
Water Tube
1. Drill a hole with diameter of 14mm on
your sink or countertop.
For marble, granite or quartz
countertop, you can use the
Hollow Core Diamond Drill Bit to
cut the hole. Please use huge
amount of water as cooling
agent. Exercise EXTRA CARE.
2. Clean the chips around the hole. You are now
ready to install the faucet.
3. Insert the Base Washer into the Threaded Shank
under the faucet body and then insert the faucet
into the drilled hole.
4. Insert the packing washer under the sink onto
the Threaded Shank and secure the faucet firmly
with the Fixing Nut.
5. Cut a length of the ¼” Water Tube supplied,
sufficient to reach the intended position of the
Under Sink System.
6. Insert the Water Tube through the Compression
Nut, then the Ferrule. Shove the Tube Insert
into the end of the Water Tube.
7. Move the Ferrule towards the end of the Water
Tube and secure the Water Tube to the Threaded
Shank of the faucet under the sink.
Base Washer
Threaded Shank
Fixing Nut
Masking Tape

210mm
>220mm
>220mm
To Ki
13.1 Remove the Nut
8. Remove all cartridges by pulling them
outward and twist 90ºanti-clockwise to
remove.
9. Drill 2 hole on the wall, and/or mark the
wooden cabinet 210mm apart, minimum
220mm from the base.
10. Secure the Main Body firmly with the
screws.
11. Insert each filter and twist 90ºclockwise.
Push to position. (Please take note of
cartridge sequence, refer to colour)
12. Turn off the main water supply. Remove
the Flexible Hose to the kitchen tap. Insert the
Adaptor
I and tighten. Apply PFTE Tape K
where neccessary.
To Kitchen Tap
Flexible Hose Adaptor
Water Supply
13. Remove Nut from Adaptor I . Insert
Water Tube through the Nut and secure to
the Adaptor
I .

13. Insert the Water Tube from the Adaptor
I to the Water Inlet Band Water Tube to
the faucet to the Water Outlet C.
14. Turn on water supply. Look out for
leakage. Turn on faucet and let water flow
through about 15 minutes to flush the filter
cartridges.
Caution:
Allow System to flush into sink for 15
minutes. This removes any fine, black carbon
particles left over from the manufacturing
process, expels trapped air and conditions the
Filter Cartridge for normal use. (This flushed
water may be used to water plants.)
Open
Close
REPLACING FILTER CARTRIDGES
1. Turn off the water supply at the Adaptor I.
2. Cartridges can be removed by pulling them
outward and twist 90ºanti-clockwise to
remove.
3. Insert each filter and twist 90ºclockwise.
Push to position. (Please take note of
cartridge sequence, refer to colour)
*NOTE: Do it in sequence. Change Cartridge 1, turn on water to flush, followed by
Cartridge 2, then Cartridge 3 and lastly Cartridge 4.

4. Turn on the water supply at the Adaptor Iand faucet to flush each filter cartridge into sink for
2-3 minutes for Cartridge 1 and 3. Cartridge 2 and 4 are recommended to flush up to 5 minutes.
This removes any carbon fines, particles left over from the manufacturing process, expels trapped
air and conditions the Filter Cartridges for normal use. (Water may be used to water plants.)
REMINDER
• It is strongly recommended to replace the filter cartridges at least once a year.
• If the filters are not replaced regularly, it could degrade the water quality.
• The filter replacement cycle may vary depending on feed water quality and consumption.
• When replacing filters, only use our genuine ones.
(We cannot guarantee filter efficacy and water quality with third party cartridges)
¤ We do not take responsibilty for any damage caused by replacing filters by unauthorised
personnel.
• When replacing filters, ensure the Water Flushing Process is performed.
• Filter change is based on capacity or time, whichever comes first. Even if your water
consumption is not as much, replace filter when the time is up.
• The filter replacement cycle is based on normal feed water condition and 3000 litres of water
purifying efficiency. (The cycle doesn’t mean quality guarantee period.)
• The period is based on 8 litres use in a day. (Based on 4-6 people).
WATER FILTRATION PROCESS
Adaptor
close
open
1- SEDIMENT FILTER
This 1μm filter reduces the sediment particles such as dirt, and sand down to the nominal in size
from feed water and protects pre carbon and membrane filter.
2 - PRE CARBON BLOCK FILTER
This carbon block filter reduces chlorine, THMs, organic chemical contaminants that contribute to
taste and odour while providing the particulate filtration.
3 - ULTRAFILTRATION (UF) FILTER
This ultrafiltration filter is built using membranes with the smallest pore size of 0.001μm. It
removes water contaminants, water borne micro-organiss, such as E.coli and S. aureus, and heavy
metals.
4 - ANTIOXIDANT ALKALINE POST CARBON FILTER
This Korean patented (Korean Intellectual Property Office) filter is specially designed to increase
pH level, hydrogen ion concentration and provide water of lower Oxygen Reduction Potential
(ORP) utilizing earth minerals without undesirable tastes.

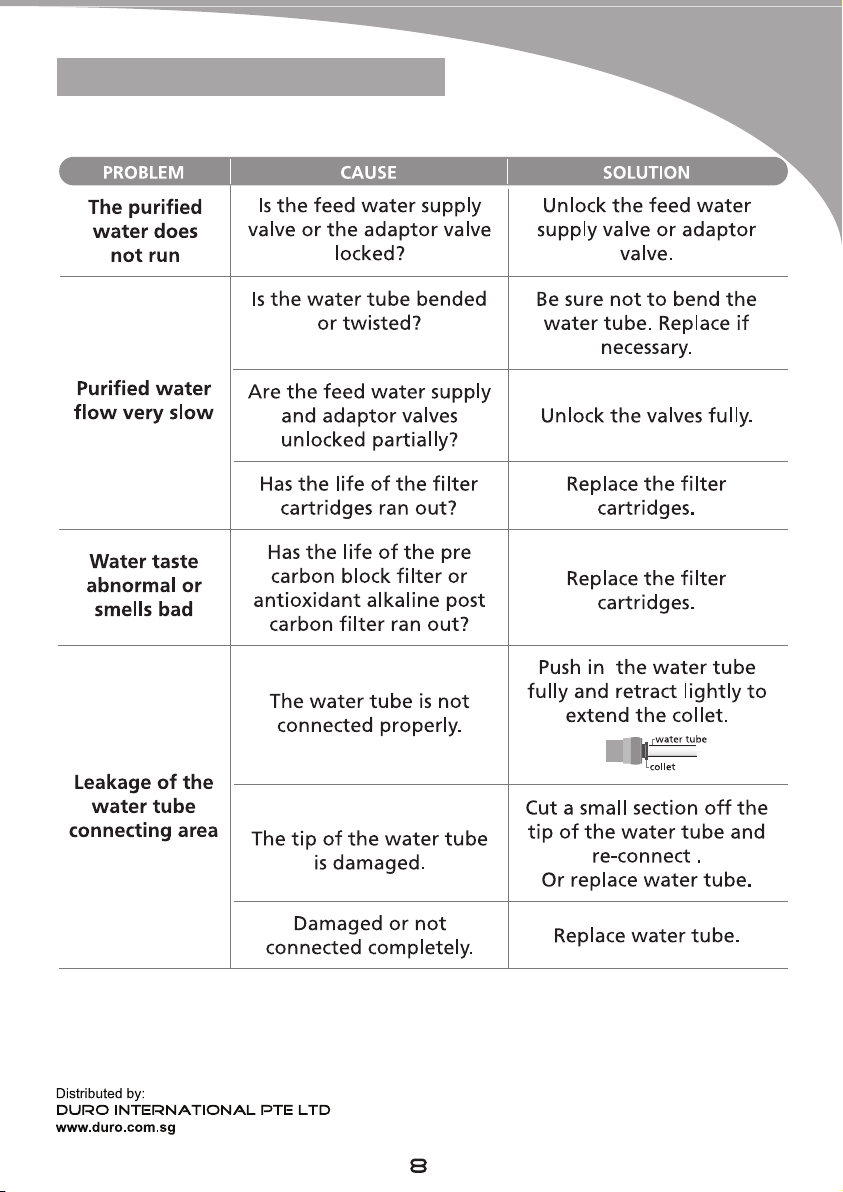

FREQUENTLY ASKED QUESTIONS
The following are solutions to some common problems. Please check before
calling Service Centre for assistance.
¤ If a problem comes up, contact Service Centre and order Filter Replacements or arrange collection for
malfunction rectification.
¤ Please do not attempt to repair the unit yourself. We do not take responsibility for damages caused by
unauthorised personnel. Warranty will be void.
