AED VANTAGE SLA-DCDC-30W Operator's manual

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 1 of 23
DC/DC converter
SLA-DCDC-30W
User Instructions Manual

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 2 of 23
Classification: Public
Revision: 06
Date: 26. April 2023
REVISION HISTORY
REV
DATE
AUTHOR
DESCRIPTION
06
26.04.2023
Alexandra Voß
Rebranding
05
14.09.2020
Pascal Zimmer
Update the CE certificates referencing the RoHS EU Directive
Updated Storage and Transport Temperature
Added some details about the RMA process
Replaced chapter as section
Deleted safety instructions warning of electric shock
04
18.02.2020
Pascal Zimmer
Updated Label
03
11.02.2020
Pascal Zimmer
Updated Terms and Acronyms
Replaced link from cloud with wiki
02
04.02.2020
Pascal Zimmer
Attached EU declaration of Conformity
01
07.11.2019
Pascal Zimmer
Document creation.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 3 of 23
Table of contents
1 Introduction.............................................................................................................................................6
1.1 General Information........................................................................................................................6
1.2 Further products..............................................................................................................................6
1.3 Available manuals............................................................................................................................6
1.4 Pictograms.......................................................................................................................................6
2 Safety Notes ............................................................................................................................................7
2.1 General safety instructions .............................................................................................................7
2.2 Product liability................................................................................................................................8
2.3 Terms of use....................................................................................................................................9
2.4 Warranty..........................................................................................................................................9
3 Intended use and integration into system........................................................................................... 10
4 Installation and Operation ................................................................................................................... 11
4.1 Identification ................................................................................................................................ 11
4.2 Connections and controls............................................................................................................. 12
5 Installation location.............................................................................................................................. 15
5.1 Grounding..................................................................................................................................... 15
5.2 ESD................................................................................................................................................ 15
5.3 General environmental conditions............................................................................................... 15
6 Quick Start Guide ................................................................................................................................. 16
6.1 Power up the device..................................................................................................................... 16
6.2 Functional description.................................................................................................................. 16
7 Example use case.................................................................................................................................. 17
8 Technical specification ......................................................................................................................... 18
9 Storage, transport and disposal ........................................................................................................... 19
9.1 Storage ......................................................................................................................................... 19
9.2 Transport...................................................................................................................................... 19
9.3 Disposal ........................................................................................................................................ 19
10 Maintenance and Service..................................................................................................................... 20
10.1 Safety measures ........................................................................................................................... 20
10.2 Cleaning........................................................................................................................................ 20
10.3 Repair ........................................................................................................................................... 21
10.4 Service .......................................................................................................................................... 21

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 4 of 23
Table of figures
Figure 4.1-1 Nameplate of the SLA-DCDC-30W ............................................................................................11

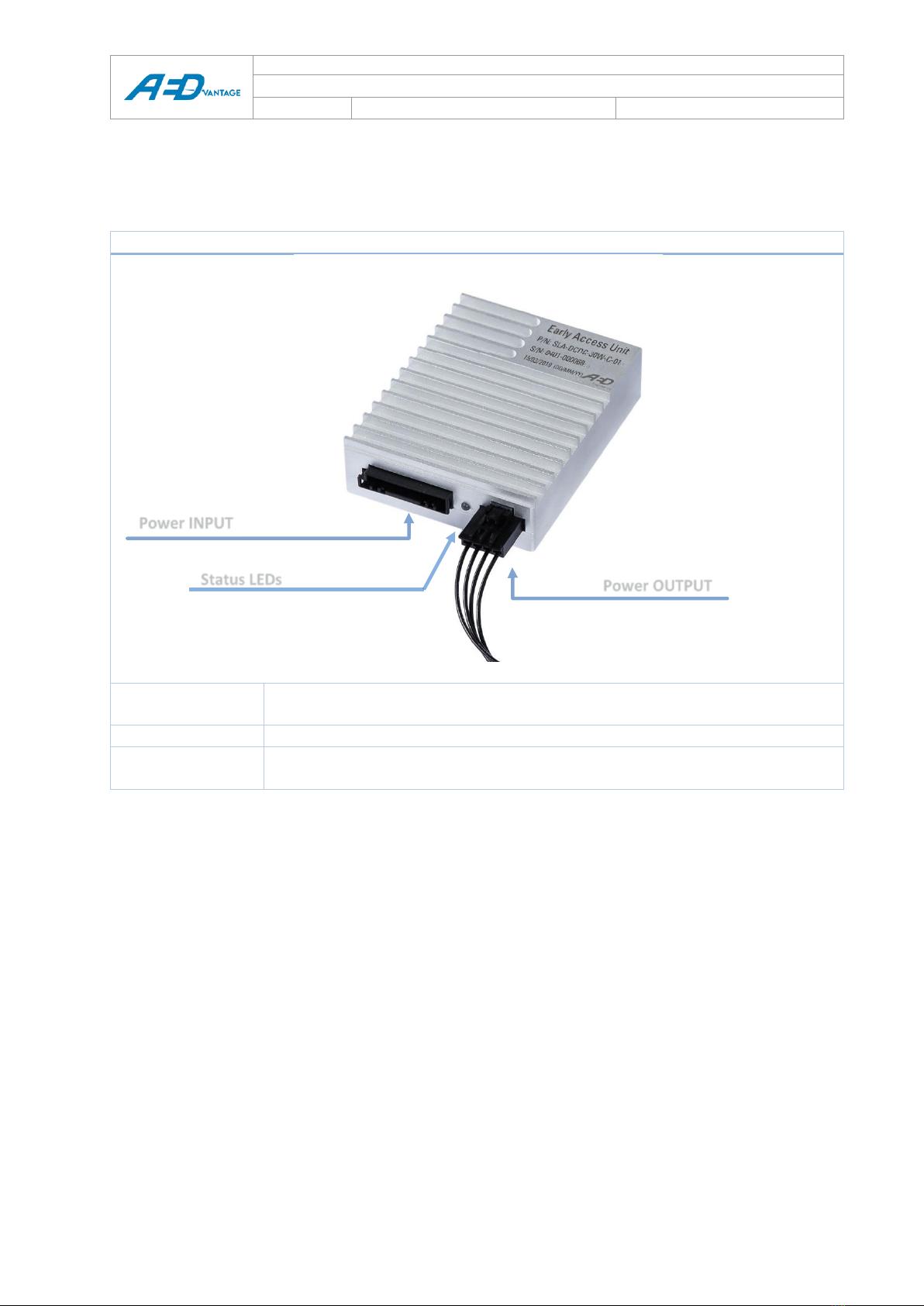

Figure 4.2-1 Front side ports of the SLA-DCDC-30W.....................................................................................12

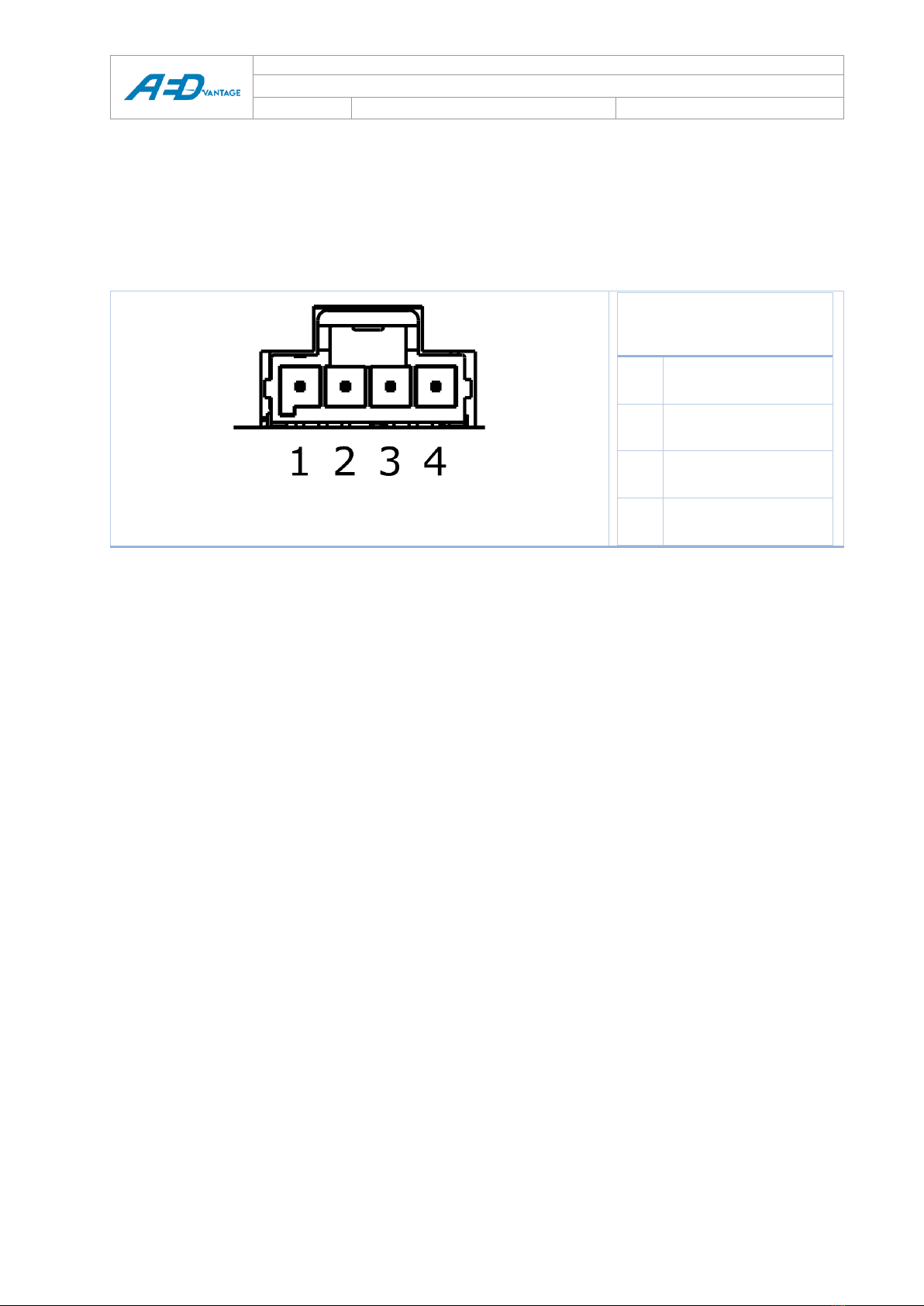

Figure 4.2-2 Front view of Power INPUT connector......................................................................................13
Figure 4.2-3 Summary of LED status .............................................................................................................13
Figure 6.2-1 Web interface shows configuation editor.................................................................................16

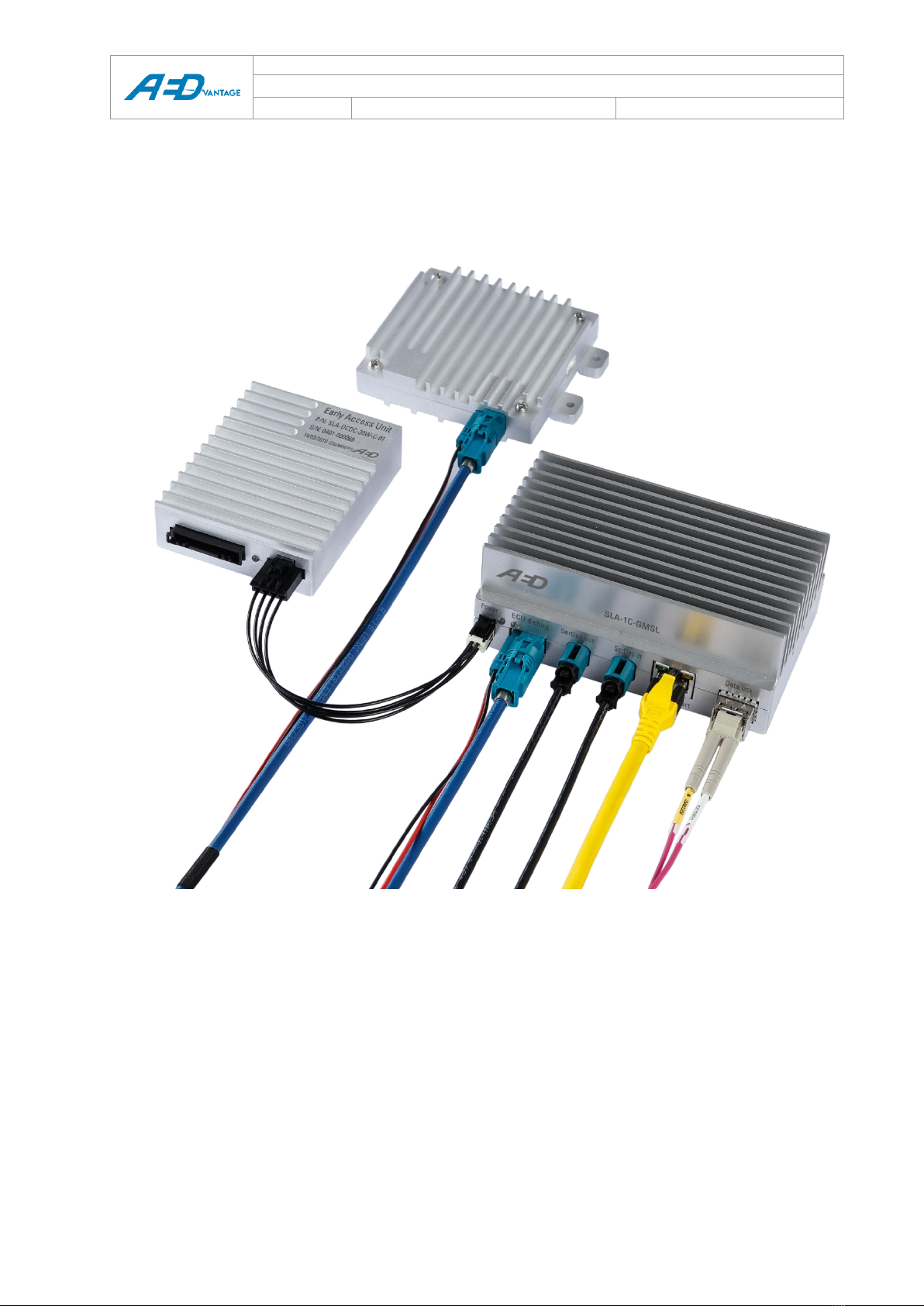

Figure 6.2-1 SLA-DCDC-30W connected to SLA.............................................................................................17
Figure 6.2-1 Technical Data...........................................................................................................................18

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 5 of 23
Terms and Acronyms
Term/Acronym
Definition
AB
Adapter-Board
CSI
Camera Serial Interface
DC
Direct Current
ECU
Electronic Control Unit
EEA
European Economic Area
ESD
Electrostatic Discharge
FPD-Link
Texas Instruments Flat Panel Display Link
GMSL
Maxim Gigabit Multimedia Serial Link
LED
Light-Emitting Diode
MIPI
Mobile Industry Processor Interface
MIPI CSI-2
MIPI Camera Serial Interface 2
MPO/MTP
Multi-fiber Termination Push-on
MTA
Mess-Technik-Adapter (Measurement Equipment Adapter)
SerDes
De-/serializer pair of blocks: hardware for serial/parallel intercommunication
SLA
SerDes Logging Adapter
STP
Shielded Twisted Pair
TI
Texas Instruments
WEEE
Waste of Electrical and Electronic Equipment

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 6 of 23
1Introduction
1.1 General Information
The SLA-DCDC-30W is a galvanic isolated power source and is designed for use in a MTA-System in an
automotive environment.
This manual contains important advice, notes, and information about the SLA-DCDC-30W. Read this
manual carefully. It helps avoiding accidents, reduces repair costs and extends the operating time of the
SLA-DCDC-30W.
.
1.2 Further products
Product
Description
SLA-1C-GMSL
1 Channel Maxim GMSL2 up to 6 Gb/s
SLA-1S-GMSL
1 Channel Maxim GMSL2 up to 6 Gb/s
SLA-4C-GMSL
4 Channel Maxim GMSL2 up to 6 Gb/s
SLA-4C-FPD
4 Channel Texas Instruments FPD-link-III up to 4.16 Gb/s
AB-ADCAM-MID
Debug-Board for ADCAM-MID application
SLA-DCDC-30W
Galvanic isolated power source
1.3 Available manuals
•User Instructions Manual
•Technical datasheet
•User Reference Manual
1.4 Pictograms
The following pictograms are used in the following to highlight important information related to the safe
operation and handling of the SLA:
Warning
This pictogram combined with the word “Warning”warns of a potentially imminent
danger to the health and lives of people.
Ignoring this warning could cause serious personal injury, including death in the worst
case.
Caution
This pictogram combined with the word “Caution”warns of a potentially dangerous
situation or an unsafe procedure.
Ignoring this warning could result in injury of people or property and environmental
damage.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 7 of 23
2Safety Notes
2.1 General safety instructions
Damage due to overvoltage
Application of overvoltage may cause destruction of the device.
Caution
▪Only apply the voltage to the device as specified in the data sheet
Damage or malfunction due to electrostatic discharge
Electrostatic discharge may cause damage the device.
Caution
▪Operate the device only in ESD-compliant environment
▪Make sure to ground yourself before touching the device
▪Do not touch connectors
▪Observe section 5
Damage or malfunction due to unauthorized opening
Unauthorized opening of the device may cause abnormal behavior or destruction of the device.
Caution
▪Do not open the housing in any case
▪Contact the manufacturer if repair is required
Safety and functional defects due to incorrect accessories and spare parts
Accessories or spare parts that are not recommended by AED Vantage GmbH may have adverse effects
on the safety and functionality of the device.
Caution
▪Do only use and connect original accessories and spare parts that are
recommended by AED Vantage GmbH
Damage or malfunction due to incorrect connection
Incorrect connection of cables may cause abnormal behavior or destruction of the device.
Caution
▪Do only connect cables according to the specification
▪Do only apply the signals and voltages to inputs and outputs as specified in
section 4 and data sheet
Damage or malfunction due to short circuit
Wrong connected or defect cables may cause a short circuit which may cause abnormal behavior or
destruction of the device.
Caution
▪Make sure that the cable insulation and plugs of the cables and the device are
intact and the cables are correctly mounted
▪Observe section 4
Damage or malfunction due to overheating
Overheating may cause abnormal behavior or destruction of the device.
Caution
▪Operate the device only within the specified temperature range and ensure
proper ventilation
▪Do not cover the device during operation
▪Do not operate the device close to heat sources
▪Observe section 5

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 8 of 23
Hot Surfaces
The surfaces of the device may have elevated temperatures during operation
Warning
▪Avoid touching the housing during operation
Damage or malfunction due to shocks
Excessive mechanical shocks and vibration may cause abnormal behavior or destruction of the device.
Caution
▪Do not expose the device to excessive mechanical shocks and vibration during
transport, operation and storage
Damage or malfunction due to penetration of dust, moisture or liquids
Dust, moisture or liquids inside the device may cause abnormal behavior or destruction of the device.
Caution
▪Transport, store and operate the device in a clean environment
▪Only clean the device in de-energized status
▪Do not use wet wipes near plugs or openings in the housing
▪Observe section 5
Damage or malfunction due to pollution
Any contamination may affect the functionality of the device
Caution
▪Transport, store and operate the device in a clean environment
2.2 Product liability
Manufacturer liability for damage caused by using the device is excluded.
If the device is not strictly used in the intended way, then the liability is transferred to the user.
The following cases are examples for not intended usage:
•The device is used in series production cars.
•The device is not used according to the user manual or according to the described scope.
•Modifications are done to the device without permission of AED Vantage GmbH.
•Installation instructions of the device are not fulfilled.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 9 of 23
2.3 Terms of use
The device is designed to be used for engineering purpose only. Special care has to be taken during
operation of the device. Installation in series production cars is not scope of this product.
The usage of the SLA-DCDC-30W must apply to all of the described installation instructions (User
Instructions Manual).
All safety requirements have to be fulfilled by the overall system in the car excluding the device. Users of
cars equipped with the device have to be instructed about possible risks (for example communication
interruption) and proper handling of the SLA-DCDC-30W.
2.4 Warranty
Warranty period is limited to 12 months as this device is likely to be used under rough conditions.
Excluded are damages due to improper installation, improper handling, modification of the product or
usage of the product not according to the described scope or not according to the manual.
Manufacturers liability for damage caused by using the device is excluded.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 10 of 23
3Intended use and integration into system
The device is used as the power source for one SLA and the related adapters and peripherals. The SLA-
DCDC-30W is designed to be used in automotive environment.
The Serdes Logging Adapter (SLA) is part of the measurement infrastructure used in test vehicles with
ECU systems based on with MIPI CSI-2 sensors. The SLA is one of several Measurement Equipment
Adapter (MTA) devices, often also referred to as “probe”, used for logging of data during test drives.
.
Important notices:
•Users must be qualified in electronic or electrical engineering.
•Users must be qualified for using measurement instrumentation.
•The SLA-DCDC-30W is for industrial environments only. No use in personal or domestic areas.
•The SLA-DCDC-30W is for test vehicles only (no use in series vehicles)
•No liability for any failures caused by the product to the functionality of the ECU and other
vehicle functionality. Risk analysis needs to be done by the user for operation in vehicles on
public roads.
•Do not use in hazardous areas.
•Do not use in wet locations or in areas where moisture or condensation can be expected.
•Always use the SLA-DCDC-30W according to its technical specifications.
•Do not open, modify or repair the SLA-DCDC-30W. Otherwise operational safety cannot be
guaranteed.
•Repairs are only carried out by AED Vantage GmbH

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 11 of 23
4Installation and Operation
4.1 Identification
A laser engraved nameplate on the top of the SLA-DCDC-30W contains the following information:
Figure 4.1-1 Nameplate of the SLA-DCDC-30W
•P/N: Device type and version
•S/N: Serial number
•Rev: Hardware Revision
•(DD/MM/YY): Date of production
•Input: Max. current consumption @ nominal supply voltage
•Conformity of standards for product sold within the EEA
•Warning of hot surface
•Read operators manual
•Electronic device according to WEEE
By contacting our support always provide device type, revision and serial number.
The interface parameters are configurable and not part of the nameplate. For detailed information about
the interface configuration see section 6.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 12 of 23
4.2 Connections and controls
This section provides an overview of the physical interfaces of the SLA. The following pictures provide an
overview of the front side interfaces and their positions.
Front Side
Power INPUT
Input voltage 12 VDC nominal
Connector type TE 2-929425-1, 10 pin, male connector
Status LED
LED indicates the status of the SLA-DCDC-30W
Power OUTPUT
Output voltage +12 VDC
Connector type MOLEX 172310-1104, 4 pin, male connector
Figure 4.2-1 Front side ports of the SLA-DCDC-30W
Power OUTPUT
Power INPUT
Status LEDs

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 13 of 23
Power INPUT
By default, the SLA-DCDC-30W must be supplied with 12 VDC voltage. According to the technical
datasheet it can also operate with power supplies between +4,5 VDC and +30 VDC. You can download
this document at the AED wiki see section 10.4.
Power INPUT and Wake connector
TE 2-929425-1
Pin 1
Input
Voltage (+)
Pin 6
n. c.
Pin 2
Input
Voltage (-)
Pin 7
n. c.
Pin 3
Wake 0
(input)
Pin 8
n. c.
Pin 4
Wake 1
(input)
Pin 9
n. c.
Pin 5
n. c.
Pin 10
n. c.

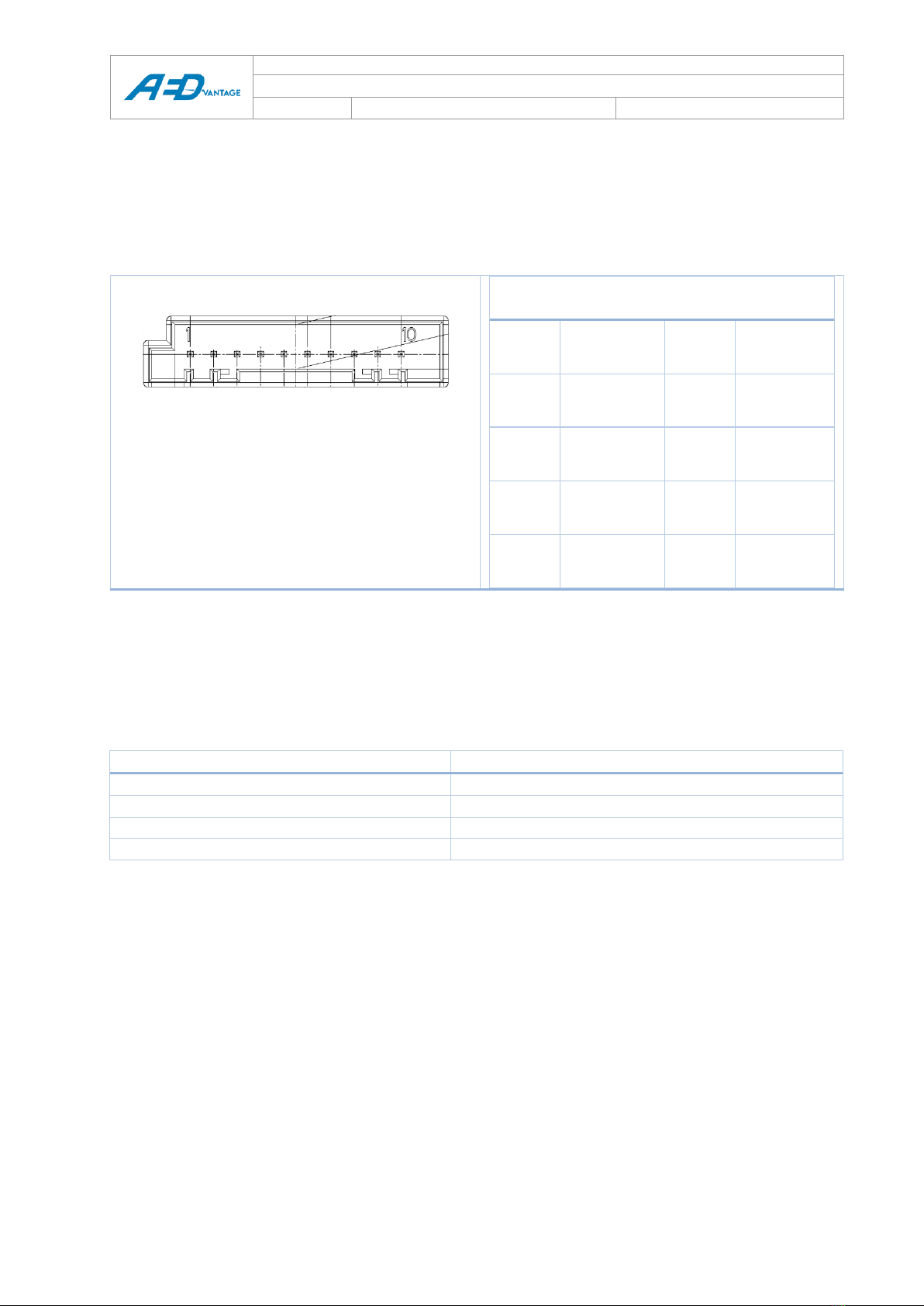

Figure 4.2-2 Front view of Power INPUT connector
Status LED
The status LED indicates the status of the SLA-DCDC-30W.
Status LED
Status
Off
No Power or Standby-Mode
Red (continuous)
Output voltage fault
Orange (blinking)
Fault detected (e.g. input over current)
Green (continuous)
Output voltage is good
Figure 4.2-3 Summary of LED status

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 14 of 23
Power OUTPUT
The output voltage of 12 VDC +/- 5% is fixed and can be variable between the variants of the product. The
output power range goes up to 30 Watts and the inputs and outputs are galvanically isolated. The
insulation is a functional (non-safety) insulation with a dielectric strength of 100 VDC.
Power OUTPUT and Wake
connector
MOLEX 172310-1104
Pin
1
Output Voltage (+)
Pin
2
Output Voltage (-)
Pin
3
Wake 0 (input)
Pin
4
Wake 1 (input)

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 15 of 23
5Installation location
Always prepare the protection of the SLA-DCDC-30W against external damage. As proper location for
installation serves preferably a firm and stable base.
5.1 Grounding
For installation in test vehicles it is required to provide an electrical connection of the enclosure of the
SLA-DCDC-30W with the chassis of the vehicle.
•Impedance (Z): < 50mOhm
•Resistance (R): < 10mOhm
5.2 ESD
Operate with the device in an ESD-compliant environment.
5.3 General environmental conditions
The following general environmental conditions shall be considered when using the SLA-DCDC-30W:
•Indoor use only except in automotive test vehicles
•Altitude up to 3000 m
•Operating temperature -40 °C … +80 °C
•Maximum relative humidity 95 % non-condensing
•No use in wet locations or in areas where moisture or condensation can be expected
•Supply voltage fluctuations between +7 VDC and +24 VDC
•Transient over-voltages up to the levels of overvoltage category I (CAT I)
•Pollution degree 2: Only non-conductive pollution occurs except that occasionally a
temporary conductivity caused by condensation is to be expected
It is the responsibility of the user to provide sufficient cooling by keeping the SLA-DCDC-30W within its
specified temperature limits in all cases. Further details are provided in the technical data sheet. You can
download this document from the AED wiki see section 10.4.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 16 of 23
6Quick Start Guide
6.1 Power up the device
Before powering the device, make sure to read and understand the safety notes in section 2. Connect the
SLA-DCDC-30W to a power supply which provides 12 V DC nominal. Please note the port pinning
assignments in section 4.2. The SLA-DCDC-30W will start up automatically.
6.2 Functional description
The SLA-DCDC-30W is an isolated DC/DC converter with a wide input voltage range and up to 30 Watts
output power. The output voltage is fixed and can be variable between the variants of the product. The
inputs and outputs are galvanically isolated. The insulation is a functional (non-safety) insulation with a
dielectric strength of 100 VDC.
The two wake-up input signals are high active inputs to trigger start the device. At least one of the level
sensitive wake-up signals is needed to activate the device. The wake-up input signals are transparently
forwarded to the wake-up outputs. The output signals are galvanically isolated from the input signals.
The shut-down of the device is triggered if both wake-up inputs are low and the output current is below
150 mA DC. Unless the output current is below this threshold the device will not enter the stand-by
mode. If one of the wake-up inputs is driven high before the output is switched of, the device will keep
running.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 17 of 23
7Example use case
The following figure shows the SLA-DCDC-30W connected to the SLA with an output power cable. In this
case, the SLA-DCDC-30W converter supplies the SLA and the adapter-board with power. This application
takes place in an automotive environment.
Figure 6.2-1 SLA-DCDC-30W connected to SLA
Be careful wrong connections can damage the device.

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 18 of 23
8Technical specification
The following table provides an overview of electrical and technical data of SLA-DCDC-30W.
Property
Value/ Characteristic
Max. output power
30 W @ 25 °C
Max. output current
2.6 A continuous
Input operating voltage
+7 VDC ... +24 VDC,
12 VDC nominal
Output voltage
+12 VDC +/- 5 %
Power consumption
No load: < 300 mA DC @ 12 VDC
Max load: < 5 ADC @ 12 VDC
Logic inputs
Wake 0 and Wake 1:
Low: -0.2 VDC … +1 VDC
High: 2 VDC … +33 VDC
Overvoltage category
CAT I
Dimensions (W x D x H)
70 x 90 x 24 mm
Weight
Approx. 250g
IP grade
IP30
Figure 6.2-1 Technical Data

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 19 of 23
9Storage, transport and disposal
9.1 Storage
For a longer unused storage of our device we advise the following conditions:
•Storage temperature: -40 °C … +85 °C
•Storage humidity: 0 … 99 % non-condensing
•Protect the SLA-DCDC-30W from strong sunlight, heat and shocks
•Do not place any object on the SLA-DCDC-30W
•Store the SLA-DCDC-30W in a dry, dust-free and ESD safe area
9.2 Transport
Transport conditions of the SLA-DCDC-30W:
•Transport temperature: -40 °C … +85 °C
•Transport humidity: 0 .. 99 % non-condensing
•Use only original packaging
9.3 Disposal
The user is responsible for the proper disposal of the device. Therefore, industry-specific and local
provisions must be observed for the disposal of this device and its packaging.
According to the Waste Electrical and Electronic Equipment Directive (WEEE Directive)
2012/19/EU, electrical and electronic devices may not be disposed of with the normal
household waste

DC/DC converter --- Product: SLA-DCDC-30W
Document: User Instructions Manual
Rev: 06
Date: 26. April 2023
Company: AED Vantage
Public –Page 20 of 23
10 Maintenance and Service
10.1 Safety measures
Damage or malfunction due to short circuit
Wrong connected or defect cables may cause a short circuit which may cause abnormal behavior or
destruction of the device.
Caution
▪Make sure that the cable insulation and plugs of the cables and the device are
intact and the cables are correctly mounted
▪Observe section 4
Safety and functional defects due to incorrect accessories and spare parts
Accessories or spare parts that are not recommended by AED Vantage GmbH may have adverse effects
on the safety and functionality of the device.
Caution
▪Do only use and connect original accessories and spare parts that are
recommended by AED Vantage GmbH
10.2 Cleaning
Damage or malfunction due to pollution
Any contamination may affect the functionality of the device
Caution
▪Transport, store and operate the device in a clean environment
Damage or malfunction due to penetration of dust, moisture or liquids
Dust, moisture or liquids inside the device may cause abnormal behavior or destruction of the device.
Caution
▪Transport, store and operate the device in a clean environment
▪Only clean the device in de-energized status
▪Do not use wet wipes near plugs or openings in the housing
▪Observe section 5
