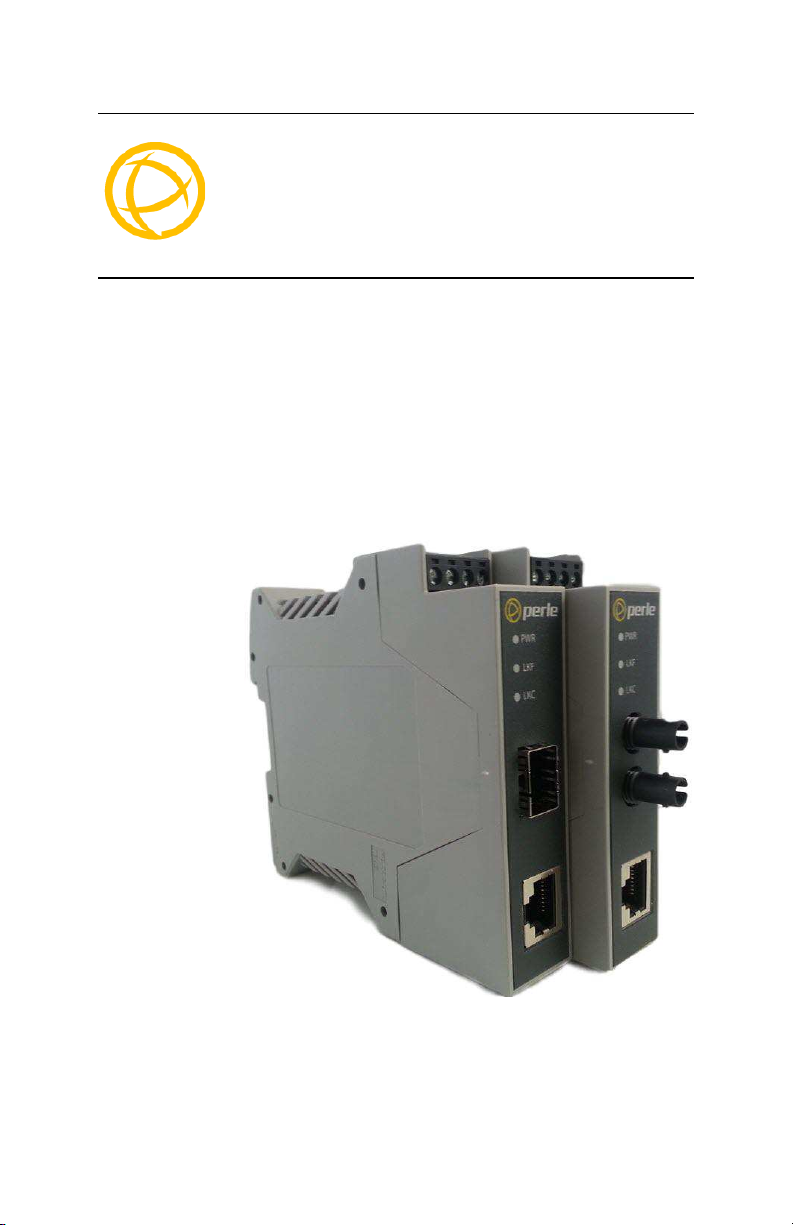

Perle SR-100 Series User manual

P/N 5500443-10 (Rev F)
Perle Fast Ethernet
Media Converters
Installation Guide
SR-100-XXXXXX- (XT)
SR-100-SFP- (XT)

Perle SR-100 Fast Ethernet Media Converter Installation Guide 2
Preface
Audience
This guide is for the network or computer technician responsible
for installing the Perle SR-100 Gigabit Media Converter. Familiarity
with the concepts and terminology of Ethernet and local area
networks is required.
Purpose
This document describes the hardware and physical
characteristics of the Perle SR-100 Media Converter. It covers
hardware features as well as installation and operation of the
SR-100.
Package Contents
•SR-100 Media Converter with attached DIN Rail mounting
bracket
•Installation Guide (this guide)
Document Conventions
Note: Means reader take note: notes contain helpful suggestions.
Caution: Means reader be careful. In this situation, you might
perform an action that could result in equipment damage or loss of
data.
Warning: IMPORTANT SAFETY INSTRUCTIONS
Means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the
hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. Only qualified
personnel should connect power to this unit.
Cautions and Warnings
Warning: Power sources must be off prior to beginning the power
connection steps. Read the installation instructions before you
connect the unit to its power source.
Warning: These devices are open-type devices that are to be
installed in an enclosure with a tool removable cover or door,
suitable for the environment.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 3
Warning: Power supply of the equipment must be rated
appropriately (See the Technical Specification section for
specification with limited power). Limited power means complying
with one of the following:
•Class 2 circuit according to Canadian Electrical Code, Part 1,
C22.1
•Class 2 circuit according to National Electrical Code, NFPA-70
•Limited Power Supply (LPS) according to EN/IEC 60950-1.
•Limited-energy circuit according to EN/IEC 61010-1
Warning: If this equipment is used in a manner not specified by
the manufacturer, the protection provided by the equipment may
be impaired.
Warning: In case of malfunction or damage, no attempts at repair
should be made by the user. All repairs need to be made by a
qualified Perle representative. Do not dismantle this product.
Warning: Transient protection shall be provided that is set at a
level not exceeding 140% of the peak rated voltage value at the
supply terminals to the equipment.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 4
Overview
This document contains instructions necessary for the installation
and operation of the Perle Industrial Fast Ethernet Media
Converters (SR-100). These products convert a 100Base-TX
cable connection (copper) to a 100Base-X connection (fiber).
The fiber connection can be either single mode (SM) or multimode
(MM) and can operate over different wavelengths and distances,
depending on the model selected (see table below). Perle Media
Converters (SR-100) are also available in Extended Temperature
models.
Model Connector Mode - Distance Wavelength
SR-100-SC2 (XT) SC MM – 2 km/1.25 mi. 1310 nm
SR-100-ST2-(XT) ST MM – 2 km/1.25 mi. 1310 nm
SR-100-SC2U SC MM – 2 km/1.25 mi. 1310/1550 nm
SR-100-SC2D SC MM – 2 km/1.25 mi. 1550/1310 nm
SR-100-ST2U SC MM – 2 km/1.25 mi. 1310/1550 nm
SR-100-ST2D SC MM – 2 km/1.25 mi. 1550/1310 nm
SR-100-SC20 (XT) SC SM – 20 km/12.4 mi. 1310 nm
SR-100-ST20 (XT) ST SM – 20 km/12.4 mi. 1310 nm
SR-100-SC20U (XT) SC SM – 20 km/12.4 mi. 1310/1550 nm
SR-100-SC20D (XT) SC SM – 20 km/12.4 mi. 1550/1310 nm
SR-100-SC40 (XT) SC SM – 40 km/25 mi. 1310 nm
SR-100-ST40 (XT) ST SM – 40 km/25 mi. 1310 nm
SR-100-SC40U SC SM – 40 km/25 mi. 1310/1490 nm
SR-100-SC40D ST SM – 40 km/25 mi. 1490/1310 nm

Perle SR-100 Fast Ethernet Media Converter Installation Guide 5
SR-100-SC80 SC SM – 80 km/50 mi. 1550/1590 nm
SR-100-ST80 ST SM – 80 km/50 mi. 1590/1550 nm
SR-100-SC120 SC SM – 120 km/74.6 mi. 1550 nm
SR-100-ST120 ST SM – 120 km/74.6 mi. 1550 nm
SR-100-SFP-(XT) SFP Note 1
Note 1: Fiber characteristics will depend on the SFP fiber module
selected
Note: Please visit Perle’s web site for the most up to date
Installation guides, models and specifications:
http://www.perle.com/

Perle SR-100 Fast Ethernet Media Converter Installation Guide 6
Installation
These are the steps required to configure the SR-100 Fast
Ethernet media converter:
1. Insert SFP Module (SFP Model only).
2. Set the DIP switch settings. (optional)
3. Install and connect the fiber cable.
4. Install and connect the copper cable.
5. Power up the media converter.
Accessing the DIP Switches
To access the DIP switches:
1. Disconnect the power source.
2. Release both tabs as located in the diagram (Step 1).
3. Gently side the case open 1/3 of the way to expose the DIP
switches (Step 2). You will hear an audible click. Do not force
the case completely open.

Perle SR-100 Fast Ethernet Media Converter Installation Guide

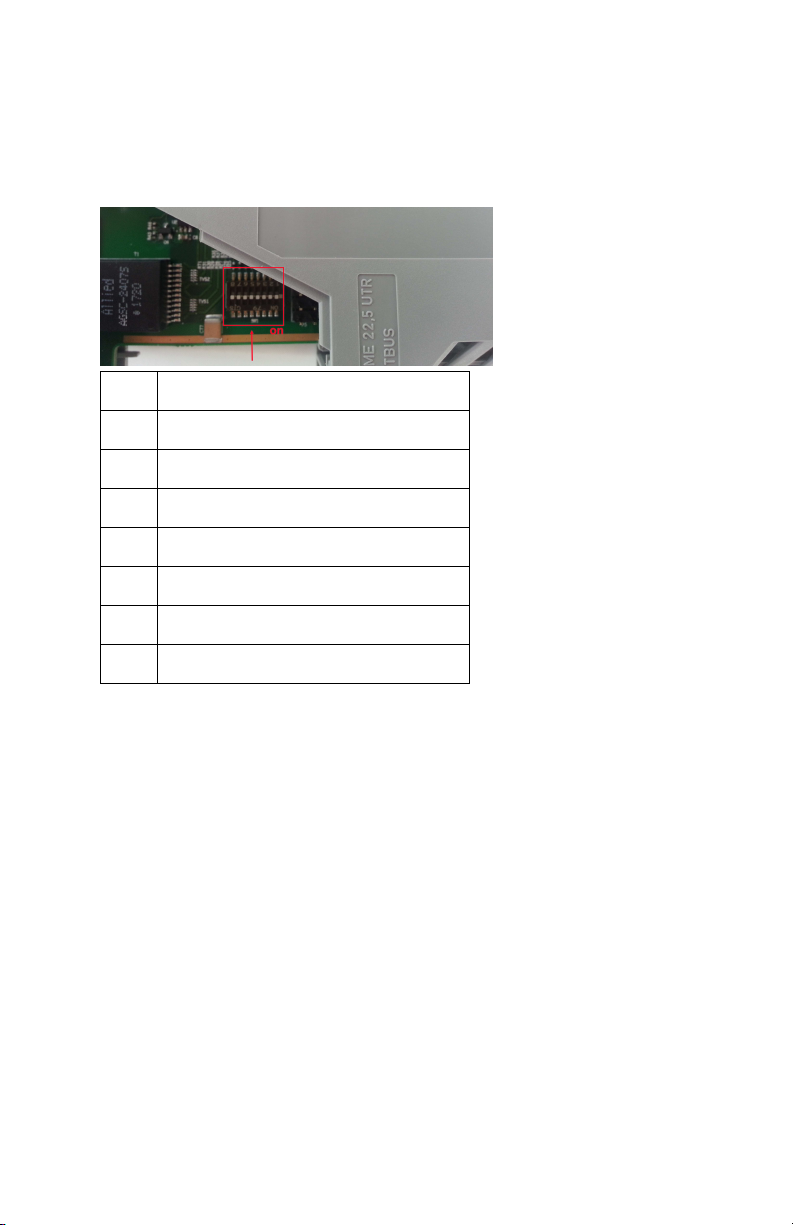

DIP Switches
Set the DIP Switches accordingly, and then slide the case
together until you hear an audible click.
1 Reserved
2 Auto Negotiation
3 Smart Link Pass-Through
4 Far End Fault
5 Reserved
6 Pause
7 Loopback
8 Reserved

Perle SR-100 Fast Ethernet Media Converter Installation Guide 8
DIP Switch Settings
Reserved (Switch 1)
Auto Negotiation (Switch 2)
Switch Position Mode
Up (default) On
Down Off
Auto: In this mode of operation the media converter will negotiate
Ethernet parameters on the copper connection. This will ensure
the most optimal connection parameters will be in effect. If the
copper link partner does not support Auto negotiation, the SR-100
will default to 100 Mbps and Half Duplex mode.
Off: Auto Negotiation should only be turned off, if the copper link
partner does not support Auto Negotiation.
When the Auto Negotiation switch is set to the Off position, the
media converter will operate at 100 Mbps and Full Duplex mode.
Smart Link Pass-Through (Switch 3)
Switch Position Mode
Up (default) Enable
Down Disable
Enable: In this mode, the link state on one connection is directly
reflected through the media converter to the other connection. If
link is lost on one of the connections, then the other link will be
brought down by the media converter.
If the installation has a media converter on both ends of the fiber
link and both are setup for Link Pass-Through, then a loss of
copper link on the far end device will propagate through both
media converters and will result in a loss of copper link at the near
end device. This would, therefore, resemble a direct copper
connection.
Disable: In this mode, the links on the fiber and copper sides can
be brought up and down independently of each other. A loss of
link on either the fiber ports or copper ports can take place without
affecting the other connection.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 9
Far End Fault (Switch 4)
Switch Position Mode
Up (default) Enabled
Down Disabled
Enabled: If the media converter detects a loss of fiber signal on
the fiber receiver, it will immediately send a FEF on the fiber link.
This, in effect, notifies the fiber link partner that an error condition
exists on the fiber connection.
If the remote media converter is set up for Far End Fault (FEF)
and the local media converter is set up with Link Pass-Through, a
loss of fiber link on either the transmit or receive line will be
passed through to the local copper connection thus notifying the
connected device.
If the media converter has been set to Link Pass-Through mode,
the effect will be the same as FEF, since the link loss on the fiber
receiver will bring down the copper link, which will in turn cause
the transmit fiber link to be brought down.
NOTE: This switch needs to be set to either generate or detect
the FEF signal.
Disabled: The media converter will not monitor for or generate Far
End Fault.

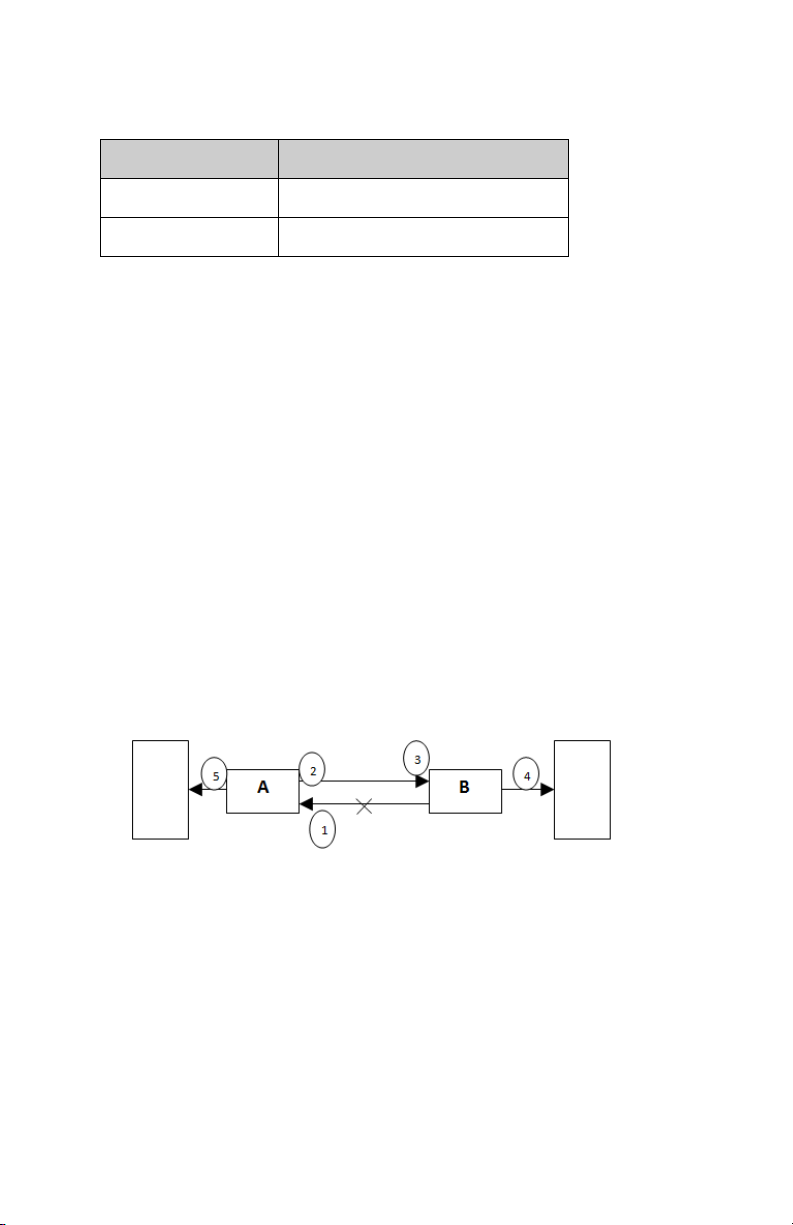

The following diagram is an illustration of the operation of this
feature.
(A) – Remote Media Converter setup for Far End Fault
Enabled, Auto Negotiation – OFF and Link Mode – Standard.
(B) – Local Media Converter setup for Link Pass-Through and
Auto Negotiation - OFF
(A) loses fiber connection on its receiver
(A) sends an FEF
(B) detects loss of link in its fiber receiver
(B) drops link on copper connection through Link Pass-Through
(A) Link on copper connection is not affected.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 10
Reserved (Switch 5)
Pause (Switch 6)
Switch Position Mode
Up (default) Auto
Down Half
Auto: When Auto Negotiation has been set to Auto (SW 2), the
media converter will use this setting for its Ethernet parameter
negotiation on the copper connection.
Half: The media converter will not negotiate support for the Pause
feature.
NOTE: The media converter will not act on, or generate any
Ethernet Pause messages, but will pass them through to the end
device. This switch setting is provided so that the attached device
(near end) can negotiate its Ethernet parameters as if it was
negotiating directly with the far end device. The Pause switch
setting on the media converter should match the capabilities of the
far end device.
Loopback (Switch 7)
Switch Position Mode
Up (default) Disabled
Down Enabled
Disabled: The loopback feature is disabled. This is the normal
position for regular operation. The switch must be set to this
position for data to pass through the media converter.
Enabled: This is a test mode. All data received on the receive
(RX) fiber connection is looped back to the transmit (TX) fiber
connection. The state of the copper is not relevant and no data or
link status is passed through to the copper side.
Reserved (Switch 8)

Perle SR-100 Fast Ethernet Media Converter Installation Guide 11
Installing the SFP Fiber Module
The SR-100-SFP requires an SFP fiber module.
1. Locate your fiber module, and then insert the module into the
transceiver opening.
2. Ensure the SFP module is properly seated.
3. The SFP module may be inserted before or after applying
power to the media converter.
4. Proceed with cable connections.
Installing the Duplex Fiber Cable
•Locate a 100Base-X compliant duplex (2 strands) fiber cable
with male connections.
•Connect the fiber cables from one media converter to the other
media converter/switch/fiber device ensuring that the RX and TX
are reversed at the opposite end.
Installing the Simplex Fiber Cable
Locate a 100Base-X compliant simplex (1 strand) fiber cable with
male connections.
•Connect the fiber cable from one media converter to the other
media converter/switch/fiber device.
Installing the Copper Cable
•Locate 100Base-TX compliant copper cables with male, RJ45
connectors installed at both ends.
•Connect the RJ45 cable between the Perle media converter and
the device.
Note: The Perle media converter supports Auto-MDI-X, either a
straight-through or cross over Ethernet cable may be used.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 12

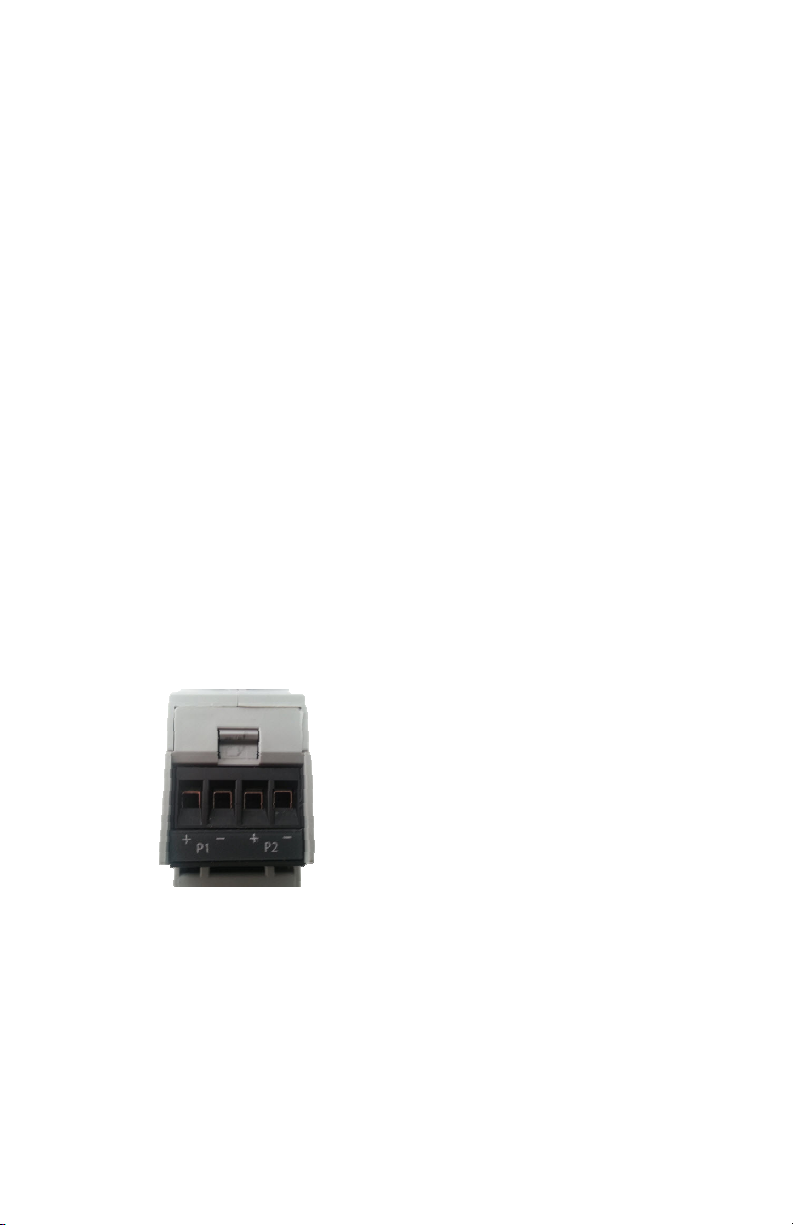

Connecting the Terminal Block
The terminal block provides two power inputs. Both power inputs
can be connected to the SR-100 to provide redundant power to
the SR-100. If one power supply should fail the SR-100 will use
the other power supply to continue to power the unit without
interruption. Wiring with suitable temperature ratings must be
used. Use copper conductors only.
1. Ensure the power source is off prior to connection.
2. Strip both (12-20AWG) wires 7-8 mm(5/16th).
3. Loosen the terminal block screws and connect positive
(+)/negative (-) wires into the +/- terminals.
4. Tighten terminal screws (0.5Nm torque). Ensure the wires are
securely fastened.
5. If desired, connect P2 (power source 2, beginning at Step 1)
6. Turn on the power at source.
7. Check that the PWR LED light is lit.
8. Check LED indicators in the guide before and applying power
to the media converter.
9. Ensure that there is one individual conductor for each
clamping point.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 13
Operation
Status LED
The SR-100 Fast Media converters status LEDs are located on the
front panel of the unit.
PWR - Power/Test
•On: Power is on and the unit is in normal operation mode.
•Blinking quickly: the unit is in loopback mode.
•Blinking slowly: the unit has a hardware error.
LKF - Fiber Link/Activity
•On: Fiber link present.
•Blinking quickly: Fiber link present and receiving data.
•Blinking slowly: Fiber link disabled because of copper link
loss.
•Off: No fiber link present.
LKC - Copper Link/Activity
•On: Copper link is present.
•Blinking quickly: Copper link present and receiving data.
•Blinking slowly: Copper link disabled because of fiber link
loss.
•Off: No copper link present.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 14
Other Features
Auto-MDIX:
Auto-MDIX (automatic medium-dependant interface crossover)
detects the signalling on the 100BASE-T interface to determine
the type of cable connected (straight-through or crossover) and
automatically configures the connection.
Error Recovery:
In certain configurations, and under specific conditions where the
media converter brings down a link to convey status, there is
potential for a deadlock. Recovery is achieved by momentarily
restoring the link to see if the original failure has been resolved. If
it has not, the link will be forced down again, however if the
original problem has been resolved, the link will be restored

Perle SR-100 Fast Ethernet Media Converter Installation Guide 15
Troubleshooting
General
•Ensure power is supplied to the media converter.
•Ensure both devices on either end of the fiber are compatible.
If using a single fiber connection, ensure that you have both
an Upstream (U) and Downstream (D) media converter.
•Ensure all cabling is of the correct type and is in good
operating condition.
•For dual-stranded fiber connections, ensure the RX and TX
has been reversed between the 2 media converters.
No connectivity
If unable to get full connectivity with all DIP switches in the UP
position, the following procedure is recommended for
troubleshooting.
Method 1
1. Set the Link mode to Standard (SW3 – Down) on both media
converters. Leave all other switches in the Up position.
2. Connect the near end device to the copper connection. The
LKC LED indicates good copper connection. If the LKC LED
is not lit, then check the copper cable and the attached
device.
3. Repeat for the far end media converter.
4. Connect the fiber cable to both media converters. The LKF
LED indicates good fiber connection. If no LKF LED then
check the fiber cabling.
5. Return units to desired configuration.
Method 2:
The fiber connection can also be verified by configuring the
remote media converter for loopback mode. The LKF LEDs on
both media converters should be lit. Data should pass through the
local converter, over the fiber connection to the remote media
converter. At the remote media converter, the data will be looped
back and passed through the fiber, once again, to pass through
the local converter to the copper link.

Perle SR-100 Fast Ethernet Media Converter Installation Guide 16
Technical Specifications
The following applies to all SR-100 media converters.
Input Supply Voltage 9.6-60VDC 0.4A max, unregulated
(12/24/48-VDC nominal)
Power Consumption 2.4 watts
Operating Temperature -10°C - 60°C (14°F - 140°F
Storage Temperature: -40°C - 85°C (-40°F - 85°F)
Operating Temperature (XT) -40°C - 75°C (-40°F -167°F)
Storage Temperature (XT) -40°C - 85°C (-40°F -185°F)
Operating Humidity: 5% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Operating Altitude: Up to 3,048 m (10,000 ft.)
Weight: 0.12kg
Dimensions SC 114 x 100 x 22.5 mm
ST 126 x 100 x 22.5 mm
SFP 117 x 100 x 22.5 mm
Safety
UL/ULC/EN 62368-1
CAN/CSA C22.2 No. 62368-1-14
UL 61010-1 and UL 61010-2-201
Laser Class I Safety – IEC 60825-1:2014
IEC-60825-1:2014 standard and complies with FDA/CDRH
21 CFR1040.10 and 21 CFR1040.11
EMI/EMC
FCC 47 Part 15 Class A
ICES-003
EN55032(CISPR32)
EN61000-6-4
EN55024
IEC/EN 61000-6-2 General Immunity for Industrial Environments
IEC/EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS)
EN 61000-4-4 (EFT)
EN 61000-4-5 (Surge
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)
EN 61000-4-11

Perle SR-100 Fast Ethernet Media Converter Installation Guide 1
Fiber Optic Specifications:
The following tables applies to all SR-100 media converters.
Model Mode Wavelength
(nm)
TX Power
(dB)
RX Power
(dB)
Budget
(dB)
SR-100-SC2 (XT) MM TX: 1310
RX:
1310
Min: -20
Max:
-
12
Min: -31
Max:
-
14
11
SR-100-ST2 (XT) MM TX: 1310
RX:
1310
Min: -20
Max:
-
12
Min: -31
Max:
-
14
11
SR-100-SC2U MM TX: 1310
RX:
1550
Min: -20
Max:
-
12
Min: -31
Max:
-
14
11
SR-100-SC2D MM TX: 1550
RX:
1310
Min: -20
Max:
-
12
Min: -31
Max:
-
14
11
SR-100-ST2U MM TX: 1310
RX:
1550
Min: -20
Max:
-
12
Min: -31
Max:
-
14
11
SR-100-ST2D MM TX: 1550
RX: 1310
Min: -20
Max: -12
Min: -31
Max: -14 11
SR-100-SC20 (XT) MM TX: 1310
RX: 1310
Min: -18
Max: -7
Min: -32
Max: -3 14
SR-100-ST20 (XT) MM TX: 1310
RX: 1310
Min: -15
Max:
-
8
Min: -32
Max:
-
3
17
SR-100-SC20U (XT) SM TX: 1310
RX: 1550
Min: -14
Max: -8
Min: -32
Max: -3 18
SR-100-ST20D (XT) SM TX: 1310
RX: 1
490
Min: -9.5
Max:
-
3
Min: -20
Max:
-
3
11
SR-100-SC40 (XT) SM TX: 1310
RX: 1310
Min: -5
Max:
0
Min: -34
Max:
-
3
29
SR-100-ST40 (XT) SM TX: 1310
RX: 1310
Min: -5
Max:
0
Min: -34
Max:
-
3
29
SR-100-SC40U SM TX: 1310
RX: 1
550
Min: -8
Max:
-
3
Min: -33
Max:
-
3
25
SR-100-SC40D SM TX: 1310
RX: 1
550
Min: -8
Max:
-
3
Min: -33
Max:
-
3
25
SR-100-SC80 SM TX: 1550
RX: 1550
Min: -5
Max: 0
Min: -34
Max: -3 29
SR-100-ST80 SM TX: 1550
RX: 1550
Min: -5
Max: 5
Min: -34
Max: -3 29
SR-100-SC120 SM TX: 1550
RX: 1550
Min: 0
Max: 5
Min: -35
Max:
-
3
35

Perle SR-100 Fast Ethernet Media Converter Installation Guide 18
Model Mode Wavelength
(nm)
TX Power
(dB)
RX Power
(dB)
Budget
(dB)
SR-100-ST120 SM TX: 1550
RX: 1550
Min: 0
Max: 5
Min: -35
Max: 0
35
Fiber Cabling Requirements:
MM: 50/125 microns or 62.5/125 microns
SM: 9/125 microns
Ethernet Copper Cabling Requirements
•Category 5e UTP or STP
•Straight through or Ethernet crossover
Note: Please refer the product page on the Perle website for the
most up to date specifications.
http://www.perle.com/

Perle SR-100 Fast Ethernet Media Converter Installation Guide 19
Mechanical Drawings

Perle SR-100 Fast Ethernet Media Converter Installation Guide 20
Connecting the SR-100 to a DIN Rail
The DIN Rail clip will be attached to the SR-100.
Mounting the SR-100 on a DIN Rail
1. Position the SR-100 so that the top hooks of the DIN Rail clip
attach onto the top of the DIN rail.
2. Rotate the bottom of the SR-100 towards the rail. This will
snap the bottom hooks of the DIN Rail clip onto the bottom of
the DIN rail.
Removing the SR-100 from the DIN Rail
The DIN Rail attachment clip has a slot at the bottom of the latch
that is visible beneath the SR-100 when it is mounted.
1. Insert a flat blade screwdriver into the slot and twist the base
to release the clip. Alternatively, a downward force on the clip
will release the clip.
2. When the clip is released, pull the bottom of the SR-100 out
slightly and remove the SR-100 from the DIN rail.
