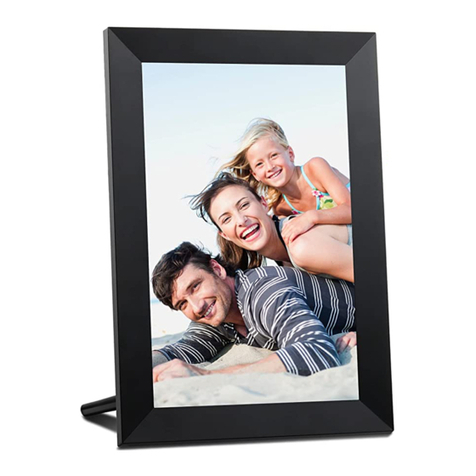

AEEZO MEMORY 01 User manual
User Manual
Digital Photo Frame
Memory 01
Moments Never Fade
LANGUAGE DIRECTORY
English.......................................................................... 1
Deutsch........................................................................ 14
Français........................................................................ 27
日本語........................................................................... 40
Español......................................................................... 53
Italiano.......................................................................... 66
Table of Contents
Initial Setup.....................................................................
Download the Frameo App on Your Phone...............
Connecting to a Frame.................................................
Sharing Photos/Videos.................................................
Quick Menu.....................................................................
Detailed Settings Menu.................................................
My Frame........................................................................
Manage Photos..............................................................
My Friends.......................................................................
Display ............................................................................
Slideshow........................................................................
Wi-Fi................................................................................
Backup and Restore......................................................
Help & About..................................................................
Warranty & Contact Us.................................................
3
4
5
6
7
8
8
9
10
10
11
11
12
Notifications.................................................................... 11
12
13
AEEZO Frame Overview............................................... 1
1
1. Wall Mount Hole
3. SD Card Slot
2. Power Button
Hold the power button for about 5 seconds to power on
the frame.
When the frame is on, press the power button once to turn
the screen on or off.
Hold the power button for about 2 seconds to get power
off options. To avoid any possible damage to the frame,
please do not unplug the power adapter from the frame while
the device is on.
SD cards can be used to import photos to the frame. Photos
can also be exported to an SD card from the frame to make
a backup or move to a computer, etc. Note that photos
cannot be displayed directly from an SD card.
4. Headphone Jack
En
AEEZO Frame Overview
1
2
3
4
5
6
7
8
8
2
6. Mini USB Port
5. USB 2.0 Port
The USB 2.0 port is for use with flash storage devices
(USB/thumb drive) for importing and exporting photos. Note
that photos cannot be displayed directly from a USB drive.
Additionally, the frame cannot be connected to a computer
via the USB port.
The Mini USB port is for use by our technicians during setup
and service only. It does not support importing or exporting
photos.
7. DC (Power) Port
8. Speaker
AEEZO Memory 01 Specifications
Screen 10.1-inch Touchscreen
Resolution 1280x800 IPS HD Display
Wi-Fi 2.4GHz
CPU Quad-core Cortex TM-A7
RAM 1GB DDR3
Storage* 16GB
En
*Storage specifications refer to capacity before formatting.
Actual formatted capacity will be less.
3
Initial Setup
1. Select a language 2. Connect to Wi-Fi
1. Plug in the power adapter included in the box to turn on the
frame.
2. You may need to wait for up to 15 seconds as the Frameo
system is loading.
3. Follow the prompts to set up the frame. You can use the
touchscreen to navigate through the setup menus.
1) First start by selecting a language. This will be used as
the system language and in all menus.
2) Connect your frame to the internet by selecting a Wi-Fi
network and entering the password.
3) If a newer version of the Frameo software is available,
then you will be prompted with an update dialog. It is
recommended that you update your frame immediately if
prompted.
4) Enter your name and the location where you will place
the frame (e.g. “John Smith” and “Living room,” “Kitchen,”
or “Office.”) Finally, set the time zone.
En
Your frame is now online. You can proceed to link your
frame to mobile devices and start sharing photos and videos.
To share your special moments with AEEZO digital photo
frames from anywhere in the world, start by downloading the
free app Frameo on your mobile device.
Search “Frameo” in the App Store (iOS) or on Google Play
(Android) to download Frameo, or scan the QR code below.
4
Download the Frameo App on Your Phone
3. Update to the latest version 4. Enter your name
Follow the prompts in the app to set up your profile, including
your name and profile picture.
En
1. Tap the add friend icon on your frame. A box will
appear with a unique code which is valid for 12 hours.
2. Now go to the Frameo app on your phone and click the
add friend icon in the top right corner, then enter the
code from the frame. Your mobile app is now connected
to the frame.
3. Share the frame code with your friends or family. They
can add the frame and start sharing photos to the frame.
There is no limit to the number of mobile users that can
connect to the frame.
In order to send pictures to an AEEZO frame, you need to
connect to the frame using the Frameo App. Follow the steps
below to connect.
5
Download the Frameo
app on your phone Share the code
Enter the code in
the Frameo app
You can now send photos
from your phone to the frame
Click the add friend
icon on your frame
Connecting to a Frame
En
Once you have connected to a frame on the mobile app,
you can select photos and videos to share to the frame. If
sharing from your gallery, you can send up to 10 photos at a
time or send one short video (up to 15 seconds). You can also
take photos or video directly in the app.
6
Sharing Photos & Videos from
Frameo to an AEEZO Frame
En
The Frameo app
Write a caption to send
with the image
Choose one or more
recipients
Take a photo or video or select
one or more from your albums
7
Gallery
View all photos stored in the frame.
Settings
Enter the detailed settings menu.
Hide photo
Tap this to make the current photo no longer appear in the
slideshow. The photo will not be deleted.
Fit to frame
The photo will be fully displayed on the frame in either orienta-
tion. Extra background space will be blurred out. This only
applies to the current photo.
Fill frame
The photo will be cropped to fully fill the screen in either
orientation. (Note: you can set the default display mode for all
photos in Settings - Slideshow)
Adjust photo
Adjust which part of the photo is displayed while using fill
frame mode.
En
Quick Menu
Simply tap the screen once, and the quick menu will
appear. You can use this menu to adjust/hide the current photo
and to access the gallery or other settings.
Tap the screen to access the quick menu, then tap the
Settings icon to view detailed settings and options for the
frame. In settings, you can personalize your frame to meet your
needs.
Detailed Settings Menu
Set language
Sets the system language used throughout your frame.
Set time zone
8
Detailed Settings Menu
My frame
Frame name
Changes the name of your frame. This name will also be seen
by friends and family in their list of connected frames in the
Frameo app.
Frame location
Changes the listed location of your frame. This location is
displayed on your friends' and family's list of connected frames
to help distinguish them from each other.
En
Sets the time zone that will be used on your frame for features
like sleep mode.
9
Manage photos
Photos stored
Show/hide photos
Shows total number of photos/videos on the frame and amount
of available storage space.
Select which photos to hide by clicking them once. Hidden
photos will not be displayed in the slideshow, however, they will
not be deleted and can always be unhidden for future use.
Use to hide or show all photos.
Delete photos
Select photos that you want to permanently delete from your
frame by clicking them once. Use to select or deselect all.
Then click the trash can icon in the top right corner to
permanently delete.
Import photos
You can import photos from an SD card or USB flash drive.
Insert the SD card or USB flash drive, then select the photos
that you want to import to your frame. Use to select or
deselect all. Then click the import button in the top right corner
to start importing. If both SD card and USB drive are inserted
into the frame, it will only recognize the one that was inserted
last. At this time, videos cannot be imported from external
storage.
Export photos
You can use an SD card or USB flash drive to export all photos
from the frame to external storage. Note that the frame does
not support being plugged into a computer directly via USB.
En
To allow a new person to send you photos, simply tap the add
friend button and share the frame code with that person.
They will be added automatically once they connect to the
frame through the mobile app.
Note: Your frame is not powered down while sleep mode is on, so it will
not affect your ability to receive photos.
Add friend
Display
Brightness level
Adjust the brightness level of the screen.
Sleep mode
Sleep mode allows you to reduce power consumption by
automatically turning off and waking up the device at set times.
The default setting turns off the screen at 11:00 pm and wakes
it up at 7:00 am. You can adjust the start/end time as desired.
10
Delete friend
Friend settings
To remove a person from your friends list, tap delete friend.
They will no longer have permission to send photos to your
frame. You also have the option to delete all photos from this
person at the same time.
Here you can give permission for the friend to share the frame
code with others. You can also delete a friend if you no longer
want to receive photos from them.
This page contains a list of all people that are allowed to send
photos to your frame.
My Friends
En
11
Slideshow
Timer
Define the duration each photo is displayed.
Show caption
Friends can add captions to photos when they share them to
the frame. Check this option to display captions in the slide-
show. Uncheck to hide captions.
Fill frame
You can choose between two modes as the default way to
display photos.
Fill frame: Photos will be cropped to fully fill the screen in
either orientation.
Fit to frame: Photos will be fully displayed on the frame in
either orientation. Extra background space will be blurred out.
You can choose to display photos ordered by date or shuffled.
Photo display order
You can adjust video volume, turn on/off autoplay, and change
video playback mode.
Select a Wi-Fi network to connect to. If you are connecting to
a network with a captive portal, a web browser icon should
appear in top right corner of the screen. Click it to open a
browser where you can enter credentials to access the
network.
Video
Wi-Fi
Notifications
Turn on/off notifications for a variety of items and adjust
notification volume.
En
If checked, your frame will automatically make a backup within
30 hours of you receiving new photos or making changes on
your frame.
Automatic backup
Removes all data from your frame. This will permanently
remove all your photos/videos, friends, and settings.
Reset frame
Opens the quick start guide that is shown during initial setup of
the frame.
Guide
Help & About
Share anonymous analytics data
Sharing anonymous analytics data helps tremendously with
improving the Frameo software. We understand if you do not
wish to share this data with us. Set as checked if you wish to
help us improve Frameo. Set unchecked to deny the sharing of
anonymous analytics data.
12
Note: Any existing backup on the SD card will be overwritten!
Back up frame to external storage
To back up the photos on the frameto an SD card, follow the
below steps:
step 1: Insert SD card into the SD card slot.
step 2: Tap the screen and go to “Settings”
step 3: Go to “Backup and Restore”
step 4: Tap“Back up frame to external storage”
When complete, you will see “Last successful backup: (Date &
Time)” appear underneath.
Backup and Restore
En
13
Warranty & Contact Us
Check for available software updates and download/install
them on your frame.
Check for update
Thanks for choosing an AEEZO Digital Photo Frame. We
provide lifetime customer support and a one-year quality
warranty. If you have any questions or problems with our
call +1-866-666-0702. We typically respond within 24 hours.
Your satisfaction is our priority.
En
Other manuals for MEMORY 01
1
Table of contents
Other AEEZO Digital Photo Frame manuals
