Sencor SDF 1371 User manual

INSTRUCTION MANUAL DIGITAL PHOTO FRAME
NÁVOD K OBSLUZE DIGITÁLNÍ FOTORÁMEČEK
NÁVOD NA OBSLUHU DIGITÁLNY FOTORÁMČEK
FELHASZNÁLÓI KÉZIKÖNYV DIGITÁLIS FOTÓKERET
INSTRUKCJA OBSŁUGI FOTORAMKA CYFROWA
SDF 1371

EN - 2
1. PRODUCT SPECIFICATIONS
1.1 Features
• Supports JPG,PNG format picture browsing; supports image rotation, scaling; supports auto
play with multiple special eff ects, supports background music playback;
• Clock and calendar display: supports calendar, month calendar and clock display; supports MP3
and WMA audio fi le format playback; supports AVI, MP4, MKV, RMVB, MOV video fi le format
playback;
• Can set for system parameters and functions;
• Supports a large variety of cards, including: SD, MMC, etc., and supports software upgrading via
SD card;
• Supports USB2.0, can be confi gured as USB OTG; supports a large variety of U disk, MP3 and
other USB devices;
• Support infrared remote control.
2. KEY DEFINITIONS IN THE REMOTE CONTROL
Users can use the remote control to achieve full functions. Key defi nitions in the remote control are
as below:
1. MUTE: Press to turn off the sound when
playing; press again to re-open the sound.
2. STANDBY: Press to enter into standby mode
when playing; press again to return.
3. PHOTO: Picture playback shortcuts.
4. MUSIC: Music playback shortcuts.
5. MOVIE: Movie Playback shortcuts,
6. PLAY/PAUSE: Play / Pause.
7. UP: Cursor up key.
8. EXIT: Return key.
9. LEFT: Cursor left key.
10. ENTER: Confi rm key.
11. RIGHT: Cursor right key.
12. SETUP: Setting Shortcuts.
13. DOWN: Cursor down key.
14. CALENDAR: Clock and calendar shortcuts.
15. VOL+: The button to increase the sound
volume.
16. ◄◄: Rewind key.
17. PREVIOUS: Move to previous picture, song or
video.
18. VOL-: The button to decrease the sound
volume.
19. ►►: Fast forward key.
20. NEXT: Move to next picture, song or video.
21. Slid show: Play photos+music

EN - 3
3. INSTRUCTIONS
3.1 Power On / Off
After plug in, it shows the main menu screen, as shown below:
Press “ POWER” button on the remote for 2 second to turn off the power.
Or switch the button on the machine ”ON/OFF” to power on/off
3.2 Main Menu Screen
Main menu screen consists fi ve icons: movie, photo, music, e-book, others.
4. MOVIE PLAYBACK
4.1 Auto play the video when power on
If “Autoplay” option of the Main Menu is designated for “Off ”, or with no SD and USB inserting, it will
show the main menu screen when power on.
If “Autoplay” option of the Main Menu is designated for other options, and with USB or SD inserting,
it will auto play the designed options. When SD and USB are inserted simultaneously, it will play the
connect in USB by default.

EN - 4
4.2 Video browsing and playback screen
1. Select “movie” icon in the main menu screen to enter info video playlist. Move “▲” or “▼” cursor
key to select video fi le, then press the “ENTER” for confi rm and start playing.
2. Press “MOVIE” button in the remote control, fast and directly start the video playback.
3. If in system setting “Autoplay” is designated for “Movie”, screen will auto play the videos kept in
the internal memory, USB device or SD card when power on.
4. During video playback, the user can select to play previous or next video fi les by pressing “▲” or
“▼” key in the remote control or button behind the machine. Volume can be adjusted by pressing
“◄” or “►” key in the remote control or button behind the machine.
Press “◄◄” or “►►” key in the remote control to achieve fast forward or rewind of the video
playback.
Press “EXIT” key in the remote control to return to the previous menu; press again to return to the
main menu screen.
5. PHOTO BROWSING AND PLAYBACK
1. Select “photo” icon in the main menu screen to enter into photo playlist. Press “▲” or “▼” cursor
key to select the photo fi le, then press “ENTER” for confi rm and start playing.
2. Press “PHOTO” button in the remote control, fast and directly start the photo playback.

EN - 5
3. If the system setting “Autoplay” is designated for “Photo”, screen will auto play the photos kept in
the internal memory, USB device or SD card when power on.
5.1 Special eff ect settings for photo playback
During photo playback, long press “EXIT” key in the remote control or “EXIT” button behind the
machine will pop up a dialog box for special eff ect settings of the photo slideshow, as shown above.
1. Set Bg: Means to set a designated photo as machine’s desktop background. In the pop-up dialog
box, the user will be asked if you are sure to set the designated photo as desktop background.
Move the cursor to select “YES” or “NO”, then press “ENTER” to save the setting.
2. Zoom: Choose “Zoom” then press” ENTER” to zoom the picture 1X,2X,3X,4X.
3. Rotate: Press option with 90°,180°,270°rotation and then recovery.
4. Slideshow: Refers to slideshow eff ect. There are fi fteen special eff ect options: default, Persian
Blinds H, Persian Blinds V, Slide up, Slide down, Slide left, Slide right, Stretch up, Stretch down,
Stretch left, Stretch right, Mosaic, Zoom out, Zoom in, Random. Select a special eff ect, then
press “ENTER” to save the setting. The system defaults “default”.
5. Scale: Refers to the photo display ratio. There are four ratio options: Auto, Original, Crop, Stretch.
Select the display ratio, then press ”ENTER” to save the setting. The system defaults “Auto”.
6. MUSIC PLAYBACK

EN - 6
1. Select “music” icon in the main menu to enter into music playlist. Move “▲” or “▼” cursor key to
select music fi le, then press the “ENTER” for confi rm and start playing.
2. Press “MUSIC” button in the remote control, fast and directly start the music playback.
3. If in system setting “Auto play” is designated for “Music”, screen will auto play the music kept in
the internal memory, USB device or SD card when power on.
4. Right bottom two lines of information are the the names of artist and album.
7. E-BOOK PLAYER
Press ”Up” or “Down” to choose the test fi le and ”Enter” to play.
During e-book playback, long press “EXIT” key in the remote control or “EXIT” button behind the
machine will pop up a dialog box for special eff ect settings of the txt, as shown below.
1. Music: to play or cut off the music
2. Auto play: Refers to the switching speed of play. There are four options: Fast, Middle, Slow, Off .
Select the speed, then press “ENTER” to save the setting. The system defaults “Off ”.
3. Color: to set up the script color, there are three options: “black, white, yellow”. Select the color,
then press “ENTER” to save the setting. The system defaults is “White”
4. Jump: to jump to the required page directly.

EN - 7
8. OTHERS
8.1 System Setting:
1. Language: System pre-confi gures 14 languages, including English, French, German, Russian,
Spanish, Portuguese, Italian, Turkish ,Dutch, Danish, Czech, Slovak, Hungary, Polish. Move “◄”
”►” cursor to switch languages. After select, press “ENTER” to save the setting. The system
defaults” English”.
2. Slid Speed: Choose the speed of the pictures automatically played, there are
“5s,10s,15s,1min,15min,30min” options.
3. Repeat: Four repeat modes for option: repeat all, repeat off , repeat one, play random Move “◄”
”►” cursor to switch between diff erent modes. After select, press “ENTER” to save the setting.
The system defaults “repeat all”.
4. Autoplay: Specify what kind of fi les should be played automatically when power on. There are
seven options: Photo, Music, Movie, Music+Photo, Custom, Off , Mixed Play. Move “◄” ”►”
cursor to switch between diff erent options. After select, press “ENTER” to save the setting. The
system defaults” Movie”.
5. Reset setting: Refers to when some system parameters are set incorrectly or an unusual
circumstance happens, the user can resume to default settings and back to normal status.

EN - 8
6. Breakpoint Play: Means, if the machine suddenly loses power during fi le playback or operation,
the user can resume playback from the breakpoint after rebooting. Select “Yes” or “No” to open
or close this function.
7. Brightness: Means the brightness of the machine, ranges 1 to 15. The system defaults “14”.
8. Alarm Setup: Press “ENTER” to set up the Alarm status and time.
9. Date: Press “ENTRE” to set up date, Move “◄” ”►” cursor to switch between years and month.
Move “▲” ”▼” cursor to adjust the data for increasing or decreasing.
10. Mode: Press “ENTER” to choose the time mode. There are “12 hour” and “24 hour” options.
11. Time: Press “ENTER” to set up the time. Move “◄” ”►” cursor to switch between hours and
minutes. Move “▲” ”▼” cursor to adjust the data for increasing or decreasing.
12. Auto Power On: The user can program the machine auto boot in a certain time of his choosing.
Move “◄” ”►” cursor to switch between hours and minutes. Move “▲” ”▼” cursor to adjust the
data for increasing or decreasing. Similarly select “Off ”, “Once” or Every Time” as desired. Press
“ENTER” to save the setting.
13. Auto Power Off : The user can program the machine automatically shut down in a certain time of
his choosing. Move “◄” ”►” cursor to switch between hours and minutes. Move “▲” ”▼” cursor
to adjust the data for increasing or decreasing. Similarly select “Off ”, “Once” or “Every Time” as
desired. Press “ENTER” to save the setting.
8.2 Clock and Calendar Settings

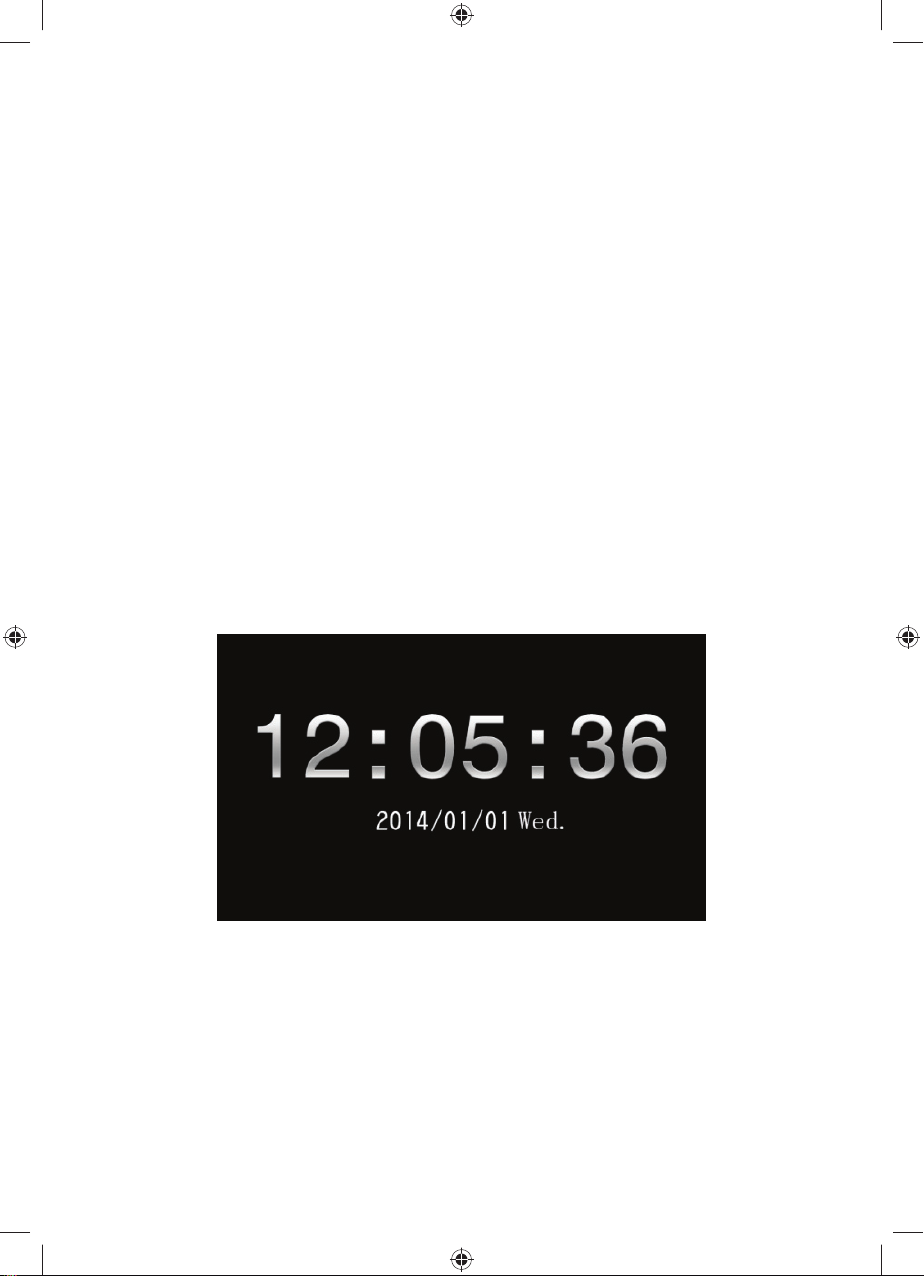

1 .Clock and calendar mode:
In main menu screen or fi le playing screen, press the “CALENDAR” button in the remote control to
enter into clock and calendar screen directly. There are four basic modes, as shown above: Digital
Clock + Simple Calendar, Digital Clock + Detailed Calendar, Analog Clock + Simple Calendar,
Analog Clock + Detailed Calendar. Press “ENTER” button to switch between diff erent modes.
Figure I

EN - 9
Figure II
Figure III
Figure IV

EN - 10

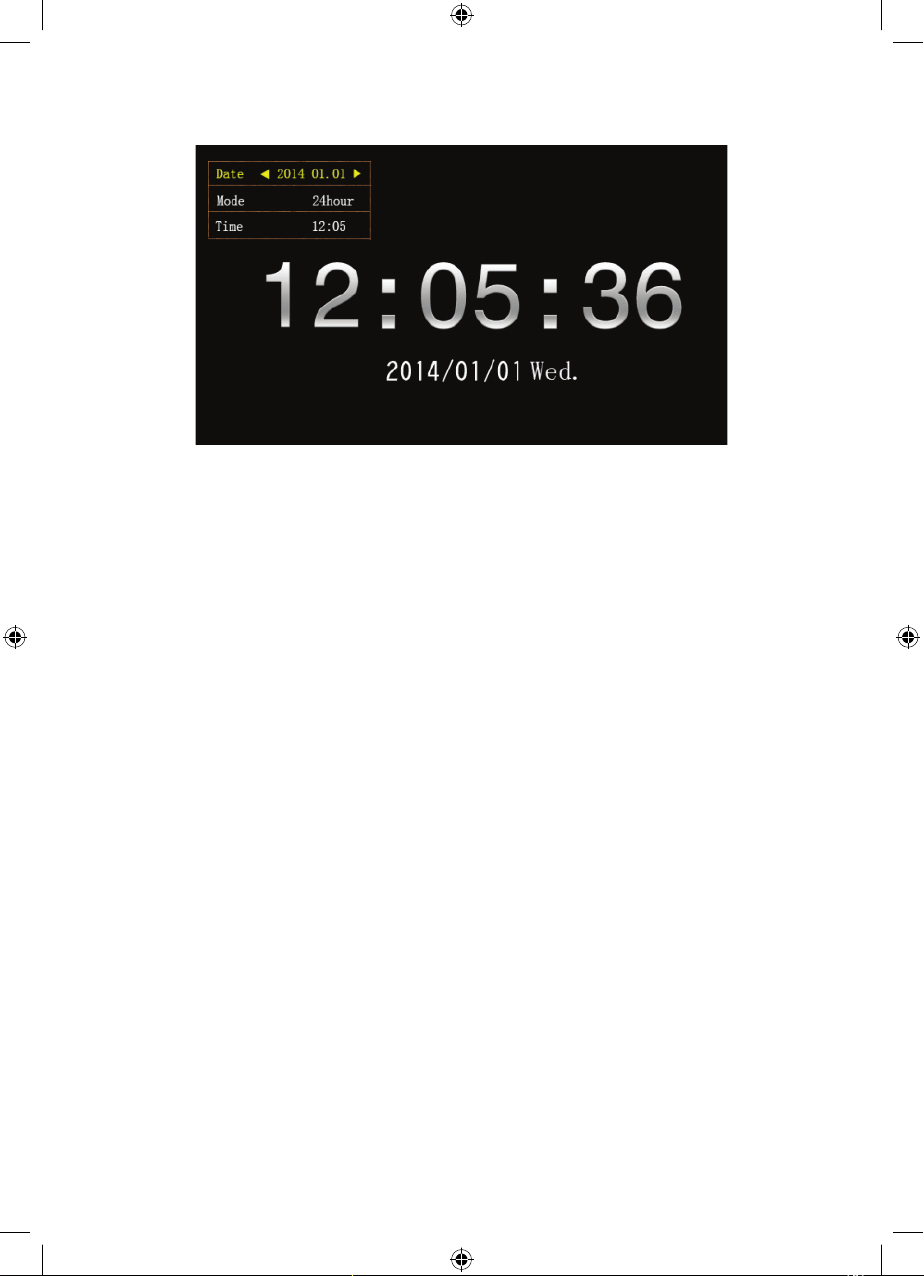

2. Clock and calendar setting
In clock and calendar screen, long press “EXIT” button to pop up the setting dialog box. Move the
“◄” ”►” “▲” ”▼” cursor keys to select or set year/month/date/12-hour/24-hour/time, as shown above.
1. Year/month/date setting: In the pop-up dialog box, first line with “Date”, move “◄” ”►” cursor key
to switch between year/month/date. Move “▲” ”▼” cursor key to adjust the data for increasing or
decreasing. Then press “ENTER” to save the setting.
2. 12-hour and 24-hour setting: In the pop-up dialog box, second line with “Mode”, move “◄” ”►”
cursor key to switch between 12-hour and 24-hour. After select, press “ENTER” to save the
setting.
3. Clock setting: In the pop-up dialog box, third line with “Time”, move “◄” ”►” cursor key to
switch between hours and minutes. Move “▲” ”▼” cursor key to adjust the data for increasing or
decreasing. Then press “ENTER” to save the setting.
8.3 Explorer
1. Select “explorer” icon in the main menu screen to enter info file management. You can look
through the files kept in the internal memory, USB or SD card.
2. Unnecessary files can be deleted by long pressing “EXIT” key. Select “YES” or “NO” in the
pop-up dialog box, to decide delete or not delete the file.
