AEG Electrolux 61371 M and User manual

61371 M
Ceramic glass hob
Installation and Operating Instructions

2
Dear Customer,
Please read these user instructions carefully and keep them to refer to
later.
Please pass the user instructions on to any future owner of the appli-
ance.
The following symbols are used in the text:
1Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Digital display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Switching the outside ring on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rating Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4
Operating Instructions
1Safety instructions
3Please comply with these instructions. If you do not, any damage re-
sulting is not covered by the warranty.
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
•This appliance should be used only for normal domestic cooking and
frying of food.
•The appliance must not be used as a work surface or as a storage sur-
face.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials
or fusible objects (e.g. plastic film, plastic, aluminium) on or near the
appliance.
Children’s safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
General safety
•The appliance may only be installed and connected by trained, regis-
tered service engineers.
•Built-in appliances may only be used after they have built in to suita-
ble built-in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ce-
ramic (cracks, scratches or splits), the appliance must be switched off
and disconnected from the electrical supply, to prevent the possibility
of an electric shock.
•Repairs to the appliance must only be carried out by trained regis-
tered service engineers.

5
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of
the appliance or hot cookware.
•Overheated fats and oils can ignite very quickly. When cooking with
fat or oil (e.g. chips) do not leave the appliance unattended.
•Switch the cooking zones off after each use.
•Do not cover the oven’s steam outlet.
•When the oven is working, there is the danger of scalds from the
steam outlet.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or
high-pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The glass ceramic can be damaged by objects falling onto it.
•The edge of the glass ceramic can be damaged by being knocked by
the cookware.
•Cookware made of cast iron, cast aluminium or with damaged bot-
toms can scratch the glass ceramic if pushed across the surface.
•Objects that melt and things that boil over can burn onto the glass
ceramic and should be removed straightaway.
•To avoid damaging cookware and glass ceramics, do not allow sauce-
pans or frying pans to boil dry.
•Do not use the cooking zones with empty cookware or without cook-
ware.

6
Description of the Appliance
Cooking surface layout
Triple cooking zone
800/1600/ 2300W
Single cooking zone
1200W
Digital display
Multi-purpose zone
1500/2400W
Single cooking zone
1200W
Oven steam outlet
Multi-purpose zone
switch
with power indicator
Triple cooking zone
switch
with power indicator

7
Digital display
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off,
the cooking zones need some time to cool down. Look at the residual
heat indicator h.
3Residual heat can be used for melting and keeping food warm.
Display Description
¾Cooking zone is switched off
uKeep warm setting Keep warm setting is set
¿- ÇHeat settings Heat setting is set
2- 6Heating setting plus
decimal point Intermediate heat setting is set
aAutomatic warm up
function Automatic warm-up function is activated
hResidual heat Cooking zone is still hot
_Safety cut-out Safety cut-out has been activated
Display for
cooking zone rear left
Display for
cooking zone front left
Display for
cooking zone rear right
Display for
cooking zone front right

8
Operating the hob
You operate the appliance with the combination appliance’s ring
switches. The operation and the function of the ring switches is de-
scribed in the Operating Instructions for the combination appli-
ance.
3When a cooking zone is switched on, it may hum briefly. This is a char-
acteristic of all ceramic glass cooking zones and does not impair either
the function or the life of the appliance.
3Please follow the instructions from the manufacturer of the combina-
tion appliance as well.
Switching the outside ring on and off
By switching the outside rings on or off, the effective heating surface
can be matched to the size of the cookware.
3Before an outside ring can be switched on, the inside ring must be
switched on.
Triple cooking zone Sensor panel Power indicator
To switch on middle ring Touch for 1-2 seconds.One power indicator is lit.
To switch on outside ring Touch for 1-2 seconds.Two power indicators are
lit.
To switch off outside ring Touch for 1-2 seconds.Second power indicator
goes out.
To switch off middle ring Touch for 1-2 seconds.First power indicator goes
out.
Roasting zone Sensor panel Power indicator
To switch on outside ring Touch for 1-2 sec-
onds is lit
To switch off outside ring Touch for 1-2 seconds goes out

9
Tips on Cooking and Frying
Cookware
•You can recognise good cookware from the bottoms of the pans. The
bottom should be as thick and flat as possible.
•Cookware made of enamelled steel or with aluminium or copper bot-
toms can leave discolorations on the glass ceramic surface which are
difficult or impossible to remove.
Energy saving
2Always place cookware on the cook-
ing zone before it is switched on.
2If possible, always place lids on the
pans.
2Switch cooking zones off before the
end of the cooking time, to take ad-
vantage of residual heat.
2Bottom of pans and cooking zones
should be the same size.

10
Cleaning and Care
1Take care! Risk of burns from residual heat.
1Warning! Sharp objects and abrasive cleaning materials will damage
the appliance. Clean with water and washing up liquid.
1Warning! Residues from cleaning agents will damage the appliance.
Remove residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops
3Remove stubborn residues with a cleaner for glass ceramic or stainless
steel.
3Scratches or dark stains on the glass ceramic that cannot be removed
do not however affect the functioning of the appliance.
Remove
Type of dirt imme-
diately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ce-
ramic or stainless
steel*
fat splashes --- yes
shiny metallic discolouration --- yes

11
What to do if …
If you are unable to remedy the problem by following the above
suggestions, please contact your dealer or the Customer Care De-
partment.
1Warning! Repairs to the appliance are only to be carried out by quali-
fied service engineers. Considerable danger to the user may result from
improper repairs.
3If the appliance has been wrongly operated, the visit from the customer
service technician or dealer may not take place free of charge, even
during the warranty period.
Problem Possible cause Remedy
The cooking zones are not
functioning.
The combination appliance
is not switched on.
Switch on the appliance.
The desired heat setting is
not set.
Set the heat setting.
The fuse in the house’s
electrical wiring (fuse box)
has been tripped.
Check the fuse.
If the fuses trip a number
of times, please call an au-
thorised electrician.
The residual heat indicator
is not displaying anything
The cooking zone was only
on for a short time and is
therefore not hot
If the cooking zone is sup-
posed to be hot, call the
Customer Service Depart-
ment.
_lights up Overheating protection for
the cooking zone has been
triggered Switch off cooking zone
Switch cooking zone on
again
When switching on the
combination appliance, the
ring switch was not in the
Off position

12
Disposal
2Packaging material
The packaging materials are environmentally friendly and can be recy-
cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
2Old appliance
The symbol Won the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor-
mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

13
Installation Instructions
Safety instructions
The laws, ordinances, directives and standards in force in the country of
use are to be followed (safety regulations, proper recycling in accord-
ance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.

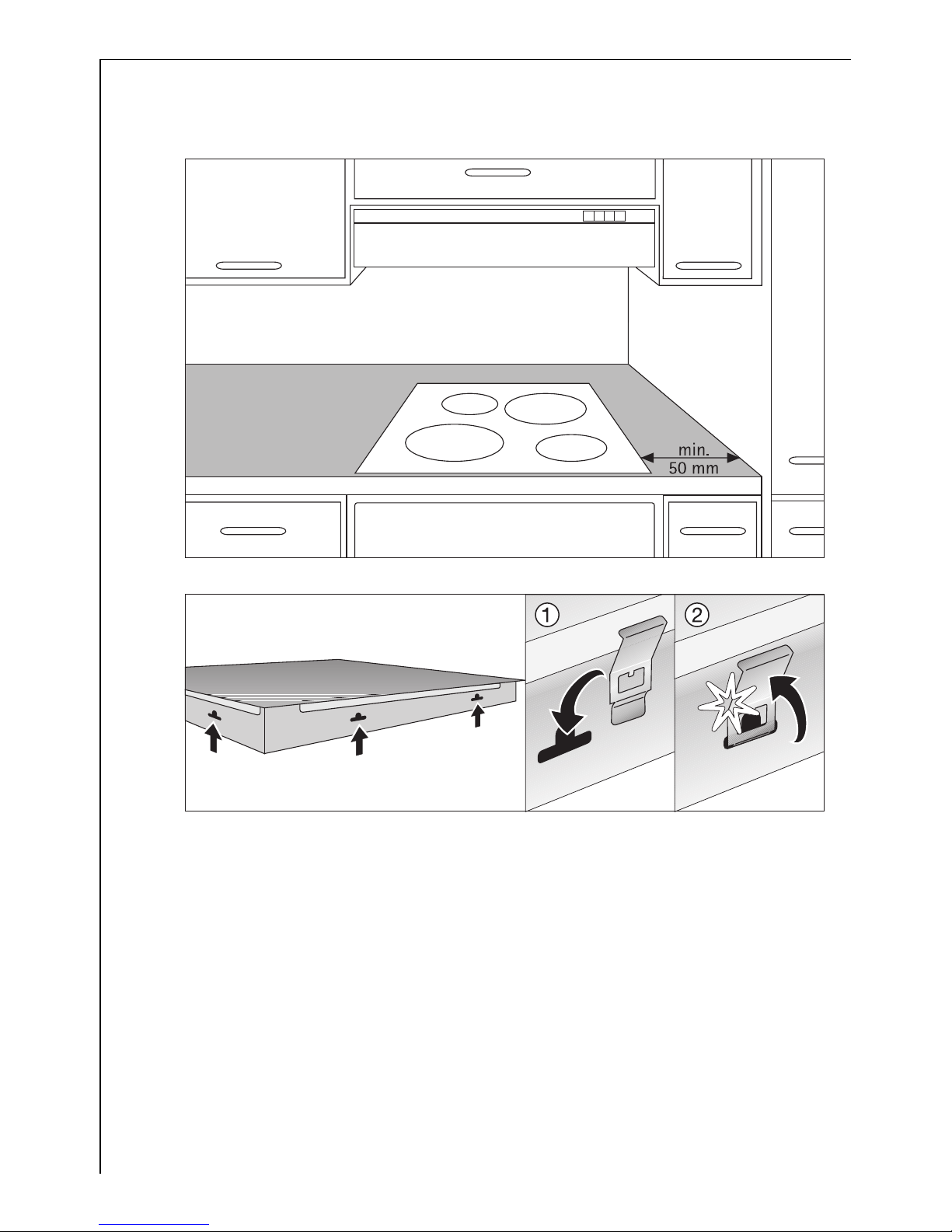

The minimum distances to other appliances and units are to be ob-
served.
Drawers may only be installed under the appliance with a protec-
tive floor.
The cut surfaces of the worktop are to be protected against moisture
using a suitable sealant.
The sealant seals the appliance to the work top with no gap.
Do not use silicon sealant between the appliance and the work top.
Avoid installing the appliance next to doors and under windows. Other-
wise hot cookware may be knocked off the rings when doors and win-
dows are opened.
1Warning!
Risk of injury from electrical current.
The combination appliance is live.
•Observe electrical safety rules.
•Ensure anti-shock protection through correct installation by a quali-
fied electrician.
•Rated voltage of the combined appliances must match.
1Important!
Risk of injury from electrical current.
Loose and inappropriate plug and socket connections can lead to
overheating of the plug.
•Fit plug and socket connections together properly.
A device must be provided in the electrical installation which allows the
appliance to be disconnected from the mains at all poles with a contact
opening width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw
type fuses are to be removed from the holder), earth leakage trips and
contactors.
Move the oven steam outlet pipe with a screwdriver to the centre of
the opening in the hob. Then put the outlet connection piece over the
pipe.
1•Moving the panel ring under pressure can scratch the coated metal
surfaces.

14
Assembly

15

16

17
Removal

18
Rating Plates
55AAD55ZO
61371M-MN
7,1 kW
949 592 771
230 V 50 Hz
AEG - ELECTROLUX
55AAD55ZO
61371M-MN
7,1 kW
949 592 305
230 V 50 Hz
AEG - ELECTROLUX

19
Guarantee/Customer Service
European Guarantee
www.electrolux.com
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user
manual, for the period specified in the appliance guarantee or otherwise by law. If you move
from one of these countries to another of the countries listed below the appliance guarantee
will move with you subject to the following qualifications:
•The appliance guarantee starts from the date you first purchased the appliance which will be
evidenced by production of a valid purchase document issued by the seller of the appliance.
•The appliance guarantee is for the same period and to the same extent for labour and parts as
exists in your new country of residence for this particular model or range of appliances.
•The appliance guarantee is personal to the original purchaser of the appliance and cannot be
transferred to another user.
•The appliance is installed and used in accordance with instructions issued by Electrolux and is
only used within the home, i.e. is not used for commercial purposes.
•The appliance is installed in accordance with all relevant regulations in force within your new
country of residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
p t b
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
Èeská republika [phone] Budìjovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn
España [phone] Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
France www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire
LU4 9QQ
Hellas [phone] Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

20
Lietuva [phone] Verkių 29, LT09108 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország [phone] H-1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG -
Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw
Portugal [phone]
Quinta da Fonte - Edificio Gonçalves Zarco -
Q 35
2774 - 518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera [phone] Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebièe SK, Seberíniho 1, 821 03 Bratislava
Suomi www.electrolux.fi
Sverige [phone] Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye [phone] Tarlabaþý caddesi no : 35 Taksim
Istanbul
Ðîññèÿ [phone] 129090 Ìîñêâà, Îëèìïèéñêèé
ïðîñïåêò, 16, ÁÖ „Îëèìïèê“
p t b
