Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Th
e
f
o
ll
ow
i
ng sym
b
o
l
s are use
d
i
n t
hi
s user
i
n
f
ormat
i
on:
1
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3General information and advice
2Information on environmental protection
zDangerous voltage

3
Contents
Operating Instructions 4
Safety instructions 4
Description of the Appliance 6
Cooking surface layout 6
Control panel layout 6
Touch Control sensor fields 7
Displays 7
Residual heat indicator 7
Operating the appliance 9
Switching the appliance on and off 9
Setting the heat setting 9
Locking/unlocking the control panel 9
Using the child safety device 10
Switching the power function on and off 11
Using the timer 12
Automatic switch off 15
Tips on Cooking and Frying 16
Cookware for induction cooking zones 17
Tips on energy saving 18
Examples of cooking applications 19
Cleaning and Care 20
What to do if … 21
Disposal 23
Installation Instructions 24
Safety instructions 24
Guarantee/Customer Service 26
Service 27
Assembly 86
Rating Plate 90

Operating Instructions4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
Correct use
•This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruc-
tion by a responsible person to ensure that they can use the appliance safely.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for normal domestic cooking and frying of
food.
•The appliance must not be used as a work surface or as a storage surface.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or fusi-
ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
•To avoid small children and pets unintentionally switching the appliance on,
we recommend activation of the child safety device.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers.
•Built-in appliances may only be used after they have built in to suitable built-
in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and discon-
nected from the electrical supply, to prevent the possibility of an electric
shock.
•Repairs to the appliance must only be carried out by trained registered service
engineers.

5Safety instructions
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of the appli-
ance or hot cookware.
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•Switch the cooking zones off after each use.
•Users with implanted pacemakers should keep their upper body at least 30 cm
from induction cooking zones that are switched on.
•Risk of burns! Do not place objects made of metal, such as knives, forks,
spoons and saucepan lids on the cooking surface, as they can get hot.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high-pres-
sure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The glass ceramic can be damaged by objects falling onto it.
•The edge of the glass ceramic can be damaged by being knocked by the cook-
ware.
•Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the glass ceramic if pushed across the surface.
•Objects that melt and things that boil over can burn onto the glass ceramic
and should be removed straightaway.
•Do not use the cooking zones with empty cookware or without cookware.
•To avoid damaging cookware and glass ceramics, do not allow saucepans or
frying pans to boil dry.
•The ventilation gap of 5mm between the worktop and front of the unit un-
derneath it must not be covered.

Description of the Appliance6
Description of the Appliance

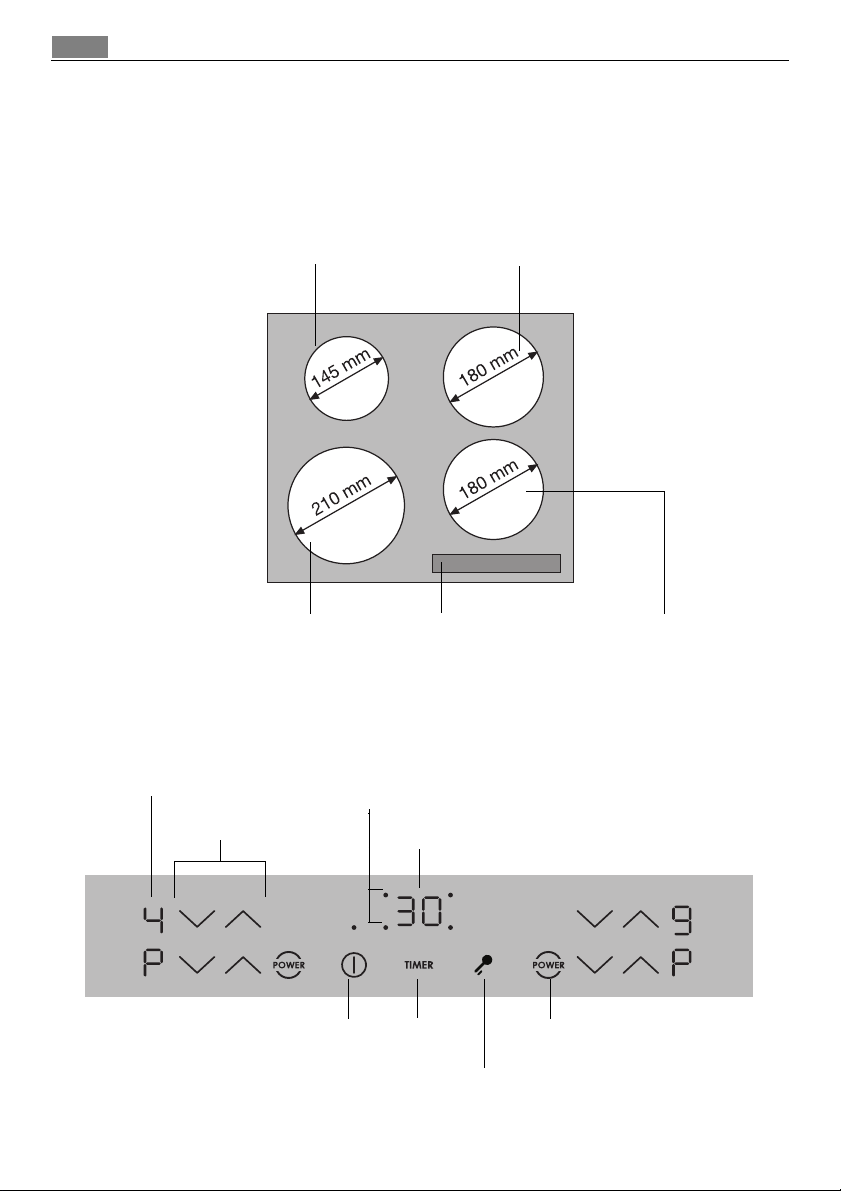

Cooking surface layout
Control panel layout
Induction cooking zone 2200 W
with power function 3100 W
Induction cooking zone 1800 W
Induction cooking zone 1400 W
Control panel Induction cooking zone 1800 W
with power function 2800 W
On/Off
with power indicator
Heat setting selection
Lock
Timer display
Power function
Cooking zone indicators
Timer function
Display
Timer

7Description of the Appliance
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are con-
trolled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Power Switching the power function on and
off

Description of the Appliance8
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the cook-
ing zones need some time to cool down. Look at the residual heat indicator .
3Residual heat can be used for melting and keeping food warm.
The induction cooking zones create the heat required for cooking directly in
the base of the cookware. The glass ceramic is merely heated by the residual
heat of the cookware.
The cooling fan switches itself on and off depending upon the temperature of
the electronics.
Display Description
Cooking zone is switched off
- Heat settings Heat setting is set
Fault Malfunction has occurred
Pan detection Cookware is unsuitable or too small or
no cookware has been placed on the
cooking zone
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Power Power function is switched on
Automatic switch off Switch off is active.

9Operating the appliance
Operating the appliance
3Use the induction cooking zones with suitable cookware.

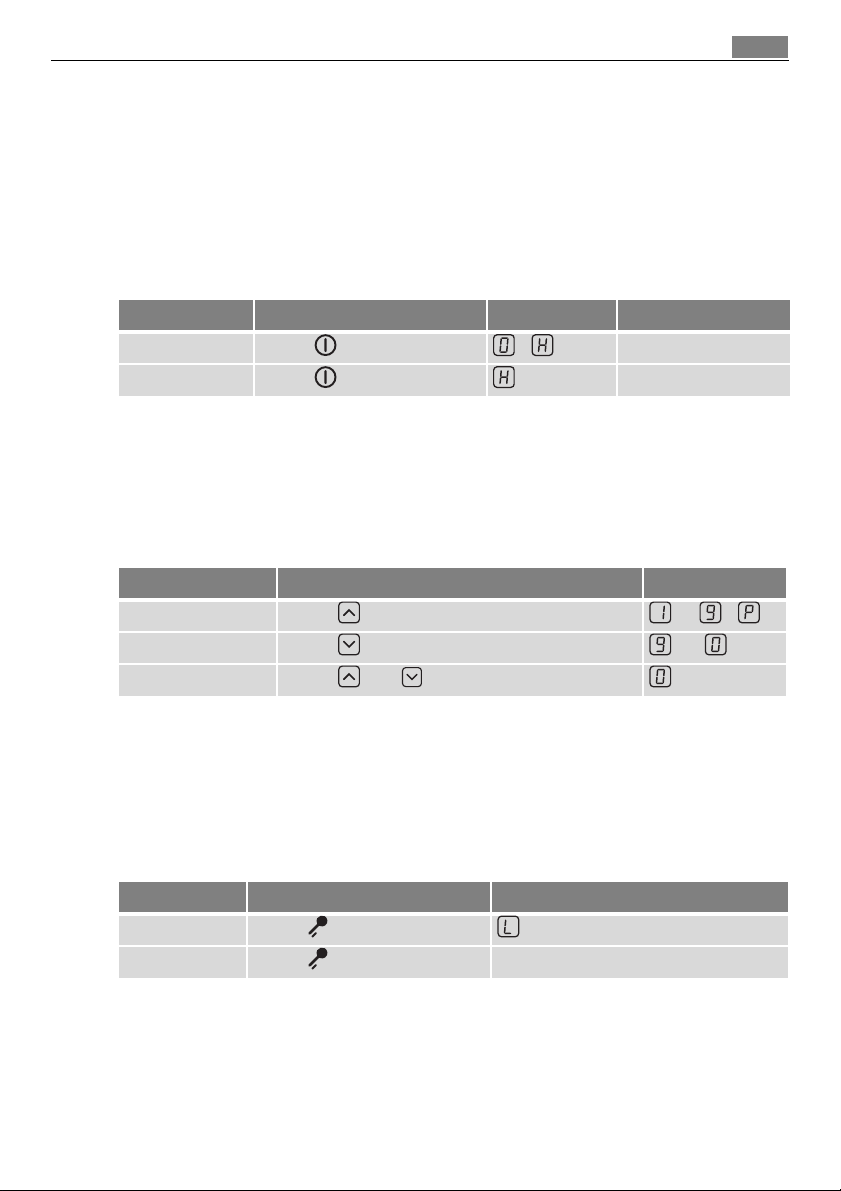

Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a function must
be set, otherwise the appliance automatically switches itself off.
Setting the heat setting
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be locked
at any time in order to prevent the settings being changed e.g. by wiping over
the panel with a cloth.
3When you switch the appliance off, the locking function is automatically
switched off.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Display
Increase Touch to /
Decrease Touch to
Switch off Touch and at the same time
Control panel Display
Switch on Touch (for 5 seconds)
Switch off Touch previously set heat setting

Operating the appliance10
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Setting the child safety device
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it
remains activated afterwards.
Releasing the child safety device
Step Control panel Display/Signal
1. Switch on the appliance
(Do not set a heat setting)
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is engaged.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch and at the same time / acoustic signal
Until the appliance is next switched off, it can used as normal.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is released.

11Operating the appliance
Switching the power function on and off
The power function makes additional power available to the front induction
cooking zones, e.g. to bring a large volume of water to the boil.
The power function is activated for 8 minutes for the front left cooking zone
and for 5 minutes for the front right cooking zone. After these times, the induc-
tion cooking zones automatically return to cooking level .
3If the power function has ended, the cooking zones automatically switch back to
the heat setting set previously.
Power Management
The cooking zones of the cooking surface
have a maximum power available to them.
Two cooking zones make up a pair (see fig-
ure).
So that the Power function can always be
carried out, Power Management may re-
duce the power of the other cooking zone
in the pair
Example: heat setting 9 is selected on a
cooking zone. The Power function is
switched on for the cooking zone paired up
with it. The Power function is performed,
but heat setting 9 on one cooking zone and Power function on the other cook-
ing zone of a pair exceeds the maximum output for both. Therefore Power Man-
agement reduces the first cooking zone that was switched on from 9 to 7, for
example, and the display for this cooking zone alternates between 9 and 7 and
then remains on the current maximum of 7. (Whether the display alternates be-
tween 9 and 7 or 9 and 6 or other values, depends on the appliance type and the
size of the cooking zone.)
Control panel Display
Switch on Touch
Switch off Touch
Touch

Operating the appliance12

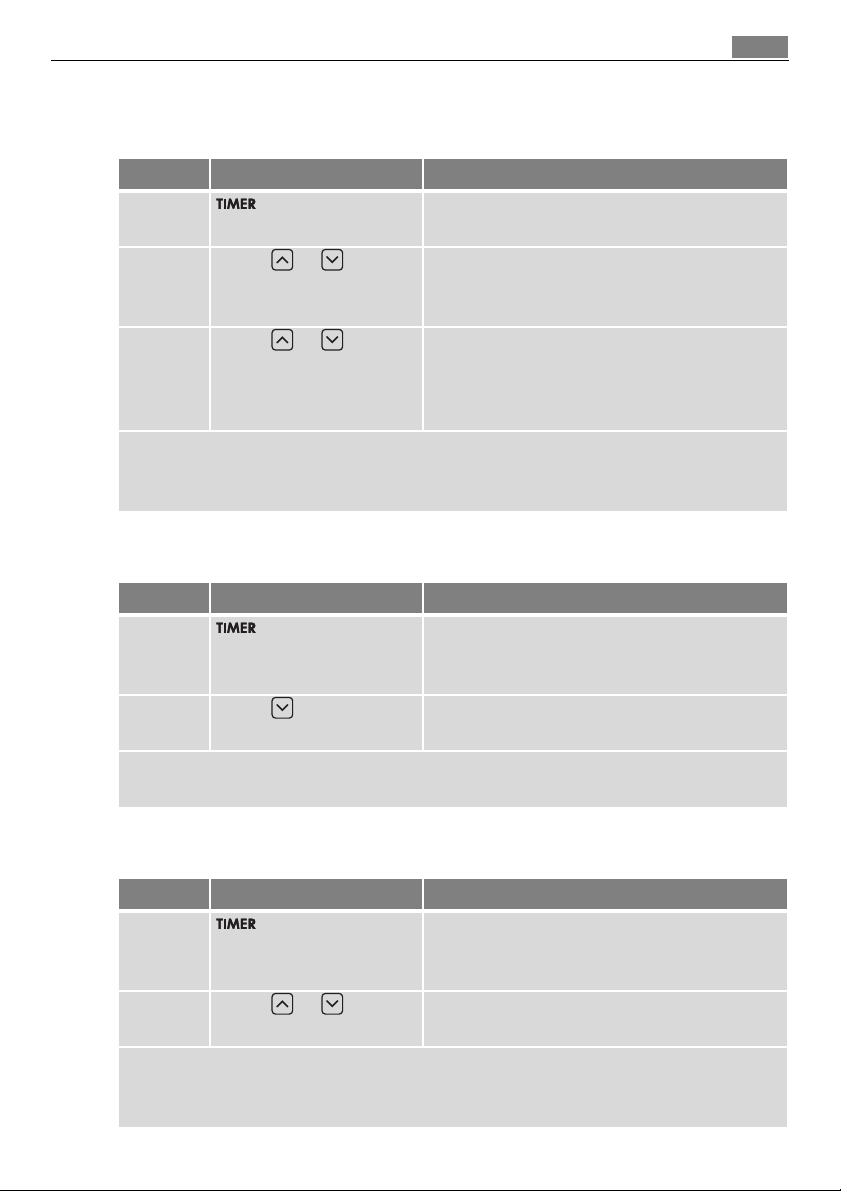

Using the timer
All cooking zones can use each use one of the two timer functions at the same
time.
3If a cooking zone is switched off, the timer function set is also switched off.
3If a heat setting is set on this cooking zone in addition to a countdown timer,
the cooking zone is switched off after the time set has elapsed.
Selecting a cooking zone
3The heat setting indicator of the selected cooking zone goes out, as long as the
timer time can be set.
3If the pilot light is flashing more slowly, the heat setting indicator appears again
and the heat setting can be re-set or modified.
3If other timer functions are set, after a few seconds the shortest remaining time
of all the timer functions is displayed and the corresponding pilot light flashes.
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switches
off
Countdown timer cooking zones not in use acoustic signal
00 flashes
Step Control panel Display
1. Touch once Pilot light of the first cook-
ing zone flashes
2. Touch once Pilot light of the second
cooking zone flashes
3. Touch once Pilot light of the third
cooking zone flashes
4. Touch once Pilot light of the fourth
cooking zone flashes

13Operating the appliance
Setting time
Switching off the Timer function
Changing the time
Step Control panel Grill setting
1. Selecting cooking
zone
Telltale of cooking zone selected flashes
2. Touch or from
the selected cooking
zone
01 to 99 minutes
3. Touch or from
the selected cooking
zone for more than 4
seconds
... 05...10...15... 20 or... 95... 90... 85...
80... (5-minute steps for easy setting)
After a few seconds the power indicator flashes more slowly.
The time is set.
The time counts down.
Step Control panel Display
1. Select a cooking
zone
Pilot light of the selected cooking zone
flashes more quickly.
Remaining time is displayed
2. Touch for the cook-
ing zone selected
The remaining time counts down to 00.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
2. Touch or for the
cooking zone selected
01 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.

Operating the appliance14
Displaying the time remaining for a cooking zone
Switching off the acoustic signal
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.

15Operating the appliance
Automatic switch off
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for a cook-
ing zone within approx. 10 seconds, the cooking surface automatically switch-
es itself off.
•If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Induction cooking zones
•If cookware that is not suitable is used, lights up in the display and after 2
minutes the indicator for the cooking zone switches itself off.
•If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off automati-
cally. is displayed. Before being used again, the cooking zone must be set to
0.
Heat setting Switches off after
1- 26 hours
3- 45 hours
54 hours
6- 91.5 hours

Tips on Cooking and Frying16
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

17Tips on Cooking and Frying
Cookware for induction cooking zones
Cookware material
3Cookware for induction cooking zones is labelled as suitable by the manufactur-
er.
Suitability test
Cookware is suitable for induction cooking, if …
•... a little water on an induction cooking zone set to heat setting 9 is heated
within a short time.
•... a magnet sticks to the bottom of the cookware.
3Certain cookware can make noises when being used on induction cooking zones.
These noises are not a fault in the appliance and do not affect operation in any
way.
Bottom of the cookware
The bottom of the cookware should be as thick and flat as possible.
Pan size
Induction cooking zones adapt automatically to the size of the bottom of the
cookware up to a certain limit. However the magnetic part of the bottom of the
cookware must have a minimum diameter depending upon the size of the cook-
ing zone.
3The cookware must be placed centrally on the cooking zone.
Cookware material Suitable
Steel, enamelled steel yes
Cast iron yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, copper, brass ---
Glass, ceramic, porcelain ---
Diameter of cooking zone
[mm] Minimum diameter of dish base [mm]
210 180
180 145
145 120

Tips on Cooking and Frying18
Tips on energy saving
2Place cookware on the cooking zone before it is switched on.
2If possible, always place a lid on the cookware.

19Tips on Cooking and Frying
Examples of cooking applications
The information given in the following table is for guidance only.
The power function is suitable for heating large quantities of liquid.
Heat
setting
Cooking-
process suitable for Cooking time Tips/Hints
0Off position
1Keeping
food warm Keeping cooked foods warm as required Cover
1-2 Melting Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
2-3
Simmer-
ing on low
heat
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
3-4 Steaming
Braising Steaming vegetables, fish braising meat 20-45 mins.
With vegetables add only
a little liquid (a few table-
spoons)
4-5 Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e.
g.: max. ¼l water for
750 g potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 l liquid plus in- gredients
6-7 Gentle
Frying
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Steady frying Turn halfway through
cooking
7-8 Heavy
Frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (goulash,
pot roast), deep frying chips

Cleaning and Care20
Cleaning and Care
1Take care! Risk of burns from residual heat.
1Warning! Sharp objects and abrasive cleaning materials will damage the appli-
ance. Clean with water and washing up liquid.
1Warning! Residues from cleaning agents will damage the appliance. Remove
residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops
3Remove stubborn residues with a cleaner for glass ceramic or stainless steel.
3Scratches or dark stains on the glass ceramic that cannot be removed do not
however affect the functioning of the appliance.
Remove
Type of dirt immedi-
ately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes
cleaner for glass ceram-
ic or stainless steel*
fat splashes --- yes
shiny metallic discolouration --- yes
