User manual Ceramic glass hob

Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating Instructions 2
Safety instructions 2
Description of the appliance 4
Operating the appliance 6

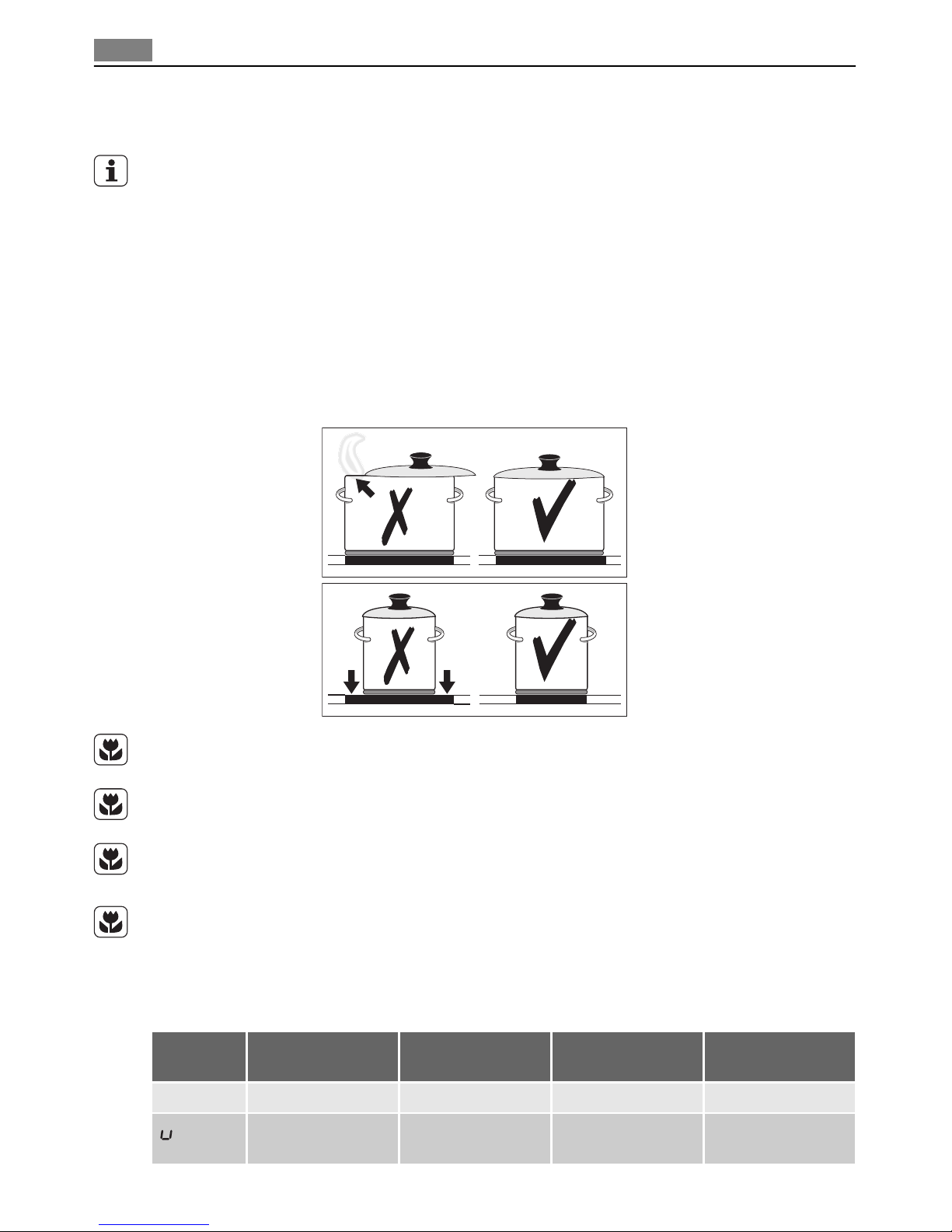

Tips on cooking and frying 12
Cleaning and care 13
What to do if... 14
Disposal 15
Installation Instructions 15
Safety information 15
Service 17
Subject to change without notice
Operating Instructions
Safety instructions
WARNING!
Please comply with these instructions. If you do not, any damage resulting is not covered
by the warranty.
Correct use
• This appliance is not intended for use by children or other persons whose physical, sensory
or mental capabilities or lack of experience and knowledge prevents them from using
the appliance safely without supervision or instruction by a responsible person to ensure
that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects
(e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
2Contents

• To avoid small children and pets unintentionally switching the appliance on, we recom-
mend activation of the child safety device.
General safety
• The appliance may only be installed and connected by trained, registered service engi-
neers.
• Built-in appliances may only be used after they have built in to suitable built-in units
and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches
or splits), the appliance must be switched off and disconnected from the electrical supply,
to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.
Safety during use
• Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
• There is the risk of burns from the appliance if used carelessly.
• Remove stickers and film from the glass ceramic.
• Cables from electrical appliances must not touch the hot surface of the appliance or hot
cookware.
• Switch the cooking zones off after each use.
• Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and
saucepan lids on the cooking surface, as they can get hot.
Safety when cleaning
• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or highpressure cleaning
equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the
glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should
be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans
to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.
Safety instructions 3

Description of the appliance
Cooking surface layout
145/210/270
180
180
145
170x265
46 5
1 2 3
1Single cooking zone 1800W
2Triple ring zone 1050/1950/2700W
3Multi-purpose zone 1400/2200W
4Single cooking zone 1800W
5Control panel
6Single zone 1200W
Control panel layout
1 2 3 4 5 6 7
89
10
11
1Child lock with a pilot light
2Stop+Go with a pilot light
3Automatic warm-up function
4Cooking zone indicators Timer function
5Timer display
6Timer
7Multi-purpose zone with pilot lights
8Heat setting indicator
9Heat setting selection
10 Triple ring zone with pilot lights
11 On/Off with indicator
4Description of the appliance

Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are controlled by
touching sensor fields and confirmed by displays and acoustic signals. Only touch the sensor
fields which activate a desired function. Do not cover other sensor fields.
If the control bar is touched for longer than 6 seconds, a signal sounds and the appliance
switches itself off.
Sensor field Function
On / Off Switches appliance on and off
Child lock Locking control panel for children
Triple ring To switch outer rings on and off
Multi-purpose
zone
To switch outer rings on and off
STOP+GO To switch the Keep Warm setting on/ off
Automatic warm-
up
To switch the automatic warm-up function on and off
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Control bar
The control bar is a special Touch Control field. The
control bar is touched where the desired heat set-
ting is positioned. The heat setting is shown in the
display. Correct to the left or the right, if neces-
sary. Do not release before the desired heat setting
is reached.
If the control bar is touched for longer than 6
seconds, a signal sounds and the appliance
switches itself off.
Displays
Display Description
The cooking zone is switched off
/ Keep Warm settings Keep Warm / STOP+GO function is switched on
- Heat settings To set heat settings
Automatic Warm-up The Automatic Warm-up function is switched on
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
A
Description of the appliance 5

Display Description
Child safety device Lock/Child safety device is set
Automatic Switch off Switch off is active
Residual heat indicator
The residual heat indicator lights up, as soon as one cooking zone is hot.
WARNING!
Risk of burns from residual heat! After you switch the appliance off, the cooking zones
need some time to cool down. Look at the residual heat indicator.
Use residual heat for melting and keeping food warm.
Operating the appliance
Switching the appliance on and off
Control panel Display Pilot light
Switch on Touch for 1 second / lights up.
Switch off Touch for 1 second / none goes out.
After switching on, within approx. 10 seconds a heat setting or a function must be set,
otherwise the appliance automatically switches itself off.
Setting the heat setting
Control panel Display
To set the heat
setting
Touch the desired heat setting, if necessary, correct
up or down
/ to
Switch off Touch
Switching the outside ring on and off
By switching the outside rings on or off, the effective heating surface can be matched to
the size of the cookware.
Before an outside ring can be switched on, the inside ring must be switched on
Triple cooking zone Sensor panel Pilot light
To switch on the central ring Touch for 1-2 seconds. Second pilot light lights up
To switch on the outside ring Touch for 1-2 seconds. Third pilot light lights up
To switch off the outside ring Touch for 1-2 seconds. Third pilot light goes out
To switch off the central ring Touch for 1-2 seconds. Second pilot light goes out
6Operating the appliance

Multi-purpose zone Sensor field Pilot light
To switch on outside ring Touch for 1-2 seconds Second pilot light lights up
To switch off outside ring Touch for 1-2 seconds Pilot light goes out
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be locked at any time
in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.
Control panel Display
To switch on Touch (for 4 seconds)
To switch off Touch previously set heat setting
When you switch the appliance off, the locking function is automatically switched off.
Turning the STOP+GO function on and off
The STOP+GO function simultaneously toggles all active cooking zones to keep-warm mode
then back to the heat setting they were at before
Control panel Display
To switch on Touch
To switch off Touch Previous heat setting (not automatic warm-up or power
function)
STOP+GO does not stop timer functions.
STOP+GO controls the entire control panel apart from the sensor field .
Using the automatic warm-up function
All cooking zones are equipped with an automatic warm-up function. When setting a heat
setting using the automatic warm-up function, the cooking zone switches to full power
for a certain amount of time and then automatically switches back to the heat setting set.
Step Control Panel Display
1. Touch
2. Move your finger down
from to select the de-
sired heat setting between
and
/ after 5 seconds . As long as is
displayed, the appliance works at full power. After
the automatic warm up is completed, the heat
setting / is displayed again.
The length of time that the automatic warm up function operates depends on the heat
setting selected.
Heat setting Length of the automatic warm up [min:sec]
1:00
Operating the appliance 7

Heat setting Length of the automatic warm up [min:sec]
1:40
2:40
4:50
5:30
6:30
8:10
10:10
12:20
2:30
2:30
3:30
4:30
---
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Switching on the child safety device
Step Control panel Display/Signal
1. Switch on appliance. Do not set a heat setting.
2. Touch for 4 seconds
The child safety device is switched on.
Switching off the child safety device
Step Control panel Display/Signal
1. Switch on appliance. Do not set a heat setting.
2. Touch for 4 seconds lights up
3. Switch appliance off.
The child safety device is switched off.
The child safety device can only be switched on and off if no heat setting is set.
Overriding the child safety device
The child safety device can be switched off in this way for a single cooking session; it remains
activated afterwards.
8Operating the appliance

Step Control panel Display/Signal
1. Switch appliance on
2. Touch for 4 seconds lights up
Until the appliance is next switched off, it can used as normal. After switching off the appliance,
the child safety device is active again.
After overriding the child safety device, a heat setting or a function must be set within
approx. 10 seconds, otherwise the appliance automatically switches itself off.
Using the timer
Function Condition Outcome after the time has
elapsed
Automatic cut-out a heat setting is set acoustic signal
00
flashes
Cooking zone switches off
Countdown timer cooking zones not in use acoustic signal
00
flashes
If just one countdown value is set you can change it only when the appliance is switched
on.
If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking
zone is switched off after the time set has elapsed.
If a cooking zone is switched off, the timer function set is also switched off.
Selecting a cooking zone
Step Control panel Display
1. Touch once Pilot light of the first cooking zone flashes
2. Touch once Pilot light of the second cooking zone flashes
3. Touch once Pilot light of the third cooking zone flashes
4. Touch once Pilot light of the fourth cooking zone flashes
5. Touch once Pilot light of the fifth cooking zone flashes
If other timer functions are set, after a few seconds the shortest remaining time of all the
timer functions is displayed and the corresponding pilot light flashes.
Operating the appliance 9

Setting the time
Step Control panel Display
1. Select cooking zone Pilot light for the cooking zone selected
flashes
2. Touch or /
00
to
99
minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Switching off the timer function
Step Control panel Display
1. Select cooking zone Pilot light of cooking zone selected flashes faster
Time remaining is displayed
2. Touch The time remaining counts backwards to
00
.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Changing the time
Step Control panel Display
1. Selecting a cooking zone Pilot light of the selected cooking zone
flashes more quickly
Remaining time is displayed
2. Touch or
0
1
to
99
minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Displaying the time remaining for a cooking zone
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Switching off the acoustic signal
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.
Automatic switch off
Cooking surface
• If after switching on the cooking surface, a heat setting is not set for a cooking zone
within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, etc.) for longer than approx.
10 seconds, a signal sounds and the cooking surface switches off automatically.
10 Operating the appliance

• If all cooking zones are switched off, the cooking surface automatically switches itself
off after approx. 10 seconds.
Control panel
• When the appliance is switched off, if one or more of the sensor fields on the control
panel are covered for more than 10 seconds, an acoustic signal sounds. The acoustic
signal switches itself off automatically when the sensor fields are no longer covered.
Cooking zones
• If one of the cooking zones is not switched off after a certain time, or if the heat setting
is not modified, the relevant cooking zone switches off automatically. is displayed.
Before being used again, the cooking zone must be set to .
Heat setting Switches off after
- 6 hours
- 5 hours
- 4 hours
- 1.5 hours
Power Management
The three cooking zones (marked in the picture)
together have a maximum possible power availa-
ble to them.
If it looks like the maximum power of all three
cooking zones is going to be exceeded, for exam-
ple by turning on an additional cooking zone or
by turning up a heat setting, the Power Manage-
ment automatically reduces the power of another
cooking zone. The power of the cooking zone that has been switched on for the longest
time is reduced. For two minutes the indicator for this cooking zone changes between the
previously set heat setting and the maximum possible heat setting at this time. After one
minute the actual heat setting is displayed.
The following table shows the distribution of the maximum possible heat setting when all
three cookning zones are on at the same time.
First cooking zone Second cooking zone Third cooking zone
14 14 -
14 13 1 - 11
14 12 12
13 13 13
Operating the appliance 11

Tips on cooking and frying
Information about acrylamides
According to the latest scientific research, intensive browning of food, especially in products
containing starch, may present a health risk due to acrylamide. Therefore we recommend
cooking at low temperatures and not browning foods too much.
Cookware
• You can recognise good cookware from the bottoms of the pans. The bottom should be
as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave
discolorations on the glass ceramic surface which are difficult or impossible to remove.
Energy saving
Always place cookware on the cooking zone before it is switched on.
If possible, always place lids on the pans.
Switch cooking zones off before the end of the cooking time, to take advantage of residual
heat.
Bottom of pans and cooking zones should be the same size.
Examples of cooking applications
The information given in the following table is for guidance only.
Heat set-
ting
Cooking process suitable for Cook time Tips/Hints
0 Off position
1 Keeping food warm Keeping cooked
foods warm
as required Cover
12 Tips on cooking and frying

Heat set-
ting
Cooking process suitable for Cook time Tips/Hints
1-3 Melting Hollandaise sauce,
melting butter,
chocolate, gelatine
5-25 mins. Stir occasionally
1-3 Solidifying Fluffy omelettes,
baked eggs
10-40 mins. Cook with lid on
3-5 Simmering Simmering rice and
milkbased dishes
Heating up ready-
cooked meals
25-50 mins. Add at least twice
as much liquid as
rice, stir milk dishes
part way through
cooking
5-7 Steaming
Braising
Steaming vegeta-
bles, fish Braising
meat
20-45 mins. With vegetables
add only a little liq-
uid (a few table-
spoons)
7-9 Boiling Steaming potatoes 20-60 mins. Use only a little liq-
uid, e. g.: max. ¼ l
water for 750 g of
potatoes
7-9 Boiling Cooking larger
quantities of food,
stews and soups
60-150 mins. Up to 3 l liquid plus
ingredients
9-12 Gentle frying Frying escalope,
veal cordon bleu,
cutlets, rissoles,
sausages, liver,
roux, eggs, pan-
cakes, doughnuts
as required Turn halfway
through cooking
12-13 Heavy frying Hash browns, loin
steaks, steaks, Flä-
dle (pancakes for
garnishing soup)
5-15 mins. per pan Turn halfway
through cooking
14 Boiling Searing
Deep frying
Boiling large quantities of water, cooking pasta, searing meat
(goulash, pot roast), deep frying chips
Cleaning and care
WARNING!
Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance
and remove the residues with water and washing up liquid after each use. Remove also the
remnants of the cleaning agents!
Scratches or dark stains on the glass ceramic that cannot be removed do not affect the
functioning of the appliance.
Cleaning and care 13

Cleaning the appliance after each use
1. Food containing sugar, plastics, tin foil residues should be removed at once using a
scraper. Place a scraper on the glass ceramic surface at an angle and remove residues
by sliding the blade over the surface. Wipe the appliance with a damp cloth and a little
washing up liquid. Finally, rub the appliance dry using a clean cloth .
2. Limescale rings, water rings, fat splashes, shiny metallic discolorations should be re-
moved after the appliance has cooled down using cleaner for glass ceramic or stainless
steel.
What to do if...
Problem Possible cause Remedy
The cooking zones will not
switch on or are not function-
ing
More than 10 seconds have
passed since the appliance was
switched on
Switch the appliance on again.
The child safety device is
switched on
Deactivate child safety device
(See the section “Child safety
device”)
Several sensor fields were
touched at the same time
Only touch one sensor field
Automatic switch off has been
triggered
Remove any objects (pan,
cloths, etc.) that are lying on
the control panel. Switch the
appliance on again
There is water on the control
panel, or the control panel is
covered with splashes
Wipe the control panel
is active - Switch off
Acoustic signal sounds when
appliance is switched off
The control panel is wholly or
partly covered by objects.
Remove objects.
The residual heat indicator is
not displaying anything
The cooking zone was only on
for a short time and is therefore
not hot
If the cooking zone is supposed
to be hot, call the Customer
Service Department.
The automatic warm up func-
tion is not switching itself on
There is still residual heat on
the cooking zone
Let the cooking zone cool down
The highest heat setting is set The highest heat setting has
the same power as the auto-
matic warm up function
Acoustic signal sounds and ap-
pliance switches itself on and
then off again; after 5 seconds
another acoustic signal sounds
The On/Off sensor field has
been covered up, e.g. by a cloth
Do not place any objects on the
control panel
14 What to do if...

Problem Possible cause Remedy
is lit Overheating protection for the
cooking zone has been trig-
gered
Switch off the cooking zone.
Switch the cooking zone on
again
and number are displayed Electronics fault Disconnect the appliance from
the electrical supply for a few
minutes (Take the fuse out of
the house’s wiring system) If
after switching on again, is
displayed again, call the cus-
tomer service department
If you are unable to remedy the problem by following the above suggestions, please
contact your dealer or the Customer Care Department.
WARNING!
Repairs to the appliance are only to be carried out by qualified service engineers. Consid-
erable danger to the user may result from improper repairs.
If the appliance has been wrongly operated, the visit from the customer service technician
or dealer may not take place free of charge, even during the warranty period.
Disposal
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the shop where you purchased
the product.
The packaging materials are environmentally friendly and can be recycled. The plastic com-
ponents are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
Installation Instructions
Safety information
Safety instructions
WARNING!
This must be read!
Disposal 15

The laws, ordinances, directives and standards in force in the country of use are to be
followed (safety regulations, proper recycling in accordance with the regulations, etc.)
Installation may only be carried out by a qualified electrician. The minimum distances to
other appliances and units are to be observed.
Anti-shock protection must be provided by the installation, for example drawers may only
be installed with a protective floor directly underneath the appliance. The cut surfaces of
the worktop are to be protected against moisture using a suitable sealant.
The sealant seals the appliance to the work top with no gap. When building in, protect the
underside of the appliance from steam and moisture, e.g. from a dishwasher or oven.
Avoid installing the appliance next to doors and under windows. Otherwise hot cookware
may be knocked off the rings when doors and windows are opened.
WARNING!
Risk of injury from electrical current.
• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by installing correctly.
• The appliance must be connected to the electrical supply by a qualified electrician.
• Loose and inappropriate plug and socket connections can make the terminal overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains cable of
type H05BB-F Tmax 90°C (or higher) must be used.
• If this appliance’s mains cable is damaged, it must be replaced by a special cable (type
H05BB-F Tmax 90°C; or higher). Please contact your local Service Force Center for further
advice.
A device must be provided in the electrical installation which allows the appliance to be
disconnected from the mains at all poles with a contact opening width of at least 3 mm
Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to
be removed from the holder), earth leakage trips and contactors.
Sticking on the seal
• Clean the worktop in the area of the cut-out section.
• Stick the one-sided self-adhesive sealing tape supplied all the way round the lower edge
of the cooking surface along the outer edge of the glass ceramic panel. Do not stretch
it. The cut ends should lie in the middle of one side. When you have cut it to length (add
a few mm), press the two ends flush up against one another.
Assembly
min.
50 mm
16 Safety information

12
795 490
672
Rating Plate
AEG-ELECTROLUX
Modell 96931KFE-N Prod. Nr. 949 593 135
Typ 55 HGD AA AO 230 V, 50 Hz
7,9 kW
Service
In the event of technical faults, please first check whether you can remedy the problem
yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care
Department or one of our service partners.
In order to be able to assist you quickly, we require the following information:
– Three-digit-letter combination
for glass ceramic
– Model description
– Product number (PNC)
Service 17

– Serial number
(S No. - see rating plate)
– Type of fault
– Any error messages displayed by
the appliance
18

19

www.electrolux.com
www.aeg-electrolux.de
892930390-C-082008
