WARNING! Read all safety warnings and all
instructions. Failure to follow all instructions listed below,
may result in electric shock, re and/or serious personal injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
■Always mention the model number when
communicating with AEG in regards to battery packs.
ABP58LI-401 battery pack is for AEG 58V cordless
products only. Refer to the Operator’s Manual provided
with the product.
■Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock, fire,
or serious personal injury.
■Do not place battery tools or their batteries near fire
or heat. Following this rule will reduce the risk of serious
personal injury.
■Do not crush, drop or damage the battery pack. Do not
use a battery pack or charger that has been dropped or
has received a sharp blow. Properly dispose of a dropped
or damaged battery immediately.
■Do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
■For best results, your battery tool should be charged in a
location where the temperature is more than 10°C but less
than 38°C. To reduce the risk of serious personal injury, do
not store outside or in vehicles.
■Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and
water, then neutralize with lemon juice or vinegar. If
liquid gets into your eyes, flush them with clean water
for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious
personal injury.
■Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also to
prevent misuse of the product and possible injury.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
■Use battery tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that no
batteries can come in contact with other batteries or conductive
materials while in transport by protecting exposed connectors
with insulating, non-conductive caps or tape. Do not transport
batteries that are cracked or leaking. Check with the forwarding
company for further advice.
SPECIFICATIONS
Battery pack ABP58LI-401
Voltage 58 V
Compatible charger
(not included) ABC58S
Battery capacity 4.0 Ah
Charger input 220V-240V, 50-60Hz
AC only
Maximum charging time
(ABP58LI-401)
65 minutes
Quick recharge
60%
(40 minutes)
OPERATION
FUEL GAUGE
See gure.
To display the amount of charge left in the battery, press the
charge level indicator button.
CHARGE LEVEL
INDICATOR BUTTON CHARGE LEVEL
INDICATOR

22

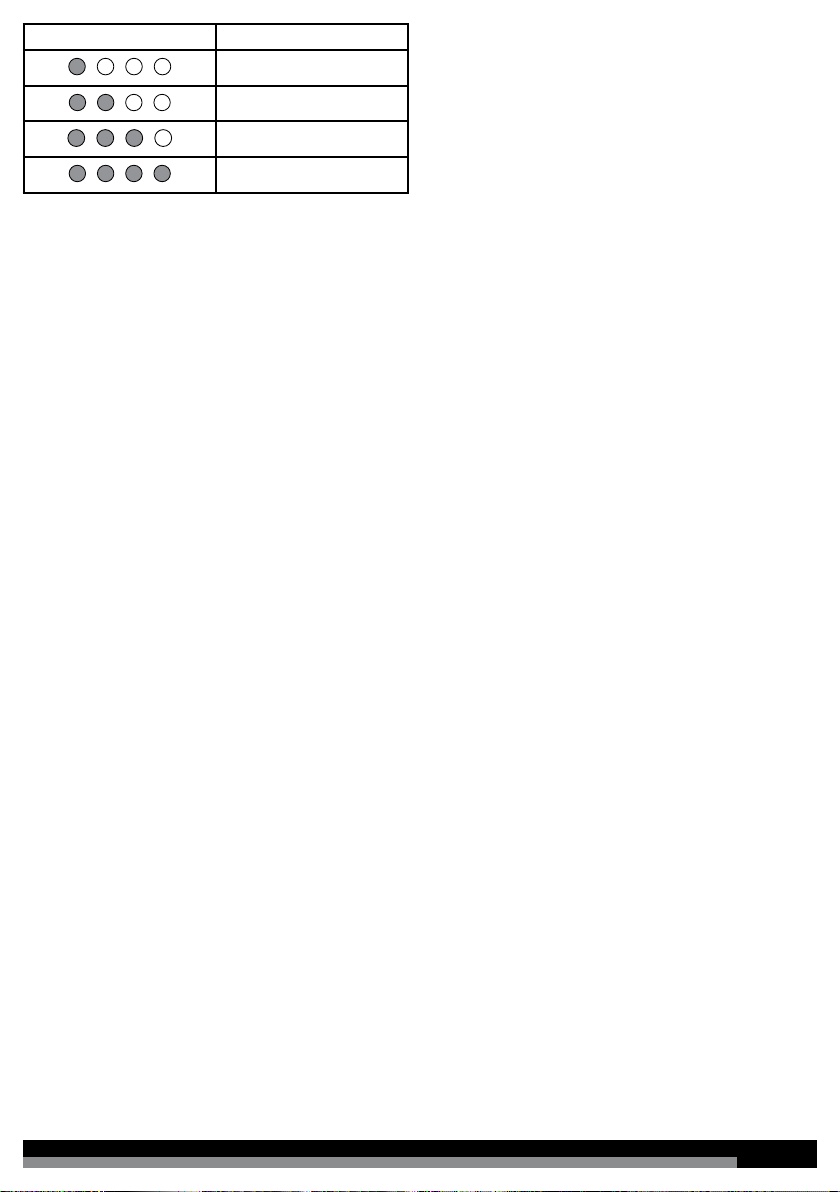

LED Functions Charge Status
0 - 25%
25 - 50%
50 - 75%
75 - 100%
■If four LEDs glow orange, the battery pack is fully charged.
The battery pack capacity is between 75%-100%.
■If three LEDs glow orange and one is off, the battery pack
capacity is between 50%-75%.
■If two LEDs glow orange and the other two are off, the
battery pack capacity is between 25%-50%.
■If only one LED glows orange and others are off, the battery
pack capacity is lower than 25%. In this case, the battery
pack can be used as usual until automatically turned off by
the control program.
BATTERY PROTECTION FEATURES
AEG 58V LITHIUM-ION batteries are designed with features
that protect the LITHIUM-ION cells and maximise battery life.
If the tool stops during use, the following may be the causes:
a. The maximum current draw of the battery has been
exceeded, causing it to automatically stop powering
the tool. Release the trigger to reset the tool and pull
the trigger to resume operation.
b. Excessive temperatures will cause the battery to stop
powering the tool. Feel the battery pack; if it is too
warm, allow it to cool down.
If the tool still does not work, recharge the battery.
NOTE: The battery pack indicator LED will not work if the
battery protection feature has caused the battery pack to
stop powering the tool. Release the tool trigger or remove the
battery pack from the tool and the battery pack LED indicator
will resume normal function.
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to prevent
possible problems. Therefore, you should charge them until
the green LED on the front of the charger comes on.
If the charger does not charge the battery pack under normal
circumstances, return both the battery pack and charger to
your nearest authorised service centre for electrical check.
TO CHARGE:
■Use battery pack only with the recommended charger.
■Connect the charger to the power supply. Make sure the
power supply is normal household voltage, 220-240 volts,
AC only, 50-60 Hz.
■Make sure the latch of the charger snap into place and the
battery pack is secured in the charger before beginning
operation.
■Slide the battery pack along the groove of the charger.
■Press down on the battery pack to be sure contacts on the
battery pack engage properly with contacts in the charger.
■Do not place the charger and battery pack in an area of
extreme heat or cold. They will work best at normal room
temperature.
■NOTE: The charger and battery pack should be placed in
a location where the temperature is more than 10°C but
less than 38°C.
■The battery pack will become slightly warm to the touch
while charging. This is normal and does not indicate a
problem.
■After charging is complete, the charger green LED will
remain on until either the battery pack has been removed
from the charger or the charger has been removed from
the power supply.
■After charging is complete, the battery pack indicator LED
will remain on 1 min then turn off. But if the battery pack
has been removed from the power supply, the battery pack
indicator LED will turn off.
■When batteries become fully charged, unplug the charger
from the power supply and remove the battery pack.
■To remove the battery pack from the charger, depress the
latch of the charger.
CHARGING A HOT BATTERY PACK
If the battery pack is above normal temperature range, the
charger red LED will begin flashing and the green LED will be
off. When the battery pack cools down to approximately 50°C,
the charger will automatically begin fast charge mode.
CHARGING A COOL BATTERY PACK
If the battery pack is below normal temperature range, the
charger red LED will begin flashing and the green LED will be
off. When the battery warms to a temperature of more than
0°C, the charger will automatically begin charge mode.
COLD WEATHER OPERATION
The LITHIUM-ION battery pack can be used in temperatures
down to -20°C. Put the battery pack on a tool and use the tool
in a light duty application. After about a minute, the pack will
have warmed up and begin operating normally.
BATTERIES
These batteries have been designed to provide maximum
trouble-free life. However, like all batteries, they will eventually
wear out. Do not disassemble battery pack and attempt to
replace the batteries. Handling of these batteries, especially
when wearing rings and jewelry, could result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
■Remove the battery pack from the charger once it is fully
charged and ready for use. For battery pack storage longer
than 30 days:
• Store the battery pack where the temperature is below
27°C and away from moisture.
• Store battery packs in a 30%-50% charged condition.
• Every six months of storage, charge the battery pack
as normal.
BATTERY PACK REMOVAL AND PREPARATION FOR RE-
CYCLING
To preserve natural resources, please recycle or dispose of
batteries properly.

3
3
This product contains LITHIUM-ION batteries. Local, state or
federal laws may prohibit disposal of LITHIUM-ION batteries
in ordinary trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
WARNING! Upon removal, cover the battery pack’s
terminals with heavy-duty adhesive tape. Do not attempt
to destroy or disassemble battery pack or remove any of its
components. LITHIUM-ION batteries must be recycled or
disposed of properly. Also, never touch both terminals with
metal objects and/or body parts as short circuit may result.
Keep away from children. Failure to comply with these
warnings could result in fire and/or serious injury.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environmental-friendly recycling.

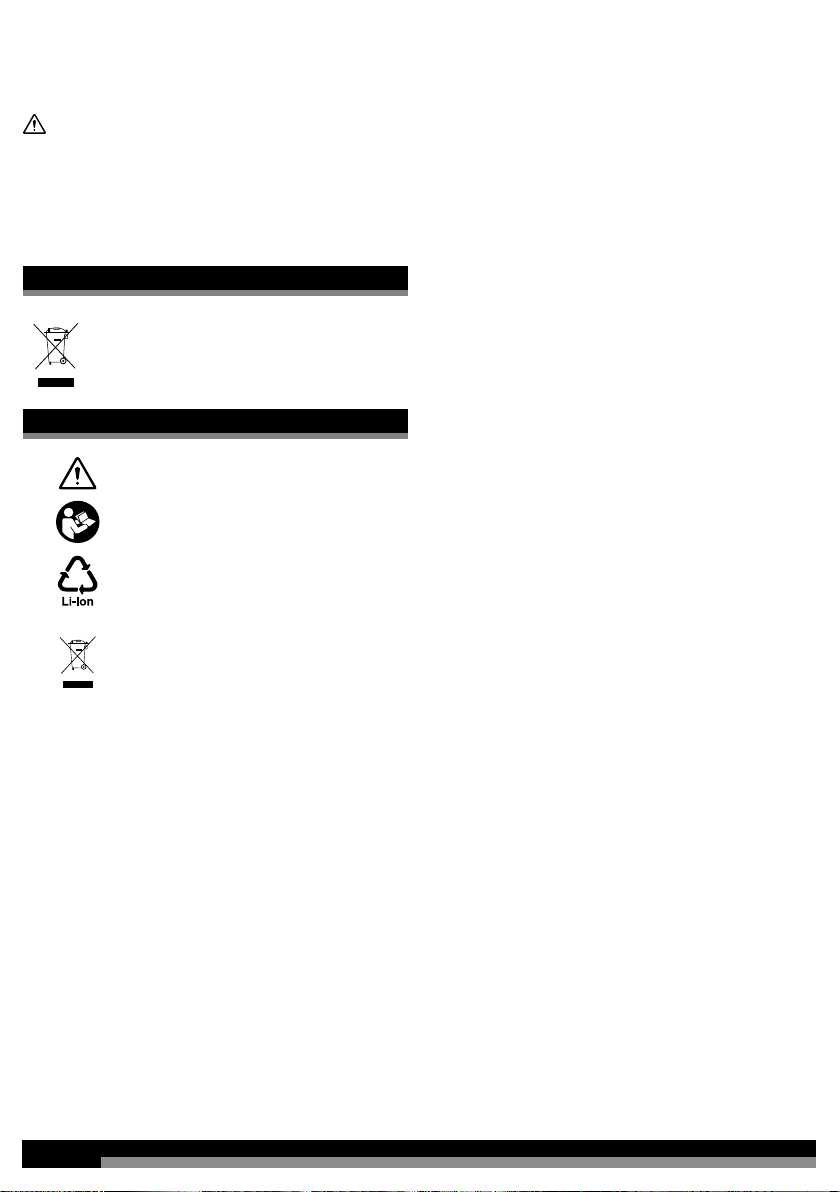

SYMBOLS
Safety alert
Please read the instructions carefully
before starting the machine.
Recycle Li-Ion batteries
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authority or retailer for recycling
advice.
