AEG LAVATHERM 65771IH1 User manual

EN User Manual
Tumble Dryer LAVATHERM 65771IH1

CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. ACCESSORIES.................................................................................................................8
5. CONTROL PANEL...........................................................................................................9
6. PROGRAMME TABLE..................................................................................................... 9
7. OPTIONS....................................................................................................................... 12
8. BEFORE FIRST USE.......................................................................................................13
9. DAILY USE......................................................................................................................13
10. HINTS AND TIPS.........................................................................................................15
11. CARE AND CLEANING.............................................................................................. 16
12. TROUBLESHOOTING.................................................................................................19
13. TECHNICAL DATA..................................................................................................... 20
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance
and understand the potential hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
ENGLISH 3

only with the appliance specified in the instructions,
supplied with the accessory. Read it carefully before
installation (Refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully opened.
•The ventilation opening in the base (if applicable)
must not be covered by a carpet, mat, or any floor
covering.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
www.aeg.com
4

removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
•The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when being moved.
• The rear surface of the appliance
must be put against the wall.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
ENGLISH 5

• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
2.4 Internal light
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The type of light bulb or halogen
lamp used for this appliance is only
for household appliances. Do not use
it for house lighting.
• To replace the internal light, contact
the Authorised Service Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.aeg.com
6

3. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
10
11
12
8
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6The button to open the heat
exchanger door
7Airflow slots
8Adjustable feet
9Heat exchanger door
10 Heat exchanger cover
11 The knob to lock the heat exchanger
cover
12 Rating plate
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
ENGLISH 7

4. ACCESSORIES
4.1 Stacking kit
Accessory name: SKP11, STA9
Available from your authorised vendor.
Stacking kit can be used only between
washing machines and tumble dryers
specified in the leaflet. See the leaflet
attached.
Read carefully the instructions supplied
with the accessory.
4.2 Draining kit
Accessory name: DK11.
Available from your authorised vendor
(can be attached to some types of
tumble dryer)
For through draining of the condensed
water into a basin, siphon, gully, etc.
After installation, the water container is
drained automatically. The water
container must stay in the appliance.
The installed hose must be minimum 50
cm to maximum of 1m from floor level.
The hose cannot be in loop. Decrease
the length of the hose if necessary.
Read carefully the instructions supplied
with the accessory.
4.3 Pedestal with drawer
Accessory name: PDSTP10.
Available from your authorised vendor.
For increasing the height of the
appliance in order to ease loading and
unloading of laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
etc.
Read carefully the instructions supplied
with the accessory.
www.aeg.com
8

5. CONTROL PANEL
1 2 3 4 5 6 7 8 9
1Programme dial
2On/Off button
3Anticrease button
4Buzzer button
5Time Drying button
6Delay Start button
7Display
8Start/Pause button
9Indicators:
Tank - drain the water container
Filter - clean filter
Condenser - heat exchanger check
6. PROGRAMME TABLE
Programmes Load 1) Properties / Fabric mark
Cottons
Extra Dry 7 kg Drying level: extra dry. /
Cupboard Dry + 7 kg Drying level: strong dry. /
Cupboard Dry 2)3) 7 kg Drying level: cupboard dry. /
Iron Dry 2) 7 kg Drying level: suitable for ironing. /
Jeans 7 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck, cuffs
and seams).
/
Pillows 3 kg
To dry single or double duvets and
pillows (with feather, down or syn-
thetic fillings). /
ENGLISH 9

Programmes Load 1) Properties / Fabric mark
Time Drying 5 kg
With this programme you can use
the Time Drying option and set the
programme duration.
Drying time should be adequate to
the load, e.g. 2h for 5 kg of cotton.
/
Synthetics
Extra Dry 3,5 kg Drying level: extra dry. /
Cupboard Dry2) 3,5 kg Drying level: cupboard dry. /
Iron Dry 3,5 kg Drying level: suitable for ironing. /
Easy Iron 1 kg (or 5
shirts)
Easy care fabrics for which a minimum of ironing
is necessary. The drying results can be different
from one type of fabric to the another. Shake the
items before you put them in the appliance.
When the programme is completed, immediate-
ly remove the items and put them on a hanger.
/
Sports 2 kg Sportswear, thin and light fabrics, microfiber,
polyester, which are not ironed.
Silk 1 kg To dry hand-washable silk gently. /
www.aeg.com10

Programmes Load 1) Properties / Fabric mark
Wool 1 kg
Wool fabrics. Gentle drying for hand-washable
woollens. Remove immediately the items when
the programme is completed.
The wool drying cycle of this machine has been
approved by The Woolmark Company for the
drying of wool garments labelled as "hand
wash" provided that the garments are dried ac-
cording to the instructions issued by the manu-
facturer of this machine. Follow the garment
care label for other laundry instructions. M1525
In UK, Eire, Hong Kong and India the Woolmark
trade mark is a Certification trade mark.
1) The maximum weight refers to dry items.
2) For test institutes only: Standard programmes for tests are specified in the EN 61121 document.
Clean the filter after each cycle
3) The Cottons Cupboard Dry programme is the “Standard cotton programme”. It is suitable for
drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption
for drying wet cotton laundry.
6.1 Programmes and options selection
Options
Programmes 1) Anticrease Time Drying
Cottons; Extra Dry
Cottons; Cupboard Dry +
Cottons; Cupboard Dry
Cottons; Iron Dry
Jeans
Pillows
Time Drying
ENGLISH 11

Options
Programmes 1) Anticrease Time Drying
Synthetics; Extra Dry
Synthetics; Cupboard Dry
Synthetics; Iron Dry
Easy Iron
Sports
Silk
Wool
1) Together with the programme you can set 1 or more options.
6.2 Consumption data
Programme Spun at / residual humidity Drying time
Energy
consump-
tion
Cottons 7 kg
Cupboard Dry 1400 rpm / 50% 117 min. 1,49 kWh
1000 rpm / 60% 134 min. 1,74 kWh
Iron Dry 1400 rpm / 50% 87 min. 1,04 kWh
1000 rpm / 60% 104 min. 1,29 kWh
Synthetics 3,5 kg
Cupboard Dry 1200 rpm / 40% 55 min. 0,60 kWh
800 rpm / 50% 67 min. 0,75 kWh
7. OPTIONS
7.1 Anticrease
The anti-crease phase adds 30 to 90
minutes at the end of the drying cycle.
Gentle drum rotations reduce creasing.
Laundry can be removed during the anti-
crease phase.
7.2 Buzzer
When the buzzer option is activated you
can hear the buzzer at the:
• Cycle end
• Anti-crease phase start and end
• Cycle interruption
The buzzer is activated by default. You
can use this function to activate or
deactivate the sound.
You can activate the Buzzer
option with all programmes.
www.aeg.com12

7.3 Time Drying
For use with the Time Drying programme
only. Allows the user to set the drying
duration from 10 minutes up to 2 hours
(in 10 minute intervals).
7.4 Delay Start
Delay the start of a drying
programme from 30 minutes
up to 20 hours.
1. Set the drying programme and
options.
2. Push the Delay Start button
repeatedly until the desired delay
time appears (e.g. if the
programme is to start after 12 hours.)
3. To activate the Delay Start push the
Start/Pause button. The timer will
start to count down.
8. BEFORE FIRST USE
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a short programme (e.g. 30
minutes) with moist laundry.
At the beginning of the
drying cycle (first 3-5 min.)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal for
compressor powered
appliances such as
refrigerators and freezers.
9. DAILY USE
9.1 Preparing the laundry
• Close the zippers.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• If an item has an internal layer made
of cotton, turn it inside out. Make sure
that the cotton layer is always outward
facing.
• We recommend that you set a correct
programme suitable for the type of
fabrics that are in the appliance.
• Do not put dark colours together with
light colours. Dark colours can bleed.
• Use a suitable programme for cotton,
jersey and knitwear to prevent
shrinkage.
• Make sure that the load size is not
more than the maximum stated the
programme table.
• Only dry laundry that is suitable for
tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
ENGLISH 13

Fabric label Description
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
9.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and rubber
seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
9.3 Turning on the appliance
To turn on the appliance:
Push the On/Off button.
If the appliance is on, some indicators
appear on the display.
9.4 Auto stand-by
To reduce energy consumption, the
automatic stand-by function deactivates
the appliance:
• if the Start/Pause button is not
pressed within 5 minutes.
• after 5 minutes from the programme
end.
Push the On/Off button to activate the
appliance.
If the appliance is on, some indicators
appear on the display.
9.5 Setting a programme
Use the programme dial to set the
programme.
The possible time to complete the
programme comes into the view on the
display.
The drying time you see is
related to the load of 5 kg
for cotton and jeans
programmes. For the other
programmes the drying time
is related to the
recommended loads. The
drying time of the cotton
and jeans programmes with
the load more than 5 kg is
longer.
9.6 Options
Together with the programme you can
set 1 or more special options.
To activate or deactivate an option push
the relevant button.
When the option is activated, the LED
above the button or symbol illuminates.
9.7 Child lock option
The child lock can be set to prevent
children from playing with the appliance.
The child lock option locks all push
buttons and the programme dial (this
option does not lock the On/Off button).
You can activate the child lock option:
• before you push the Start/Pause
button - the appliance cannot start
• after you push the Start/Pause button
- programmes and option selection is
unavailable.
www.aeg.com
14

Child lock option activation:
1. Turn the dryer on.
2. Wait approximately 8 seconds.
3. Select 1 of the available
programmes.
4. Push and hold down the Time
Drying and Delay Start buttons at
the same time.
The symbol appears on the display.
5. To deactivate the child lock, press
the above buttons again until the
symbol disappears.
9.8 Starting a programme
To start the programme:
Push the Start/Pause button.
The appliance starts and the LED above
the button stops flashing and stays on.
9.9 Programme change
To change a programme:
1. Turn the programme dial to Stop
position.
2. Set a new programme.
9.10 Programme end
Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle has finished, the
symbol flashes on the display. If the
Buzzer option is activated, the acoustic
signal sounds intermittently for 1 minute.
If you do not turn off the
appliance, the anti-crease
phase starts. Laundry can be
removed during this phase.
To remove the laundry:
1. Push the On/Off button for 2
seconds to turn the appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
10. HINTS AND TIPS
10.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which
are specified in the programme chart.
• Clean the filter after each drying
cycle.
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
• Use distilled water like that used for
steam ironing. If it is necessary, clean
the distilled water before (e.g. with a
coffee filter) to remove any particles.
• Always keep the airflow slots at the
bottom of the appliance clear.
• Make sure there is good airflow where
the appliance is to be installed.
10.2 Adjustment of dryness
levels
To change the default dryness level:
1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available
programmes.
4. Push and hold down the Anticrease
and Time Drying buttons at the
same time.
One of the symbols appears on the
display:
- Maximum dryness
- Extra dryness
- Standard dryness
5. Push the Start/Pause button
repeatedly until you reach the
desired dryness level.
ENGLISH 15

6. To set the new dryness level as the
default, push the Anticrease and
Time Drying buttons for
approximately 2 seconds at the same
time.
10.3 Deactivating the tank
indicator
The water container indicator is activated
by default. It illuminates at the end of the
drying cycle or during the cycle if the
water reservoir is full. If the draining kit is
installed the water container is drained
automatically and the indicator can be
deactivated.
To deactivate the indicator:
1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available
programmes.
4. Push and hold down the Anticrease
and Delay Start buttons at the same
time.
One of 2 configurations is possible:
• the Tank indicator: is on if the
symbol appears - the
water container indicator is
permanently activated
• the Tank indicator: is off if the
symbol appears - the
water container indicator is
permanently deactivated
11. CARE AND CLEANING
11.1 Cleaning the filter
At the end of each cycle the Filter
indicator comes on and you must clean
the filter.
The filter collects the fluff
produced during the drying
cycle.
1. Open the door. Pull the filter up.
2. Push the hook to open the filter.
3. Use a moist hand to clean both parts
of the filter.

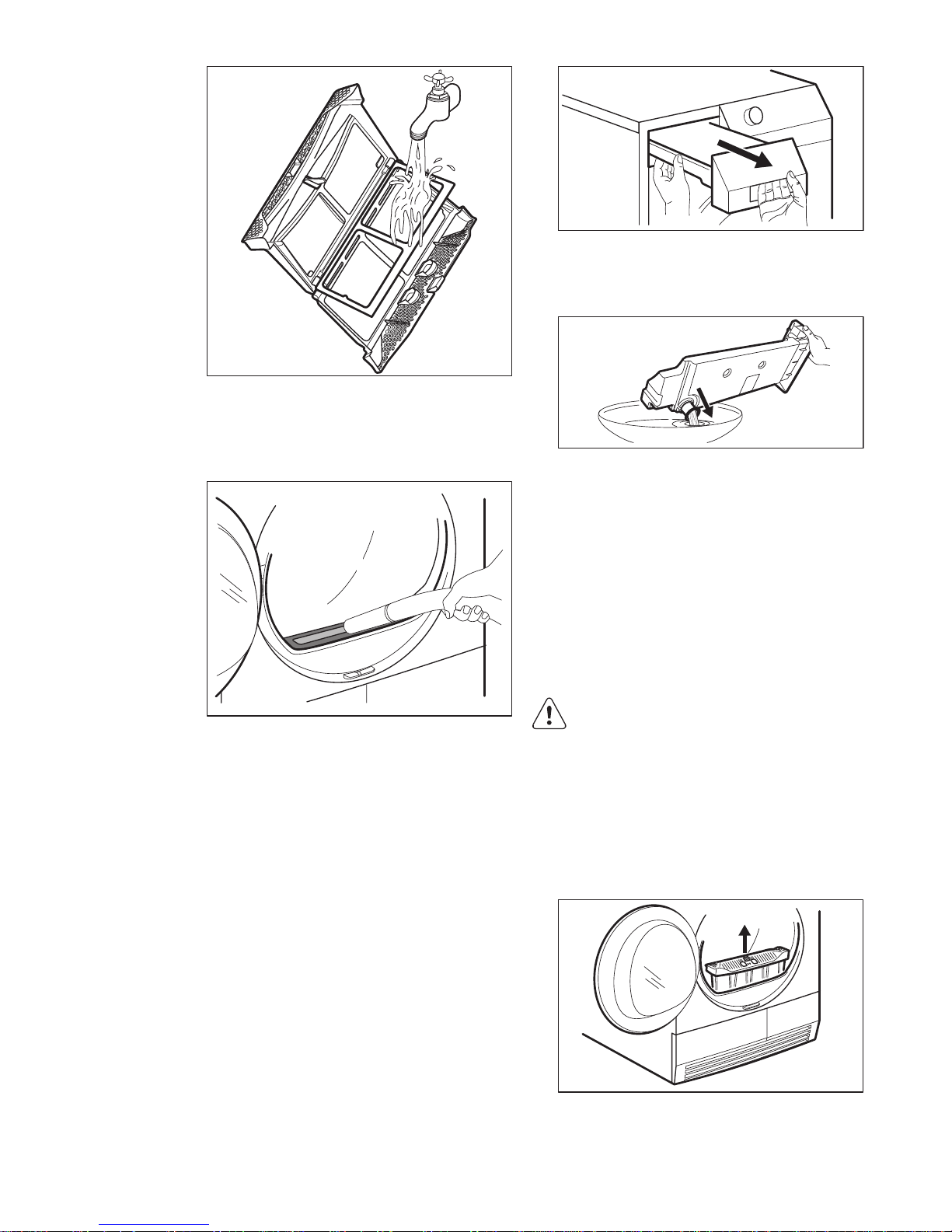

4. If necessary, clean the filter with a
brush under warm tap water and/or a
vacuum cleaner. Close the filter.
www.aeg.com
16

5. If necessary, remove fluff from the
filter socket and gasket. You can use
a vacuum cleaner. Place the filter
back inside the filter socket.
11.2 Emptying the water
container
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
Tank indicator comes on and you must
empty the water container.
To empty the water container:
1. Pull the water container out keeping
it in a horizontal position.
2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press
the Start/Pause button.
11.3 Cleaning the condenser
If the Condenser indicator flashes,
inspect the condenser and its
compartment. If it is dirty, clean it.
WARNING!
Do not touch the metal
surface with bare hands. Risk
of injury. Wear protective
gloves. Clean carefully to
avoid damaging the metal
surface.

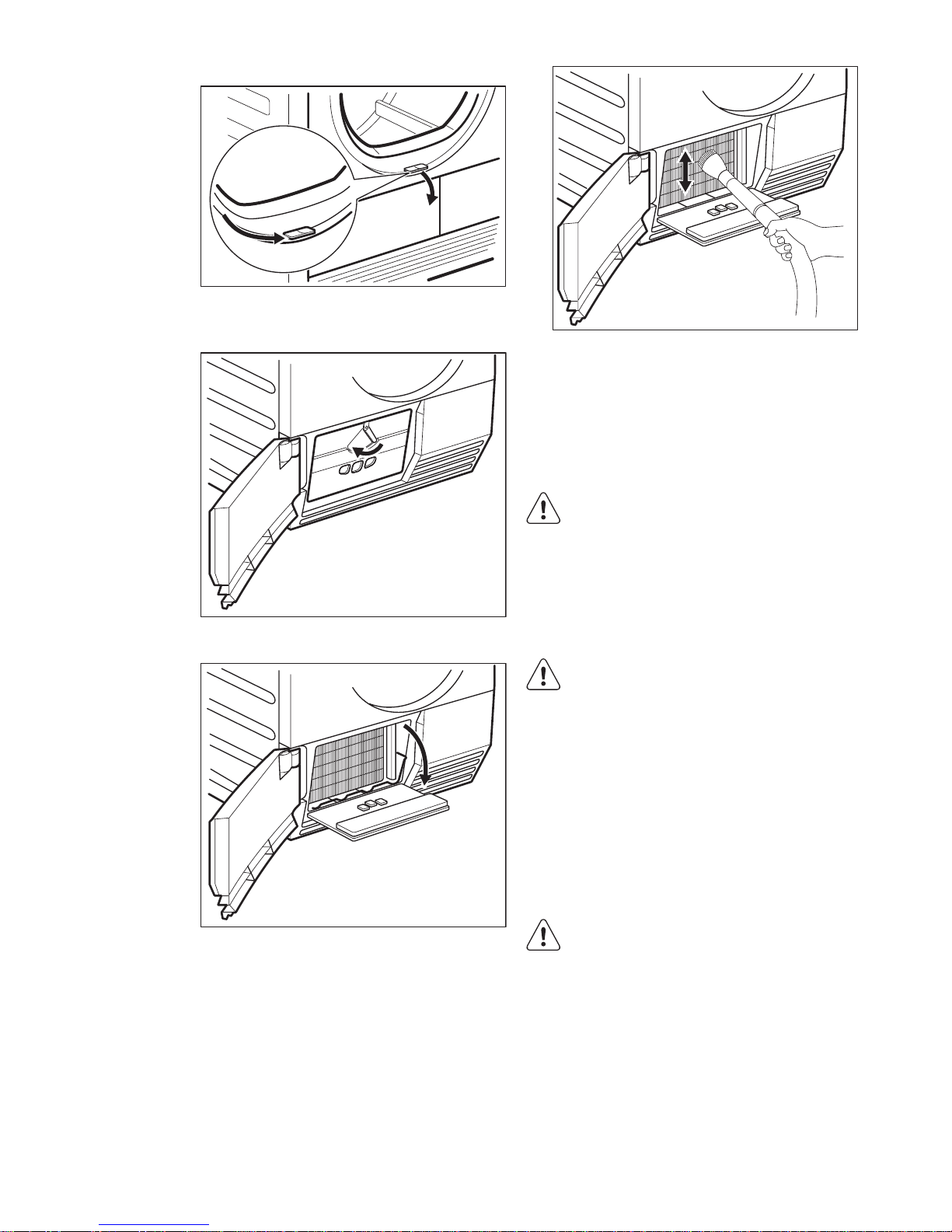

To inspect:
1. Open the door. Pull the filter up.
2. Slide the release button on the
bottom of the door to open the
ENGLISH 17

condenser door.
3. Turn the lever to unlock the
condenser cover.
4. Lower the condenser cover.
5. If necessary, remove the fluff from
the heat exchanger and its
compartment. You can use a wet
cloth and/or a vacuum cleaner with a
brush attachment.
6. Close the heat exchanger cover.
7. Turn the lever until it clicks into
position.
8. Put the filter back.
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
11.5 Cleaning the control
panel and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture
cleaning agents or cleaning
agents which can cause
corrosion to clean the
appliance.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
www.aeg.com
18

12. TROUBLESHOOTING
Problem 1) Possible cause Remedy
The tumble dry-
er does not op-
erate.
The tumble dryer is not connected
to mains supply.
Connect in at mains socket. Check
fuse in fuse box (domestic installa-
tion).
The loading door is opened. Close the loading door.
The On/Off button was not push-
ed.
Push the On/Off button.
The Start/Pause button was not
pushed.
Push the Start/Pause button.
The appliance is in the standby
mode.
Push the On/Off button.
Unsatisfactory
drying result.
Incorrect programme selection. Do the selection of the applicable
programme. 2)
The filter is clogged. Clean the filter. 3)
The Dry plus option was in mini-
mum level. 4)
Change the Dry plus option to the
moderate or maximum level. 4)
Too high volume of the load. Obey the maximum load volume.
The airflow grill is clogged. Clean the airflow grill in the bot-
tom of the appliance.
Dirt on the humidity sensor in the
drum.
Clean the front surface of the
drum.
Incorrect remaining laundry mois-
ture setting.
Adjust remaining laundry moisture
degree. 5)
The heat exchanger is clogged. Clean the heat exchanger. 3)
The loading
door does not
closed
The filter not locked in the posi-
tion.
Put the filter in the correct posi-
tion.
The laundry is locked between the
door and the seal.
Put the load correctly in the drum.
Err (Error) on
the display.
You try to change the programme
or the option after the start of the
cycle.
Turn the tumble dryer off and on.
Make the new selection.
The option you try to activate is
not applicable with the selected
programme.
Turn the tumble dryer off and on.
Make the new selection.
No drum light Defective drum lamp. Contact the service centre to re-
place the drum lamp.
ENGLISH 19

Problem 1) Possible cause Remedy
Abnormally
elapsing time on
the display.
The time to end is calculated on
the basis of the volume and damp-
ness of the laundry.
The automatic procedure — this is
not the appliance malfunction.
Programme in-
active.
The water container is full. Drain the water container, push
the Start/Pause button. 3)
Drying cycle too
short.
Too small laundry volume. Do the selection of time pro-
gramme. The time value must be
related to the load. To dry 1 item
or small quantities of the laundry
we recommend to use short times.
The laundry is too dry. Do the selection of time pro-
gramme or higher drying level
(e.g. Extra Dry)
Drying cycle too
long 6)
The filter is clogged. Clean the filter.
Too high volume of the load. Obey the maximum load volume.
7)
The laundry not spun sufficiently. Spin correctly the laundry.
Too low or too high room temper-
ature - this is not the appliance
malfunction.
Ensure a room temperature higher
than +5°C and lower then +35°C.
Optimal room temperature to ach-
ieve best drying results is between
19°-24°C.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Make a selec-
tion of the new programme. Push the Start/Pause button. Does not operate? - contact the service centre
and give the error code.
2) Follow the programme description — see PROGRAMME TABLE
3) See chapter CARE AND CLEANING
4) Only dryers with the Dry plus option
5) See HINTS AND TIPS chapter
6) Note: After maximum 6 hours the drying cycle ends automatically.
7) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
13. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 600 mm (maximal 640 mm)
Max. depth with the appliance door open 1090 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
www.aeg.com20
