OVEN USER MANUAL

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have
created it to give you impeccable performance for many
years, with innovative technologies that help make life
simpler – features you might not find on ordinary
appliances. Please spend a few minutes reading to get the
very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to
keep all your AEG appliances looking spotless and
working perfectly. Along with a wide range of accessories
designed and built to the high quality standards you
would expect, from specialist cookware to cutlery baskets,
from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
2

CONTENTS
4 Safety information
7 Product description
9 Before first use
10 Control panel
12 Daily use
14 Clock functions
16 Automatic programmes
18 Using the accessories
21 Additional functions
23 Care and cleaning
26 Technical data
27 What to do if…
28 Environment concerns
The following symbols are used in this user
manual:
Important information concerning your
personal safety and information on how to
avoid damaging the appliance.
General information and tips
Environmental information
Subject to change without notice
Contents 3

SAFETY INFORMATION
Before the installation and use, read this manual carefully:
• For your personal safety and the safety of your property
• For the respect of the environment
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in safe
way and understand the hazards involved. Children shall not play with the appliance.
• Keep all packaging away from children. There is the risk of suffocation or physical injury.
•WARNING: Keep children and animals away from the appliance when the door is open
or the appliance is in the operation, because it becomes hot. There is the risk of injury or
other permanent disability.
• If the appliance has Child Lock or Key Lock (Control Lock) function, use it. It prevents
children and animals from accidental operation of the appliance.
General safety
• Do not change the specifications of this appliance. There is the risk of injury and damage
to the appliance.
• Do not let the appliance stay unattended during operation.
• Switch off the appliance after each use.
Installation
• Only an approved electrician can install and connect the appliance. Contact an approved
service centre. This is to prevent the risks of structural damage or physical injury.
• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.
• Remove all packaging, stickers and layers from the appliance before first use. Do not re-
move the rating plate. It can invalidate the guarantee.
• Make sure that the appliance is disconnected from the power supply during the installa-
tion.
• Be careful when you move the appliance. The appliance is heavy. Always use safety
gloves. Do not lift the appliance by the handle.
• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.
• You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips and contactors.
4Safety information

• Before the installation, make sure that the kitchen cabinet has the recess dimensions ap-
plicable.
• Make sure that the appliance is installed below and adjacent safe structures.
• Keep the minimum distances to the other appliances and units.
• The appliance cannot be positioned on a base.
• Built in ovens and built in cooking surfaces are attached with special connection system.
To prevent damage to the appliance, only use an appliance with the appliances from the
same manufacturer.
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical data on the rating plate agree with your domestic power
supply.
• Information on the voltage is on the rating plate.
• Always use a correctly installed shockproof socket.
• Do not use multi-way plugs, connectors and extension cables. There is the risk of fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to squash or cause damage to the mains plug (if applicable) and cable
behind the appliance.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug – if
applicable.
Use
• The appliance is only for domestic use. Do not use the appliance for commercial and in-
dustrial use.
• Only use the appliance for domestic cooking tasks. This is to prevent physical injury to
persons or prevent damage to property.
• Do not use the appliance as a work surface or storage surface.
• The interior of the appliance becomes hot during use. There is the risk of burns. Do not
touch the heating elements in the appliance. Use gloves when you insert or remove the
accessories or pots.
• Be careful when you remove or install the accessories to prevent damage to the oven
enamel.
• Always stay away from the appliance when you open the door while the appliance is in
operation. Hot steam can release. There is the risk of skin burns.
• To prevent damage or discoloration to the enamel:
– do not put any objects directly on the appliance floor and do not cover it with alumi-
nium foil;
– do not put hot water directly into the appliance;
– do not keep moist dishes and food in the appliance after you finish the cooking.
• Discoloration of the enamel has no effect on the performance of the appliance so it is
not a defect in the sense of the warranty law.
• Do not apply pressure on the open door.
Safety information 5

• Always close the appliance door when you cook, even while grilling.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the appliance from the
power supply.
• Before maintenance, make sure that the appliance is cold. There is the risk of burns.
There is the risk that the glass panels can break.
• Keep the appliance clean at all times. A build-up of fats or other foodstuff can result in a
fire.
• Regular cleaning prevents the surface material from deteriorating
• Use a deep baking tray for very moist cakes to prevent that fruit juices cause stains that
can be permanent.
• For your personal safety and the safety of your property, only clean the appliance with
water and a soap. Do not use flammable products or products that can cause corrosion.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects,
abrasive cleaning agents, abrasive sponges and stain removers
• If you use an oven spray, follow the instructions from the manufacturer.
• Do not clean the glass door with abrasive cleaning agents or metal scraper. Heat resist-
ant surface of the inner glass can break and shatter.
• When the door glass panels are damaged they become weak and can break. You must
replace them. Contact the service centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Do not clean catalytic enamel (if applicable).
Risk of fire
• Open the door carefully. The use of ingredients with alcohol can cause a mixture of alco-
hol and air. There is the risk of fire.
• Do not let sparks or open flames come near the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products, and/or
fusible objects (made of plastic or aluminium) in, near or on the appliance.
Oven lamp
• Bulb lamps used in this appliance are special lamps selected for household appliances use
only. They cannot be used for the full or partial illumination of a household room.
• If it becomes necessary to replace the lamp use one of the same power and specifically
designed for household appliances only.
• Disconnect the appliance from the power supply before the replacement of the oven
lamp. There is the risk of electrical shock.
Service centre
• Only an approved engineer can repair or work on the appliance. Contact an approved
service centre.
• Use only original spare parts.
6Safety information

Disposal of the appliance
• To prevent the risk of physical injury or damage
– Disconnect the appliance from the power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents children or small animals from being closed in-
side of the appliance. There is the risk of suffocation.
PRODUCT DESCRIPTION

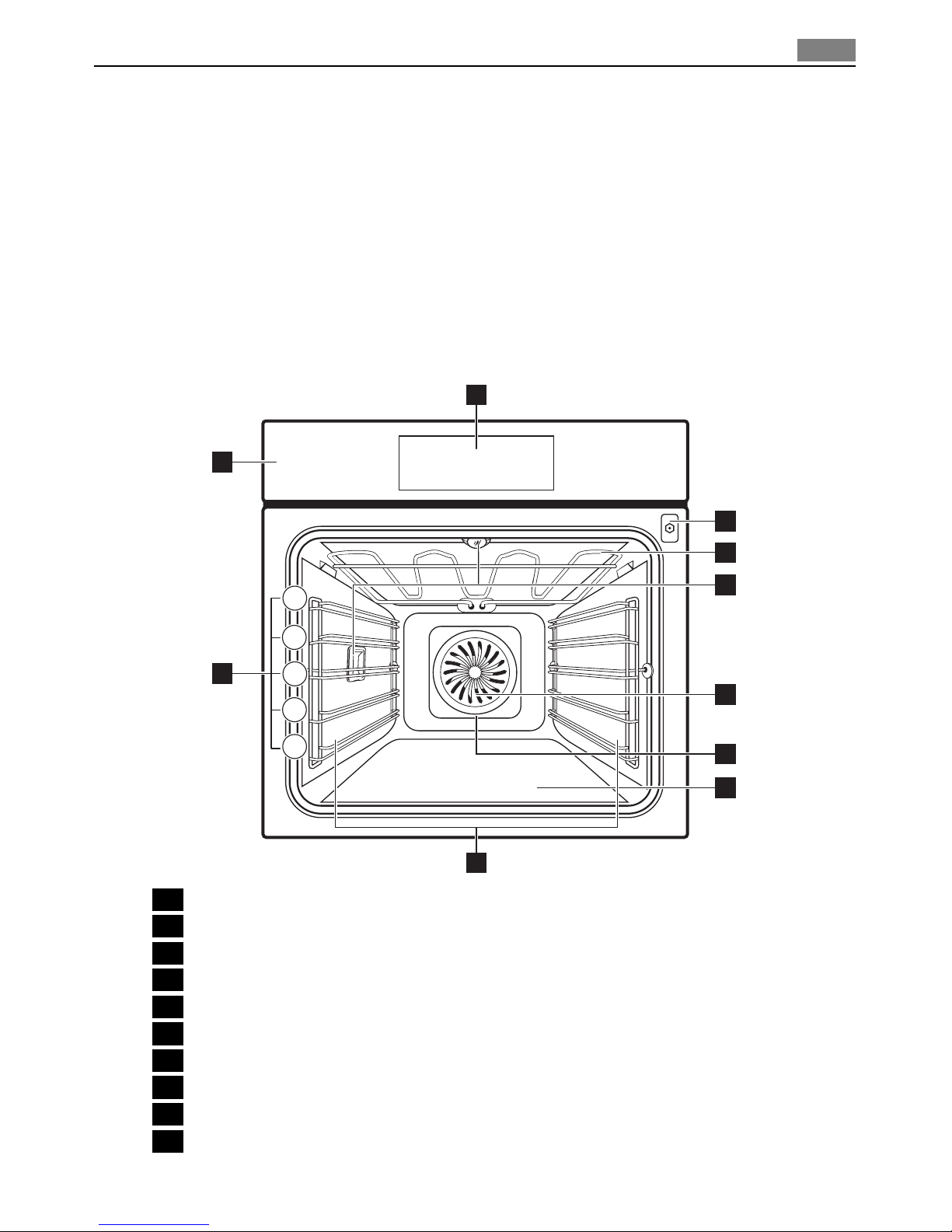

General overview
2
1
10
4
3
5
6
7
8
9
5
4
3
2
1
1Control panel
2Electronic programmer
3Socket for the core temperature sensor
4Heating element
5Oven lamp
6Fan
7Rear wall heating element
8Bottom heat
9Shelf support, removable
10 Shelf positions
Product description 7

Oven accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Combi pan
For cake and biscuits. To bake and roast or as
pan to collect fat.
•Core Temperature Sensor
To measure how far the food is cooked.
8Product description

•Telescopic runners
For shelves and trays.
BEFORE FIRST USE
WARNING!
Refer to "Safety information" chapter.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Refer to chapter "Care and Cleaning".
First connection to the mains
After first connection to the mains all symbols in the display are on for some seconds. For
the subsequent few seconds the display shows software version.
First setting the time of day
After the software version goes off, the display shows "h" and "12:00".
Setting the time of day:
1. Touch or to set hours.
2. Touch or .
3. Touch or to set minutes.
4. Touch or .
The Temperature/Time display shows new time.
Changing the time of day
You can change the time of day only if the appliance is off.
Touch . flashes in the display. To set new time of day use the above procedure.
Before first use 9

CONTROL PANEL

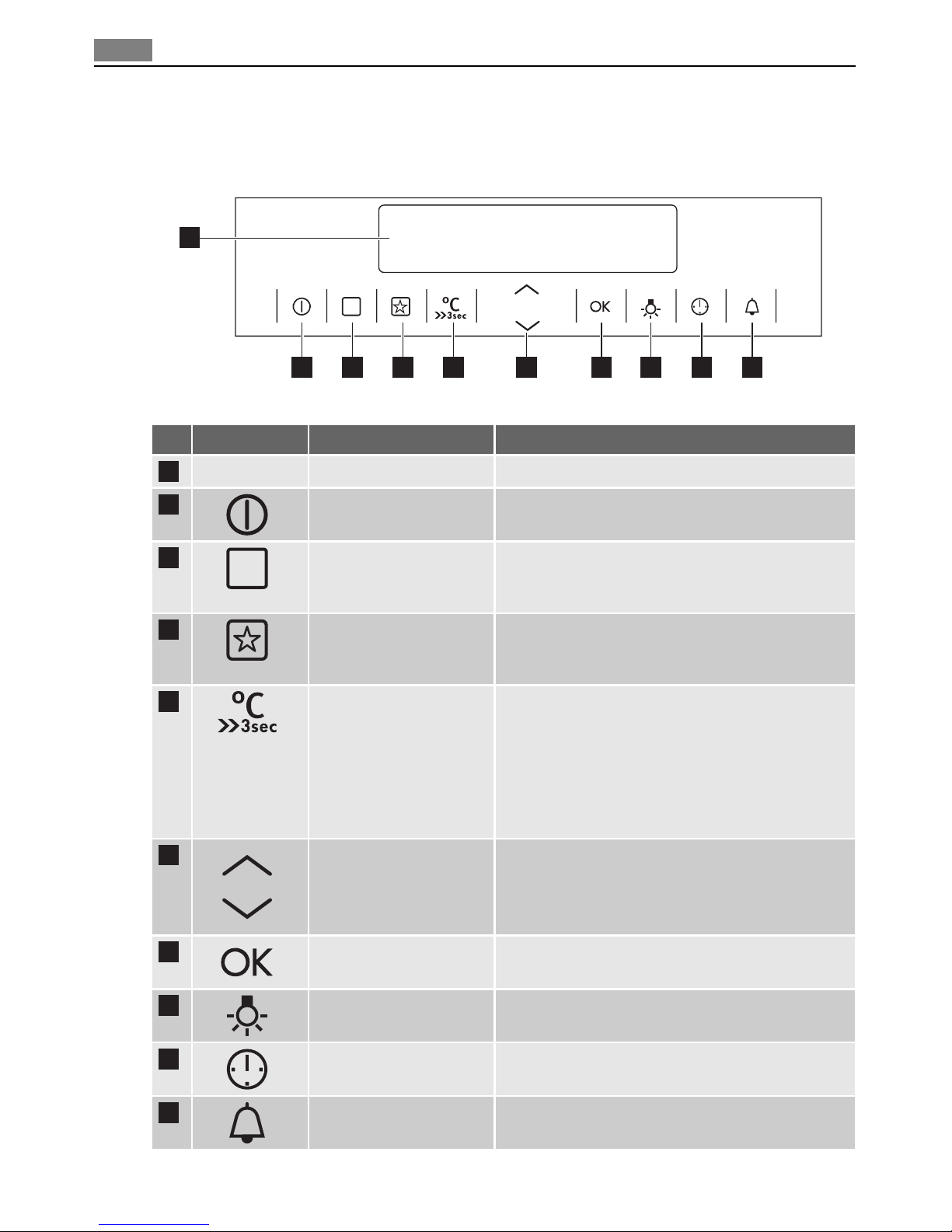

Electronic programmer
1
2 3 4 5 6 7 8 9 10
Use the sensor fields to operate the appliance.
Sensor Field Function Description
1
-DISPLAY Shows the current settings of the appliance.
2
ON/OFF To activate and deactivate the appliance.
3
OPTIONS To set an oven function or programme.
Straight access to the oven function when the
appliance is off.
4
MY FAVOURITE PRO-
GRAMME
You can store your favourite programme. Use it
to access your favourite programme directly, also
when the appliance is off.
5
TEMPERATURE / FAST
HEAT UP
To set and examine cavity temperature or core
temperature sensor temperature. If you press it
and hold for three seconds, it turns Fast heat up
function ON and OFF.
Straight access to the temperature setting of
the first oven function when the appliance is
off.
6
UP, DOWN To choose an oven function, clock function and
to set the minute minder, temperature or time of
day.
7
OK To confirms the selection or setting.
8
OVEN LIGHT To set the oven lamp on or off.
9
CLOCK To set the clock function.
10
MINUTE MINDER To set the minute minder.
10 Control panel

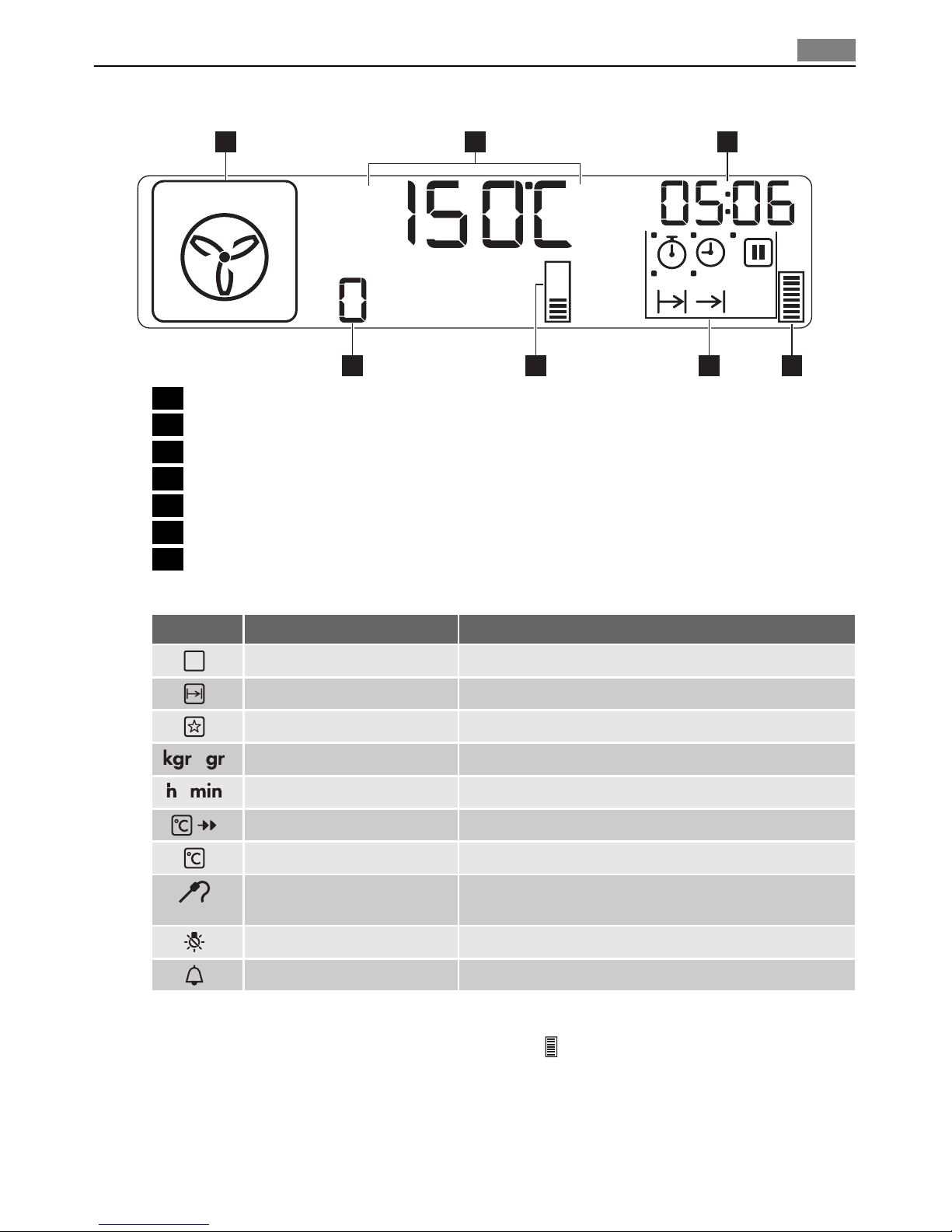

Display
6
1 2 3
5 47
1Oven function symbol
2Temperature/Time display
3Clock/Residual heat display (also Minute minder and Time of day)
4Residual heat indicator
5Indicators for the clock functions (refer to the table "Clock functions")
6Heat up indicator
7Number of oven function/programme
Other indicators of display
Symbols Name Description
Options You can choose an oven function.
Automatic programme You can choose an oven programme.
My favourite programme The favourite programme operates.
/ kgr/gr An oven programme with weight input operates.
/ h/min A clock function operates.
Temperature / fast heat up The function operates.
Temperature You can examine or change the temperature.
Core temperature sensor The core temperature sensor is in the core temperature
sensor socket.
Oven light The light is off.
Minute minder The minute minder function operates.
Heat up indicator
If you set an oven function, the bars in the display come on one by one. The bars show
that the temperature in the appliance increases or decreases.
When the appliance is at the set temperature Heat up indicator goes off the display.
Control panel 11

DAILY USE
WARNING!
Refer to "Safety information" chapter.
To operate the appliance you can use:
•manual mode -to set an oven function, the temperature and the cooking time manually.
•automatic programmes -to prepare a dish when you do not have a knowledge or expe-
rience in cooking.
Setting the oven function
1. Touch .
The display shows a preset temperature, symbol and number of the oven function.
flashes in the display.
2. Touch or to set an oven function.
3. Touch or the appliance starts automatically after five seconds.
If you activate the appliance with or and do not set any oven function or programme
the appliance will deactivate automatically after 20 seconds.

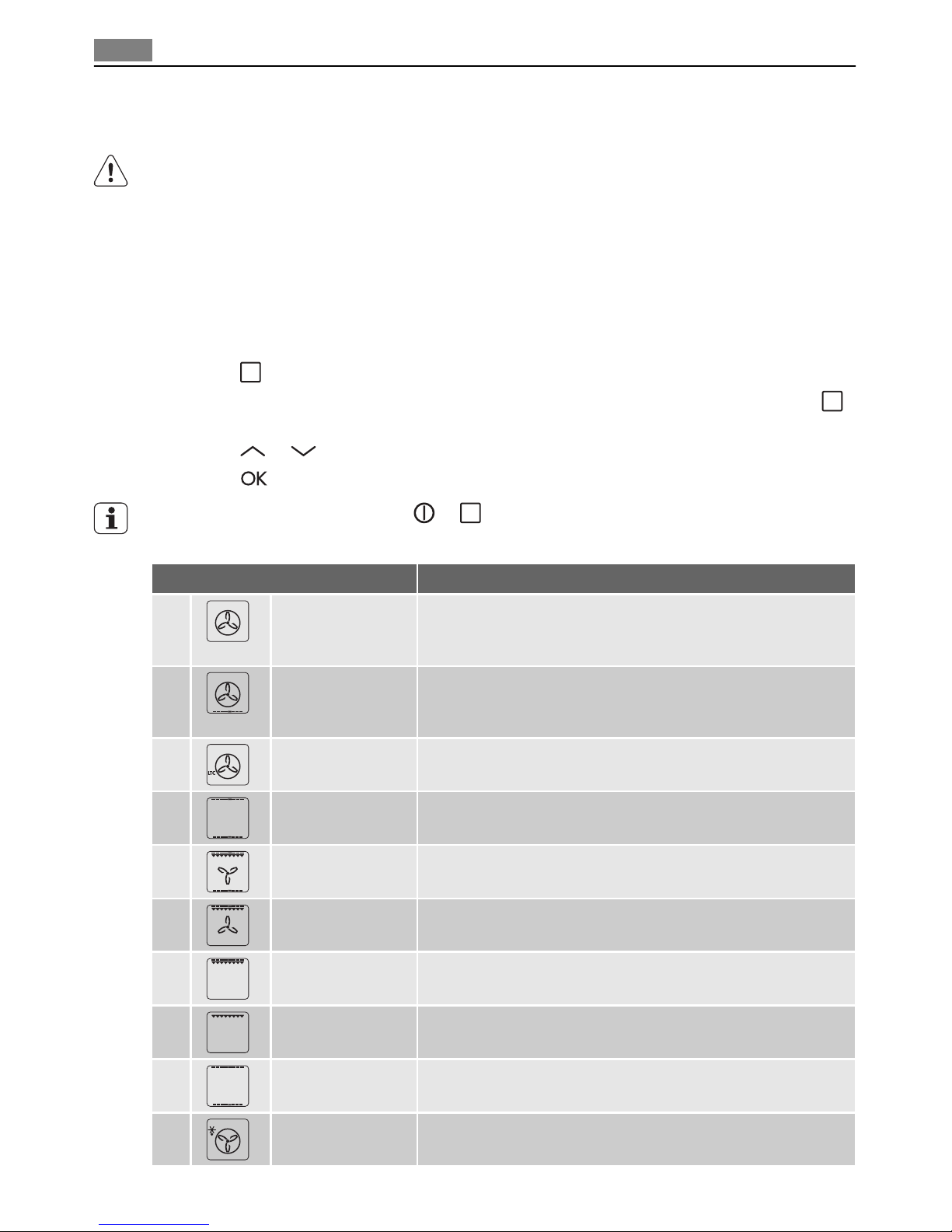

Oven function Application
1True Fan Cooking To bake maximum on three shelf positions at the same time.
Decrease the oven temperatures (20-40 °C) compared with
Conventional. And to dry food.
2Pizza Setting To bake on one shelf position food with a more intensive
browning and a crispy base. Decrease the oven temperatures
(20-40 °C) compared with Conventional cooking.
3Slow Cook To prepare very lean, tender roasted food.
4Conventional
Cooking
To bake and roast food on one shelf position.
5Frozen Foods To make your convenience food like e.g. French Fries, Wedg-
es, spring rolls crispy.
6Turbo Grilling To roast larger meat joints or poultry with bones on one
shelf position. Also to brown food, for example gratin.
7Fast Grilling To grill flat food in large quantities. To toast bread.
8Grilling To grill flat food in the middle of the grill. To toast bread.
9Keep Warm To keep food warm.
10 Defrost To defrost frozen food.
12 Daily use

Oven function Application
11 Bottom Heat To bake cakes with a crispy base, and for the food preserva-
tion.
12 ECO Roasting ECO functions let you to optimize the energy consumption
during cooking. Thus it is necessary to set the cooking time
first. To get more information about the recommended set-
tings, refer to the cooking tables with the equivalent usual
oven function.
Changing the oven temperature
Touch / to change the temperature in steps of 5 °C.
When the appliance is at the set temperature, an acoustic signal operates three times and
the Heat up indicator goes off.
Examining the oven temperature
You can examine the temperature in the appliance when the function or programme oper-
ates.
1. Touch .
The Temperature/Time display shows the temperature in the appliance.
If you want to change the oven temperature, touch one more time and use or .
2. Touch to go back to the set temperature or the display will show it automatically
after five seconds.
Fast heat up function
The fast heat up function decreases the heat up time.
Do not put food in the oven when the fast heat up function operates.
Activating the fast heat up function: Touch and hold for more then three seconds.
If you activate the fast heat up function, the bars on the display flash one by one to
show that the function operates.
The fast heat up is not available with every oven function. An acoustic signal operates if the
fast heat up is not available for set function.
Daily use 13

Energy saving
The appliance has some features that help you save energy during everyday cooking:
•Residual heat:
– the oven function or programme operates: the heating elements are deactivated 10%
time earlier (the lamp and fan continue to operate). The condition: the cooking time is
longer then 30 minutes or you use the clock functions (Duration, End, Time delay).
– the oven is off: you can use the heat to keep the food warm. The indication: the clock/
Residual heat display shows the remaining temperature, the bars show the decreasing
temperature.
•Oven lamp off -touch to deactivate the oven lamp during cooking;
•Display off -if necessary, deactivate the appliance. Touch and at the same time
until the display goes out (or on).
•Eco functions -refer to "Oven function".
CLOCK FUNCTIONS
SYMBOL FUNCTION DESCRIPTION
COUNT UP TIMER To set count up. It shows how long the appliance operates.
This function has no effect on the operation of the appliance.
TIME OF DAY To examine the time of day. For changing the time of day re-
fer to 'Setting the time of day'.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates. You can use Duration
and End at the same time (Time delay), if the appliance is to
be activate and deactivate automatically later.
SET+GO To start the appliance with necessary settings with only one
touch of the sensor field, any time later.
Count Up Timer
Use the Count Up Timer to monitor how long the appliance operates. It is on immediately
when the appliance starts to heat.
Reset the Count Up Timer: touch again and again until flashes in the display. Touch
until the display shows "00:00" and the Count Up Timer starts to count up again.
You can not use Count Up Timer when Duration or End is set.
Setting the DURATION
1. Activate the appliance and set an oven function and temperature.
14 Clock functions

2. Touch again and again until the dis-
play shows .
flashes in the display.
3. Use or to set minutes for DURA-
TION.
4. Touch to confirm
5. Use or to set hours for DURATION.
If you touch or during setting hours for DURATION, the appliance goes to setting of
the END function.
6. When the set time ends, an acoustic signal operates for two minutes.
symbol and time setting flash in the display. The appliance deactivates.
Touch any sensor field or open the oven door to stop an acoustic signal.
7. Deactivate the appliance.
Setting the END
1. Activate the appliance and set an oven function and temperature.
2. Touch again and again until the display shows .
flashes in the display.
3. Use or to set END (first you set minutes and then hours) and or to
confirm.
4. When the set time ends, an acoustic signal operates for two minutes.
symbol and time setting flash in the display. The appliance deactivates.
5. Touch any sensor field or open the oven door to stop an acoustic signal.
6. Deactivate the appliance.
Setting the SET+GO
To start of the appliance with necessary settings with only one touch of the sensor field,
any time later.
1. Set an oven function (or programme) and temperature (refer to "Setting the oven
function" and "Changing the oven temperature").
2. Set DURATION (refer to "Setting the DURATION").
3. Touch again and again until will flash in the display.
4. Touch to set the SET+GO function.
The display shows and with a dot. This dot shows which clock function is activa-
ted.
5. Touch any sensor field (apart from ON/OFF) to start the SET+GO function.
You can use SET+GO function only if DURATION is set.
Check result (selected models only)
If you set END or DURATION function, 2 minutes before end of cooking an acoustic signal
sounds and lamp activates. The appliance goes to the setting of the END or DURATION
Clock functions 15

function. During these two minutes you can examine the cooking results and, if necessary,
add END or DURATION time.
Setting the Time delay function
DURATION and END can be used at the same time, if the oven is to be switched on
and off automatically later. In this case first set DURATION and then END function
(refer to "Setting the DURATION" and "Setting the END ").
When the Time delay function is activated the display shows static symbol of the oven
function, with a dot and . The dot shows which clock function is on in the Clock/
Residual heat display.

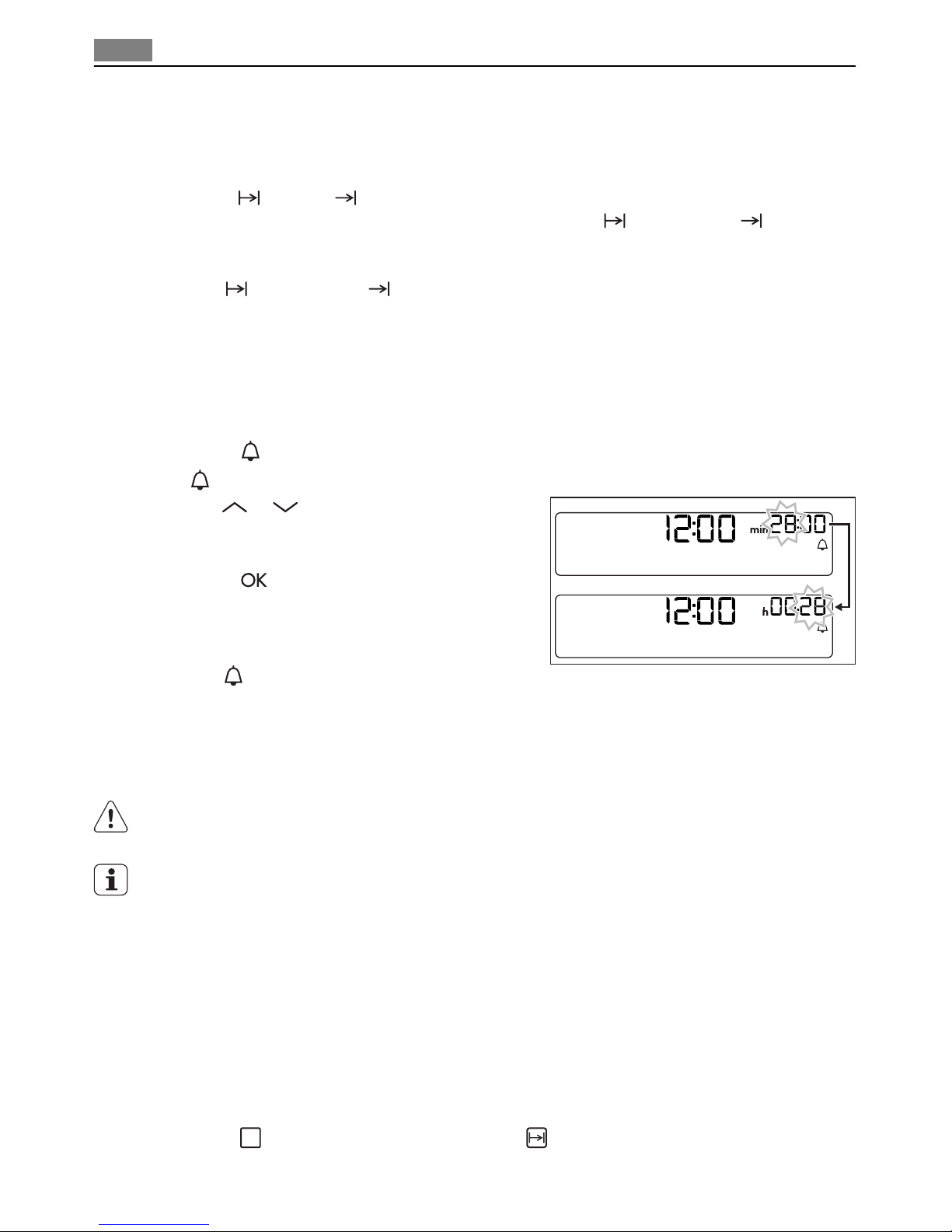

Setting the MINUTE MINDER
Use the MINUTE MINDER to set a countdown (maximum 23 h 59 min). This function has no
effect on the operation of the oven. You can set the MINUTE MINDER any time, also if the
appliance is off.
1. Touch .
and "00" flash in the display.
2. Use or to set MINUTE MINDER.
First you set seconds and then minutes
and hours.
3. Touch or the MINUTE MINDER starts
automatically after five seconds.
4. When set time ends, an acoustic signal
operates for two minutes and "00:00"
and flash in the display.
5. Touch any sensor field or open the oven door to stop an acoustic signal.
AUTOMATIC PROGRAMMES
WARNING!
Refer to "Safety information" chapter.
There are 20 automatic programmes and recipes. Use an automatic programme or recipe
when you do not have a knowledge or experience how to prepare a dish. You can find the
recipes for the automatic programmes in the "Recipe book".
There are three types of automatic programmes:
• Automatic recipes;
• Automatic programmes with weight input;
• Automatic programmes with core temperature sensor;
Automatic recipes
Setting an automatic recipe:
1. Touch two times until the display shows .
The display shows symbol and number of the automatic programme.
16 Automatic programmes

2. Touch or to choose the automatic recipes.
3. Touch or the automatic recipe activates automatically after five seconds.
4. When set time ends, an acoustic signal operates for two minutes. Symbol flashes.
The appliance deactivates.
5. Touch any sensor field or open the oven door to stop an acoustic signal.
Automatic programmes with weight input
If you set the weight of the meat, the appliance calculates the roasting time.
1. Touch again and again until the display shows .
2. Touch or to set the weight programme (refer to "Recipe book").
The display shows: cooking time, duration symbol , a default weight, a unit of
measurement (kg, g).
3. Touch or the settings save automatically after five seconds.
4. The appliance starts. A symbol of the weight unit flashes in the display. During this
time you can change the default weight value with or . Touch .
5. When set time ends, an acoustic signal operates for two minutes. flashes.
The appliance deactivates.
6. Touch any sensor field or open the oven door to stop an acoustic signal.
Automatic programmes with core temperature sensor
The core temperature of the food is default and fixed in programmes with core temperature
sensor. The programme ends when the appliance is at the set core temperature.
1. Touch again and again until the display shows .
2. Install the core temperature sensor (refer to "The core temperature sensor").
3. Touch or to set the core temperature sensor programme.
When a core temperature sensor programme is set, the display shows the cooking
time, and .
4. Touch or the settings save automatically after five seconds.
5. When set time ends, an acoustic signal operates for two minutes. flashes.
The appliance deactivates.
6. Touch any sensor field or open the oven door to stop an acoustic signal.
My Favourite Programme function
Use this function to save your favourite settings of temperature and time for an oven func-
tion or programme.
1. Set the temperature and time for an oven function or programme.
2. Touch and hold for more than three seconds.
An acoustic signal sounds.
3. Deactivate the appliance.
Using My Favourite Programme function:
•To activate the function touch . The appliance activates your favourite programme.
Automatic programmes 17

•To deactivate the function touch . The appliance deactivates your favourite pro-
gramme.
When the function operates, you can change the time and temperature.
USING THE ACCESSORIES
WARNING!
Refer to "Safety information" chapter.
The core temperature sensor
The core temperature sensor measures the core temperature of the meat. When the meat is
at the set temperature, the appliance deactivates.
There are two temperatures to set:
• The oven temperature: refer to the table for roasting in the recipe book.
• The core temperature: refer to the table for the core temperature sensor in the recipe
book.
Only use the core temperature sensor supplied or original replacement parts.
1. Activate the appliance.
2. Put the point of the core temperature
sensor (with the symbol on the
handle) into the centre of the meat.
3. Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows a flashing symbol
and the default set core tempera-
ture. The temperature is 60 °C during
the first use, and the last set value dur-
ing each subsequent use.
4. Touch or to set the core temper-
ature.
5. Touch or the settings save auto-
matically after 5 seconds.
You can set the core temperature only when the symbol flashes. If the display shows a
static symbol before you set the core temperature, use and or to set a new
value.
6. Set the oven function and, if necessary, the oven temperature.
The display shows the current core temperature and (which shows the relation be-
tween the set oven temperature and the current oven temperature).
18 Using the accessories

The core temperature sensor must stay in the meat and in the socket during the cooking.
While the appliance calculates the approximate duration time, the value of the Count Up
Timer function shows in the Timer/Residual heat display. When the first calculation ends,
the Timer/Residual heat display shows -, and then the approximate duration of the cooking.
The appliance continues to calculate the duration during the cooking. The display updates
at intervals with the new duration value.
7. When the meat is at the set core temperature, the core temperature and flash. An
acoustic signal sounds for two minutes.
Touch a sensor field to deactivate the acoustic signal.
8. Remove the core temperature sensor from the socket and remove the meat from the
appliance.
WARNING!
Be careful when you remove the core temperature sensor. It is hot. There is a risk of burns.
9. Deactivate the appliance.
When you put the core temperature sensor into the socket, you cancel the settings for the
clock functions.
When you cook with the core temperature sensor, you can change the temperature shown
in the Temperature/Time display. After you put the core temperature sensor in the socket
and set an oven function and temperature, the display shows the current core temperature.
Touch again and again to see three other temperatures:
• The current core temperature
• The oven set temperature
• The current oven temperature.
The set core temperature changes into current core temperature and current oven temper-
ature changes into set oven temperature.

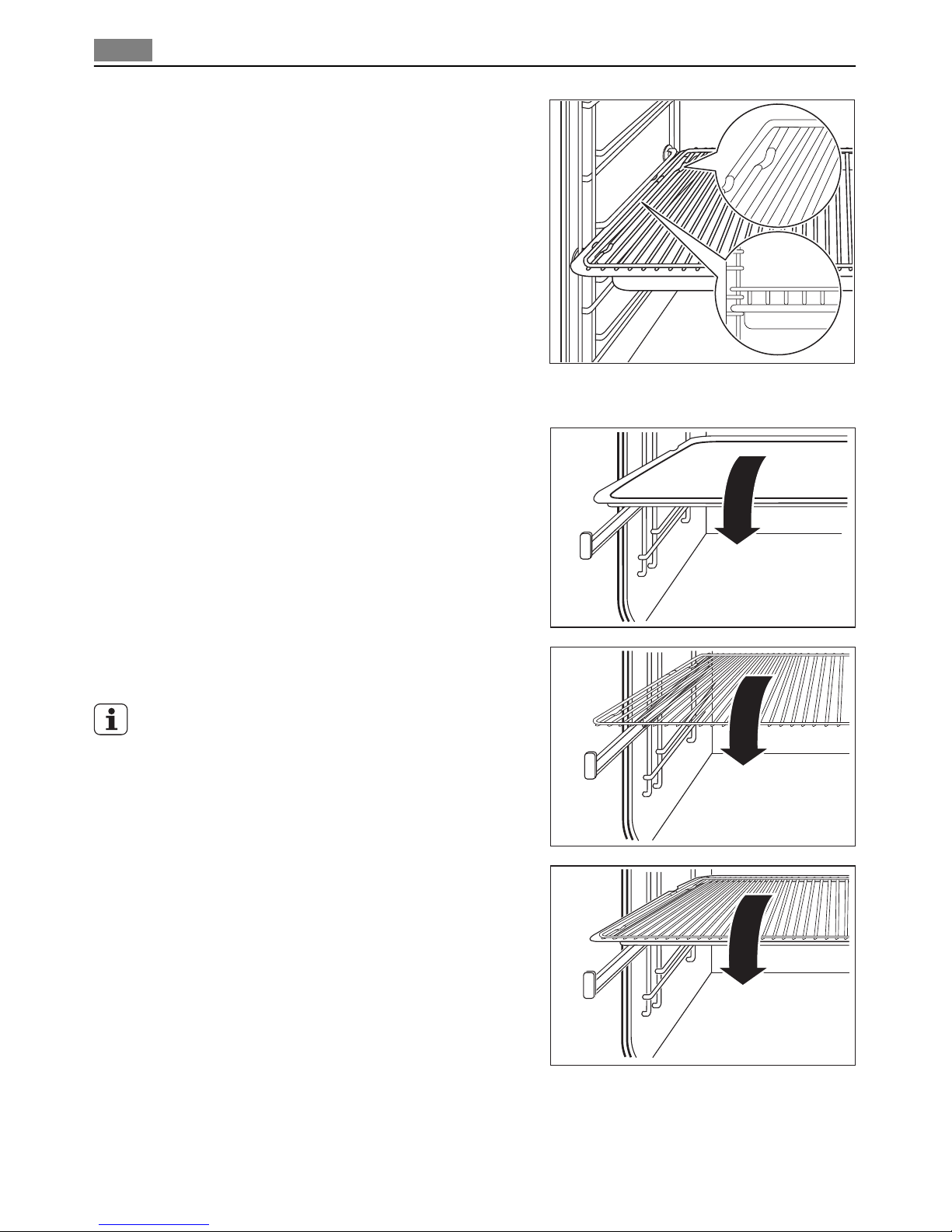

Installing the Oven Accessories
The deep pan and the wire shelf have side edges.
These edges and the shape of the guide-bars cau-
ses the anti-tilt safety for the oven accessories.
Using the accessories 19

Installing the wire shelf and the deep pan to-
gether
Put the wire shelf on the deep pan. Push the deep
pan between the guide-bars of one of the oven
levels.
Telescopic runners -Inserting the Oven Accessories
Put the baking tray or the deep pan on the tele-
scopic runners.
Put the wire shelf on the telescopic runners so
that the feet point downwards.
The high rim around the wire shelf is an addition-
al device to prevent cookware from slipping.
Inserting the wire shelf and the deep pan to-
gether
Put the wire shelf on the deep pan. Put the wire
shelf and the deep pan on the telescopic runners.
20 Using the accessories
