AEG COMPETENCE B8871-4 User manual

B88714
User manual BuiltIn Electric Oven
All manuals and user guides at all-guides.com
all-guides.com

2

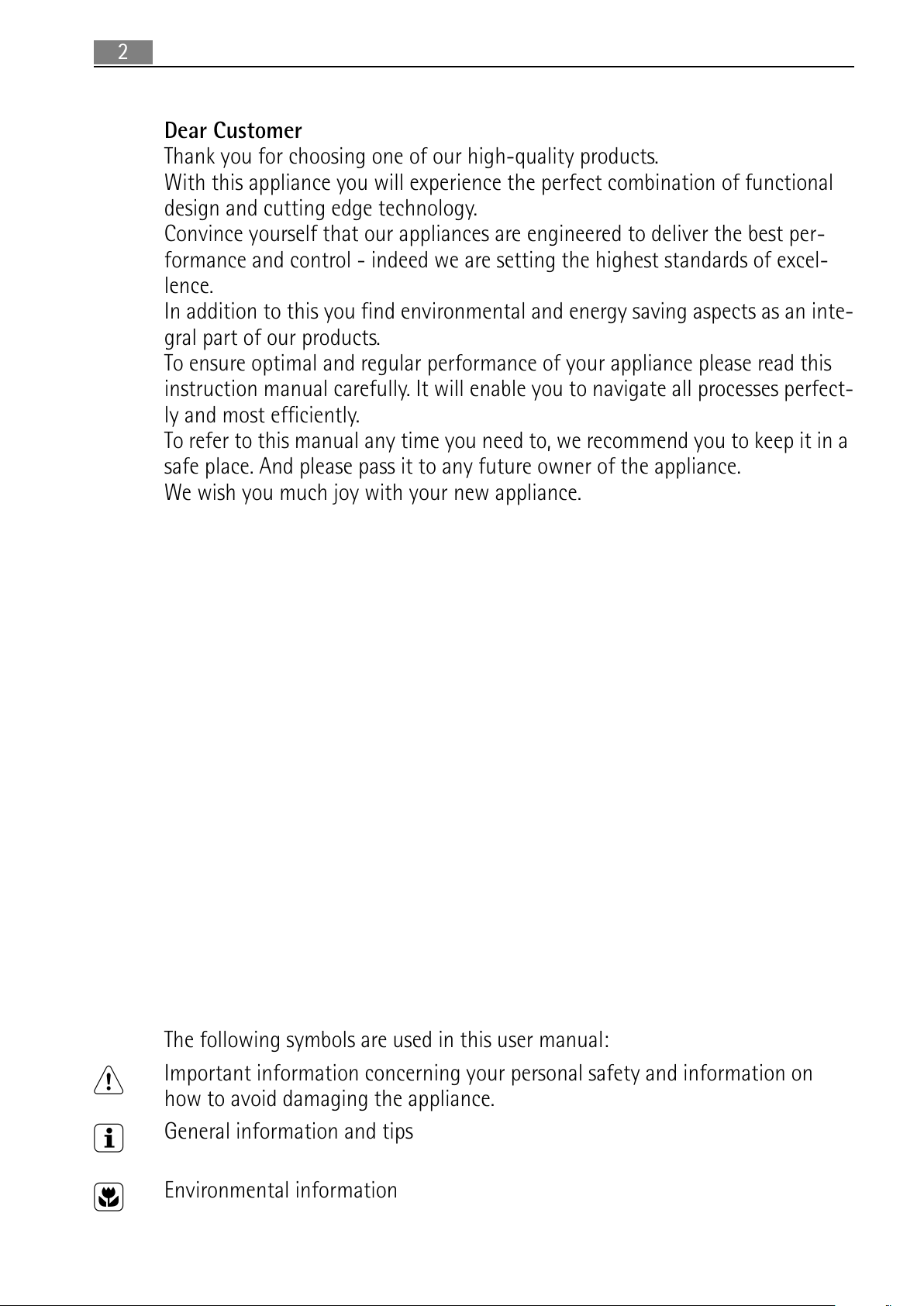

Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control  indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information
All manuals and user guides at all-guides.com

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 7
Oven Features 8
Oven accessories 9
Before Using for the first time 10
Setting and changing the time 10
Initial cleaning 11
Using the Oven 12
The Electronic Oven Control 12
Heat indicator 14
Speedcook 15
Oven Functions 16

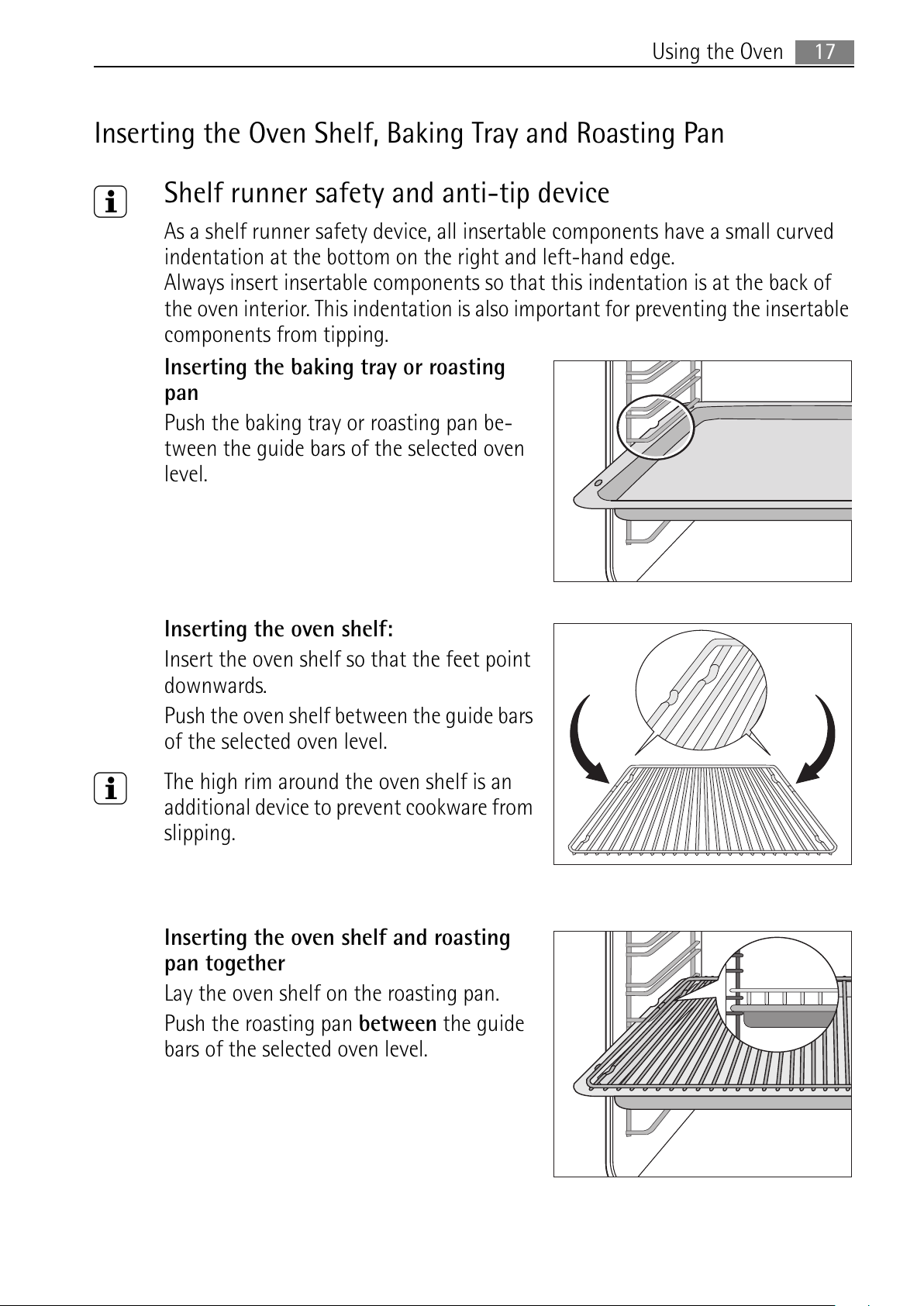

Inserting the Oven Shelf, Baking Tray and Roasting Pan 17
Inserting/Removing the Grease Filter 18
Meat probe 19
Clock Functions 21
Other functions 27
Switching off the display 27
Child safety device 28
Button lock 28
Oven safety cutout 29
Uses, Tables and Tips 30
Baking 30
Baking table 32
Table for Bakes and Gratins 36
Frozen Ready Meals Table 37
Roasting 38
Roasting table 38
Low temperature cooking 40
Table Low temperature cooking 41
Meat probe Table 41
Grill Sizes 42
Grilling table 42
Defrosting 42
All manuals and user guides at all-guides.com

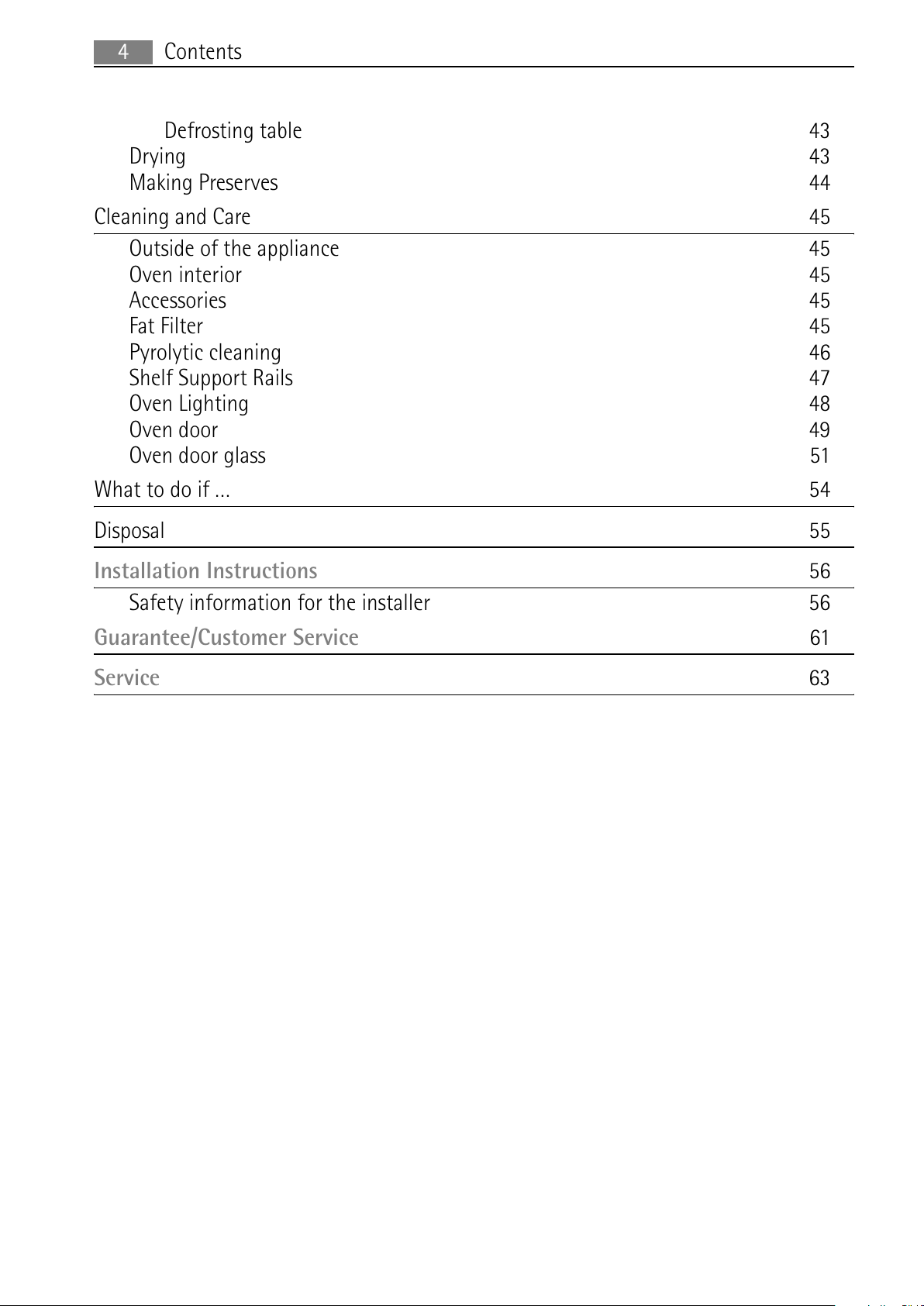

Contents4
Defrosting table 43
Drying 43
Making Preserves 44
Cleaning and Care 45
Outside of the appliance 45
Oven interior 45
Accessories 45
Fat Filter 45
Pyrolytic cleaning 46
Shelf Support Rails 47
Oven Lighting 48
Oven door 49
Oven door glass 51
What to do if … 54
Disposal 55
Installation Instructions 56
Safety information for the installer 56
Guarantee/Customer Service 61
Service 63
All manuals and user guides at all-guides.com

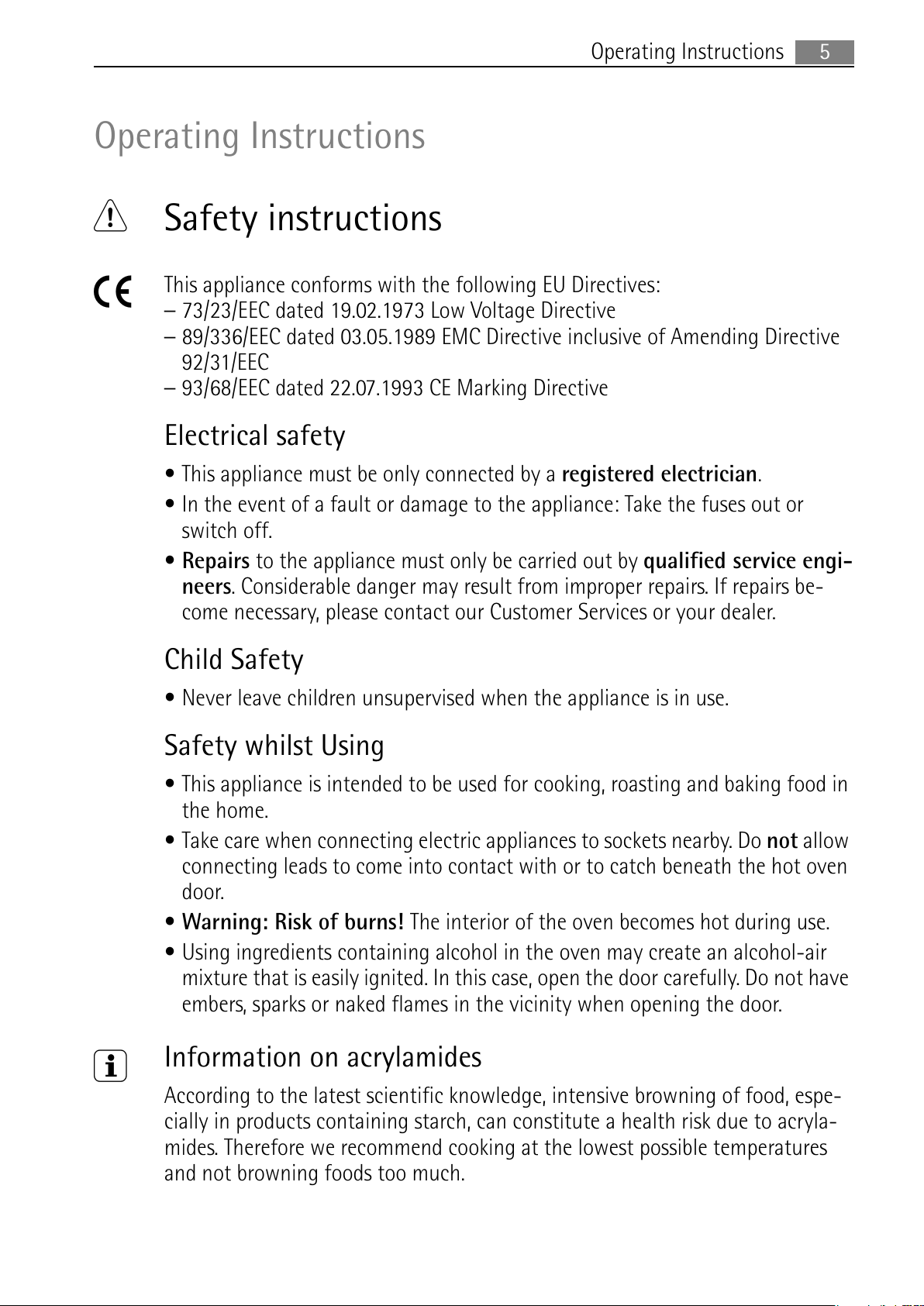

5Operating Instructions
Operating Instructions
1Safety instructions
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi
neers. Considerable danger may result from improper repairs. If repairs be
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcoholair
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe
cially in products containing starch, can constitute a health risk due to acryla
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
All manuals and user guides at all-guides.com

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.
All manuals and user guides at all-guides.com
all-guides.com

7Description of the Appliance
Description of the Appliance
General Overview
Control Panel
Full glass door
Control panel
Door
handle
Oven display
Function buttons
Oven
All manuals and user guides at all-guides.com

Description of the Appliance8

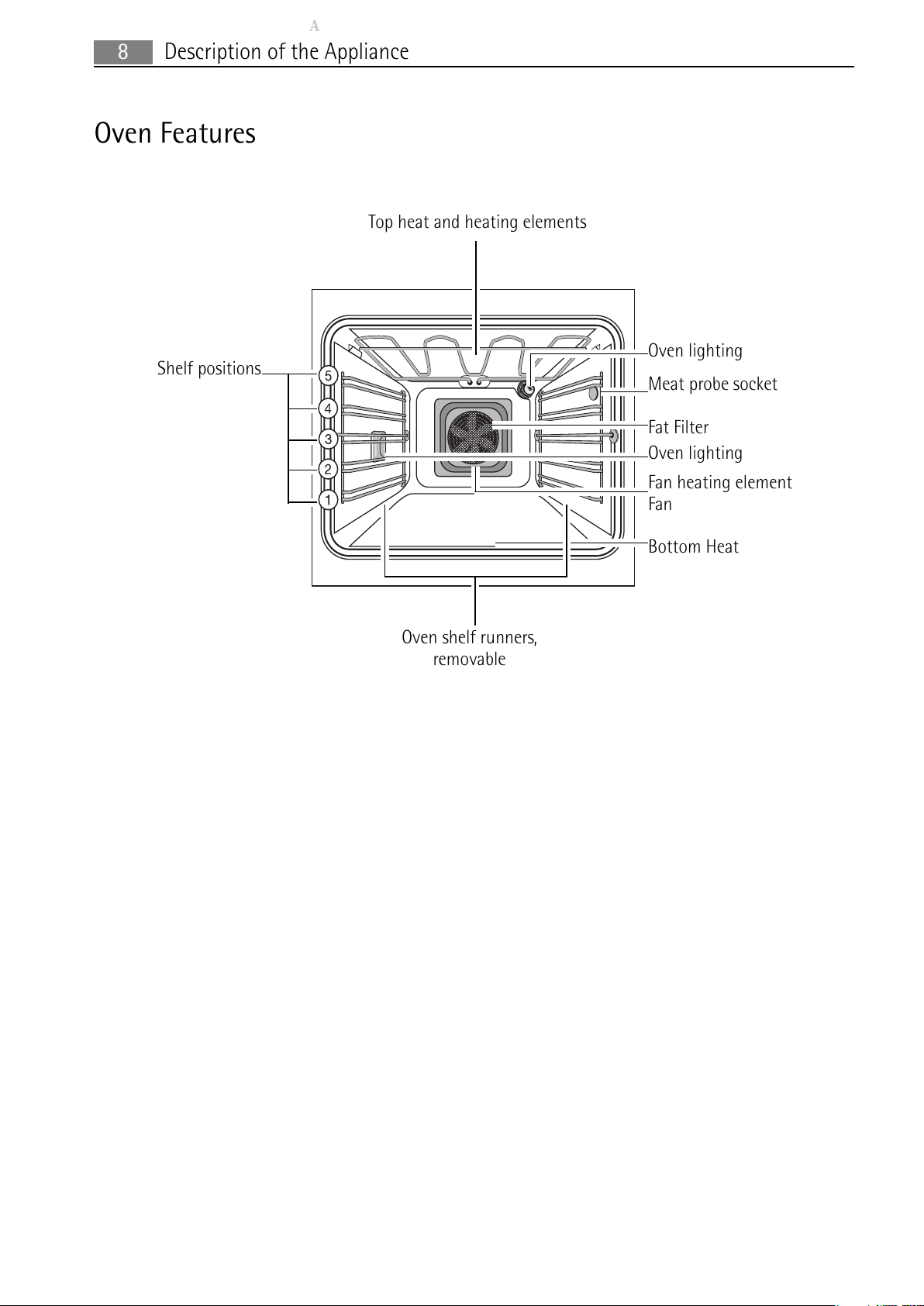

Oven Features
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable
All manuals and user guides at all-guides.com

9Description of the Appliance

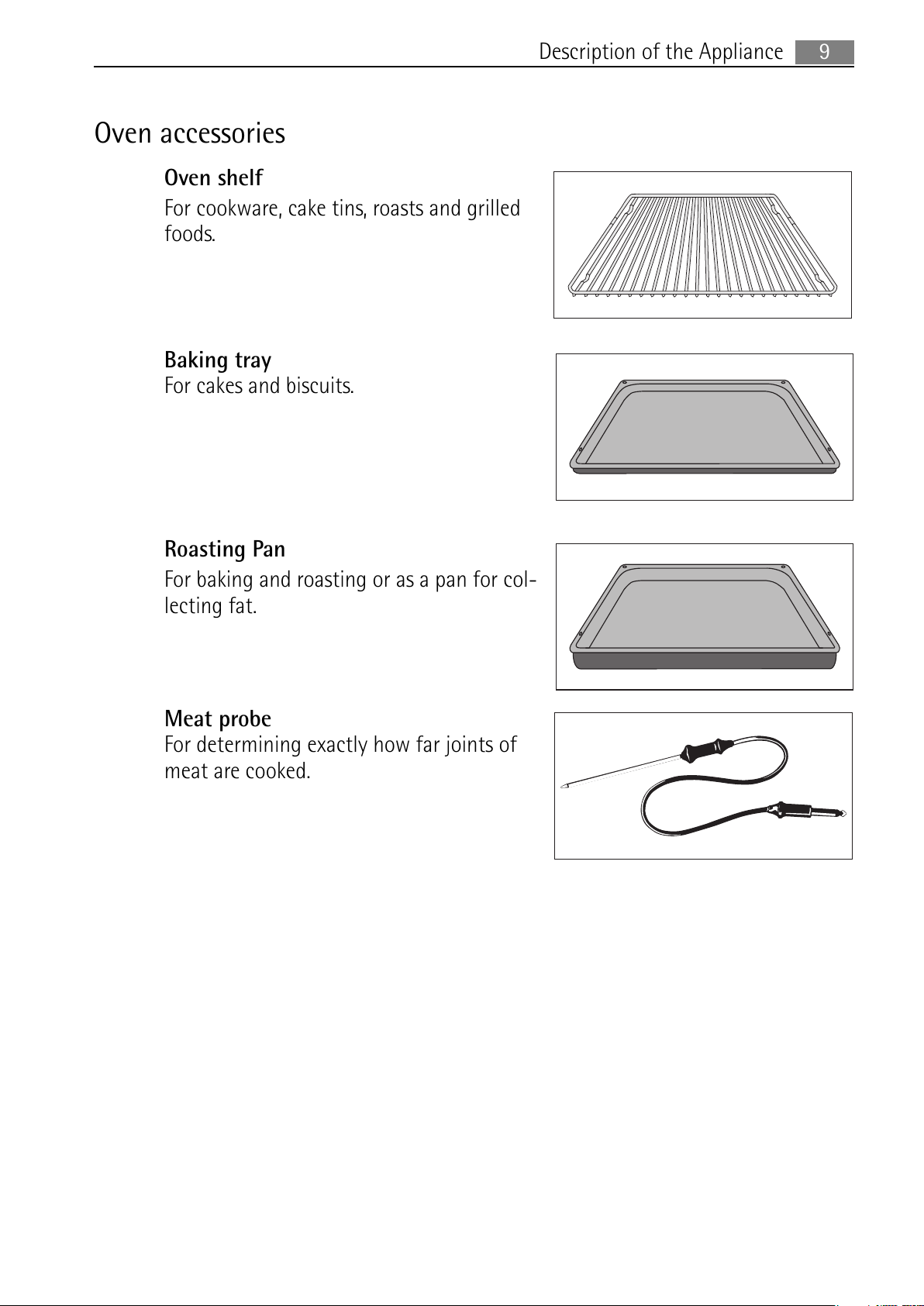

Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.
All manuals and user guides at all-guides.com

Before Using for the first time10
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.
When the appliance is connected to the
electrical supply or when there has been a
power cut, Time flashes automatically.
1. To change a time that has already been set,
first press the On/Off button . Then press
the Selection button repeatedly until
Time flashes.
2. Using the or button, set the current
time.
After approx. 5 seconds, the clock stops
flashing and the clock displays the time of
day set.
The appliance is now ready to use.
3The time can only be modified, if the child
safety device is deactivated, neither of the
clock functions Cook time or End
time nor any oven functions are set.
All manuals and user guides at all-guides.com

11Before Using for the first time

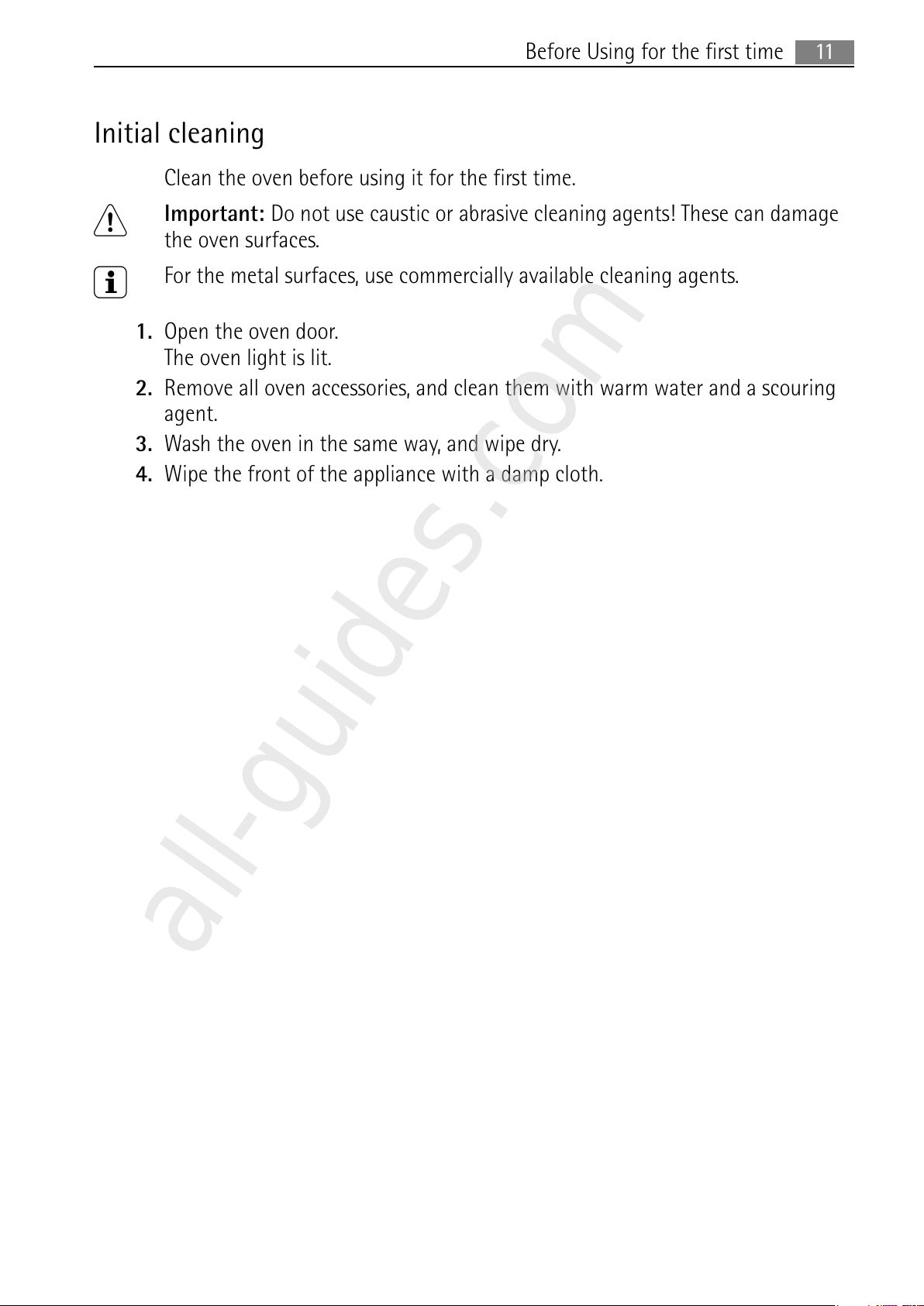

Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
All manuals and user guides at all-guides.com
all-guides.com

Using the Oven12
Using the Oven
The Electronic Oven Control
3General instructions
•Always switch the appliance on first by pressing the On/Off button.
•When the selected function is lit, the oven begins to heat up or the time set
begins to count down.
•The Operating time display shows how long the oven has been operating. This
display can only be seen if none of the clock functions Countdown , Cook
time or End time are set.
•The oven light is switched on as soon as an oven function is selected.
•When the selected temperature is reached, an audible signal sounds.
•Switch off the oven using the On/Off button.
Selection buttons
Temperature/Clock
Oven function selection
Clock functions/Operating timeOven Functions
Clock Functions
Meat Probe
Heat indicator
On/Off
Speedcook
All manuals and user guides at all-guides.com

13Using the Oven
Selecting the oven function
1. Switch on the appliance with the On/Off button.
2. Press the or button repeatedly until
the desired oven function appears.
•A suggested temperature appears on the
temperature display.
•If the suggested temperature is not
changed within approx. 5 seconds, the
oven begins to heat up.
3The oven function can be changed while
the oven is working.
Changing the oven temperature
Press the or button, to raise or low
er the temperature.
The setting changes in steps of 5°C.
Switching off the oven function
To switch off the oven, press or but
ton repeatedly until no oven function is
displayed any more.
Switching off the oven
Switch off the appliance using the On/
Off button.
All manuals and user guides at all-guides.com

Using the Oven14
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.
3Heat indicator
Indicates warming up
When the oven function has been
switched on the bars that slowly light up
one after the other indicate how far the
oven has heated up.
Speedcook indicator
When the Speedcook function has been
switched on, the bars that flash one after
the other indicate that fast heating is
working.
Residual heat indicator
When the oven function has been
switched off, the bars that are still lit indi
cate the remaining residual heat in the ov
en.
All manuals and user guides at all-guides.com

15Using the Oven
Speedcook
After an oven function is selected, with the use of the additional function
Speedcook the empty oven can be preheated in a relatively short time.
1Important: Do not put the food to be cooked into the oven, until Speedcook is
completed and the oven is operating using the desired function.
1. Set the desired oven function (e. g. Conventional ). If necessary, change the
suggested temperature.
2. Press the Speedcook button.
The bars flashing one after another show that Speedcook is operating.
When the temperature set is reached, the bars of the heat indicator light up. An
audible signal sounds.
The oven now continues heating according to the preset oven function and
temperature. You can now place the food in the oven.
3The Speedcook function can be switched on with the oven functions Profession
al hot air , Al Gusto hot air , Conventional and Rotitherm .
All manuals and user guides at all-guides.com

Using the Oven16
Oven Functions
The oven has the following functions:
Oven function Application Heating element/fan
Professional hot air For baking on up to three oven lev
els at the same time.
Set the oven temperatures
2040 °C lower than when using Con
ventional.
Top heat, bottom heat,
rear wall heating
element, fan
Al Gusto hot air For baking on one oven level dishes
that require more intensive brown
ing and a crispy base.
Set the oven temperatures 2040 °C
lower than when using Conventional.
Bottom heat, rear wall
heating element, fan
Low temperature
cooking
For preparing especially tender, succu
lent roasts.
Top heat, bottom heat,
rear wall heating
element, fan
Conventional For baking and roasting on one oven
level.
Top heat, bottomheat
Rotitherm For roasting larger joints of meat or
poultry on one level.
The function is also suitable for grati
nating and browning.
Grill, top heat, fan
Dual grill For grilling flat foodstuffs in large
quantities and for toasting.
Grill, top heat
Grill For grilling flat foodstuffs placed in
the middle of the grill and for toast
ing.
Grill
Keep warm To keep dishes warm. Top heat, bottom heat
Defrost For defrosting e. g. flans and gateaux,
butter, bread, fruit or other frozen
foods.
Fan
Bottom heat For baking cakes with crispy or
crusty bases.
Bottom heat
Pyroluxe For automatic pyrolytic cleaning of
the oven. It burns off residues in the
oven, which can then be removed with
a cloth when the oven has cooled
down. The oven is heated to approxi
mately 500 ×C.
Top heat, bottomheat,
grill, fan
All manuals and user guides at all-guides.com
all-guides.com

17Using the Oven
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3Shelf runner safety and antitip device
As a shelf runner safety device, all insertable components have a small curved
indentation at the bottom on the right and lefthand edge.
Always insert insertable components so that this indentation is at the back of
the oven interior. This indentation is also important for preventing the insertable
components from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be
tween the guide bars of the selected oven
level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars
of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and roasting
pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide
bars of the selected oven level.
All manuals and user guides at all-guides.com

Using the Oven18
Inserting/Removing the Grease Filter
Only use the grease filter when roasting
to protect the rear heating elements from
fat splashes.
Inserting the grease filter
Hold the grease filter by the grip
and insert the two mounts down
wards into the opening on the rear
wall of the oven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip
and unhook it.
All manuals and user guides at all-guides.com

19Using the Oven
Meat probe
For switching off the oven when the temperature at the centre of a roast reach
es a set temperature.
There are two temperatures to be set:
–The oven temperature: See Roasting Table
–The core temperature: See Meat probe Table
1Important: Only the meat probe supplied may be used. If replacing, please use
only original replacement parts.
1. Switch on the oven with the On/Off button.
2. Push the tip of the meat probe right into
the meat so that the tip is in the centre of
the meat.
3. Insert the meat probe plug into the socket
on the oven side wall as far as it will go.
4. Using the or button set the desired
core temperature.
The display changes to the current core
temperature
If the current core temperature has already
been displayed, before the desired core
temperature is set, then press the
Selection button repeatedly, until the
Meat probe function flashes and then
carry out the setting.
3The core temperature is displayed from
30°C.
All manuals and user guides at all-guides.com

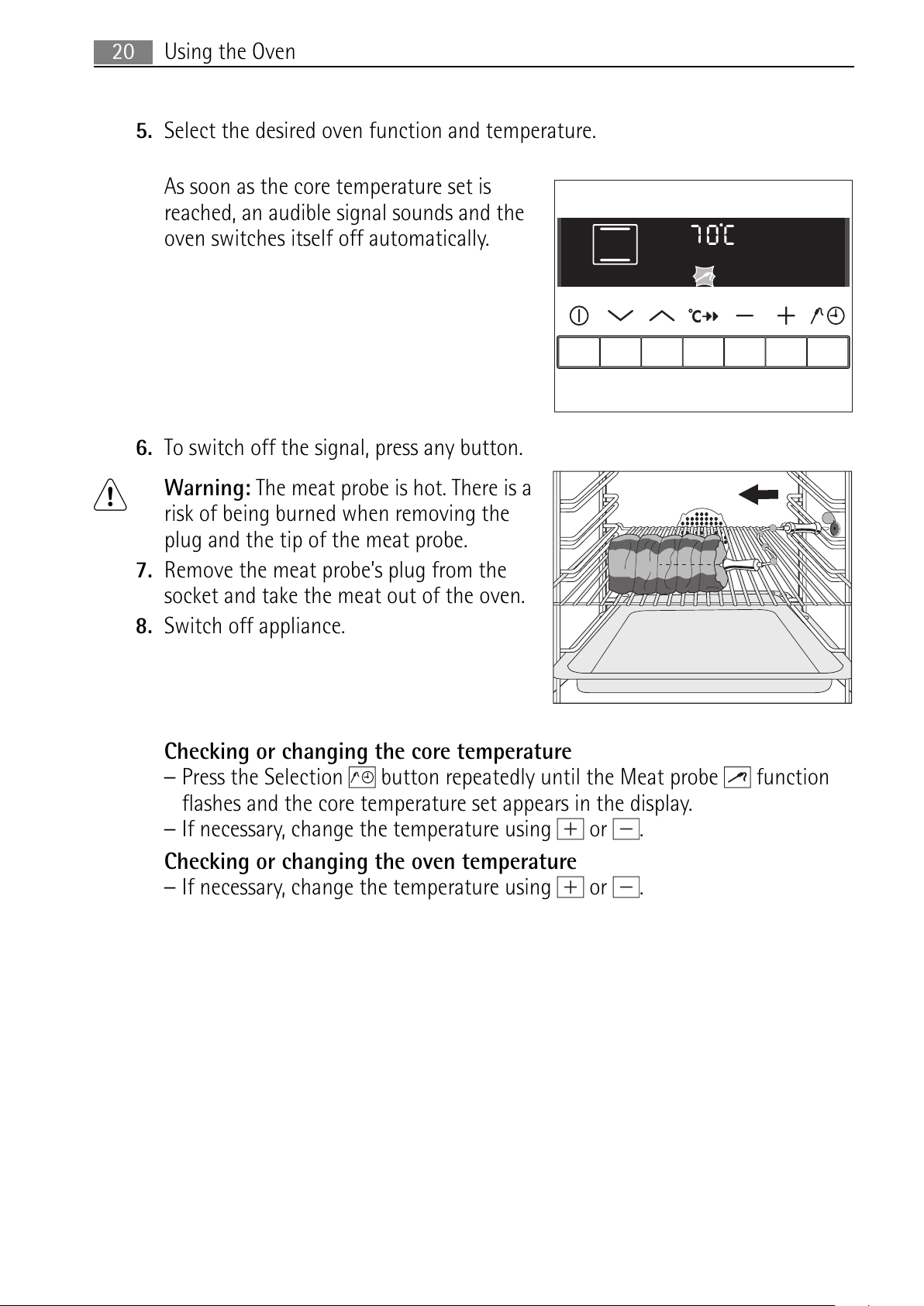

Using the Oven20
5. Select the desired oven function and temperature.
As soon as the core temperature set is
reached, an audible signal sounds and the
oven switches itself off automatically.
6. To switch off the signal, press any button.
1Warning: The meat probe is hot. There is a
risk of being burned when removing the
plug and the tip of the meat probe.
7. Remove the meat probe’s plug from the
socket and take the meat out of the oven.
8. Switch off appliance.
Checking or changing the core temperature
–Press the Selection button repeatedly until the Meat probe function
flashes and the core temperature set appears in the display.
–If necessary, change the temperature using or .
Checking or changing the oven temperature
–If necessary, change the temperature using or .
All manuals and user guides at all-guides.com
