aeolus TD-901T User manual

Producer : Shanghai TOEX International Trading Co., Ltd.
Address : Floor 5, Building 6, No.675 Zhujin Road,
Songjiang District, Shanghai, 201615, China
Manufacturer : Shanghai Xunyuan Industrial Co., Ltd.
Address : Building 8, No. 65 Huandong First Road,
Jinshan District, Shanghai, China
Distributor Contacts
TD-901GT
TD-907T
TD-900XT TD-900CG
TD-905 TD-906 TD-907L
Owner’s Guide
TD-901T
PET DRYER

Remarks: The chart is only for repair parts order references, the real structure should be subject to current available product,
since we may make modifications without notice in formal written form.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
3
3
3
1
3
1
1
5
1
4
2
4
4
4
1
1
1
2
1
1
1
6
1
1
1
1
1
1
1
1
3
1
2
1
1
1
1
Serial No.
TD-90001
TD-90002
TD-90003
TD-90004
TD-90005
TD-90006
TD-90007
TD-90008
TD-90009
TD-90010
TD-90011
TD-90012
TD-90013
TD-90014
TD-90015
TD-90016
TD-90017
TD-90018
TD-90019
TD-90020
TD-90021
TD-90022
TD-90023
TD-90024
TD-90025
TD-90026
TD-90027
TD-90028
TD-90029
TD-90030
TD-90031
TD-90032
TD-90033
TD-90034
TD-90035
TD-90036
TD-90055
TD-90065
Item No. Part Name Quantity
Rear Cap Fixture Knob
M4×10 Screw
Washer
Rear Cap Rubber Foot
Rear Cap
M4 Lock Nut
Foam Filter
Handle
M4×12 Screw and Nut
Short Housing
Housing Rubber Foot
Handle Set
PA3×8 Self-tapping Screw
Washer
M5×10 Screw
Vibration Absorber Ring
Motor B
Rubber Washer
Carbon Brush
Single Motor Fixture Bracket
Rubber Seal
Heating Element Assembly
PA3×16 Self-tapping Screw
Front Cap -A
Power Cable
Heating Switch
Wind Speed Knob
PCB-A
Power Switch
Front Cap D52 Hose Connector
D52 Nylon Clip
D52 Flexible Hose
D52 Hose Connector
D52 Narrow Nozzle
D52 Round Nozzle
D52Heat Insulation Sleeve
M4 × 8 screw and nut
PG-9 Waterproof Cable Connector
-A Brown, 0.75mm
2
× 200mm
-B Blue, 0.75mm
2
× 200mm
High tempera-
ture resistant
silicone wire
39 1
TD-90066

Maintenance
What makes CYCLONE dryer the best one in the world?
Our goal at AEOLUS is to ensure that we are the partner of choice for all your requirements in the pet
industry. AEOLUS is committed to bringing you cutting edge technology at affordable prices, (so that all
your needs are met).
We studied all the available dryer choices in the market and understand that there is a need for a machine that
has a stronger blow force at a value price. Blow force is a more important parameter than just the wind speed, or
air volume. Aeolus feels that the blow force parameter is a more important indicator of performance. Blow force is
the critical factor. We are proud to offer this powerful feature, (currently not available in any other machine on the
market).
Aeolus model TD-901T is our high performance model. Higher blow force, higher wind speed, lower noise,
longer life span, more durable, and easier to operate and maintain.
Super Blow Force
Years of research lead to the new 52mm diameter hose system. This is a much wider hose than previous
models (which were 40mm), allowing for a higher blow force of 605grams①, (an increase of 45%); and an
unmatched wind speed of 60meters per second②(an increase of 40%). In order to enhance the blow power
we have enlarged the air intake vent 300%. These factors now allow an even stronger flow of air.
Energy Savings
A better air flow system and a smaller flow friction force, has allowed AEOLUS TD-901T to perform at a
high energy efficient ratio.
According to test results the TD-901T 1200 watt motor outperforms a 1600 watt dryer currently on the
market.
AEOLUS TD-901T will allow for a 30% savings in energy consumption over previous models.
Motor Life Span
AEOLUS TD-901T will allow for a much extended product life span. Based on the following points:
Longer carbon brush (lengthened from 32mm to 38mm; the longest currently on the market).
Smaller carbon pellets and a smoother rotor technology creates smaller sparks which gives the TD-901T a
longer life span (increased by 30% compared to the previous model).
The result of this new motor technology will give the user 800 hours for one pair of carbon brushes, and can
be changed an additional two times, to give a total performance time of 2,400 hours.
AEOLUS R & D technology has greatly improved the carbon brush spring (which prevents the spring from
damaging the motor and in turn insures a longer life span of the product).
Maintenance
AEOLUS has improved the component parts of the motor so that there is a more efficient way to open the
housing of the machine (allowing for easy removal of all electrical components). TD-901T clip replacement
technology in the motor, allows for a quicker and easier replacement of the carbon brush, and all compo-
nent parts.
Noise Performance
Advanced metal stretching technology in the TD-901T, has eliminated all welded seams, (on the front and
rear caps of the machine and the main housing), leading to a fully sealed housing. thus reducing the noise
emitted from the machine.
Test results show at the highest wind speed the noise emitted from the TD-901T is 83 decibels, (compared
to the current industry standard of 100 decibels this is a 20% reduction)., which provides for a more comfort-
able environment (and performance of the product).
Ease of Use
Aeolus TD-901T easy use nozzle attachment allows the operator to remove the nozzle head with one finger, with
a simple click of the attachment.
Accessories
AEOLUS TD-901T has designed optional accessories for multi-use of the machine:
Wall mounting bracket
Groomers’ third arm
Dryer Stand
Please check instruction manual for further details.
1. Attach the flexible hose to the front cap connector.
2. Plug into socket, switch power on.
3. Adjust wind speed, turn on or off the heating switch and choose suitable nozzle according to your need.
4. Turn the wind speed knob back to Minimum, turn off the heating switch and then turn off the power switch
after use.
1. Please clean the foam filter (by washing or air blowing). Reinstall filter again when it’s dry.
2. Keep the surface clean and dry, and use a dry soft cloth to clean the painted surface.
3. Wet cloth with neutral detergent and wipe to remove stubborn stains and dirt.
4. Use only mild neutral detergent.
5. When the carbon brushes wear down replace the brushes following the guide line in this booklet or consult
with the professionals.
Direction for Use
C1
C2
R1
R2
DB3
TH
MOT1
VR1
VR2 SW1
SW2
SWT
TRIAC
L
N G
Safety Instruction
1. Pet dryer needs a single outlet which is at least 10Amps and a dedicated ground wire. Please connect pet
dryer with a correct outlet and do not share with other appliances.
2. Before turning on or off, please adjust the wind and temperature to the low. This can extend the life of the machine.
3. Do not insert pins or any metal objects into the machine. This will prevent electric shock and short circuiting.
4. Do not use a cloth or bag to muffle the diffuser or foam filter. This could damage the machine.
5. If the machine has been used for some time and a malfunction occurs, you should ask a professional to repair
it. Do not disassemble by yourself.
6. If the power cord is damaged, discontinue use and have repaired by a professional.
7. Please keep children away when you operate the machine.
8. Dropping or heavily banging or hitting the machine could damage the frame and motor.
9. People with pacemakers or heart aliments should not operate this machine.
10. Please hold the nozzle and hose firmly before turning the machine on, or the hose may wiggle and cause injury.
11. Must plug hose into the front cap connector before turning the machine on.
12. It’s strictly forbidden to touch the components in the front cap connector with hand or any other objects in any situation.
13. Appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
14. Children should be supervised to ensure that they do not play with the appliance.
15. If the supply cord is damaged, it must be replaced by the manufacturer or service agent or a similarly qualified person.
Remarks:
1.The parameters are tested with 2.5m long flexible hose and Φ16mm round nozzle.
2.We may not publish formal notice in written form when the parameters changed after
new improvements.
3.The manufacturing standards and testing stands subject to TOEX company standard:
TXPS-ALPD-0901(T)-2011.
Parameters Circuit Diagram
CYCLONE
1800W
600W
52℃
4.3kg
TD-901T
605g
60m/s
27m/s
94dbA
83dbA
5.1kg
435×305×235mm
(Flexible Hose not Included)
(Environmental Temperature at 32℃)
(110V)
(110V)
Product Name
Rated Voltage
Rated Current
Maximum Power
Heating Power
Maximum
Temperature
Net Weight
Product Dimension
Item Number
Blow Force
Maximum Wind
Speed
Minimum Wind
Speed
Noise
Gross Weight
Packing
Dimension
(on top of the dryer at 0.5m)
(L×W×H)
340×160×210mm
Noise
(on back of the dryer at 0.5m)
16.4A
100V -120V
(50Hz-60Hz)
Class 0
Safety Performance
The USA produced temperature switch, cuts the heating element of the TD-901T in 25ms, and begins working
again after the core temperature of the heating element reduces to 85 degrees Celsius. This allows the
TD-901T to perform at an output temperature of a maximum of 52 degrees Celsius③.
TD-901T offers high temperature resistant silicone wires, high temperature resistant switch and circuit boards,
an emergency cut off switch if a motor overheats. Durable ground wires provide safe performance.
Testing Condition:
1) 2.5m long flexible hose, Φ16mm round nozzle, fixed above the high precision electronic scale at 220mm, record the blow force indication.
2) 2.5m long flexible hose, Φ16mm round nozzle, fixed at the distance of 180mm to the center of wind cup, record the wind speed indication.
3) 52℃means the sensor fixed at the position of 3cm away from the end of round nozzle never takes a value higher than 52℃in a 3 hours
continuous testing, when the environmental temperature is at 32℃.
Remarks: all the testing is executed on professional testing platforms.

1. 2.
5. 6.
3. 4.

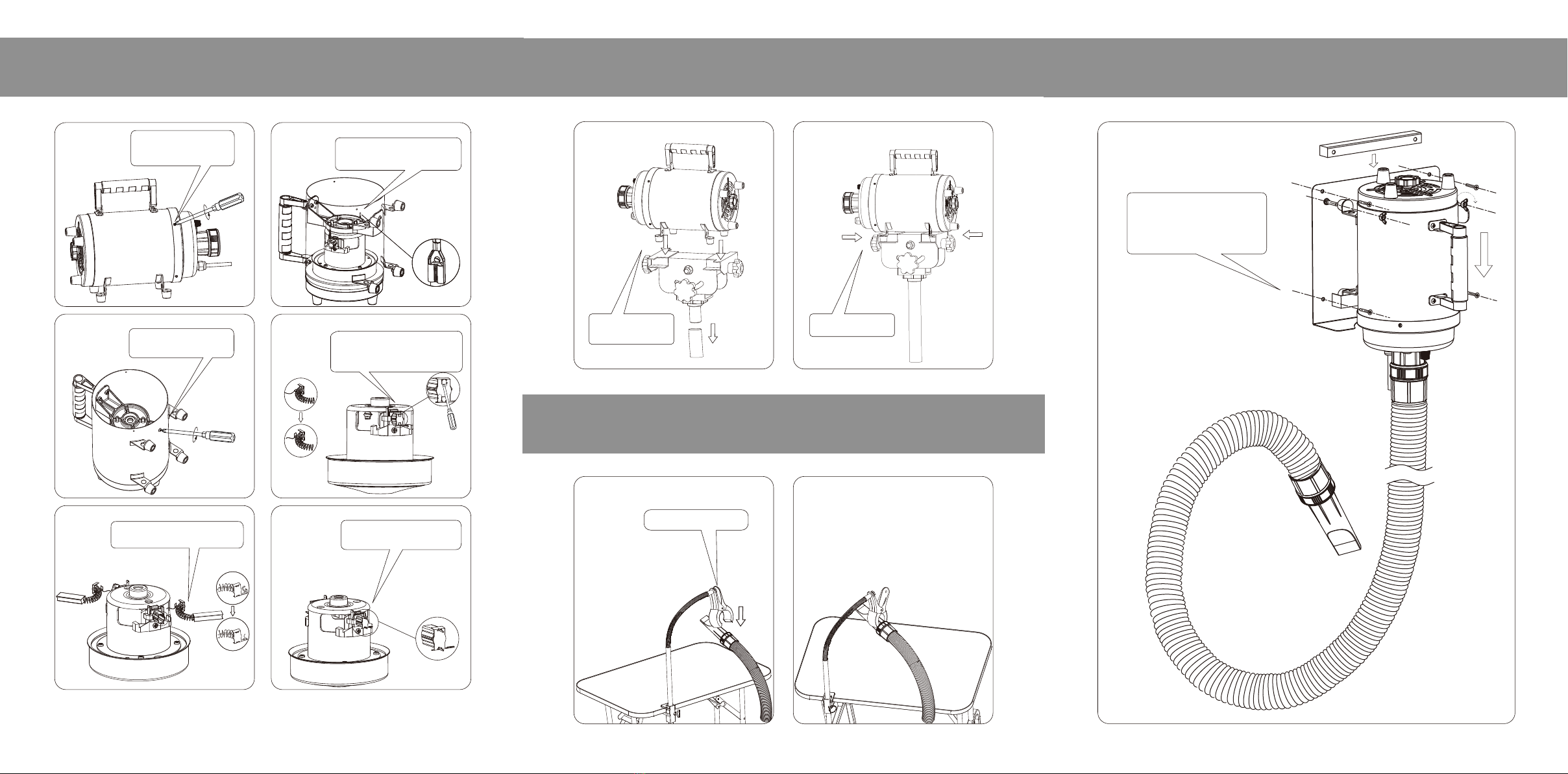

Put all the parts back in reverse order.
Carbon Brush
Remove the retaining screws on
front cap by cross screwdriver in
arrow direction, and open the front
cap.
Wall-mounting Bracket
Fix the retaining screws in broken line
showed in the picture; examine the strength
and stability after works done.
The wall which you want to attach the bracket
to must be a solid wall which could bear
weight loading!
Remove these three screws which
fixing the motor bracket one by
one.
Put the new brushes in, and tighten the
brass clip with nipper pliers.
Press the clip down on the connectors of
the wires to motor, unplug the wires and
remove the front cap.
Lift the little iron panel up with flathead
screwdriver, open the brass clip which
holding the motor wire to remove the old
carbon brushes.
Twist the little iron to a certain angle to
fix the carbon brush brass rear cap.
Groomers’ Third Arm
1. 2.
Dryer Stand
1. 2.
Fix the nozzle with the metal clamp.
※ The power supply must be cut off before changing carbon brushes.
Slide the latch to fix the
dryer in showed direction.
Slide the dryer into position
of the bracket in arrow
direction.
