Aeon Labs Aeotec Nano switch User manual

AeotecbyAeonLabsNanoSwitch.
AeotecNanoSwitchhasbeencraftedtopowerconnectedsocketsandswitchesusingZWavePlus.Itispoweredby
Aeotec’sGen5technology.
ToseewhetherNanoSwitchisknowntobecompatiblewithyourZWavesystemornot,pleasereferenceourZWave
gatewaycomparisonlisting.ThetechnicalspecificationsofNanoSwitchcanbeviewedatthatlink.
FamiliarizeyourselfwithyourNanoSwitch.
Notesforthewireconnectionports:
L–Powerinputforlive
N–Powerinputforneutral
IN–Inputforloadpowersupplytype(ie.if120VACisconnectedtoIN,thenOUTwilloutput120VACtotheload)
OUT–Outputforload(ThisisdirectlyconnectedtoyourLoadsinputtoreceivepower).

S1–Externalswitchcontrolforload
S2–Externalswitchcontrolforload
InstalltheNanoSwitch.
NanoSwitchinstallsbehindalightingswitchoramomentarypushbutton.Itworkswithonly3wire(withneutral)lighting
setups,thougheachinstallationofNanoSwitchisaccordinglyslightlydifferent:
1.Shutoffthemaincircuitbreakerofyourhomeforsafetyduringtheinstallationandensurethewiresarenotshortcircuited
duringtheinstallationwhichwillcausedamagetotheNanoSwitch.
Note:Yourhome’smaincircuitbreakermustsupporttheoverloadprotectionforsafety.
2.Preparingconnectionwires
14AWGpowerwiresforInput/Output.
18AWGcopperwiresforexternalmanualswitch.
Usethewirestrippercutthemetallicpartoftheconnectionwireandmakesurethelengthofthemetallicpartisabout5mm.
Note:Allconnectionwiresneedstobeflexiblecable.

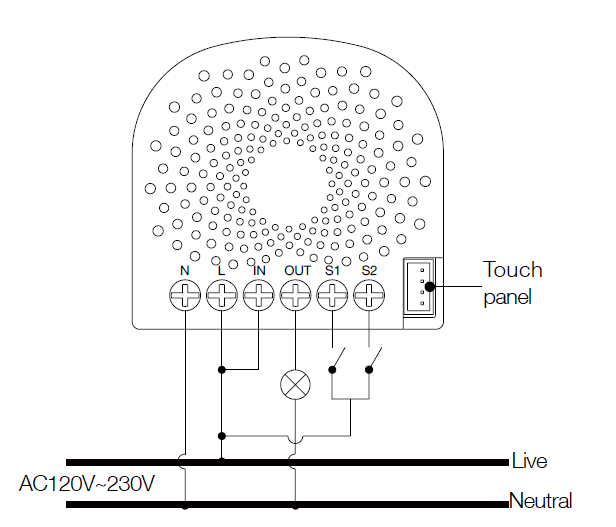

Wiringdiagramof120/230VACpowerinput.

   
Insomecases,youmayhavesomeloadsjustonlycanbeusedonthevoltageof24VDCandhopethatitstillcanbe
controlledbytheNanoSwitch,sopleaserefertothefollowingdiagramtoachievethis:

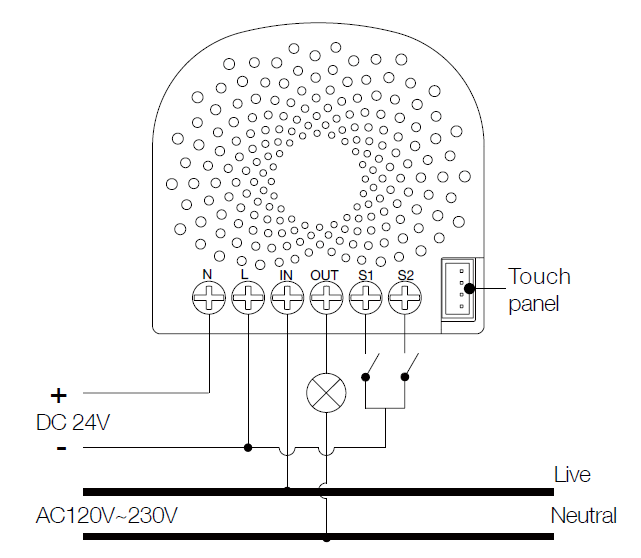

Wiringdiagramof120/230VACpowerinputconnectionto24VDCpoweroutput.

Note:The“IN”terminalshouldbeconnectedtothe“”of24VDCinput.

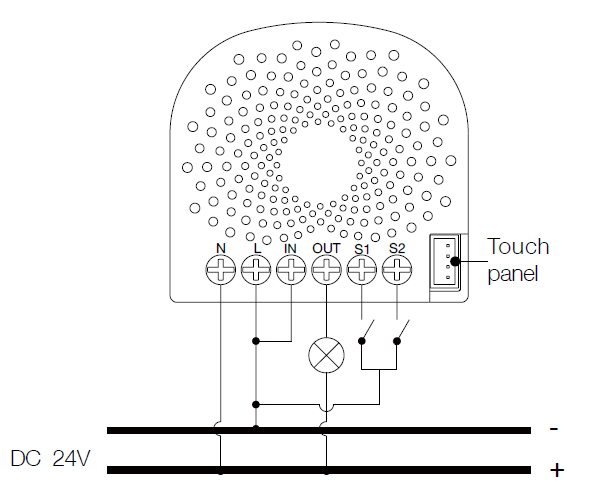

Wiringdiagramof24VDCpowerinput.
SincetheNanoSwitchalsosupportsthe24VDCpowerinput,soyoucanuseittocontroltheloadsthatpoweredby24VDC.


IftheoutputloadsshouldbeonlypoweredbyAC120VorAC230V,youcanchangethewireconnectionasbelow:
Wiringdiagramof24VDCpowerinputto120/230VACpoweroutput.

Note:The“IN”terminalshouldbeconnectedtothe“Live”ofAC120V/230Vpowerwire.
AllabovewiringdiagramsshowthattheNanoSwitchuses2Wayormomentarybuttonswitchesastheexternalmanual
switchfor2Wayconnection.
ThebelowdiagramwillshowyouthattheNanoSwitchusestheSPDT(SinglePoleDoubleThrow)switchesastheexternal
manualswitchfor3Wayconnection.
Wiringdiagramof3Wayconnectionfortheexternalmanualswitch.


3.InstallNanoSwitchtothegangbox.
a.Live/Hotwireconnection:ConnecttheLive/Hotwiretothe“L”terminalontheNanoSwitch.
b.Neutralwireconnection:ConnecttheNeutralwiretothe“N”terminalontheNanoSwitch.
c.Loadwireconnection:ConnecttheLoadwiretothe“OUT”ontheNanoSwitch.
d.External/manualSwitchconnection:Connect218AWGwirestothe“S1”and“S2”ontheNanoSwitch.
e.External/manualSwitchconnection:Connect218AWGwiresformthe2terminalsontheExternal/manualSwitchto
theLivewire.
Note:Thisisthephysicalconnectiondiagramfor120/230VACpowerinput.
4.Mountingthegangbox.
1.Positionallwirestoprovideroomforthedevice.PlacetheNanoSwitchinsidethegangboxtowardsthebackofthe
box.
2.Positiontheantennatowardsthebackofthebox,awayfromallotherwiring.
3.ReinstalltheNanoSwitchtothegangbox.
4.Reinstallthecoverontothegangbox.

Note:1.Thegangboxshouldbesized3×2×2.75inch/75×50×70mmorlarger,minimumvolume14in/230cm.
2.Useflexiblecopperconductorsonly.
5.RestorePower.
Restorepoweratthecircuitbreakerorfuse.
QuickStart.
AddingyourNanoSwitchtoaZWavenetwork.
AfteryourNanoSwitchisinstalledandpoweredon,youarenowabletomanuallycontroltheNanoSwitchtoturnitOn/Off
directlyviapressingyourNanoSwitch’sActionButton,itisnowtimetoaddyourNanoSwitchtotheZWavenetwork.Toset
yourZWavegateway/controllerintopairingmode,pleaserefertotherespectivesectionwithinyourcontrollerinstruction
manual.
1.SetyourZWavecontrollerintopairingmode.
2.PresstheActionButtonontheNanoSwitchonceortoggletheexternalmanualswitchonce,thegreenLED(non
secureindication)willblinktoindicatetheNanoSwitchisenteringintopairingmode.
3.IftheNanoSwitchhasbeensuccessfullyaddedtoyourZWavenetwork,itsRGBLEDwillbesolid.Ifthepairingwas
unsuccessful,theredLEDwillbeonfor2secondsandthenremainacolorfulgradient.Repeattheinstructionsabove
fromstep1.
WithyourNanoSwitchnowworkingasapartofyoursmarthome,you’llbeabletoconfigureitfromyourhomecontrol
software/phoneapplication.PleaserefertoyoursoftwareorgatewayuserguideforfurtherinstructionsonconfiguringNano
Switchtoyourneeds.
ThecolourofRGBLEDwillchangeaccordingtotheoutputloadpowerlevel:


Version LEDindication Output(A)
US
Green [0A,7.5A)
Yellow [7.5A,13.5A)
Red [13.5A,15.5A)
AU
Green [0A,5A)
Yellow [5A,9A)
Red [9A,10.5A)
EU
Green [0A,5A)
Yellow [5A,9A)
Red [9A,10.5A)
RemovingNanoSwitchfromaZWavenetwork.
YourNanoSwitchcanberemovedfromyourZWavenetworkatanytime.You’llneedtouseyourZWavenetwork’smain
controller.TosetyourZWavecontroller/gatewayintoremovalmode,pleaserefertotherespectivesectionwithinyour
controllerinstructionmanual.
1.SetyourZWavecontrollerintoremovalmode.
2.PresstheActionButtonontheNanoSwitchonceortoggletheexternalmanualswitch3timesinfastsuccession.
3.iftheNanoSwitchhasbeensuccessfullyremovedfromyourZWavenetwork,itsRGBLEDwillremaincolourful
gradient.Iftheremovalwasunsuccessful,theRGBLEDwillstillbesolid(followingthestateoftheoutputload),repeatthe
instructionsabovefromstep1.
Advancedfunctions.
ChangingmodeontheExternalSwitch/ButtonControl.
TheNanoSwitchcanbecontrolledvia2state(flip/flop)external/manualswitch,momentarypushbuttonorthe3wayswitch.
ToautomaticallydetectandsetthemodetotheappropriatetypeofmanualswitchwiredintoNanoSwitch,togglethebutton
onthemanualswitchonceandwait2secondsfortheNanoSwitchtodetectthetypeofmanualswitch.
YoucanalsosettheexternalswitchmodethroughConfigurationCommandClass.
Parameter120[1byte]istheparameterthatwillsetoneofthe3differentmodes.Youcansetthisconfigurationto:
(0)2stateswitchmode
(1)MomentarypushbuttonMode
(2)3wayswitchmode
Touchpanelcontrol.
AsyoucanseethattheNanoSwitch’ssurfacehasapinport,thisportisusedtoconnecttheTouchpanel.Whenyouhave
alreadyconnectedittotheNanoSwitch,youwillbepossibletocontroltheNanoSwitchthroughtheTouchpaneldirectly.

MonitoringEnergyConsumption.
TheAeotecNanoSwitchcanreportwattageenergyusageorkWhenergyusagetoaZWavecontrolpointwhenrequested.If
thisfunctionissupportedbythecontrolpoints,theenergyconsumptionwillbedisplayedintheuserinterfaceofthecontrol
points.(ThespecificZWavecommandssupportingenergymonitoringaretheMeterCommandClass.Automaticreportsare
senttoassociationgroup1,whichissetupviatheAssociationCommandClass.)Pleaseconsulttheoperationmanualfor
thesecontrolpointsforspecificinstructionsonmonitoringtheNanoSwitch.
Note:ThemodelZW139NanoSwitchdoesnothavetheabilitytomonitorenergyconsumption.ThemodelZW116Nano
Switchsupportstheenergymeteringfeatureandyoucanseethewords“withEnergyMetering”onitspackagingbox.
SecurityorNonsecurityfeatureofyourNanoSwitchinZWave
network.
IncludingNanoSwitchasanonsecuredevice:
IfyouwantyourNanoSwitchasanonsecuredeviceinyourZWavenetwork,presstheActionButtononceonNanoSwitch
whenyoupairittoyourgateway.
Ifinclusionissuccessful,thegreenLEDwillbeonfor2seconds,andthenreturntoasolidindication.Ifinclusionis
unsuccessful,theredLEDwillbeonfor2secondsandthenreturntoacolorfulgradient.
IncludingNanoSwitchasasecuredevice:
InordertotakefulladvantageoftheNanoSwitch,youwillwantyourNanoSwitchasasecuritydevicethatusesencrypted
messagestocommunicateinyourZwavenetwork.Asecurityenabledcontroller/gateway(orZWavePluscontroller)is
required.
1.SetyourZWavePluscontrollerintopairingmode.
2.PresstheActionButton2timeswithin1secondontheNanoSwitch,theblueLED(secureindication)willblinkto
indicatetheNanoSwitchisenteringintosecurepairingmode.
3.IftheNanoSwitchhasbeensuccessfullyaddedtoyourZWavenetwork,itsRGBLEDwillbesolid.Ifthepairingwas
unsuccessful,theredLEDwillbeonfor2secondsandthenremainacolorfulgradient,repeattheinstructionsabove
fromstep1.
ResetyourNanoSwitch.

Ifatsomestage,yourprimarycontrollerismissingorinoperable,youmaywishtoresetallofyourNanoSwitch’ssettingsto
theirfactorydefaults.
Todothis,pressandholdtheActionButtonfor20secondsandthenreleaseit.YourNanoSwitchwillnowberesettoits
originalsettings,andthegreenLEDwillbesolidfor2secondsandthenremainthecolorfulgradientstatusasaconfirmation.
