AERATE TORNAOO AT3430 User manual

To ensure that you fully understand and use this product, please read the
instruction manual, it is recommended that you keep it for inspection when
required.
Humidifying
Air Purifier
AERATE TORNAOO AT3430 User Manual

Warranty Card( For User)
Warranty Card(For Supplier)
Warranty
Warranty
Purchaser
Purchaser
After
-sales
Service
After
-sales
Service
Name
Name
Add
Add
Name
Name
Add
Add
Tel
Tel
Tel
Tel
The product design parameters, specifications and other information are subject to change without
notice, please refer to the real machine prevail. The product packaging, print design are designed
specifically for the Chinese mainland market, the information of the Company reserves the right of
final interpretation.
Model No.
Model No.
After-sales Service Card P17
1. Warranty
1 year warranty is provided counted from the date
of purchasing
2. Spare parts
Provided free during the warranty, and charged at the
local market rates beyond warranty
1. Warranty
1 year warranty is provided counted from the date
of purchasing
2. Spare parts
Provided free during the warranty, and charged at the
local market rates beyond warranty
Seller
Seller

After-sales Service Condition
1.As per the company policy of “Service Repair/Return/ Replace”
2. Not included in the policy of repair/return/replace
a)Damage caused by mishandling
b)Damage caused by unauthorized personnel dissembling
c)Normal cost or consumables during the usage
d)Filters( Consumables in filtering materials)
e)Damage caused due to incorrect installation or not in accordance
with the user manuals
Notices
To protect your rights, please pay attention to the following information：
1. Fill in your card completely and accurately with stamp seal of seller
when purchasing
2. Please keep the user’s after-sales service card filled in and stamped
3. Effective service card guarantees the basic rights for enjoying
products services( Effective cards means that the information in
service card should be filled, completely, truly, and without alterations
4. Products can not be used by people with physical, sensory or
mental disability, lack of knowledge, lack of experience(including
children),unless they are under guardianship of related responsible
people or under instructions of user manuals.
Product Certificates
After-sales Services
Product Certificates
The products are allowed
to produce after testing
Model:
Testing:
Date:
Machine& Spare parts
Introduction
Guidelines for Usage
Notices
Operational Instructions
Purification
Technology
How it Works
Technical Specifications
Care& Maintenance
Basic Trouble Shooting
FAQ
After-sales Services
Product Certification
After-sales Service Card
Thank you for using our air purifier, please read the instruction manual carefully before use and keep.
Catalog
2
3
4
5-6
7-8
9
10
11
12
13
14
15
16
16
17
P01
P16

Main body
1 set of filters User manual
Remote control
FAQ
Machine and Spare parts
P02 P15
NO/ OFF
SPE ED
TIM ER
AUT O
ANI ON
UV
SLE EP
LOCK R ESET
Humidif ying
Air Purifier
Q1:Why the indicator light of LED display not glowing?
A1: Please check whether the power supply is connected properly.
Q2: Why the filter indicator light keeps flashing?
A2: The filter has reached end of life. Please replace filters ASAP.
Q3:Why there is loud noise when the purifier is on?
A3: This is due to excessive accumulation of dust on filter. Clean the filter
with a vacuum cleaner or replace the filter.
Q4: Why machine is not working while ring tones are on ?
A4: Check if the front panel is installed correctly.
Q5: Why PM2.5 keeps rising indoor?
A5: Check if the windows& doors are well closed and if pollution sources
exist indoor, if yes, clean it.
Q6: Why the air flow reduces after some time of use?
A6: It’s related with the environment, for a long time usage in high polluted
area, the filters can accumulate dust. Clean or replace filters if filters are
choked.
Q7:Can the filters be cleaned?
A7: Yes, it can be cleaned, it’s recommended to clean elementary filter and
HEPA filter with vacuum cleaner, For activated carbon filter, we suggest
to dry it in the sun regularly.
Q8:How long can the filters be used?
A8: In normal, it can be used for 6 ~12months, but using long time in high-
concentration polluted environment, you’ll need to replace them every
3 months.
AER ATE TO RNAO O AT3430 User M anu al

Basic Trouble Shooting Introduction
Please confirm the following before repair when these occur.
Abnormal Checking
Abnormal
The air quality indicator
is always red in color or
PM 2.5 keeping high
Abnormal smells
The pollutants not
removal and running
noise louder
Air indoor polluted, but
machine not working
1.Sensor may be influenced by water vapor, fumes,
sprays, test the machine in another clean environ
-ment.
2.Remove the sensor door and clean the sensor
plates with clean soft cloth.
Check if the HEPA filter out of effect.
Clean HEPA filter with vacuum, if not effective,
then replace for new HEPA filter.
Upon completing the inspection, contact dealer services if still not able to solve the problem.
1. Pre- filter
2. Composite HEPA filter
3. Activated carbon filter
Digital display
Touch
buttons
Panel
Sensor
Magnetic lock
Air duct
Buckle
UV lamp
(Optional)
Handle Handle
Water tank
Air quality
indicator
Sensor door
P03
P14
1. Check if the power cord connected well to power
socket. Reconnect it if not.
2. Check if the front panel closed well. Close it well if not.
3. Check if the machine placed flatly. Place it flatly if not
Check if filter out of effect or has absorbed pollutants
for releasing smells.
Replace for new filters
The machine may be placed improperly. Change the
way it being placed or choose manual mode, and turn
the “SPEED” to high speed.

Guidelines for Usage Care & Maintenance

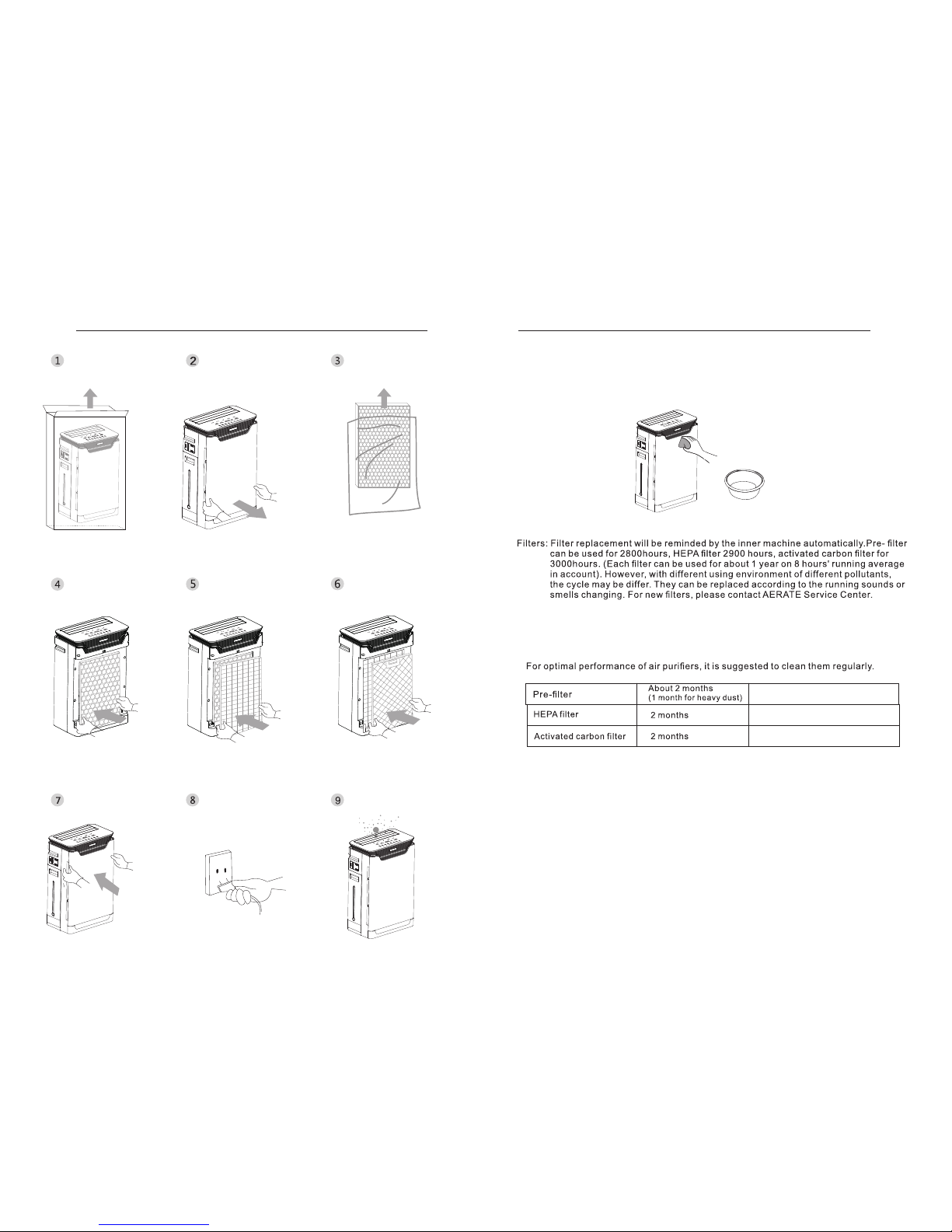

Unpack the machine Remove the panel Remove the filter
and the poly bag
Install activated
carbon filter
Install HEPA filter Install Pre-filter
Install the panel Touch “ON/OFF”
button to start
machine working
P04 P13
Machine: On anion generator, if dust is accumulated, clean it with soft cloth soaked with
clean detergent water, and gently brush the inlet/outlet.
Clean with vacuum cleaner or
hot water
Use vacuum cleaner only
Dry in the sun for 1~3 hours
Remark: UV lamp installed
UV lamp: it can be used for about 2 years, while replacing it, you need to turn off the
machine, remove the UV lamp at 90 degrees rotation, and replace.
Connect the power cord
to 220V AC power supply

Notices
Technical Specification
To avoid harm or property damage, please be sure to observe the following
rules and instructions.
Warning Caution
Warning
“Must”
P12 P05
“Risk of death or injury”
“Forbidden”
“Risk of injury or hazardous
substances”
Pre-filter( L397*W291*H6mm）
HEPA filter( L397*W291*H25mm）
Activated carbon filter( L397*W290*H13mm）
Keep against plug position to
avoid short circuit and fire
No foreign items to inlet/outlet
to avoid internal electrical shock
or injury
Regularly check the power plug
Turn off the power
Don't use nonstandard
AC power
Keep off wet hands
Keep away from water
Do not disassemble
3 filters, 8 stages purification (UV)

Notices How it Works
8 stages purification
Unplug the power plug
with hand
Inlet Inlet
Outlet
P06 P11

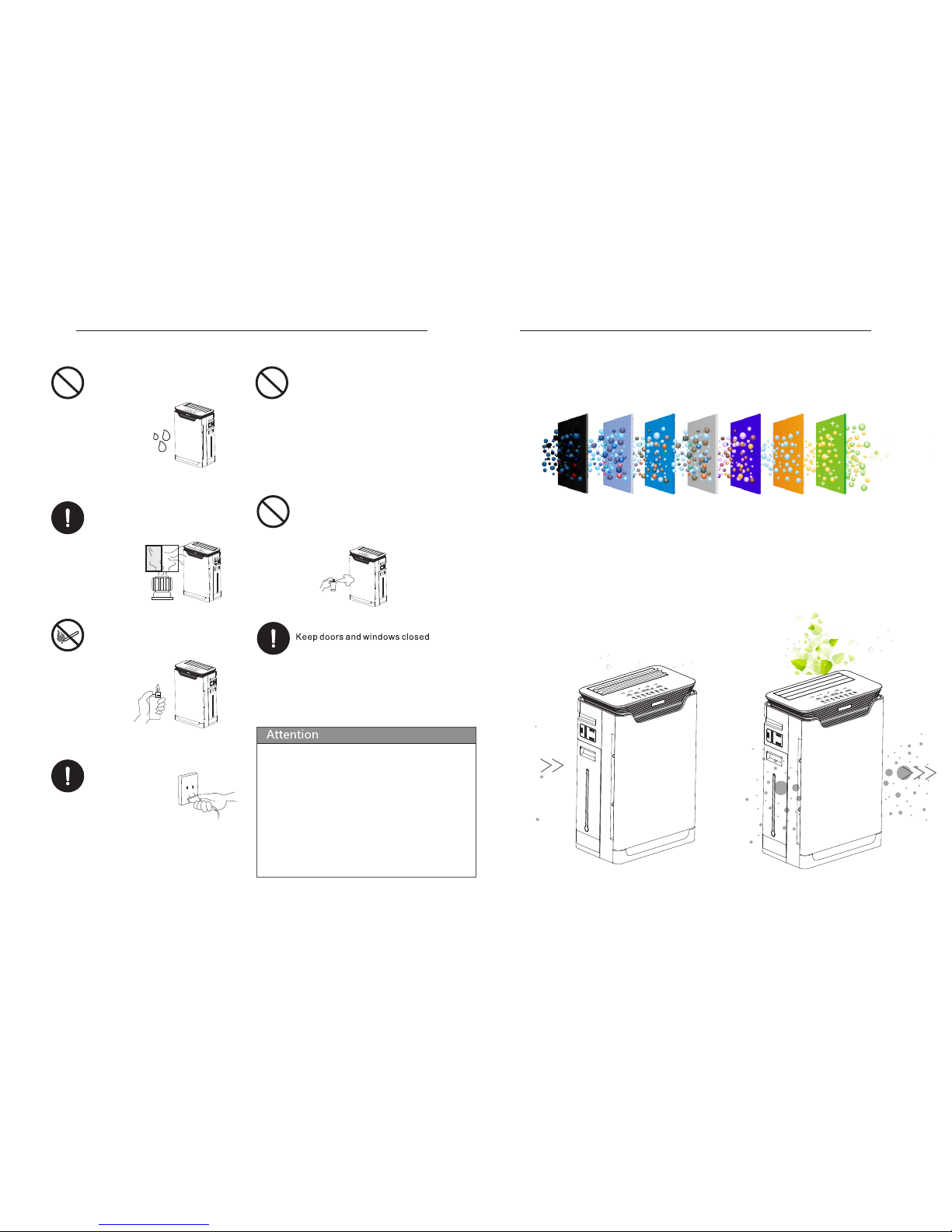

Do not install in bathroom Do not use insecticide
sprays
Be careful of CO emission
when using near heating
machines
Do not wipe with alcohol or
organic solvents
Keep away from heat sources
In case of following conditions, please
unplug the power immediately
*Short circuit
*Abnormal heating of the power cord/plug
*Sign of burning smell or abnormal sound
and vibration
*Other anomalies or malfunctions

Operational Instructions
Technology
Power on
Press “ON/OFF” button of remote control or touch “ON/OFF” button on the machine.
When the machine is on, the display turns like
Touch “ AUTO” button on the machine to enter auto purifying mode, which will purify the air as
needs. When the air quality shows excellent, indicator light turns blue, machine will work at
low-consuming state; air quality good, indicator light turns green; air quality okay, indicator
light turns yellow; air quality bad, indicator light turns red, in this state, machine will be working
at highest speed state.
Remark: Filter management is by
default on with new machines
Sleep mode
Press “SLEEP” button of remote control or touch
“ SLEEP” button on the machine to enter
into sleep mode.
Touch “ ON/OFF” button to end sleep mode.
Timer
On power-on state, touch “ TIMER” button
Pre boot
Booking shutdown
On power-off state, touch “ TIMER” button
Security
Double protection design, the internal security device will cut off power automatically
in case of hazard. Besides, the machine is designed for children safety, when the panel
is opened by children, the machine will power off automatically in case for children
access to the internal fan.
Biological sterilization
UV inhibits bacteria breeding, curbs virus activation, and is sustainable and efficient to
kill bacteria and virus.
Environmental-friendly
10 million pieces negative ions are produced each second in the room, which is beneficial
for improving air quality and rebuild the living environment
Intelligent management
With micro computer management clips inside, it is able to check the air quality
automatically. After purifying, it will enter into low-cost mode automatically, while the
air quality is bad, it will continue to purify. Besides, it is able to be set up off-time in case
for any waste.
WIFI function( Optional)
WIFI function designed for quick use when necessary.
Auto mode
Display as follow:
Choose time 1H/2H/4H/8H
Auto power off settled.
Choose time 1H/2H/4H/8H
Auto power on settled.
P10 P07
ON/ OFF
ON/ OFF
SLEEP
SLE EP
TIM ER
TIM ER
AUT O
AUTO
LOC K
LOC K
PUR
PUR
HUM
HUM
RES ET
RES ET
LAC K
LAC K
TEM P
TEM P
HUM
HUM
SPE ED
SPE ED
SPE ED
SPE ED
ANI ON
ANI ON
UV
UV
TIM ER
TIM ER
SLEEP
TIMER
ON/OFF

Operational Instructions Purification
Lock
Press “ LOCK” button on the remote control or touch “LOCK”
button of machine for 5 seconds to start/end operation panel
lock function.
Wind speed adjustment
Press “SPEED” button of remote control or touch “SPEED” of
machine to adjust the speeds when the machine is power on.
Filter replacement
Replacefilter：
Filter loading：
1. Pre- filter
2. HEPA filter
3. Activated carbon filter
Remove the panel Remove the filters
to be replaced
Load the filters
in its line
Touch “ AUTO” and “TIMER”
button together for 5 seconds
to restart( Filter replacement
indicator ending)
Close the
front panel
Anion
Press “FUNCTION” button of remote control or touch “ ANION”
button on the machine to start or end anion function.
UV
Press “FUNCTION” of remote control to start or end
UV purification.
In ordinary occasion, filter replacement
indicator is off, it will need to replace filter
when the light flashes and ring bells.
Water adding indicator
When water tank placed in order and water
full, the icon is off, when it lacks of water,
the icon is on, water adding needed.
Lack of
water
12 3 4 5
3 filters 8 stages purifications
P08 P09
filter
LOCK
SPEED
ANION
FUNCTION
Auto
1.Pre-filter,which consist of the the aluminum frame and 0.3 aluminum mesh and primary
efficiency filter cotton.Using for removal of dandruff, hair, dust ,larger particle etc. This
filter can reduce user costs by cleaning repeatedly.
2.Efficient HEPA filter, effectively filters micro particles like airborne allergens, pollen,
mites, dust, mold spores, textiles fiber products, with a ratio 99% to PM2. 5 purification
based on the international standard, and the minimum particle to 0. 3μm.
3. Activated carbon filter can effectively remove formaldehyde, benzene, xylene, TVOC,
smoke and garbage odors.
4. Molecular sieve adsorption layer, is a kind of particles of granular activated carbon filter,
purifying air by absorbing and exchanging. The pores of sieve gaps are high enough with
large volume inside. After high temperature activated zeolite, they form pores in same
sizes, which have strong absorption ability to block particles larger than the pores allowed
and to pass the particles smaller or water/gas molecular, to increase the life of activated
carbon filter and save costs for users.
5. Photocatalyst layer function:
A: Antibacterial property
B: It can effectively decompose organic compounds and toxic substances, such as
benzene, ammonia, TOVC etc.
6. Cold catalyst filtration layer( No UV) function:
A: Antibacterial property
B: It can effectively decompose organic compounds and toxic substances, such as
benzene, ammonia, TOVC etc.
7.Ultraviolet sterilizing filter
UV light can destroy microbial molecular structure of DNA or RND and kill variety of
bacteria.
8. Negative anion functions well at removing bacteria and dust, known as “vitamin in the air”
by Medical community. 10 million negative ions indoor, are produced per second by this
machine, which helps promote metabolism and improve human body immunity.
