Sharp UA-HG30E User manual

UA-HG30E
Operation Manual
Air Purifier With Huidifying Function
EN ESDE PT FR PL NL

AIR PURIFIER
with Humidifying Function
OPERATION MANUAL
R
UA-HG30E
“Plasmacluster” and “Device of a cluster of
grapes” are trademarks of Sharp Corporation.
ENGLISH
Free standing type
* The number in this technology mark indicates an
approximate number of ions supplied into air of 1
cm3, which is measured around the centre of a room
with the “high-density Plasmacluster 7000” applicable
fl oor area (at 1.2 m height above the fl oor) when the
product is placed close to a wall at the MAX mode
setting.

Before operating your new air purifi er, please read the following
The air purifi er draws in room air through the air intake, circulates it through a Pre-Filter,
a Deodorizing Filter and a HEPA Filter inside the unit, and then discharges it through the
air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns
that pass through the fi lter and also helps absorb odours.
The Deodorizing Filter gradually absorbs odours as they pass through the fi lter.
Some odours absorbed by the fi lters will break down over time, causing additional
odours. Depending on usage conditions, and especially if the product is used in
environments signifi cantly more severe than a normal household, these odours may
become noticeable sooner than expected. If these odours persist, replace the fi lters.
(Ref. E-16)
NOTE
• The air purifi er is designed to remove air-suspended dust and the odours.
The air purifi er is not designed to remove harmful gases such as carbon monoxide contained in
cigarette smoke.
The air purifi er may not completely remove an odour if the source of the odour is still present.

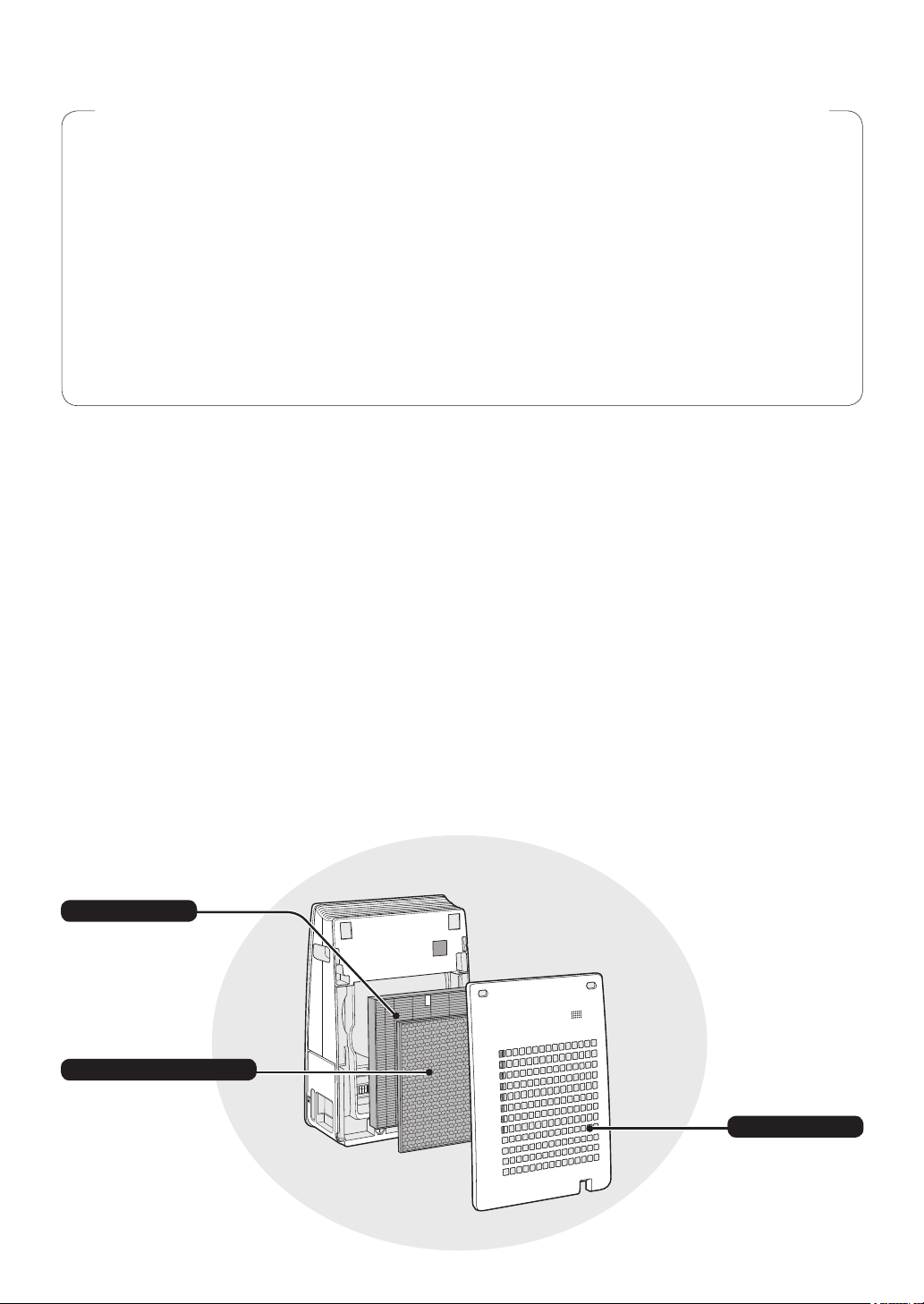

HEPA Filter
Pre-Filter
Deodorizing Filter

ENGLISH
E-1
ENGLISH
Thank you for purchasing this SHARP Air
Purifi er. Please read this manual carefully
before using the air purifi er. After reading,
keep the manual in a convenient location for
future reference.
IMPORTANT SAFETY INSTRUCTIONS
..... E-2
PART NAMES ............................................... E-6
PREPARATION ............................................ E-8
OPERATION ...............................................E-10
USEFUL FUNCTION ................................. E-11
CARE AND MAINTENANCE ...................E-13
TROUBLESHOOTING ..............................E-18
SPECIFICATIONS ......................................E-19
CONTENTS
FEATURES
A Unique Combination of Air Treatment
Technologies
Triple Filtration System + Plasmacluster +
Humidifi cation
TRAPS DUST*
Pre-Filter traps dust and other large
airborne particles.
DECREASES ODOURS
Deodorizing fi lter absorbs many common
household odours.
REDUCES POLLEN & MOLD*
HEPA fi lter traps 99.97% of particles as
small as 0.3 microns.
FRESHENS
By emitting a balance of positive and negative
ions, Plasmacluster air treatment is a natural
process.
HUMIDIFIES
Can operate up to 5 hours per fi lling.**
*When air is circulated through the fi lter system.
**Room size: up to 16 m2
Sensor technology continuously monitors air
quality and automatically adjusts operation
based on air purity and humidity level.

E-2
IMPORTANT SAFETY INSTRUCTIONS
Always follow basic safety precautions when using electrical appliances,
including the following:
WARNING – Always observe the following to reduce the risk of electrical shock,
fi re, or injury:
• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or if the connection
to the wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert fi ngers or foreign objects into the air intake or air outlet.
• When removing the power plug, always hold the plug and never pull the
cord.
Failure to do so can cause a short circuit resulting in electrical shock or fi re.
• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or fi replaces.
• Always unplug the unit when refi lling the Humidifying Tray, cleaning the unit, or
when the unit is not in use. Failure to do so can cause a short circuit resulting in
electrical shock or fi re.
• In order to avoid safety hazards, if the power cord is damaged, it must be
replaced by either the manufacturer, a service agent, a Sharp authorized
Service Centre or a similarly qualifi ed service provider.
• Only a Sharp Authorized Service Centre should service this air purifi er. Contact
the nearest Service Centre for any problems, adjustments, or repairs.
• Do not operate the unit in rooms where aerosol insecticides are present. Do not
operate the unit in rooms where there is oily residue, incense, sparks from lit
cigarettes, or chemical fumes in the air. Do not operate the unit in places where it
may get wet, such as a bathroom.
• Be cautious when cleaning the unit. Strong corrosive cleansers can damage the
exterior.
• When carrying / moving the unit, fi rst remove the Humidifying Tray, and then hold
the unit by the handles on both sides.
• Carrying / moving the unit when there is water in the Humidifying Tray can cause
the following:
• Electrical shock.
• Damage to the unit caused by internal spillage.
• Water spillage.
•
Do not drink the water in the Humidifying Tray.

ENGLISH
E-3
•
Replace the water in the Humidifying Tray daily with fresh tap water, and regularly
clean it (Ref. E-14 and E-15). When the unit is not in use, dispose of the water in
the Humidifying Tray.
Leaving water in the Humidifying Tray can cause mold, bacteria, and bad odours.
In rare cases, such bacteria can be a health hazard.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
NOTE – What to do if the unit interferes with radio or TV reception
If the air purifi er interferes with radio or television reception, try one or more of the
following measures:
• Adjust or reposition the receiving antenna.
• Increase the distance between the unit and the radio or TV.
• Connect the equipment into an outlet on a circuit different from that of the radio or
TV receiver.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTIONS CONCERNING OPERATION
• Do not operate the unit without the fi lters and the Humidifying Tray properly
installed.
• Keep the unit away from water.
• Do not wash and reuse the HEPA fi lter and Deodorizing fi lter.
Doing so will not improve fi lter performance and can also cause electric shock or
operating malfunctions.
• Clean the exterior with a soft cloth only.
Do not use volatile liquids or detergents. Doing so can damage or crack the
exterior of the unit.
In addition, doing so can cause sensor malfunctions.
• The frequency of descaling maintenance will depend on the hardness of and the
impurities in the water that you use; the harder the water the more often descaling
will be necessary.

E-4
IMPORTANT SAFETY INSTRUCTIONS
• Before moving the unit, make sure it is not operating, and remove the Humidifying
Tray while holding the side handle of the unit.
• When removing / reattaching the Humidifying Tray, be careful not to get your
fi ngers caught inside the unit.
• When moving the unit, use the handles on both sides.
Do not move the unit when it is in operation.
• Do not block the air intake or air outlet.
• Do not place the unit near or on hot objects, such as stoves or heaters, or where it
may come into contact with steam.
• Always operate the unit in an upright position.
INSTALLATION GUIDELINES
• When using the unit, place it at least 2 metres away from equipment that emits
electric waves, such as televisions or radios, to avoid electrical interference.
• Avoid locations where the sensors are exposed to direct wind.
Failure to do so can cause the unit to malfunction.
• Avoid locations where furniture, fabrics, or other objects can come in contact with
the unit and interfere with the intake and outtake of air.
• Avoid locations where the unit is exposed to condensation or drastic changes in
temperature.
Appropriate room temperature is between 0 – 35 ºC.
• Place the unit on a level and stable surface with suffi cient air circulation.
When placed on heavy carpet, the unit may vibrate slightly.
Place the unit on a level surface to avoid water leakage from the Humidifying Tray.
• Avoid locations that generate grease or oily smoke.
Failure to do so can cause the unit exterior to crack and the sensors to
malfunction.
• The dust collecting ability of the unit is effective even when the unit is as close to
3 cm from the wall, the surrounding walls and fl oor may get dirty. Please place the
unit at a distance from the wall.
The wall directly behind the air outlet may become dirty over time. When using
the unit for an extended period of time at the same location, periodically clean the
walls adjacent to it.
FILTER GUIDELINES
• Follow the instructions in this manual for proper fi lter care and maintenance.

ENGLISH
E-5
A. Information on Disposal for Users (private households)
1. In the European Union
IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY
WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!
Used electrical and electronic equipment should always be collected and treated SEPA-
RATELY in accordance with local law.
Separate collection promotes an environment-friendly treatment, recycling of materials,
and minimizing fi nal disposal of waste. IMPROPER DISPOSAL can be harmful to human
health and the environment due to certain substances! Take USED EQUIPMENT to a
local, usually municipal, collection facility, where available.
If in doubt about disposal, contact your local authorities or dealer and ask for the correct
method of disposal.
ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES;
FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection
is requested by law.
The symbol shown above appears on electrical and electronic equipment (or the packag-
ing) to remind the users of this.
Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for
used equipment. Return is free of charge.
If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP
dealer who will inform you about take-back. You might be charged for the costs arising
from take-back. Small equipment (and small quantities) might be taken back by your local
collection facility. For Spain: Please contact the established collection system or your local
authority for take-back of your used products.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for the
correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of
charge to the dealer, even if you don’t purchase a new product. Further collection
facilities are listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users.
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the
product. You might be charged for the costs arising from take-back and recycling.
Small products (and small amounts) might be taken back by your local collection
facilities.
For Spain: Please contact the established collection system or your local authority for
take-back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for
the correct method of disposal.
Attention: Your product is
marked with this symbol. It
means that used electrical
and electronic products
should not be mixed with
general household waste.
There is a separate
collection system for these
products.

E-6
PART NAMES
1Operation Panel / Display (Ref.E-5) 9 Humidifying Tray
2Handle (2 Locations) 10 Float
3Main Unit 11 HEPA Filter
4Air Outlet 12 Deodorizing Filter
5Filter Frame 13 Sensor Filter / Sensor (internal)
6Humidifying Filter 14 Back Panel (Pre-Filter)
7Float (in Filter Frame) 15 Air lnlet
8Tray Handle 16 Power Cord / Plug
FRONT
BACK
FRONT / BACK
3
2
1
(Plug shape varies by country.)
4
13
5
16
15
11
14
9
7
8
12
6
10

ENGLISH
E-7
OPERATION PANEL / DISPLAY
1START/STOP 5OFF Timer Button
2
CLEAN ION SHOWER Button /
Indicator Light (green) 6
Display Select Button
(Press 3 sec.) LIGHT ON/OFF Button (Press 3 sec.) FILTER RESET Button
3FAN SPEED Button 7Filter Indicator Light (orange)
(Press 3 sec.) Plasmacluster Ion ON/OFF Button 8Plasmacluster Ion Indicator Light (blue)
4Fan Speed Indicator Lights (green) 9OFF Timer Indicator Light (green)
6
7
98
54321
Humidify Light
Green................. Humidify ON
Green................. Unit needs water
(Flashing)
Off ...................... Humidify OFF
Display
Dust Sign
Indicates the air purify level 3 colours.
Green
Orange
Red
Clean
Impure
Humidity / Temperature monitor
Indicates the approximate humidity /
temperature level in the room.
Temperature 0 to 50ºC is displayed at 1ºC-intervals.
Humidity 20 to 90% is displayed at 1%-intervals.
-1ºC or less 51ºC or more

E-8
PREPARATION Always be sure to remove the
power plug from the wall outlet.
FILTER INSTALLATION
4
1
2
3

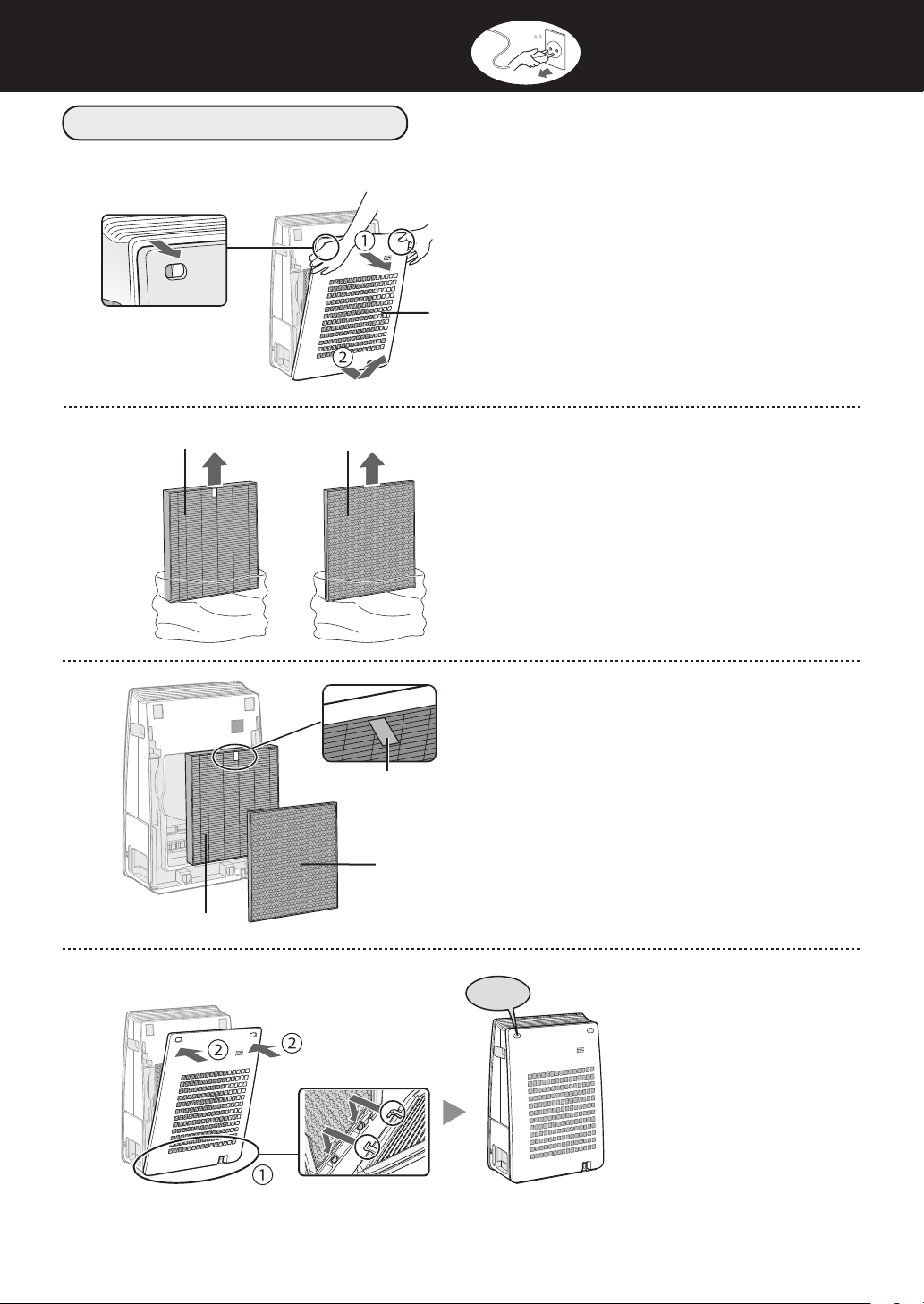

Remove the Back Panel.
Remove the Filters from
the plastic bag.
Install the Filters in the
correct order as shown.
Install the Back Panel.
Back Panel
HEPA fi lter Deodorizing fi lter
Place the surface
with tag.
Tag
HEPA fi lter
Deodorizing fi lter
(The same on both sides.)
Click

ENGLISH
E-9
3
1
2
A
B

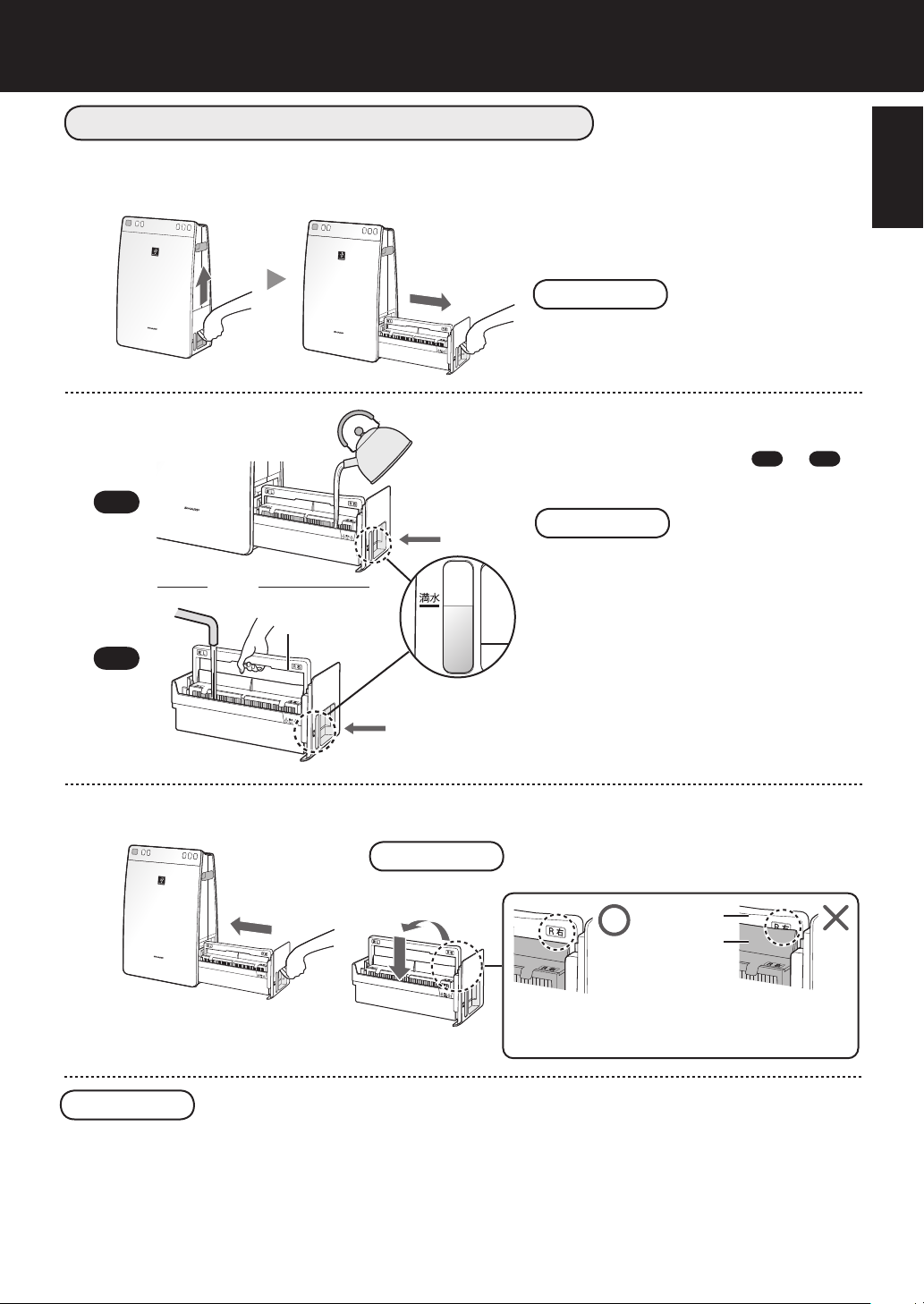

Pull out the Humidifying Tray.
Fill the Humidifying Tray with
tap water by method Aor B.
OR
Install the Humidifying Tray.
Clean the Humidifying Tray if it becomes
dirty or there is a noticeable odour.
(Ref. E-14,E-15)
Humidify air passed through by vaporizing water pumped up from Humidifying Tray.
The unit can be used even without water in the Humidifying Tray.
• The Filter Frame is fl oated up when
water is fi lled.
• When carrying the Humidifying Tray,
hold it with both hands or grip the Tray
Handle.
• Gently fi ll it with water to avoid splash
water.
• Do not fi ll beyond the “FULL” indicator.
The Humidifying Tray does not get into
the unit if water is fi lled too much.
• Do not expose the unit to water. Doing so can cause a short circuit or electrical shock.
• Use only fresh tap water. Using other water sources risks the growth of molds, fungi, or bacteria.
• Do not use hot water (40 ºC), chemical agents, aromatic substances. Doing so can deform the unit
or cause it to malfunction.
• When removing and installing the Humidifi ying Tray, be careful not to spill any water.
• Return the Tray Handle to its original
position before installing.
Handle
FULL
FULL
FULL
Tray Handle
Separator
Locate the Handle
in front of Separator.
Do not locate the
Handle on or behind
Separator.
REFILLING THE HUMIDIFYING TRAY
CAUTION
CAUTION
CAUTION
CAUTION

E-10
OPERATION
START / STOP
START STOP • Select the desired fan speed by .
• Unless the power cord has been
unplugged, the operation starts in the
previous mode it was operated in.
NOTE
SLEEP
AUTO
FAN SPEED
Select the desired fan speed.
• Front surface Indicators go off automatically.
• The fan speed is automatically switched between HIGH and
LOW depending on the humidity and the amount of impurities
in the room.
START
CLEAN ION SHOWER
Releases high-density Plasmacluster ions and discharges strong air fl ow for 60 minutes.
NOTE
• When the operation fi nishes, the unit will return to the prior
operation mode.
It is able to change the other mode during this mode.

ENGLISH
E-11
NOTE
NOTE

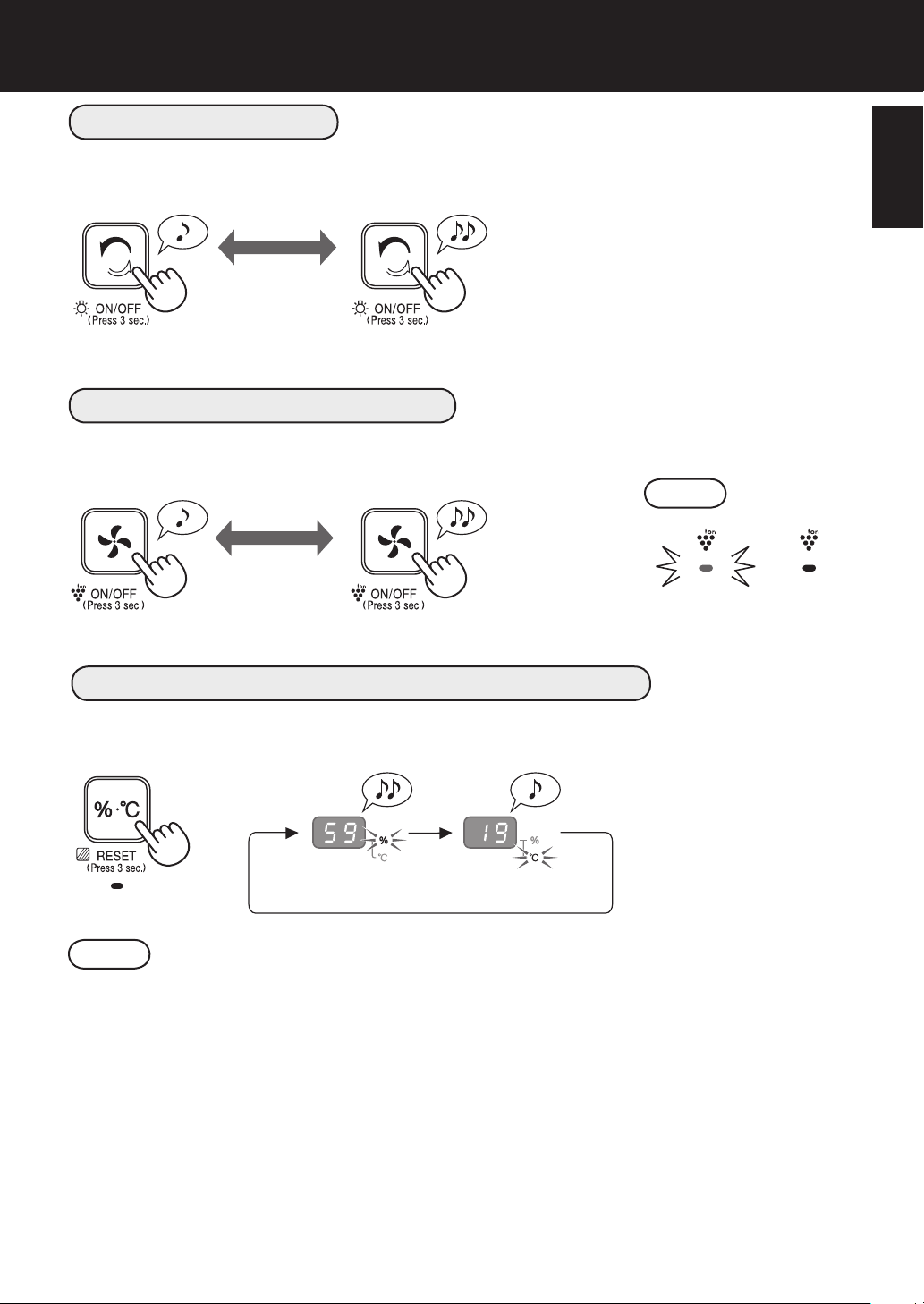

LIGHT CONTROL
You can set the front surface Indicators to OFF when the Indicator is too bright.
Press
more than 3
seconds.
Press
more than 3
seconds.
Press
more than 3
seconds.
Press
more than 3
seconds.
Plasmacluster Ion ON/OFF
When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light is on. (blue)
You can select either humidity or temperature at the time to be displayed.
ON OFF
OFF
OFF
ON
ON
Changing display (humidity / temperature)
Current temperature and current humidity indicate the estimated values.
The values may be different from values indicated by other temperature gauge hygrometer.
• There is no function for adjusting the temperature.
• Humidity setting cannot be adjusted.
• Cannot dehumidify .
USEFUL FUNCTION
Current humidity
(estimated)
Current temperature
(estimated)

E-12
USEFUL FUNCTION

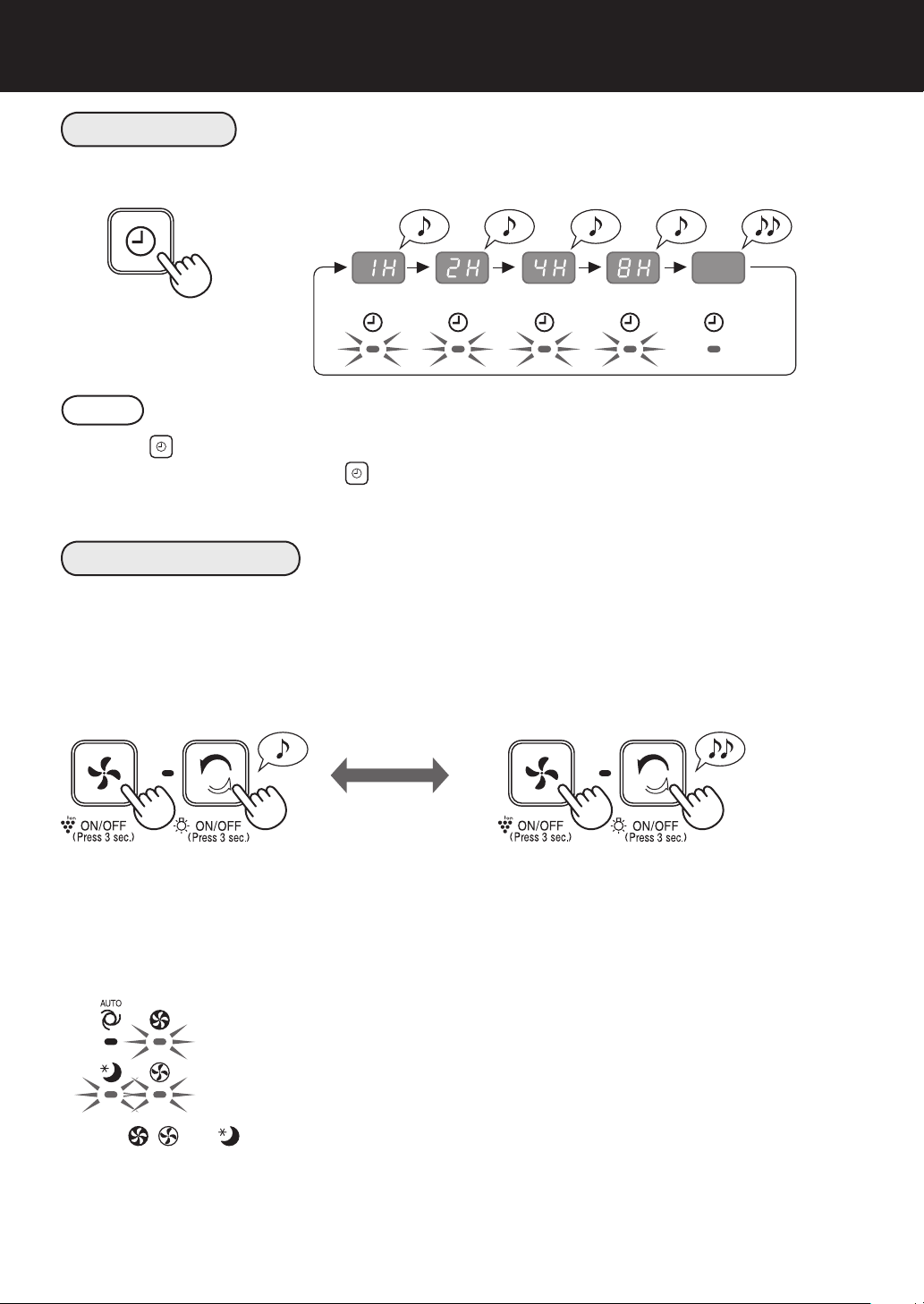

Off TIMER
Select the length of time you want. The unit automatically stops once the selected time is reached.
NOTE
• Pressing displays the remaining time.
• To reset the operating time, press while the remaining time is being displayed.
Auto RESTART
If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous
settings after power is restored. The default setting is ON.
OFFON
(with the unit OFF) (with the unit OFF)
Press both buttons at the
same time for 3 seconds or
more.
Press both buttons at the
same time for 3 seconds or
more.
If the , and
indicators light up for 10 seconds,
the setting is completed.
Lighting
1 hour 2 hours 4 hours 8 hours CANCELLATION

ENGLISH
E-13
CARE AND MAINTENANCE
The fi lter Indicator Light will turn
on after approximately 720 hours.
(30 days × 24 hours =720 hours)
In case of using at the location where air pollution and odour are
signifi cant, maintain frequently even if Filter Indicator Light is not ON.
Gently remove dust with an appropriate cleaning tool,
such as a vacuum cleaner with the proper attachment.
After performing
maintenance, reset
the Filter Indicator.
Press more than
3 seconds.
This is a reminder to perform the
maintenance described below.
(Ref.E-13,E-14,E-15,E-16)
Deodorizing Filter
(Ref.E-16)
Back Panel
1. Add a small amount of kitchen detergent to
water and soak for about 10 minutes.
• DO NOT apply excessive pressure when
scrubbing the back panel.
2. Rinse off the kitchen detergent with clean water.
3. Completely dry the fi lter in a well-ventilated area.
1. Remove the Back Panel and removing
the Sensor Filter.
2. Gently remove dust from the Sensor with
an appropriate cleaning tool, such as a
vacuum cleaner with the proper attachment.
3. If the Sensor Filter is overly dirty, wash it
with water and dry it thoroughly.
Filter Frame
Humidifying Tray
(Ref.E-14,E-15)
Humidifying Filter
HEPA Filter (Ref.E-16)
Sensor Filter
Unit (Ref.E-16)
Sensor (internal)
Back Panel
Sensor Filter
How to clean when overly dirty
FILTER INDICATOR
CARE INDEX
BACK PANEL
SENSOR
CAUTION
NOTE
BACK PANEL
SENSOR

E-14
CARE AND MAINTENANCE
Odour occurrence may be suppressed when washing Humidifying Filter and Humidifying Tray with
water carefully even if the Filter Indicator Light is not ON.
• Drops of water may drip from the Humidifying Filter and the Filter Frame.
• Do not remove the Floats.
• If the Float comes off from the Humidifying Tray, install it in the order
shown below.
Remove the Humidifying Filter from the Tray.
Rinse the Humidifying Tray, the Filter Frame and the Humidifying Filter.
Remove the Filter Frame. Remove the Humidifying
Filter.
Turn the handle down on
the reverse side.
Float
Filter Frame
1. Insert the fl oat under this
tab.
2. Insert the tab of the
fl oat into the hole.
3. Insert the tab on the other side
of the fl oat into the hole.
Cross-Section
view
Humidifying Filter
Float (Styrofoam)Humidifying Tray
HUMIDIFYING FILTER / TRAY
CAUTION
CAUTION
2
1
Float
Tab
Open
1
Remove
2
Pull up
1
Turn down
2

ENGLISH
E-15
Always be sure to remove the power plug
from the wall outlet.
How to remove the water scale
How to clean the Humidifying Tray and the Filter Frame
when overly dirty
After maintenance, correctly reattach the parts.
Return the Tray Handle to its original position.
Right side
Groove
Guide
Also in the same left side.
Recommended descaling solutions
• Citric acid (available at some drugstores)
• 100% bottled lemon juice with no pulp.
<with citric acid>
<with lemon juice>
2 1
/
2 cups
of water
3 cups
of water
stir well!
stir well!
3 tea-
spoons
1
/
4 cup
• When using lemon juice as your
descaling solution, allow for more
soak time.
1. Soak in water with a descaling solution
for about more 30 minutes.
1. • Remove the Filter Frame from the Humidifying Tray and fi ll it with
water until the “FULL” indicator.
• Put the Filter Frame in water.
2. Add a small amount of kitchen detergent to the water.
3. Soak for 30 minutes.
4. Rinse off the kitchen detergent with clean water.
• Clean any hard-to-reach parts which with a cotton swab or toothbrush.
2. Rinse off the descaling solution
with plenty of water.
Hook latches
of cover
(3 positions).
2
4
3
12
Lift the Tray Handle.
1
Return it to its original position.
2
Align the directions.
1
Install the Humidifying Filter
by fi tting the grooves at left
and right side to the guides
on the Humidifying Tray.
2
Install
1
Close
2
1
2
NOTE
NOTE
CAUTION

E-16
Gently remove dust with an appropriate cleaning tool, such as a vacuum
cleaner with the proper attachment.
In case of using at the location where air pollution and odour are signifi cant,
maintain frequently even if Filter Indicator Light is not ON.
Wipe with a dry, soft cloth.
CARE AND MAINTENACE
• Do not use volatile fl uids.
Benzene paint thinner or polishing powder can damage the
surface.
• Do not use detergents.
Detergent ingredients can damage the unit.
• Both surfaces can
be maintained.
• Do not wash the fi lters. Do not expose to sunlight.
Some odours absorbed by the fi lters will break down over time, causing additional odours. Depending on
usage conditions, and especially if the product is used in environments signifi cantly more severe than a
normal household, these odours may become noticeable sooner than expected.
Replace the fi lter in those cases or if dust is unable to be removed after maintenance.
• Maintain only the tagged
surface. Do not clean up
the opposite surface.
Tag
CAUTION
DEODORIZING FILTER HEPA FILTER
CLEANING FILTERS
UNIT
CAUTION
