Introducon:
The CoreBlu line is a series of advanced Bluetooth Low Energy 5.x beacon devices using mul standard
beacon technology.The CoreBlu-X3 is specially conceived for advanced business soluons using locaon
based and indoor navigaon based applicaons. It features an ultra-low power consumpon and long
baery life. The CoreBlu-X3 can be easily mounted on various
surfaces and uses commercially available replaceable large capacity baeries.The CoreBlu-X3 comes with
a downloadable SDK with an extensive library for easy integraon into a wide range of locaon based
and indoor navigaon based applicaons. It also includes a wide range
tools facilitang opmal setup, installaon and health-checks.
R1.0 
Page 4 | 8 

CoreBlu X3 User Manual

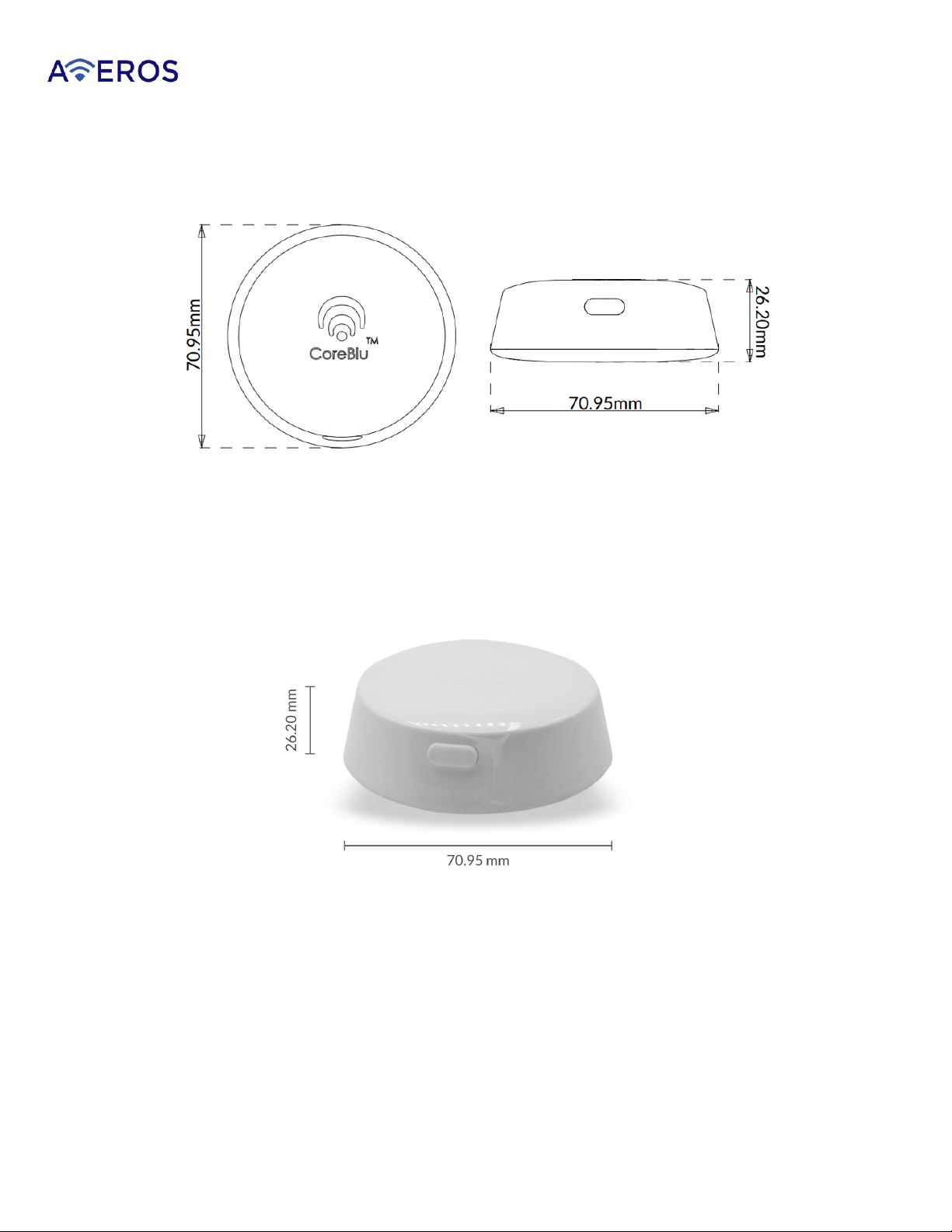

Physical characteriscs:
R1.0 
Page 5 | 8 

CoreBlu X3 User Manual
Usage:
●CoreBlu X3 is designed to be mounted anywhere on various surfaces with the help of double
sided tape or screws to be detected by nearby smartphones.
●CoreBlu X3 is mainly used in indoor navigaon applicaons.
●CoreBlu X3 also includes a wide range of tools facilitang opmal setup, installaon and
health-checks.
●Long buon presses allow the beacons to restart/wakeup (if sleeping) and show indicaon in the
front LED.
Features:
●Bluetooth Radio
❖Type: Bluetooth: Low energy 5.0
❖Adversement: iBeacon, Eddystone & cBeacon (Averos Proprietary).
❖Adversement Interval: 100ms to 10.2seconds.
❖Frequency: 2.4GHz.
❖Transmit Power: +4dBm to -20 dBm.
❖Antenna Type: PCB antenna, Omni Direconal.
●Sensor
❖Moon sensing: 3 Axis Accelerometer.
●Baery
❖Baery type: ER14505 x 2, 4800mAh, Replaceable.
●Enclosure
❖Material: ABS.
❖Protecon Class: IP64.
●Operang Environment
❖Temperature Range -20°C to 70°C.
❖Operang Humidity 90%.
●User interface
❖User interface buon.
❖User indicaon LED.
Quick Start:
Aer unpacked the CoreBlu X3, we have the following steps to check the device quickly.
●Hardware Test
Press the buon for 5 sec and observe LED blinking in front of CoreBlu X3. The device will now
wake up from sleep mode.
R1.0 
Page 6 | 8 

CoreBlu X3 User Manual
●Soware Test
CoreBlu X3 has a Serial QRCode printed on the side, which maps to the Beacon MAC address. To
verify the CoreBlu X3 is transming packets we have to scan the Barcode via Beacon Manager
applicaon. Once Beacon Manager has been installed in the smartphone, select iBeacons. Aer
that click the no filter selected buon on top le of screen then click QR Code buon, scan the
QRCode on CoreBlu X3 and press apply, if CoreBlu X3 is turned on it will show on the list on the
screen.
Configuraon Seng:
Please refer to the configuraon guide .
Warning:
CoreBlu X3 contains electronic elements and a baery which should be properly disposed of. If a beacon
needs to be disposed of, please contact the manufacturer technical support first.
FCC Cauon:
This device complies with part 15 of applicable FCC Rules. Its operaon is subject to the following two
condions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operaon. Any changes or
modificaons not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with The instrucons may cause harmful
interference to radio communicaons. However, there is no guarantee that interference will not occur in
a parcular installaon. If this equipment does cause harmful interference to radio or television
recepon, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separaon between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be
used in portable exposure condions without restricon.
