OIL FIRED SPACE HEATER: BLAZE 600 D TURBO
REPORT # 0367MH007S
Installation Instructions-Manual-Maintenance-Parts List
CAUTION: DO NOT TAMPER WITH HEATER OR ITS CONTROLS. CALL A QUALIFIED SERVICE TECHNICIAN
Retain manual for future reference June 25/14 REV 1
CERTIFIED FOR USE IN CANADA AND THE U.S.A.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |1

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
READ INSTRUCTIONS PRIOR TO STARTING HEATERS
THIS HEATER IS DESIGNED AND APPROVED FOR USE AS A CONSTRUCTION HEATER
UNDER STANDARD UL 733-2013 and CSA B140.8-1967 (R2011)
THESE HEATERS ARE SUITABLE FOR OUTDOOR USE
THE REQUIREMENTS OF LOCAL AUTHORITIES HAVING JURISDICTION SHALL BE
FOLLOWED
THE INSTALLATION OF THE UNIT SHALL BE IN ACCORDANCE WITH THE REGULATIONS
OF THE AUTHORITIES HAVING JURISDICTION
BLAZE 600 D TURBO
NOTE: THIS HEATER IS INTENDED FOR USE PRIMARILY AS TEMPORARY HEATING OF BUILDINGS UNDER
CONSTRUCTION, ALTERATION OR REPAIR
DO NOT TAMPER WITH THE HEATER AND CONTROLS! THE HEATER MUST BE SERVICED BY
QUALIFIED SERVICE PERSONNEL.
WARNING:THOSE WHO INSTALL THE HEATER MUST HAVE THE TRAINING AND EXPERIENCE
NECESSARY TO DO SO. READ THIS MANUAL CAREFULLY. FAILURE TO PROPERLY INSTALL
AND SETUP THE HEATER COULD RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS
OF LIFE. THE QUALIFIED SERVICE PERSONNEL PERFORMING THIS WORK ASSUMES A SERIOUS
RESPONSIBILITY FOR THE CORRECT INSTALLATION, SETUP, AND START-UP OF THE HEATER.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |2

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |3

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
THIS HEATER IS DESIGNED AND APPROVED FOR USE AS A CONSTRUCTION HEATER IN
ACCORDANCE WITH STANDARDS ANSI UL 733-2013 and CSA B140.8-1967 (R2011). CHECK
WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT
APPLICATIONS.
WARNING: INTENDED USE IS PRIMARILY THE TEMPORARY HEATING OF BUILDINGS UNDER
CONSTRUCTION, ALTERATION, REPAIR OR EMERGENCIES ONLY.
WARNING: ALWAYS PROVIDE ADEQUATE VENTILATION. MINIMUM ACCEPTABLE VENTILATION
REQUIRED: 1 SQ. IN. OF FRESH AIR MUST BE SUPPLIED FOR EVERY 1000 BTU/H OF HEAT.
WARNING: THIS HEATER SHALL BE INSTALLED SUCH THAT IT IS NOT DIRECTLY EXPOSED TO
WATER SPRAY, AND/OR DRIPPING WATER.
CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT
APPLICATIONS
THESE INSTRUCTIONS HAVE BEEN THOROUGHLY WRITTEN, BUT THEY CANNOT COVER EVERY
PECULIAR INSTALLATION AND CONTINGENCY. THEREFORE IF THERE IS ANY DOUBT AS TO
INTERPRETATION OF ANY REQUIREMENTS, CONTACT YOUR LOCAL AUTHORITY HAVING
JURISDICTION, YOUR LOCAL DISTRIBUTOR, OR THE FACTORY.
INSTALLATION REGULATIONS:
1.) THE INSTALLATION OF THE UNIT SHALL BE IN ACCORDANCE WITH THE REGULATIONS OF
THE AUTHORITIES HAVING JURISDICTION.
WIRING: ALL INTERNAL WIRING OF THE HEATER IS COMPLETED BY THE MANUFACTURER. ALL
EXTERNAL WIRING MUST CONFORM TO EXISTING ELECTRICAL CODES AS LAID DOWN BY THE
AUTHORITIES HAVING JURISDICTION.
READ INSTRUCTIONS PRIOR TO STARTING HEATERS
BLAZE 600 D TURBO
THIS UNIT IS APPROVED FOR USE WITH NO. 1 AND NO. 2 FUEL OIL . NEVER USE GASOLINE OR
CRANKCASE OIL WHICH MAY CONTAIN GASOLINE AS FUEL FOR THE HEATER. NEVER ATTEMPT
TO BURN GARBAGE OR PAPER IN THE HEATER AND REMOVE ALL PAPER AND RAGS FROM
AROUND THE HEATER. FOR YOUR SAFETY, DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE LIQUIDS OR VAPOURS IN THE VICINITY OF THE HEATER.
FOR YOUR SAFETY DO NOT ATTEMPT TO START THE HEATER IF:
1.) EXCESS OIL HAS ACCUMULATED
2.) THE HEATER IS FULL OF VAPOUR
3.) THE COMBUSTION CHAMBER IS EXTREMELY HOT
DO NOT TAMPER WITH THE HEATER AND CONTROLS! THE HEATER MUST BE SERVICED BY
QUALIFIED SERVICE PERSONNEL.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |4

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
WARNING:THOSE WHO INSTALL THE HEATER MUST HAVE THE TRAINING AND EXPERIENCE
NECESSARY TO DO SO. READ THIS MANUAL CAREFULLY. FAILURE TO PROPERLY INSTALL
AND SETUP THE HEATER COULD RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS
OF LIFE. THE QUALIFIED SERVICE PERSONNEL PERFORMING THIS WORK ASSUMES A SERIOUS
RESPONSIBILITY FOR THE CORRECT INSTALLATION, SETUP, AND START-UP OF THE HEATER.
THESE INSTRUCTIONS HAVE BEEN THOROUGHLY WRITTEN, BUT THEY CANNOT COVER EVERY
PECULIAR INSTALLATION AND CONTINGENCY. THEREFORE IF THERE IS ANY DOUBT AS TO
INTERPRETATION OF ANY REQUIREMENTS, CONTACT YOUR LOCAL AUTHORITY HAVING
JURISDICTION, YOUR LOCAL DISTRIBUTOR, OR THE FACTORY.
IMPORTANT: IF YOU OBSERVE THE PRIMARY CONTROL IS LOCKED OUT, PUSH THE RED RESET
BUTTON ONLY ONCE. IF THE BURNER DOES NOT RE-LIGHT, DO NOT PUSH THE BUTTON A
SECOND TIME OR EXCESS OIL WILL ACCUMULATE IN THE COMBUSTION CHAMBER—CALL A
QUALIFIED SERVICE PERSON.
INSTALLATION REGULATIONS:
1.) INSTALLATION SHOULD BE IN ACCORDANCE WITH ALL LOCAL AND NATIONAL
REGULATIONS.
2.) IN CANADA USE THE CSA B139 INSTALLATION CODE FOR OIL BURNING EQUIPMENT.
WIRING: ALL INTERNAL WIRING OF THE HEATER IS COMPLETED BY THE MANUFACTURER. ALL
EXTERNAL WIRING MUST CONFORM TO EXISTING ELECTRICAL CODES AS LAID DOWN BY THE
AUTHORITIES HAVING JURISDICTION. IN CANADA, REFER TO CSA C22.1 CANADIAN ELECTRICAL
CODE AND IN THE UNITED STATES AS OUTLINED IN THE BOCA CODE, OR THE NFPA 70 NATIONAL
ELECTRICAL CODE.
WARNING: LACK OF COMBUSTION AIR CAN CAUSE A DIRTY FIRE, ODOURS IN ENCLOSED
SPACES, AND BACKDRAFTING, POTENTIALLY RESULTING IN NAUSEA OR ASPHYXIATION OF
THE OCCUPANTS.
BLAZE 600 D
SPECIFICATIONS
BLAZE 600D-
BECKETT (OIL)
Burner Make & Model
Beckett CF800
Voltage/Amps
120 Volts
Input (BTU/h)
588,000
Heated Air CFM/AMPS
5,500/11.5A
MOTOR HP
1
Ductability
150ft
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |5

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
Outlet Duct Size
16” or (2) X 12”
Inlet Duct Size
16” or (2) X 12”
Nozzle
2.75 GPH X 60 B
Pump Pressure
175 PSI
GPH
4.2 GPH
Fuel
No. 1 or No. 2 /
Kerosene or
Furnace Oil
Head Setting
1
Air Setting (Beckett-
Shutter/Band)) 3/0
APPROVAL AGENCY
OMNI
DRY WEIGHT (lbs)
700
Dimensions
76.7” x 31” x
57.6”
FLUE SIZE
6”
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |6

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
CONNECTING TO AN EXTERNAL FUEL TANK
(BLAZE 600 DTURBO)
Beckett CF800 is fitted with 3/8” SAE male fittings and is set up for a 2 line system to eliminate
priming. Ensure fuel tank has a supply line and a return line and connect the supply line to the 3/8”
SAE fitting on the inlet side of the fuel filter and the return line to the return fitting located on the
Beckett Burner pump. For a 1 line system remove bypass plug located on inlet port of Beckett
Pump and just connect fuel line to inlet side of fuel filter.
ELECTRICAL
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS ABLE IS TO RECEIVE 1 PHASE
120V SUPPLY MUST BE AVAILABLE.
INSTALLATION
10/3 upto 100ft
NOTE: IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE APPLIANCE MUST BE
REPLACED, IT MUST BE REPLACED WITH TYPE TEW 14GA WIRE OR ITS EQUIVALENT.
ELECTRICAL SYSTEM
BLAZE
600 D
Volts-Hertz-Phase 120-60-1
Full Load (Amps) (1PH)11.5
Max fuse size (Amps) (1PH)
with time delay
15
The electrical grounding of the heater shall be in compliance with the National Electrical Code, ANSI/NFPA
70, or the CSA C22.1, Canadian Electrical Code, Part I
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |7

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com

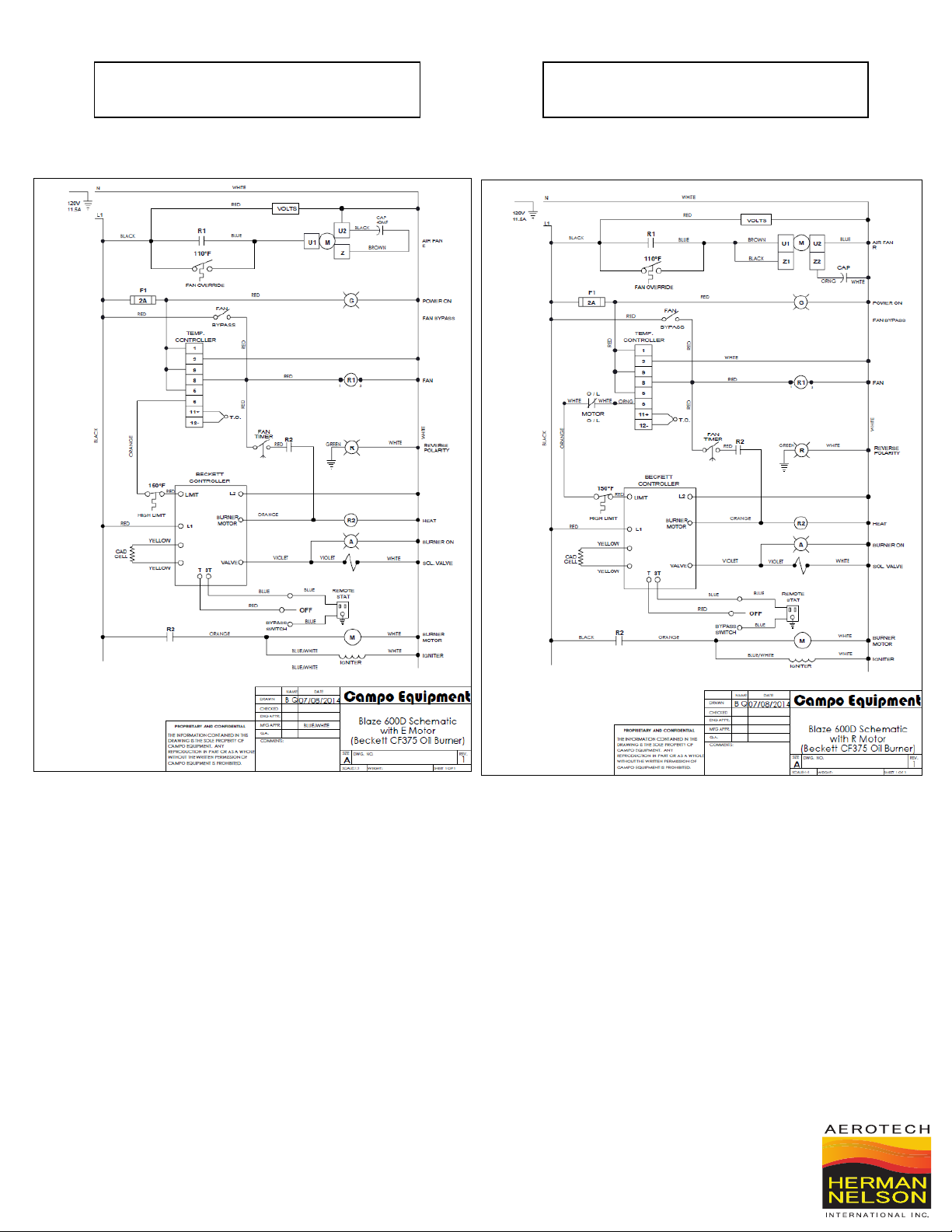

Blaze 600D Schematic with E Motor
(Beckett CF375 Oil Burner)
Blaze 600D Schematic with R Motor
(Beckett CF375 Oil Burner)
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |8

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
SEQUENCE OF OPERATION FOR BLAZE 600 D TURBO
With “Selector Switch” in “Thermostat” position and remote thermostat plugged into receptacle:
1: Remote stat senses a drop in temperature and the ignition control module is energized.
2: The module performs a safe start check and the burner and spark generator start. Burner lights, ignition stops, and
flame current is sensed.
For oil: the Genisys primary control contacts close, the burner motor and ignitor are
energized after a 15 second delay. The primary control energizes the pump solenoid valve and flame is established.
The cad cell senses flame and the burner continues to fire.
3: Temperature controller thermocouple heats up to factory set point (90 °F) or 1 minute time delay and circulating air
blower starts.
4: When the remote stat senses space temperature at set point, the burner shuts down.
5: The circulating blower continues to operate until the air in the unit cools to the factory set point (80 °F) then turns off.
With selector switch in “BYPASS” position:
1: The module performs a safe start check and the burner and spark generator start.
2: Burner lights, ignition stops, and flame current is sensed.
3: Temperature controller thermocouple heats up to factory set point (90 ºF) and circulating air blower starts.
4: When the selector switch is placed to the off position the burner shuts down.
5: The circulating blower continues to operate until the air in the unit cools to the factory set point (80 °F) then turns off.
OPERATING INSTRUCTIONS FOR BLAZE 600 DTURBO
STARTING HEATER
1.) ENSURE HEATER IS ON FLAT, LEVEL GROUND BEFORE STARTING, CANOPY AND FAN GUARDS
MUST BE CLOSED.
2.) MAKE SURE “Selector Switch” IS IN “OFF” POSITION.
3.) PLUG INTO 120 Volts 15 Amp POWER SUPPLY
4.) TURN “SELECTOR SWITCH” TO “ON” POSITION.
5.) FOR THERMOSTAT OPERATION FLIP SELECTOR SWITCH TO “STAT ON” POSITION.
Please Note: When using a generator for electrical supply, make sure the generator is properly grounded and
is running at a 60HZ frequency. In the event that a generator is being used and the generator runs out of fuel,
make sure the heater “Selector Switch” is in the “OFF” position before restarting generator, failure to do so
may damage heater.
STOPPING HEATER
1.) Flip selector switch to “OFF” position. The supply fan will continue to operate until the heat exchanger has
sufficiently cooled. Do not disconnect main power until supply fan has stopped running and “Selector Switch” is
on “OFF” position.
WARNING BEFORE REMOVING ANY GUARDS OR SAFETIES TURN “SELECTOR SWITCH” TO “OFF”
POSITION AND DISCONNECT THE MAIN POWER AS THE SUPPLY FAN WILL CYCLE AUTOMATICALLY.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |9

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
IF HEATER FAILS TO START
1.) PRESS AND HOLD THE RED BUTTON ON THE BECKETT GENISYS CONTROLLER LOCATED ON THE
CONTROL PANEL FOR 3 SECONDS TO RESET.
2.) CHECK FUEL LEVEL, FILTER, NOZZLE AND SUCTION TUBING.
3.) ENSURE PROPER POWER SUPPLY AND WIRE GAUGE IS BEING USED.
4.) IF HEATER FAILS TO IGNITE AFTER 3 ATTEMPTS, CALL YOUR SUPPLIER FOR SERVICE.
NOTE: IF UNIT HAS BEEN RESET A NUMBER OF TIMES WITHOUT IGNITION -- DO NOT ATTEMPT TO START
THE HEATER: CONTACT A QUALIFIED SERVICE TECHNICIAN.
NOTE: IN OIL OPERATION IF UNIT HAS BEEN RESET A NUMBER OF TIMES WITHOUT IGNITION THERE WILL
BE AN ACCUMULATION OF OIL IN THE COMBUSTION CHAMBER! DO NOT ATTEMPT TO START THE
HEATER: CONTACT A QUALIFIED SERVICE TECHNICIAN.
CAUTION
1.) DO NOT SHUT OFF BY DISCONNECTING SUPPLY CORD. THE HEAT EXCHANGER SHOULD BE
PROPERLY COOLED BEFORE POWER SHUTDOWN.
2.) ALWAYS MAINTAIN ADEQUATE FUEL SUPPLY.
3.) DO NOT PLUG ANYTHING OTHER THAN THE THERMOSTAT INTO THE “REMOTE STAT” PLUG.
4.) FOLLOW ELECTRICAL REQUIREMENTS SHOWN ON RATING PLATE AND/OR ELECTRICAL
REQUIREMENTS SECTION OF THIS MANUAL.
5.) DO NOT START THE HEATER WHEN EXCESS OIL HAS ACCUMULATED IN CHAMBER.
6.) DO NOT FILL TANK WHILE UNIT IS OPERATING.
7.) IN NO CASE SHOULD POWER CABLES BE SMALLER THAN WHAT IS STIPULATED ON NAMEPLATE
AND INSTRUCTION MANUAL.
8.) DO NOT USE GASOLINE, CRANKCASE OIL OR HEAVIER THAN NO. 2 FURNACE OIL.
9.) DO NOT START THE HEATER WHEN THE CHAMBER IS HOT
10.) DO NOT FILL THE TANK WHILE THE UNIT IS OPERATING
11.) DO NOT TAMPER WITH THE UNIT. HAVE A COMPETENT SERVICE-MAN MAKE ANY ADJUSTMENTS
12.) MAX OUTLET TEMPERATURE OF 280F
13.) AT INSTALLATION ELEVATIONS ABOVE 2000 FT (610m), THE APPLIANCE SHALL BE DERATED 4
PERCENT FOR EACH 1000 FT (305m) OF ELEVATION ABOVE SEE LEVEL
14.) DO NOT USE THIS UTILITY HEATER IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A
QUALIFIED SERVICE TECHNICIAN TO INSPECT THE HEATER AND REPLACE ANY CONTROL WHICH
HAS BEEN UNDER WATER.
ELECTRICAL REQUIREMENTS: 15 AMPS
INSTALLATION INSTRUCTIONS
1.) The recommendations of local authorities having jurisdiction must be followed. For
recommended installation practices refer to C.S.A. standard B139. (CANADA)
2.) When firing the unit in an enclosed area allow 1 square inch per thousand BTU’s (refer to
C.S.A. B139-1962)to allow the free entry of the air required for operation.
3.) For electrical supply: 120 Volts 15 amps
4.) Do not operate the unit in partly ventilated areas without a flue pipe or in close proximity to
combustible surfaces or materials. Non Combustible floor must extend 6 feet on all sides of
the unit.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |10

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
NOTE: Installation clearances are as follows:
TOP
3 feet
SIDES
3 feet
BURNER END
3 feet
DISCHARGE END
10 feet
VENT CONNECTOR
3 Feet
COMBUSTIBLE FLOOR
6 feet

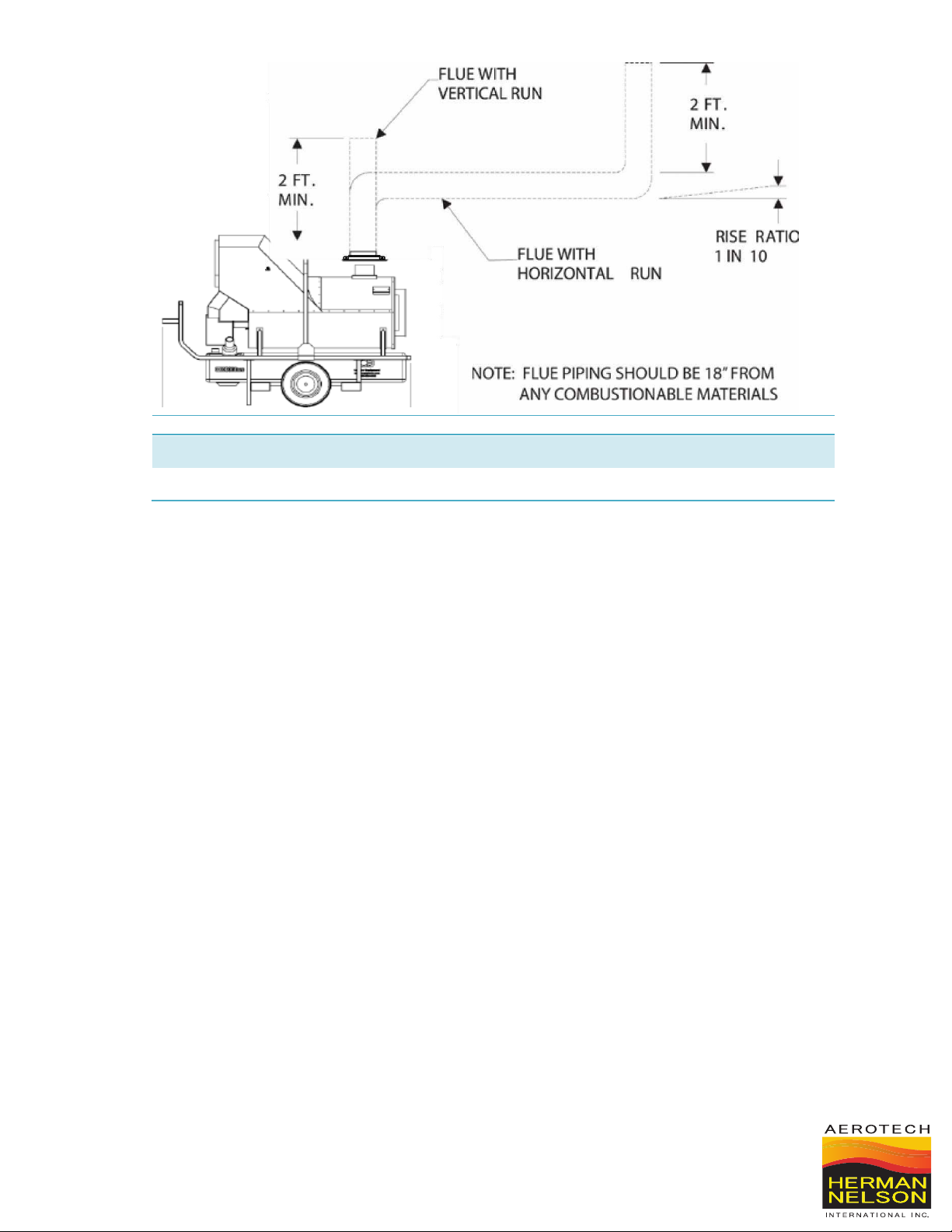

FLUE PIPE CONNECTIONS
VENT TO OUTDOORS
FOR INSTALLATION ON NON-COMBUSTIBLE FLOORS ONLY
When the heater is connected to a flue pipe the flue pipe shall terminate in a vertical section at
least two feet long. Horizontal runs should have rise ratio of 1 in 10 away from the heater. Where
down drafts are liable to occur a vent cap should be used. All venting should correspond with the
CSA B139 standard or local codes.
CAUTION: HEATER FLUE TEMPERATURES CAN REACH 900 °F TO 1000 °F THEREFORE IT
IS A RANGE THAT IS BOTH HAZARDOUS TO HUMANS AND HIGHER THAN THE AUTO-
IGNITION TEMPERATURES OF MANY MATERIALS. THEREFORE EXERCISE CAUTION IN
HEATER PLACEMENT AND THE USE OF AN INSULATED GUARD AND STACK IS HIGHLY
RECOMMENDED.
Horizontal venting runs shall always terminate with a minimum 24” vertical.
NOTE: FOR OPTIMAL COMBUSTION PERFORMANCE A 30” C-VENT FLUE EXTENSION WITH
RAIN CAP IS RECOMMENDED AT ALL TIMES.
Recommended chimney draft -.05 inches of water column
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |11

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
INSTALLATION
CLEARANCES
THIS HEATER IS FOR USE WITH AND WITHOUT DUCTWORK
WHEN USING DUCTWORK AVOID ANY KINKS OR SHARP BENDS.
INSUFFICIENT INLET AIR OR INSUFFICIENT DISCHARGE AIR WILL CAUSE
THE HEATER TO OVERHEAT.
BLAZE 600 D TURBO MAINTENANCE INSTRUCTIONS
WARNING EVERY CONSTRUCTION HEATER SHOULD BE INSPECTED
BEFORE EACH USE, AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE
PERSON. INCORRECT MAINTENANCE MAY RESULT IN IMPROPER
OPERATION OF THE HEATER AND SERIOUS INJURY COULD OCCUR.
HOSE ASSEMBLIES
The hose assemblies shall be visually inspected prior to each use of the heater. If it is evident there is excessive
abrasion or wear, or the hose is cut, it must be replaced prior to the heater being put into operation. The replacement
hose assembly shall be that specified by the manufacturer.
TEMPERATURE CONTROLLER AND THERMOCOUPLE
The temperature controller protocols should be checked every heating season to ensure the burner will shutdown if
temperature exceeds 280F at the outlet duct. This can be accomplished by restricting the air flow through the unit.
After tests are complete, remove restrictors as both inlet and outlet ducts must be open for proper operation.
The temperature controller setting of 90 °F has been selected to allow for preheating of the heat exchanger to ensure
that only heated air is allowed to enter the space. Upon satisfying the need for heat, the temperature controller will
MAXIMUM ALLOWABLE DUCT LENGTHS BLAZE 600 D –Total 150ft (Max 24ft on inlet)
RETURN DUCTS 16” or optional 2 X 12”
SUPPLY DUCTS 2 X 12” or optional 16”
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |12

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
continue to run the supply fan until the heat exchanger has cooled sufficiently. This feature will help prolong the life of
the heat exchanger. The temperature controller must be replaced if the fan motor does not shut off after the heat
exchanger has cooled down.
Temperature Controller Protocols
Fan Turns on at 90 °F
Out # 2 is set at 280ºF (This will cycle the burner off 280ºF and back on at 275ºF.) If the burner reset light goes on; you
need to go into the burner compartment. For the Beckett CF800 oil burner the Beckett Genisys controller located on
the control panel must be pressed.
There is a high limit switch set at 295ºF supply temperature (This will cause burner to go out on high temp.)
During cool down the unit cools to 80 °F and then shuts down.
ELECTRICAL
Ensure all conduit (BX) connectors are tight. Open control panel door and burner compartment and check connections
are tight and no frayed wires exposed.
FAN
Check for dust or dirt build up on blades. Run heater to check for fan vibration. Replace fan blade if vibration is
noticeable. The flow of combustion and ventilation air must not be obstructed. Be sure to check the fan assembly and
ensure that the motor and blade are operating properly.
MOTOR
No lubrication is necessary since the bearings are the sealed type. Clean motor of existing dust or dirt.
HEAT EXCHANGER
If a smoky condition continues even after adjusting the air assembly, the heat exchanger should be thoroughly
cleaned.
FUEL FILTER (OIL OPERATION)
Replace cartridge every six months of normal usage.
NOTE: FLOW OF COMBUSTION AND VENTILATION AIR CANNOT BE OBSTRUCTED
FLAME DETECTOR (OIL OPERATION)
When doing maintenance, turn on machine and run. After having machine run for a few minutes, press red button on
primary control. Hold for one second and then release. If light flashes once or twice or three times, cad cell is
functioning properly. If flashes four times, check alignment and proper flame. If correct a cleaning of the face of the
cad cell with a soft non-abrasive cloth is recommended. If light flashes 4 times, follow above steps. If flashing four
times persists, replace cad cell.
LED FLASHES
CAD CELL RESISTANCE
1
0-400 Ohms
2
400-800 Ohms
3
800-1600 Ohms
4
>=1600 Ohms
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |13

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
BURNER (OIL OPERATION)
The electrode spacing must be checked and adjusted, if necessary after every nozzle change. Nozzle should be
replaced annually or sooner if burner cannot be set up to operate properly. Nozzle size and type are marked on the
rating plate.
Distance between electrode tips must be 5/32”
Electrode tips must be ¼” from nozzle centre
Electrode tips must be 1/8” higher than nozzle tip
Nozzle and nozzle line assembly
Failure to properly set and maintain the electrode and nozzle spacing dimensions can cause incorrect burner ignition or
poor combustion. This could result in severe personal injury, death or substantial property damage.
AFTER INSPECTION, A COMPLETE COMBUSTION TEST MUST BE PEFORMED AFTER EACH ANNUAL
SERVICE OF THE UNIT TO MAINTAIN OPTIMUM PERFORMANCE AND RELIABILITY.
WARNING: TURN OFF THE FUEL SUPPLIES AND POWER BEFORE PERFORMING SERVICE
WORK. THE 120V CIRCUIT IS A POTENTIAL ELECTROCUTION HAZARD.
COMBUSTION AIR ADJUSTMENTS
BLAZE 600 D
SPECIFICATIONS BLAZE 600D-
BECKETT (OIL)
Nozzle
2.75 GPH X 60 B
Pump Pressure
175 PSI
Head Setting 1
Air Setting (Beckett-
Shutter/Band) 3/0
NOTE: The above settings are approximations based upon clean equipment in proper working order. Combustion air
adjustments will vary with location, altitude and type of fuel used.
WARNING: LACK OF COMBUSTION AIR CAN CAUSE A DIRTY FIRE, ODOURS IN ENCLOSED
SPACES, AND BACKDRAFTING, POTENTIALLY RESULTING IN NAUSEA OR ASPHYXIATION OF
THE OCCUPANTS.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |14

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
ALL AIR ADJUSTMENTS MUST BE DONE BY A QUALIFIED SERVICE TECHNICIAN
BECKETT CF800
COMBUSTION AIR ADJUSTMENTS
For proper combustion air adjustment a calibrated
gas analyzer and smoke tester should be used to
ensure complete combustion. Air adjustment should
be made at the correct input and be adjusted to
achieve 5% Oxygen and 12% CO2. For optimum
combustion efficiency the combustion air control
should be set to provide no more than No. 1 smoke
(Bacharach Scale). The Beckett burner has a
calibrated air band, which will assist in adjusting the
primary air for a good oil/air mixture. Adjust the air
band supply by loosening lock screws and moving air
shutter and if necessary the bulk air band. Begin by
reducing the air until the unit begins to produce
smoke. Increase air until no smoke is produced.
Check for excessive heat build up in the heat
exchanger. Insufficient air will cause flame
impingement and reduced heat exchanger life.
Increase air until heat build up has been eliminated.
Check for proper ignition. Once satisfied re-tighten all
screws and locking mechanisms.
This adjustment is to be carried out while the unit is operating and after 5 minutes of firing. Rotating the air bands on
the burner housing makes the adjustment.
SETTING OIL FIRING RATES
1.) Choose BTU required. For example 588,000 BTU..
2.) Check name plate for recommended pump pressure. 175 psi is recommended.
3.) Check nameplate for recommended air setting. A 3/0 air setting is recommended.
4.) Install a pressure gauge in pump gauge port and start the burner. Operate for 5 minutes until blower fan
starts.
5.) Adjust pump pressure to 175 PSI.
6.) Adjust air band to 0 and adjust air shutter to 3.
7.) Check smoke and CO2 levels. Once attained, lock air band and shutter in place.
8.) Shut off burner, let unit cool down. The unit is now adjusted for 588,000 input BTU’s.
THERMOSTAT OPERATION
The BLAZE 600 D can be operated with a thermostat control.
An optional Remote Thermostat is available for temperature control for the space being heated. To connect the stat,
simply plug the stat into an extension cord and the extension cord into the outlet marked “REMOTE STAT”. Make sure
selector is in the “STAT ON” position. Place the stat into the space that is being heated. The unit will now shut down
at the stat temperature setting.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |15

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
MAZOUT CHAUFFAGE: BLAZE 600 D TURBO
Rapport # # 0367MH007S
Instructions d’installation-Manuel-Entretien-Liste des Pièces
MISE EN GARDE : NE MODIFIEZ PAS LE RADIATEUR OU SES CONTRÔLES. CONSULTEZ UN TECHNICIEN DE SERVICE QUALIFIÉ
Conservez Ce Manuel Pour Référence Future
25/06/14 RÉV 1
CERTIFIÉ POUR LE CANADA ET LES ÉTATS-UNIS
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |16

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
LISEZ LES INSTRUCTIONS AVANT D’UTILISER LES RADIATEURS
CET APPAREIL EST CONÇU ET APPROUVÉ POUR ÊTRE UTILISÉ COMME CHAUFFERETTE
DE CONSTRUCTION CONFORME AUX NORMES UL 733-2013 et CSA B140.8-1967 (R2011)
CES APPAREILS CONVIENNENT AUX APPLICATIONS EXTÉRIEURES
LES EXIGENCES DES AUTORITÉS LOCALES AVEC COMPÉTENCE ET DOIT ÊTRE SUIVIE
L'INSTALLATION DE L'UNITÉ DOIT ÊTRE CONFORME AUX RÈGLEMENTS DE LA
AUTORITES LOCALES AVEC JURIDICTION
BLAZE 600 D TURBO
NOTE : CE RADIATEUR EST PRÉVU PRINCIPALEMENT POUR UN CHAUFFAGE PROVISOIRE DES BÂTIMENTS
EN CONSTRUCTION, EN RÉNOVATION OU EN RÉPARATION
NE MODIFIEZ PAS LE RADIATEUR ET LES CONTRÔLES ! LE RADIATEUR DOIT ÊTRE ENTRETENU PAR UN
PERSONNEL DE SERVICE QUALIFIÉ.
AVERTISSEMENT :CEUX QUI INSTALLENT LE RADIATEUR DOIVENT AVOIR LA FORMATION ET
L'EXPÉRIENCE NÉCESSAIRES POUR LE FAIRE. LISEZ CE MANUEL AVEC SOIN. SI LE RADIATEUR N’EST
PAS CORRECTEMENT INSTALLÉ, IL POURRAIT CAUSER DES DÉGATS MATÉRIELS, DES BLESSURES,
VOIRE DES PERTES DE VIE. LE PERSONNEL DE SERVICE QUALIFIÉ QUI EFFECTUE CE TRAVAIL A UNE
GRANDE RESPONSABILITÉ POUR LA BONNE INSTALLATION ET LA MISE EN MARCHE CORRECTE DU
RADIATEUR.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |17

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |18

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
CE RADIATEUR EST CONÇU PRINCIPALEMENT POUR UTILISATION COMME UN CHAUFFAGE DE
CONSTRUCTION CONFORMEMENT AUX NORMES UL 733-2013 et CSA B140.8-1967 (R2011). CONSULTEZ LES
COLLECTIVITES LOCALES DE SÉCURITÉ INCENDIE SI VOUS AVEZ DES QUESTIONS À PROPOS DES
APPLICATIONS.
AVERTISSEMENT :LA PRINCIPALE UTILISATION DE CHAUFFAGE EST PRÉVU POUR CHAUFFAGE
TEMPORAIRE DES BÂTIMENTS EN CONSTRUCTION, EN RÉNOVATION OU EN RÉPARATION, ET D'URGENCE
SEULEMENT.
AVERTISSEMENT : PRÉVOYEZ TOUJOURS UNE VENTILATION ADÉQUATE. VENTILATION ACCEPTABLE
MINIMUM REQUISE : 1 PO CA D'AIR FRAIS DOIT ÊTRE FOURNI POUR CHAQUE 1000 BTU/H DE CHALEUR.
AVERTISSEMENT : CE RADIATEUR DOIT ÊTRE INSTALLÉ DE MANIÈRE À NE PAS ÊTRE EXPOSÉ
DIRECTEMENT À UN JET D'EAU OU UNE EAU QUI DÉGOUTTE.
VÉRIFIEZ AVEC L’AUTORITÉ LOCALE DE SÉCURITÉ-INCENDIE SI VOUS AVEZ DES QUESTIONS AU SUJET
DES APPLICATIONS
CES INSTRUCTIONS ONT ÉTÉ PRÉPARÉES AVEC SOIN, MAIS ELLES NE PEUVENT PAS COUVRIR CHAQUE
INSTALLATION ET ÉVENTUALITÉ PARTICULIÈRE. PAR CONSÉQUENT, S'IL Y A DES DOUTES QUANT À
L'INTERPRÉTATION DES EXIGENCES, COMMUNIQUEZ AVEC L’AUTORITÉ LOCALE DE VOTRE JURIDICTION,
VOTRE DISTRIBUTEUR LOCAL OU L'USINE.
RÈGLEMENTS TOUCHANT L'INSTALLATION :
1.) L'INSTALLATION DEVRAIT ÊTRE CONFORME À TOUS LES RÈGLEMENTS LOCAUX ET NATIONAUX.
CÂBLAGE: TOUT LE CÂBLAGE INTERNE DU RADIATEUR EST FAIT PAR LE FABRICANT. TOUT LE CÂBLAGE
EXTERNE DOIT ÊTRE CONFORME AUX CODES D’ÉLECTRICITÉ ACTUELS ÉTABLIS PAR LES AUTORITÉS
AYANT JURIDICTION.
LIRE LES INSTRUCTIONS AVANT DE METTRE L'APPAREIL
DE CHAUFFAGE EN MARCHE
BLAZE 600 D TURBO
CET APPAREIL EST APPROUVÉ POUR L'UTILISATION DE MAZOUT NUMÉRO 1 ET NUMÉRO 2. NE
JAMAIS UTILISER DE L'ESSENCE OU DE L’HUILE À MOTEUR QUI PEUT CONTENIR DE L'ESSENCE
COMME COMBUSTIBLE. NE JAMAIS TENTER DE BRÛLER DES DÉCHETS OU DU PAPIER DANS CET
APPAREIL ET RETIRER TOUT LE PAPIER ET LES CHIFFONS QUI SE TROUVENT AUTOUR. POUR
VOTRE SÉCURITÉ, NE PAS RANGER OU UTILISER D'ESSENCE OU D'AUTRES LIQUIDES
INFLAMMABLES PRÈS DE L'APPAREIL.
POUR VOTRE SÉCURITÉ, NE TENTEZ PAS DE DÉMARRER L'APPAREIL:
1.) SI UN EXCÉDENT DE MAZOUT S'EST ACCUMULÉ
2.) SI L'APPAREIL EST REMPLI DE VAPEUR
3.) SI LA CHAMBRE DE COMBUSTION EST TRÈS CHAUDE
NE PAS MANIPULER L'APPAREIL OU SES COMMANDES. IL DOIT ÊTRE ENTRETENU PAR DU
PERSONNEL D'ENTRETIEN QUALIFIÉ.
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |19

1-800-486-4328
1-204-633-1999
100 Eagle Drive
Winnipeg, MB Canada
[email protected]
www.hermannelson.com
AVERTISSEMENT :LES PERSONNES QUI INSTALLENT CET APPAREIL DE CHAUFFAGE DOIVENT
AVOIR LA FORMATION ET L'EXPÉRIENCE NÉCESSAIRES. IL FAUT PAR CONSÉQUENT LIRE
ATTENTIVEMENT LE PRÉSENT MANUEL. LE DÉFAUT D'INSTALLER ET DÉ RÉGLER
CORRECTEMENT L'APPAREIL PEUT ENGENDRER DES DOMMAGES À LA PROPRIÉTÉ, DES
BLESSURES AUX PERSONNES OU LA PERTE DE VIE. LE PERSONNEL QUALIFIÉ QUI EFFECTUE
CES TÂCHES ASSUME DE SÉRIEUSES RESPONSABILITÉS POUR EXÉCUTER CORRECTEMENT
L'INSTALLATION, LE RÉGLAGE ET LE DÉMARRAGE DE L'APPAREIL.
LES PRÉSENTES INSTRUCTIONS ONT ÉTÉ RÉDIGÉES DE FAÇON EXHAUSTIVE, MAIS ELLES NE
PEUVENT PAS TENIR COMPTE DE CHAQUE INSTALLATION SPÉCIALE OU DE CHAQUE
IMPONDÉRABLE. PAR CONSÉQUENT, S'IL Y A UN DOUTE QUANT À L'INTERPRÉTATION DE L'UNE
OU L'AUTRE DES EXIGENCES, COMMUNIQUER AVEC LE RESPONSABLE LOCAL AYANT AUTORITÉ,
LE DISTRIBUTEUR LOCAL OU L'USINE.
IMPORTANT : SI VOUS VOUS RENDEZ COMPTE QUE LA COMMANDE PRINCIPALE EST
VERROUILLÉE FERMÉE, APPUYEZ SUR LE BOUTON DE RÉINITIALISATION ROUGE UNE FOIS
SEULEMENT. SI LE BRÛLEUR NE DÉMARRE PAS DE NOUVEAU, NE PAS APPUYER SUR LE
BOUTON UNE DEUXIÈME FOIS OU UN EXCÉDENT DE COMBUSTIBLE S’ACCUMULERA DANS LA
CHAMBRE DE COMBUSTION. APPELEZ UN TECHNICIEN QUALIFIÉ.
NOTICE D'INSTALLATION :
1 L'INSTALLATION DOIT SE FAIRE CONFORMÉMENT À TOUS LES RÈGLEMENTS LOCAUX ET
NATIONAUX.
2.) AU CANADA, CONSULTEZ LE CODE D'INSTALLATION CSA B139 POUR L'ÉQUIPEMENT DE
CHAUFFAGE AU MAZOUT.
CÂBLAGE : TOUT LE CÂBLAGE INTERNE DE L'APPAREIL DE CHAUFFAGE EST INSTALLÉ PAR LE
FABRICANT. TOUT LE CÂBLAGE EXTERNE DOIT ÊTRE CONFORME AU CODE DE D'ÉLECTRICITÉ
EXISTANT, ÉDICTÉ PAR LES AUTORITÉS COMPÉTENTES. AU CANADA, CONSULTEZ LA NORME
CSA C22.1 ET LE CODE CANADIEN DE L’ÉLECTRICITÉ. AUX ÉTATS-UNIS, CONSULTEZ LE CODE
BOCA OU LE NFPA 70 “NATIONAL ELECTRICAL CODE”.
AVERTISSEMENT: L'INSUFFISANCE D'AIR DE COMBUSTION PEUT ENGENDRER LE BRÛLAGE
SALE, DES ODEURS DANS LES ESPACES FERMÉS ET UN REFOULEMENT D'AIR, QUI POURRAIT
CAUSER LA NAUSÉE OU L’ASPHYXIE CHEZ LES OCCUPANTS.
BLAZE 600 D FICHE
TECHNIQUE
BLAZE 600D-
BECKETT (OIL)
Marque et modèle de
brûleur
Beckett CF800
Tension
120 V
Entrée (BTU/h)
588,000
Air chauffé pi. cu./mi. pour
les vitesses du ventilateur 5,500/11.5A
CAMPO EQUIPMENT CO. LTD. (ECOBLAZE)
6 Carson Court, Brampton, ON, CANADA, L6T 4P8
Tel: [phone] | Fax: [phone] |www.campoequipment.com Page |20
