PATIO BOSS NXW-1500R Operating manual

E-mail: [e-mail]
PRODUCT USE GUIDE
NXW-1500R
WALL MOUNTED OUTDOOR
HEATER

Thank you for choosing our Wall Mounted Outdoor Heater. This user manual will
provide you with valuable information necessary for the proper care and
maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new product.
PLEASE DO NOT USE THIS PRODUCT IN THE VERTICAL POSITION
WALL MOUNTED OUTDOOR HEATER
OWNER'S MANUAL

Please take a few minutes to read
this manual carefully.
Proper maintenance and operation of this
machine can provide better service.
INTRODUCTION SECTION 1
SECTION 2
SECTION 3
TABLE OF CONTENTS
We would like to express our gratitude to you for your appropriate choice and
confidence in our company. Please read this manual thoroughly in order to attain a
sustainable satisfaction with your heater.
Appropriate installation, operation and maintenance are of great importance for the
security of you and of those who are to benefit from the heater.
Please keep this manual in a safe place for future reference and urgent needs.
We wish you to enjoy your new Infrared Heater for better days and times.
All Infrared Products have CE/GS/EMC/ETL/ROHS certificate.
SECTION 4
SECTION 5
SECTION 6
SECTION 7
SECTION 8
SAFETY INSTRUCTIONS
PRODUCT CONTENTS
NUIT DIAGRAM
SPECIFICATIONS
INSTALLATION INSTRUCTIONS
INSTALLATION POSITIONS
INSTALLATION INSTRUCTIONS
WITH RIGHT AND WRONG POSITIONS
PRE-OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
REMOTE CONTROL
APPLICATION FIELDS
OVERHEAT PROTECTION
CLEANING / MAINTENANCE INSTRUCTIONS
STORAGE
SECTION 9
PAGES4-7
PAGE8
PAGE9
PAGE9
PAGES10-11
PAGE12
PAGE13
PAGE14
PAGES14-15
PAGE16
PAGE17
PAGE18
PAGES18-19
PAGE19

Check whether your appliance and power cord are damaged before operating your
appliance.
Check whether there is any crack, disjoint or scratch on the filament (heating tube). If
any, contact with your authorized technical service.
If you appliance or power cord is damaged, do not operate your appliance and return it
to your technical service.
Make sure that the main electricity circuit is 120V and the connection is fused.
Check the safety of the network. The fuse must be 15A.
Do not use your infrared heater together with another appliance plugged to the same
multiple sockets or connected to the same fuse.
Use your appliance with a properly earthed plug.
The earthed plug must fall outside heating field and hot surface.
The power cord must not be left on or around the frame of your infrared appliance.
Unplug your appliance when you won’t operate it for a long term or will conduct cleaning
or maintenance.
The damaged heater glass must be exchanged.
If the cable of the heater should be damaged, this may be replaced only by the
authorized service.
If has to be notified that the mounting in the bath must be so that the persons in the bath
can not reach the controls.
It has to be notified that the product has to be installed at a dry location and may not be
wet.
SAFETY INSTRUCTIONS
- 4 - - 5 -
A-ELECTRICAL CONNECTION SAFETY
B-SAFE DISTANCES REQUIRED FOR INSTALLATION ON THE WALL, HIGH
TEMPERATURE AND FIRE PROTECTION
Attention! The appliance must only be operated in a horizontal position with max±15°
slope. In case of operations in angels larger than 5°in horizontal position or of vertical
operations, the heating loop wire may fall into disuse shortly.
Never install your appliance on a combustible surface (carton etc.)
The distance of your appliance from the ground is to min 1.8 m (6 feet).
The distance of your appliance from the ceiling is to be min 0.7 m (2.5 feet).
The distance of your appliance from the corners to be installed is to be min 0.4 m
(1.5 feet) and from the combustibles like curtains must be min 1 m (3.5 feet).
The distance of your appliance from the living beings is to be min 1 m (3.5 feet).
The distance of heating area of your appliance from the materials such as wood, carton,
cloth etc., must be min 1 m (3.5 feet).
Do not cover your appliance and do not hang any clothing over the heater or do not
place any clothing on or near the appliance.
Do not stick anything into the protective grid.
Do not make use of your heater to light up cigarette or similar materials.
Supervision is needed when this product is used anywhere near children. The appliance
is not intended for use by children or other persons without assistance or supervision if
their physical, sensory or mental capabilities prevent them from using it safely.
Risk of Fire-keep combustible material such as furniture, papers, cloths, and curtains
at least 0.9 m (3 feet) from the front of the heater and away from the sides and rear.
[email protected] [email protected]

WARNING-TO REDUCE THE RISK OF FIRE
1) Do not place any objects such as furniture, papers, cloths, and curtains at least 0.9m
(3 feet) from the front of the heater and away from the sides and rear when the heater is
plugged in.
2) Do not place the heater near a bed because objects such as pillows or blankets can
fall off the bed and be ignited by the heater.
3) Always unplug the heater if it is not being used.
4) Avoid the use of an extension cord because the extension cord may overheat and
cause a risk of fire. However, if you have to use an extension cord, the cord shall be
1.5mm² minimum size .Do not operate within 7.6 m (25 feet) of flammable material.
Never block the front grill of the heater.
The heater is not suitable for hazardous locations.
Never attempt to service the heater without disconnecting its power source.
C-THE DISTANCE FROM BATH TUB, WASHBASIN OR OTHER SANITARY
INSTALLATIONS
You may operate your heater in the bathroom and outdoors considering the items below:
The distance of your appliance from bath tub, washbasin or other sanitary installations
is to be min 0.6 m (2 feet). The distance of 1 m (3.5 feet) is recommended for more
safety.
The distance of the earthed plug from bath tub, washbasin or other sanitary installations
must be min 0.6 m (2 feet).
1 m (3.5 feet) distance is recommended for more safety.

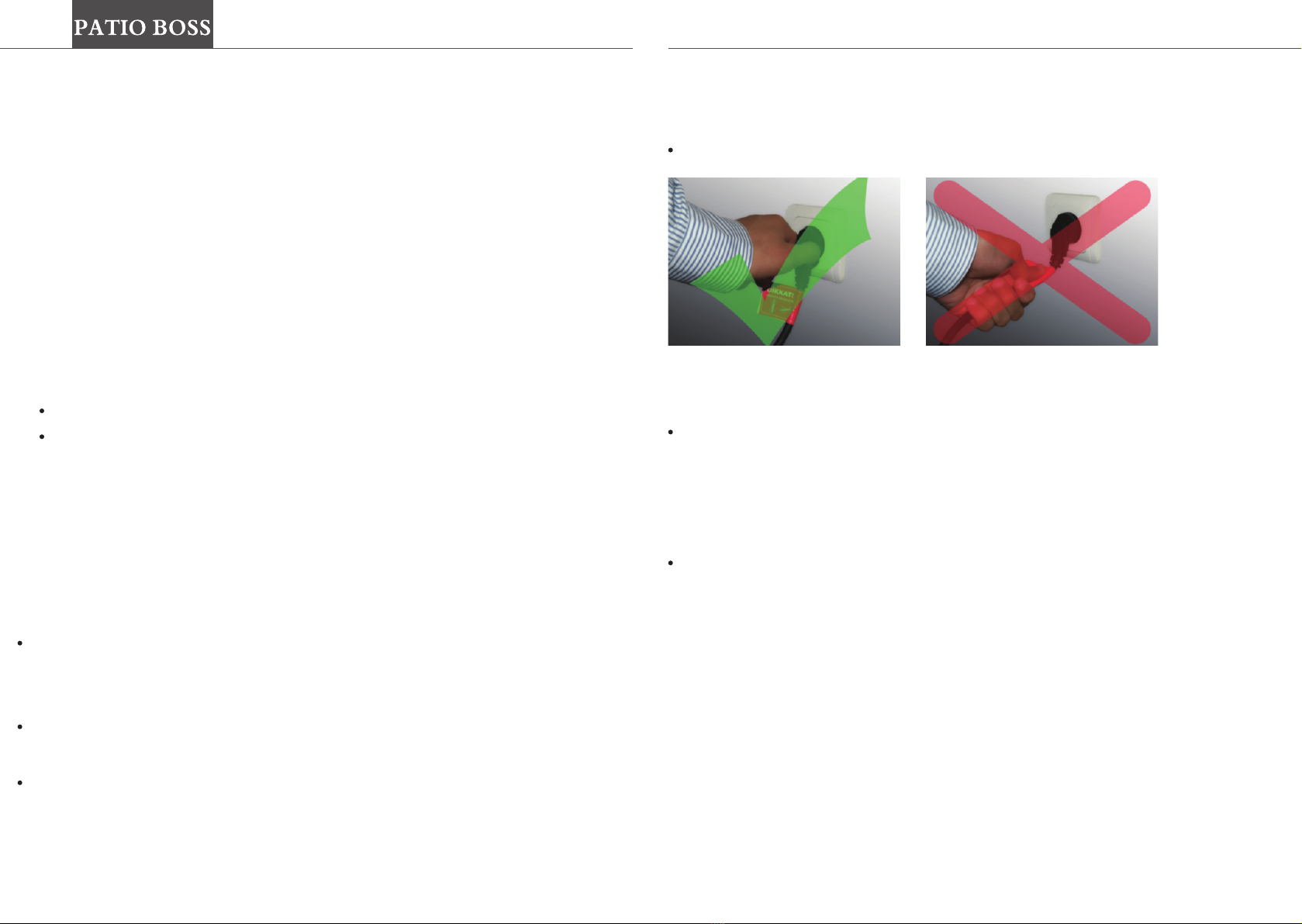

D-CLEANING AND MAINTENANCE INSTRUCTIONS
Unplug your heater first.
Unplug power cable Never pull your power cable to
unplug your heater
Take out the front grid to clean the reflector (reflecting mirror) and the filament and
apply the instructions on page 19.
DISTINGUISHED CUSTOMER
Please read safety instructions carefully for the security of you, your family and your
belongings before operating your appliance.
- 6 - - 7 -
[email protected] [email protected]

PRODUCT CONTENTS NUIT DIAGRAM
SPECIFICATIONS
- 8 - - 9 -
Voltage
Frequency
AC120V
Electric power(W)
Heat Output
Dimensions
Weight
Pretection Rating
Warranty
60Hz
1500W
IP65
1 year
5100BTU
Front aluminum cover
Left housing
Left decorative cover
Back aluminum cover
Heating tube
Power cord
Right housing
Right decorative cover
LED displayer
Protection grill
Decorative support
1
2
3
4
5
6
7
8
9
10
11
1 X Owner's Manual 1 X Patio Heater1 X Remote Control
HEATER BODY COMPONENTS
1
2
3
4
5
11
10
9
8
7
6
4 X Mounting bracket 2 X Wing Nuts 2 X M6*14 Screw
4 X Plastic Wall Anchors4 X ST4*35 Screws 4 X Round Gasket
PRODUCT USE GUIDE
NXW-1500R
WALL MOUNTED OUTDOOR
HEATER
[email protected] [email protected]
500W 1000W
1500W TIMER
4.3LB
25.98*3.74*7.87IN

INSTALLATION INSTRUCTIONS
1. Ensure the desired mounting location can fit the unit in a horizontal orientation and is
near an outlet but free from from electrical cables. Communication lines, and pipes. And
the mounting location at least 1.8 m from the floor and at least 0.5 m from the ceiling.
3. Fasten the brackets at the appropriate distance of each other(45-55cm) .
2. In the canal of back side of the heater there are 4 square fastener washers 25×25mm.
Relieve 4 X M5*10 screws and fasten 2 brackets to the canal of the backside of the
heater by the help of screws.
4. Two other brackets are fastened by the wall Anchors at the appropriate distance on the
wall parallel to the floor(At least 1.8 m from the floor and at least 0.5 m from the ceiling).
5.Join the brackets on the heater with the brackets, fastened on the wall, with help of
figure screw-nuts. Install the heater under necessary angle(in the direction to the
area being heated).
ATTENTION:
Electric wiring for the heater has to be done by the qualified specialist.
45-55CM
M6*14 Bolt Hex NutRound Gasket
- 10 - - 11 -
[email protected] [email protected]

INSTALLATION POSITIONS
Installation positions: Attention! Fixing only at ±5°horizontally is of great importance for
permanent operation.
WRONG WRONG RIGHT
5°or more slope
Safety Distances: Minimum distances required for safety
Minimum distances from wall corners Minimum distances from coverage
area and other object
INSTALLATION INSTRUCTIONS
WITH RIGHT AND WRONG POSITIONS
DIRECT YOUR HEATER TOWARDS THE MOST APPROPRIATE ANGLE
Do not let the light out through window, glasses etc. as the heater primarily heats the
locations onto which its light falls.
WRONG RIGHT
WRONG RIGHT
WRONG RIGHT
Min.180cm Min.40cm
Min.40cm
Min.100cm
- 12 - - 13 -
[email protected] [email protected]

PRE-OPERATING INSTRUCTIONS
- 14 - - 15 -

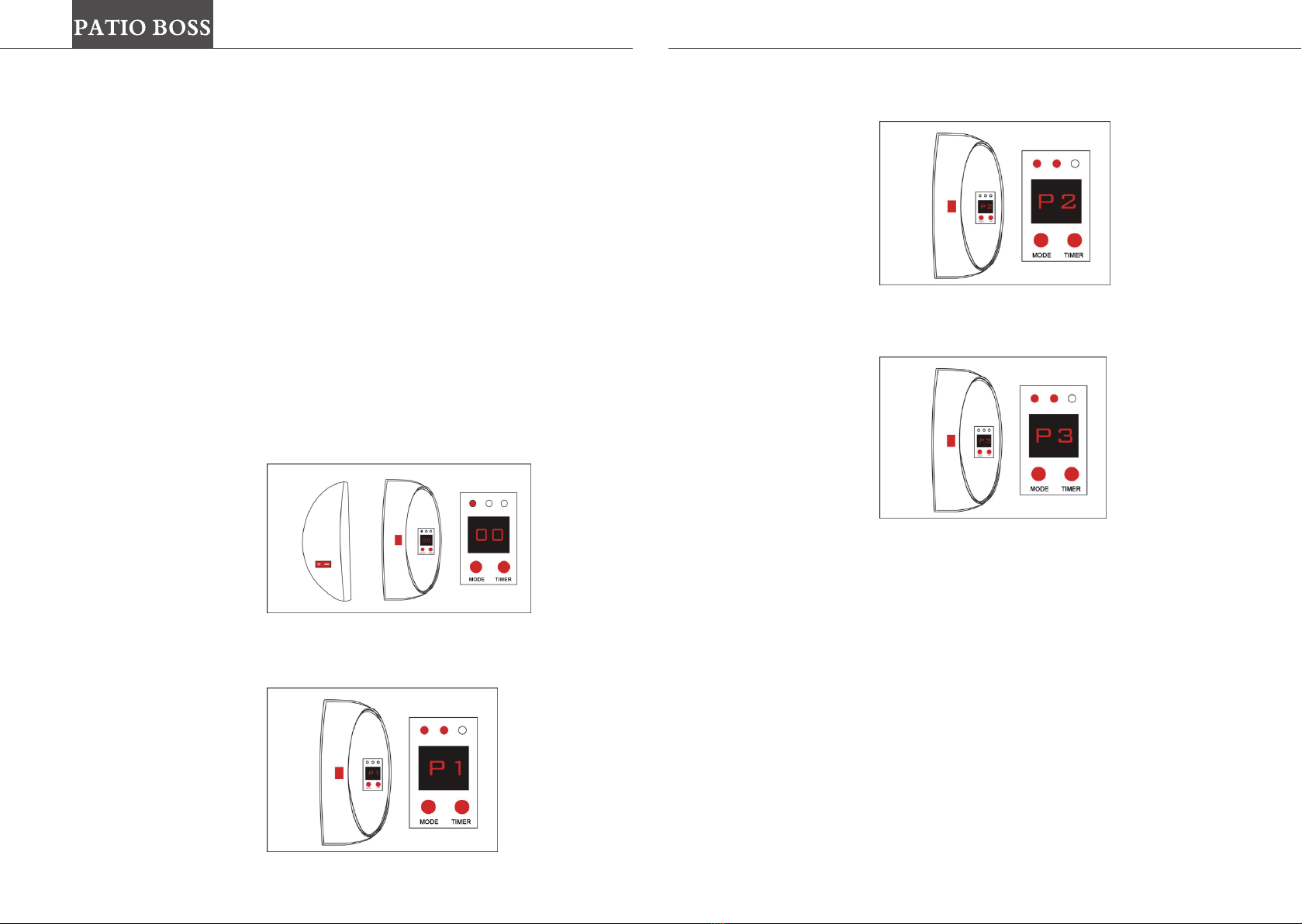

OPERATING INSTRUCTIONS
ATTENTION:
1. Please read all inportant instructions before using your Patio Heater.
2. Make sure the unit is in the OFF position before plugging the heater into the outlet.
POWER:
Step 1：Plug the power cord into the outlet.
Step 2：press rocker power switch on the rear of the heater to "▬" position and the
digital screen shows red light on.
Step 3：Press Mode Button once，the digital screen shows “P 1” which means 500W
power setting.
Step 4：Press Mode Button two times,the digital screen shows “P 2” which means
1000W power setting.
Step 5：Press Mode Button three times,the digital screen shows “P 3” which means
1500W power setting.
Step 6：Pressing the Mode Button once more puts the unit in Standby Mode again.
MODES：
TIMER:
While the unit active , a timer can be set to turn the unit OFF after a desires amount of
hours.
Press the Timer Button to change the amount of hours before the unit will shut off. The
time will increase in 1 hour increments, up to 24 hours
WARNING:
The heater will remain hot for some time after it is turned off; handle with care.
[email protected] [email protected]

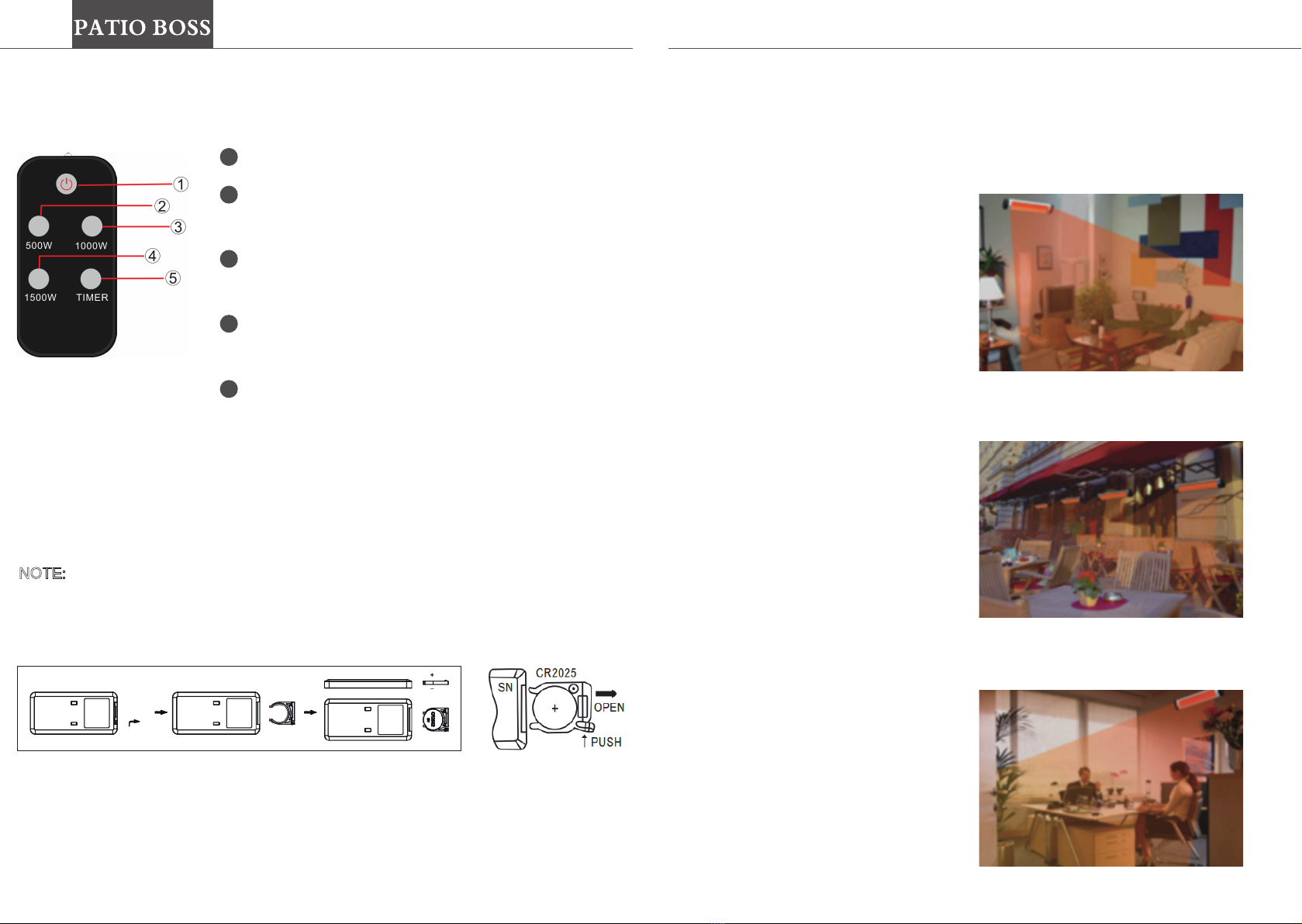

Before using the remote control, you must remove the insulating film.
1. All functions performed with remote control work identically to the heater control panel.
2. Aim the remote control at the heater control panel to operate the heater.
REMOTE CONTROL
The remote control uses on button cell battery, type CR2025(3V). To remove the battery
carriage use your thumb to squeeze the release tab to the right and then pull the carriage
out. Place the battery into the carriage and slide the carriage back into the remote.
NOTE:
Follow battery disposal instruction on battery packaging, or contact your local safety
council for safely disposal of batteries.
Engine Switch
Press this Button，the digital screen shows “P 1” which
means 500W power setting
Press this Button，the digital screen shows “P 2” which
means 1000W power setting
Press this Button，the digital screen shows “P 3” which
means 1500W power setting
Press this Button to change the amount of hours before
the unit will shut off.（0-24H）
1
2
3
4
5
APPLICATION FIELDS
APPLICATION FIELDS OF INFRARED LINE AND INFRARED STAR MODELS
Home Applications
Sitting room
Nursery room for children
Guest room
Corridor
Bathroom
Nursery room of babies
Study room
Summer house
Hobby room
Swimming pool
Office
Meeting room
Entrance
warehouse
Workshop
Shop
Internet cafe
Market
Showroom
Swimming pool
Classroom
Greenhouse
Church
Factory and production line
Warehouse and loading area
Exhibition
Hotel, Nursery room
Passageway
Airport
Train station
Office Applications
- 16 - - 17 -
[email protected] [email protected]

CLEANING / MAINTENANCE INSTRUCTIONS
OVERHEAT PROTECTION
This heater is protected with an overheat protection that switches off the appliance
automatically in case of overheat, e.g. due to the total or partial obstruction of the grids.
In this case, unplug the appliance, wait about 30 minutes for it to cool and remove the
object which is obstructing the grids. Then switch it back on as described above.
The appliance should operate normally. Should the problem persist, please contact the
customer service.
MAINTENANCE:
Attention! Careful and regular maintenance of infrared Heater is required to attain
a long and efficient operation of your appliance.
1-Check the cleanliness of the reflector and IR-filament at least once a month. If
necessary, apply cleaning and maintenance instructions.
2-The number of checks may be increased considering the amount of the dust in the
environment.
3-Check the deformation of the reflector, wire and frame visually while cleaning the
appliance. In case of any deformation, consult a qualified technician.
4-Check the power cable and plug visually while cleaning the appliance. In case of any
deformation, consult a qualified technician.
5-It is recommended to change the reflector every 2 years for more efficient operation.
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up,
use the original packaging to repack the unit.
STORAGE
- 18 - - 19 -
CLEANING:
3-Make sure that the power is off for your safety. Power cable plug must be unplugged.
4-The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or
dry air. The cloth may be damp but never too wet and the cleaner should not include any
chemical.
5-Refrain from using cleaning material likely to damage the reflector (cleanser etc.).
6-Insert the wire grid using a slotted screwdriver.
This symbol on the product or its packaging indicates that the appliance cannot be
treated as normal domestic trash, but must be handed in at a collection point for
recycling electric and electronic appliances.
Your contribution to the correct disposal to the product protects the environment and the
health of your fellow men. Health and the environment are endangered by incorrect
disposal. Further information about recycling of this product can be obtained from your
local town hall, your refuse collection service, or in the store at which you bought the
product.
IF YOU HAVE ANY QUESTION, PLEASE CONTACT WITH US AND WE WILL
REPLY WITHIN 24 HOURS
EMAIL: [e-mail]
Attention! Regular and careful cleaning helps your heater operate for longer years
and more efficiently.
1-Unplug your power cable for your safety before cleaning your appliance.
2-Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
[email protected] [email protected]
