Aertesi VESTA 80 FVI Parts list manual

VESTA 80 series
Isothermal dehumidifiers
VESTA 80 FVI: Vertical version for exposed recessed
VESTA 80 HI: Horizontal ductable version
INSTRUCTION, OPERATING AND MAINTENANCE MANUAL
MIU.VE80I.GB.002.05.17

This appliance must be installed only by quali ied technicians.
Thank you for choosing and installing the VESTA 80 dehumidifier, an appliance that will ensure lasting benefits
when used with radiant panel air conditioning systems, coupled with the maximum reliability, efficiency, qua-lity and
safety.
This booklet is designed to provide you with all the information you need for correct and easy installation, assuming
you are in possession of the necessary skills and technical know-how.
We wish you every success in this work, and thank you again for choosing this product.
CONTENTS
The following symbols appear in
this handbook:
Warning
Prohibited
IInstaller
UUser
ATechnical Support
Compliance and range ..................................................1
Precautions....................................................................2
Safety prescriptions ......................................................2
Appliance description ....................................................3
Identication ..................................................................4
Technical data................................................................5
Accessories...................................................................6
Refrigerant circuit ..........................................................7
Electrical circuit diagram................................................7
Product reception ..........................................................8
Dimensions....................................................................8
Handling ........................................................................9
Siting..............................................................................9
Installation ....................................................................10
Hydraulic connections ..................................................14
Aeraulic connections ....................................................16
Electrical connections...................................................16
Checks during and following commissioning................17
Prolonged disuse of the appliance ...............................17
Selecting the fan speed................................................18
Filling and emptying the system...................................19
Preparation for commissioning.....................................20
Commissioning.............................................................20
Remote control panel ...................................................20
Switching on and off .....................................................21
Maintenance.................................................................21
Routine maintenance....................................................22
Cleaning the lter..........................................................22
Troubleshooting............................................................23
Scrapping the appliance and sorting the components...23
Notes............................................................................ 24

COMPLIANCE AND RANGE
I U A
We hereby declare, under our own responsibility, that the supplies described below comply fully with the following directives and technical
standards. The supplied products have been manufactured, tested and checked in compliance with the prescriptions and procedures of
our Quality System.
VESTA 80 FVI - VESTA 80 HI
EEC Directives:
•Machinery directive 2006/42/EC
•Low Voltage Directive 2014/35/EC;
•Electromagnetic compatibility Directive 2014/30/EU
Standards:
Safety machinery-electrical equipment of machines -Part 1: General requirements
•EN 60204-1:2006 and rev.
•EN 55014-1:2006 Electromagnetic compatibility – Rules for households, electric tools and similar apparatus
•UNI EN ISO 12100:2010 Safety of machinery - Basic concepts, General principles for design. Specifications and technical principleS
•UNI EN ISO 13857:2008 Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs
•EN 349:2008 Safety of machinery - Minimum gaps avoid crushing of parts of the human body
DECLARATION OF CONFORMITY
1

I U A
After removing the packing materials, make sure
the contents are in good condition and complete in
all parts. If you notice any damage or missing parts,
contact the Dealer from whom you purchased the
appliance.
This appliance is designed for air dehumidication
and it must be installed indoors.
This appliance must be utilised exclusively for its
intended purpose. All other uses are construed as
improper and potentially dangerous. The
manufacturer cannot be held liable for any damage
deriving from improper, incorrect or unreasonable
use of the appliance.
The appliances are supplied without grilles or
cabinet. Protective elements must be installed such
as to prevent accidental contact with the appliance.
This handbook must be kept safe because it is an
integral part of the appliance and must therefore
ALWAYS accompany it, also when it is transferred
to a new owner or user or when it is relocated for
use in a different system. If the handbook is
damaged or lost, order a replacement copy from
your local Technical Support Service.
Repairs and maintenance work must be carried out
by the Technical Support Service or by qualied
personnel in compliance with the prescriptions set
down in this handbook.
The technical dataplate shows the technical and
performance data of the appliance. If the technical
dataplate is lost or misplaced, order a duplicate
from the Technical Support Service. Tampering
with, removal of, or absence of the Technical
Dataplate or any other items, such that prevents
unequivocal identication of the appliance, will
hinder installation and maintenance procedures.
In the case of faults and/or malfunctioning of the
appliance, switch it off and do not attempt to repair
it yourself. For repairs always contact the technical
service centres authorized by the manufacturer and
insist on the use of genuine original replacement
parts. Failure to comply with the above prescriptions
will impact negatively on the safety of the appliance.
Do not use extension cables when working in
bathrooms or shower areas except with the utmost
caution.
Do not install the appliance in rooms in which the air
may be contaminated with gas, oil mist or sulphur or
close to sources of heat
If you decide you no longer wish to use the
appliance, make it inoperative by unplugging it from
the mains supply and cutting off the power cable.
Make safe all parts of the appliance that may
constitute a source of danger, especially for children
who may attempt to play with the appliance
Note that the use of electrically powered products calls for
compliance with a series of basic safety rules:
Do not place heavy or hot objects on the appliance.
Do not allow children or unassisted differently abled
persons to use the appliance.
Do not touch the appliance if you have bare feet or
when any parts of your body are wet.
Do not attempt to service or clean the appliance until
you have disconnected it from the mains supply and
set the main electrical power breaker to “off”.
Do not attempt to alter safety or control devices
without the express authorisation and instructions of
the manufacturer.
Do not spray water directly onto the appliance.
Do not pull, disconnect or twist the electrical cables
connected to the appliance, even when the appliance
is disconnected from the mains supply.
Do not stand on the appliance and/or place any
objects on it.
Do not poke pointed instruments through the air
intake and outlet grilles.
Do not open the covers providing access to internal
parts of the appliance until you have set the main
electrical power breaker to “off”.
It is prohibited to disperse the packing materials in
the environment or leave them within reach of
children. Discarded packing materials can constitute
a source of danger.
SAFETY PRESCRIPTIONS
WARNINGS
2

I U A
VESTA 80 dehumidiers are utilised for summer
dehumidication of rooms with radiant panel cooling
systems.
VESTA 80 is designed and built exclusively for indoor
installation. Outdoor installation of the unit is strictly
prohibited.
The appliance is available in three versions:
•VESTA 80 FVI - Vertical recessed exposed unit
The dehumidifier is recessed into the wall utilising a
wood frame.
•VESTA 80 HI- Horizontal ductable unit
In this configuration the airflow at the outlet can be
routed directly into a duct and then diffused into the
room through an outlet vent.
In the VESTA 80HI versions the ducts,
vents (intake and outlet) and room air intake
filter must be supplied by the installer.
The structure is made of galvanized steel sheet. The
fan unit is composed of a centrifugal fan with six-speed
motor that assures high performance, efciency, and
low noise operation.
Air treatment is provided by a refrigerant circuit
composed of pre and post-treatment coils made
of copper tube with aluminium ns, a reciprocating
compressor mounted on antivibration supports
or springs (VESTA 80V ), a capillary expansion tube
and a filter-dryer.
VESTA 80 delivers air at neutral temperature with
respect to the room air. This characteristic is assured
by the presence in the unit of a post-cooling coil through
which water from the radiant panels system can be
circulated.
VESTA 80 is controlled by the regulation and control
system, also when several units are installed in parallel.
Optimalinstallationfor all typesofsystem is guaranteed
by a range of optional accessories.
1
2
11
3
4
5
6
7
8910

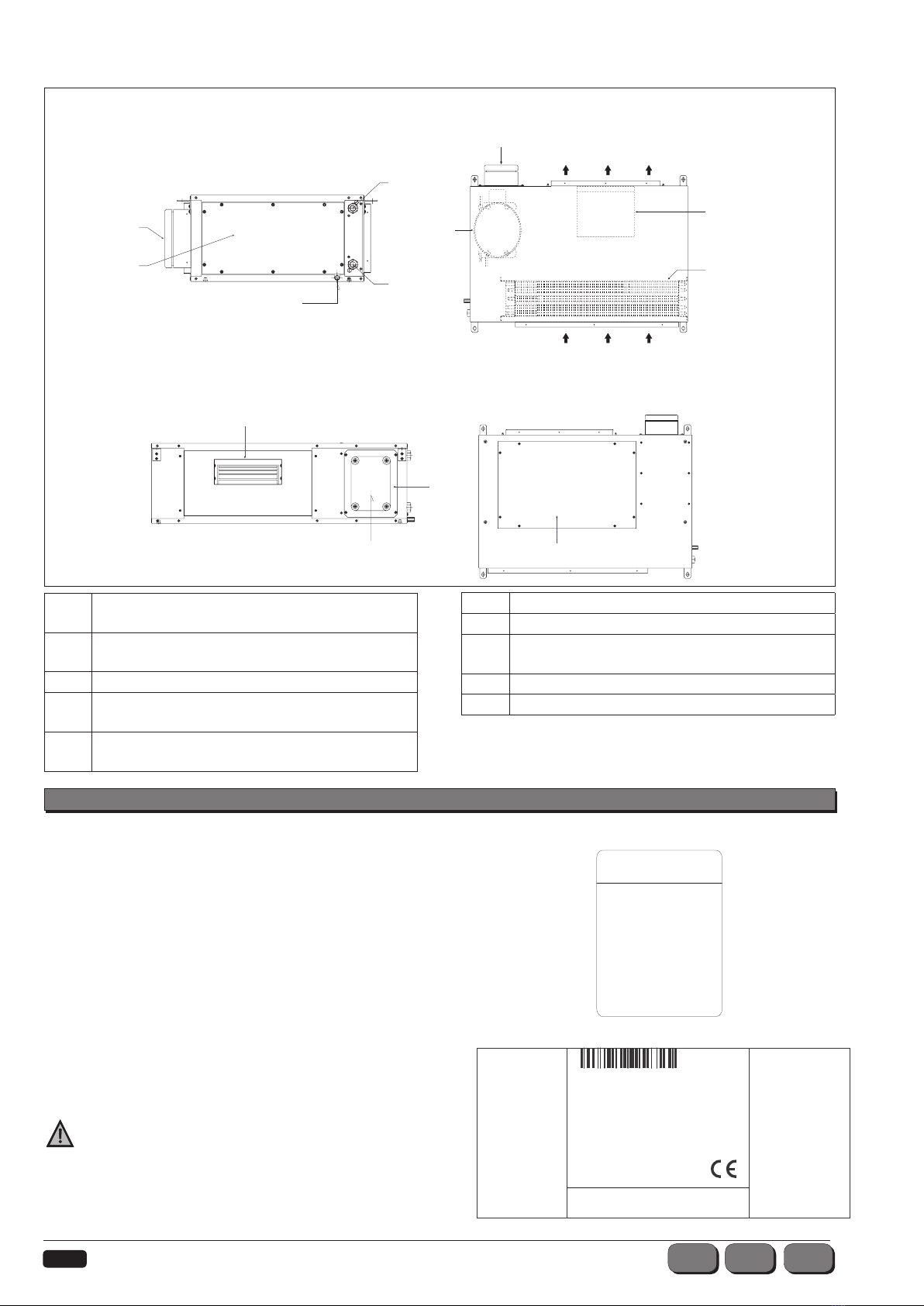

1 Centrifugal fan
2 Sheet steel structural frame
3 Air treatment coils assembly
4Condensate drain (rubber hose with inside Ø
of 15 mm)
5 Stainless steel condensate collection tray
6Union for pre and post-treatment coil: 3/8” GAS
female (WATER INLET)

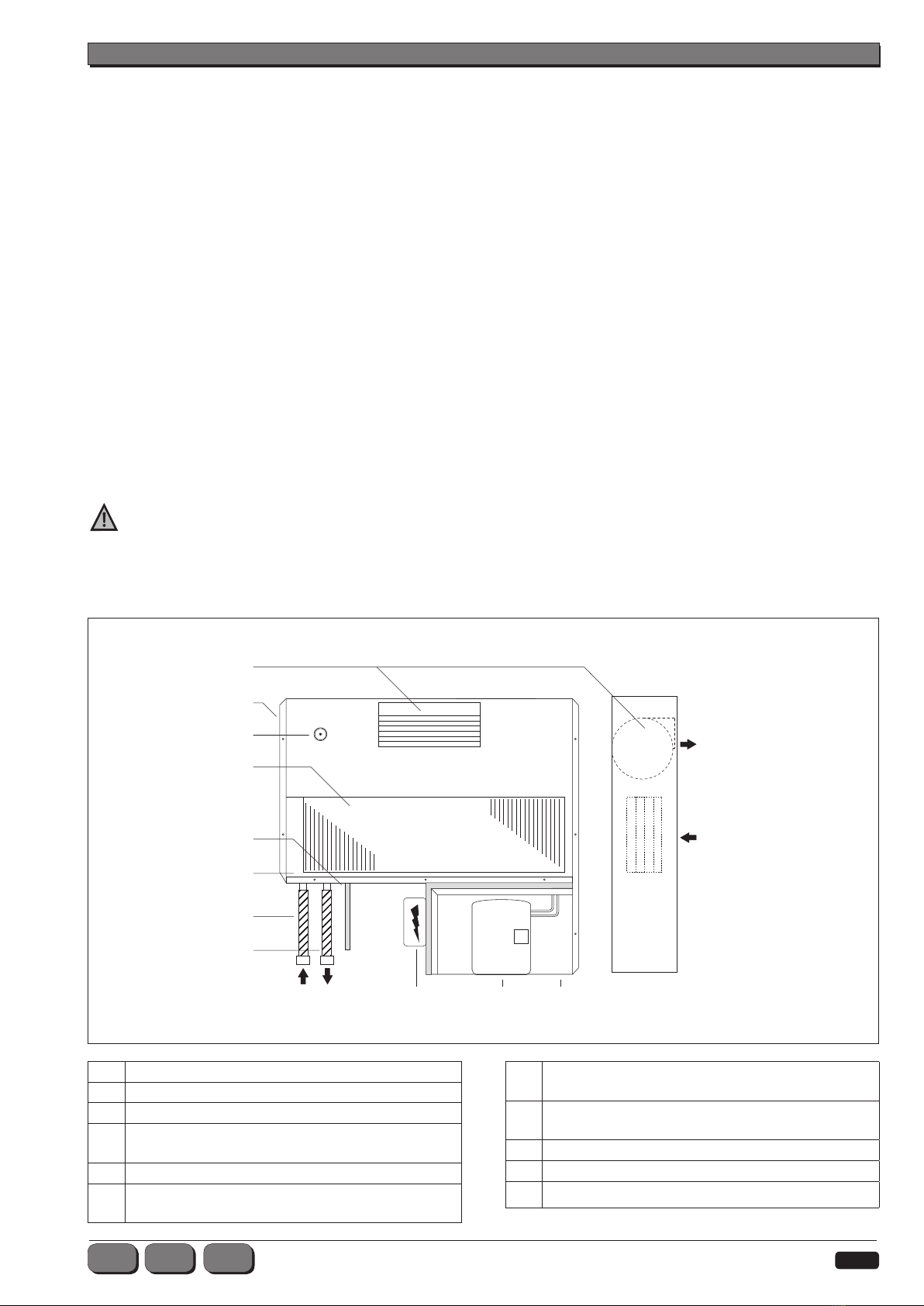

VESTA 80 FVI - vertical recessed exposed version
7Union for pre and post-treatment coil: 3/8” GAS
female (WATER OUTLET)
8Electrical junction box: connections for power
input and unit control circuit
9 Compressor
10 Acoustically insulated compressor compartment
11 Air bleed valve for pre and post-treatment coils
Front view Side view
APPLIANCE DESCRIPTION
3

I U A
SERIAL NUMBER / MATRICOLA XXXXXXXXXXXXXX
MODEL / MODELLO
ACCESSORIES/ACCESSORI
WIRING DIAGRAM / SCHEMA ELETTRICO
CUSTOMER ORDER / ORDINE CLIENTE
JOB ORDER / COMMESSA
XXXXXXXXXXXX
XXXXX
VESTA 80V
VS0001A
R134a - 0,285 Kg
REFRIGERANTE - REFRIGERANT
KALTEMITTEL - REFRIGERANT
VESTA 80V
MODELLO - MODEL - MODELL - MODELE
AERTESI
Via del Commercio, 2/b
35026 Conseve PD
MATRICOLA - SERIAL NUMBER -
SERIENNUMER - MATRICULE
XXXXXXXXXXXXXXX
Manufactured by Aertesi S.r.l.
ALIMENTAZ ELETTRICA - MAIN SUPPLY -
STROMFLUSS - ALIMENTATION ELECTRIQUE :
MAX POTENZA ASSORBITA- INPUT POW ER-
MAX.LEISTUNGSAUFNAHME-MAX. PUISSANCE ABS:
MAX CORRENTE ASS.- INPUT CURRENT -
MAX.STROMAUFNAHME-MAX.COURANT ABS:
230 V / 1 Ph / 50 Hz
400 W
2,6A
5
1
2
4
3
5
10
7
8
7
59
6
1Pre- and post-treatment coils water outlet
(1/2” GAS female)
2Pre- and post-treatment coils water inlet (1/2”
GAS female)
3 Removable compressor access panel
4Metal manifold for condensate drain (14 mm
outside diameter)
5Electrical panel for unit power input and con-
trol enable signal.
6 Removable panel
7 Fan
8Coils assy. (pre-treatment, evaporator, con-
denser, post-treatment)
9 Fan access panel
10 Compressor
VESTA 80 HI - horizontal ductable version
Top view (with internal layout of the main unit
components)
Side view (water and condensate
drain connections side)
VESTA 80 dehumidiers can be identied by:
View of outlet side Bottom view
- Packing label
- Technical dataplate
Shows the technical and performance data of the
appliance. If the technical dataplate is lost or mispla-
ced, order a duplicate from the Technical Support
Service.
Tampering with, removal of, or absence of the
TechnicalDataplateor anyotheritems thatprevent
unequivocal identication of the appliance will hin-
der installation and maintenance procedures
IDENTIFICATION
4
MODELLO - MODEL - MODELL - MODEL E
VESTA 80FVI
MATRICOLA- SERIAL NUMBER-
SERIENN UM ER - MATRICULE
XXXXXXXXXXXXXXX
REFRIG ERANTE - REFR IG ERA NT
KALTEMI TT EL - REFR IG ERA NT
R134a -
ALIMENTAZ ELETTRI CA - MAIN SUPPLY -
STROM FL USS - ALIMENTATION EL ECTRI Q U E :
230 V / 1 Ph / 50 Hz
MAX POTENZAASSORBITA-INPUT POWER-
MAX.LEI ST U NG SAU FNA HME-MAX. PUISSANCE ABS:
400 W
MAX CORRE NT E ASS.- INPUTCURRENT -
MA X.S TR OM AUF NA HM E- MAX .C OU RAN T A B S :
2,6A
MODEL / MODELLO
VESTA 80FVI
ACCESSORIES/ACCESSORI
WIRING DIAGRAM / SCHEMA ELETTRICO
VS****
CUSTOMER ORDER / ORDINE CLIENTE
XXXXXXXXXXXX
JOB ORDER / COMMESSA
XXXXX

I U A

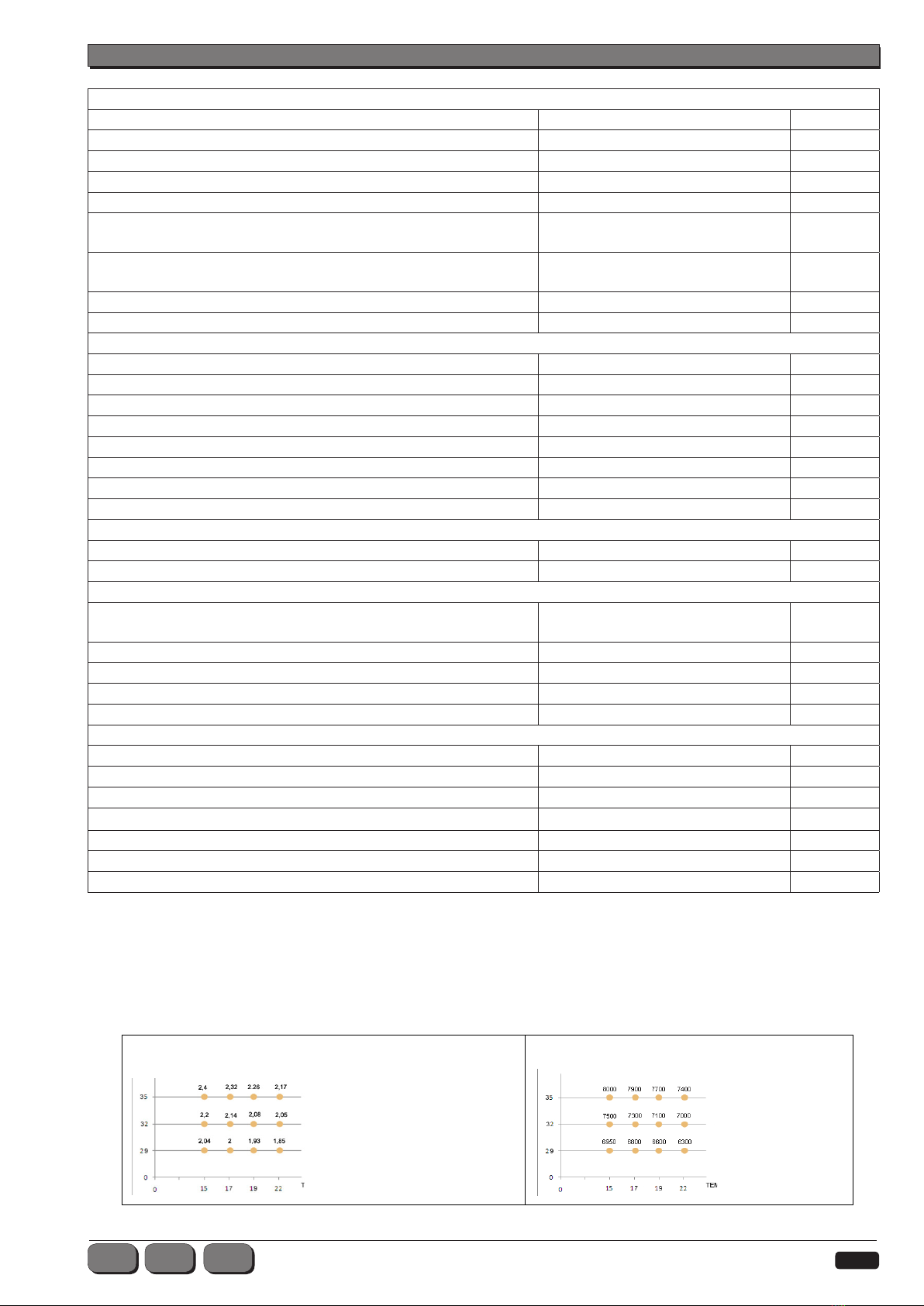

Thermal and technical data
Guideline treatable volume 200/300m3
Human occupancy (1) 6÷8
Nominal condensing capacity (2) 0,8 l/h
Nominal airow 250m3/h
Nominal total water ow rate to pre- and post-treatment coils
(coils connected in parallel) 210 l/h
Nominal total cooling capacity absorbed
by the air pre- and post-treatment coils 800W
Air pre- and post-treatment coils ΔP 6,8 kPa
Electrical / general data
Electrical power supply 230/1/50 (V/ph/Hz)
Nominal current input (3) 2A
Maximum current input 2.6 A
Nominal power consumption (3) 370 W
Maximum power consumption 400 W
Electrical box protection rating IP54
Centrifugal fan selectable 3-speed control
Weight
VESTA 80 FVI (unit only) 37Kg
VESTA 80 H 40 Kg
Dimensions
VESTA 80 FVI version without frame and front panel
(WxDxH) 695x201x695 mm
Frame (WxDxH) 750x230x740 mm
Version VESTA 80 HI(WxDxH) mm
Pre- and post-treatment coils hydraulic connections
VESTA 80 FVI no. 2 3/8” GAS female
Version VESTA 80 HIno. 2 1/2” GAS female
Total sound pressure in open field at 1,5 m distance dBA
Operating limits
Pre-/post-treatment coils water temperature 18 ÷ 25 °C
Intake air d.b. temperature 15 ÷ 35 °C
Relative humidity 45 ÷ 90 %
(1) Value that depends on the level of metabolic activity and the average radiant temperature in the room.
(2) At the following conditions:
Nominal airow; intake air 25°C ... 65%; nominal water ow rate; pre- and post-treatment coils water inlet tempe-
rature: 15°C.
(3) At the following conditions: Nominal airow; intake air 25°C ... 65%; nominal water ow rate; pre- and post-
treatment coils water inlet temperature: 15 °C.
TECHNICAL DATA
5
593x800x250
38,5
Integration (3)
2,4 kw
Ambient
temperature °C
Total Cooling
Capacity in kW
Water Temperature °C
Ambient
temperature °C
Total Cooling
Capacity in BTU
Water Temperature °C

I U A
The following accessories can be ordered separately
ACCESSORIES
The airflow value must remain within a tolerance
range of + or – 20% from the nominal air flow
range.
The ducts must be set on the correct parameters,
in order to avoid their pressure drop to over cross
the pressure head that the fan can supply.
airow 200 m³/h pressure drop 10.0 [Pa]
airow 230 m³/h pressure drop 11.6 [Pa]
airow 250 m³/h pressure drop 13.0 [Pa]
airow 270 m³/h pressure drop 14.8 [Pa]
For pressure drops across the lter, refer to the fol-
lowing data:
Available pressure of the fan
The speed regulating system of the fan allows the
balance of the pressure drop, which is due to the
different lengths of the ducts.
VESTA80I is equipped with refrigerating system with air
condensing.
A condenser working with air is used (Isotherm mode)
when the environment air is under 28° C;
A condenser working with water is used (Integration
mode) when the environment air is over 28° C.
The air flow rate must be set on a parameter the closer
to the nominal air flow rate (which is 250 m3/h), in order
to avoid the risk of a reduction of the performance and/
or malfunctioning of the unit.
6
Prevalenza [Pa]
60
Velocità minima
Velocità media
50 Velocità massima
40
30
20
10
0
180 190 200 210 220 230 240 250 260 270 280 290 300 310 320

I U A
ELECTRICAL DIAGRAM
REFRIGERANT CIRCUIT
7

I
VESTA 80 dehumidiers are supplied in a single pack.
The unit is supplied complete with the following items:
Standard Unit:
- Installation, operating and maintenance manual;
- VESTA 80 FVI : no. 5 frame fixing screws.
- VESTA 80 HI : no.4 brackets, no.8 fixing screws.
-Serial number label.
The instruction handbook is an integral part of the
appliance. Please read it carefully and keep it
safe.
Remove the packing material only when the unit
has been moved to the point of installation.
It is prohibited to disperse the packing materials
in the environment or leave them within reach of
children. Discarded packing material is potentially
dangerous
800
800

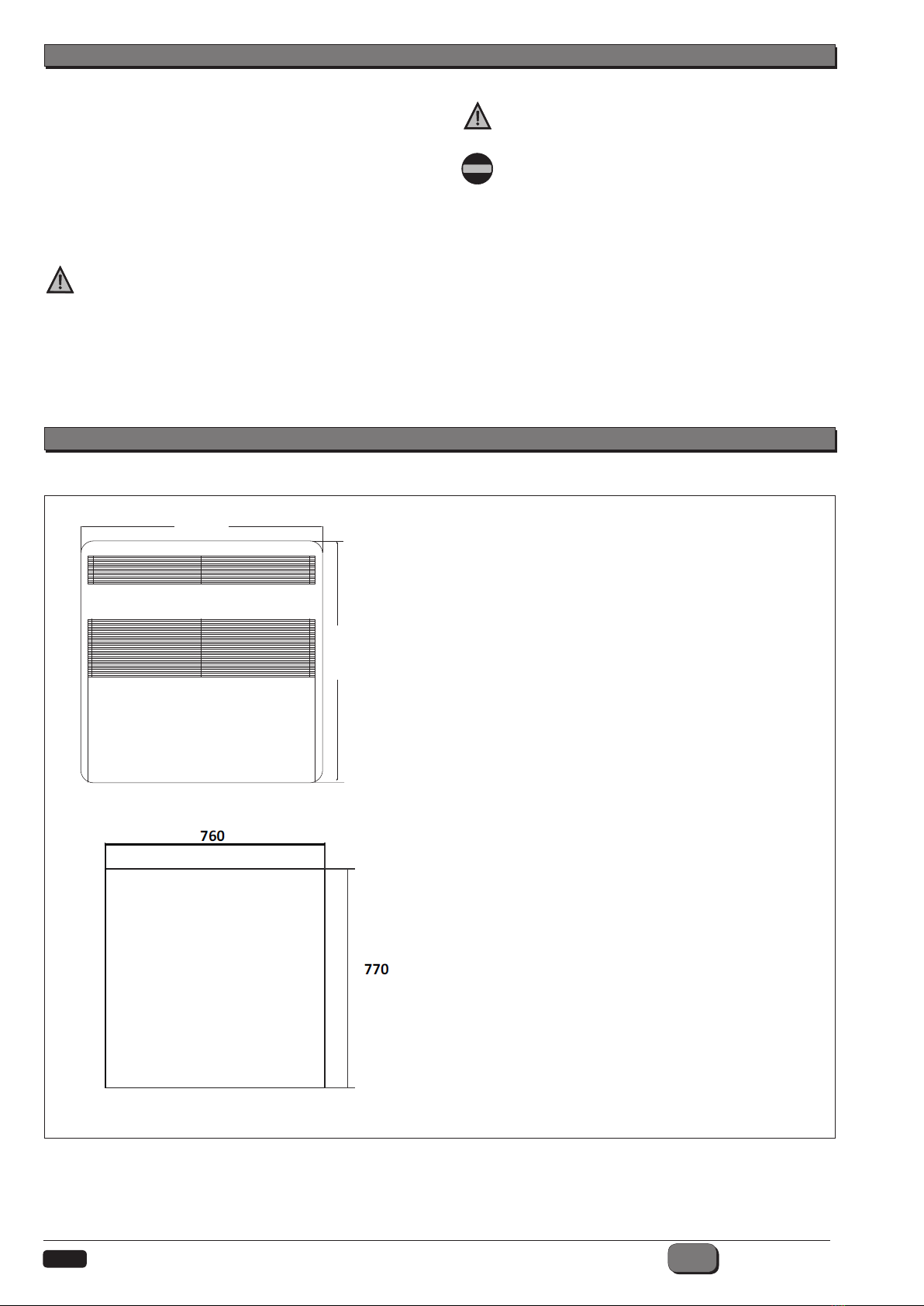

VESTA80 VI– Vertical recessed exposed version
PRODUCT RECEPTION
DIMENSIONS
Wood front panel WPK
Front panel MPK
8
800
800

I
SEZ. AA
AA
VESTA 80 FVI - frame dimensions
After removing the packing the unit must be handled
by qualified personnel having suitable handling
equipment in relation to the weight of the appliance.
Keep the appliance vertical during transportation
and handling (check indication on the pack).
The installation site of VESTA 80 appliances must
be established by the system designer or a suitably
skilled technician and must take account of technical
requirements, technical standards, and compliance
with statutory legislation.
VESTA 80 HI– Horizontal ductable version
VESTA 80 appliances must be:
– Positioned on a level surface that is sufciently
strong to bear the weight of the unit;
– Positioned on a sufciently rigid oor slab or plinth
that will not transmit vibration to lower oors or
adjacent rooms.
HANDLING
SITING
600 mm
600 mm
SECTION AA
INTERNAL 714
INTERNAL 704
9
740
740
45 50 120120
750
230
160
34 37

I
Installation of the appliance must be such as to
allow circulation of the treated airow throughout the
room and compliance with the minimum necessary
clearances to allow unimpeded access for technical
servicing and maintenance.
The installation site must be established by the system
designer or a suitably skilled technician and must take
account of technical requirements, technical standards,
and compliance with statutory legislation.
Installation of the dehumidier m ust b e e ntrusted to
a qualied installer, i n c ompliance w ith I talian L aw 5
March 1990.
VESTA 80 dehumidifiers are designed for vertical
recessed exposed installation (VESTA 80 FVI),
horizontal ducted installation in a ceiling void
(VESTA 80 HI).

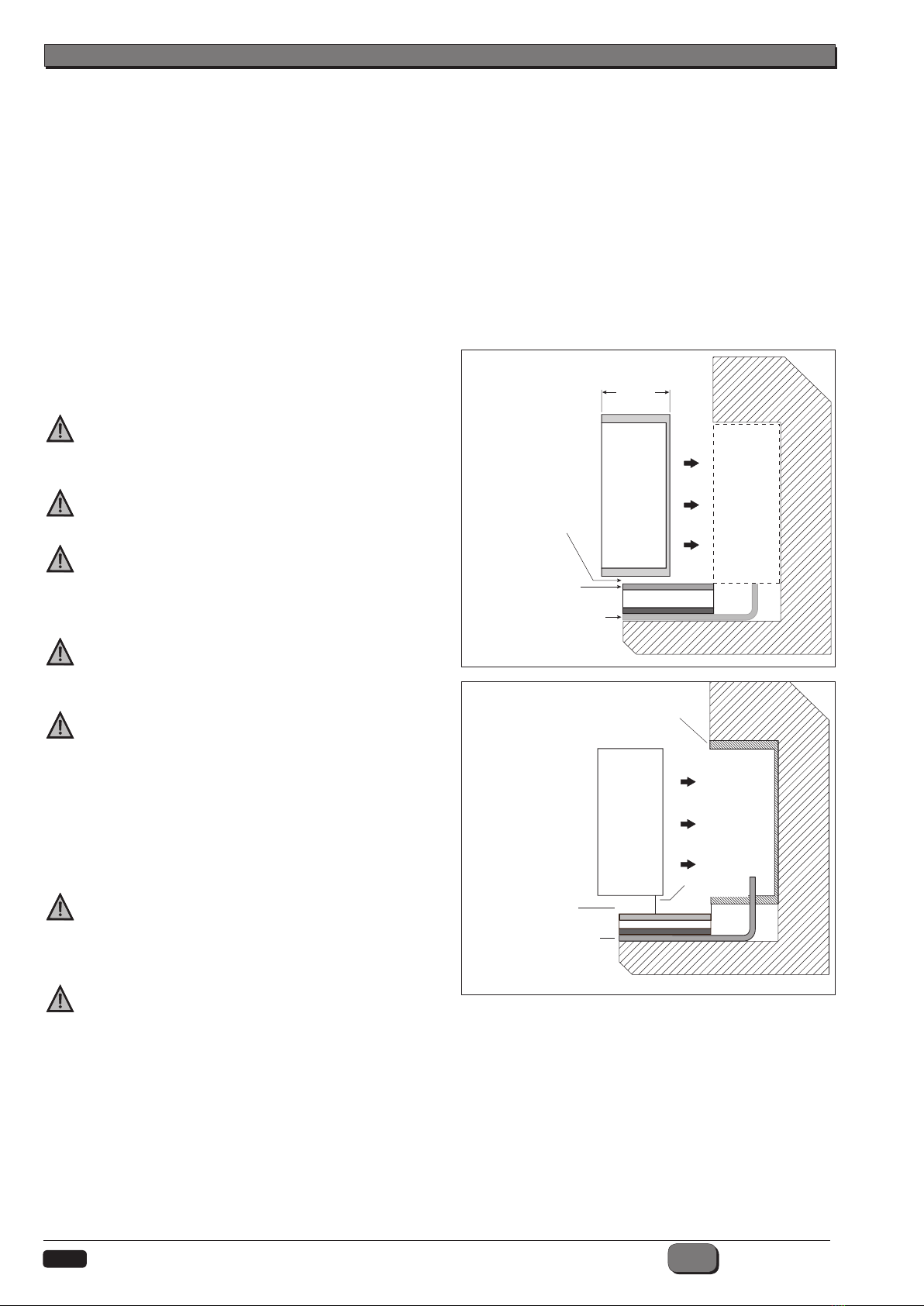

VERTICAL RECESSED EXPOSED INSTALLATION
(VESTA 80 FVI)
- Make a wall recess of the following dimensions: (W
x H x D) 745 x 755 x 235 (depth) for insertion of the
frame;
Allow extra clearance for xing mortar.
- Fit the frame into the recess;
Clean the recess carefully before inserting the
frame.
Before routing the various pipes into the dehumi-
dier installation recess, t the frame in such a
way as to be able to identify the exact connection
points of hydraulic lines and electrical wiring.
The base of the frame must be at least 60 mm
above the FINISHED floor surface level or
higher.
Allow for the subsequent installation of trims
(skirting panels, etc.).
- Fit the appliance into the frame after cleaning the
recess carefully;
- Secure the appliance to the frame using the sup-
plied self-tapping screws;
Fix the frame to the wall and insert the unit, paying
attention to the hydraulic system pipes, the con-
densate drain hose and the electrical cables loca-
ted in the frame.
If the frame has already been prepared, remove
the xing tabs and wooden shims of the panel
before inserting VESTA 80 into the frame.
230mm
Frame
Finished oor
surface
Frame
Clearance 60 mm
Clearance
80 mm
Opening
VESTA
80 FVI
* Only unit without
frame
INSTALLATION
Hydraulic pipes and
electrical wiring
Finished oor
surface
Hydraulic pipes and
electrical wiring
10
230mm

I
Finished oor
surface
Hydraulic pipes and
electrical wiring
Front
panel
Clearance 60 mm
- Attach the front panel as shown in the gure.
11
25 mm
25 mm
30 mm30 mm
Side view
panel
panel
Top view
VESTA
80 FVI
VESTA
80 FVII
Diagram for WPK wood front panel

I
1
7
6
8
5
9
2 3 4

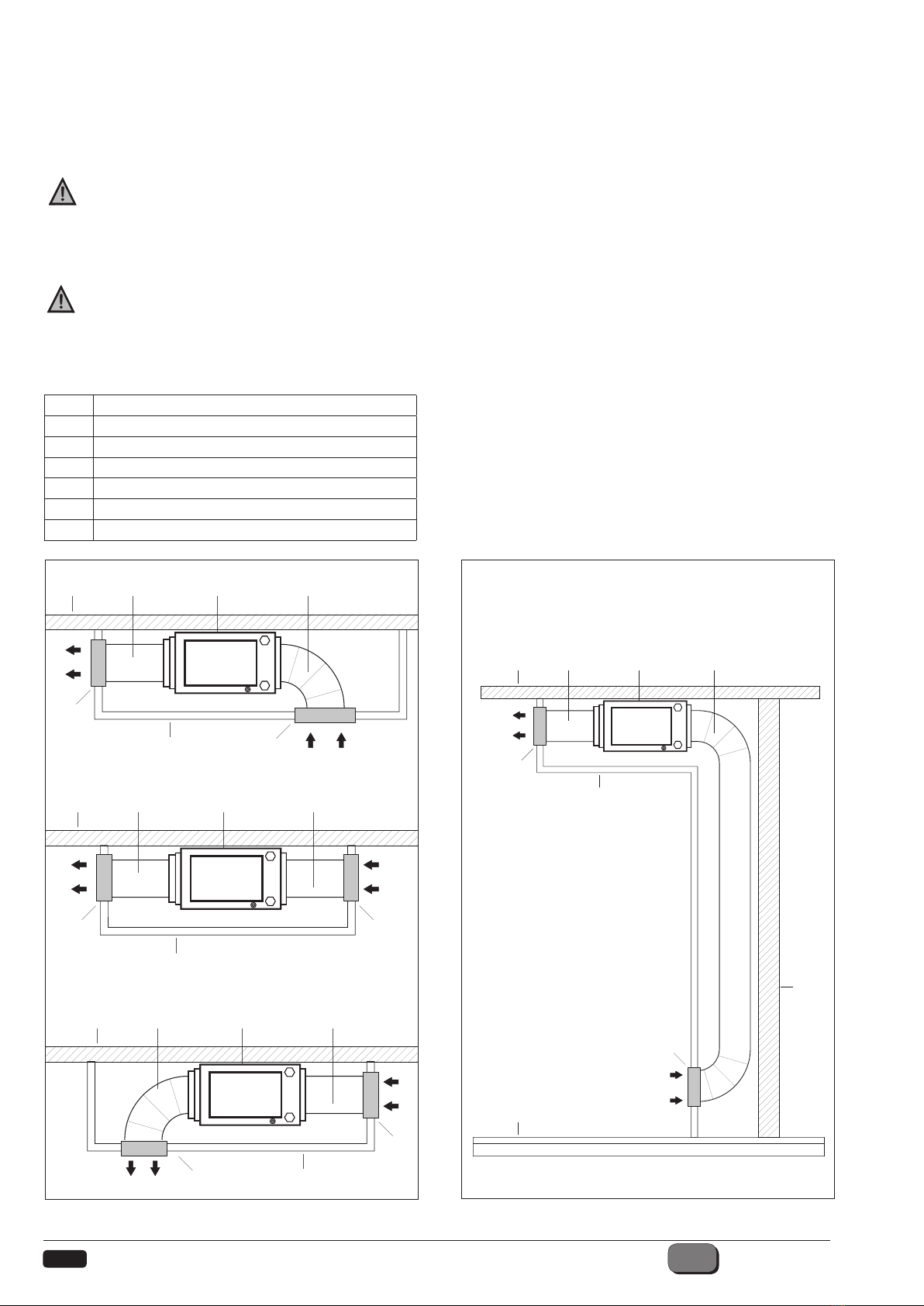

HORIZONTAL DUCTABLE INSTALLATION
(VESTA 80 HI)
Possible installation solutions of the version for
ceiling voids
Sizing of the ducts must be carried out by the sy-
stem designer or a suitably skilled technician and
must take account of technical requirements,
technical standards, and compliance with statuto-
ry legislation.
Check pressure drops of the air outlet/intake gril-
les and any ducts in relation to the performance
curves of the appliance.
1
7
7
6
7 6
6
5
5
5
2 3 4
1 2 3 4
1 2 3 4
1 Ceiling
2 Outlet duct
3VESTA 80 HI
4 Intake duct
5Intake grille complete with lter
6 Suspended ceiling
7 Outlet vent
12

I
1
2
4
5
63

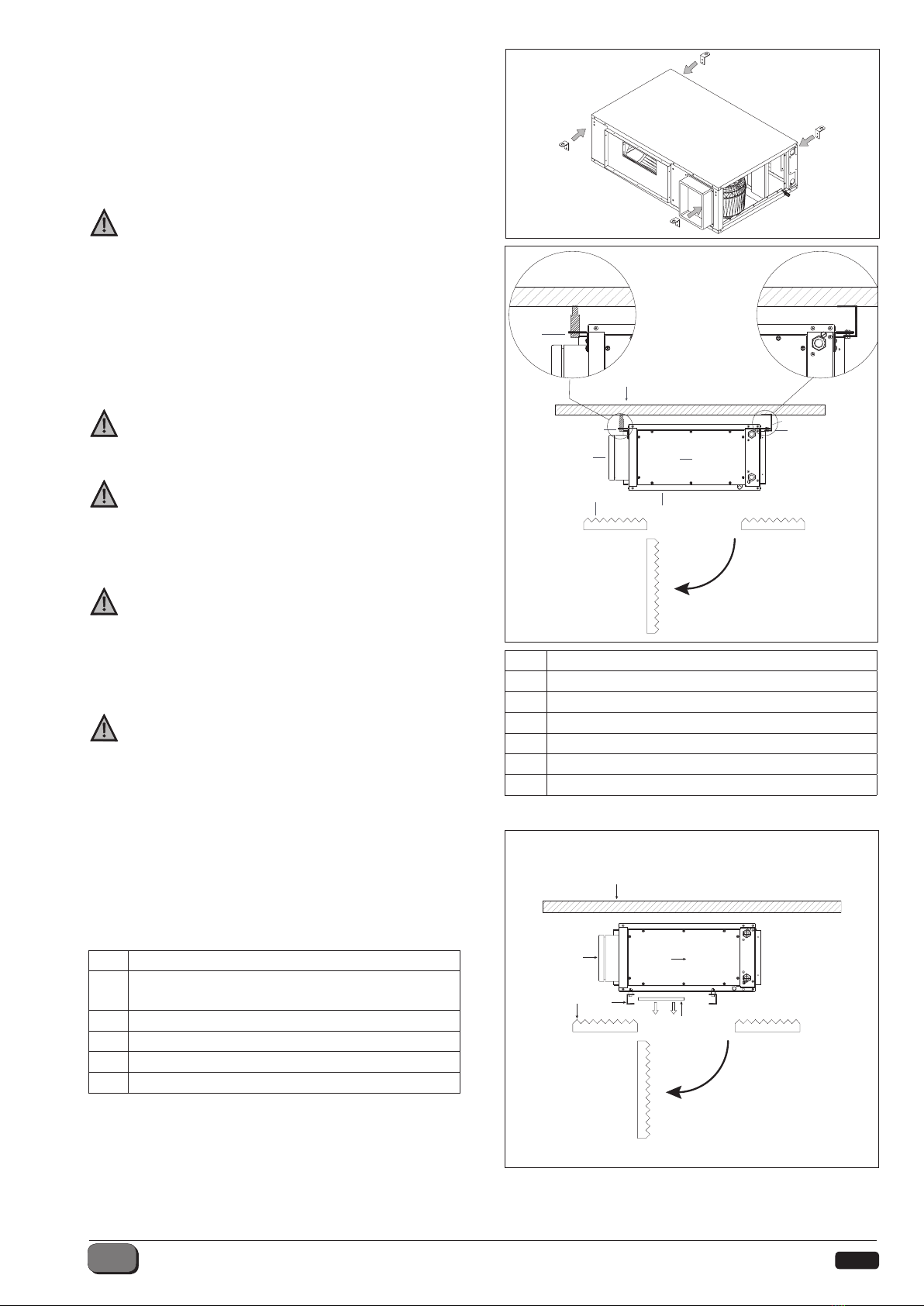

Mounted on beams inside the ceiling void (side
view)
The gure alongside shows installation mounted on
brackets or steel beams.
1 Ceiling
2Beam with compression type antivibration
mount to be provided by the installer
3 Removable compressor access panel
4 Suspended ceiling
5Lower cover for fan maintenance access
6 Electrical panel
1
77
3
5
6
4
2
1 Ceiling
2 Traction type antivibration coupling
3 Removable compressor access panel
4 Suspended ceiling
5Lower cover for fan maintenance access
6 Electrical panel
7 Compression type antivibration coupling
Model VESTA 80 HI is suspended by means of the
four brackets supplied, mounted at the corners of the
unit.
Model VESTA 80 HIcan be installed in various
different configurations:
•suspended from the ceiling;
•mounted on the suspended ceiling structural beams;
•mounted on beams
Take caretoensurethattheunitisperfectlylevel or
slightly tilted in such a way as to facilitate the
drainageofcondensatethroughthemetalmanifold.
Suspended from ceiling (side view)
The gure alongside shows two methods of ceiling
installation; on the left, with the use of traction type
antivibration mounts, on the right with the use of
compression type antivibration mounts.
Choose antivibration mounts in compliance with
the weight of the appliance and ensure they are
installed correctly.
The suspended ceiling must be internally clad
with sound insulating material and must have at
least one access opening to allow the execution of
checks and routine / supplementary maintenance
of the appliance.
Provide an access opening in the suspended
ceiling of sufcient size to allow the unit to be
removed completely (for major compressor
maintenance procedures). This will serve to
minimise the expense associated with removal
and re-installation of the suspended ceiling.
In the case of installation in poorly accessible
places, we might not be able to provide assistance
under the terms of the warranty.
13

I
The hydraulic connections of VESTA 80 FVI and vesta
80 HI dehumidifiers are for the air pre and post-
treatment coils and the condensate drain hose.
The choice and installation of the system
components are at the discretion of the installer,
who must work in compliance with best technical
practices and statutory legislation.
The coils supply line must not be dependent on
the zone isolator valves.
HYDRAULIC CONNECTIONS

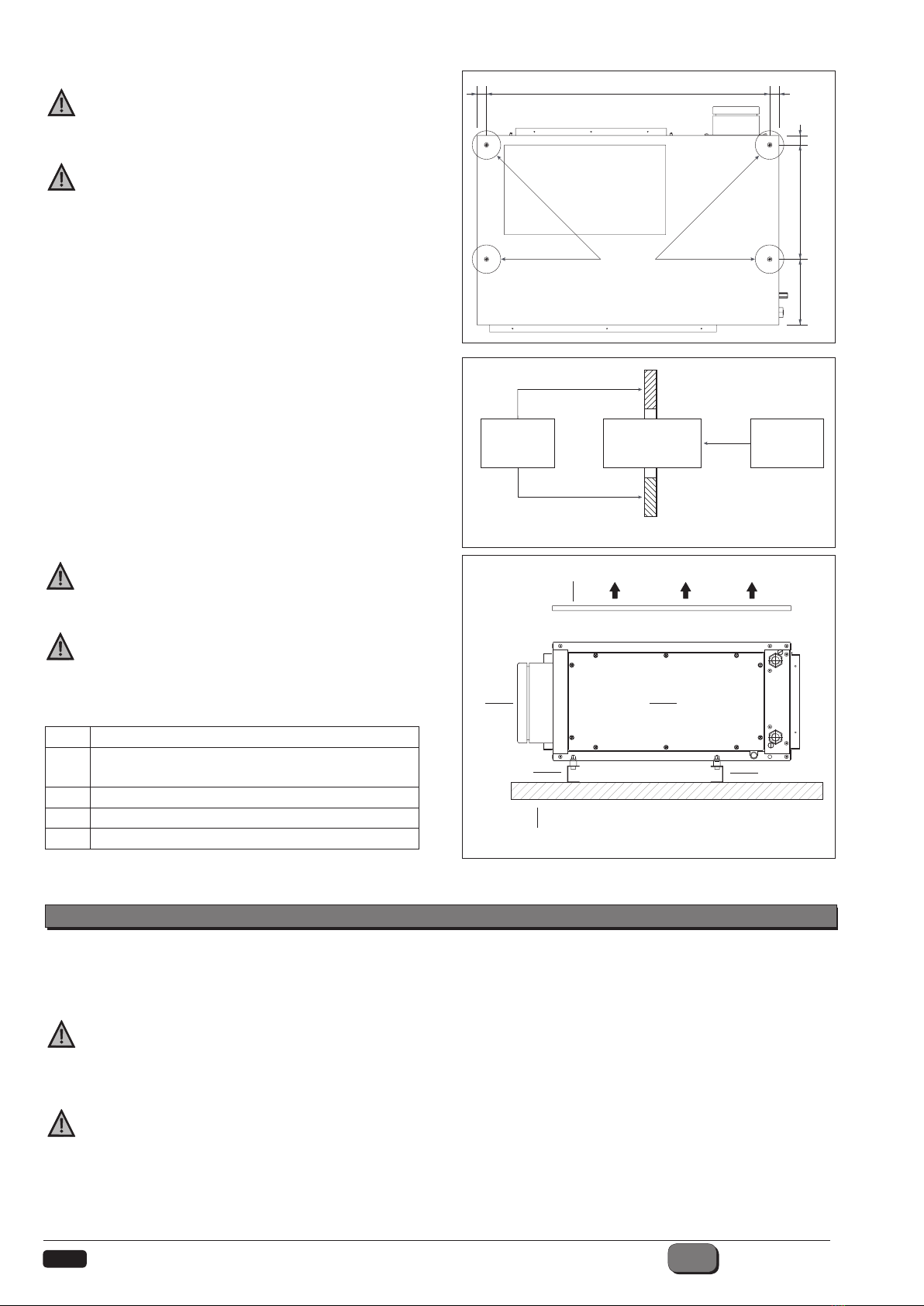

4
5
22
3
1
1Floor or at support
2Beam with compression type antivibration
mount to be provided by the installer
3 Removable compressor access panel
4 Removable cover
5 Electrical panel
Mounted on beams
The gure alongside shows installation of the appliance
on a at surface.
Choose antivibration mounts in compliance with
the weight of the appliance and ensure they are
installed correctly.
Opening of the unit cover (at the top in this case)
for fan maintenance can be performed from the
top with ease.
Choose antivibration mounts in compliance with
the weight of the appliance and ensure they are
installed correctly.
VESTA 80 HI is equipped as standard with
four M6 threaded inserts on the base for fixing
antivibra-tion mounts to the unit.
750 25
173 312 25
25
750 25
173 302 25
25
Antivibra-
tion mount
FAN ACCESS
PANEL
M6
THREADED
INSERTS
Compression type antivibration mount
Male
inserts
14

I
- Connect an insulated drain hose to the tray outlet
connection and route it to a suitable drainage
position.
The loop on the rubber drain hose of the
VESTA 80 FVI unit serves as a siphon and must
be retained during the connection procedure.
Check that water is drained out efficiently
by pouring water into the collection tray. The
drain hose must follow a downward angle
of 2% towards the drainage position.
Make sure all the seals are watertight.
Lag coupling points with heat insulation
material.
During periods of disuse of the unit the
siphon may dry out. If you notice unpleasant
odours, pour a little water into the condensate
collection tray.
VESTA 80 HI
2%
50 mm
50 mm
Airtight connection between
condensate drain manifold and
siphon
Condensate drain
VESTA 80 dehumidiers are equipped with a condensate
collection tray to be connected to a drain hose that must
be routed to a suitable drainage point.
VESTA 80 FVI
VESTA 80 HI
To make the connections:
-Remove the plastic caps from the hydraulic
connections.
- Secure the unions, locking the dehumidier
connection using two wrenches.
Seal the threads using plumber’s hemp and
thread seal paste. Do not use Teon thread
sealing tape if the circuit contains antifreeze.
VESTA 80 FVI To make
the connections:
- Secure the unions, locking the dehumidier
connection using two wrenches.
Seal the threads using plumber’s hemp and
thread seal paste. Do not use Teon thread
sealing tape if the circuit contains antifreeze.
VESTA 80 FVI
VESTA 80 HI
Condensate drain
(with siphon)
Condensate drain
Condensate drain
(with siphon)
Water
outlet
Water
outlet
Water
inlet
Water inlet
Water outlet
Water
inlet
15

I
ELECTRICAL CONNECTIONS
Our dehumidiers leave our factory fully wired and re-
quiring only:
- connection to the electrical mains supply and to the
room humidity control system, if present
We also recommend checking that:
- the characteristics of the electrical supply are suita-
ble in relation to the power consumption data shown
in the following table, considering also any other ap-
pliances that are operating simultaneously.
- the power input voltage complies with the rated value
+/- 10%.
It is mandatory:
To t an all-pole delayed trip thermal-magnetic cut-out
and padlockable line disconnect in compliance with
CEIEN standards (contact gap of at least 3 mm); the
device must be installed in a position that is close to
the appliance.
Do not earth the appliance by connecting it to gas or
water pipes.
The manufacturer cannot be held liable for damage
caused by the lack of an efcient earth connection or
failure to comply with the indications of the electrical
circuit diagrams.
Model Power supply
(V/Ph/Hz)
Max. power
consumption
(W)
Max current
input
(W)
Delayed action
line
fuse (A)
Power input con-
ductor cross section
(mm2)
Earth
conductor cross
section (mm2)
VESTA 80 HI230/1/50 400 2.6 6 1.5 2
VESTA 80 FVD 230/1/50 400 2.6 6 1.5 2
Access the terminal board to make the connections.
VESTA 80 FVD VESTA 80 HI
terminal board
condensate drain
(with siphon)
water
outlet
water
inlet
terminal board
AERAULIC CONNECTIONS
VESTA 80 HIis prearranged for connection to
insulated ducts for air intake and delivery of treated
air into the room.
For connection:
- Position the duct on the opening as shown
- Secure the duct using screws that are suitable in
relation to the existing holes.
Sizingoftheductsmustbeentrustedtocompetent
and qualied technical personnel.
Check pressure drops of the duct, the grille and
the lter in relation to the performance curves of
the fan.
Interpose an antivibration coupling between duct
and unit.
Use a duct clad with anti-condensation material of
adequate thickness.
Lag coupling points with heat insulation material.
condensate discharge
water
outlet
water inlet
16

I
VESTA 80
- Make the connections as shown in the gure.
E NPH
IE
Dehumidifier
enable
Optional
thermostat
230V~50Hz
TE
RH%
Factory connections
Connections to be made by the installer
To switch off the dehumidier, irrespective of its current
operating status, use exclusively the Control panel.
After switching off the dehumidier:
– Set the remote switch to “Off” (if present)
– Switch off the terminal units by setting the switch on
each appliance to “Off”
– Set the main electrical breaker to “Off”
– Close the water shut-off cocks.
If the room temperature might fall below zero this
means there is a risk of freezing.
In this case the hydraulic circuit must be emptied,
or it must protected by adding antifreeze (such as
ethylene glycol) in the amounts recommended by
the antifreeze producer.
CHECKS DURING AND FOLLOWING COMMISSIONING
PROLONGED DISUSE OF THE APPLIANCE
– The unit is operating within the recommended
operating conditions (see Operating Limits table).
– There are no air pockets in the hydraulic circuit.
– The refrigerant compressor stops and subsequently
restarts.
When the unit is set in operation for the rst time, check
that:
– The compressor is not emitting anomalous noise.
– 10 minutes after rst start-up check that the air
temperature in the room is close to the temperature
of the treated air outlet. If it is not, adjust the ow rate
of water to the pre and post-treatment coils
– The compressor current input is below the maximum
rating shown in the Technical Data table.
17

I
Model VESTA 80 is equipped with a centrifugal fan
having six selectable speeds.
The rst three speeds can be set from the electrical
panel by connecting the wire from the fan corresponding
to the required speed (see the gure below). The
other three speeds can be obtained by changing the
connection wires in the motor autotransformer.
Before changing the fan speed DISCONNECT
THE MAINS SUPPLY to the appliance
•3 is Minimum speed, for plastic and metal fan is Red
•2 is Medium speed (default), for metal fan is Orange, for Metal fan is Blue
•1 is Maximum speed, for plastic and metal fan is Black
•4 is common , for plastic fan is Blu, for metal fan is White
FAN OUTLET 1
3
common
min med max
2
1
4
THREE-SPEED FAN
(FAN 1)
FAN2
CP
F N
FUSE10A(T)
LF FAN1
CP
IE
GND
B
A
+
DL01 DL02 DL03
TE
0
RE
0
PR
0
EI
ON
DL04
DL08
DL06
12 34
ESWSAS AUXPS
DL07
DL05
COM
OP
CL
AUX
SELECTING THE FAN SPEED
18
