AES Corporation 7705i User manual

40-7705I-UM Document Rev 6a March 1, 2018
AES 7705i
MultiNet Receiver System
User Manual
AES Corporation
285 Newbury Street. Peabody, Massachusetts 01960-1315 USA
Tel [phone]. Fax [phone]
Copyright 2006-2017, All rights Reserved

40-7705I-UM Page 2 Rev 6a March 1, 2018
NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING
JURISDICTION, AND OTHER INVOLVED PARTIES
This product incorporates field-programmable software. In order for the product to
comply with the requirements in the Standard for Control Units and Accessories for
Fire Alarm Systems, UL 864, certain programming features or options must be limited
to specific values or not used at all as indicated below.
Program Permitted in Possible
Feature or Option UL 864 (Y/N) settings Settings permitted in UL 864
Alarm Automation Y 0-90 As configured by UL1981
Heartbeat Signal Central-Station Automation
Frequency: Systems Requirements
Serial or IP
Data Type: Y Security, GPS, USDI, Security
Others in pull down menu
Old Alarm Delivery Y All, Subscriber controlled
Options Never All
Radio Packet Life Y 0-99 0 –No Time Out for Alarm, Trouble
or Restoral
Notes:
For Alarm Automation references throughout this manual,
Alarm Automation output must be connected to a
UL 1981 Listed Alarm Automation System
For UL Central Station Burglar Alarm applications,
Opening/Closing Signals shall be sent using an alternate communication
means that provides for premises acknowledgement (ring back)
This product shall be installed in accordance with NFPA 72,
NEC, UL 827 and all applicable local codes
For compliance with UL Central Station Burglar Alarm applications,
a workstation is required to be able to determine subscriber status.
The workstation shall be UL Listed ITE equipment.

40-7705I-UM Page 3 Rev 6a March 1, 2018
AES 7705i MultiNet Receiver
Table of Contents
1.0 Product Description:............................................................................................... 6
1.1 About AES IntelliNet: ........................................................................................... 6
1.2 MultiNet Receiver: ................................................................................................ 6
1.3 7170 IP-Link Transceivers:................................................................................... 7
2.0 Safety Considerations:............................................................................................ 9
3.0 Technical Specifications:........................................................................................ 9
3.1 Front Panel:.......................................................................................................... 10
3.2 Rear Panel:........................................................................................................... 12
4.0 Installation and Setup : ........................................................................................ 14
4.1 Software Installation: ........................................................................................... 15
5.0 System Startup and Access:................................................................................. 19
5.1 1st Time Notes:..................................................................................................... 19
5.2 Power up:............................................................................................................. 19
5.3 Power Down - Information:................................................................................. 20
5.4 Local Access and Login: - Initial Setup .............................................................. 20
5.5 Linux Command line:.......................................................................................... 21
5.6 Common Linux Commands: ............................................................................... 21
5.7 The GUI Desktop and the AES Menu:................................................................ 22
5.8 Start the Terminal Program:................................................................................ 23
5.9 Setting Time: ....................................................................................................... 24
5.10 Synchronizing Time: ........................................................................................... 24
5.11 Time Zone: .......................................................................................................... 24
5.12 Review your TCP/IP Configuration:................................................................... 25
5.13 Factory Default TCP/IP Settings......................................................................... 25
5.14 Suggested TCP/IP Settings for Second MultiNet Receiver................................. 26
5.15 A note on DHCP.................................................................................................. 26
5.16 Configure TCP/IP, Linux Network Configuration:............................................. 26
5.17 Testing TCP/IP Configuration:............................................................................ 29
5.18 User Logout from directly attached keyboard & monitor:.................................. 30
5.19 User Logout from Workstation Access:.............................................................. 30
6.0 Admin GUI for Configuration and Administration:......................................... 31

40-7705I-UM Page 4 Rev 6a March 1, 2018
6.1 Server Configuration ........................................................................................... 33
6.2 Define Business Units: (you must have at least one) .......................................... 34
6.3 Add a Business Unit –Alarm Automation Settings............................................ 37
6.4 Business Unit Overview...................................................................................... 42
6.5 Modify a Business Unit....................................................................................... 43
6.6 Subscriber Database Setup .................................................................................. 44
6.7 Alarm Data .......................................................................................................... 47
6.8 Close Your Browser When Finished With Admin GUI:..................................... 48
7.0 Workstation Access and Login:........................................................................... 49
7.1 Programs for Access Via a Workstation.............................................................. 49
7.2 Installing VNC Viewer:....................................................................................... 50
7.3 Using VNC Viewer: ............................................................................................ 51
7.4 After login: .......................................................................................................... 52
8.0 MultiNet Receiver Programs and Utilities:........................................................ 53
8.1 MultiNet Specific Programs:............................................................................... 53
8.2 MultiNet Utility Programs and Scripts:............................................................... 54
8.3 Special Purpose Circuits:..................................................................................... 56
8.4 AES Menu in the GUI Desktop:.......................................................................... 57
9.0 Managing Users: ................................................................................................... 58
9.1 Adding a user:...................................................................................................... 58
9.2 Retrieving user Display Number and Password:................................................. 58
9.3 Changing a user’s Password:............................................................................... 59
9.4 Change Admin GUI Access - Username and Password:..................................... 60
9.5 Deleting a User:................................................................................................... 60
9.6 Test new user login:............................................................................................. 61
10.0 Admin GUI Database Functions:..................................................................... 62
10.1 Subscriber Overview ........................................................................................... 62
10.2 Routing Table Screen: ......................................................................................... 63
10.3 IP-Link Status Screen:......................................................................................... 64
10.4 Get Signal History:.............................................................................................. 64
10.5 Close Your Browser When Finished With Admin GUI:..................................... 65
11.0 IPLinkCtrl (ipctrl) Network Management Software:.................................... 66
11.1 IPCtrl Function Groups: ...................................................................................... 67
11.2 Common data entry/selection menus and pop-ups:............................................. 67

40-7705I-UM Page 5 Rev 6a March 1, 2018
11.3 Using the pick list pop up to Select a Subscriber ID........................................... 68
11.4 Selecting a Route for Communication with a Subscriber Unit ........................... 68
11.5 The Message Function Group: ............................................................................ 69
11.6 Control Function Group....................................................................................... 71
11.7 Programming Function Group:............................................................................ 74
11.8 Data Radio Function Group:................................................................................ 86
11.9 System Function Group....................................................................................... 90
11.10Interpreting Screen Messages.............................................................................. 91
12.0 Operation............................................................................................................ 92
12.1 Manual Operation................................................................................................ 92
12.2 Automatic Operation ........................................................................................... 92
13.0 Warranty and Service Procedure:................................................................... 93
APPENDICES................................................................................................................. 94
Appendix A Common Linux Commands ..................................................................... 95
Appendix B Server-generated LCD Display Messages. .............................................. 96
Appendix C Software installation Instructions............................................................ 98
Appendix D Sharing the Serial Port with additional Business Units......................... 99
Appendix E Alarm Output Codes Produced by the MultiNet receiver................... 101
Appendix F Printer Messages Produced by the MultiNet receiver.......................... 111

40-7705I-UM Page 6 Rev 6a March 1, 2018
1.0 Product Description:
This document discusses the installation, configuration and use of the various
programs and hardware in the AES MultiNet Receiver uses. This Receiver is the
heart of the AES MultiNet system. All properly configured 7170 IP-Link
Transceivers (see section 1.4) will send their received AES●IntelliNet packets to
this Receiver via TCP/IP over a LAN, WAN, the Internet or if necessary and
equipped, via Modem (as backup), for distribution to the appropriate application
or external system.
1.1 About AES IntelliNet:
AES IntelliNet is a two-way data radio network for the monitoring of alarms or
transmission of specialized data packets. It is faster and more reliable than
telephone and cellular systems, which are subject to both tampering and general
failure. Phone lines may still be used for backup.
What makes the patented AES system unique are its “smart” radio
communicators, called subscriber units. Each subscriber unit is connected to an
alarm panel or specialized data port. Alarm information or data is transmitted by
radio to the central receiver or an “IP-Link Transceiver” (see section 1.4). If a
subscriber unit is too far away to reach the central station or an IP-Link
Transceiver directly, its message is relayed by another subscriber unit closer to or
in better communication with the central station or other closer units. This unique
built-in “repeater” capability creates a highly rugged, adaptive security network.
The system adjusts itself to forward messages by the shortest and best available
route. The “smart routing” capability is completely automated, with no special
programming needed. Also, by eliminating the need for dedicated repeaters and
towers, the AES system dramatically reduces the cost of setting up and operating
a wireless monitoring system.

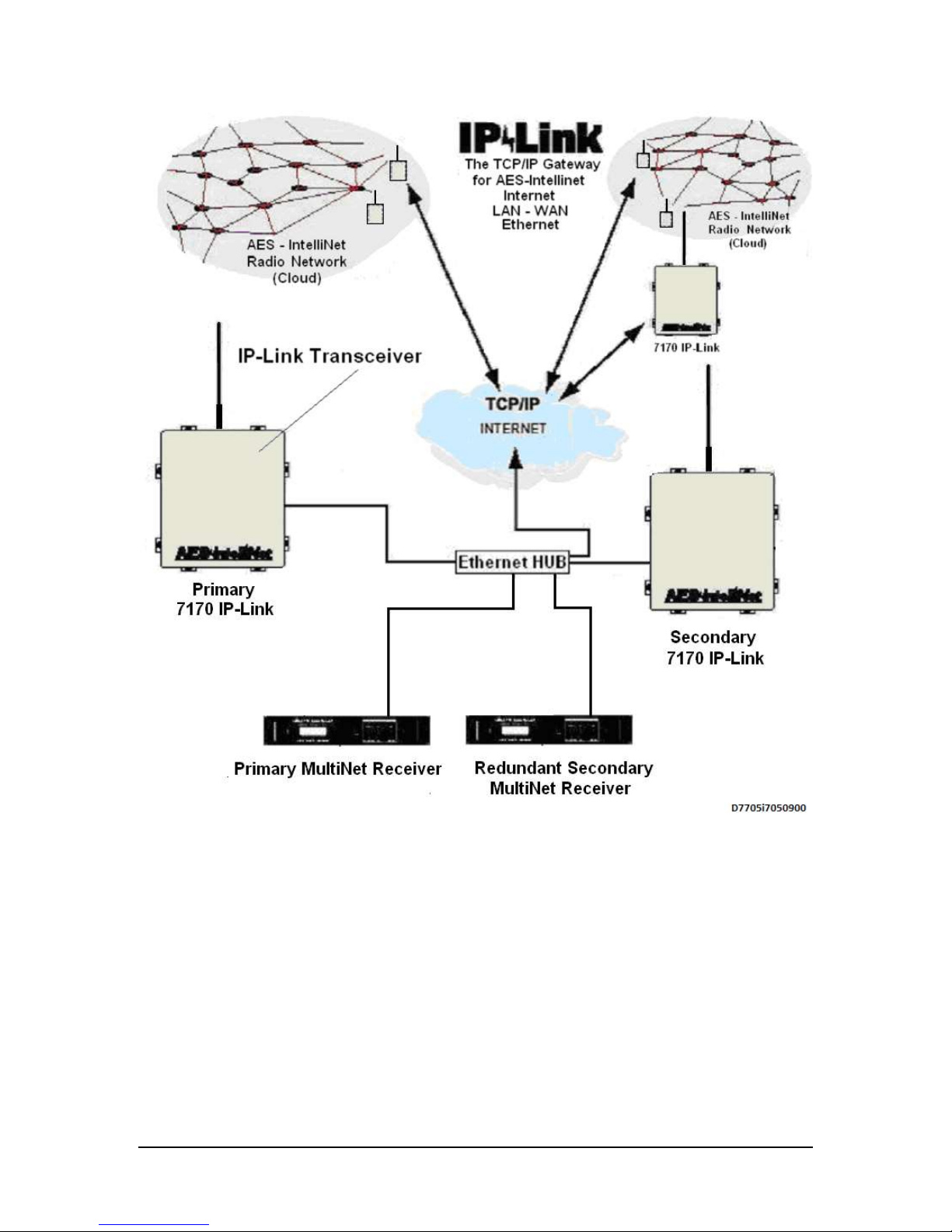

1.2 MultiNet Receiver:
The AES 7705i MultiNet Receiver with integrated PC, Linux operating system
and IP-Link programs is housed in a 19” rack mountable enclosure. This device
acts as the central receiver. It is a specialized Linux based server with specific
programs running that acquire data packets from one or more IP-Link
Transceiver(s). AES Linux server software reads subscriber data from these IP-
Link transceivers via a TCP/IP socket connection. The server programs
categorize the incoming data and forward it to customer systems for further
processing. An example of this activity is alarm processing, where the server
software identifies an alarm received by an IP-Link, sent by a Subscriber attached
to an alarm panel, processes it, then forwards an alarm message to a customer’s
alarm automation software.
The software installation consists of several AES programs that process the data
and a web-based GUI for server administration and subscriber configuration. The
AES programs rely on open system components, including the Apache web server
with php, and the MySQL database, to process the subscriber data.

40-7705I-UM Page 7 Rev 6a March 1, 2018
Other programs in the MultiNet receiver evaluate and distribute the data to an
appropriate application on this machine or another located on the LAN, WAN or
Internet. These other applications may re-distribute the data, store it in a database
for later retrieval, send it out a local RS232 serial COM port, send it out a printer
port or perform whatever function the application is designed. A single MultiNet
Receiver can have multiple IP-Link Transceivers installed locally or anywhere
connected by a TCP/IP connection. This capability allows the IntelliNet network
to be expanded virtually to any location desired that is serviced by the LAN,
WAN or Internet.
1.3 7170 IP-Link Transceivers:
These units communicate to the MultiNet Receiver via a direct Ethernet
connection, LAN, WAN or the Internet. Models have an integrated Modem to
communicate using a phone line if the TCP/IP connection is down. The IP-Link
acts much like a subscriber that re-transmits its received data packets via the
TCP/IP connection rather than via an RF transmission. This allows the IP-Link
Transceiver to be located outside of RF communication with a central station
receiver and the expansion of the IntelliNet system into previously unreachable
locations. They should be installed with the same care that a central station
receiver would as they are usually the primary path to the central receiver
location. Multiple IP-Link Transceivers can be installed in a single RF cloud to
act as backup or to provide multiple paths for subscribers in a geographical area.
Each IP-Link Transceiver can operate at the same frequency or at another.
Operating at other frequencies allows for an overcrowded region to get a new
clear frequency and still be able to be managed by the same receiver. It also
allows the expansion into other regions, states, countries or islands where
regulations may require operation at a different frequency than your other IP-Link
Transceivers. Document Conventions:
<Key> Characters between angled brackets refer to a specific key on the
keyboard.
Example <Enter> means to press the Enter Key.
{variable} Characters between these braces refer to a value that will vary
dependant on any number of circumstances or configurations.
Example: {username} means to replace {username} with the
appropriate user name.
Example 2: {IP Address} would require a valid IP address be
typed in place of the label.
[Screen Text] Square brackets have several uses. Occasionally refers to a
Graphical Button, usually selected by clicking on the screen
graphic.
Also used to indicate a selection available by choosing from an
available list.
May also be used to show actual characters displayed.

40-7705I-UM Page 8 Rev 6a March 1, 2018
Typical MultiNet System
It is highly recommended and required for UL systems that a redundant MultiNet
Receiver be operational at the head end and that any location of 7170 IP-Link
Transceivers have at least two for the purpose of redundancy.

40-7705I-UM Page 9 Rev 6a March 1, 2018
2.0 Safety Considerations:
All equipment must be installed in accordance with National Electric Code,
applicable UL Standards and local building codes. Unplug power before opening
enclosures to avoid electrical shock.
3.0 Technical Specifications:
The 7705i is in a standard 2U 19” rack enclosure configuration.
Operating voltage: 120 VAC, 60 Hz. +/- 10%
Operating current: 0.6 Amps
Operating Temperature Range: 13° to 35° +/-2 C
55° to 95° +/-3 F
Storage temperature Range: -10° to 60° C
4° to 140° F
Power Consumption: 200-Watts Maximum
Physical Dimensions: 19”Wide X 3.5” High (2U) X 12.24
(13.25 including rack handles)
Minimum Rack Depth: Approximately 16” to allow for
cables
and connectors.
Approximate Weight: 9 pounds
Encryption: AES 128 Bit

40-7705I-UM Page 10 Rev 6a March 1, 2018
Figure 3-2
3.1 Front Panel:
The front panel has the user display and controls. Figure 3-1 shows a view of the
front panel.
Tactile Response SounderLCD Display Power Button Status Panel Alert Panel
Figure 3-1
3.1.1 LCD Display: The LCD is a 4-line display with 20 characters per line. It
shows messages for the 7705i. Use this in conjunction with the Alert panel to
interpret and acknowledge messages. There is also a tactile response sounder to
provide audible confirmation of a successful button activation.
In most modes of operation, the top line will be constant and usually displays the
LCD firmware version number and
AES copyright. Example:
Other lines will be used to display messages generated by the server. Refer to
Appendix B for a detailed explanation of server-generated messages displayed on
the LCD.
3.1.2 Power Button is used to turn On/Off and Reset the computer motherboard
integral to the MultiNet Receiver. Push to start up a
downed unit. Press and hold for 10 seconds to perform
an emergency shutdown (Not recommended for non-
emergencies).
3.1.3 Status Panel: Contains LEDs that indicate fault
conditions as described below: See Figure 3-2.
When any of the Status LEDs are activated to reflect a
failure, the LED on the Alert panel will also be
activated, causing the Alert Sounder to activate.
Pressing SILENCE will momentarily silence the Alert
Sounder for 30 seconds until message is cleared.
Pressing ACKNOWLEDGE will clear the Alert LED.
The status LED will not be “cleared” until the failure
has been corrected.
Receiver: Red Led - Indicates a hardware or system fault in the server.
These faults will include Printer Offline and LCD display faults.
CPU: Red Led - Indicates that the CPU or internal processor has
performed a reset either manually initiated or automatically by the internal
watchdog circuit. Pressing the Acknowledge button turns off this LED.
Ethernet: Red Led - Indicates a fault condition with the Ethernet
connection as detected by a missing check-in from a 7170 IP-Link
Transceiver.
DATE:
TO:
FROM:
RE:
REV #.## (C) 2005-06 AES
Alert Sounder

40-7705I-UM Page 11 Rev 6a March 1, 2018
Figure 3-3
Automation: Red Led - Indicates that the Alarm Automation process is
unable to get Acknowledgements from a designated alarm monitoring
system.
RF Interference: Red Led - Indicates that an RF interference condition
exists and that signals may be hindered. RF interference is a condition
where the Carrier Detect (CD) in the transceiver is active for more than 20
seconds. This LED will turn off if CD turns off for 100 milliseconds.
Power: Green Led - Indicates that proper power is detected at the
monitored points within the 7705i.
3.1.4 Alert Panel: This section of the front panel contains an LED and two Push
Button Switches. The LED illuminates to indicate the existence of
unacknowledged message(s). The switches allow for Silencing and
Acknowledgment as described below: See Figure 3-3. There is also an audio
device associated with these functions, which is located behind the small hole to
the right of the Alert Panel.
A message queue exists within the MultiNet receiver to hold messages that are in
need of a user’s response. A user must acknowledge these messages manually
when alarm automation is offline and that automation system is not
acknowledging the reception of those messages using the configured
communication protocol.
Tactile Response Sounder:A short beep sound will be heard from the
tactile response sounder located near the LCD any time a button press in
this panel is accepted. There may be a short delay between the press and
the sounder’s beep.
Silence Button: Is used to silence the internal alert sounder.
If the Silence Button does not silence the Alert Sounder, it may be due to an
overheating condition. Other MultiNet Receiver functions may appear normal.
The unit must be shut down and the cause of the overheating condition must be
corrected before continued use. To shut down the unit, press the Power Button on
the front panel for 10 seconds or switch the power switch on the rear panel to the
Off position. Contact AES for service
Alert LED: Red Led - Indicates that a condition
exists that needs attention or that the CPU LED is on.
Refer to the Alert messages on the LCD display for
details.
Acknowledge Button: Is used to Acknowledge the
message that is currently displayed on the LCD
Display. This is a function that is only required when
automation is offline. Once acknowledged the current
message is removed and the next message (if any) in
the message queue is displayed.
When alarm automation is online, pressing this button
will turn an illuminated Alert LED off.

40-7705I-UM Page 12 Rev 6a March 1, 2018
3.2 Rear Panel:
The rear panel contains the connectors used to attach external connections,
peripherals such as the monitor, keyboard, mouse and power. The main power
switch is also located on the rear panel. The rear panel is divided into at four
sections as outlined below. Figure 3-4 shows a view of the rear panel.
Figure 3-4
3.2.1 Power Section: Contains the power input connector and power supply
On/Off switch as described below: Also contains the Power Supply fan.
Power input connector: Plug the female end of the supplied AC power
cord into this connector and the male end of the power cord into a
120 VAC, 60 Hz receptacle supervised by a UL Listed 864 UPS or a UL
1481 power supply.
Do not connect to a receptacle controlled by a switch.
Power On/Off switch: This switch controls the internal power supply.
When in the off ( O ) position power supply output is interrupted. When
in the On (|) power is provided to the internal electronics including the
motherboard.
Power Supply Fan: This fan must be kept clear of obstructions to permit
unobstructed flow of air.
3.2.2 Modem Section: Contains a single telephone jack connector:
Phone line/Modem Jack: Plug a telephone cord into this connector with
the other end plugged into an active telephone Jack. This is used to
provide a backup Modem connection for IP-Link Transceivers that cannot
communicate via the Internet or TCP/IP.
When connecting the 7705i MultiNet Receiver’s modem to a telephone line, use only 26
AWG or larger wire. A UL Listed 497A Secondary Protector is required to be installed
on the incoming lines. Installation shall be in accordance with the NEC Article 800, the
manufactures installation instructions and in accordance with all local codes.
Power Section Modem Single Board Computer Connection Section Printer Port

40-7705I-UM Page 13 Rev 6a March 1, 2018
3.2.3 Single Board Computer Connector Section: Contains connectors for computer
peripherals.
Serial Port 1 / (COM 1) Upper: [/dev/ttyS1] Typically used to connect to
alarm monitoring system for signals communicated via RS-232.
See Appendix E for a list of Alarm messages generated.
Serial Port 2 /(COM 2) Lower: Unavailable. Not Used.
Monitor, CRT (J8): Plug the video monitor into this Jack. 
Ethernet Port 1 (J10) [eth0]: Can be used for a dedicated crossover
Ethernet cable connection to a 7170 IP-Link transceiver using no
additional network hardware or as a connection to an Ethernet Hub/Switch
using a standard straight through Ethernet cable.
Pre-configured factory default to static IP address 192.168.0.101.
Ethernet Port 2 (J11) [eth1]: This Port is not used.
USB ports 0 & 1 (0 is Lower): Not Used
PS/2 Keyboard/Mouse port (J16): Use supplied Y-cable to connect a
PS/2 keyboard and a mouse. These devices are used during configuration.
Once configured access to the MultiNet Receiver is done through a
network workstation.
Reset Switch: Press and hold for 2 seconds to perform a hard reset. Do
this only in the event of a lockup condition when proper shut down
procedure cannot be accomplished.
3.2.4 Printer Port Section: Contains a single printer connector:
Printer Port: Plug the Db-25 male end of the printer cable connected to a
supported parallel printer. Attach only a printer Listed by UL for
“Signaling use” under UL 864, such as an AES 75-0101.
See Appendix F for a listing of generated messages.
Note: These are to be used for initial setup only and are not to remain
connected.

40-7705I-UM Page 14 Rev 6a March 1, 2018
4.0 Installation and Setup :
A separate “Initial Installation and Setup Guide” is provided to
guide you through the initial installation and setup.
A standalone Receiver requires a monitor, keyboard and mouse for user interface.
See Figure 4-1. The standalone configuration is not recommended by AES
Corporation for anything other than initial setup and preliminary testing of the
system. Once properly configured and connected to a LAN, a network
workstation is used to access and configure the receiver remotely. See Figure 4-2
and Figure 4-3.
A printer is also required for printing any output directed to the printer port.
Refer to Appendix F for a listing of printed messages. Ethernet port(s) are
integrated into the PC, and are used to connect to the IP-Link Transceiver(s) and
external applications on remote servers or systems via direct connection, LAN,
WAN or the Internet.
A system, while it may not have a keyboard, video monitor or mouse
connected during normal operation, will require these peripherals connected
directly for initial setup until remote access is accomplished. They may also
be needed later for occasional configuration modifications.
The 7705i, monitor and any network related equipment shall be connected to a
suitable UL-UPS to maintain power during power outages.
In a Dual system, each 7705i and the 7170 IP-Link Transceiver shipped, is
configured exactly the same. At least one set must be modified to operate the two
pairs together in the same TCP/IP network. Each device in the system must have
unique TCP/IP addresses. Each 7170 must have a unique Unit ID for the
IntelliNet Network it will operate in.
Figures 4-1, 4-2 & 4-3 on next pages illustrate some typical system installations.
The illustration on page 8 also illustrates a typical system.

40-7705I-UM Page 15 Rev 6a March 1, 2018
Notes:
Power Line, router/ switch, and telephone connections shall not leave the
room where the AES equipment is installed. This must be accomplished
by co-locating outlets and interfacing equipment in the room where AES
equipment resides.
7705i must be installed in a UL Listed metal rack-mounting cabinet that
complies with UL864. The cabinet must be provided with integral outlets
and the ability to connect AC input via conduit. All wiring exiting the
cabinet must be in electrical conduit. Be sure non-power limited and
power limited wiring are separated by at least 1/4 inch.
All equipment shall be connected to a UL Listed UPS (UL 864) or UL
1481 power supply. In addition, the central station shall have a generator
to maintain power for the receiving equipment and environmental
controls for a period up to 24 hours or longer.
A UL Listed UPS or generator to supply 24 hours of standby must be
installed and utilized at the monitoring station. If the primary power
source at the monitoring station is lost or otherwise faulted, this condition
must be obvious to the operator on duty.
Equipment Location: A UL 7705i MultiNet Receiver must be
installed in a room where operators can properly hear the Audio Alert
Sounder.
When connecting the 7705i MultiNet Receiver’s modem to a telephone
line, a UL Listed 497A Secondary Protector is required to be installed on
the incoming lines. Installation shall be in accordance with the NEC
Article 800, the manufactures installation instructions and in accordance
with all local codes.
When connecting the 7705i MultiNet Receiver’s Ethernet ports to a
network, a UL Listed 497B Secondary Protector is required to be
installed on the Ethernet cable. Installation shall be in accordance with
the NEC Article 800, the manufactures installation instructions and in
accordance with all local codes.
4.1 Software Installation:
All necessary software is pre-installed on your 7705i.
If your system has a catastrophic failure it may require the reinstallation of the
Linux operating system and the specialized IP-Link software programs. BIOS
settings should also be checked to confirm that the unit would initialize and
operate properly. Routine backing up of the databases to another storage device
would be essential in any successful reinstallation or recovery process.
Contact AES Technical Support if you need assistance with software installation
or BIOS settings.

40-7705I-UM Page 16 Rev 6a March 1, 2018
Single MultiNet Receiver Connections to a 7170 for Initial Setup
Y Cable
Figure 4-1
Customer Provided
Ethernet Router
Optional
Internet
Connection
Customer
Provided
TELCO Line
16.5 Volt AC
Transformer
Local
Intended for initial Setup and testing ONLY
Alarm Monitoring
See Appendix Efor messages
AC Power
This configuration is used for initial
setup only! Monitor, Keyboard and
Mouse not to be left connected
during normal operation.
Customer provided
peripherals, or
purchased separately
from AES.
Monitor
Keyboard
Mouse
Default IP Address Port 1 = 192.168.0.101
Default IP Address Port 2 = 10.0.1.221
Default IP Address = 192.168.0.11
See Appendix F for
printed messages

40-7705I-UM Page 17 Rev 6a March 1, 2018
2nd 7705i Receiver as shown
below. For redundancy.
Dual MultiNet Receiver Connections to Local 7170 IP Links thru a LAN
Optional
Internet
connection
Customer Provided
TELCO Line
16.5 Volt AC
Transformer
Local
Figure 4-2
Alarm Monitoring
See Appendix Efor messages
.Not investigated by UL
UL AC Power
Surge Strip
Customer provided
Workstation
2nd Local 7170
as shown above.
7705i
MultiNet Receiver
Customer Provided
UL Ethernet Hub
Suggested Address = 192.168.0.22
Default IP Address = 192.168.0.11
Suggested IP Address = 192.168.0.102
See Appendix F for
printed messages
Default IP Address Port 1 = 192.168.0.101
Default IP Address Port 2 = 10.0.1.221
UL UPS
NFPA 72 Type 6
AES Part Number
52-0054
EMR Corp
Model 65610
C/S Generator
UL 497B Surge
Protector 
SINGLE POINT GROUND TO 7705i
UL 497A Surge
Protector 
UL 497B Surge
Protector
UL 497B Surge
Protector
UL 497B Surge
Protector

40-7705I-UM Page 18 Rev 6a March 1, 2018
2nd 7705i Receiver as shown
below. For redundancy.
Dual MultiNet Receiver Connections to Remote 7170 IP-Links thru Internet
Internet
Customer Provided
UL Ethernet Hub
16.5 Volt AC
Transformer
Remote
Figure 4-3
Alarm Monitoring
See Appendix Efor messages.
Not investigated by UL
UL AC Power
Surge Strip
Customer provided
Workstation
7705i
MultiNet Receiver
Customer Provided
UL Ethernet Hub
Default IP Address
192.168.0.11
Consult with IT Dept.
Acquire IP Addresses
from IT Dept.
Acquire IP Address from IT Dept.
See Appendix F for
printed messages
Default IP Address Port 1 = 192.168.0.101
Default IP Address Port 2 = 10.0.1.221
Acquire final IP Addresses from IT Dept.
C/S Generator
2nd Remote 7170
Off Site Remote Location
Head End - Location of 7705i MultiNet Receivers
UL UPS
UL 497B Surge
Protector 
SINGLE POINT
GROUND TO 7705i
Customer Provided
TELCO Line
UL 497A Surge
Protector 
UL 497B Surge
Protector
UL 497B Surge
Protector
UL 497B Surge
Protector

40-7705I-UM Page 19 Rev 6a March 1, 2018
5.0 System Startup and Access:
AES ships the 7705i MultiNet Receiver with the Linux operating system and IP-
Link programs pre-installed and with basic configuration already complete to
operate as shown in Figure 4-1. Each installation will have site-specific
parameters that would typically be changed or entered during initial installation
and setup.
Refer to separate guide for assistance with initial setup.
Familiarity with the Linux operating system will be necessary to run programs
that operate, control and configure your IP-Link system. Refer to Appendix A for
a list of some common Linux commands you might use in this process.
5.1 1st Time Notes:
The first time that the MultiNet Receiver is powered up, it will require some
configuration specific to the unique installation environment in which it is to be
used. A directly attached keyboard, monitor and mouse will be needed to perform
this configuration. Refer to separate Initial Installation and Setup Guide. Do not
connect the Ethernet ports to an active network until you are confident the TCP/IP
settings are appropriate for the target network.
5.2 Power up:
If this is a standalone system, or if you are still configured for initial setup as
shown on Figure 4-1 with an attached keyboard, monitor and mouse, turn on
power of the attached video monitor.
Switch the power of the 7705i to the on position. The main switch for the power
supply is on the back panel. This must be switched to on first. Then if the startup
process does not automatically begin, push the Power push button Switch on the
front panel to initiate the startup process.
Once the startup process has begun, the 7705i MultiNet Receiver will initialize,
going through its normal boot sequence executing the programs defined in the
configuration files. Password protected remote access through VNC is factory
configured. Web access to the Admin GUI, which is an html-based interface,
should be available after a proper startup, assuming the network settings are
properly configured for the receiver’s attached network.
Section of Rear Panel of Receiver Section of Front Panel of Receiver

40-7705I-UM Page 20 Rev 6a March 1, 2018
5.3 Power Down - Information:
The power to the 7705i should not just be removed without going through the
proper shut down procedure.
DO NOT REMOVE POWER OR TURN OFF POWER of the 7705i
MultiNet Receiver WITHOUT USING THE PROPER SHUT DOWN
PROCEDURE!
This receiver is a Linux server and improper shut down could damage files and
prevent operation. There are several ways to shut down a Linux server. Linux
provides a command named “shutdown ” to perform this function.
● To shut down a MultiNet receiver, enter the following command from a
command line prompt:
shutdown –h now<Enter> Or
● To shut down a MultiNet receiver from the GUI, right click on the desktop and
select “Shutdown Server!”
5.4 Local Access and Login: - Initial Setup
Local access means to operate the MultiNet Receiver using a keyboard, monitor
and mouse that are connected directly to the back of the Receiver. Login is
required to operate the Receiver in this manner.
After a successful power-up, you should be presented with the login prompt “aes
login:” You may have to press <Enter> after the boot up process to get the actual
login prompt. Note the lines at the top of the display in Figure 5-1. They are
typically the last lines seen before the login prompt on the display for a normal
boot up. Press <Enter> after these lines are displayed if the “aes login” is not
displayed. For Super user Administrator functions you need to login as root
using the current password. The factory default password for user root is
peabody2.
At the “aes login” prompt, type
root<Enter> then
peabody2<Enter>.
Note: After initial setup, if the password has been changed, as it should be,
use the current password for user root to login to perform setup and
configuration functions.
○Be sure to log out when finished. See “User Logout”
○The user root is the most powerful Super user in a Linux server.
Do not leave the system unattended when logged in as root!
○User root should only be used to perform administrative functions!
○To prevent unauthorized access –change default passwords as
described in “Managing Users”, section 9.
When the startup and login process is complete, you should be presented with the
command prompt “[root@aes root]#”. See Figure 5-1 below. Enter key may need
to be pressed before the prompt is actually displayed.
