ATZ HDMI-V2-44HE150 User manual

pg. 1
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150

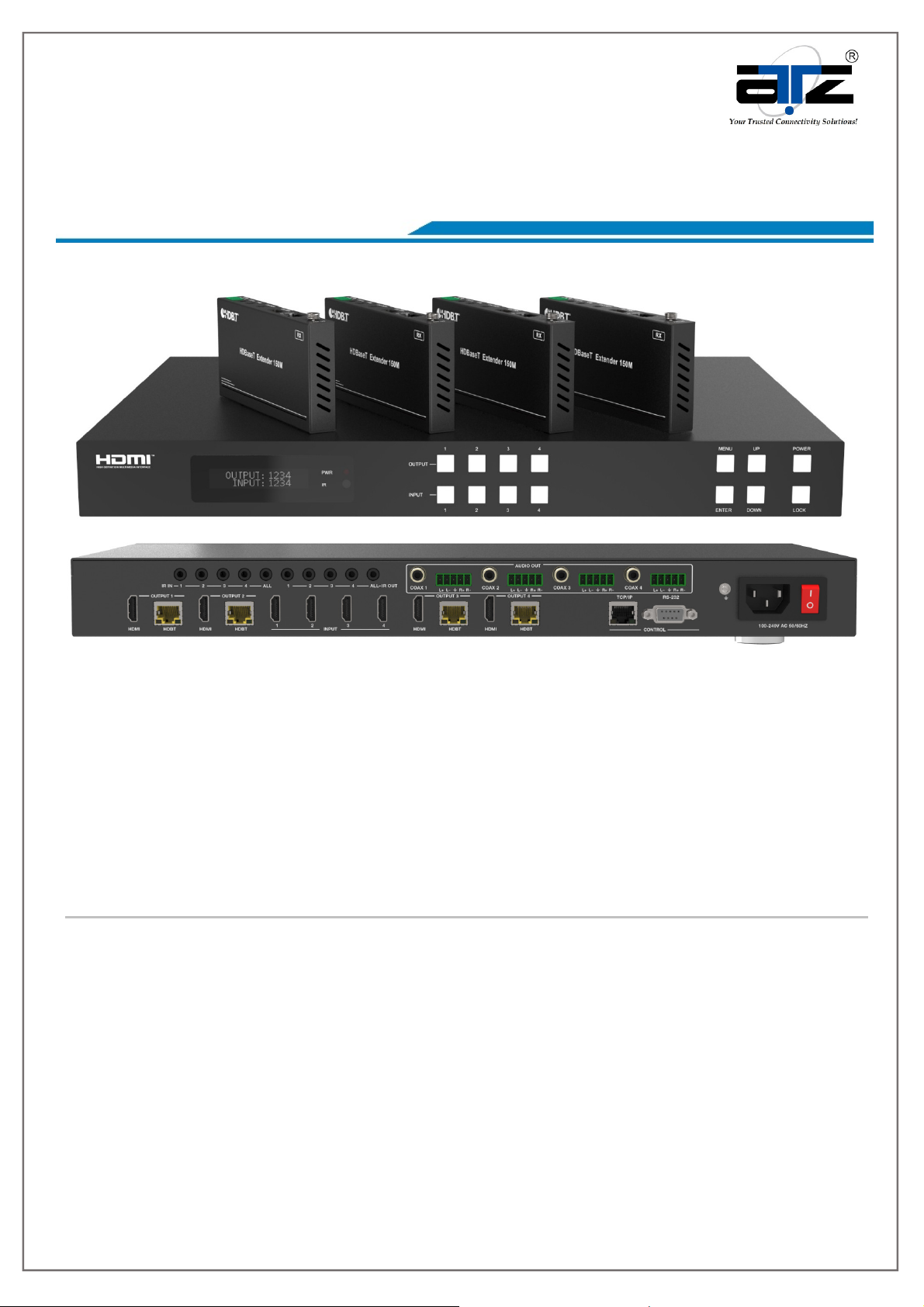

Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
The 18Gbps 4x4 HDBaseT (150M) Matrix can connect four HDMI sources to eight displays. It
features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output
which runs simultaneously. HDBaseT output can extend video transmission distance up to
492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4. Audio
de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to
1080P downscaler independently.
The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR
signal follows HDMI video channel at the HDBaseT Receiver end.
The product provides an intuitive set of front panel with OLED screen and supports control via
front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Features:
•HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
•Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
•4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
•HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
•Support 18Gbps lossless compressed HDBaseT signal transmission
•Support 4K->1080P Down Scaler for each output port
•HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
•HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P
or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
•HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)

pg. 2
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
•Support IR matrix
•Audio de-embedded is supported via analog and coax ports
•Advanced EDID management and CEC control are supported
•24V POC on all HDBaseT ports
•1U rack mounted design with front panel OLED display
•Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Specifications:
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@50/60Hz (4:4:4)
Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit
(4K2K@60Hz YUV4:4:4)
8-bit，10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
HDR HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital
Plus(DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced
Audio Formats PCM2.0CH
Vmax 2Vrms
SNR ＞90dB
THD+N Ratio ＜0.1%（V_max）0.001%~0.01%（V_best）
Crosstalk ＞80dB
Frequency Response 20Hz~20kHz ±0.5dB
ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection

pg. 3
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
Matrix
Inputs : 4 x HDMI Type A [19-pin female]
Outputs: 4 x HDMI Type A [19-pin female]
4 x HDBaseT port [RJ45]
4 x Coaxial audio [3.5mm Stereo Mini jack]
4 x balanced analog audio [5-pin Phoenix
conn]
Controls: 5 x IR IN [3.5mm Stereo Mini-jack]
4 x IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45]
1 x RS-232 [D-Sub 9]
HDBaseT Receiver
Input : 1 x HDBT IN [RJ45, 8-pin female]
Outputs : 1 x HDMI Type A [19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Controls :1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3-pin Phoenix connector] 1 x SERVICE
[Mini-
USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Matrix: 440mm (W) × 200mm (D) × 44.5mm (H) Receiver:
140mm (W) x 65mm (W) x 18mm (W)
Weight Matrix: 3.1Kg, Receiver: 155g
Power Supply AC 100 - 240V 50/60Hz
Power Consumption 60W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Distance 4K60 - Feet / Meters
CAT5e/6/7 492ft / 150M
Resolution / Cable
length
4K60 -
Feet / Meters
4K30 -
Feet / Meters
1080P60 -
Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.

pg. 4
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
Operation Controls and Functions
Matrix Panel
Front Panel:
NO. Name Function Description
1OLED screen Display matrix switching status, input / output port, EDID,
Baud rate, IP Address.
2Power LED The LED will illuminate in green when the product is working normally,
and red when the product is on standby.
3OUTPUT /
INPUT buttons
You need to press an output button (1~4) firstly and then
press an input button (1~4) to select the corresponding input
source for the output port.
4
MENU /
ENTER
/ UP /DOWN
①
EDID setting: On the initial OLED display screen, press
“MENU” button to enter “Select EDID” interface, press
“UP/DOWN” button to select the required EDID, and press the
“ENTER” button to enter “Copy to Input:” interface. Then press
“UP/DOWN” button to select the input port you need to set, and
press “ENTER” button again to confirm.
② Baud rate setting: On the initial OLED display screen, press
“MENU” button twice to enter “SELECT BAUD” interface,
and press “UP/DOWN” button to select the required Baud rate,
finally press the “ENTER” button to confirm the setting.
③ IP Address Check: On the initial OLED display screen,
press “MENU” button three times to enter the IP interface
and check the current IP address, then press “UP/DOWN” button
to switch DHCP ON/OFF, finally press the “ENTER” button to
confirm the setting.
Pressing the “MENU” button again will return to the initial OLED

pg. 5
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
display status.
5POWER button Press and hold the POWER button for 3 seconds to enter the
standby mode, then press the button again to wake up the device.
6IR Window IR receiver window, it only receives the IR remote signal from this
product.
7LOCK button Press the LOCK button to lock front panel buttons (Except the power
button); Press the button again to unlock.
Rear Panel:
No. Name Function Description
1IR IN (1/2/3/4/
ALL) ports
Connect to IR receiver cable, the IR receive signal will emit
to the “IR
OUT” port of the HDBaseT Receiver.
2IR OUT (1/2/3/4/
ALL) ports
Connect to IR blaster cable, the IR emit signal is from the “IR IN”
port of the HDBaseT Receiver.
3
AUDIO OUT
(1-4) ports
4 groups of coaxial and balanced analog audio mirrored output
ports. AUDIO OUT (1-4) follows the video output of OUTPUT (1-4)
ports.
4GND Connect the housing to the ground.
5 POWER input
Power port : Connect to 100~240V AC 50/60Hz power cable.
Power switch: Press the switch to turn on/off the power.
6
OUTPUT (1-4)
ports
HDMI output ports, connect to HDMI display device such as TV or
monitor with an HDMI cable.
HDBT mirrored output ports, connect to HDBaseT Receiver via
CAT cable.
7INPUT (1-4)
ports
HDMI input ports , connect to HDMI source device such as DVD or
PS4 with an HDMI cable.
CONTROL TCP/IP: The link port for TCP/IP control. Connect to an active

pg.
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
8ports Ethernet link with an RJ45 cable.
RS-232: Command control port. Connect to a PC or control system
with a D-Sub 9-pin cable to control the Matrix.
HDBaseT Receiver Panel
No. Name Function Description
1Power LED Red LED will be on when the receiver is powered on.
2SERVICE port Firmware update port.
3DC 24V
DC 24V/1A power supply input port.
Note: The Matrix supports POC function, it means that either
transmitter or receiver is powered on by 24V/1A power adapter, the
other one doesn’t need power supply.
4HDBT IN RJ45 connector for connecting the HDBT OUTPUT port of Matrix
with a CAT cable.

pg. 7
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
5
Connection
Signal
Indicator lamp
▪ Illuminating: Matrix and Receiver are in good connection status.
▪ Flashing: Matrix and Receiver are in poor connection status.
▪ Dark: Matrix and Receiver are not connected.
6
Data Signal
Indicator
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
7HDMI OUT HDMI output port, connect to HDMI display device such as TV
or monitor with HDMI cable.
8AUDIO OUT Analog audio output port. The audio is extracted from HDMI signal.
9 IR IN Connect to IR receiver cable, the IR receive signal will emit to the
“IR OUT” port of the Matrix .
10 IR OUT Connect to IR blaster cable, the IR emit signal is from the
“IR IN” port
of the Matrix.
11 RS-232
Connect to a PC or control system with a 3-pin phoenix connector
cable to transmit command between the Matrix and HDBaseT
Receiver.

pg. 8
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
IR Remote
IR Control System
The product is not only a matrix switch but also an extender. It supports bi-directional IR control.
When Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, you can control remote
display device (HDBaseT) or input source device (Matrix) through IR signal transmission. But you
must note that the IR signal transmission method is different from the method from Matrix (local) to
HDBaseT Receiver (remote) and from HDBaseT Receiver (remote) to Matrix (local).
At the Matrix end (Local end): the IR signal is one-to-one transmission. For example, the IR
IN 1 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 1, and the
IR IN 3 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 3. It doesn’t
follow the video switch to change. IR IN ALL port signal of the Matrix will emit to all IR OUT ports of
HDBaseT receivers simultaneously. Please see the following connection diagram.
①
①①
①
Power on or Standby: Power on the
Matrix or set it to standby mode.
②
②②
②Output 1: Press 1\2\3\4 button to select
input source to HDMI OUTPUT 1.
③
③③
③Output 2: Press 1\2\3\4 button to select
input source to HDMI OUTPUT 2.
④
④④
④Output 3: Press 1\2\3\4 button to select
input source to HDMI OUTPUT 3.
⑤
⑤⑤
⑤Output 4: Press 1\2\3\4 button to select
input source to HDMI OUTPUT 4.
: Select the last or next input source
button.

pg. 9
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4

pg. 10
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
At HDBaseT receiver (Remote end): IR signal follows video switch to change. For example,
the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so IR
input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 port of the Matrix. The HDMI
output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port. Then, IR input
signal of the HDBaseT Receiver 3 will emit to IR OUT 4 port of the Matrix etc. Any of
HDBaseT Receiver’s IR IN signal can output from IR OUT ALL port of the Matrix and the
IR OUT ALL signal of the Matrix depends on your IR remote of source device. Please see the
following connection diagram.

pg. 11
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
IR Cable Pin Assignment
EDID Management
This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID
modes. You can select defined EDID mode or copy EDID mode to input port through on-panel
button, RS-232 control or Web GUI.
On-panel button operation: On the initial OLED display screen, press “MENU” button to enter
the EDID setting interface, press “UP/DOWN” button to select the required EDID, and press the
“ENTER” button to enter “Copy to Input:” interface. Then press “UP/DOWN” button to select the
input port you need to set, and press “ENTER” button again to confirm this operation.
RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial
Command tool on PC to send ASCII command “s edid in x from z!” to set EDID. For details,
please refer to “EDID Setting” in the ASCII command list of “11. RS-232 Control Command”.
Web GUI Operation: Please check the EDID management in the “Input page” of Web GUI
User Guide”.

pg. 12
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
The defined EDID setting list of the product is shown as below:
EDID Mode EDID Description
11080p, Stereo Audio 2.0
21080p, Dolby/DTS 5.1
31080p, HD Audio 7.1
41080i, Stereo Audio 2.0
51080i, Dolby/DTS 5.1
61080i, HD Audio 7.1
73D, Stereo Audio 2.0
83D, Dolby/DTS 5.1
93D, HD Audio 7.1
10 4K2K30_444, Stereo Audio 2.0
11 4K2K30_444, Dolby/DTS 5.1
12 4K2K30_444, HD Audio 7.1
13 4K2K60_420, Stereo Audio 2.0
14 4K2K60_420, Dolby/DTS 5.1
15 4K2K60_420, HD Audio 7.1
16 4K2K60_444, Stereo Audio 2.0
17 4K2K60_444, Dolby/DTS 5.1
18 4K2K60_444, HD Audio 7.1
19 4K2K60, Stereo Audio 2.0 HDR
20 4K2K60, Dolby/DTS 5.1 HDR
21 4K2K60, HD Audio 7.1HDR

pg. 13
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
22 User define1
23 User define2
24~27 Copy from HDMI OUTPUT 1~4
28~31 Copy from HDBT OUTPUT 1~4
Package Includes:
•1 x 18Gbps 4x4 HDBaseT(150M) Matrix
•4 x HDBaseT Receiver
•1 x Matrix IR Remote
•1 x 100~240V AC 50/60Hz Power cable
•1 x RS-232 serial cable (1.5 meters, male to female head)
•4 x 3-pin Phoenix Connector & 4 x 5-pin Phoenix Connector
•5 x IR Blaster cable (1.5 meters)
•5 x IR Receiver cable (1.5 meters)
•10 x Mounting Ear (Matrix and Receiver)
•1x User Manual

pg. 14
Notes : - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered
from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Model : ATZ HDMI-V2-44HE150
Description: 4x4 Matrix Switch over HDBaseT™ w/8x HDBaseT Receiver Box
150m 18Gbps 4K2K@60Hz 4:4:4
Product Diagram:
Warranty: 2 Years
Warranty is effective from the date of original delivery.
This warranty shall be void if a serial number has been removed from the product.
