AES IntelliPro Fire 7794 User manual

AES 7794
IntelliPro Fire
Installation Manual
AES Corporation
285 Newbury Street
Peabody, MA 01960-1315 USA
Tel [phone] •Fax [phone]
www.aes-intellinet.com
Copyright 2014 All Rights Reserved
P/N 40-7794
Rev 5
Jun 9, 2015
;sdkpfo pijfpfpodkspfosd

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 2 40-7794, Rev 5, 6/9/2015
THIS PAGE INTENTIONALLY LEFT BLANK

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 3 40-7794, Rev 5, 6/9/2015
TABLE OF CONTENTS
1Summary.................................................................................................................... 6
1.1 Basic Functions.................................................................................................. 6
1.2 User Interface.................................................................................................... 6
1.3 System Requirements ....................................................................................... 6
1.3.1 Fire Alarm Control Panel Telco Interface Requirements ............................... 6
1.4 Safety Considerations....................................................................................... 7
1.5 Technical Specifications ................................................................................... 7
2Installation of 7794 in subscriber unit .................................................................... 8
3Primary Communication Interface......................................................................... 9
3.1 Connector and LED Locations........................................................................ 9
3.2 Connecting 7794 to Alarm Panel –Primary Communication Interface ... 10
3.3 Connection Details –Primary Communication Interface........................... 11
4Supplemental Communication Interface.............................................................. 13
4.1 Connector and LED Locations...................................................................... 13
4.2 7794 to Alarm Panel - US Installation - Supplemental Communication
Interface....................................................................................................................... 14
4.2.1 Connection Details –7794 to Alarm Panel - US Installation........................ 15
4.3 Connect 7794 to Alarm Panel –Canada/Dual Dialer Installation -
Supplemental Communication Interface.................................................................. 16
4.3.1 Connection Details –7794 to Alarm Panel –Canada Installation................ 17
5Configure 7794........................................................................................................ 17
5.1 Connecting the Handheld Programmer........................................................ 17
5.2 Determine Firmware Version........................................................................ 17
5.3 Configuration Interface.................................................................................. 18
5.4 Entering Configuration Mode ...................................................................... 18
5.5 Changing option settings................................................................................ 18
5.6 For Configuration Options –Primary Communication ............................. 18
5.6.1 Phone Line .................................................................................................... 19
5.6.2 Intercept number........................................................................................... 19
5.6.3 Alarm Panel report format............................................................................ 19
5.6.3.1 CID Alarm Format................................................................................ 20
5.6.3.2 Modem Alarm format........................................................................... 20
5.6.3.2.1 Modem 2 format –unknown panel type family assignment........... 20
5.6.3.3 Pulse Alarm format............................................................................... 20
5.6.4 AP Input gain................................................................................................ 21
5.6.5 Intercept on blind dial................................................................................... 21
5.6.6 Line Cut Report............................................................................................. 21
5.6.7 POTS cut report delay................................................................................... 22
5.6.8 POTS restoral delay...................................................................................... 22
5.6.9 AP ACCT Override....................................................................................... 22
5.6.10 POTS Input Gain....................................................................................... 22
5.6.11 Advanced Options Display....................................................................... 22
5.6.12 AP Output Gain......................................................................................... 23
5.6.13 Reset to defaults........................................................................................ 23
5.6.14 Line-cut sensing Enabled.......................................................................... 23

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 4 40-7794, Rev 5, 6/9/2015
5.6.15 CID 4xx Letter.......................................................................................... 23
5.6.16 M3 EC TEXT to CID Enabled.................................................................. 24
5.6.17 Voltage Pump Enabled ............................................................................. 24
5.6.18 Clock FShift Enabled................................................................................ 24
5.7 Configuration options –Supplemental Communication............................. 24
5.7.1 Phone Line .................................................................................................... 25
5.7.2 Intercept number........................................................................................... 25
5.7.3 Alarm Panel report format............................................................................ 25
5.7.3.1 CID Alarm Format................................................................................ 26
5.7.3.2 Modem Alarm format........................................................................... 26
5.7.3.2.1 Modem 2 format –unknown panel type family assignment........... 26
5.7.3.3 Pulse Alarm format............................................................................... 26
5.7.4 AP Input gain................................................................................................ 27
5.7.5 Intercept on blind dial................................................................................... 27
5.7.6 Line Cut Report............................................................................................. 27
5.7.7 POTS cut report delay................................................................................... 28
5.7.8 POTS restoral delay...................................................................................... 28
5.7.9 AP ACCT Override....................................................................................... 28
5.7.10 POTS Input Gain....................................................................................... 28
5.7.11 Advanced Options Display....................................................................... 28
5.7.12 AP Output Gain......................................................................................... 29
5.7.13 Reset to defaults........................................................................................ 29
5.7.14 Line-cut sensing Enabled.......................................................................... 29
5.7.15 CID 4xx Letter.......................................................................................... 29
5.7.16 M3 EC TEXT to CID Enabled.................................................................. 29
5.7.17 Voltage Pump Enabled ............................................................................. 30
5.7.18 Clock FShift Enabled................................................................................ 30
6Status LED Blink Patterns..................................................................................... 30
7Format: Contact ID ................................................................................................ 31
8Format: Bosch/Radionics Modem 2 and Modem 3 ............................................. 31
8.1 Modem Format and Speed (Baud Rate) Settings for Modem Format ...... 31
8.2 Modem 2 format –unknown panel type family assignment....................... 31
8.2.1 How do I know that I have an “unknown” panel type? ................................ 31
8.2.2 How do I associate a family with an unknown type? .................................. 31
8.3 Bosch/Radionics panels supported................................................................ 32
9Format: Pulse.......................................................................................................... 32
9.1 Pulse format settings....................................................................................... 32
9.2 Settings for non-supported formats .............................................................. 33
9.3 Notes on pulse formats.................................................................................... 33
9.3.1 Number of digits on Pulse format................................................................. 33
9.3.2 Double round ................................................................................................ 34
9.3.3 Translation of 3+1 and 4+1 to 4+2 ............................................................... 34
9.3.4 Expanded format........................................................................................... 34
10 Testing...................................................................................................................... 34
10.1 Installation Checks.......................................................................................... 34
11 Maintenance, Warranty and Repair..................................................................... 35
11.1 Troubleshooting .............................................................................................. 35

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 5 40-7794, Rev 5, 6/9/2015
11.2 Parts List.......................................................................................................... 35
11.3 Contact Information....................................................................................... 35
12 Revision History...................................................................................................... 35
13 Warranty and Service Procedure.......................................................................... 36

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 6 40-7794, Rev 5, 6/9/2015
1Summary
This document describes the installation procedure for the AES 7794 IntelliPro Fire
module used with AES Fire Subscriber units to transmit alarm zone data.
The 7794 IntelliPro is a dialer interface intended for use with commercial Fire Alarm
Control Panel (FACP) installations. The 7794 is a UL Listed primary communicator
when used with the AES 7762 Hardware Supervisor.
Installed between the FACP and AES subscriber, the 7794 intercepts alarm panel
messages and sends them to the monitoring station via the AES fire subscriber unit.
NOTE: The 7794 IntelliPro and subscriber must be connected to the FACP within the
same room and in no more than 20 ft. of conduit.
1.1 Basic Functions
The 7794 is a dialer capture module with monitoring capabilities as well as full emulation
of the POTS telephone line for incoming data sent from the FACP. The 7794 can
intercept the FACP phone line connection at different states of the call if the intercept
number matches the number being dialed.
1.2 User Interface
The 7794 does not use configuration jumper settings and is programmed using the AES
Hand Held Programmer (P/N 7041E). The Hand Held Programmer connects to the J2

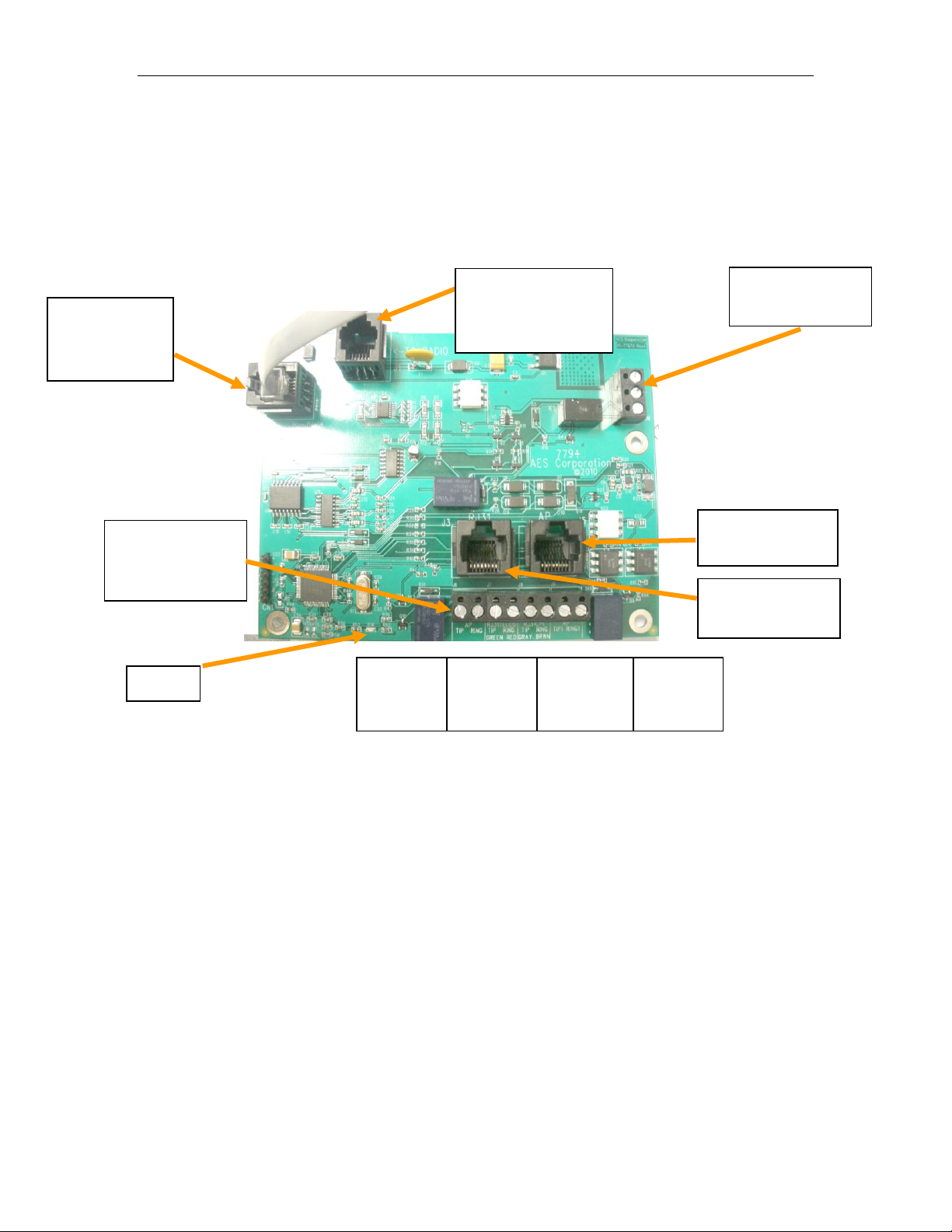

RJ11 connector labeled “HandHeld”. See Figure 1. - 7794 Connector and LED
Locations. The Hand Held is also used for diagnostics and monitoring of the 7794 while
in operation. An LED is used to indicate operating status. See Section 6 Status LED
Blink Patterns for details.
IMPORTANT: Do not connect the Hand Held programmer to the J1 connector. J1 is for
connecting the 7794 to the subscriber unit.
1.3 System Requirements
This document assumes the user knows how to set the AES subscriber unit account
number, cipher and other configuration settings as well as how to operate the AES Multi
Net software environment including IPCtrl and automation.
1.3.1 Fire Alarm Control Panel Telco Interface Requirements
NOTE:
The 7794 is NOT compatible with Fire Alarm Control Panels that
test both digital communicator telephone lines at the same time.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 7 40-7794, Rev 5, 6/9/2015
With the 7794 IntelliPro used as the sole path communicator, only one telephone
line connection to the FACP is required. Use the following method below.
Parallel connect both telephone lines together.
The 7794 can provide voltage to both telephone line connections if they are

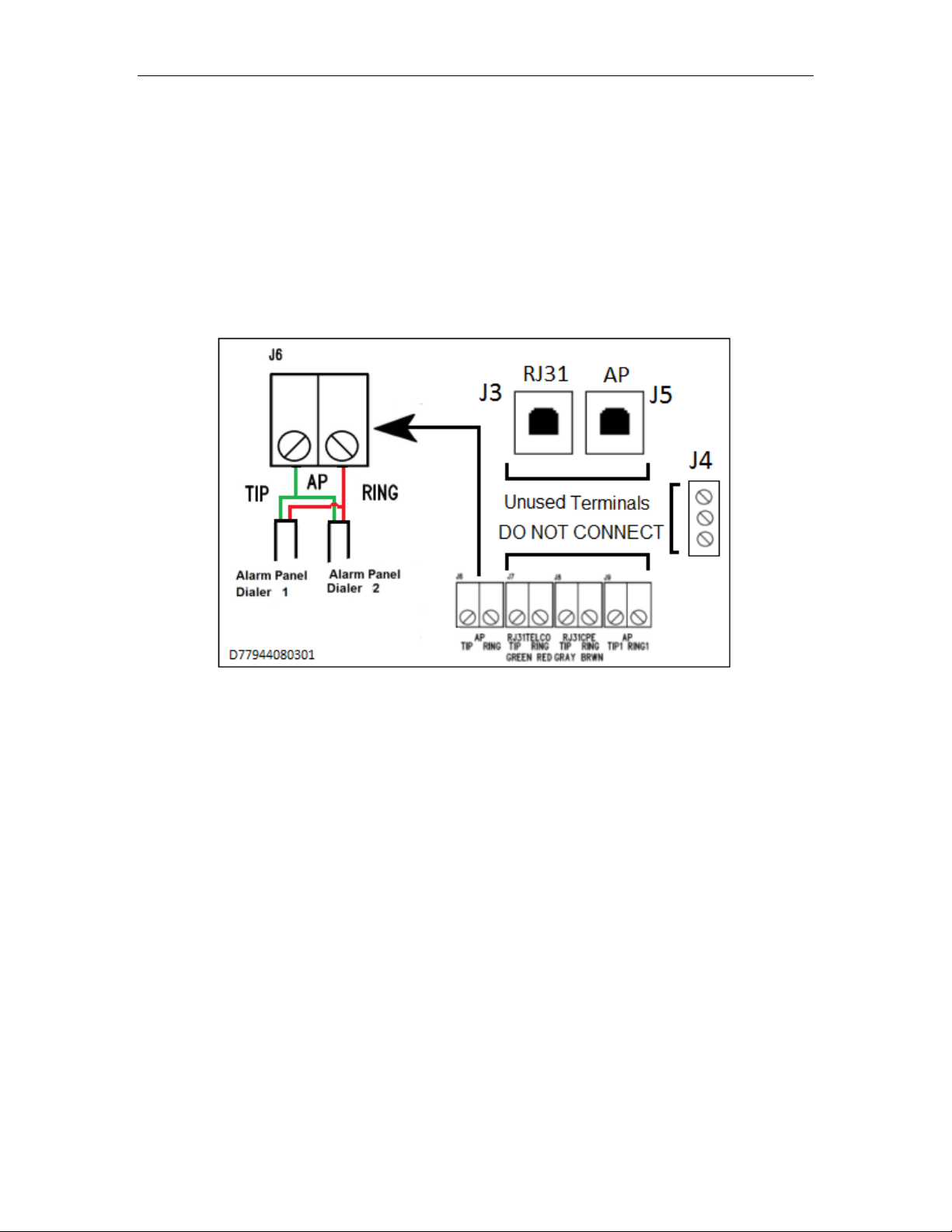

connected together in parallel with TIP to TIP and RING to RING as shown in
Section 3, Figure 5 and Section 4, Figure 6D.
1.4 Safety Considerations
All equipment must be installed in accordance with National Electric Code,
NFPA 70, National Fire Code NFPA 72 and local building codes.
Test this system periodically for proper operation. AES assumes no responsibility
for this equipment's failure to operate. AES' sole responsibility is to repair or
replace any AES device found to be defective during the warranty period.
Avoid dropping or other physical impact which could damage the card or card
components.
1.5 Technical Specifications
•SIZE: 4 7/8 in. x 5 in. (12.3 cm x 12.7 cm )
•WEIGHT: 0.4 pounds (0.18 kilograms)
•POWER INPUT: Power supplied from AES 7744F/7788F/7788F-C
•VOLTAGE: 12VDC nominal
•CURRENT: 350 mA nominal
•FUSE: Onboard current limiter. Not serviceable
•OPERATING TEMPERATURE RANGE: 0° to 49° C (32° to 120°F)
•STORAGE TEMPERATURE RANGE: -10° to 60° C (14° to 140°F)
•RELATIVE HUMIDITY RANGE: 0 to 93% RH, Non Condensing
NOTE:
The AES 7794 IntelliPro must be used with the 7762 Hardware
Supervisor for compliance with UL listing as primary
communicator. See the 7762 Hardware Supervisor Installation
and Operation Manual for details.
The 7794 must be installed in accordance with National Electrical
Codes and UL-864.
Canadian installations must be done in accordance with Canadian
Electrical Codes and ULC-527.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 8 40-7794, Rev 5, 6/9/2015
2Installation of 7794 in subscriber unit
Remove four (4) of the hex nuts shown in Figure 2 that hold the subscriber unit
board in the subscriber enclosure. Save the hex nuts.
Figure 2.
Install the 4 hex standoffs (P/N 09-2015). Place the standoffs on the threads
exposed after removing the hex nuts. Do not over tighten the standoffs while
installing. See Figure 3
Figure 3.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 9 40-7794, Rev 5, 6/9/2015
Mount the 7794 PC board on four newly installed standoffs. Install insulating
washer (P/N 09-7X94) over mounting hold H3. Temporarily secure the board
using the 4 hex nuts removed earlier Important: Place the Earth Ground hex nut
(green) on the right side center hex standoff as shown in Figure 2 above.
Figure 4.
3Primary Communication Interface
3.1 Connector and LED Locations
Figure 1. 7794 Connector and LED Locations

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 10 40-7794, Rev 5, 6/9/2015
3.2 Connecting 7794 to Alarm Panel –Primary Communication
Interface
When mounted in a subscriber enclosure and connected to the Fire Alarm Control Panel
dialer, the 7794 delivers alarm messages to the central monitoring station as shown in
Figure 5 and Figure 5A below. The 7794 is supervised by the 7762 using a ‘heartbeat’.
See the 7762 Install Manual AES P/N 40-7762 for detail. NOTE: The 7794 IntelliPro
and subscriber must be connected to the FACP within the same room and in no
more than 20 ft. of conduit.
Figure 5.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 11 40-7794, Rev 5, 6/9/2015
Figure 5A.
`
3.3 Connection Details –Primary Communication Interface
When mounted in a subscriber enclosure and connected to the Fire Alarm Control
Panel dialer, the 7794 delivers alarm messages to the central monitoring station as
shown in Figure 5 and Figure 5A above. NOTE: The 7794 IntelliPro and
subscriber must be connected to the FACP within the same room and in no
more than 20 ft. of conduit.
To connect the 7794 to the FACP:
a) Extend FACP Dialer 1 and Dialer 2 TIP and RING to the 7794.
See Figure 6 below for the following steps:

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 12 40-7794, Rev 5, 6/9/2015
b) Connect FACP Dialer 1 and Dialer 2 TIP wire to J6 terminal block labeled AP
TIP.
c) Connect FACP Dialer 1 and Dialer 2 RING wire to the J6 terminal block
labeled AP RING.
NOTE: Terminal blocks J3, J5, J7, J8 and J9 are not used. Do not connect to these
terminals.
Figure 6.
Note: Disabling Second FACP Telco Connection - Most fire panels can be
configured to disable the second Telco connection. With the second Telco
connection disabled, the panel will no longer supervise the connection. This
method can be used to eliminate supervision alarms at the panel due to
disconnecting the second Telco connection.
Proceed to Section 5 - Configure 7794.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 13 40-7794, Rev 5, 6/9/2015
4Supplemental Communication Interface
4.1 Connector and LED Locations
Figure 6A.
RJ11
connection to
Handheld
AP
TIP and
RING
RJ31TELCO
TIP and
RING
RJ31CPE
TIP and
RING
AP CPE
TIP and
RING
RJ11 connection
to AES
subscriber
LED
Pots, AP, CPE
interfaces
(see detail)
Trouble output
(Form C relay)
RJ31 TO AP
RJ31 FROM
WALL

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 14 40-7794, Rev 5, 6/9/2015
4.2 7794 to Alarm Panel - US Installation - Supplemental
Communication Interface
Figure 6B.
FACP (Fire Alarm Control Panel) with both dialers connected to the 7794 (AP TIP and
AP RING) as shown in Figure 6B.
Method 1: Dialer 1/ Dialer 2 to 7794
Method 2: FACP relays into 7788 Zone Inputs
Normal case: Alarm = Dialer #1 / #2 to MultiNet Receiver via 7794
Method 1- FAILS:
FACP detects Dialer 1 and Dialer 2 both in trouble
FACP trips relay "T" to 7788
7788 reports to MultiNet (DIALER FAILURE)
Method 2 - FAILS: (antenna cut, etc.)
7744F/7788F/7788F-C engages J4 Trouble Relay
J4 relay trip causes local annunciation –see
7744F RF Subscriber Unit Installation and Operation Manual P/N 40-7744
7788F RF Subscriber Unit Installation and Operation Manual P/N 40-7788
7788F-C RF Subscriber Unit Installation and Operation Manual P/N 40-7788FC
for details.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 15 40-7794, Rev 5, 6/9/2015
4.2.1 Connection Details –7794 to Alarm Panel - US Installation
1) Connect the FACP Dialer 1 and Dialer 2 TIP and RING to the 7794 terminal
block labeled AP TIP RING as shown in Figure 6C below.
Figure 6C.
2) Wire the Zones of the FACP into the 7788 as depicted above in Figure 6B.
Note: Disabling Second FACP Telco Connection - Most fire panels can be
configured to disable the second Telco connection. With the second Telco
connection disabled, the panel will no longer supervise the connection. This
method can be used to eliminate supervision alarms at the panel due to
disconnecting the second Telco connection.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 16 40-7794, Rev 5, 6/9/2015
4.3 Connect 7794 to Alarm Panel –Canada/Dual Dialer Installation -
Supplemental Communication Interface
Figure 6D.
FACP with PSTN and RF
Method 1: PSTN via Dialer 1
Method 2: RF (7788F-C #1) via Relays
Method 3: Supplemental: RF (7794-7788F-C #2) via Dialer 2, Reverse Polarity, Other
Technologies, Relays or other means provided by ULC S559 Listed FACP
Normal case: Alarm = Dialer 1 dials into Phone Receiver or via Dialer 2 into MultiNet
receiver
Method 1 FAILS: PSTN fails (line cut, failure to connect, etc)
Reports with 2 messages:
AP detects (AP monitoring PSTN), and trip relay "T" connected to the 7788F-C
7788F-C sends ZONE alarm (DIALER FAILURE).
AP reports via Method 3. If used, 7794-7788F-C #2 reports into MultiNet (DIALER
FAILURE).
Method 2 FAILS: antenna cut, etc.
7788F-C engages J4 Trouble Relay
J4 relay trip causes local annunciation

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 17 40-7794, Rev 5, 6/9/2015
AP sends message via Dialer 1 indicating that 7788F-C is in trouble.
AP reports via Dialer into Phone Receiver (RF COMMUNICATOR FAILURE)
4.3.1 Connection Details –7794 to Alarm Panel –Canada Installation
1) Connect the FACP Dialer 1 TIP and RING to the PSTN (Public Switching
Telephone Network).
2) Connect the FACP Dialer 2 TIP and RING to the 7794 terminal block labeled AP
TIP RING. 7794 into 7788F-C #2.
3) Wire the Zones of the FACP into the 7788F-C #1 as depicted above in Figure 6D.
4) Connect the FACP
Note: Disabling Second FACP Telco Connection - Most fire panels can be
configured to disable the second Telco connection. With the second Telco
connection disabled, the panel will no longer supervise the connection. This
method can be used to eliminate supervision alarms at the panel due to
disconnecting the second Telco connection.
5Configure 7794
The 7794 is configured using the AES Hand Held programmer (P/N 7041E) and
programmer cable (P/N 13-0395). Perform the following:
5.1 Connecting the Handheld Programmer
The 7794 must be installed and connected by the interconnect cable to the subscriber unit
as described in Section 3. Attach the Hand Held to J2 connector labeled ‘HandHeld’on
the 7794. See Figure 7 below. The Hand Held programmer powers up automatically
when the programmer cable is plugged into the J2 connector.
Figure 7.
IMPORTANT: Do NOT use J1 labeled ‘TO RADIO’ to connect the Hand Held
programmer.
5.2 Determine Firmware Version
The Hand Held LCD displays status information including firmware version. The
firmware version is visible after the Hand Held powers up when plugged into J2. The
example in Figure 6 shows the firmware version number after the letter ‘v’.
7794vX.XXX F1=config
POTS:NO,7794=POTS

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 18 40-7794, Rev 5, 6/9/2015
Figure 8.
(NOTE: If there is different data in the display, press F1, then press ‘E’ to update
the display. Some Hand Held programmers have a slow response time.)
5.3 Configuration Interface
The 7794 can be configured using the Hand Held programmer, a PC configured as a
terminal, or using the AES IntelliLoader (Note: Check the IntelliLoader version for
features that can be programmed.)
5.4 Entering Configuration Mode
It is a good practice to configure the 7794 with the FACP disconnected. Press F1 to enter
Configuration Mode. ’CONFIG’ will appear in the display.
If the Alarm Panel is powered, incoming AP events may be displayed on the LCD. To
exit configuration mode press the ESC or the Ekey.
5.5 Changing option settings
Press F3 to change the value.
Press F4 and F5 to browse the list of configurable features.
When you press F3, select the new value or press ESC to exit without changing it.
After selecting the new value, you return to the CONFIG screen at the same position
before selecting the value.
5.6 For Configuration Options –Primary Communication
Configuration
options
Available settings
Required settings
Phone line
Y/N
N
Intercept Number
Any number with minimum
of 3 digits and maximum of
20 digits.
No required setting.
AP report format
CID/MODEM/PULSE
MODEM options:
MODEM2/MODEM3
PULSE options
HSD =08/04 sec
HSF=1.4/2.3 kHz
CF=1.4/1.9 kHz
IDT=0.7/0.9/1.7 sec
IRT=3.0/5.0 sec
Select based on
FACP
communication
format
AP Input gain
10/20
Select based on use.
Intercept blind dial
Y/N
Y

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 19 40-7794, Rev 5, 6/9/2015
Configuration
options
Available settings
Required settings
Line cut Report
Not Used.
Not Used.
POTS cut report delay
Not Used.
Not Used.
POTS restoral delay
Not Used.
Not Used.
AP ACCT override
Y/N
Select based on
account ID
requirement.
POTS Input gain
Not Used.
Not Used.
Advanced Options
Display
Y/N
No required setting.
AP Output Gain
0/3/6
Select based on use.
Reset to defaults
Not applicable.
Not applicable.
Line cut sensing
Not Used.
Not Used.
CID 4XX Letter
U/C
Select based on use.
M3 EX TEXT TO
CID
Y/N
Select based on use.
Voltage Pump
Y/N
Y
Clock FShift
Not Used.
Not Used.
5.6.1 Phone Line
Option settings: YES or NO.
YES = Phone line is present
NO = Phone line is not present (DEFAULT)
Use:
F3:Change setting
F4:Go UP to prior screen
F5:Do DOWN to next screen
5.6.2 Intercept number
Set the intercept number to the number programmed in the Fire Alarm Control Panel with
a minimum of 3 numbers entered. Default number is ‘555’.
Use:
F3:Change setting
F4:Go UP to prior screen
F5:Do DOWN to next screen
5.6.3 Alarm Panel report format
This setting allows you to modify the way the 7794 interprets the data sent by the FACP
over the dialer interface. The 7794 interprets the data and transfers it to the subscriber
where it is sent to the Multi Net.
The 7794 currently supports the following formats:
Contact ID (Ademco CID)
Note: If Phone Line (POTS) is not present, or if the
line is cut, the 7794 will emulate the Central Office
and will respond to any number dialed, regardless
of the setting for the Intercept Number.

AES 7794 IntelliPro Fire –Installation Manual
AES Corporation 20 40-7794, Rev 5, 6/9/2015
Pulse formats at 10 and 20 pulses per second, with combinations of
handshake, kiss-off, and center pulse frequencies, plus variable durations that
cover most pulse formats
Modem formats from Bosch, ranging from Modem II to Modem IIIa.
The options for the alarm panel report are CID, MODEM or PULSE with:
C=CID, M=MODEM, P=PULSE
Press F3 to change the value.
Use:
F4:Go UP to prior screen
F5:Do DOWN to next screen
5.6.3.1 CID Alarm Format
To select CID report format, press “C” (after pressing F3).
5.6.3.2 Modem Alarm format
To select Modem report format, press “M” (after pressing F3). The next configuration
option (reached by pressing F5) will allow you to select Modem II or Modem IIIa. This
next configuration option is only available when the format is MODEM.
A=MODEM3 (default)
B=MODEM2
Press F3 to change the value.
For details see Section 8 –Format: Bosch/Radionics Modem 2 and Modem 3 on page
31.
5.6.3.2.1 Modem 2 format –unknown panel type family assignment
When using the Modem II format there is a chance that you will find a panel type (a field
in the Modem II message that the 7794 translates) that does not exist in the 7794 pre-
defined panel types. When this occurs, even though the 7794 knows that it is Modem II,
it cannot decide what the panel family is. For these cases there is a setting that is active
when the unknown panel type is detected. This occurs at the configuration time and you
MUST set the proper family. NOTE: THIS FEATURE IS NEEDED AND AVAILABLE
FOR THE MODEM2 AP FORMAT ONLY.
For details, Section 8.2 –Modem 2 format –unknown panel type family assignment on
page 31
5.6.3.3 Pulse Alarm format
Press “P” (after pressing F3) to select the Pulse report as Pulse (also referred as 4+2,
4+1, or 3+1). The next configuration option (reached by pressing F5) will allow you to
select durations and frequencies for the pulse format.
The following configuration option is only available when the format is PULSE:
D=HSD (Handshaking duration) (default 0.8 sec)
Options are A=0.8,B=0.4
F=HSF (Handshaking frequency) (default 1.4 KHz)
