Aes 8streme 7310 User manual

IInnssttrruuccttiioon mn maannuuaall 731011Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

Congratulations on the purchase of your new Robotic Pool Cleaner by 8Streme. This is a powerful autonomous cleaner arrives to you ready to plug in and play. Great for pools of any shape. This cleaner comes with a floating swivel that ensures you have minimum cord tangling issues and a large easy to access debris basket. Please check the packaging to insure all parts are ready for install. If any parts are missing or damaged, please contact us. 2Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

[email protected]

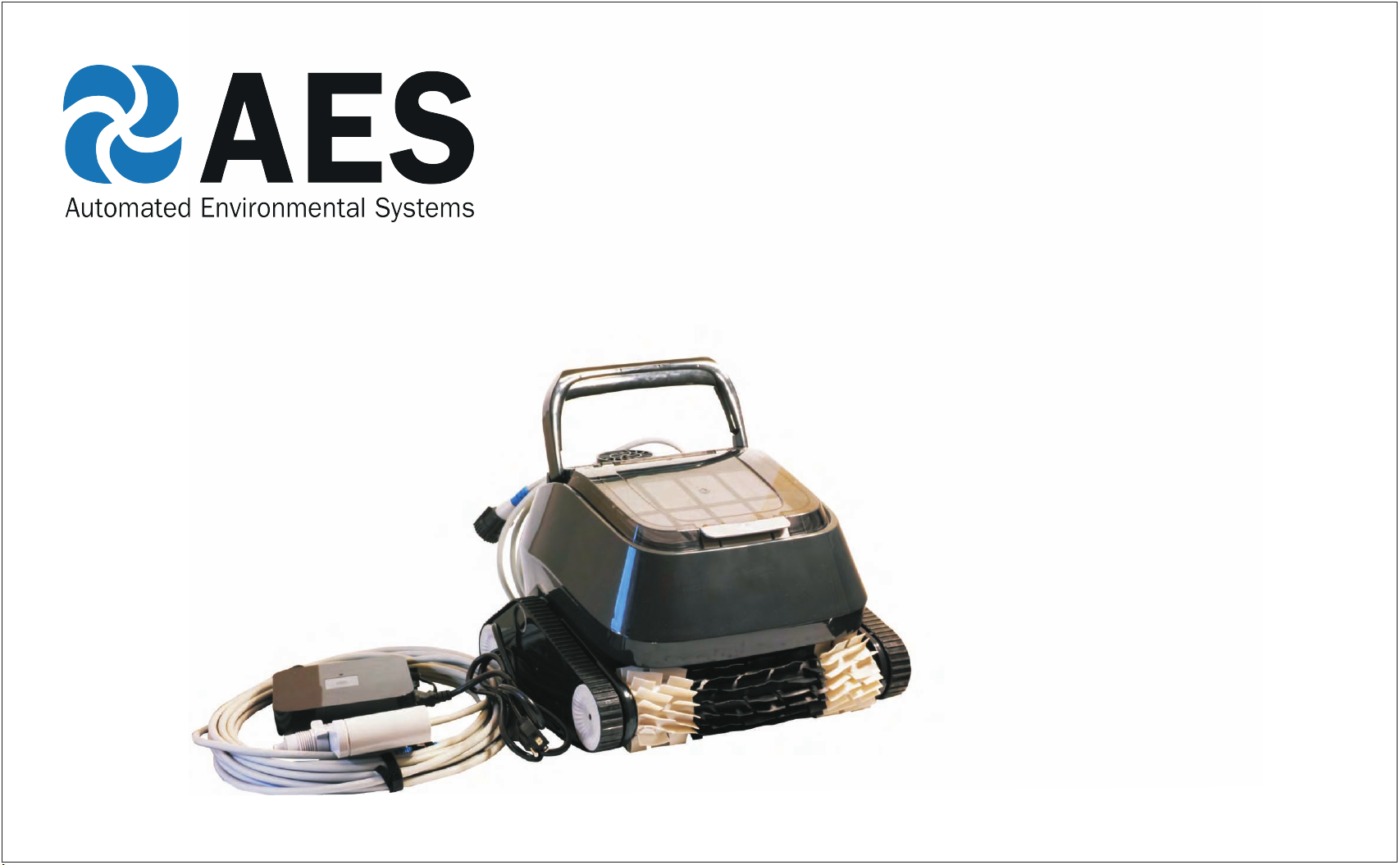

1.Product SpecificationsMaximum Depth: 2.5m / 8ftMaximum Pool Size: 10m x 5m / 33ft x 17 ftPower supply input: 100-130V AC / 200-230V ACPower supply output: <24VDC2.!!Warnings!!2.1 Please review your local pool safety regulations2.2 Keep power supply away from pool edge by at least 3.5 m / 11ft2.3 Ensure your electrical outlets are properly grounded2.4 Have a Ground Fault Current Interrupter (GFI) and/or an Earth Leak Interrupter (ELI)2.5 Keep power supply out of water2.6 Do not run the robotic cleaner out of water2.7 Make sure power supply is unplugged before any maintenance2.8 Do not operate with a damaged cord or power supply2.9 Do not operate with people swimming in the pool2.10 For use in water with temperatures between 5-36°C / 41-97°F3.Included Content1. Robotic Pool Cleaner 73102. Power supply3. Floating cord with swivel3Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

[email protected]

4. Getting Started*Your cleaner comes to you fully assembled in the package. *1. Place your power supply about approximately at the middle point between both ends of your pool and a few meters/feet away from the edge of the pool. (Fig 4.1)2. Put the pool cleaner into your pool and wait until it has fully submerged. If needed, manually submerge the cleaner. (Fig 4.2)3. For optimum performance, place the vacuum at a spot in the pool farthest from the power supply. This is the proper length of cord needed for the robot to reach the entirety of your pool. Remove any extra grey floating cord from the pool and secure near the power supply with the provided reusable cable fasteners. NOTE: Leaving extra cord in the pool will increase chance of cord tangling4. Plug in the power supply to a nearby electrical outlet. A blue status light should turn on.5. Unscrew the cap next to the switch (Fig 4.3). Insert the end of the floating cord into the outlet revealed (Fig 4.4). Take note of the orientation of the plug and outlet.6. Screw tightly in the nut from the floating cord. Flip the switch in the middle to the side with the blue light (Fig 4.5). This will turn on the power supply.7. Press the power button at the top of the power supply to turn on your robotic cleaner (Fig 4.6). Note that a red indicator light should turn on (Fig 4.7).8. To turn off your cleaner, press and hold down the power button for 3 second. Alternatively, you can flip the switch to the opposite direction turning off the power supply.9. When cleaner will no longer be used or will be stored for extended period of time, replace the cap attached to the power supply.*If the red or blue indicators lights are flashing, please refer to Troubleshooting section.

4.14.54.34.74.24.64.4

4Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

[email protected]

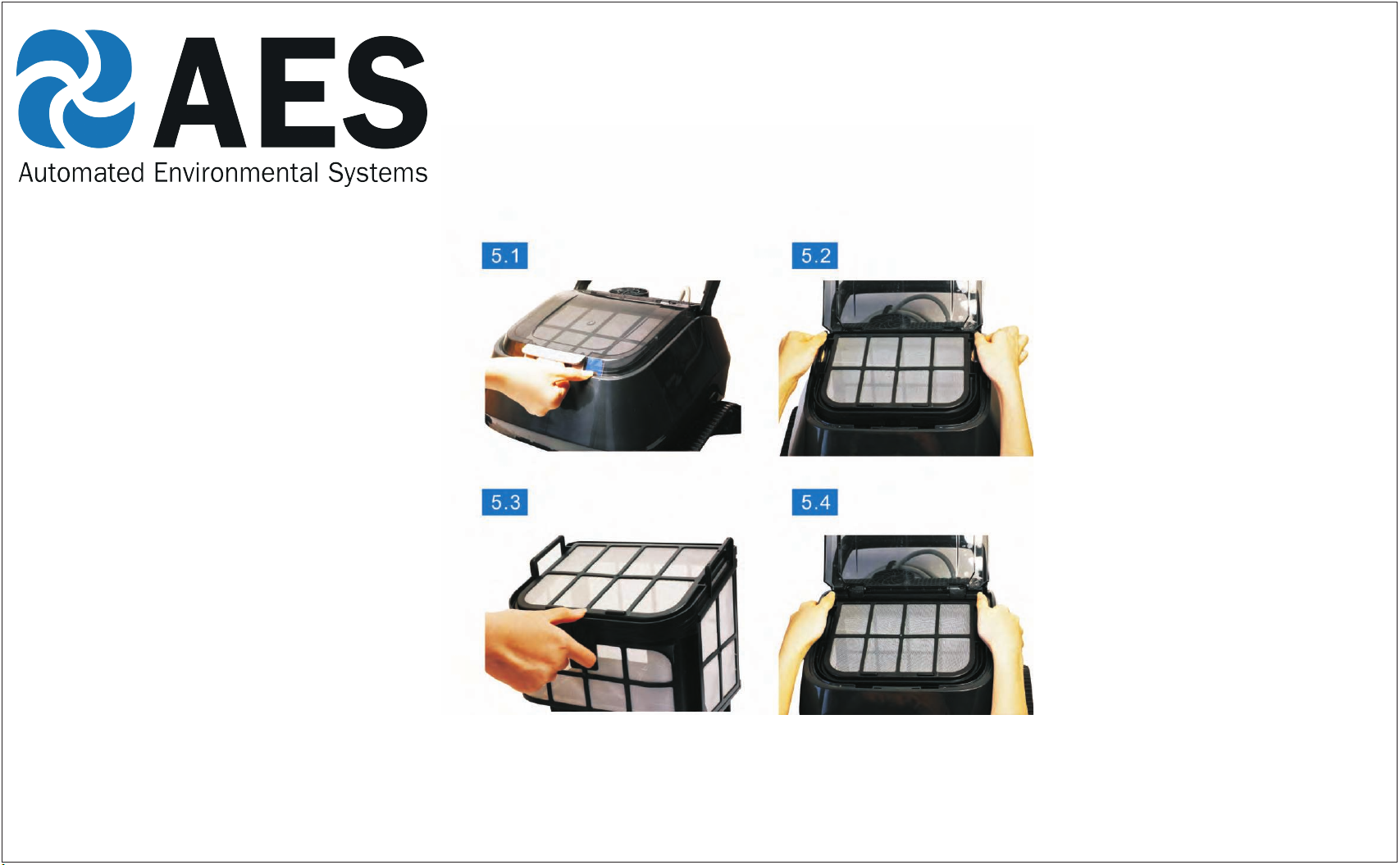

5. Cleaning the filter basket1. Open the cover on the top of thecleaner to access the filter basket(Fig 5.1).2. Use both hands to lift up the basketusing the handles at the side of thebasket (Fig 5.2).3. Flip open the baskets lid by pullingthe tab at the front of the basket (Fig5.3) and dump the contents inside.4. Dump out the debris inside thebasket. Use a hose to spray waterand clean the filter screens. Whilethe filter basket is removed from thevacuum, spray the inside of thecleaner with water to remove anysmall debris that may haveaccumulated inside the cleaner.Then hose the entire unit off withfresh water including the cord andswivel.5. When cleaned, place your basketback into your robotic cleaner. Ifbasket is not properly aligned, it willnot lock into place.6. Press down on the handles to lockin your basket (Fig 5.4).5Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

[email protected]

6.Troubleshooting6SymptomPossible reason(s)Solution(s)Pump is running but robot is not moving Pump and drive roller are not operatingRobot does not pick up debris when running over it .Robot is not climbing.Not cleaning all areas of the pool. No/not enough power is going to robotAn object is blocking robot's rollers, tracks, impellerRobot is not connected to power supplyPower supply turned offClogged/full basketAn object is stuck in impeller or grillNot enough/ too much floating cord in the poolUnplug power supply and take robot out of water. Open basket cover and remove basket. Check that there no foreign object in the impeller. Check that there is no foreign object blocking the track or rollersCheck that the power supply is onCheck all connections from robot to power supplyClean the basket and filter screens. Clean fine filter pad if usedCheck if basket is inserted properly. (refer to chapter Cleaning the Filter Basket)Check that there is no foreign object in the impeller or lodged in the grill above the impellerInsure that there is just enough floating cord in the pool for the cleaner to reach all areas of the pool. Remove from the pool all extra cord and secure near power supply with included reusable cord fasteners.

8Unit 1, 1 Wimbledon Avenue, Brandon

Suffolk, IP27 0NZ, 01842 819130

[email protected]

8Item123456789101112131415161718192021222324252627Part number710007101071020710407105071070710807109071100711107112071130711407115071160710127101133110332903600036001360023600336004301807118071170Part descriptionTop shell. Dark greyDebris basket assembly (parts 16 and 17 included)Top lid. SmokeImpellerPump motor blockPump cover lid. BlackHandle. BlackGeared roller tube assembly.BlackBottom chassis. Dark greyFast drain flap. Dark greySide support assembly. L. BlackDrive belt track. BlackGeared wheel. 4pcs as a set. GreyFront roller assembly. Grey and blackSide support assembly. R. BlackNon return inlet assemblyTop filter screenMachine end floating cord. 3m long. GreyFloating cord with swivel. 13m long. GreyPower cord. UK standardPower cord. Australia standard

Power cord. US standard
