AETEK XE10-110-RX User manual

1. Use CAT5e or CAT6 UTP/STP cables,and coaxial. cahle
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufcient for your conguration.
XE10-110-RX / XE11-110-RX / XE10-110-TX / XE12-120-TX /
XE22-110-TX / XE22-120-TX EPoC Adapter
Model Power Source Description
XE10-110-RX 56VDC/65W EPoC DC in Rx Adapter, 1x EPoC BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
XE11-110-RX PoE Input EPoC PoE in Rx Adapter, 1x EPoC BNC, 1x FE RJ45, -20ºC~60ºC
XE10-110-TX EPoC Tx Adapter, 1x EPoC BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
XE12-120-TX EPoC Tx Adapter, 1x EPoC BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
XE22-110-TX EPoC Outdoor Tx Adapter, 1x EPoC BNC, 1x FE RJ45, -30ºC~60ºC
XE22-120-TX EPoC Outdoor Tx Adapter, 1x EPoC BNC, 1x FE RJ45, -30ºC~60ºC
IMPORTANT:
INTRODUCTION
CONNECTION
PACKAGE CONTENTS
Quick Installation Guide
* 1x Quick Installation Guide * 1x 56VDC/65W Power Adapter (XE10-110-RX only)
* Waterproof Connect (XE22-110-TX / XE22-120-TX only)
EPoC Link
Connect to
EPoC TX
EPoC Link
Connect to
EPoC RX
Connect to
Switch
Connect 56V/65W
PowerAdapter
Connect to
PoE IP Camera
Connect 56V/65W
Power Adapter(Option)
PoE On/Off Switch
LINK
PWR
LAN
PoE
JOIN
OFF/ ON
PoE
Outdoor 1-Port EPoTTX
4-Pair LINK
1-4 Pin V- 5-8 Pin V+
++++
----
LAN
EPoC Link
Connect to EPoT RX
Connect to
PoE IP Camera
XE10-110-RX
XE10-110-TX
XE22-110-TX
EPoC Coax
PWR LINK LAN PoE
JOIN
1-Port PoE PD EPoT Rx
EPoT LINK
1-4 Pin V- 5-8 Pin V+
++++
----
4-Pair LINK
4-Pair LINK
EPoC Link
Connect to
EPoC TX
XE11-110-RX
Connect to
PoE Switch
LINK
PWR
LAN
1 2
PoE
2-Port EPoT TX
1 2
1
2
56VDC
EPoT LINK
1-4 Pin V- 5-8 Pin V+
++++
----
OFF
ON
1
JOIN
PoE
2
LINK
PWR
LAN
1
JOIN
ON
OFF
PoE
2
PoE
Outdoor 2-Port EPoTTX
EPoT LINK
1-4 Pin V- 5-8 Pin V+
----
12
1
2
2 1
EPoC Link
Connect to
EPoC RX
XE12-120-TX
Connect to
PoE IP Camera
Connect to
PoE IP Camera
EPoC Link
Connect to EPoT RX
Connect to
PoE IP Camera
Connect to
PoE IP Camera
PoE On/Off Switch
XE22-120-TX
Connect 56V/65W
Power Adapter(Option)
Ethernet (Data)
Power
XE10-110-RX
Network Switch
XE10-110-TX
RG6 Coax
RG6 Coax
RG6 Coax
RG6 Coax
TX
XE22-110-TX
Application :
XE11-110-RX
4-Pair LINK
4-Pair LINK
H30-044-90 NDR-240-48
240W Power Supply
UPoE Swich
Cat.5e/6 PoE (Data + Power)
Coax
PWR LINK LAN PoE
JOIN
1-Port PoE PD EPoTRx
EPoT LINK
1-4Pin V- 5-8Pin V+
++++
----
XE10-110-RX
Network Switch
XE12-120-TX
XE22-120-TX
XE11-110-RX
4-Pair LINK
H30-044-90 NDR-240-48
240W Power Supply
UPoE Swich
PWR LINK LAN PoE
JOIN
1-Port PoE PD EPoTRx
EPoT LINK
1-4Pin V- 5-8Pin V+
++++
----
LINK
PWR
LAN
1 2
PoE
2-Port EPoTTX
1 2
1
2
56VDC
EPoT LINK
1-4Pin V- 5-8Pin V+
++++
----
OFF
ON
1
JOIN
PoE
2
INSTALLATION
NOTE:
The XE22-110-TX Outdoor EPoC Adapter must be
grounded using a ground wire between the ground
screw and earth ground.
IMPORTANT:
Ground screw
* Make sure the grouning
resistance is lower than
0.5Ω.
XE22-110-TX
LINK
PWR
LAN
PoE
JOIN
OFF / ON
PoE
Outdoor 1-Port EPoTTX
4-Pair LINK
1-4 Pin V- 5-8 Pin V+
++++
----
LAN
XE22-120-TX
LINK
PWR
LAN
1
JOIN
ON
OFF
PoE
2
PoE
Outdoor 2-Port EPoTTX
EPoT LINK
1-4 Pin V- 5-8 Pin V+
----
12
1
2
2 1

LEDs
PoE Yellow ON PoE: Power port is connected to PD
LAN Green ash LAN: Data is being transmitted or received.
OFF No connection
PWR Yellow ON Power is supplied (XE11-110-RX only)
Green ON Power is supplied
LINK Green ON Rx and Tx EPoC adapter is connected.
DIP Switch
DIP# On Delivery PoE output to PD device
Off No PoE output to PD device
NOTE:The PoE On/Off switch is only available on XE10-110-TX / XE12-120-TX
/ XE22-110-TX / XE22-120-TX
Distance/Power Chart
NOTE:
1. The numberts comply using RG6 coaxial cables.
2. The length of network cable for camera connection is 1m CAT5e cable.
3. The power delivery will vary on the quality of coaxial cable due to
resistance.
AETEK INC.
3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T:[phone]|W:www.aetektec.com|E:[email protected]
All specications are subject to change without noice.
Copyright © 2019 AETEK INC. All rights reserved.
To disconnect a LAN cable, loosen the cable
gland and pull the cable against the socket
wall towards the side of the locking tab.
Outdoor LAN Port
IMPORTANT -
1. Fit a BNC plug to the coaxial cable
2. Thread the coaxial cable through the cap(A) & grip(B)
3. Split rubber(C), rubber have two sizes for meet 4.5~6.5mm or 6~8mm
coaxial cable.
4. Fit the split rubber(C) over the coaxial cable
5. Thread the coaxial cable through the body(D)
6. Fit the washer(E) to the XE22-110-TX/XE22-120-TX connector
7. Plug the BNC connector on the coaxial cable into the XE22-110-TX/XE22-
120-TX
8. Hold XE22-110-TX/XE22-120-TX and then screw the body(D) onto the
XE22-110-TX/XE22-120-TX connector tighten rmly
9. Push rubber(C) in the grip(B) and screw the cap tighten rmly. The coaxial
cable is sealed when the rubber(C) & grip(B) bulges to the edge of the
cap(A). The BNC Male connector needs <38mm form coaxial cable.

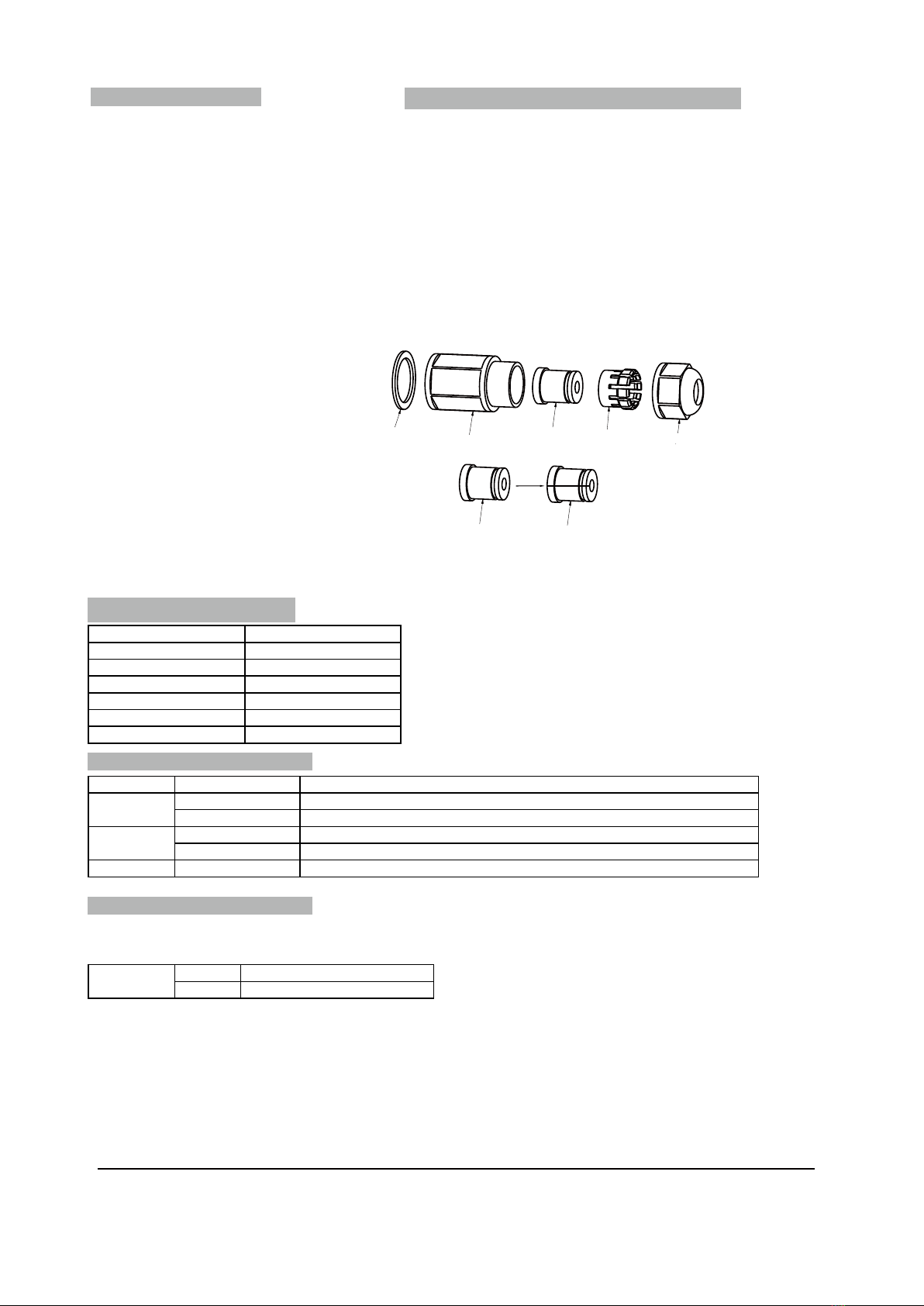

Outdoor EPoC LINK Port Connector Assembly
Washer (E) Body (D) Rubber (C) Grip (B) Cap (A)
Rubber (C) Rubber (C)
Split
Length of Coaxial Cable
300m 34.72W
500m 25.2W
800m 13.11W
1000m 10W
1200m 9.66W
1200m ~ 2400m Data only (100Mbps)
 When Connect PoE Switch Data or PoE port ,The DIP Switch need off.
