Aewin MB-8303A User manual

AEWIN Technologies Co., Ltd MB-8303 User Man al 1
User
Manual
Ver. Release Date Update
1.0 2013.12.13 Release
1.1 2014.01.09

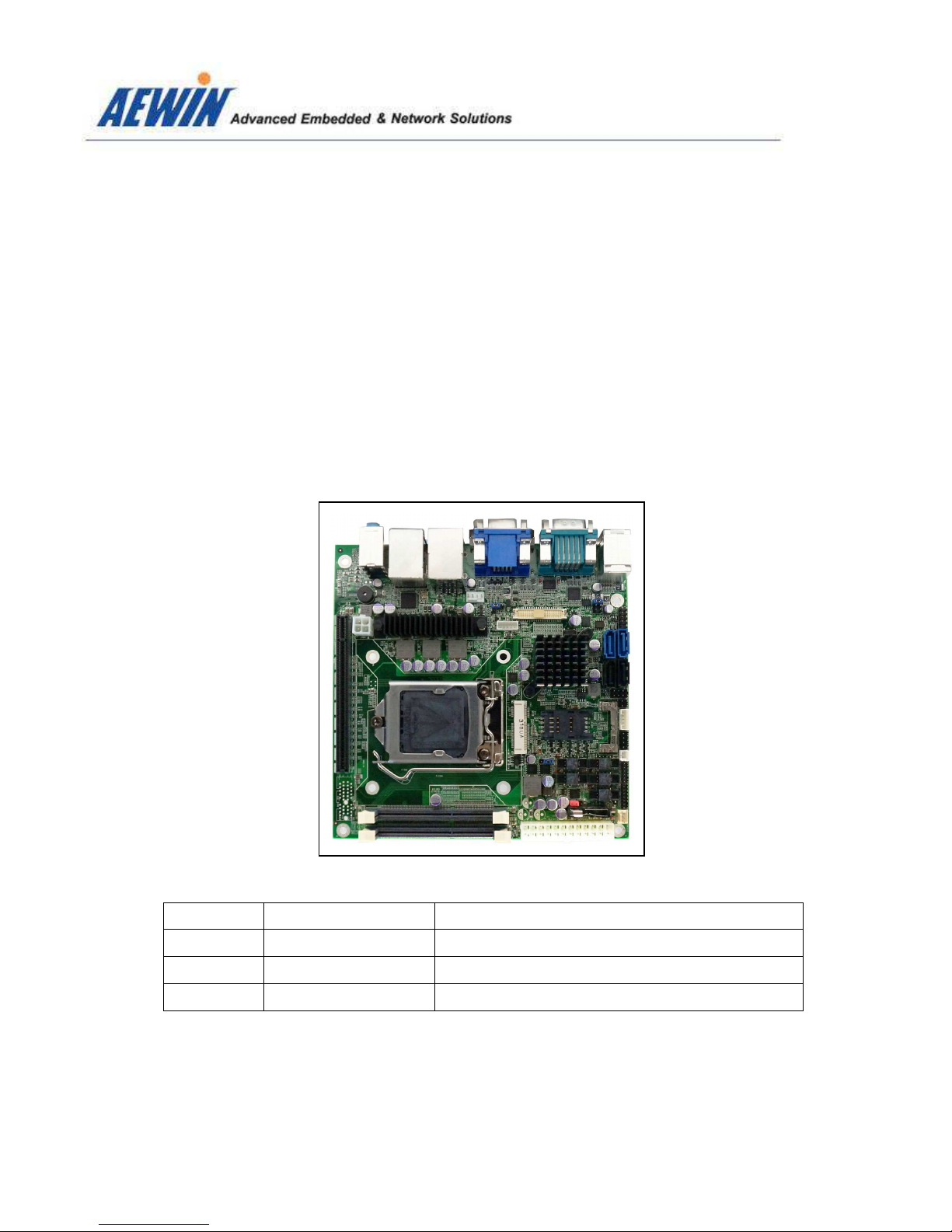

MB-8303
Mini-ITX s pport Intel® 4th generation Core™ i7/i5/i3/ LGA1150 processor,
Intel® Q87 chipset, DDR3 p to 16GB, 2 x Intel® Giga LAN, HDMI, DVI, VGA &
LVDS, 4 x SATA, 8 x USB, 6 x COM, GPIO, HD A dio, PCI-Express X16 & X1 slots,
Mini-PCIe socket, ATX power s pply

AEWIN Technologies Co., Ltd MB-8303 User Man al 2
Copyright
Trademark
Limitation of liability
The content of this document and software with this product are copyrighted by
AEWIN technologies Co., Ltd,
This document contains proprietary information protected by copyright. All rights are
reserved; no part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original
manufacturer assumes no responsibility for any inaccuracies that may be contained in
this manual. The original manufacturer reserves the right to make improvements to the
products described in this manual at any time without prior notice
All other product names mentioned herein are used for identification purpose only and
may be trademarks and/or registered trademarks of their respective companies
While reasonable efforts have been made to ensure the accuracy of this document,
the manufacturer and distributor assume no liability resulting from errors or omissions
in this document, or from the use of the information contained herein.
For more information or other AEWIN products, please visit our website
http://www.aewin.com.tw.
For technical supports, please send your inquiry to [e-mail]

AEWIN Technologies Co., Ltd MB-8303 User Man al 3

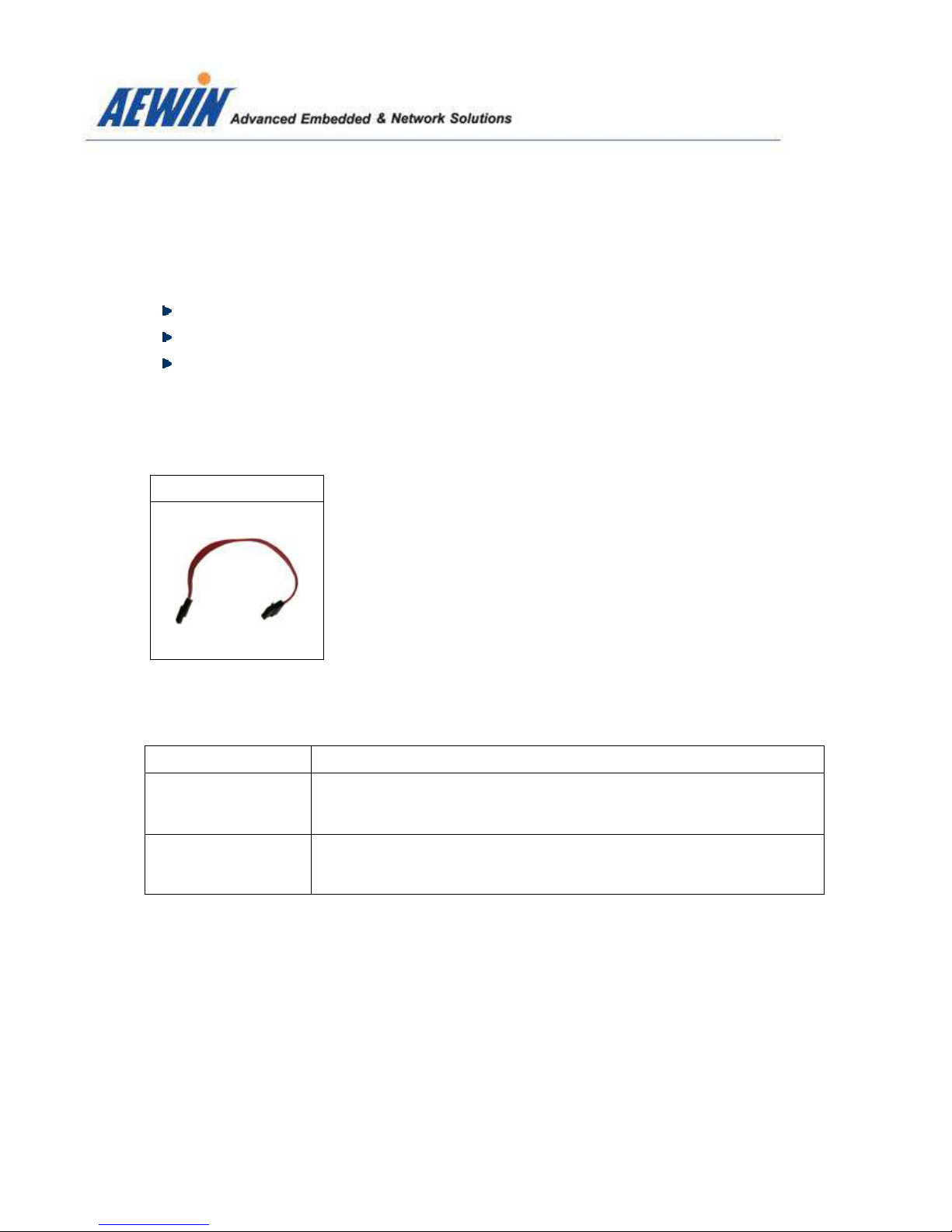

Pa king list
Before use this product, please make sure that the following materials have been shipped.
1 x MB-8303 board
1 x SATA cable, L/ 200mm
1 x CD Driver Utility
( p/n: 46L-SATA11-00 )
* If any of those items are missing or damaged, please contact with sales representative or distributor
p/n: 46L-SATA11-00
Model Name Description
MB-8303A Mini-ITX with Intel Q87 PCH, 2 GLAN,HDMI/DVI/VGA/LVDS, 6 COM,
USB,Mini-PCIe socket, 4 SATA, PCIe X16 slot
MB-8303B Mini-ITX with Intel Q87 PCH, 2 GLAN,HDMI/DVI/VGA/LVDS, 6 COM,
USB,Mini-PCIe socket, 4 SATA, PCIe X16 & PCIe X1 slots

AEWIN Technologies Co., Ltd MB-8303 User Man al 4

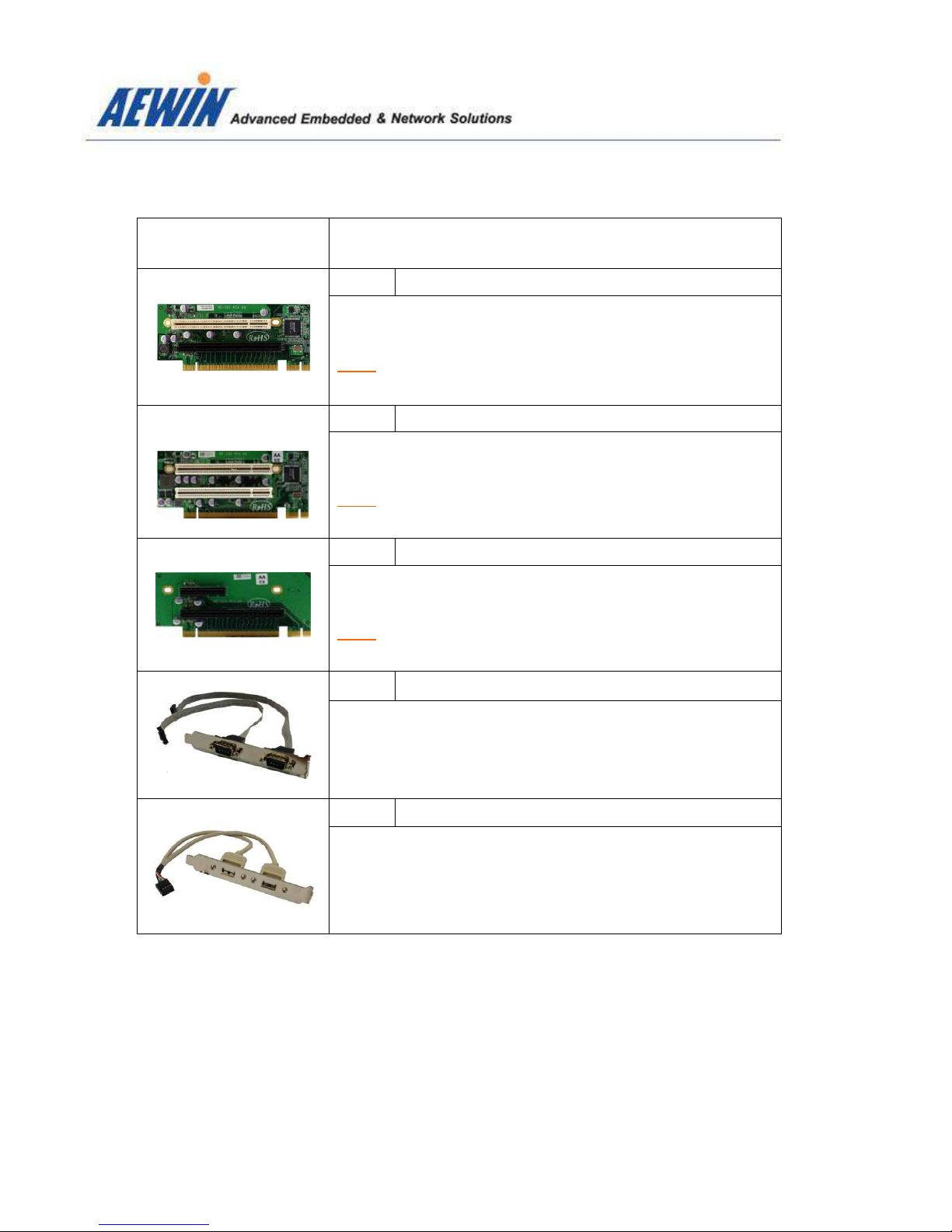

Optional Accessory
Photo Model Name
P/N:
RE-S01
PCIe riser card support 1 x PCIe X16 & 1 x PCI slots
Note: Work with MB-8303B only
P/N:
RE-S02
PCIe riser card support 2 x PCI slots
Note: Work with MB-8303B only
P/N:
RE-S03
PCIe riser card support 1 x PCIe X16 & 1 x PCIe X1 slots
Note: Work with MB-8303B only
P/N:
46L-ICOM38-00
Dual D-Sub 9-pin COM port card, L/ 250mm, with bracket
P/N:
46L-IUSB07-AA
Dual USB cable, L/ 250mm, with bracket

AEWIN Technologies Co., Ltd MB-8303 User Man al 5
Safety Information
Operation Safety
To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If
possible, disconnect all power cables from the existing system before you add a
device.
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using, contact
your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your retailer.
Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any
area where it may become wet.
Place the product on a stable surface.
If you encounter technical problems with the product, contact a qualified service
technician or your retailer.

AEWIN Technologies Co., Ltd MB-8303 User Man al 6
Contents
Chapter 1
General Information ……………………………………….8
1.1 Introduction …………………………………………..……………………...8
1.2 Specification …………………………………………………..………..…...9
1.3 Block Diagram …………………………………………….…….…..............11
1.4 Board layout Dimension ……………………………………….……….……..12
1.5 IO / Connector ………………………………………………………….……….14
Hardware installation …………………………………….16

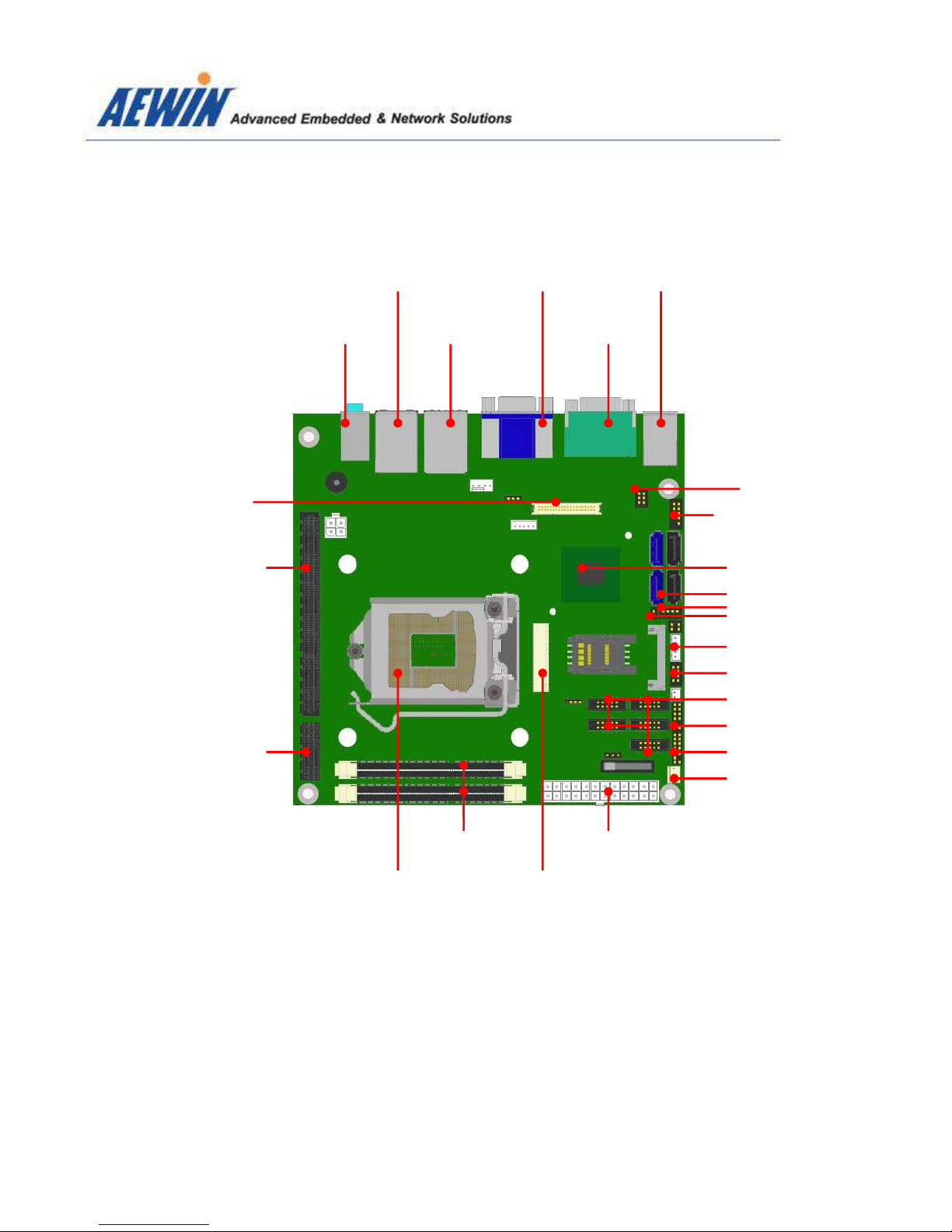

2.1 The location of onboard connectors ..………………..………………….16
2.2 The location of onboard jumpers ………………………………………...18
2.3 The function list of onboard jumpers setting ……………………………19
2.3.1 JP1 for Clean CMOS jumper ……………………………………….…...19
2.3.2 JP2 for Power AT/ATX mode selection …………………………..……20
2.3.3 JP3 for clear RTC ………… ………………………………………..……21
2.3.3 JP4 for LVDS Panel voltage select ………………………………..……22
2.3.3 JP5 for LVDS brightness control mode …………………………..……23
2.3.4 JP7 for BIOS write protect …….. ……...…………………………..……24
2.4 The pin define of onboard pin header ………………………….……......25
2.4.1 CN1 for ATX power supply connector …………………………..…...........25
2.4.2 CN2 for PCI-Express X1 slot …….……..…….…………………..….......26
2.4.3 CN3 for low pin count pin header …………….……………………........27
2.4.4 CN4 for COM4 / RS232 box header ..........……………........……………..28
2.4.5 CN5 for COM3 / RS232 box header............………………………………29
2.4.6 CN6 for COM5 / RS232 box header ……………................................. 30
2.4.7 CN7 for 8-bit GPIO pin header ...............................................................31
2.4.8 CN8 for COM6 / RS232 box header ......................................................32
2.4.9 CN9 for COM2 / RS232/422/485 box header ....................................... 33
2.4.10 CN10 for Full-size Mini-PCIe WLAN LED indictor ..................................34
2.4.11 CN11 for front panel pin header …..…………......................................... 35
2.4.12 CN12 for Full-size Mini-PCIe socket …….................................36
2.4.13 CN13 for SIM card holder ………………………….................................. 37
Chapter 2

AEWIN Technologies Co., Ltd MB-8303 User Man al 7
Chapter 3
BIOS setting menu .............................….....…..44
2.4.14 CN14 for Smbus pin header ......................................................................38
2.4.15 CN15 for SPI programmer pin header .......................................................39
2.4.16 CN21 for Internal P4 4-pin power input connector......................................40
2.4.17 CN22 for LVDS backlight pin header ………………....................................41
2.4.18 CN23 for USB2.0 pin header …..…………….. ...........................................42
2.4.19 CN24 for 24-bit dual channel LVDS connector ...........................................43
Chapter 4
Programming WDT & GPIO ………………………..69
4.1 GPIO DOS sample code ............……………………..……………...…...…69
4.2 Watch Dog timer DOS sample code .……………… ..……….…..…...........75
4.3 Device resource table ………………………………………………………...79

AEWIN Technologies Co., Ltd MB-8303 User Man al 8
1.1 Introd ction
MB-8303 is an industrial Mini-ITX motherboard supporting 4th Generation Intel® Core™ i7/i5/i3
LGA1150 Processors with built in Intel® HD Graphics. Onboard video connections include HDMI, DVI,
VGA and 24-bit dual channel LVDS, enabling customers to select between them for triple independent
display. The board features 2x SO-DIMM DDR3 1600MHz sockets, expandable to 16GB. Additionally
the MB-8303 supports a variety of I/O including 2x GbE Intel® GLAN, 4x SATAfor RAID, 2 x USB3.0 +
8 x USB 2.0, 1 x RS232/422/485 ( jumper less selection ) + 5 x RS232, PS2 Keyboard/Mouse, 1 x
Mini-PCIe socket for expansion slot with WIFI/3G module option. For furthering graphical performance
a 1 x PCIe x16 slot will allow the installation of discrete VGA card.
MB-8303delivers flexible expansion slots allowing customers to install one PCI-Express X16 card and
Mini-PCIe cards. It is built with a SIM card holder capable of installing a SIM card with a Full-size
Mini-PCIe 3G module for wireless connection. Further more it comes with a PCI-Express X1 slot that
can be paired withAEWIN’s riser card for an additional 1 ~ 3 PCI slots for various application.
About AEWIN
AEWIN offers reliable and solid products which are produced under Management System Standards:
ISO9001-2000 Certificate. The certificate keeps us focused on our quality objectives of management and
environmental production. Its willingness to customize standard products for meet unique customer
needs makes AEWIN different. All ODM projects are welcome. Years of experiences enables AEWIN to
fulfill the customer’s vision, by delivering products to exact specifications. AEWIN R&D team is proud of
its strong engineering background. R&D professionals account for 25% of the AEWIN workforce. We
focus on developing new products for both emerging and established markets
For more information about OEM/ODM, please contact us :
Email: [e-mail] TEL: [phone]

AEWIN Technologies Co., Ltd MB-8303 User Man al 9
1.2 Specification of board
System
From Factor
Mini-ITX motherboard
CPU
Support Intel® 4th Core™ i7/i5/i3 LGA 1150 processor
Chipset
Intel Q87 Express chipset
Memory
2 x 204-pin DDR3 1600 MHz / SODIMM up to 16GB, w/o ECC support
BIOS
AMI SPI BIOS
SSD
None
Watchdog timer
255 levels, 1 ~ 255 sec
Expansion
1 x PCI-
Express X16 slot
1 x PCI-Express X1 ( work with riser card for PCIe X1 or PCI 32-bit/33 MHz expansion slots
)
1 x Full-size Mini-
PCIe socket w/ USB, PCIe signal
Board Size
170mm x 170mm
Operating Temp.
0°C~60°C (32°F~140°F)
Storage Temp.
.-20°C~80°C (-4°F~176°F)
Operating Hum.
10%~90% (non-condensing)
Display
Chipset
Intel® Haswell processor integrated
Display interface
1 x external HDMI 1.4a
1 x external VGA
1 x external DVI-D
1 x internal 24-bit Dual Channel LVDS
Note :
MB-8303A & MB-8303B base on Intel® Q87 chipset and support triple display at same time.
I/O
Series Port
Internal : 1 x RS232/422/485 ( COM2 ), 4 x RS232
External : 1 x RS232
SATA
4 x SATA
USB
External : 4 x USB3.0 + 2 x USB2.0
Internal : 4 x USB2.0
Ethernet
1 x Intel® i211AT
PCIe controller
1 x Intel® i217LM PHY ( Intel® AMT 9.0 function support )

AEWIN Technologies Co., Ltd MB-8303 User Man al 10
Audio
External : Line-in/out , Mic-
in
Digital I/O
8-bit GPIO interface
LPC
1 x LPC 2 x 10-pin header for Optional TPM module
Others
2 x cooling Fan header ( Smart fan s
upport ) , 1 x PS/2 keyboard/Mouse
1 x Front Panel header for power on/off, reset, HDD/power LED indicator
1 x LVDS Backlight/inverter pin-header
Power
Power in
ATX power supply
Connector
1 x 24-pin ATX power connector. Compatible with 20-pin ATX power connector.
Note : All specifications and photos are s bject to change witho t notice

AEWIN Technologies Co., Ltd MB-8303 User Man al 11

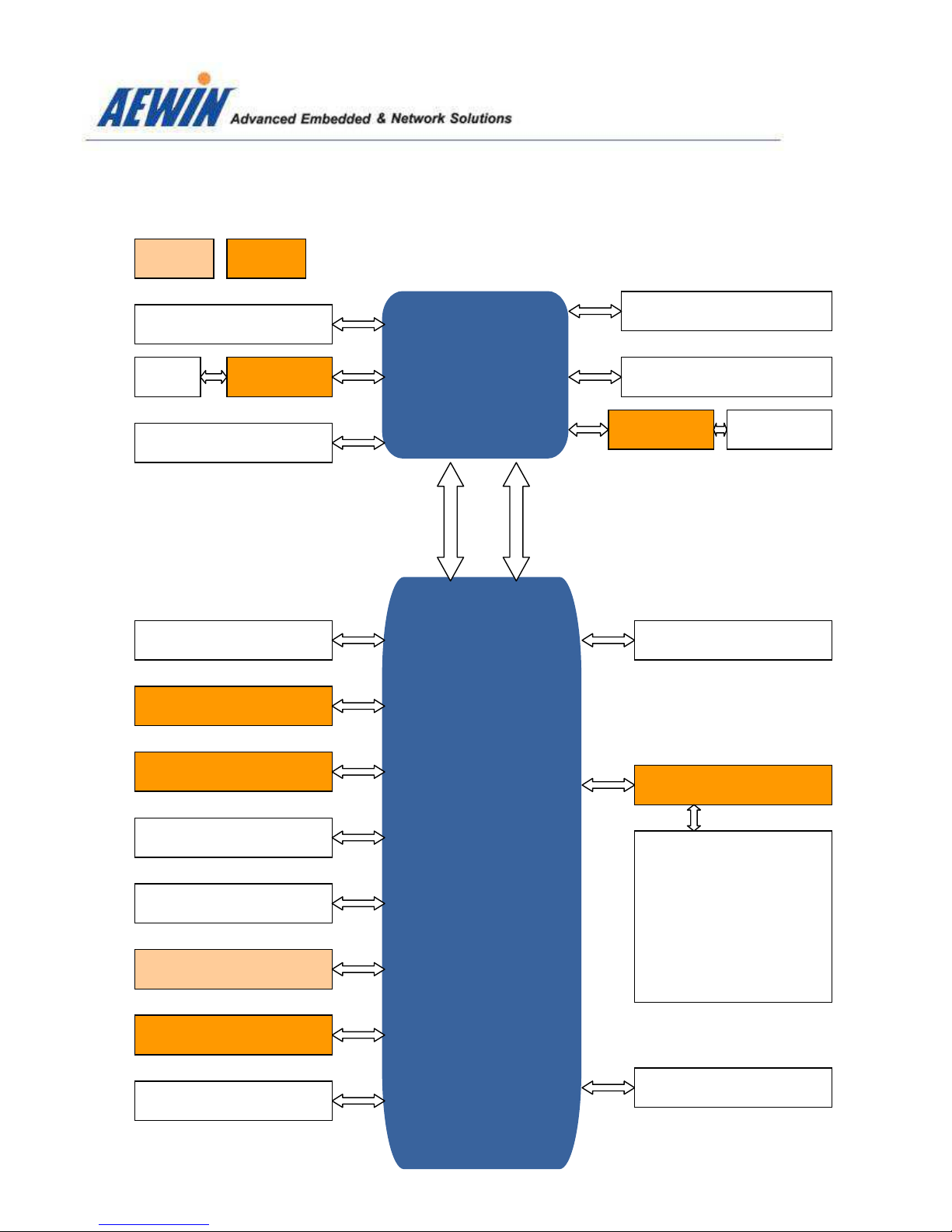

1.3 Block Diagram
4
th
Intel® Haswell Desktop
Core™ i7/i5/i3 / LGA150
PCI-Express X16 slot 1 x DDR3 204-pin SO-DIMM
PCIe DDR
1 x DDR3 204-pin SO-DIMM
DDR
X4 FDIX4 DMI
Intel® Q87
Express Chipset
Level Shifter
DDI
HDMI
DDI
DVI-D
VGA
VGA
24-bit LVDS
eDP
Intel® I217LM GLAN
PCIe
Intel® I211AT GLAN
PCIe
PCI-Express X1 slot
PCIe
8 x USB
USB
PCIe
& USB
Full-size Mini-PCIe
LPC
F81866A Super I/O
Watch Dog Timer
H/W Monitor
PS2 Keyboard / Mouse
8-
bit GPIO
1 x RS232/422/485
5 x RS232
HDA
ALC886-GR
4 x SATA
SATA
SPI
SMbus
BIOS
1 x SMbus pin header
Optional
Chip / IC
DP to LVDS

AEWIN Technologies Co., Ltd MB-8303 User Man al 12

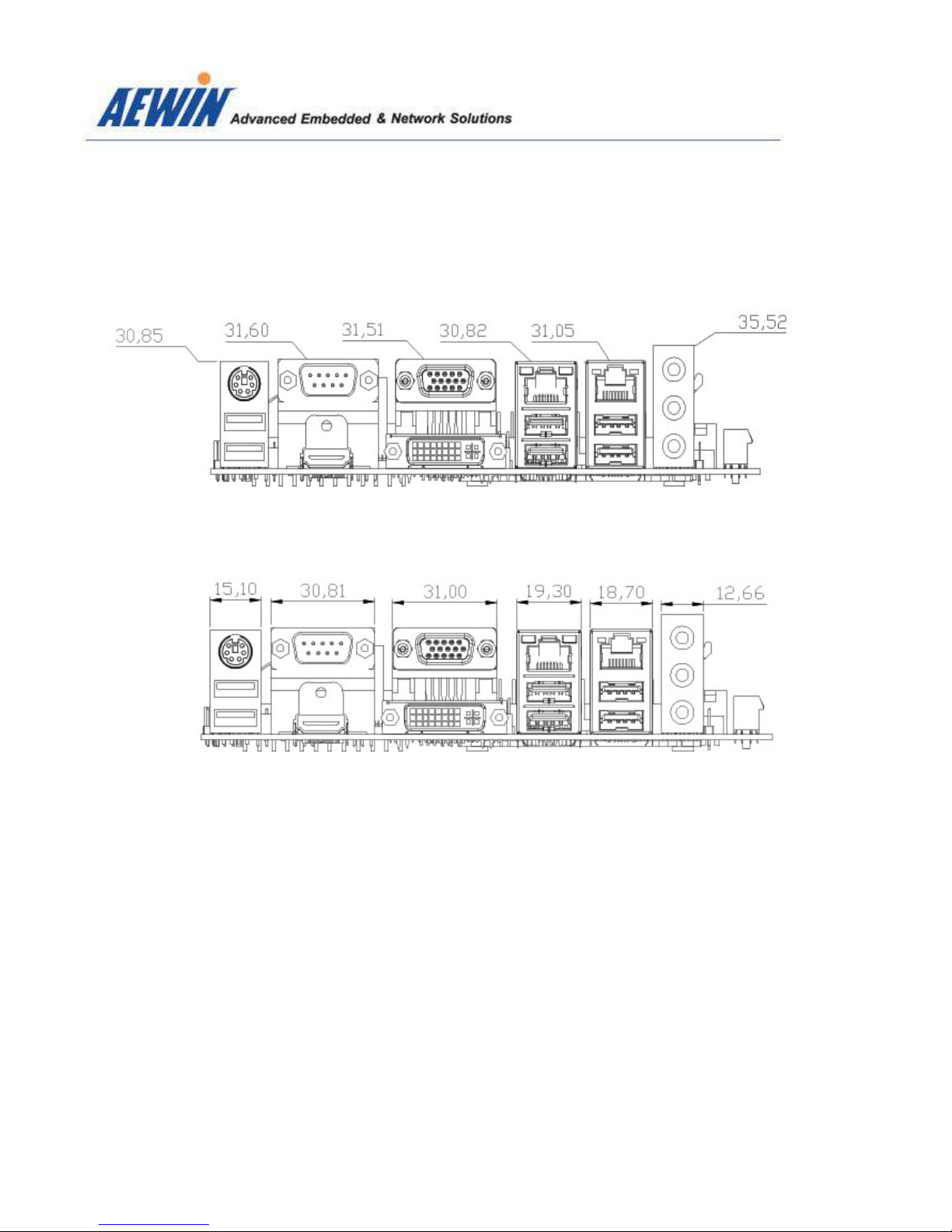

1.4 Board Layo t Dimension

AEWIN Technologies Co., Ltd MB-8303 User Man al 13

AEWIN Technologies Co., Ltd MB-8303 User Man al 14
1.5 IO ports
Intel® Q87 chip
Intel® LGA1150 CPU
ATX power connector
Audio
GLAN + USB3.0
GLAN + USB2.0
VGA + DVI-D
COM + HDMI
PS2 Key/Mouse + USB2.0
USB2.0
SATA
24-bit LVDS
PCI-Express X16
Full-size Mini-PCIe
PCI-Express X1
(Optional )
DDR3 SO-DIMM
LVDS Vcc select
SPI flash
SMbus
Front Panel
5 x COM Ports
GPIO
Low Pin Count
System Fan
BIOS write-protect

AEWIN Technologies Co., Ltd MB-8303 User Man al 15
PS2 Key/Mo se RS232 VGA
GLAN GLAN A dio
D al USB2.0 HDMI DVI-D D al USB2.0 D al USB3.0 PCIe X16 slot

AEWIN Technologies Co., Ltd MB-8303 User Man al 16
2.1 The location of onboard connectors
CN33 CN29 CN31 CN30 CN27
CN28 CN25 CN26
CN19
CN21
CN16
CN2
CN22
CPU Fan
CN23
CN6
CN20
CN7
CN18
CN15
CN14
CN11
CN10
CN9
CN7
CN5
CN3
CN4
Sys Fan
CN8
CN24
CN13
CN1

AEWIN Technologies Co., Ltd MB-8303 User Man al 17
Label Function
CN1 ATX power connector
CN2 PCI-Express X1 slot ( Optional )
CN3 LPC pin header
CN4 COM4 pin header. RS232
CN5 COM3 pin header. RS232
CN6 COM5 pin header. RS232
CN7 8-bit GPIO pin header
CN8 COM6 pin header. RS232
CN9 COM2 pin header. RS232/422/485
CN10 Mini-PCIe WLAN LED pin header
CN11 Front panel pin header
CN12 Mini-PCIe socket
CN13 SIM card holder
CN14 SMBus pin header
CN15 SPI flash pin header
CN16 PCI-Express X16 slot
CN17 SATA2 conector
CN18 SATA3 connector
CN19 SATA2 connector
CN20 SATA3 connector
CN21 P4 4-pin 12V connector
Label Function
CN22 LVDS backlight inverter
CN23 Dual USB 2.0 pin header
CN24 24-bit LVDS connector
CN25 LAN2 & dual USB 3.0 connector
CN26 LAN1 & dual USB 2.0 connector
CN27 PS2 Key/Mouse & dual USB 2.0
CN28 Audio Jack connector
CN29 VGA connector
CN30 COM1 connector. RS232
CN31 HDMI connector
CN32 N/A
CN33 DVI-D connector

AEWIN Technologies Co., Ltd MB-8303 User Man al 18
2.2 The location of onboard j mpers
Label Function
JP1 CMOS Clear jumper ( 1-2 : Normal , 2-3 : Clear CMOS )
JP2 AT / ATX power mode selection ( 1-2 : ATX , 2-3 : AT )
JP3 Clear RTC ( Open : Normal , Shorted : Clear RTC )
JP4 LVDS Vcc power level selection ( 3.3V / 5V / 12V )
JP5 LVDS brightness control mode ( 1-2 : PWM , 2-3 : DC )
JP7 BIOS write-protect
JP5 JP4
JP2
JP1
JP3
JP7

AEWIN Technologies Co., Ltd MB-8303 User Man al 19
2.3 The f nction list of onboard j mpers setting

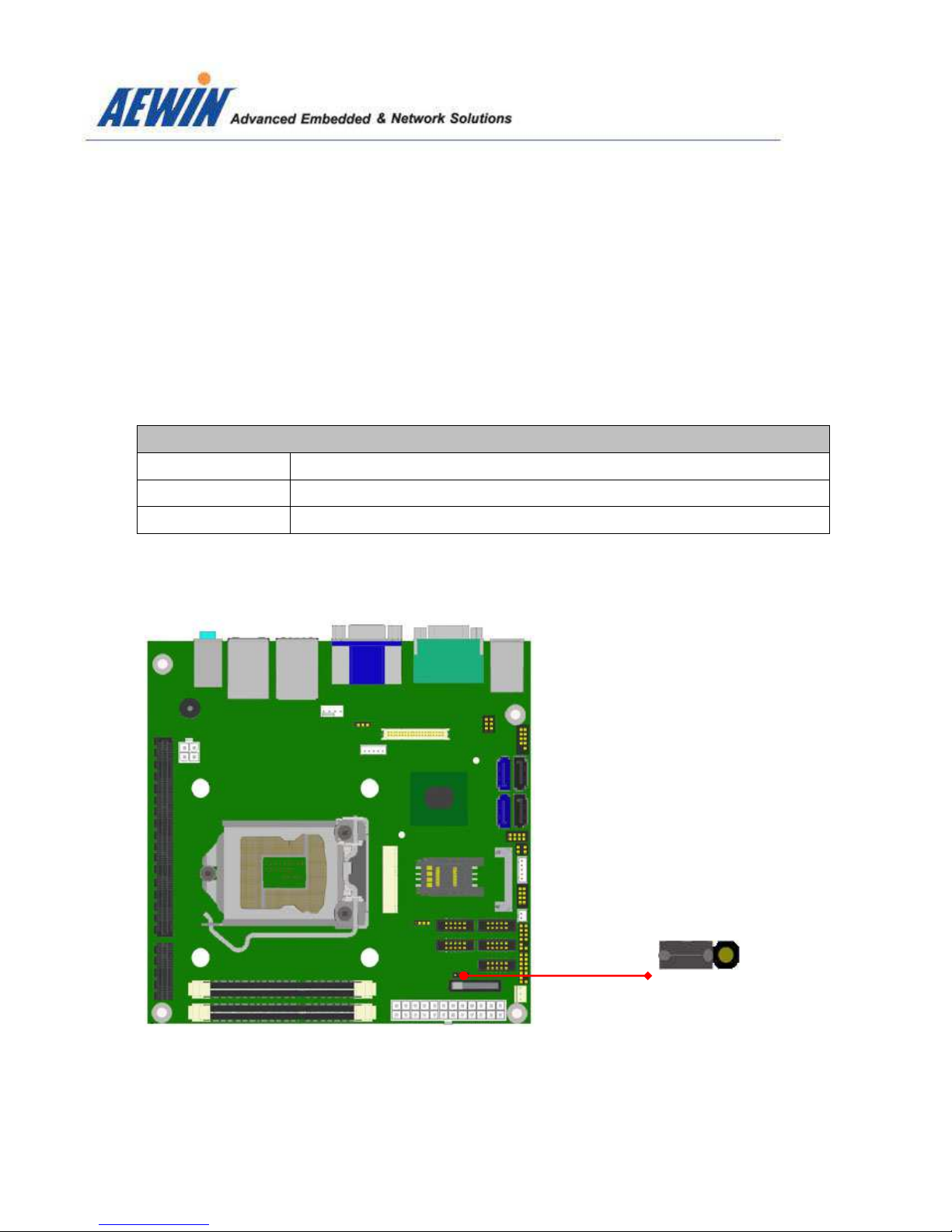

-2.3.1 : JP1 for for Clear CMOS
JP1
Closed Pin Res lt
1-2 * Normal
2-3 Clear CMOS
* Defa lt setting
If yo want to clean the CMOS data, set j mper to 2-3 j st for few seconds, Then,
Move the j mper back to 1-2 pin
JP1
1 3

AEWIN Technologies Co., Ltd MB-8303 User Man al 20
-2.3.2: JP2 for ATX / AT mode
JP2
Closed Pin Res lt
1-2 * ATX mode
2-3 AT mode
* Defa lt setting
JP2
1 3
