AFA Stainless AFUR3018USCOMBO User manual

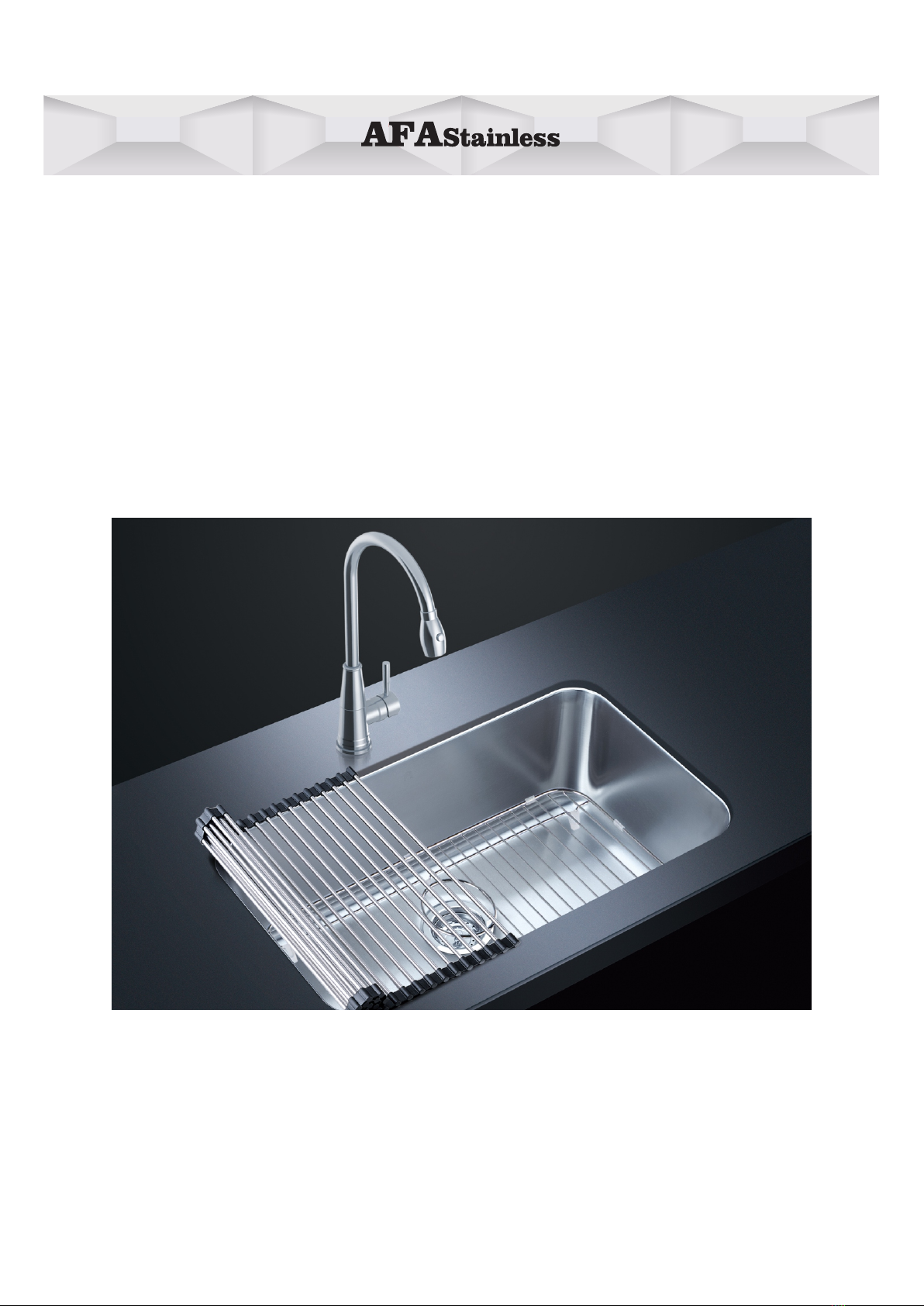

30" STAINLESS STEEL UNDER MOUNT KITCHEN SINK & FAUCET KIT
AFA USA LLC
3190 Airport Loop Dr Ste B1, Costa Mesa, CA 92626
Toll Free: [phone]
Monday-Saturday 8 a.m-6 p.m Pacific Time Zone
Email: [e-mail]
AFUR3018USCOMBO
·Large Single Bowl Sink
·Extra deep 11 inch Bowl
·Stainless Bottom Grid
·18 Gauge Solid Stainless
·Stainless Steel Pull Down Faucet
·Stainless Steel Soap / Lotion Dispenser
·1 Stainless Drain w / Strainer
·17" × 20" Stainless Roller Mat
Owners Manual

AFA STAINLESS PRODUCT SUPPORT TEAM
Customer service hotline
Toll Free: [phone]
Monday-Saturday 8 a.m-6 p.m Pacific Time Zone
Email: [e-mail]
AFA USA LLC
3190 Airport Loop Dr Ste B1, Costa Mesa, CA 92626
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product. Before beginning the assembly of
this product, compare the parts with the package contents and list. If any
part is missing or damaged do not attempt to assemble the product and
contact AFA Stainless customer service for assistance.
WARNING
• Follow the installation instructions carefully. Proper installation is the
installer’s responsibility.
CAUTION
• Check local building codes before beginning installation to ensure
compliance.
• These instructions are based on application of composite material or solid
surface countertop installation only. Countertop applications of stone,
granite, marble or butcher block should be referred to an experienced
countertop fabricator for custom installation.
• AFA stainless does not accept any liability for damage to countertop; sink
fixture, faucet, or personal injury during installation. Warranty may be void if
it is determined installation instructions were not followed.
This unit meets or exceeds the following:
• ASME A112.18.1
• CSA B125.1
• Listed by CUPC for use in the US and Canada
• Listed by California Energy Commission
California Title 20 Water-Efficiency Standards
Flow rate Kitchen faucet max. 1.8 GPM
AFUR3018USCOMBO
Owners Manual
2
Dimensions
MM
9-7/16"
8-7/8"
25°

B-3
A-6 A-7 A-8
x1
F-1
F-2
F-3
F-4
F-5
PARTS LIST
x12
x12
x12
x12
x12
D-1
D-2
D-3
D-4
D-5
B-1
C-4
C-1 C-3
C-5
C-6
x 2
C-2
A-16
A-10A-12A-13A-14
A-11
A-15
A-3
A-4
A-5
A-9
A-1
3
Faucet
A-1 Faucet Body
A-3 Horseshoe Gasket & Metal Bracket
A-4 Hex M19 Nut
A-5 Hose Protector
A-6 Hot & Cold Supply Line
A-7 Weight With 2 Screws
A-8 Installation Tool
A-9 Spray Hose
A-10 Diverter Handle
A-11 5/32" Set Screw
A-12 Decorative Collar
A-13 Retainer Nut
A-14 Cartridge
A-15 Spray Head
A-16 Aerator
Sink
B-1 Sink
B-3 Installation Template
Soap Dispenser
C-1 Spout & Pump
C-2 Tube
C-3 Bottle
C-4 Threaded Shank
C-5 Rubber Gasket
C-6 Lock Nut
Strainer
D-1 Strainer Basket Assembly
D-2 Strainer Bowl
D-3 Top Gasket
D-4 Bottom Gasket
D-5 Lock Nut
Under-mount Installation Clips
F-1 Drop-In Anchor
F-2 Mounting Clip
F-3 Metal Washer
F-4 Wing Nut 1/4"-20
F-5 Screw

4
Recommended Tools for Installation:
·Before and during installation, please read and familiarize yourself with all installation instructions
for this product.
·Please keep all components, parts and accessories of this product away from small children and
minors. During installation, all screws, tools and small parts should be supervised so that they
do not fall into the hands of children.
·Use caution at all times when installing this product. Please ensure that you are physically able to
perform all parts of the installation and that you have the correct tools and equipment needed.
Before beginning, remove all wrappers and packing materials including staples and packing
straps.
·Please check to ensure that all components and parts are complete.
·For top-mount installations: For ease of installation we recommend installing the faucet and soap
dispenser to the sink prior to installation of the sink.
T-5
Pencil
T-9
Hammer
Electric Jig Saw Adjustable Wrench
T-6 T-7 T-8
1/2" Drill Bit
Electric Drill
1/4" Drill Bit
Silicone Sealant
T-10
Channel Lock Wrench
T-11
Safety Glasses
T-12
Plumber Putty
T-13
T-2(Included) T-3 T-4
Flathead Screwdriver Phillips Screwdriver5/64" Allen Wrench
T-14
Tape Measure Cloth
T-15 T-16
Denatured Alcohol

UNDER-MOUNT INSTALLATION
AFA stainless under-mount sinks can be installed with two different reveals- Positive and Zero– each creating a
distinctive look where the countertop and sink meet (see diagram). Deciding on your preferred look must be done
prior to installation.

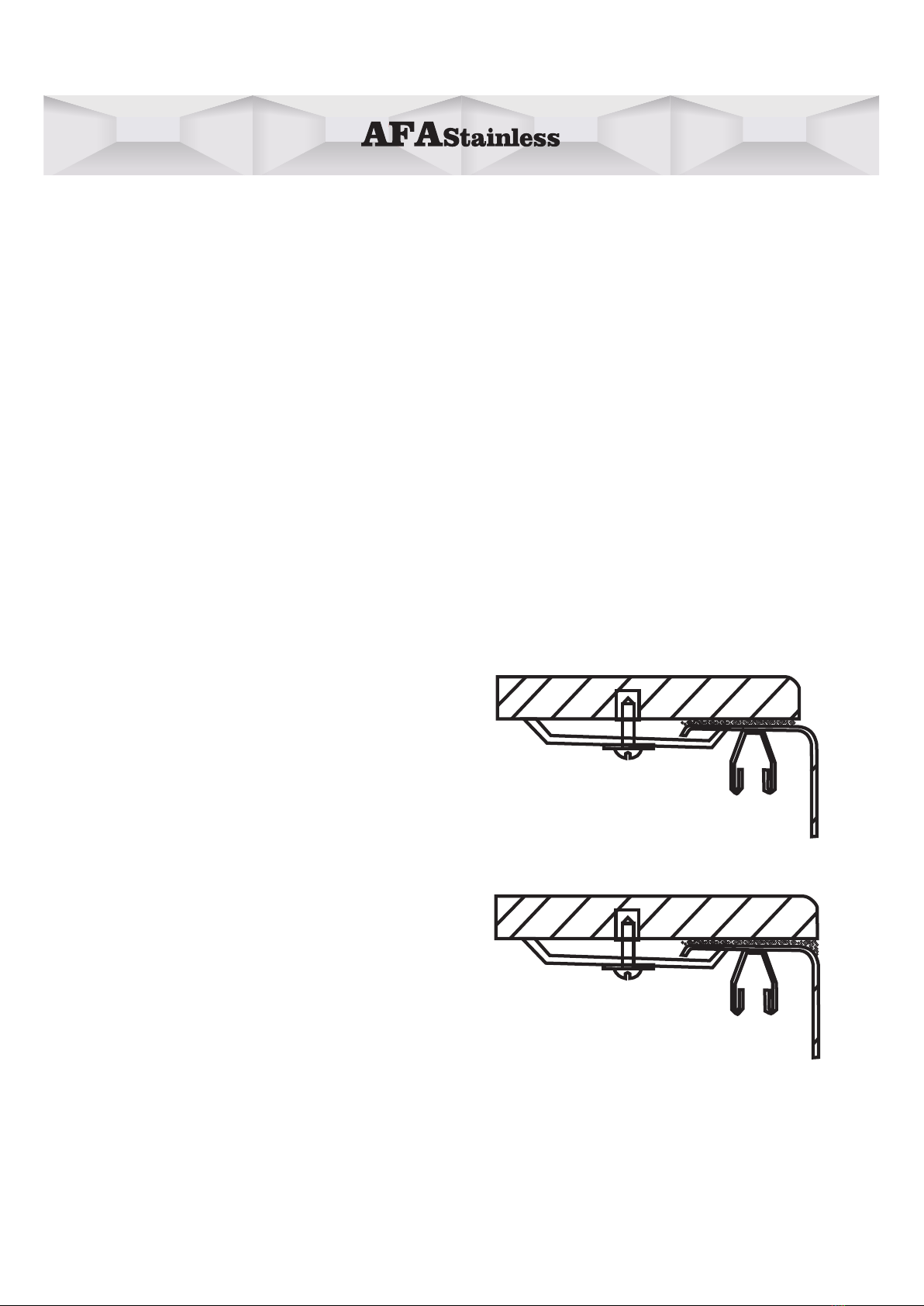

Positive reveal – the countertop edge sits
approximately 1/8” back from the edge of the
sink, exposing the sink rim. All AFA stainless
undermount sinks feature a 3/4” finished rim.
All AFA stainless undermount sinks feature an
approximate 1/8” positive reveal.
Zero reveal – The countertop meets the edge of the
sink, fitting flush with the sink bowls.
CAUTION: These instructions are based on application of composite material or solid surface countertop
installation only. Countertop applications of stone, granite, marble or butcher block should be referred to an
experienced countertop fabricator for custom installation.
AFA Stainless does not accept any liability for damage to countertop; sink fixture, faucet, or personal injury
during installation. Warranty may be void if it is determined installation instructions were not followed.
Recommended for professional installer only.
IMPORTANT: Provide your countertop manufacturer with the supplied sink and template for proper sink hole
cutting. A under-mount installation template is included with this product. And a PDF cut out hole instruction can
be sent by calling 877-778-6888 or Email: [email protected] if you need.
Templates are supplied only as a guide. The physical use of the sink will ensure a more accurate cutout.
5

6
1/2"
(13mm)
B-3

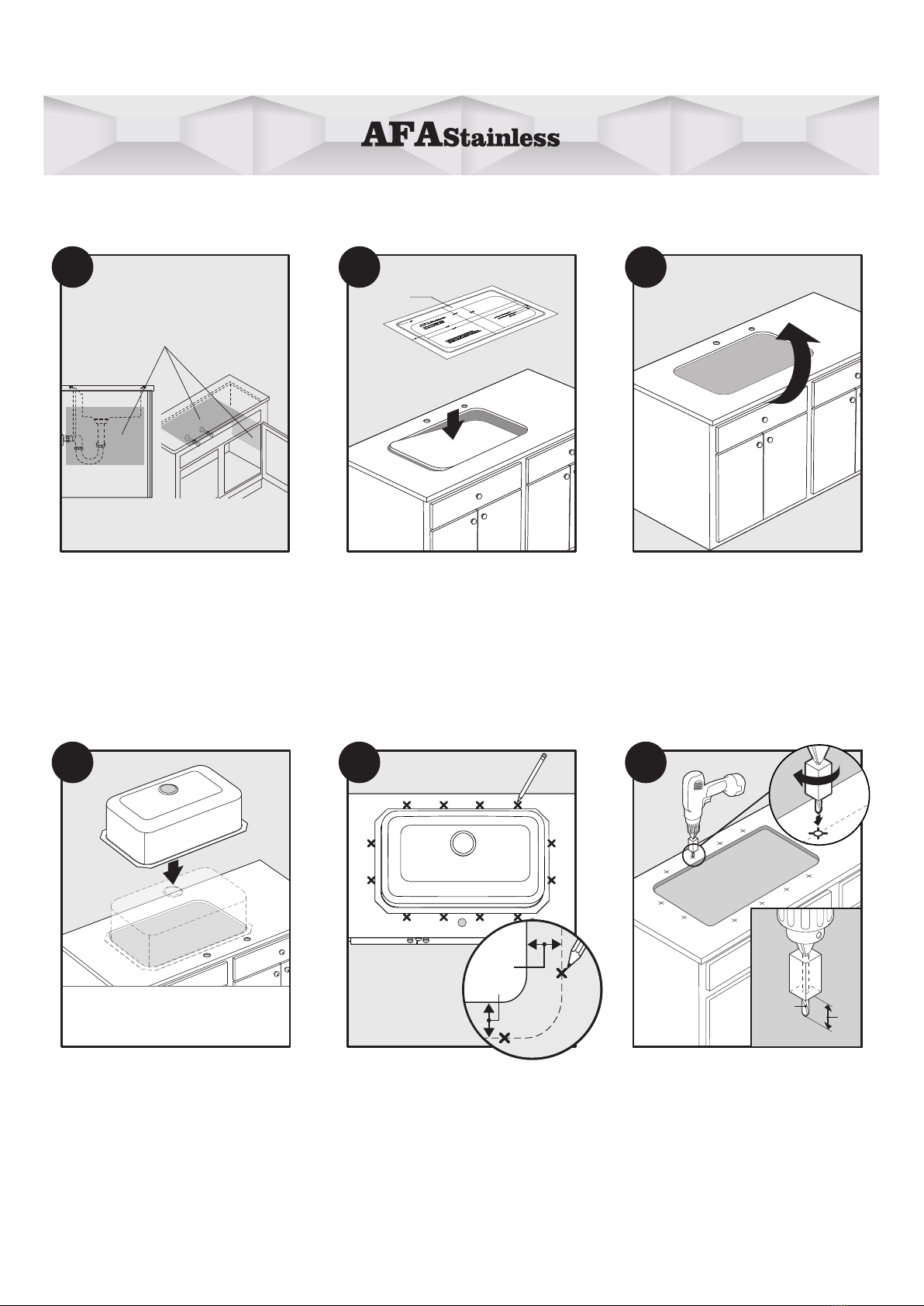

Position the Template (B-3) on the
counter top where you wish to install
the sink. Trace around the
template. Carefully cut the counter
hole using a Jig Saw (T-6). Carefully
cut along the inside of the drawn
cut line. Drill 2 holes for the faucet
and soap dispenser.
Determine location for mounting
brackets; space evenly around the
underside. Mounting holes should
be 1/2" out from the edge of the
sink ledge.
Drill mounting holes 1/4" round
by 3/8" deep.
Turn countertop upside down.
3/8"
(10mm)
1/4"
diameter
(6mm)
Verify cabinet clearance
Verify minimum inside cabinet
clearance is 34" , width 22",
depth 13".
Place the Sink (B-1) upside down on
counter top, inside the original
tracing. Center it on the lines, and
using a Pencil (T-5), trace a line around
the sink. Remove the sink from the
counter top.
CAUTION: Check desired position.
23
56
1
4

7
D-4
D-5
D-2
D-3

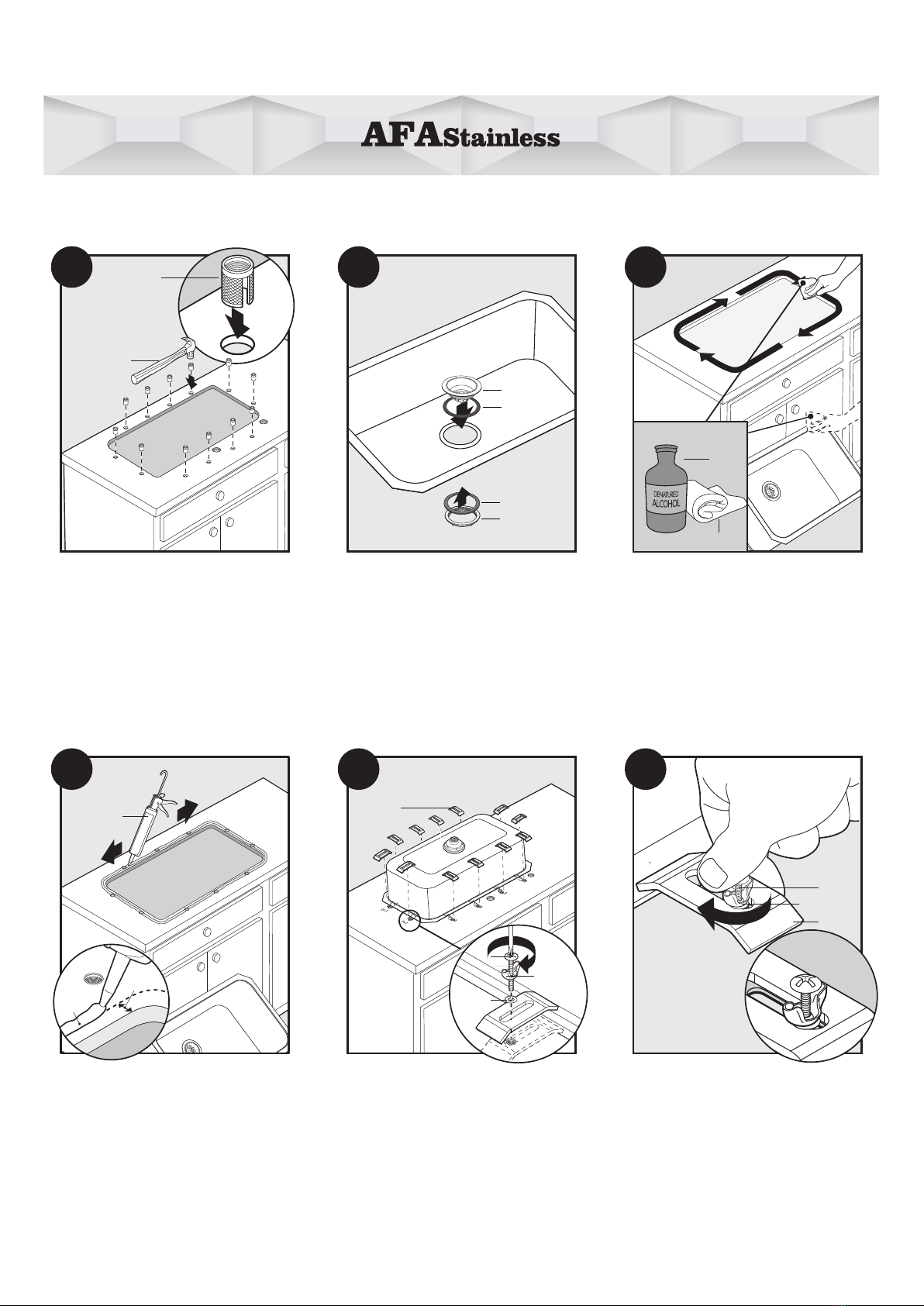

Set the Strainer Bowl (D-2) and Top
Seal (D-3) into the hole from above
and push down firmly. Wipe any
excess Plumber's Putty away (T-13)
from top of the sink hole. Place the
Bottom Seal (D-4) on the underside
of the Strainer Bowl (D-2) and
tighten with Strainer Nut (D-5)
using Channel Lock Wrench (T-11).
Clean edge of counter cutout and
the top rim of the sink with a Cloth
(T-15) and Alcohol (T-16) .
Optional: Apply a bead of Silicone
Sealant (T-10) 1/8"-1/4" away from
edge of counter cutout and then
align sink on counter.
T-10
3/8"
(10mm)
1/8"
(3mm)
F-2
Align sink upside down on to
counter top and then attach mounting
clips (F-2). Position brackets so the
clip edge overlaps sink ledge and
thread screw (F-5) into predrilled
holes through washer and clip as
shown.
F-5
F-4
F-3
F-2
F-4F-5
Tighten Wing Nut (F-4) to Bracket
Screw (F-5) evenly. Do not over
tighten.
Drop-In Anchor (F-1) holes should
have been drilled by your counter top
fabricator. Carefully install Drop-In
Anchor (F-1) with Hammer (T-9).
T-9
F-1
7
T-16
T-15
12
11
89
10

A-3
A-4
A-5
Remove Hose Protector (A-5), Hex
M19 Nut (A-4) and Horseshoe
Gasket & Metal Bracket (A-3) from
bottom of faucet.
C-4
C-5
C-6
C-3
A-5
A-4
A-3
Tighten Hex M19 Nut (A-4) with
Installation Tool (A-8). Use
Phillips Screwdriver (T-4) through
hole in Installation Tool (A-8) to
tighten firmly.
Thread and tighten Hose Protector
(A-5) onto the end of mounting stud.
A-8 A-4
A-1
A-3
Slide Horseshoe Gasket & Metal
Bracket (A-3) onto mounting stud.
A-3
Install the soap dispenser.Connect faucet Spray Hose (A-9)
A to Quick Connect Adaptor B.
A
B
1
2
3
18
16 17
15
14
13
8

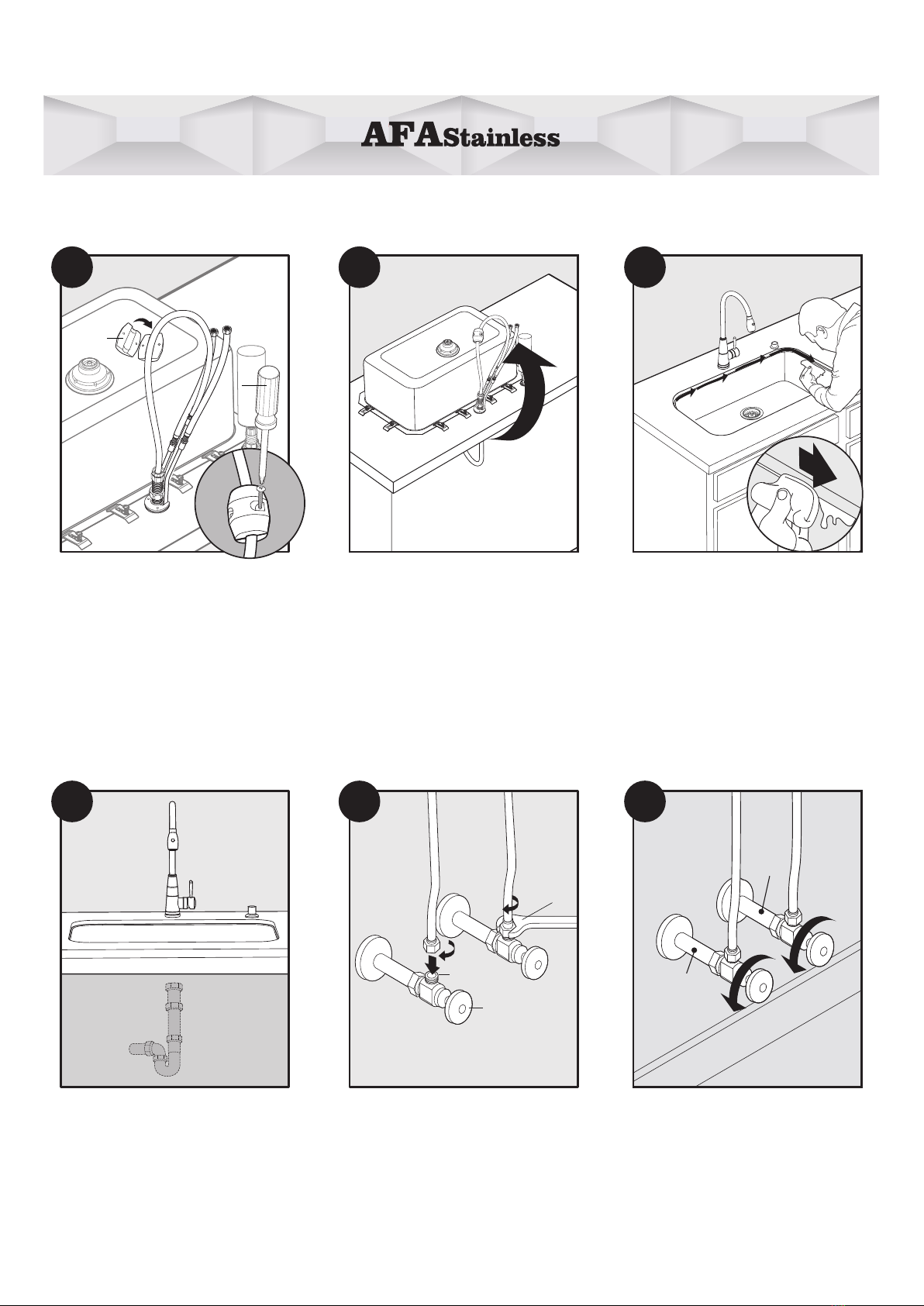

Slide Hot & Cold Water Supply
Lines (A-6) and Spray Hose (A-9)
through faucet hole and position
faucet under sink.

A-7
Tighten weight (A-7) to Spray Hose
(A-9) with 2 screws provided. Measure
15 inches down from the underside
of the faucet on the Spray Hose (A-9).
Pull the faucet out of the spout to test
the distance and the retracting action.
Move the weight if necessary. Be
careful not to put weight so far down
on the hose that it rests on the floor
of the cabinet, or the Spray Head
(A-15) won't retract all the way.
T-4
Turn the countertop right side up. Complete counter installation
and wipe away any excess silicon
from sink rim.
Hot
Cold
Turn on hot and cold water by
turning handles counter clockwise,
turn on sink faucet and run for 5
minutes to make sure no leaks.
3/8" (10 mm)
Hot
T-8
Attach Hot & Cold Supply Lines
(A-6) to shutoff valves. Tighten
with Adjustable Wrench (T-8) in a
clockwise direction until secure.
Connect the P-trap ( ) Not included
to the strainer.
24
23
22
9
21
19 20

10
Turn on faucet and allow water to
flush lines for 15 seconds.
Put roller mat on sink.
C-1
C-2
C-1
C-2
Connect Tube (C-2) to Spout and
Pump (C-1). Insert Spout and Pump
(C-1) and press the pump head
several times to prime system until
soap/lotion flows out of spout.
Fill soap or lotion into bottle.
Do not exceed 16 oz.
Put bottom grid in sink.
26 27
25
28 29

Using the Aerator Key (Included),
remove the Aerator (A-16) from
the Spray Head (A-15) by turning
counter clockwise.

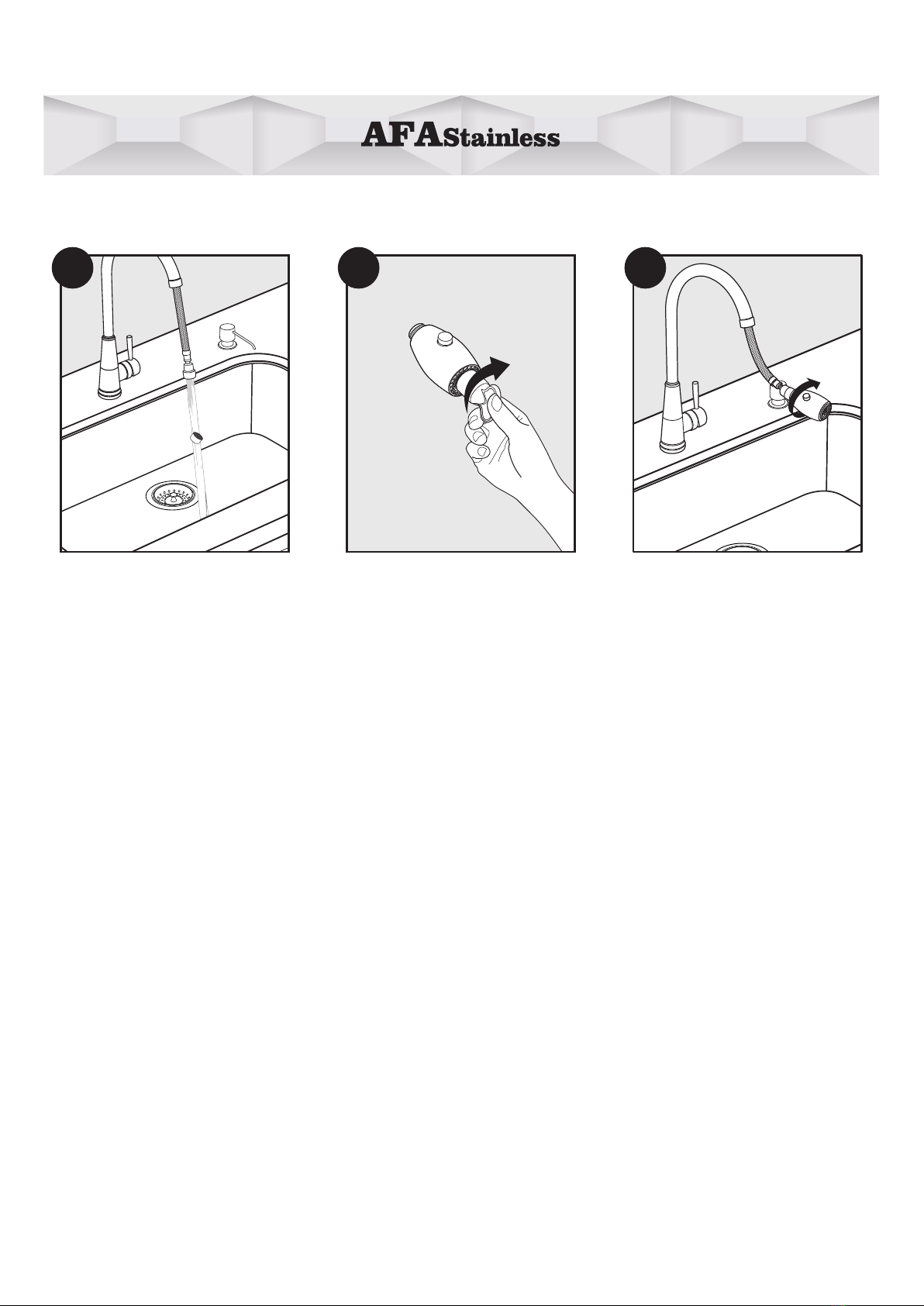

CLEANING AND CARE OF AERATOR
2
1
Pull out the Spray Head (A-15).
4
11
Remove the Spray Head (A-15) by
turning it in a counter clockwise
direction.
Flush the filter gasket with water. Put filter gasket back into spray
head.
56
3
Remove the filter gasket from spray.

12
Thread the Spray Head(A-15) back
onto the Spray Hose(A-9) in a
clockwise direction.
Reassemble the Aerator (A-16)
back to Spray Head (A-15).
Flush the Aerator (A-16) with water.
789

INSTALLATION OF CERAMIC CARTRIDGE
For safety and ease of faucet replacement, AFA
recommends these tools.
HELPFUL TOOLS
5/64" Allen Wrench
(included)
Adjustable Wrench
AFA Stainless is committed to producing the finest Solid Stainless Steel Faucet on the planet. A major component that
is a secret to AFA’s success, has been the long standing relationship with German manufactured Fluhs, the worlds
most advanced leader of high quality, technologically suburb ceramic cartridges guaranteed for life. In the rare case
of cartridge failure, AFA will replace the cartridge at no charge by calling our customer service hotline.
1-877-778-6888.
13
A-14
Flathead Screwdriver
Hot
Cold
2

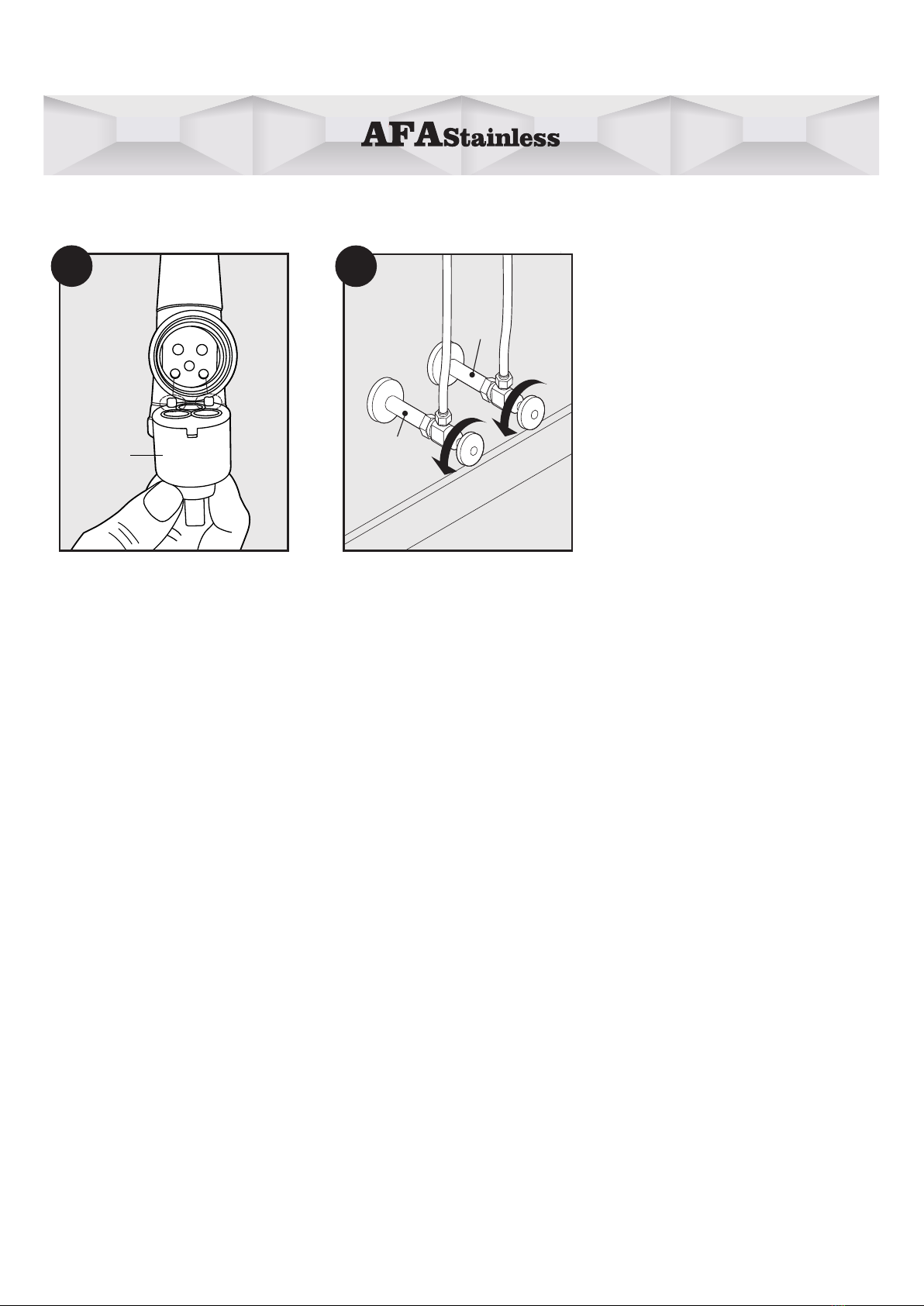

Ceramic Cartridge (A-14) is located
inside the diverter.
3
1
Turn off the hot & cold water
supply by turning the water
supply valve(s) clockwise until it
can no longer be turned.
Cover or close the sink drain.
Fluhs cartridge model # BFZU 1700

T-3
A-12
T-8
A-13
A-14
A-10
5/64"
A-11
T-2
A-12
14
7
Use Adjustable Wrench (T-8) and
unscrew Retainer Nut (A-13) counter
clockwise (not the top of the
ceramic cartridge). Set aside.
8
Remove Cartridge (A-14).
9
9
Remove Decorative Collar (A-12)
and set aside.
5
If Decorative Collar (A-12) is tight
and not easy to remove, use a
Flathead Screwdriver (T-3) and
carefully pry off the collar.
Set aside.
6
4
Remove Diverter Handle (A-10)
and set aside.
Using 5/64" Allen Wrench
(T-2 ) carefully loosen Included
Set Screw (A-11) inside diverter.
(Do not remove screw).

A-14
15
10
Turn on hot and cold water supply
valve(s) counter clockwise. Run
water and check for leaks.
Hot
Cold
11
Install new Cartridge (A-14).
Reassemble faucet by reversing
steps.

– Please ensure that the surface of your AFA product has cooled down before cleaning (clean at room temperature).
– Use a soft cloth (e.g. a micro fibre cloth) to dry the product after every use.
– Do not use abrasive cleaning agents or tools – No scratching of the surface.
– Descaling is an aggressive process for products, so you should only do this when and where it is needed. Please wash the
product thoroughly with clean water after using any cleaning chemicals, then dry it with a soft cloth (e.g. a micro fiber
cloth).
– Do not use acidic or caustic cleaning agents or abrasive sponges.
– Do not use degreasing agents or too much cleaning agent.
– Do not spray directly onto the faucet.
– Do not use hard cleaning tools or materials.
– No scratching of the surface.
CLEANING AND CARE INSTRUCTIONS
LIFETIME LIMITED WARRANTY
AFA Stainless LLC warrants its products to be free of defects in material and workmanship during normal residential use for
as long as the original consumer purchaser owns his or her home. This warranty applies only to AFA Stainless products
installed in the USA. If a defect is found in normal residential use, AFA Stainless will, at its election, repair, replace or make
appropriate adjustment. Scratching, staining, acid or alkaline etching of the finish over time due to use, cleaning practices or
water or atmospheric conditions, are not manufacturing defects but are indicative of normal wear and tear, and are not
covered under this warranty. Damage caused by accident, misuse, or abuse, such as dents and scratches after installation, is
not covered by this warranty. Improper care and cleaning will void the warranty. Proof of purchase (original sales receipt)
must be provided to AFA Stainless with all warranty claims. AFA Stainless is not responsible for labor charges, installation, or
other incidental or consequential costs. In no event shall the liability of AFA Stainless exceed the purchase price of the
product. If AFA Stainless products are used commercially AFA Stainless warrants its products to be free from defects in
material and workmanship for five (5) years from the date of purchase, with all other terms of this warranty applying except
duration. If you believe that you have a warranty claim, please contact the AFA Stainless Customer Care Hotline at 877-778-
6888. or by writing to the address shown below.
AFA USA LLC
Attn: Customer Care
3190 Airport Loop Dr Ste B1, Costa Mesa, CA 92626
Proof of purchase (original sales receipt) from the original consumer purchaser must accompany all warranty claims. Defects
or damage caused by the use of other than genuine AFA Stainless parts are not covered by this warranty. AFA STAINLESS
LLC AND/OR SELLER ARE PROVIDING THIS WARRANTY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. AFA STAINLESS LLC. AND/OR SELLER DISCLAIMS ANY LIABILITY FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of such damages, so these limitations, and exclusions may not apply to you. This warranty gives the
consumer specific legal rights. You may also have other rights that vary from state/province to state/province. This warranty is
to the original consumer purchaser only, and excludes product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, Service Company or the consumer. This is AFA Stainless exclusive written
warranty. Manufacturers’ warranties may not apply in all cases, depending on factors such as use of the product, where the
product was purchased, or to whom you purchased the product from. Please review the warranty carefully, and contact the
AFA Stainless Customer Service Hotline if you have any questions.
