AGA DC3 User manual

Installation
Guide
09/14 EINS 516664
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY
OR INSTALLING THIS APPLIANCE.
IMPORTANT : SAVE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT : CONSERVER CES INSTRUCTIONS POUR REFERENCE FUTURE
For use in USA/Canada
AGA DUAL CONTROL
Model No. - DC3 & DC5

SECTION PAGE
PRODUCT SAFETY 3
GENERAL NOTES 4
DELIVERY REQUIREMENTS 4
GENERAL INSTALLATION REQUIREMENTS 4
APPLIANCE DIMENSIONS - AGA DC3 5
APPLIANCE DIMENSIONS - AGA DC5 6
INSTALLATION 7 - 8
CONNECTION TO THE POWER SUPPLY - AGA DC3 9
POWER SUPPLY - HOT CUPBOARD AGA DC5 10
MAINS SUPPLY LOCATION - AGA DC3 11
MAINS SUPPLY LOCATION - AGA DC5 12
HOTCUPBOARD INSTALLATION 13 - 19
WIRING DIAGRAM - AGA DC3 20
WIRING DIAGRAM - AGA DC5 21
INSTRUCTIONS 22
2
CONTENTS

PRODUCT SAFETY
MEANING/DESCRIPTION SIGNIFICATION/DESCRIPTIONSYMBOL
WARNING/CAUTION
An appropriate safety instruction
should be followed or caution to a
potential hazard exists.
AVERTISSEMENT
Une consigne de sécurité
appropriée doivent être suivies
ou garde d’un danger potentiel
exists.
DANGEROUS VOLTAGE
To indicate hazards arising from
dangerous voltages.
TENSION DANGEREUSE
Pour indiquer les dangers
résultant des tensions
dangereuses.
PROTECTIVE EARTH (GROUND)
To identify any terminal which is
intended for connection to an
external conductor for protection
against electric shock in case of
a fault, or the terminal of a
protective earth (ground)
electrode.
TERRE DE PROTECTION
Pour marquer bornes destin
ées à
être raccordées à un conducteur
de protection extérieur contre les
chocs éclectiques en cas de
défaut d’isolement, ou pour
marquer la borne de la terre de
protection.
HEAVY
This product is heavy and
reference should be made to the
safety instructions for provisions
of lifting and moving.
LOURD
Ce produit est lourd et doit être
fait référence auc consignes de
sécurité relatives aux dispositions
de soulever et déplacer.
DISCONNECT MAINS SUPPLY
Disconnect incoming supply
before inspection or
maintenance.
APPAREIL À LASER DE
CLASSE 2
Alimentation d’entr ée Débrancher
avant inspection ou d’entretien.
3
REFER TO MANUAL
Refer to relevant instructions
detailed within the product
manual.
ATTENTION, SURFACE TRÉS
CHAUDE
Reportez-vous aux instructions
applicables, indiquées dans le
manuel du produit.

4
GENERAL NOTES
NOTE: THESE INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH THE RANGE AND
THE USER TO RETAIN FOR FUTURE REFERENCE.
DELIVERY REQUIREMENTS
The AGA DC3 arrives on 1 pallet.
The AGA DC5 (Hotcupboard Option) arrives on 2 pallets.
There must be access to the kitchen to manipulate a foot print of 39 9/16” (1005mm) x 29 1/8”
(740mm). A wooden template (skate with castor wheels) of dimensions 39 9/16” (1005mm) x
29 1/8” (740mm) could be used to check if the AGA Dual Control fully built appliance is able to
fit through the property grounds and doors into its installation position in the kitchen. It must
also be considered that the height of the appliance is 37 3/4” (960mm) off pallet and 43 1/4 ”
(1100mm) on the pallet, so high level obstacles/restrictions must not be overlooked.
If this skate/template can be manipulated through the property grounds and doors
into position, then the AGA Dual Control can be installed as intended with no re-work.
GENERAL INSTALLATION REQUIREMENTS
The installation of the range must be in accordance with the relevant requirements of the local
Wiring and Building Regulations. It should be in accordance also with any relevant requirements
of the Local Authority.
In your own interest and that of safety to comply with the law, all appliances should be installed
by an authorized AGA distributor in accordance with the relevant regulations.
CAUTION:
THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE
MANPOWER MUST BE USED IN MOVING THE RANGE TO
AVOID DAMAGE TO THE UNIT OR THE FLOOR

5
APPLIANCE DIMENSIONS - AGA DC3
Fig. 1 DESN 516297
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the
appliance should be increased by 3/8” (10mm) beyond the figures quoted above. This allows
safe margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA Dual Control (DC3) - 978 lbs
DATA PLATE LOCATED BEHIND BOTTOM PLINTH.
RH SIDE VIEW FRONT VIEW LH SIDE VIEW
PLAN VIEW
MINIMUM WALL POSITION MINIMUM WALL POSITION
A B C D E F G H J K L
mm 987 948 910 680 1388 760 1145 698 116 10 634
pouces 38 7/837 3/835 7/826 3/454 5/829 7/845 1/827 1/245/83/825

5

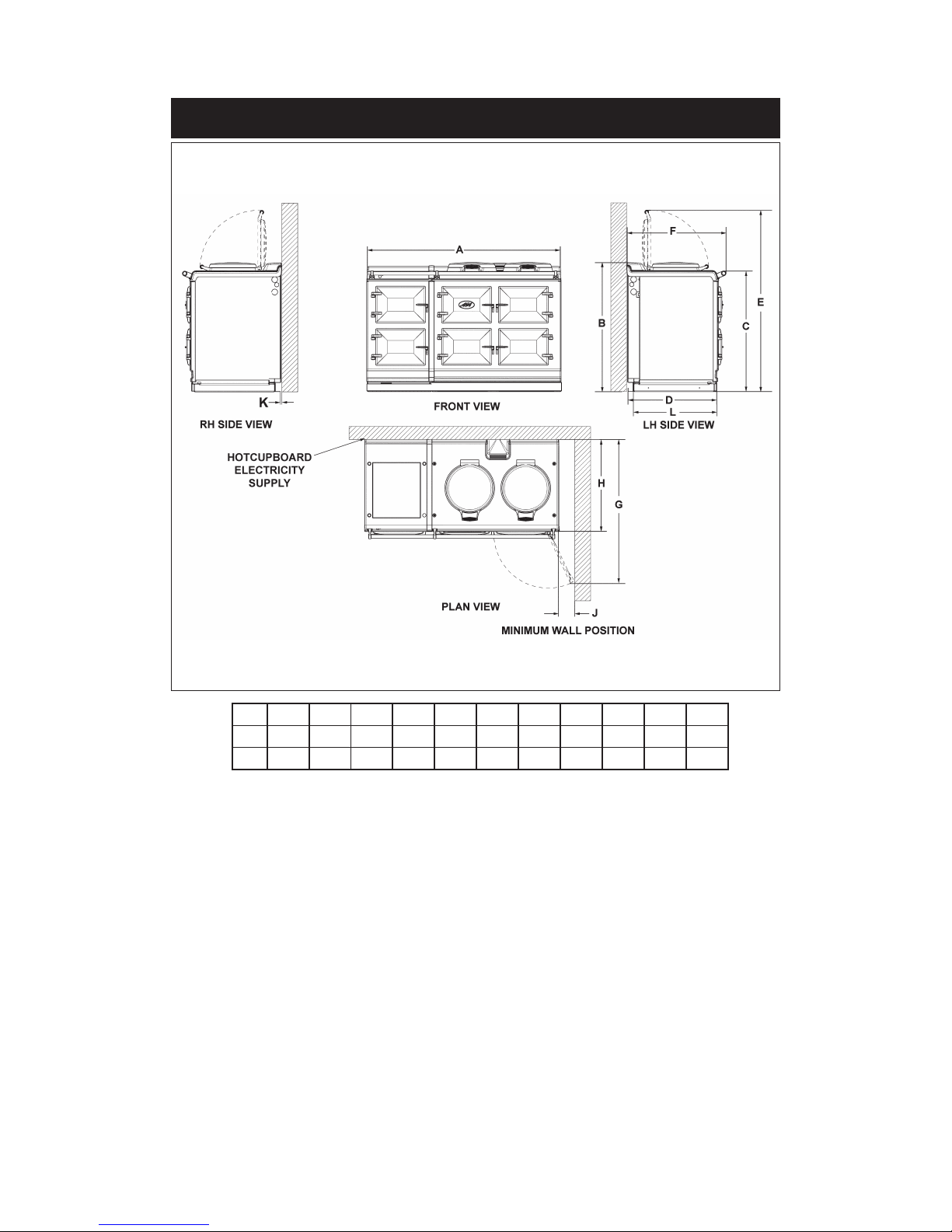

APPLIANCE DIMENSIONS - AGA DC5
6
Fig. 2 DESN 516561
Range Dimensions
When surveying for a range installation the actual clearance required for the ‘body’ of the
appliance should be increased by 3/8” (10mm) beyond the figures quoted above. This allows
safe margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA Dual Control (DC5) - 978 lbs
Hotcupboard - 242 lbs
DATA PLATE LOCATED BEHIND BOTTOM PLINTH.
A B C D E F G H J K L
mm 1478 948 910 680 1388 760 1145 698 116 10 634
ins 58 1/ 37 3/835 7/826 3/454 5/829 7/845 1/827 1/245/83/825

INSTALLATION
Range Base or Hearth
It is essential that the base or hearth on which the range stands should be level and be capable
of supporting the total weight of the range. The base of the built-in AGA plinth must be level and
sit above finished floor height for service access.
Plinth
The front plinth cover is removable and must not be obstructed by flooring or tiles. If necessary
the range must be raised by the thickness of the tiles to ensure the plinth can be removed.
Rear Wall
The wall behind the range must be of non-combustible material with a minimum thickness of 1”
(25mm).
Minimum Clearance to Combustibles
A gap of at least 1/2” must be observed between the rear of the top plate, and the wall behind the
range. If the rear wall is of combustible material there must be a gap of 11/2” (38mm).
Side Clearances
A 1/8” (3mm) gap is required each side between the range top plate and adjoining work surfaces
that may be fitted, this is to allow for the safe removal of the top plate should this be required at
a later date.
Where ranges are fitted against a side wall a 4 5/8” (116mm) side clearance is required on the
right and left hand side for oven door access.
If the AGA is to be installed in a brick recess, then the minimum clearance should be increased
by at least 3/8” (10mm), to allow for the walls not being square.
In addition a minimum clearance of 39 3/8” (1000mm) must be available at the front of the range
to enable the range to be serviced.
Tiling
When the range is to stand in a recess or against a wall which is to be tiled, under no
circumstances should the tiles overlap the range top plate, access to remove the hotplate must
be allowed for servicing at a later date.
A gap of at least 1/2” (12mm) must be observed between the rear of the top plate and the wall
behind the range.
Overhead Cabinets
To eliminate the risk of burns or fires by reaching over hot surface units, cabinet storage space
located above the surface units should be avoided.
Range Hoods
It is recommended that this AGA is fitted with a range hood. The AGA venting system is located
on top of the AGA between the two hotplates, and is designed for venting the moisture from the
ovens. The range hood should be positioned not less than the minimum height as recommended
by the manufacturer, from the top of the AGA.
7

8
NOTE: ANY OVERHEAD FITTED
CABINETS MUST NOT EXCEED 13” PROJECTED DEPTH ABOVE THE RANGE. DIM ‘D’ TO BE NOT LESS THAN THE NORMAL WIDTH OF THE RANGE.
Fig. 3 DESN 51668

9
CONNECTION TO THE POWER SUPPLY - AGA DC3
Electric Shock Hazard
Rating Plate is located behind removable plinth, see Fig. 4.
Electrical Grounding is required on this appliance.
DO NOT connect to the electrical supply until the appliance is
permanently grounded.
This appliance must be connected to a grounded metallic permanent
supply or a grounding connector should be connected to the grounding
terminal or wire lead on the appliance.
Failure to follow these instructions could result in death or serious injury.
This range must be supplied with a 240V, 60Hz power supply and connected to an individual,
properly grounded branch circuit protected by a circuit breaker. At 240V, it has a maximum load
of 30 amps. Electric hook-up must be done by a licensed electrician. This unit must be installed
according to regional codes, or in the absence of codes, the National Electrical Code.
lProduct installation requires a separate (not shared) 240V/40 amp circuit protected by an
appropriate branch circuit supply.
lThe service cord on your range is fitted with a standard four (4) conductor type 14-50P plug
(matching receptacle 14-50R).
The method of connection to the mains electricity supply must facilitate complete electrical
isolation of the appliance.
The mains connection and isolation should not be positioned above the range and must be
positioned within the area defined in Fig. 4, Page 11.
THIS RANGE MUST BE COMPLETELY ISOLATED FROM THE ELECTRICITY SUPPLY
BEFORE SERVICING. THE RANGE IS DESIGNED FOR THE VOLTAGE STATED ON THE
RATING PLATE, WHICH IS SITUATED BEHIND THE PLINTH COVER.

POWER SUPPLY - HOTCUPBOARD (AGA DC5)
The hotcupboard attachment requires an independent single phase supply. It has a
maximum load of 6 amps, protected by an appropriate branch circuit supply.
110/120V 60 Hz FLEXIBLE CORD and PLUG PARALLEL TYPE (NEMA 5-15P). The appliance
when installed must be electrically grounded in accordance with local or regional codes.
An electrical socket must be provided within 5 feet of the LH side of the appliance and easily
accessible for the user to disconnect. Do not position socket above the appliance. See Fig. 5A,
Page 12.
Take special care when cutting holes in wall or floor. Electrical wires may be behind the wall or
floor covering and could cause an electrical shock if you touch them.
Locate any electrical circuits that could be affected by the installation of this product and
disconnect power circuit.
WARNING
Electrical Grounding Instructions
This appliance is equipped with a NEMA 5-15P grounded plug for your protection against a
shock hazard and should be plugged directly into a proper receptacle. Do not cut or remove the
grounding prong from this plug.
Do not have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit
could result in electrical shock.
Do not use an extension lead with this appliance.
Check with a qualified electrician, if you are not sure the appliance is properly grounded.
Failure to follow these instructions could result in death or serious injury.
10

11
MAINS SUPPLY LOCATION - AGA DC3
Fig. 4 DESN 516295
THE MAINS SUPPLY CONNECTION AND ISOLATION POINT MUST BE WITHIN
THE ZONE SHOWN
RATING LABEL LOCATED
BEHIND PLINTH, PULL
TO REMOVE
Fig. 3 DESN 516643
MAINS CABLE FED FROM
CONTROL TRAY LEFT OR
RIGHT EXIT THROUGH
DUCTING DEPENDENT UPON
POSITION OF SUPPLY SOCKET

12
MAINS SUPPLY LOCATION - AGA DC5 (HOTCUPBOARD OPTION)
Fig. 5 DESN 516562
MAINS CABLE FED FROM CONTROL
TRAY LEFT OR RIGHT EXIT
THROUGH DUCTING DEPENDENT
UPON POSITION OF SUPPLY
SOCKET
Fig. 5A DESN 516590
THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN
HOTCUPBOARD
POWER SUPPLY
RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE,

13
HOTCUPBOARD INSTALLATION

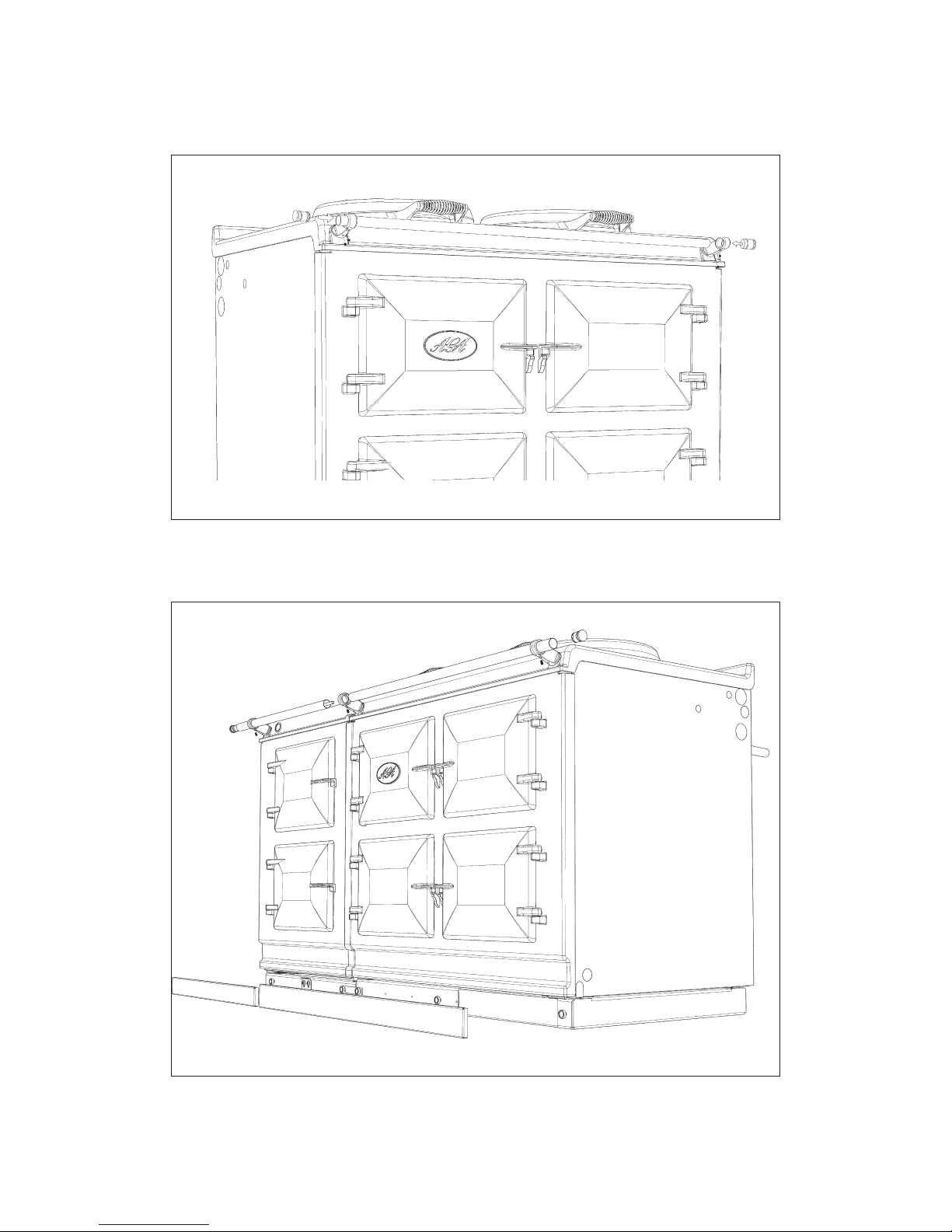

Fig. 6 DESN 516448
Fig. 7 DESN 516449
NOTE: The AGA DC5 hotcupboard should arrive with the top plate in a jacked up position. This
is to allow the complete range to be slid onto its plinth when alongside the AGA DC3 without the
top plates clashing. The hotcupboard top plate should then be wound down to its correct height
once the appliance is in its final position.
1. Detach hotcupboard from plinth by removing two screws and tongue bracket from plinth (See
Fig. 6), slide hotcupboard forwards and away from rear fixing bracket (See Fig. 7).

14
2. Position the plinth alongside the AGA Dual Control leaving no gap between the two plinths
(See Fig. 8).
Check with a spirit level that the plinth level is correct, and also check height differential
between the hotcupboard plinth and Dual Control plinth is correct 3/8” (11mm). If necessary,
use shims in each corner to level the plinth.

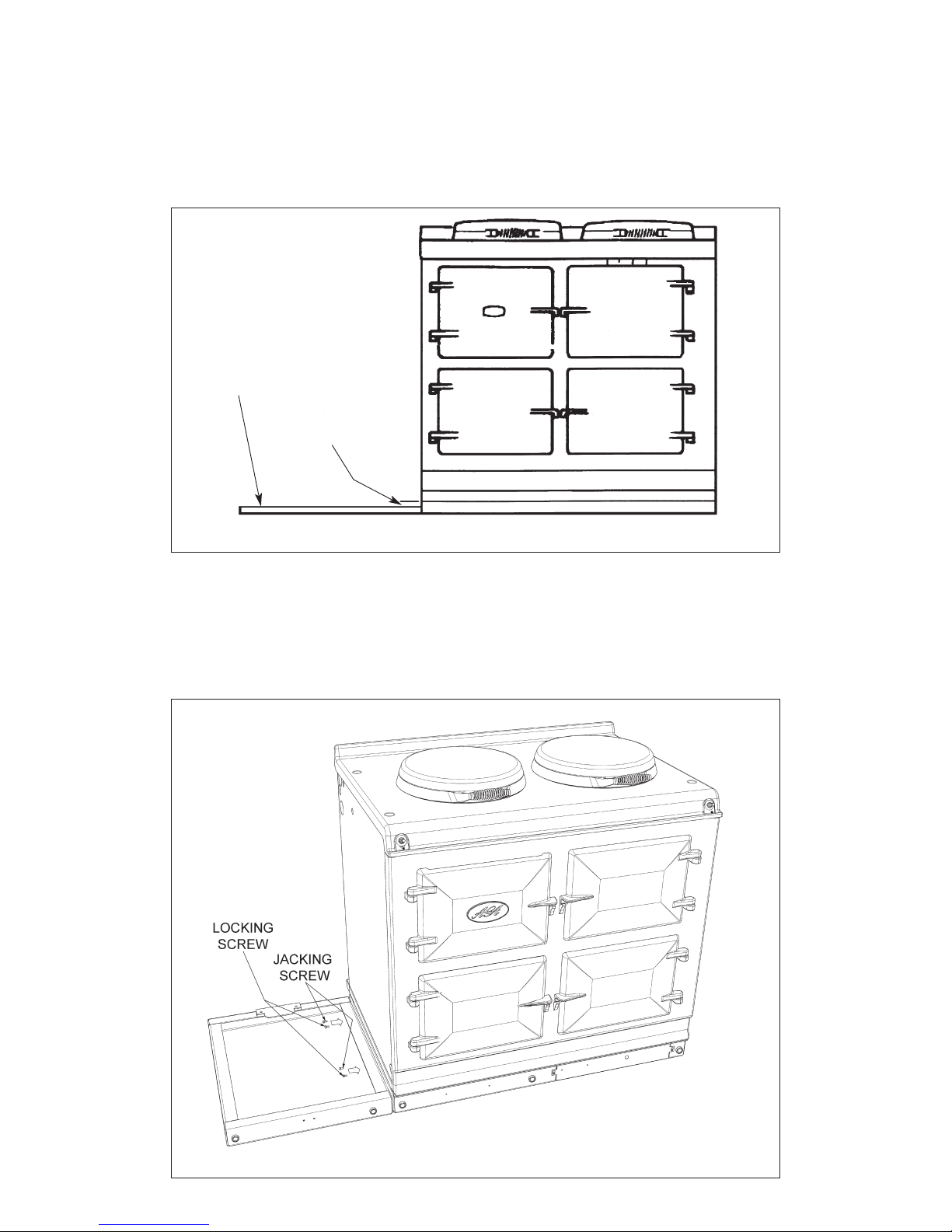

Fig. 8 DESN 516276
HOTCUPBOARD
PLINTH BASE
3/8” 11mm HEIGHT
DIFFERENTIAL
3. Attach hotcupboard plinth to the AGA Dual Control plinth using M6 screws and washers
provided (See Fig. 9).
Attach locking screw and jacking screw into plinth. Make sure at this stage that the jacking
screw does not protrude beyond outer face of plinth. Ensure locking screw is located into
AGA DC3 plinth but not fully tightened. A gap of approximately 1/8” (3mm) should be present
between the plinths apart from at the very front where the hotcupboard spacer plate should
be touching the AGA DC3 plinth.
Fig. 9 DESN 516550
+1
- 0

15
4. Run a straight edge along the front of the AGA Dual Control plinth, to ensure the front face
of both plinths sit squarely against the straight edge. (See Fig. 10)
When satisfied both plinths sit squarely, jacking screws can be tightened until they just make
contact with the AGA Dual Control plinth, and locking screws can now be tightened.
Fig. 10 DESN 516551
USE STRAIGHT EDGE ACROSS BOTH PLINTHS TO ENSURE PLINTHS
ARE ALIGNED SQUARELY
Fig. 11 DESN 516553
5. Front jointing bracket can now be hooked into place over the two pot magnets. This will latch
the two plinths together. (See Fig. 11)

16
Fig. 12 DESN 516552
7. The hotcupboard top plate is set 1/4” (5mm) higher than the AGA Dual Control top plate. This
is to prevent damage to the enamel during installation. Lower the top plate using the
adjusters (See Figs. 13 & 14).
Fig. 13 DESN 516554
6. Slide hotcupboard onto plinth until rear tongue bracket engages fully into rear of base slot,
(See Fig. 12). Ensure the appliance is aligned squarely with the plinth then proceed to
engage the front tongue bracket into the slot on the underside of the base plate. Once
satisfied that the front tongue bracket is engaged fully lock it into place by tightening the two
M6 screws fully. Ensure that the electrical cable does not come into contact with oven vent
pipe from the AGA DC3.
1/4” (5mm) HEIGHT
DIFFERENCE

17
8. Using the stay rod nut adjusting tool, carefully lower the top plate adjusting nuts until the top
plate sits at the required height, making sure that the top sits level and matches the height
of the AGA DC3. (See Fig. 14).
Fig. 14 DESN 516555
9. Fit the handrail bracket over the fixing stud located on the top plate. Lock into position by
tightening the grub screw nearest the appliance. (See Fig. 15).
Fig. 15 DESN 516883

18
Fig. 16 DESN 516880
10. Next the handrail, endcaps and handrail require assembly.
Slide the handrail through the handrail brackets.
Fig. 17 DESN 516879
11. On 5 oven ranges, fit allthread stud into the insert located in the one end of the
handrail, then feed the handrail through the bracket (ensuring that the allthread stud is
protruding from the right hand side of the hotcupboard handrail) and screw the handrails
together. (See Fig. 17).
AGA DC5 HANDRAIL CONNECTION
AGA DC3 HANDRAIL CONNECTION

19
12. Once the handrail assembly is located squarely, lock the handrail in position by winding in
the grub screws on the underside of each handrail bracket.
13. Once the handrails are locked in position, fit the handrail endcaps. The endcaps should be
carefully pushed into place until they sit flush with the outside face of each bracket (a light
smear of lubricant such as, washing up liquid on the end cap ‘O’ rings may ease fitment.
14. Finally, fit the plinth facia to the magnets on the front of the plinth, making sure that on 5
oven ranges the right hand side of the module plinth facia sits against the left hand side
of the AGA Dual Control plinth facia leaving no gap between. Make sure that the plinth facias
are centrally located and do not overhang either range. (See Fig. 17)
Commission the AGA Dual Control, as stated in the relevant Installation Instructions and carry
out functional test on each of the features of the AGA Dual Control.

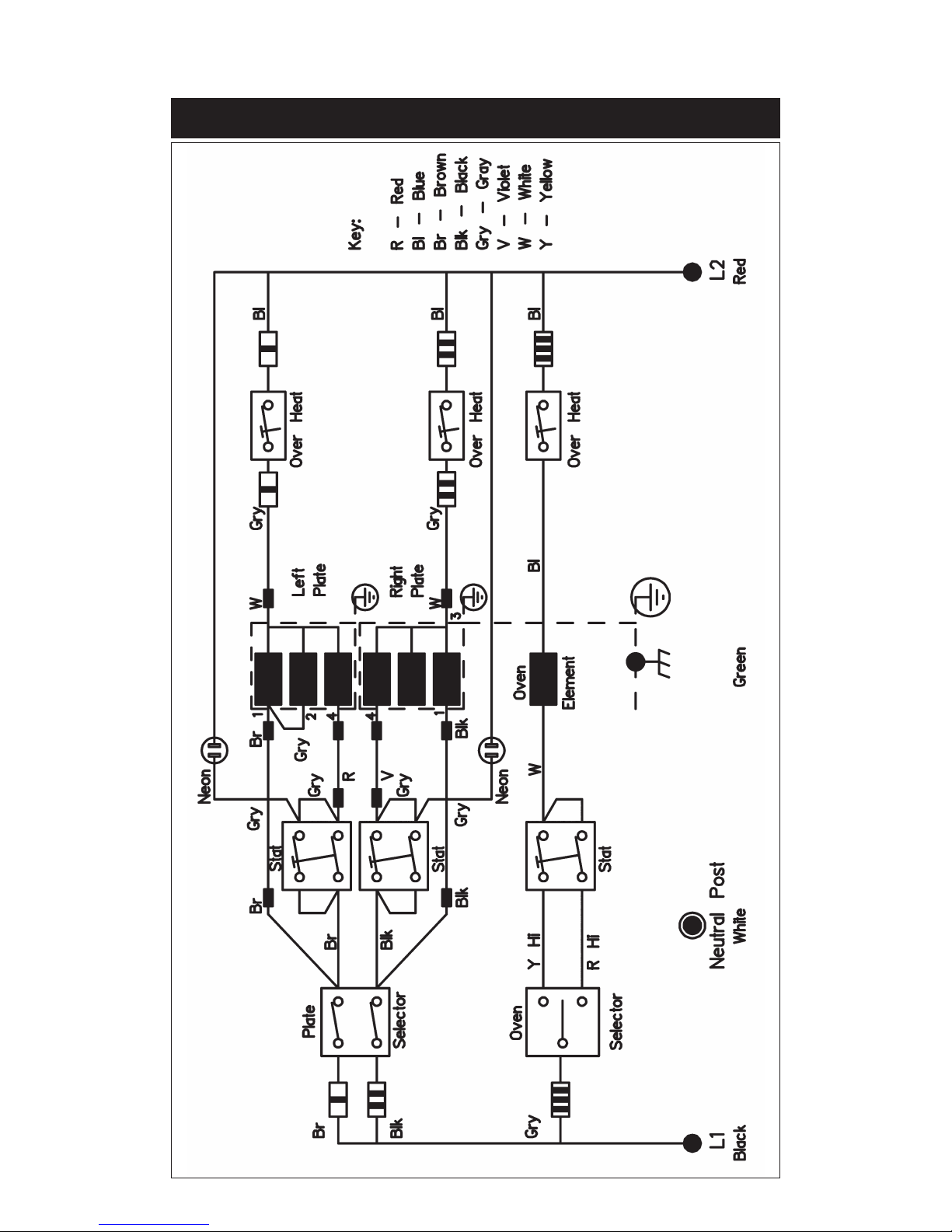

WIRING DIAGRAM - AGA DC3
20
Fig. 18
