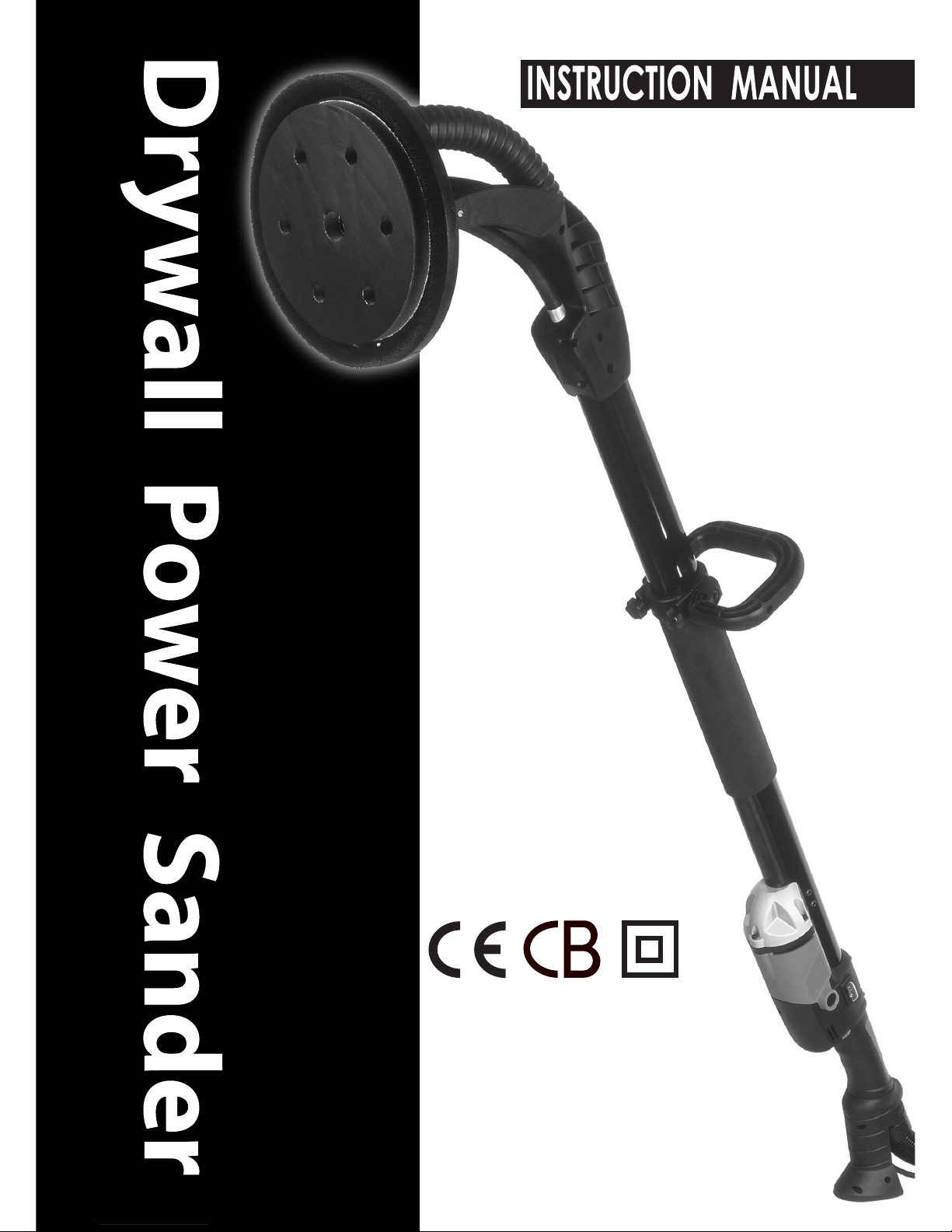

AGP DrywallPower GS9FSE User manual

Original instructions
For your personal safety,READ and
UNDERSTAND before using.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
Warning:
Only tools equipped with over load
protection, when motor has been cut
off due to over load, always switch on
machine with no load for at least 3
minutes to reduce temperature before
switch on again to avoid burn out to the
motor.
Version:20150701

2
Speed Adjustor Thumb Wheel
On/Off Switch
Sanding Head
Vacuum Swivel Mount
Hose
Model 1540mm (Long-Reach type) 1090mm (Compact type)
Voltage See machine nameplate
No load min-1 650 -1600 650 -1600
Full load min-1 280 - 950 280 - 950
Power input 550W 550W
Sanding disc diameter 225mm 225mm
Net weight 4.7 kg (10 lbs.) 3.8 kg (8.4 lbs)
Hose Protection Device
(Optional)
Sponge
D-Handle(Optional)
Brush Cap
Soft Grip

3
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and
all instructions. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference. The term “power tool” in the warnings
refers to your mainsoperated (corded) power tool or
battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
c. Keep children and bystanders away
while operating a power tool.
Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a. Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce risk
of electric shock.
b. Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
e. When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
f. If operating a power tool in a damp
location is unavoidable, use an earth
leakage circuit breaker. Use of an earth
leakage circuit breaker reduces the risk of
electric shock.
3) PERSONAL SAFETY
a. Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the
influence of drugs, alcohol or
medication. A moment of inattention
while operating power tools may result in
serious personal injury.
b. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
c. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energising power tools

4
that have the switch on invites accidents.
d. Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
e. Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
f. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
4) POWER TOOL USE AND CARE
a. Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
c. Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
d. Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e. Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f. Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
g. Use the power tool, accessories and tool
bits etc., in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
5) SERVICE
Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.

5
SPECIFIC SAFETY RULES
1. Keep hands away from rotating sanding
head area at all times!
2. Prolonged breathing of airborne dust from
drywall sanding may effect respiratory
function:
Always use a vacuum cleaner with a bag
approved for drywall dust installed.
Always wear a respirator approved for dust and
mist.
3. Sanding LEAD-BASED paint is extremely
toxic and should not be attempted. Only
allow professionals with special training and
equipment perform this task.
4. Maintain proper footing and balance at all
times. Do not overreach. Use proper
scaffolding
5. Always wear appropriate safety equipment
when operating.
6. Important: After completing sanding, switch
off the switch and wait for the coasting
sanding head to stop completely before
putting the tool down.
7. Never operate the tool in an area with
flammable solids, liquids, or gases. Sparks from
the commutator/carbon brushes could cause a
fire or explosion.
8. There are certain applications for which this
tool was designed. The manufacturer strongly
recommends that this tool NOT be modified
and/or used for any application other than for
which it was designed. If you have any
questions relative to its application DO NOT
use the tool until you have written the
manufacturer and have been advised.
9. Use the machine with both hands at all
times. Loss of control can cause personal
injury.
10. Keep power supply cord clear from the
working range of the machine. Always lead
the cable away behind you.
11. Immediately switch off the machine if
unusual vibrations or if other malfunctions
occur. Check the machine in order to find out
the cause.
12. The dust that arises when working with this
tool can be harmful to health. Use a dust
absorption system and wear a suitable dust
protection mask and remove deposited dust
with a vacuum cleaner.
Symbols used in this manual
V…….......volts
A…….......amperes
Hz……......hertz
W……......watt
~………....alternating current
n
0
………..no load speed
min-1….....revolutions or reciprocation
per minute
......warning of general danger
.….class II tool
.…with electrical earth
.......read these instructions
......always wear eye protection
......always wear a dust mask.
.....always wear hearing protection
.....wear safety-approved hard hat
do not dispose of electric tools,
accessories and packaging together
with household waste material

6
SAFETY WARNINGS FOR SANDING
OPERATIONS
1. This power tool is intended to function as a
sander. Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, fire and/or serious injury.
2. Operations such as grinding, wire brushing,
polishing or cutting-off are not
recommended to be performed with this
power tool. Operations for which the power
tool was not designed may create a hazard and
cause personal injury.
3. Do not use accessories which are not
specifically designed and recommended by
the tool manufacturer. Just because the
accessory can be attached to your power tool,
it does not assure safe operation.
4. The rated speed of the accessory must be at
least equal to the maximum speed marked
on the power tool. Accessories running faster
than their rated speed can break and fly apart.
5. The outside diameter and the thickness of
your accessory must be within the capacity
rating of your power tool. Incorrectly sized
accessories cannot be adequately guarded or
controlled.
6. The arbor size of wheels, flanges, backing
pads or any other accessory must properly
fit the spindle of the power tool. Accessories
with arbour holes that do not match the
mounting hardware of the power tool will run
out of balance, vibrate excessively and may
cause loss of control.
7. Do not use a damaged accessory. Before
each use inspect the accessory such as
backing pad for cracks, tears or excess wear,
If power tool or accessory is dropped,
inspect for damage or install an undamaged
accessory. After inspecting and installing an
accessory, position yourself and bystanders
away from the plane of the rotating
accessory and run the power tool at
maximum no-load speed for one minute.
Damaged accessories will normally break apart
during this test time.
8. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As
appropriate, wear dust mask, hearing
protectors, gloves and workshop apron
capable of stopping small abrasive or
workpiece fragments. The eye protection
must be capable of stopping flying debris
generated by various operations. The dust
mask or respirator must be capable of filtrating
particles generated by your operation.
Prolonged exposure to high intensity noise
may cause hearing loss.
9. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken
accessory may fly away and cause injury
beyond immediate area of operation.
10. Position the cord clear of the spinning
accessory. If you lose control, the cord may be
cut or snagged and your hand or arm may be
pulled into the spinning accessory.
11. Never lay the power tool down until the
accessory has come to a complete stop. The
spinning accessory may grab the surface and
pull the power tool out of your control.
12. Do not run the power tool while carrying it
at your side. Accidental contact with the
spinning accessory could snag your clothing,
pulling the accessory into your body.
13. Regularly clean the power tool’s air vents.
The motor’s fan will draw the dust inside the
housing and excessive accumulation of
powdered metal may cause electrical hazards.
14. Do not operate the power tool near
flammable materials. Sparks could ignite
these materials.
15. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.

7
Further safety instructions for all
operations
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush or any
other accessory. Pinching or snagging causes rapid
stalling of the rotating accessory which in turn
causes the uncontrolled power tool to be forced in
the direction opposite of the accessory’s rotation at
the point of the binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel
that is entering into the pinch point can dig into the
surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward
or away from the operator, depending on direction
of the wheel’s movement at the point of pinching.
Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or
conditions and can be avoided by taking proper
precautions as given below.
a. Maintain a firm grip on the power tool
and position your body and arm to
allow you to resist kickback forces.
Always use auxiliary handle, if
provided, for maximum control over
kickback or torque reaction during
start-up. The operator can control
torque reactions or kickback forces, if
proper precautions are taken.
b. Never place your hand near the
rotating accessory. Accessory may
kickback over your hand.
c. Do not position your body in the area
where power tool will move if
kickback occurs. Kickback will propel
the tool in direction opposite to the
wheel’s movement at the point of
snagging.
d. Use special care when working
corners, sharp edges etc. Avoid
bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory
and cause loss of control or kickback.
e. Do not attach a saw chain
woodcarving blade or toothed saw
blade. Such blades create frequent
kickback and loss of control.
Safety Warnings Specific for Sanding
Operation
Do not use excessively oversized sanding disc
paper. Follow manufacturers recommendations,
when selecting sanding paper. Larger sanding
paper extending beyond the sanding pad presents a
laceration hazard and may cause snagging, tearing
of the disc or kickback.
FUNCTIONAL DESCRIPTION
This Electric Drywall Sander is specially designed for
the most efficient sanding of drywall or plaster walls
and ceilings for both new construction and
renovation work. It is designed to work in
conjunction with a vacuum cleaner for minimum
dust and best sanding results. The pivoting sanding
head allows excellent results with minimum time
and effort.
Electrical connection
The network voltage must conform to the voltage
indicated on the tool name plate. Under no
circumstances should the tool be used when the
power supply cable is damaged. A damaged cable
must be replaced immediately by an authorized
Customer Service Center. Do not try to repair the
damaged cable yourself. The use of damaged power
cables can lead to an electric shock.

8
Extension cable
If an extension cable is required, it must have a
sufficient cross-section so as to prevent an excessive
drop in voltage or overheating. An excessive drop in
voltage reduces the output and can lead to failure of
the motor. The following table shows
you the correct cable diameter as a function of the
cable length for this machine. Use only U.L. and CSA
listed extension cables. Never use two extension
cables together. Instead, use one long one.
UNPACKING
Carefully remove the tool and all loose items from
the shipping container.
Retain all packing materials until after you have
inspected and satisfactorily operated the machine.
CARTON CONTENTS
1. Drywall Sanding Machine
2. Vacuum cleaner hose
3. Instruction manual
DO NOT OPERATE THIS TOOL UNTIL YOU
READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL

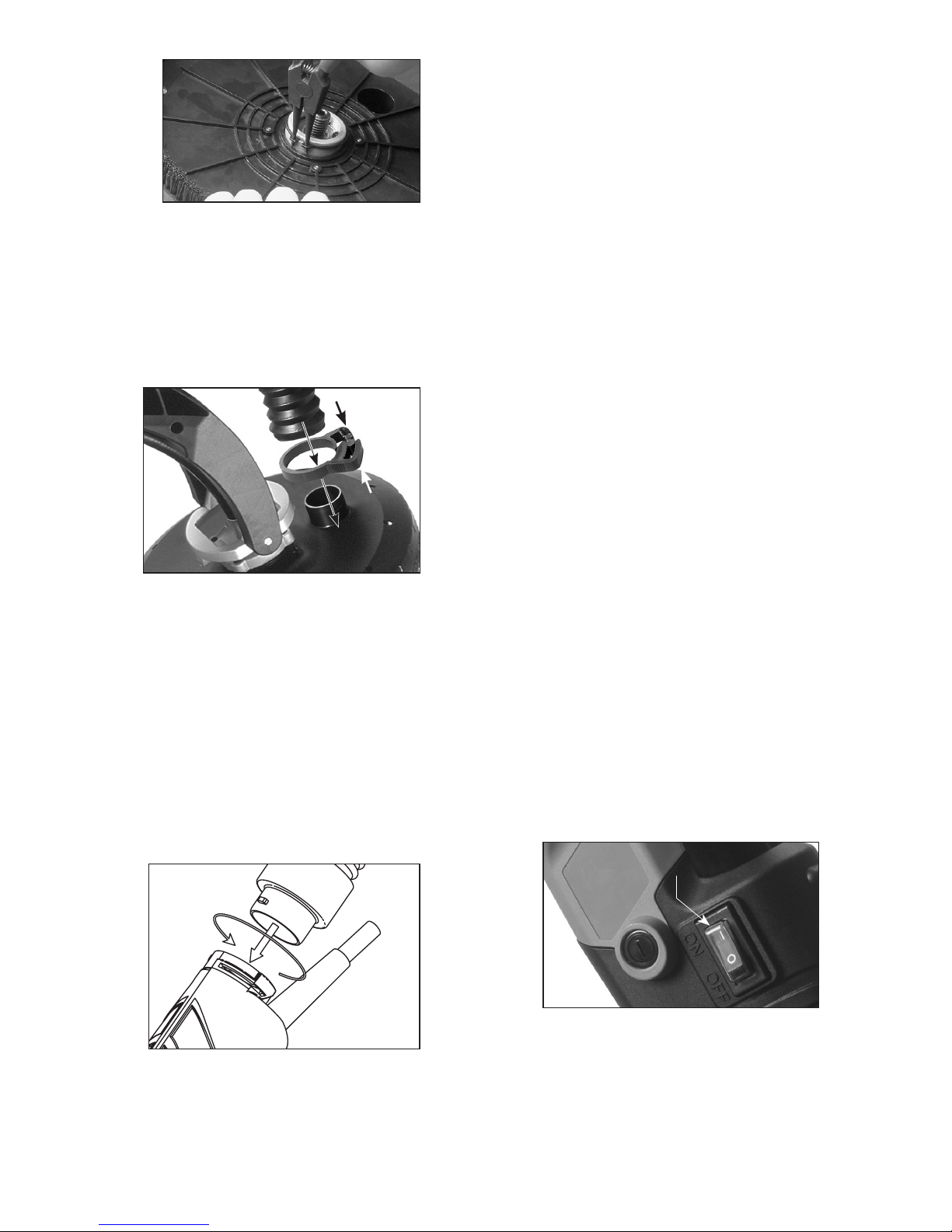

To install a sandpaper disc:
1. Unplug the machine.
2. Peel away the worn out sandpaper disc, leaving
the sponge backing pad in place.
3. Carefully center the new sandpaper disc and
press into place. It will be held securely by the
hook and loop backing.
To replace the Hook and Loop Sponge
Pad:
The sponge pad must be perfectly flat to get good
sanding results. If it is deformed or damaged it will
cause very uneven sanding. Always replace it when
damaged. It is hook and loop on both sides, so to
Replace it, peel it away from the hook and loop on
the Sanding Plate Base and, taking great care to
keep it perfectly centered, affix a new one.
The Brush Bristles on the edge of the
Sanding Plate Cover:
The brush bristles on the edge of the Sanding Plate
Cover serve two purposes, they keep the sanding
disc properly aligned with the work surface without
gouging and they also help the efficiency of the dust
collection by the vacuum cleaner. These brush
bristles will wear with continued use.
The Sanding Plate Cover should be replaced when
the bristles are too worn to ensure effective dust
collection and stabilization of the sanding head.
To replace the cover, follow these steps:
Hold the sanding plate in one hand and with the
other, using the L-hex wrench (supplied), first break
free the center bolt clockwise (1/8 turn only!).
Then only use the L-hex wrench to hold the center
bolt from turning and spin off the sanding plate
counterclockwise.
Then, press the cover down against the spring and,
using snap-ring pliers, remove the circlip which
holds the sanding plate cover to the bracket.
Total Extension Cord Size (AWG)
Cord Length (feet)
25 16
50 12
100 10
150 8
200 6

9
Finally, carefully work the vacuum hose free then lift
sanding plate cover away.
Replacement is the opposite of removal. Don’t
forget the spring. Entrust all repairs to an
authorized service center.
To install the vacuum cleaner hose
1. Unplug the machine.
2. Plug the vacuum cleaner hose bayonet mount
into the swivel mount in the back of the
machine. Once the tangs of the bayonet mount
are fully inserted in the slots, hold the swivel
mount from turning and turn the hose bayonet
mount clockwise to lock.
3. Removal is the opposite of assembly.
The vacuum cleaner:
Ensure that you have a bag installed in your vacuum
cleaner which is approved and rated for drywall
dust.
WARNING: Failure to use an approved dust bag in
your vacuum will increase the level of airborne
dust in the work area. Prolonged exposure to
such dust may cause respiratory harm.
STARTING AND STOPPING TOOL
Make sure that the power circuit voltage is the same
as that shown on the specification plate of the
machine and that switch is “OFF” before connecting
the tool to the power circuit.
Switching the machine on and off
To switch on:
While holding with the left hand on the column and
the right hand on the main handle, Press the rocker
switch to the right with the thumb of the right hand.
Anticipate and be ready for the start up torque when
the machine first starts.
To switch off:
Press the rocker switch to the left. After the machine
has been switched off, the sanding disc will still
rotate for a time. Take care that parts of your body
do not come into contact with the disc and do not
set the machine down while it is still rotating!
Adjusting the rotation speed:
The speed of the machine is variable to suit different
tasks. It can be adjusted from 650/min up to 1600/
min by using the thumb wheel. Using the right
On/Off Switch

10
thumb, turn in the downward (counterclockwise)
direction to increase the speed and in the upward
(clockwise) direction to decrease the speed.
Generally, you should use the higher speed for fast
stock removal and the lower speed for more precise
control.

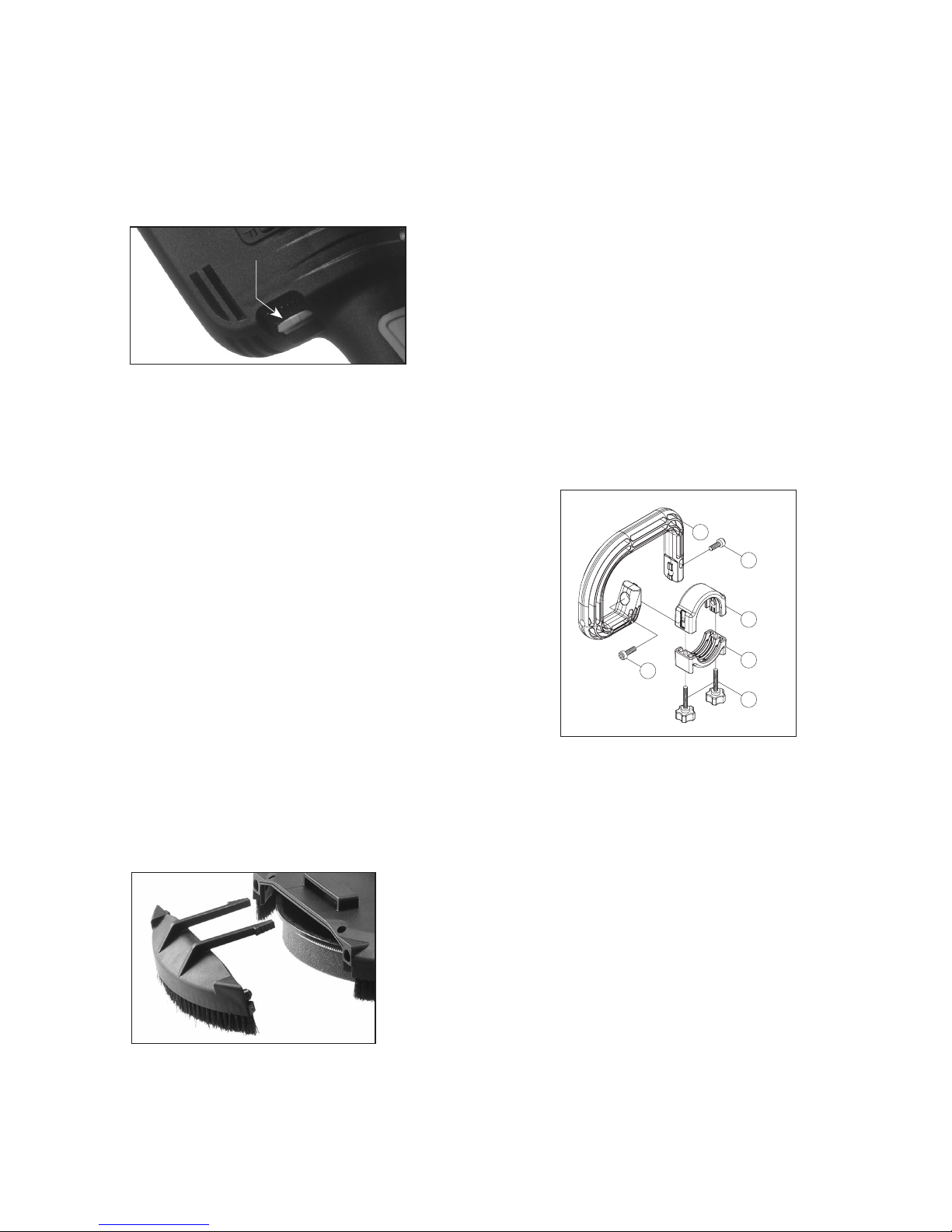

The Half-Moon Door
The sanding plate cover is equipped with a
removable half-moon door. This is to allow the
operator to sand right up to the edge or into a
corner.
Dust collection will not be ideal while the half-moon
door is removed, so the door should only be
removed when necessary and then replaced
immediately.
To remove, first shut down the machine and unplug
the power supply cable.
Then press the 2 tangs which retain the half-moon
door just enough to release it and lift the door away.
Put the door in a safe place where it will not be lost
or damaged when it is time to replace it.
To replace, line up the locating pins in the sanding
plate cover and snap the tangs in place.
HOW TO USE THE TOOL
Effective control of this powerful saw requires two-
handed operation for maximum safety and control.
The proper hold is to keep one hand on the main
handle and the other hand on the sponge grip on
the column. It is vitally important to keep stable
footing at all times, especially when standing on
scaffolding or stilts.
MOUNTING THE OPTIONAL BAIL
HANDLE:
1. Loosen the 2 thumb screws (05) and remove
the clamp cap (04).
2. Place the handle in the desired position on the
column.
3. Clamp the handle in place by replacing the
clamp cap and tightening the 2 thumb screws.
SANDING OPERATIONS
1. Once the machine and vacuum cleaner are set
up and all safety measures and equipment are
in place, begin by turning on the vacuum
cleaner and then the machine. (If you are using
a vacuum cleaner with integrated switching,
then simply turn the machine on.)
2. Begin sanding and carefully contact the work
surface as lightly as possible-just enough to
keep the sanding head flat against the surface.
3. The joints in the sanding head allow the
sanding disc to follow the contours of the work
surface.
4. The best technique is to use overlapping
sweeps and keep the head in constant motion.
Speed Adjustment
02
03
04
05
02
01

11
Never stop too long in any one place or there
will be swirl marks. With experience it will be
very easy to create excellent results.
NOTE: Ensure that the sandpaper you are using is
suited to the task. Overly coarse grit paper may
remove material too quickly to control. While
overly fine grit paper may clog too often and not
shape down the surface.
CAUTION: Take care to avoid pointed projections
and nails, etc. This will wipe out the sandpaper
and probably damage the sponge pad as well.
MAINTENANCE
Every 50 hours of operation blow compressed air
through the motor while running at no load to clean
out accumulated dust. (If operating in especially
dusty conditions, perform this operation more
often.)
KEEP TOOL CLEAN
Periodically blow out all air passages with dry
compressed air. All plastic parts should be cleaned
with a soft damp cloth. NEVER use solvents to clean
plastic parts. They could possibly dissolve or
otherwise damage the material.
Wear safety glasses while using compressed air.
Clean the vacuum swivel connector as too much
dust will keep it from turning freely.
THE CARBON BRUSHES
The carbon brushes are a normal wearing part and
must be replaced when they reach their wear limit.
When the brushes are worn to a length of 1/4", they
should be replaced.
NOTE: Checking and replacing the carbon
brushes should be entrusted to a qualified
service center.
TO CHANGE THE BRUSHES
1. Unplug the machine.
2. Remove the brush cap with a slothead
screwdriver
3. Remove the brush.
4. Install new brushes in reverse order and replace
covers
If the replacement of the power supply
cord is necessary, this has to be done by the
manufacturer or their agent in order to avoid a
safety hazard.
WARNING: All repairs must be entrusted to an
authorized service center. Incorrectly performed
repairs could lead to injury or death.
Brush Cap

12

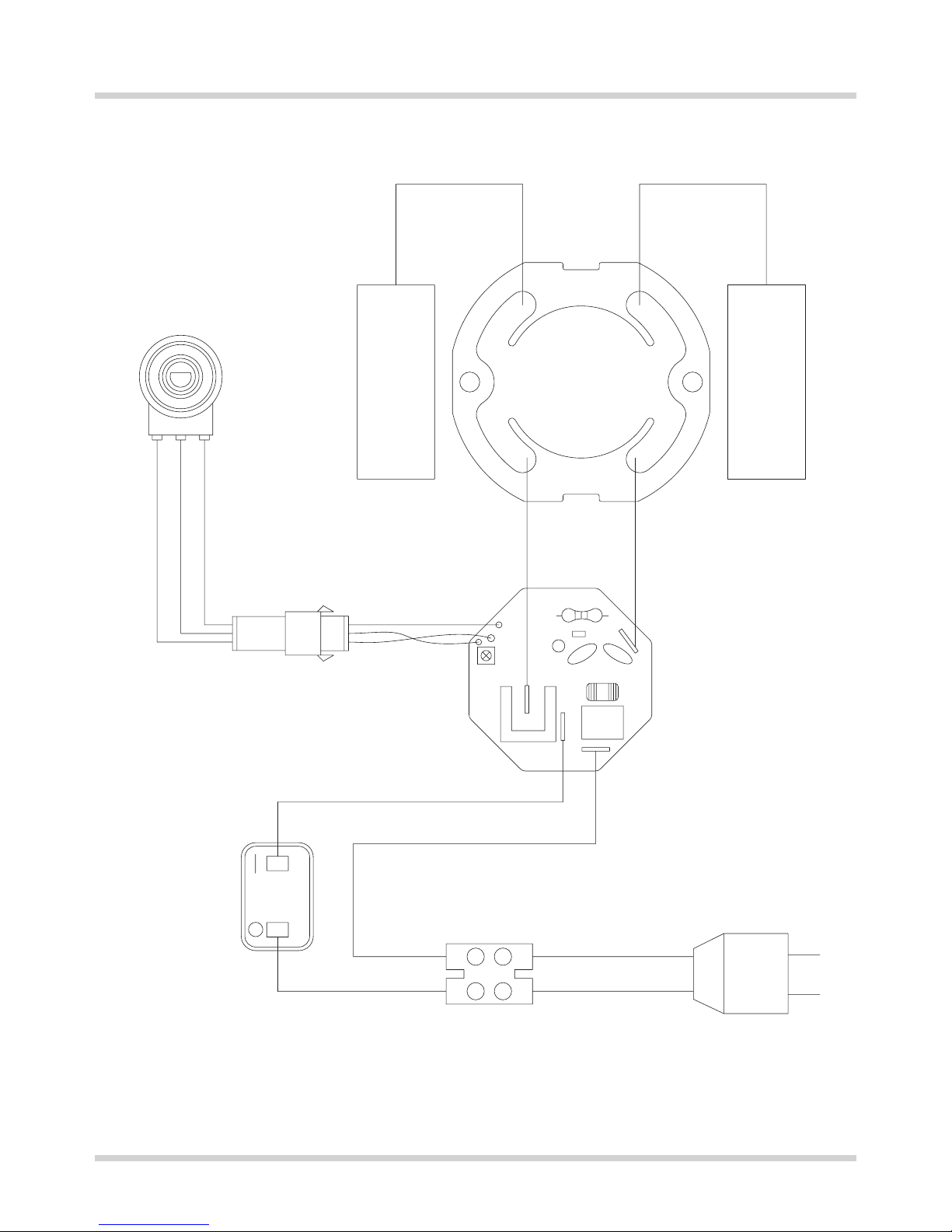

WIRING
BLACK
RED
WHITE
CARBON BRUSH
OVERLOAD
SPEED CONTROL UNIT
MOTOR
CARBON BRUSH
BLACKBLACK RED
SWITCH
TERMINAL
AC
BLACK BLACK
AC

13

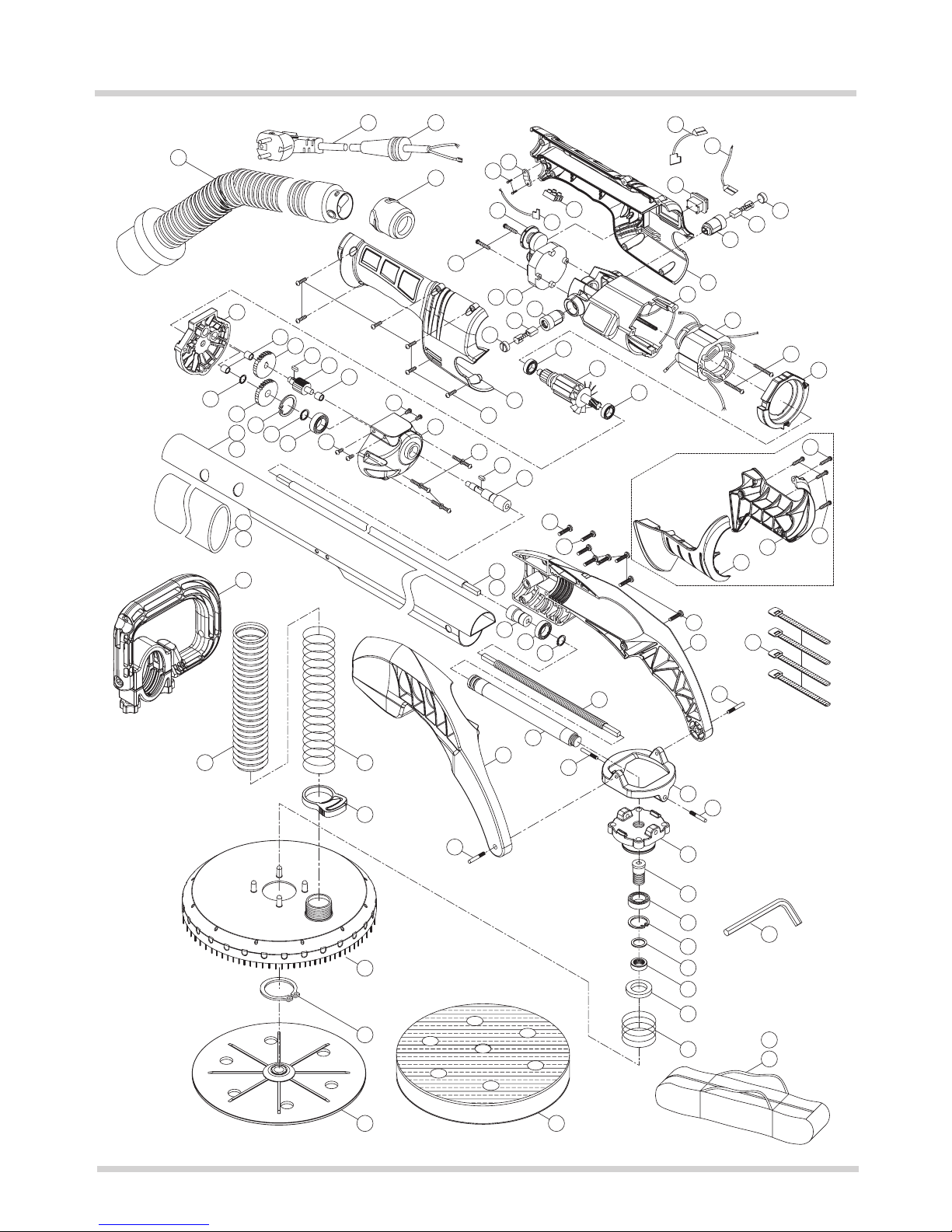

EXPLODED VIEW
20
21
22
07
06
11B
10
09 08
16
13
14
23
24
23
25
26
27A
32
33
36
37
31
30 31
NO.01~85 A1~A4 V1.9
12
01 02
04
29
71 34 35
05
75
18 19
19
18
75
66
67
65
59
60
61
62
63
58
57
38
39
40
41 42 43
47
57
64
68
57
57
38A
39A
40A
48
45
46
44
73
74
69 70
15
44
77
76
78
A3
A2
A1
OPTIONAL
A4
79
28A
26
80
03
11A
82
84A
83
84
85

14
PARTS LIST1540mm (Long-Reach type)
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE 1
2 CORD ARMOR 1
3 VACUUM HOSE ASSEMBLY 4M 1
4 QUICK RELEASE HOSE CONNECTOR 1
5 SCREW M4 x 16 6
6 RIGHT HANDLE COVER 1
7 LEFT HANDLE COVER 1
8 CABLE CLIP 1
9 SCREW M4 x 14 2
10 SCREW M4 x 25 2
11A SPEED CONTROL+ SOFT START 110V/220V 1
11B
SPEED CONTROL + SOFT START + OVERLOAD PROTECTION 110V/220V 1
12 WIRE CONNECTOR 2/12
13 WIRE LEAD 1
14 WIRE LEAD 1
15 WIRE LEAD 1
16 MOTOR SWITCH 1
17 N/A -
18 CARBON BRUSH 5 x 8 2
19 CARBON BRUSH HOLDER 5 x 8 2
20 MOTOR HOUSING 1
21 STATOR 1
22 STATOR SCREW M4 x 55 2
23 BALL BEARING 608-2RU 2
24 ARMATURE M0.65 x 9T 1
25 GEAR PLATE 1
26 BUSHING Ø6 x Ø10 x 8 3
27A INTERMEDIATE GEAR M0.65 x 44T 1
28A INTERMEDIATE GEAR PINION M0.8 x 11T 1
29 INTERNAL CIRCLIP S-8 1
30 OUTPUT GEAR M0.8 x 41T 1
31 SCREW M5 x 10 4
32 GEAR CASE 1
33 SCREW W/WASHER M4 x 30 3
34 INTERNAL CIRCLIP S-10 1
35 BALL BEARING 6200-LLU 1
36 PARALLEL KEY 3 x 3 x 8 1
37 SPINDLE 1
38 N/A -
38A FIRST DRIVE SHAFT 704mm 1
39 N/A -
39A EXTENSION COLUMN 1038.8mm 1
40 N/A -
40A FOAM HANDLE GRIP 253mm 1
NO. Parts Name Q'TY
41 SHAFT CONNECTOR 1
42 BALL BEARING 6001-VV 1
43 INTERNAL CIRCLIP S-12 1
44 SCREW M4 x 20 7
45 RIGHT FORK ARM 1
46 LEFT FORK ARM 1
47 SECONDARY DRIVE SHAFT 320mm 1
48 DRIVE SHAFT COVER 1
49~56 N/A -
57 SCREW M5 4
58 PIVOT BASE 1
59 PIVOT CONNECTING BRACKET 1
60 CONNECTING SPINDLE 1
61 BALL BEARING 6002-2RSH 1
62 INTERNAL CIRCLIP R-32 1
63 SPRING Ø2 x Ø45 x Ø49 x 40L x 4T 1
64 VACUUM HOSE 1
65 SPRING Ø1 x Ø30 x Ø32 x 363L x 30T 1
66 PLASTIC CLIP 1
67 SANDING PLATE COVER 1
68 EXTERNAL CIRCLIP S-40 1
69 SANDING PLATE BASE 1
70 VELCRO SPONGE PAD 1
71 INTERNAL CIRCLIP R-30 1
72 N/A -
73 SHAFT RACE M14 x Ø20 x 6.5 1
74 RADIAL SHAFT SEAL Ø20 x Ø32 x 5 1
75 BRUSH CAP 5 x 8 2
76 L-HEX KEY M6 1
77 SCREW M5 x 20 1
78 THUMB WHEEL 1
79 FAN BAFFLE 1
80 PARALLEL KEY 3 x 3 x 6 1
81 N/A -
82 VELCRO STRAPS 4
83 BAIL HANDLE 1
84 N/A -
84A CARRY BAG 1
85 FELT SEAL (OPTIONAL) Ø12.8 x Ø24 x 1 1
A1 RIGHT HOSE SUPPORT 1
A2 LEFT HOSE SUPPORT 1
A3 SCREW M4 x 14 3
A4 SCREW M4 x 12 1

15
PARTS LIST1540mm (Long-Reach type)
NO. Parts Name Q'TY
1 POWER SUPPLY CABLE 1
2 CORD ARMOR 1
3 VACUUM HOSE ASSEMBLY 4M 1
4 QUICK RELEASE HOSE CONNECTOR 1
5 SCREW M4 x 16 6
6 RIGHT HANDLE COVER 1
7 LEFT HANDLE COVER 1
8 CABLE CLIP 1
9 SCREW M4 x 14 2
10 SCREW M4 x 25 2
11A SPEED CONTROL+ SOFT START 110V/220V 1
11B
SPEED CONTROL + SOFT START + OVERLOAD PROTECTION 110V/220V 1
12 WIRE CONNECTOR 2/12
13 WIRE LEAD 1
14 WIRE LEAD 1
15 WIRE LEAD 1
16 MOTOR SWITCH 1
17 N/A -
18 CARBON BRUSH 5 x 8 2
19 CARBON BRUSH HOLDER 5 x 8 2
20 MOTOR HOUSING 1
21 STATOR 1
22 STATOR SCREW M4 x 55 2
23 BALL BEARING 608-2RU 2
24 ARMATURE M0.65 x 9T 1
25 GEAR PLATE 1
26 BUSHING Ø6 x Ø10 x 8 3
27A INTERMEDIATE GEAR M0.65 x 44T 1
28A INTERMEDIATE GEAR PINION M0.8 x 11T 1
29 INTERNAL CIRCLIP S-8 1
30 OUTPUT GEAR M0.8 x 41T 1
31 SCREW M5 x 10 4
32 GEAR CASE 1
33 SCREW W/WASHER M4 x 30 3
34 INTERNAL CIRCLIP S-10 1
35 BALL BEARING 6200-LLU 1
36 PARALLEL KEY 3 x 3 x 8 1
37 SPINDLE 1
38 FIRST DRIVE SHAFT 254mm 1
38A N/A -
39 EXTENSION COLUMN 590.8mm 1
39A N/A -
40 FOAM HANDLE GRIP 130mm 1
40A N/A -
NO. Parts Name Q'TY
41 SHAFT CONNECTOR 1
42 BALL BEARING 6001-VV 1
43 INTERNAL CIRCLIP S-12 1
44 SCREW M4 x 20 7
45 RIGHT FORK ARM 1
46 LEFT FORK ARM 1
47 SECONDARY DRIVE SHAFT 320mm 1
48 DRIVE SHAFT COVER 1
49~56 N/A -
57 SCREW M5 4
58 PIVOT BASE 1
59 PIVOT CONNECTING BRACKET 1
60 CONNECTING SPINDLE 1
61 BALL BEARING 6002-2RSH 1
62 INTERNAL CIRCLIP R-32 1
63 SPRING Ø2 x Ø45 x Ø49 x 40L x 4T 1
64 VACUUM HOSE 1
65 SPRING Ø1 x Ø30 x Ø32 x 363L x 30T 1
66 PLASTIC CLIP 1
67 SANDING PLATE COVER 1
68 EXTERNAL CIRCLIP S-40 1
69 SANDING PLATE BASE 1
70 VELCRO SPONGE PAD 1
71 INTERNAL CIRCLIP R-30 1
72 N/A -
73 SHAFT RACE M14 x ψ20 x 6.5 1
74 RADIAL SHAFT SEAL Ø20 x Ø32 x 5 1
75 BRUSH CAP 5 x 8 2
76 L-HEX KEY M6 1
77 SCREW M5 x 20 1
78 THUMB WHEEL 1
79 FAN BAFFLE 1
80 PARALLEL KEY 3 x 3 x 6 1
81 N/A -
82 VELCRO STRAPS 4
83 BAIL HANDLE 1
84 CARRY BAG 1
84A N/A -
85 FELT SEAL(OPTIONAL) Ø12.8 x Ø24 x 1 1
A1 RIGHT HOSE SUPPORT 1
A2 LEFT HOSE SUPPORT 1
A3 SCREW M4 x 14 3
A4 SCREW M4 x 12 1
PARTS LIST 1090mm (Compact type)
