AGP 0.75KW240V User manual

For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Warning:
On tools equipped with over load protection, when motor has been cut o due to over load,
always switch on machine with no load for at least 3 minutes to reduce temperature before
returning to operation to avoid burn out of the motor.
ORIGINAL INSTRUCTIONS
WET TILE SAW
Version:20160225

2
SPECIFICATIONS
Motor Type Single Phase AC Induction
Power Output 800W
Voltage See machine nameplate
No Load/min-1 3000 (50Hz), 3600 (60Hz)
Max. Blade Diameter 230mm (9")
Blade Bore 25.4mm (1")
Bevel Capability 0-45 deg.
Max. Cutting Depth-straight 48mm (1-7/8")
Max. Cutting Depth- at 45 deg. 37mm (1-7/16")
Table Cutting Width -Left 305mm (12")
Table Cutting Width -Right 147mm (5-3/4")
Protection IP44
Weight 14.71kgs( 32.36 Lbs)

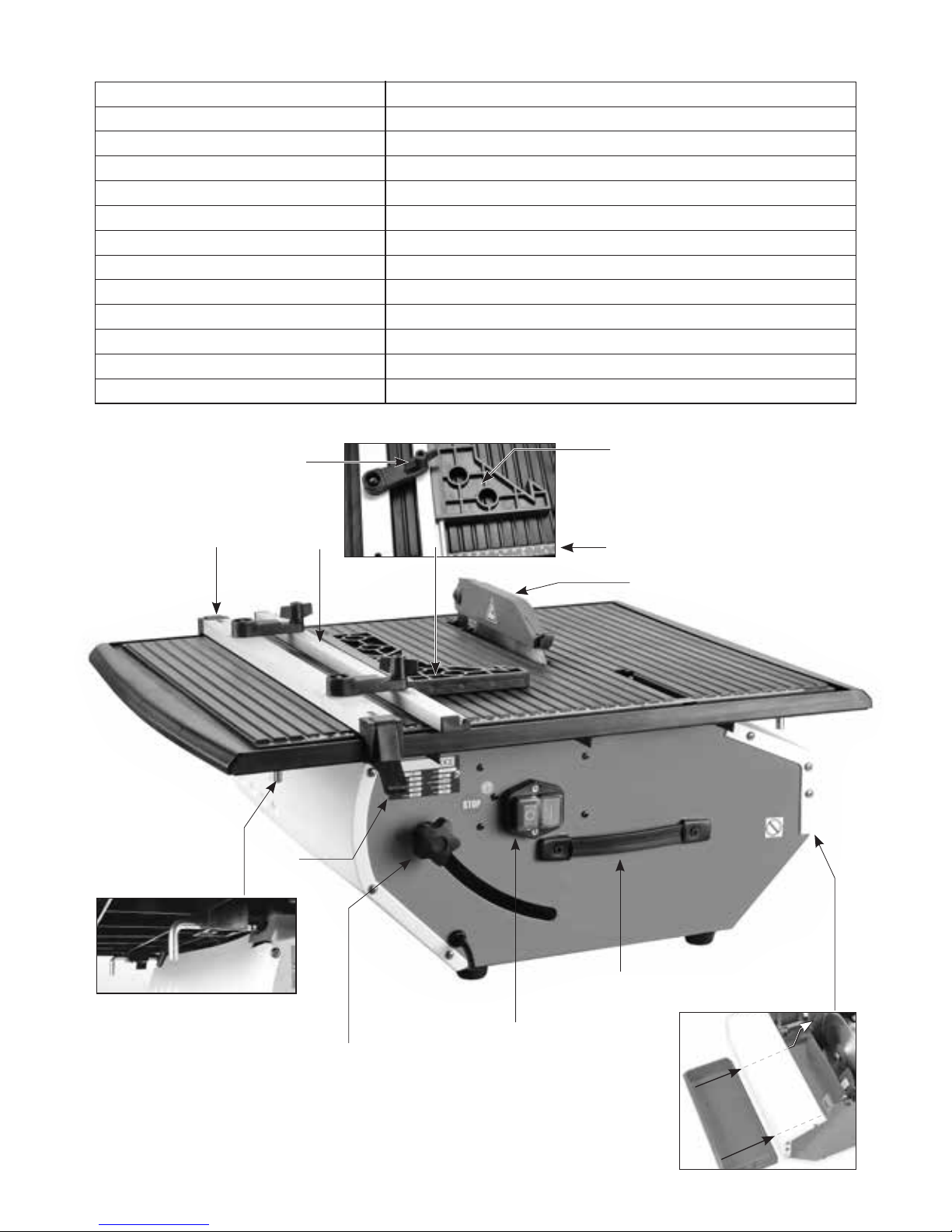

1.5L water tray
Table Locking Pin
Scale
Bevel Angle Knob Switch
Parallel Cutting Guide
Carry handle
Angle Guide Plate
Blade guard
Locking Wing Nut
Ruler
Clip

3
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your
mains operated (corded) power tool or battery-operated (cordless) power tool.
1) WORK AREA SAFETY
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use an earth leakage circuit
breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
3) PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.

4
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5) SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
Symbols used in this manual
V…….......volts
A…….......amperes
Hz……......hertz
W……......watt
~………....alternating current
n
0
………..no load speed
min-1….....revolutions or reciprocation per minute

5
ELECTRICAL CONNECTION
The network voltage must conform to the voltage indicated on the tool name plate. Under no
circumstances should the tool be used when the power supply cable is damaged. A damaged cable
must be replaced immediately by an authorized Customer Service Center. Do not try to repair the
damaged cable yourself. The use of damaged power cables can lead to an electric shock.
WARNING: Always use the Portable Residual Current Device
(PRCD) also known as a Ground Fault Circuit Interrupter (GFCI)
to reduce the risk of shock hazards. Always position the PRCD
as close as possible to the power source. Test and reset the
PRCD device before each use. Press the “Test” button to test.
Press the“Reset” button to energize the circuit to the machine.
WARNING: Always connect the plug into the wall socket with
a drip loop. If the cable leads downward directly into the wall
socket, any water on the cable could run into the socket, causing a hazard.
Cover
Test Button Reset Button On Lamp
...... DANGER! Risk of Getting Cut by Sawblade Operate Carefully
.....Warning of general danger
.....read these instructions
....Always wear eye protection
.....Always wear a dust mask.
.....Always wear hearing protection
.....Wear safety-approved hard hat
.....DANGER! Keep hands away from cutting area and the blade.
..do not dispose of electric tools,
accessories and packaging together with household waste material

6
ADDITIONAL SAFETY RULES
WARNING: Never operate a damaged machine. Always tag a damaged machine and take it out of
service until repairs can be made.
WARNING: Do not attempt to groove or rabbet (rebate) with this machine. This machine is for cutting
only.
The arbor size of wheels and flanges must properly fit the spindle of the power tool. Wheels and
flanges with arbor holes that do not match the mounting hardware of the power tool will run out of
balance, vibrate excessively and may cause loss of control.
• Replacethetablewhenworn.
• Wearsuitableprotectiveclothingandequipment;includingbutnotlimitedto:eyeprotection,hearing
protection and anti-slip footwear
• Weargloveswhenhandlingsawblades,butdonotoperatethemachinewearinggloves
• Neveruseguardsfortransportingorhandlingthemachine.Transportandcarrythemachineonlybythe
carry handle.
• Covertheupperpartofthesawbladeatalltimeswhiletransporting
• Supportlongworkpiecestominimisetheriskofbladepinchingandkickback.Largepanelstendtosag
under their own weight. Supports must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
INTRODUCTION
This machine is designed for water cooled cutting of tile materials. The motor is single phase induction type.
It has an integrated partial immersion water cooling system as required for diamond cutting. It must only be
used with a diamond blade. It is intended for cutting tiles made of natural stone, ceramic porcelain, and similar
materials. All other uses are prohibited.
LIST OF CONTENTS
1. Tile Saw
2. M19 combination wrench
3. M8 combination wrench
4. Parallel cutting guide
5. Angle guide plate
6. Diamond blade
ASSEMBLY
Mount the blade. ( See below “Mounting the Blade”)

7
DIAMOND BLADES
Allowed types of blades
This machine may use continuous rim diamond blades only.
NOTE: Segmented diamond blades may not be used on this machine.
• Onlydiamondbladesof230mm(9”)maybeused.
• Bladeboremustbe25.4mm(1”)
• Bladethicknessmustbeatleast1.5mmandnogreaterthan2.2mm
ABOUT DIAMOND BLADES
Diamond blades consist of a steel core with diamond segments added to its periphery.
Diamondbladesareavailablefordifferenthardnessesofmaterials;naturalstone,ceramic,porcelain,glass,etc.
Diamond blades are designed to be used wet only.
Water will prevent the blade from overheating, greatly reduce the amount of harmful dust created by cutting,
remove the slurry from the cut, and extend the life of the blade. Diamond is the hardest substance known, but
even diamond is unable to withstand extreme overheating combined with the cutting forces involved. Dry
cutting of very hard materials such as porcelain will lead to rapid tool wear and failure.
The wearing part of a diamond blade operates on a principle of controlled erosion. The blade does not cut the
material, rather it grinds it away. The bond matrix holding the diamonds is continually worn away by abrasion
with the workpiece, exposing the harder diamonds to stand proud from the bond matrix. A blade with good
diamond exposure is a sharp blade. Blades made for cutting harder materials will have a softer bond, allowing
the diamonds project more aggressively (but will not last as long). Blades made for cutting softer, abrasive
materials will have a harder bond, allowing them to resist the abrasiveness of the material and to last longer.
Theotherfactoristhegritsizeofthediamondsthemselves:veryhardmaterialstendtorequireafinergritsize,
while coarser grits will cut faster.
This erosion process causes heat and particles, which require water to cool and rinse free. Without adequate
water, the blade would overheat and be destroyed.
NOTE: Never use a wet-type diamond blade without water. It will overheat and be destroyed.
Always mount the blade with the arrow matching the direction of rotation of the machine (A direction arrow is
marked on the blade guard).
WARNING: Never use blades for cutting a material other than the material they were intended for.

8
MOUNTING THE BLADE
First make sure that the machine is unplugged.

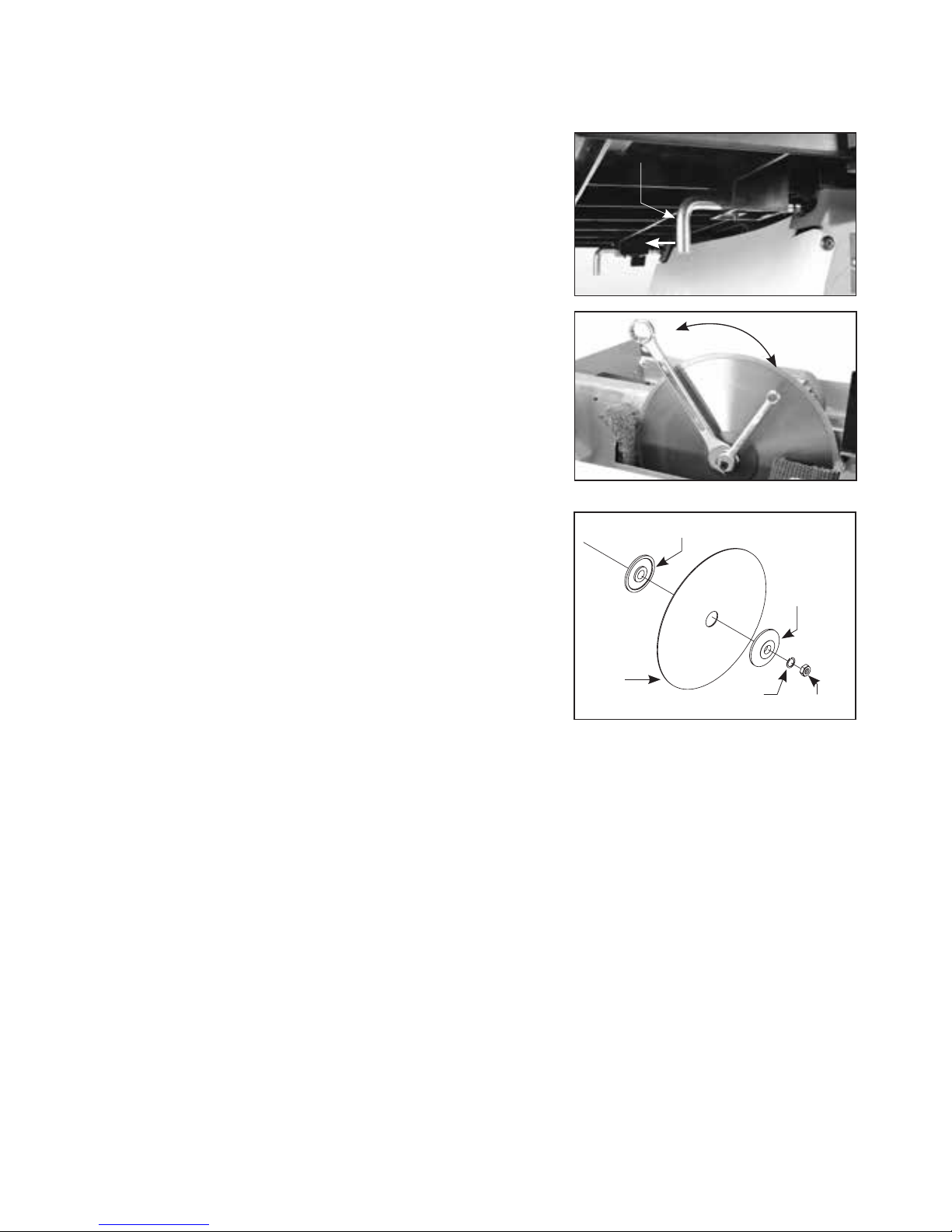

1. Remove the blade guard by loosening the butterfly screw and
lift away.
2. Reach under the edge of the table and pull each of the 4
locking pins against the spring and rotate 90 degrees, this will
allow the table to be lifted away.
3. Release the shroud by pulling up slightly and away.
4. Use the 8mm combination wrench to keep the arbor
from turning and loosen the arbor nut with the 19mm
combination wrench (it is a standard right-hand thread, so
turn anticlockwise to loosen).
5. Remove the nut, spring washer and outer blade flange
6. When mounting the blade ensure that the direction arrow
marked on the motor plate of the machine matches direction
arrow on the blade. Also ensure that the blade bore matches
the inner blade flange.
7. The protruding edge of the inner flange should be facing the
blade. Then mount the blade to the inner flange and add the
outer flange. Add the arbor nut and tighten to 15-25 Nm. The
rest of the replacement is the opposite of removal
The inner blade flanges is specific to the blade arbor bore diameter
of 25.4mm (1”) Check the inner flange to ensure that the size
matches the bore of the blade which you intend to use.
Inspect the blade before use. It must not be cracked, warped or
damaged in any way that would cause a hazard in operation. Loose diamond segments can be ejected at high
speed, causing possible injury. Always check that the diamond segments are not under cut. If the diamond
segments are thinner or nearly thinner than the blade core, the kerf will be too tight fitting and could easily
lead to jamming or kickback.
Ensure that the flanges and blade bore are clean and undamaged and that everything fits properly. The
flanges may not be used if they are warped, the surface is uneven, burred or if they are dirty. The arbor nut and
arbor threads must be undamaged. Inspect the blades for segment damage, arbor hole damage or any other
damage which could cause hazardous operation.
WARNING: Do not attempt to mount a blade which does not match the mounting hardware. It will lead
to eccentric running and vibration which will be uncontrollable.
ADJUSTING THE BLADE GUARD
The blade guard must ALWAYS be used whenever cutting to avoid a hazard. Adjust the guard by loosening
Locking pin
15
14
88
Inner Flange
Blade
Outer Flange
Nut
Washer

9
the butterfly screw and adjust so that it is parallel and as close
as possible to the surface of the tile to be cut. Then retighten the
screw. Readjust whenever cutting a different thickness tile.
Keeping the blade guard as close as possible is safer and prevents
excessive loss of water.
WATER TRAY
Water is a basic requirement for diamond sawing. The water serves as a coolant to avoid the working surface of
the diamond segments from overheating.
WARNING: Always use a PRCD (GFCI) when operating with water
The water feed system is built into the machine. The water is provided by the water tray which is mounted
below the blade. Thus the blade is partially immersed in water. The operator must fill the tray with water (1.5L)
and maintain the water level in the tray at the maximum for best results. The machine is designed so that most
of the water will recirculate, minimizing water loss during operation. The tray has an overflow level hole to
avoid overfilling the tray. When tilting the motor to make bevel cuts, the tray mounting system allows the water
tray to remain horizontal.
To dismount and mount the water tray
The tray is suspended by pins on its sides which engage in slots in
the tray brackets. To dismount, reach in from the right side of the
machine and lift up slightly on the tray and pull out. (The pins will
follow the tracks in the tray brackets)
Tomountthetray:laythetrayflatonthebottomofthemachine’s
frame and slide in until the tray touches the bracket. Then lift the
tray evenly straight upward and allow the tracks in the brackets to
guide all four of the pins until it fully engages in place. (If only two
of the pins engage, the tray will be tilted)
PARALLEL CUTTING GUIDE
The parallel cutting guide makes it easy to make straight cuts. The guide clips in place on the table in whatever
position is needed. Further, the guide has a ruler on double links which allows the operator to fine tune the
adjustment while maintaining parallelism with the blade. The table features a scale which can be referred to
when setting the ruler. Ensure that the wing nuts on the ruler are both tight before cutting.
The angular guide plate allows the operator to hold the tiles in a number of different positions for controlled
diagonal cutting. The guide plate engages with the ruler and smoothly slides along it. (See page2.)
1.5L water tray
01
Blade Guard

10
BEVEL CUTS
The motor assembly may be tilted up to 45 degrees for performing
bevel cuts. To adjust the bevel angle, loosen the two hand knobs
on the right and left sides of the machine, adjust to the desired
angle, and then retighten the knobs.
OPERATION
Before cutting
• Ensurethattheoperatingenvironmentisfreeorclutter
• Fillthewatertray
• Refertothescaleonthetableandsetthecuttingguidetothedesiredwidthofcut
• Adjustthebladeguardtobeascloseaspossibletotheworkpiece
• Ensurethatallbystandersareatasafedistance.
• Ensurethattheequipmentisgrounded.
• Ensurethatallsafetyequipmentisinplace.
CAUTION: Never cut dry and do not allow the water tray to run dry. Blade life will be severely shortened.
CUTTING TECHNIQUE
• StartthemachinebypressingthegreenONbutton
• Allowthemotortoreachfullspeed,thenholdthetilefirmly,andsteadilyfeedthetiletotheblade
• Donotallowthemachinetobogdown.Limityourfeedpressuretokeepthebladespinningathigh
speed.
• Donotpushtoohardattheendofthecut.
• Keepyourhandsawayfromtheblade
STOPPING
Press the red OFF button to stop the machine. After the motor is
shut off, the blade will continue spinning for a time.
WARNING: Keep hands and objects away from the blade while
it is still spinning.
Bevel angle knob
switch

11
MAINTENANCE AND CLEANING
The slurry created by the wet cutting process must be rinsed off. Remove the table, water tray, blade guard and
shroud, then rinse them clean with a hose.
Wipe other areas clean.
Daily Maintenance
• Keepthemachineclean
• Checktoensurethatthepowersupplycableisingoodcondition.
• Ensureallscrews,nutsandfastenersaretight.
• Checktheconditionofallsafetyequipmentsuchasthebladeguard
• Checkthebladefordamage.
Model Power Level Pressure Level Vibration Level
Lwa(dB)ISO 3744 Lpa(dB) ISO4871 G en NF ENV 25349
0.75KW240V 76 63 0.09
0.75KW115V 74 65 0.07
If the replacement of the power supply cord is necessary, this has to be done by the manufacturer or their
agent in order to avoid a safety hazard.
WARNING: All repairs must be entrusted to an authorized service center. Incorrectly performed repairs
could lead to injury or death.
Do not throw electric power tools into the household waste!
In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and
transposition into national law, used electric power tools must be collected separately and recycled in an
environmentally friendly manner.

12
WIRING
MOTORSWITCH
WHITE
BLACK
RED
TERMINAL BLOCK
CAPACITOR
3-WAY TERMINAL BLOCK

13

14

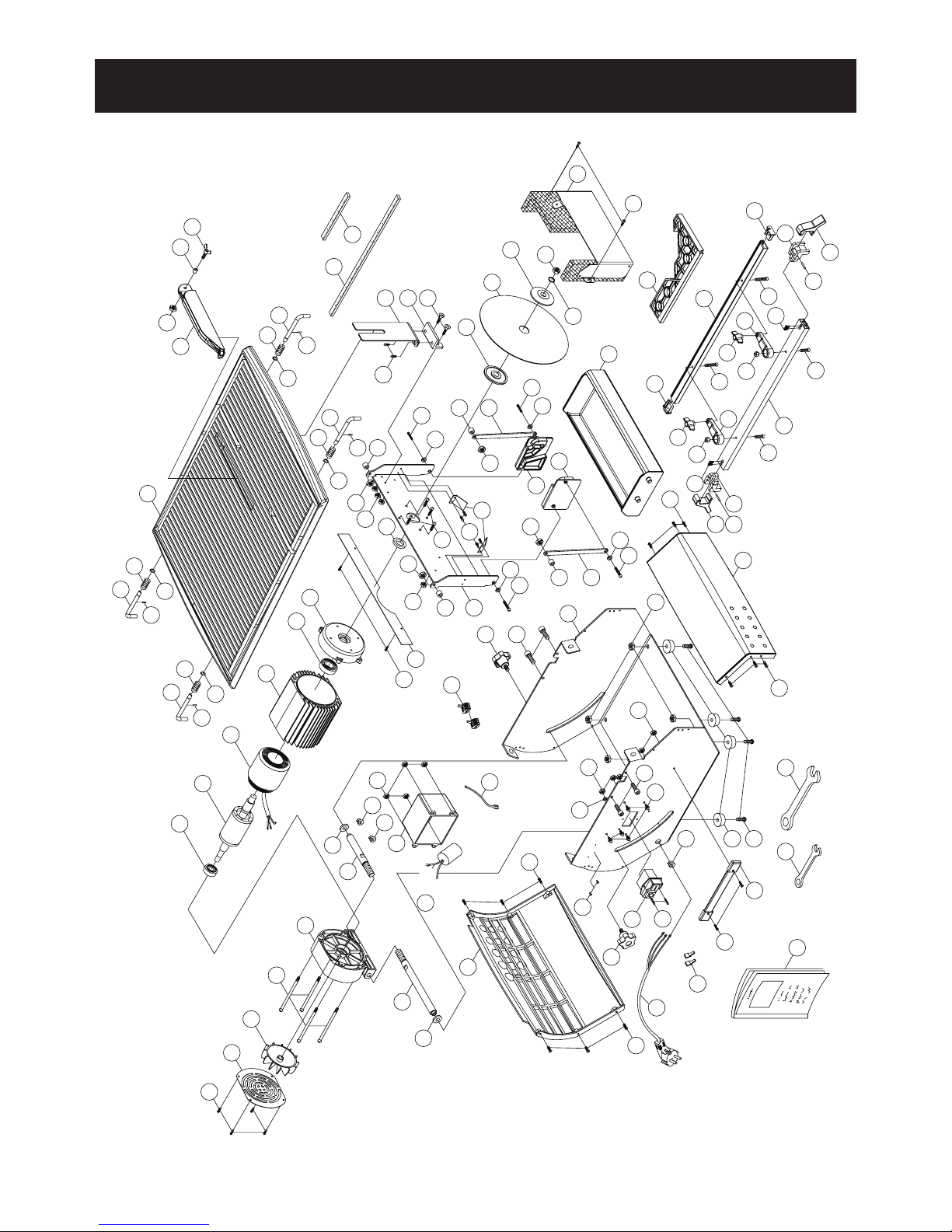

EXPLODED VIEW
-110
-230
84
-110
-230
46 53
TO 54
47 -230
54 -110
41
49
41
40
TO 21
43
17
50
82
24
25
11
74
65
67
72 73
60 59
56
57
41
63
55
58
83 31
70 02
39
72
7473
75
76
02
70
77
76 71
68
41 77
30
66
38
75
69
78
12 02
79
28 29
61 12
64
63
TO 54
45
TO 44 62
12
10
47
31
29
30
26
02 27 30 31
35
36
02
37 30
29 28
15
31
32
42
55
34
51
49
TO 54
21
19
18
20
-230
-110
31
12
16
02
36
29 33
31
81
07
08 05
06
14
13
09
80
31
05
23
22
07
08
04
06
29
01
02
03
05
07
08
06
07
08 05
06
52
71
NO.01~89 V1.9
87
86 85
88
89

15
PARTS LIST
No. Parts Name Q'TY
1 BLADE GUARD 1
2 NUT M6 7
3 BUTTERFLY BOLT 1
4 TABLE 1
5 LOCKING PIN 4
6 SPRING Ø1 x Ø8.1 x 5T x 25.7L 4
7 ROLL PIN Ø3.5 x 10 4
8 EXTERNAL CIRCLIP S-8 4
9 SHROUD 1
10 MOTOR PLATE 1
11 SOCKET CAP SCREW M4 x 12 2
12 NUT M4 x 8 11
13 NUT M12 x P2.0 1
14 OUTER BLADE FLANGE 1
15 INNER BLADE FLANGE 1
16 SEAL Ø20 xØ32 x 5 1
17 SCREW M5 x 150 4
18 MOTOR FRONT COVER 1
19 BEARING 6004 zz 1
20 MOTOR HOUSING 1
21 STATOR 1
22 ARMATURE 1
23 BEARING 6201 ZZ 1
24 MOTOR REAR COVER 1
25 FAN 1
26 TRAY BRACKET-LEFT 1
27 TRAY BRACKET-RIGHT 1
28 SUPPORT ROD 2
29 SPACER 5
30 FLAT WASHER Ø4 x Ø10 x 1 4
31 SCREW M4 x 8 12
32 SEPARATOR BRACKET 1
33 SEPARATOR 1
34 GROMMET SB7R-3 1
35 SPLASH GUARD 2
36 SCREW M4 x 6 6
37 SCREW M5 x 10 4
38 WATER TRAY 1
39 SIDE COVER -RIGHT 1
40 SIDE COVER -LEFT 1
41 TRUSS HEAD SCREW M4 x 16 12
42 SWITCH BOX 1
43 CAPACITOR 110V40μF 1
43 CAPACITOR 230V25μF 1
44 N/A -
No. Parts Name Q'TY
45 WIRE LEAD 1
46 POWER SUPPLY CORD 1
47 HAND KNOB 2
48 N/A -
49 FLAT WASHER Ø13 xØ24 x 2.5 2
50 REAR STRUT-LONG 1
51 REAR STRUT-SHORT 1
52 SCREW M4 x 16 5
53 FLAT HEAD SCREW M4 x 20 2
54 SWITCH BOX 1
55 GROMMET SB6R-3 2
56 FLAT HEAD SCREW M5 x 15 2
57 STRAP HANDLE 1
58 NUT M8 4
59 RUBBER FOOT 4
60 SCREW M8 x 16 4
61 STAR WASHER M5 1
62 3-WAY TERMINAL BLOCK 2
63 SOCKET CAP SCREW M6 x 25 4
64 BODY 1
65 ANGULAR GUIDE PLATE 1
66 RULER 1
67 RULER CLAMP BAR 1
68 RULER END PLUG-L 1
69 RULER END PLUG-R 1
70 FLAT HEAD SCREW M4 x 8 4
71 SCREW M6 x 30 2
72 SCREW M6 x 20 2
73 PIN M3 x 30 2
74 CLAMP BODY 2
75 CLAMP HOOK 2
76 PARALLEL BRACKET 2
77 WING NUT 2
78 DIAMOND BLADE 1
79 RETAINING PLATE 1
80 RULE SCALE-SHORT 17cm 1
81 RULE SCALE -LONG 32cm 1
82 TAIL COVER 1
83 NUT M5 2
84 INSTRUCTION MANUAL 1
85 COMBINATION WRENCH M19 M19 1
86 COMBINATION WRENCH M8 M8 1
87 TERMINAL COVER 2
88 SPRING WASHER M12 1
89 RIVET 1

16
