Baumr-ag Ss16 ii series User manual

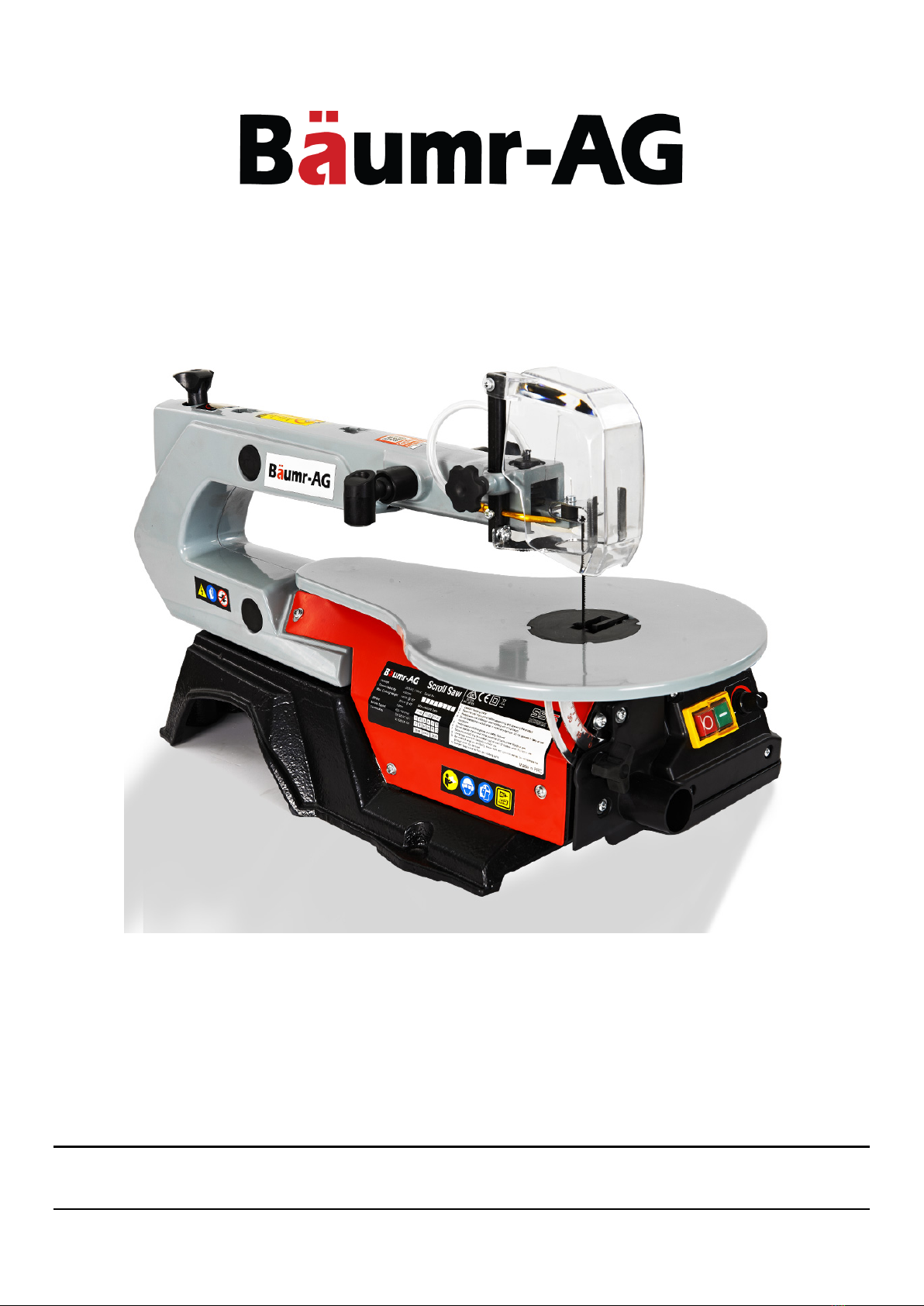

Scroll Saw - SS16 Series II

User Manual

[Revision 2.0 September 2019]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description and packaging.

Scroll Saw - SS16 Series II

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

•Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

•Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

•Keep clear of moving parts.

•Equipment may be a potential source of

electric shock or injury if misused.

•Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

•Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•Work areas should be clean and well it.

•Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

•If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

•Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

•Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

•This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

•Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

•Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

•Do NOT smoke near fuel or when

refuelling.

•Always shut off the engine before

refuelling.

•Do NOT refuel a hot engine.

•Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

•Always refuel in well ventilated areas.

•Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

•Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

•The equipment is designed for domestic

use only.

•Handle the equipment safely and carefully.

•Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

•Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

•Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

•Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

•Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

•Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

•The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

•For specific equipment safety use and care,

see Equipment Safety.

Scroll Saw - SS16 Series II

General Electrical Safety

•Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

•Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

•When wiring electrically powered

equipment, follow all electrical and safety

codes.

•Wherever possible, use a residual current

device (RCD).

•High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

•Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

•Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

•Do NOT use electrical equipment in wet

conditions or in damp locations.

•Do NOT use electrical cords to lift, move or

carry equipment.

•Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

•Do NOT attempt any maintenance or repair

work not described in this manual.

•After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

•Do NOT adjust while the equipment is

running.

•Perform service related activities in suitable

conditions, such as a workshop.

•Replace worn, damaged or missing

warning/safety labels immediately.

Scroll Saw Safety

•This scroll saw is designed for operating under ambient temperatures between +5°C and 40°C and for installation at altitudes no more than

1000m above M.S.L. The surrounding humidity should less than 50% at 40°C. It can be stored or transported under ambient temperatures

between -25°C and 55°C.

•Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be resorted, taken to the local

recycling centre and disposed of in an environmentally safe way.

Understand your Machine

•Read this manual and labels affixed to the machine to understand its limitations and potential hazards.

•Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

•Do not attempt to operate the machine until you fully understand how to properly operate and maintain the engine and how to avoid accidental

injuries and/or property damage.

•If the unit is to be used by someone other than original purchaser or loaned, rented, or sold, always provide this manual and any needed safety

training before operation. The user can prevent and is responsible for accidents or injuries that may occur to themselves, other people, and

property.

•Do not force the machine. Use the correct machine for your application. The correct machine will do the job more efficiently and safer at the rate it

was designed.

Personal Safety

•Do not permit children to operate this machine at any time.

•Keep children, pets, and other people not using the unit away from the work area. Be alert and shut off unit if anyone enters work area. Keep

children under the watchful care of a responsible adult.

•Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

•Dress properly. Do not wear loose clothing, short pants, or jewellery of any kind. Secure long hair so it is above shoulder level. Keep your hair,

clothing, and gloves away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.

•Protect eyes, face, and head from objects that may be thrown from the unit. Always wear safety goggles or safety glasses with side shields when

operating.

•Wear appropriate hearing protection. Wear respiratory protection to avoid the risk of inhaling harmful dust.

•Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts.

•Always keep hands and feet away from all pinch points.

•Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.

•Stay alert, watch what you are doing, and use common sense when operating the machine.

•Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear

that will protect your feet and improve your footing on slippery surfaces. Keep proper footing and balance at all times. This enables better control

of the machine in unexpected situations.

Inspect your Machine

•Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened.

•Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using

it. Keep the machine in safe working condition. Regularly check to see that keys and adjusting wrenches are removed from the machine area

before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury. Avoid accidental starting.

Be sure the motor switch is off before transporting the machine or performing any maintenance or service on the unit.

Scroll Saw - SS16 Series II

•Transporting or performing maintenance or service on a machine with its switch on invites accidents. If the machine should start to vibrate

abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning sign of trouble.

Electric Safety

•Protect yourself from electric shock. Do not plug or unplug the motor while standing in or around damp or wet ground. Do not use the unit in wet

or damp areas or expose it to rain. Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator enclosures. Make sure

your fingers do not touch the plug’s metal prongs when plugging or unplugging the unit.

•Avoid inadvertent starting. Make sure that the switch is switched off when plugging the plug into an outlet.

•Only use approved and appropriately identified extension cables for use outdoors. Only use cable reels in the unrolled state.

•Do not use the cable for purposes for which it is not intended. Do not use the cable to pull the plug out of the outlet. Protect the cable from heat,

oil and sharp edges.

•Have your electric tool repaired by a qualified electrician. This electric tool conforms to the applicable safety regulations. Repairs may only be

performed by an electrician using original spare parts. Otherwise accidents can occur.

Work Area & Store Area

•Keep the work area orderly. Disorder in the work area can lead to accidents.

•Take environmental influences into account. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make

sure that the work area is well-illuminated. Do not use electric tools where there is a risk of fire or explosion.

•Securely store unused electric tools. Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

Safety Precautions

•Connect the dust extraction device. If connections for dust extraction and a collecting device are present, make sure that they are connected and

used properly.

•Operation in enclosed areas is only permitted with a suitable extraction system.

Machine Use and Care

•Do not use low-output electric tools for heavy work. Do not use the electric tool for purposes for which it is not intended. For example, do not use

hand-held circular saws for the cutting of branches or logs. Do not use the electric tool to cut firewood.

•When the saw blade is blocked due to abnormal feed force during cutting, turn the machine off and disconnect it from power supply. Remove the

work piece and ensure that the saw blade runs free. Turn the machine on and start new cutting operation with reduced feed force.

•Do not remove any cutting residues or other parts of workpieces from the cutting zone while the machine is running, and the saw unit is not at

rest.

•Never remove loose splinters, chips or jammed pieces of wood while the saw blade is running.

•Switch off the machine to troubleshoot or remove jammed pieces of wood.

•Refitting, including adjusting and measuring works, and cleaning must be carried out only when the motor is switched off. – Disconnect the main

power plug -

•Before switching on again, ensure that keys and adjustment tools have been removed.

•This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain

conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician

and the manufacturer of the medical implant prior to operating the electric tool.

•Take care of your tools. Keep cutting tools sharp and clean in order to be able to work better and more safely. Follow the instructions for

lubrication and for tool replacement.

•Check the connection cable of the electric tool regularly and have it replaced by a recognized specialist when damaged. Check extension cables

regularly and replace them when damaged. Keep the handle dry, clean and free of oil and grease.

•Check the electric tool for potential damage. Protective devices and other parts must be carefully inspected to ensure that they are fault-free and

function as intended prior to continued use of the electric tool. Check whether the moving parts function faultlessly and do not jam or whether

parts are damaged. all parts must be correctly mounted, and all conditions must be fulfilled to ensure fault free operation of the electric tool. The

moving protective hood may not be fixed in the open position. Damaged protective devices and parts must be properly repaired or replaced by a

recognised workshop, insofar as nothing different is specified in the operating manual. Damaged switches must be replaced at a customer

service workshop. Do not use any faulty or damaged connection cables. Do not use any electric tool on which the switch cannot be switched on

and off.

Additional Safety Rules for Scroll Saws

•This scroll saw is intended for use in dry conditions, and for indoor use only.

•Do not cut pieces of material too small to hold by hand outside the blade guard.

•Avoid awkward hand positions where a sudden slip could cause a hand to move into the blade.

•Always use the blade guard to avoid possible injury due to blade breakage.

•Never leave the scroll saw work area with the power, or before the machine has come to a complete stop.

•Do not perform layout, assembly or set up work on the table while the cutting tool is in operation.

•Never turn your scroll saw on before clearing the table of all objects: (tools, scraps of wood, etc) except for the workpiece and related feed or

support devices for the operation planned.

Scroll Saw - SS16 Series II

Maintenance and Repair

•Pull out the mains plug for any adjustment or repair tasks.

•The generation of noise is influenced by various factors, including the characteristics of saw blades, condition of saw blade and electric tool. Use

saw blades which were designed for reduced noise development, insofar as possible. Maintain the electric tool and tool attachments regularly

and if necessary, initiate repairs in order to reduce noise.

•Report faults on the electric tool, protective devices or the tool attachment to the person responsible for safety as soon as they are discovered.

•Check the electric tool for potential damage. Protective devices and other parts must be care-fully inspected to ensure that they are fault-free and

function as intended prior to continued use of the electric tool. Check whether the moving parts function faultlessly and do not jam or whether

parts are damaged. All parts must be correctly mounted, and all conditions must be fulfilled to ensure fault free operation of the electric tool. The

moving protective hood may not be fixed in the open position. Damaged protective devices and parts must be properly repaired or replaced by a

recognized workshop, insofar as nothing different is specified in the operating manual. Damaged switches must be replaced at a customer

service workshop. Do not use any faulty or damaged connection cables. Do not use any electric tool on which the switch cannot be switched on

and off.

Residual Risks

•The machine has been built using modern technology in accordance with recognized safety rules. Some remaining hazards, however, may still

exist.

•Long hair and loose clothing can be hazardous when the work piece is rotating. Wear personal protective gear such as hair net and tight-fitting

work clothes.

•Saw dust and wood chips can be hazardous. Wear personal protective gear such as safety goggles and a dust mask.

•The use of incorrect or damaged mains cables can lead to injuries caused by electricity. lead to injuries caused by electricity, maiming hazards

which are not yet evident may still be present.

•Do not force the machine unnecessarily: excessive cutting pressure may lead to rapid deterioration of the blade and a decrease in performance

in terms of finish and cutting precision.

•Avoid accidental starts: do not press the start button while inserting the plug into the socket.

Scroll Saw - SS16 Series II

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

Scroll Saw - SS16 Series II

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Scroll Saw - SS16 Series II

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols...........................................................................................................................................................6

Parts Identification .................................................................................................................................... 9

Know Your Machine ................................................................................................................................ 10

Operation ................................................................................................................................................. 11

Mounting the Machine on a Work Bench..................................................................................................................11

Setting the Saw Bench .............................................................................................................................................12

Setting the Angle Scale ............................................................................................................................................12

Horizontal Saw Bench and Diagonal Cuts................................................................................................................12

Inside Cuts................................................................................................................................................................14

Continuous Operation...............................................................................................................................................14

Lighting System ........................................................................................................................................................14

Flexible shaft (Optional Feature 1) ...........................................................................................................................15

Foot Switch (Optional Feature 2)..............................................................................................................................16

Maintenance and Storage ....................................................................................................................... 17

General .....................................................................................................................................................................17

Changing the Saw Blade with Pins...........................................................................................................................17

Changing the flat saw-blade (Optional Feature 3 & 4) .............................................................................................18

Lubrication ................................................................................................................................................................19

Carbon Brushes Inspection ......................................................................................................................................20

Storage .....................................................................................................................................................................20

Troubleshooting ...................................................................................................................................... 21

Specifications .......................................................................................................................................... 22

Scroll Saw - SS16 Series II

Parts Identification

The scroll saw comes partially assembled and is shipped in carefully packed carton. After all the parts have

been removed from the carton, you should have:

No. Name

1

Main Machine

2

Flexible Shaft with Drill Chuck (Optional Feature #1)

3

Foot Switch (Optional Feature #2)

4 Saw-blade Adapter & Allen Wrench (Optional Feature #3)

5 Flat Saw-blade (Optional Feature #4)

Please note that the optional features are not included with this unit.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Know Your Machine

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Operation

Mounting the Machine on a Work Bench

A workbench made from solid wood is better than one made of plywood, as interfering vibrations and noise are

more noticeable with plywood.

The necessary tools and small parts for assembling the saw on a workbench are not supplied with the saw.

However, use equipment of at least the following:

1. Machine

2. Bolt M8 (×3)

3. Flat Washer Ø8 (×3)

4. Rubber Pad

5. Work Table

6. Big Flat Washer Ø8 (×3)

7. Lock Washer Ø8 (×3)

8. Nut M8 (×3)

First, drill holes into the seating surface and then Insert the screws.

A foam rubber base for reduction of noise is not supplied with the saw either. However, we expressly

recommend that you use such a base to keep vibration and noise to a minimum. Ideal size 400 × 240 mm.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Setting the Saw Bench

•Release the star button and bring the saw bench to a right angle in relation to the saw blade. Use a 90°

angle L-square measure the right angle between the blade and the bench. The saw blade be at 90° to the

angle.

•Close the star button when the distance between the blade and the 90° angle is at a minimum. The bench

should then be at 90° to the saw blade.

Setting the Angle Scale

Release the lock screw and bring the indicator to the zero position. Fasten the screw.

The angle scale is a useful piece of supplementary equipment but should not be used for precision work.

Use scrap wood for saw tests, adjust the bench if necessary.

Horizontal Saw Bench and Diagonal Cuts

The saw bench can be positioned into a 45° diagonal position or be left in the horizontal position.

You can read off the approximate slope angle by using the angle scale located under the work bench. For more

exact adjustment, use scrap wood for some saw tests; adjust the bench if necessary.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

A scroll saw is fundamentally a “curve cutting tool” but which can also carry out straight and angled edge cuts.

Familiarise yourself with the following important points prior to commissioning the saw.

•The saw does not automatically cut wood. You must feed the wood against the saw blade manually.

•The cutting process occurs only while the blade is moving downwards.

•Feed the wood slowly against the saw blade as the saw blade teeth are small and cut only while moving

downwards.

•All persons carrying out work with the saw require training. The saw blade may break easily during this

training time while the operator is still unfamiliar with the saw.

•The saw is best suited for sheets of wood less than 2.5 cm thick.

Feed the wood especially slowly against the blade and avoid abrupt curves to prevent the saw blade from

breaking, if you wish to cut wood sheets thicker than 2.5 cm.

•Saw blade teeth becomes blunt over time, saw blades must be replaced. The saw blades are enough for 1/2

to 2 operating time depending upon the type of wood.

•Try and make sure that the saw blade follows the grain of the wood in order to obtain a clean cut.

•The saw speed must be reduced to minimum when cutting precious and non-ferrous metals.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Inside Cuts

WARNING: Switch off the saw and remove the mains supply plug before doing inside cuts

in order to avoid injuries caused by unintentional activation of the saw.

This saw is suited also to inside cuts cut not starting at the edge of the work piece. Proceed as follows:

•Drill a 6 mm hole in the work piece.

•Loosen the clamping screw (blade tensioner) and release the tension in the blade.

•Place the bore hole over the saw blade slot in the work bench.

•Install the saw blade through the hole in the work piece and through the work blade slot and fasten the blade

to the holders.

•When you have completed the inside cut, remove the saw blade and then remove the work piece from the

bench.

Continuous Operation

It is possible to switch the saw on by pressing the green "I" button for continuous operation. In order to switch

the saw off, it is necessary to press the red "0" button.

With the continuously variable electronic speed control, the cutting speed can be increased by turning to the

right or reduced by turning to the left.

Lighting System

The lighting system can be switched on by pressing the red "O" button.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Flexible shaft (Optional Feature 1)

•Remove protective cap from the threaded bushing.

•Place flexible shaft onto the threaded bushing.

•Clamp tool in the drill chuck.

•Firmly hold threaded shaft at the handle and switch on the speed control.

•Having finished the work, remove the flexible shaft and place the protective cap in place.

When working with the flexible shaft, cover the saw blade with the blade guard.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Foot Switch (Optional Feature 2)

The machine can be operated in continuous operation or with the additional foot switch. The switch is used to

select between the operating modes. The operating mode should always be selected when the machine is

switched off. The machine is in the foot switch mode when the switch is at the "O" position. The machine is in

the continuous mode when the switch is at the “I" position.

The machine may start due to unintentional actuation of the foot switch in the foot switch mode.

Attention! Never leave the machine unattended while it is switched on.

With the continuously variable electronic speed control, the cutting speed can be increased by turning to the

right or reduced by turning to the left.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Maintenance and Storage

WARNING! In the interests of operational safety, always switch off the saw and remove the

mains plug before carrying out maintenance work.

General

•Wipe chips and dust off the machine from time to time using a cloth.

•Re-application of the wax coating on the workbench makes feeding the workpiece to the blade easier.

•The mains cable should be replaced immediately if pulled out, cut or damaged in any other way. Do not

lubricate the motor bearings or internal parts!

Changing the Saw Blade with Pins

Switch off the saw and remove the mains supply plug before installing saw blades in order

to avoid injuries caused by unintentional activation of the saw.

1. Saw blade removal. Extract the saw-blade by unscrewing the Clamping screw. Remove the saw-blade from

the upper and lower support by slightly pressing the upper arm down.

2. Inserting the new saw-blade. Lead one end of the saw-blade through the perforation in the table and insert

the saw-blade pins into the notch. Repeat this procedure at the upper blade support. Before hooking it in.

Slightly press the upper arm down. Check the position of the blade pins at the supports. Tighten the blade by

means of the Clamping screw. Check the blade's tightness. Keep on rotating clockwise in order to tighten the

blade even more.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Changing the flat saw-blade (Optional Feature 3 & 4)

1. Take out the adapter. Fix the saw-blade with allen screws using allen wrench.

2. Extract the saw-blade by sliding the table's inlay up, then unscrew the clamping screw.

3. Slightly press the upper arm down.

4. Then remove the saw-blade by pulling it forward out of the supports and through the access perforation in

the table.

5. Put the saw-blade with the two adapters into the lower support, the other end into the upper support.

6. Slight press the upper arm down before hooking it in.

7. Tighten the blade with the tightening screw by rotating it clockwise. Check the tightness of the blade. Keep

on rotating clockwise in order to tighten the blade even more.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Lubrication

Lubricate the saw arm bearings every 50 hours. Proceed as above figure shown.

1. Turn the saw to the side.

2. Apply a generous amount of SAE 20 oil to the shaft end and bronze bearings.

3. Let the lubricant oil work in overnight.

4. Repeat the procedure the next day on the other side of the saw.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16 Series II

Carbon Brushes Inspection

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

DANGER! The carbon brushes should not be replaced by anyone but a qualified

electrician.

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage

temperature is between 5 and 30°C. Store the electric tool in its original packaging. Cover the electric tool in

order to protect it from dust and moisture.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Baumr-AG SS16 II Series User manual

Popular Saw manuals by other brands
