AGRI EASE BE-TS Series Application guide

BE-TSxx
Rotary Tiller
Operations & Parts Manual
• BE-TS120
• BE-TS140
• BE-TS160
For Models:
Purchase Date
Dealer
Model No. Serial No.

Thank you for purchasing your Tiller. Your Rotary Tiller is designed to be used on 540 RPM tractors.
It is important to properly maintain and keep in place all safety guards and shields that came with your tiller.
SAFETY
Read and understand this manual and all safety signs before operating and maintaining.
Review the safety instructions and precautions annually.
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGH THIS MANUAL IS USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
INTRODUCTION & SAFETY BE-TSxx
THIS SYMBOL MEANS
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED
1

SAFETY SIGNAL WORDS BE-TSxx
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages.
The appropriate signal word for each has been selected using the following guidelines:
DANGER!: Indicates an imminently hazardous situation that, if not avoided, will result in death
or serious injury. This signal word is to be limited to the most extreme situations typically for machine
components which, for functional purposes, cannot be guarded.
WARNING!: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used to
alert against unsafe practices.
CAUTION!: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
GENERAL SAFETY GUIDELINES
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build as many safety features as possible. However, every year many accidents
occur which could have been avoided by a few seconds of thought and more careful approach to handling
equipment. You, the operator, can avoid many accidents by observing the following precautions in this section.
To avoid personal injury, study the following precautions and insist those working with you, or for you,
follow them.
Replace any CAUTION, WARNING, DANGER or instruction safety decal that is not readable or is missing.
Location of such decals are indicated in this booklet.
Do not attempt to operate this equipment under the influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations.
Do not allow persons to operate or assemble this unit until they have read this manual and have developed a
thorough understanding of the safety precautions and of how it works.
To prevent injury or death, use a tractor equipped with a Roll Over Protective System (ROPS).
Do not paint over, remove or deface any safety signs or warning decals on your equipment. Observe all safety
signs and practice the instructions on them.
Never exceed the limits of a piece of machinery. If its ability to a do a job, or to do so safely, is in question
DON’T TRY IT.
2

SAFETY DECAL CARE BE-TSxx
BEFORE OPERATION
• Carefully study and understand this manual.
• Do not wear loose-fitting clothing, which may catch in moving parts. Always wear protective clothing
and substantial shoes.
• Assure that all tires are inflated evenly.
• Give the unit a visual inspection for any loose bolts, worn parts or cracked welds and make necessary repairs.
• Be sure there are no tools lying on or in the equipment.
• Do not use the unit until you are sure that the area is clear, especially of children and animals.
• Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar with your
new equipment.
• Practice safe operation of your equipment and its attachments. Completely familiarize yourself and
other operators with its operation before using.
• Use a tractor equipped with a Roll Over Protective System (ROPS) and fasten your seat belt prior to
starting the engine. The manufacturer does not recommend usage of tractor with ROPS removed.
• Move tractor wheels to the widest recommended settings to increase stability.
• Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a mechanical retainer
and attach a safety chain.
• Do not allow anyone to stand between the tongue or hitch and the towing vehicle when backing up to
the equipment.
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed a safety sign should also display the current sign.
• Safety signs are available from your Local Dealer.
HOW TO INSTALL SAFETY SIGNS
• Be sure that the installation area is clean and dry.
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the decal over the specified area and carefully press the small portion with the exposed
sticky backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of decal backing paper.
3

DURING OPERATION BE-TSxx
• Children should not be allowed on the product.
• Clear the area of small children and bystanders before moving the feeder.
• If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer and safety chains
if required. Shift towing unit to a lower gear before going down steep downgrades, thus using the engine as a
retarding force. Keep towing vehicle in gear at all times. Slow down for corners and rough terrain.
• Make sure you are in compliance with all local and state regulations regarding transporting equipment on
public roads and highways. Lights and slow moving signs must be clean and visible by overtaking or
oncoming trac when feeder is transported.
• Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the engine
of the towing vehicle or move unit. This is particularly important with higher noise levels and quiet cabs,
as you may not hear people shouting.
• NO PASSENGERS ALLOWED! Do not carry passengers anywhere on, or in, the tractor or equipment,
expect as required for operation.
• Keep hands and clothing clear of moving parts.
• Do not clean, lubricate or adjust your equipment while it is moving.
• When halting operation, even periodically, set the tractor or towing vehicle brakes, disengage the PTO,
shut o the engine and remove the ignition key.
• Be especially observant of the operating area and terrain. Watch for holes, rocks or other hidden hazards.
• Always inspect the area prior to operation.
• DO NOT operate near the edge of drop-os or banks
• DO NOT operate on steep slopes as overturn may result.
• Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
4

HIGHWAY AND TRANSPORT OPERATIONS BE-TSxx
• Adopt safe driving practices:
• Keep the brake pedals latched together at all times. NEVER USE INDEPENDENT BRAKING WITH MACHINE
IN TOW AS LOSS OF CONTROL AND/OR UPSET OF UNIT CAN RESULT.
• Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an
emergency stop to be safe and secure. Keep speed to a minimum.
• Reduce speed prior to turns to avoid the risk of overturning. Avoid sudden uphill turns on steep slopes.
• Always keep the tractor or towing vehicle in gear to provide engine braking when going downhill.
Do not coast.
• Do not drink and drive!
• Comply with state and local laws governing highway safety and movement of farm machinery on public roads.
• Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles
on the highway during daylight and nighttime transport. Various safety lights and devices are available from
your dealer.
• The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use.
Local laws should be checked for all highway lighting and marking requirements.
• When driving the tractor and equipment on the road or highway under 40 KPH (20 MPH) at night or during
the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
• Plan your route to avoid heavy trac. Be a safe and courteous driver.
Always yield to oncoming trac in all situations, including narrow bridges, intersections, etc.
• Be observant of bridge loading ratings. Do not cross bridges rated lower than the gross weight as which
you are operating.
• Watch for obstructions overhead and to the side while transporting. • Avoid overhead wires or other obstacles.
Contact with overhead lines could cause serious injury or death.
• Always operate equipment in a position to provide maximum visibility at all times. Make allowances for
increased length and weight of the equipment when making turns, stopping the unit, etc.
• Maneuver the tractor or towing vehicle at safe speeds.
• Pick the most level possible route when transporting
across fields. Avoid the edges of ditches or gullies and steep hillsides. Be extra careful when working on inclines.
• Avoid loose fill, rocks and holes; they can be dangerous for equipment operation or movement.
• Operate the towing vehicle from operator’s seat only.
• Never stand along side of unit with engine running or attempt to start engine and/or operate machine.
• Never leave running equipment and attachments unattended.
• As a precaution, always re-check the hardware on equipment following every 100 hours of operation.
Correct all problems. Follow the maintenance safety procedures.
5

OPERATION BE-TSxx
Before attaching the rotary tiller to the tractor, check the unit to ensure there is oil in the top and
side gearbox. See Maintenance Section for lubricant specifications.
Before beginning operation, check oil and grease points.
Oil Level: Top gear box 1-1/2” from the end of the dip stick. When sitting slightly tilted forward, oil should be at
the bottom of the drain plug on the side gearbox cover.
Grease: Right Rotor bearing, PTO shaft Cross & Bearings.
Attaching to the tractor:
1. With the Rotary Tiller on a level surface, back the Cat. 1 so the tractor lift arms are even with the unit’s lower
hitch pins. Lower or raise the tractor hitch arms until the 7/8” bushing in the arm is inside the clevis of lower
hitch points. Be sure nothing is between the tractor and the tiller before backing up.
2. Insert the lower hitch pin through the lower hitch blocks and the tractor arm. The YCT series tillers have
adjustable lower hitch blocks that can be slid to facilitate usage on larger tractors.
3. Secure the lift arm in place by using a 7/16” lynch pin or other fastener.
4. Repeat with the other arm.
5. Connect the driveline to the tractor’s PTO output shaft. Secure it in place.
6. Connect the tractor top link to the upper hitch point of the rotary tiller.
7. Start the tractor and slowly raise the tiller. Check for draw bar interference. Be sure that the PTO driveline
does not bottom-out when lifting the machine to it’s maximum height. If it does appear that it could
bottom-out, it is necessary to shorten the PTO driveline. (See Shortening a PTO Driveline Section).
Ensure that in the working position there is an overlap of a minimum of 1/3 the length of each profile.
Shortening a PTO Driveline:
1. With the implement attached to the tractor’s 3-point hitch,
and the PTO driveline not installed, separate
the PTO driveline. Attach the implement end to the implement
and the other end to the tractor PTO
input shaft.
2. Raise the implement by using the tractor’s hydraulic
3-point hitch to it’s maximum lift height.
3. Hold the half shafts next to each other and mark them so
each end is approximately 1/2” from hitting the
end of the telescopic profiles.
4. Shorten the inner and outer guard tubes equally.
5. Shorten the inner and outer profiles by the same length as the guard tubes.
Using a rat tail file, round o all sharp edges and burrs.
Grease the telescopic profile generously before reassembling.
Do not shorten too much, the proper overlap is a minimum of 1/3 the length of each profile.
CAUTION: Slip Clutches may become hot. Do Not Touch!
Keep the slip clutch area clear of any material that may catch fire.
6

OPERATION (CONT.) BE-TSxx
Slip clutches have adjustable torque settings. The torque setting varies with the dierent compression
of each spring. All the springs should have an equal amount of compression.
IMPORTANT: Do not over-tighten the compression nuts as this may impair performance or cause premature
wearing of the slip clutch.
Slip Clutch Adjustments:
Slip Clutch must be adjusted before first use or after a storage period.
1. Using a marker, scribe a line across the exposed edges of the clutch plate and friction discs.
2. Back o compression nuts to free friction discs by turning each nut 2 revolutions.
3. Start the tractor and run the driveline at a low idle to slip the friction discs. This will remove the dirt, corrosion
and surface floss from the clutch plate faces.
4. Disengage the PTO, shut down tractor and wait for all components to come to a complete stop.
5. Inspect the clutch and ensure that the scribed marking on the disc and plates have changed position.
If any two marks are still aligned, this is an indication that these discs have not slipped. It may be necessary
to completely disassemble the clutch to free them up.
6. After ensuring all discs are free, tighten the compression nuts, uniformly, exactly 2 revolutions to reset the
clutch original pressure.
Working Depth Adjustments:
The working depth is controlled by raising or lowering the side skids. If the side skids are raised, the working
depth increases. By lowering the skids, the tilling depth will decrease.
Tailgate Adjustment:
The tailgate can be adjusted to help smooth and compact the tilled ground.
Release the chain can secure to the desired height.
Start Up:
After making the necessary adjustments, lower the rotary till until the blades
are a couple of inches from the ground.
Engage PTO and slowly lower the tiller to begin working.
Removal and Storage
After finishing , remove the rotary tiller from the tractor.
1. Put the PTO driveline in a safe location so it will not become damaged.
2. Clean and dry the equipment.
3. Replace any damaged or worn parts.
4. Check all bolts and nuts for tightness.
5. Lubricate and protect the machine from the elements.
7

FOLLOWING OPERATION BE-TSxx
PERFORMING MAINTENANCE
• Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
• Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building.
The exhaust fumes may cause asphyxiation.
• Be certain all moving parts on attachments have come to a complete stop before attempting to perform
maintenance.
• Always use the proper tools or equipment for the job at hand.
• Use extreme caution when making adjustments.
• Never replace hex bolts with than grade 5 bolts unless otherwise specified.
• After servicing, be sure all tools, parts and service equipment are removed.
• Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement
parts must be used to restore your equipment to original specifications.
The manufacturer will not claim responsibility for use of unapproved parts and/or accessories and other
damages as a result of their use.
• If the equipment has been altered in any way from original design, the manufacturer does not accept any
liability for injury or warranty.
• Following operation, or when unhitching, stop the tractor or towing vehicle, set the brakes, disengage the PTO
and all power drives, shut o the engine and remove the ignition keys.
• Store the unit in an area away from human activity.
• Do not park equipment where it will be exposed to livestock for long periods of time. Damage and livestock
injury could result.
• Do not permit children to play on or around the stored unit.
• Make sure all parked machines are on a hard, level surface and engage all safety devices.
• Wheel chocks may be needed to prevent unit from rolling.
8

MAINTENANCE BE-TSxx
8 Hours:
• Grease the Rotor support (GP grease TXG and YCT only)
• Grease PTO shaft cross & bearings (GP grease)
• Check Hardware for tightness
16 Hours:
• Check oil level in center gearbox (90wt)
• Check oil level in side gearbox (140wt)
• Check Hardware for tightness
200 Hours:
• Replace oil in center gearbox (90wt)
• Replace oil in side gearbox (140wt)
• Change chain tensioner spring (DLT model only)
• Check Hardware for tightness
REPLACING BLADES
In order for the tiller to perform optimally, make sure the tiller blades are in good working condition and their
bolts and nuts are tight. Always replace the blades with the bolt head against the blade and the washer and
nut on the flange side to help prevent the blades from loosening.
When several blades are to be replaced, replace them one blade at a time in order to maintain the scroll
pattern on the rotor.
Note: To determine Left or Right Blades, hold the blade by the bolt hole and the cutting edge facing downward.
if the blade curves to the left it is a left hand blade, curving to the right indicates a right hand blade.
9

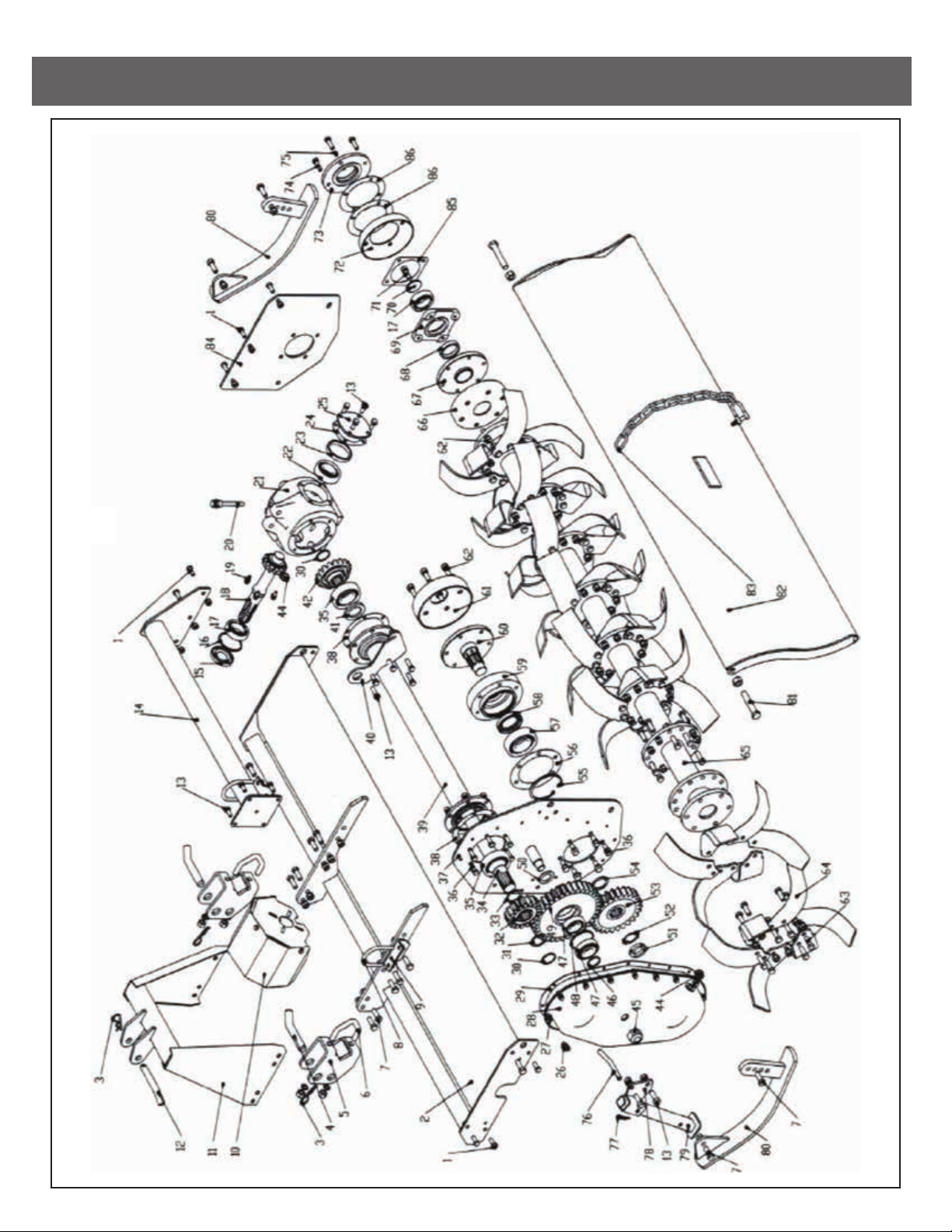

PARTS DIAGRAM BE-TSxx
10

PARTS BREAKDOWN BE-TSxx
REF NO. PART NO. DESCRIPTION QTY
Bolt M10x25
Side Panel Bracket
GB/T5783-20001 10
Frame Weldment 58TS58-01-01-002 1
Frame Weldment 66TS66-01-01-00 1
Frame Weldment 74TS72-01-01-00 1
Frame Weldment 81TS82-01-01-00 1
“R” Clip 4mmTS66-01-02-033 3
Hitch Pin (Lower Hitch Block)TS66-01-02-024 2
Lower Hitch BracketTS66-01-02-01-005 2
“U” Bolt (Lower Hitch Bracket)TS66-01-02-016 2
Bolt - A FrameGB/T5783-20007 14
U Bolt - Drive Shaft HousingTS66-03-018 2
Support - Drive Shaft HousingTS66-03-029 2
Gearbox Shielding (Complete)TS030410 1
TS66-01-03-01-0011 1A Frame
TS66-01-03-0112 1Top Hitch Pin
GB/T5783-200013 14Bolt - Drive Tube Housing
TS58-04-0014 1Gearbox Support Tube - 58
TS66-04-00 1Gearbox Support Tube - 66
TS72-04-00 1Gearbox Support Tube - 74
TS82-04-00 1Gearbox Support Tube - 81
HG4-692-6715 1Oil Seal (Input Gearbox)
GB/T893.1-198616 1Snap Ring - Input Shaft (Front)
GB/T276-199417 1Bearing - Input Shaft (Front)
TS66-02-0518 1Input Shaft
GB/T5783-200019 4Bolt - Shielding
TS66030300020 1Gearbox Oil Plug (Dip Stick)
TS66-02-0121 1Housing - Gearbox
GB/T276-199422 1Bearing (Rear of Center GB)
TS66-02-0423 1
Spacer - Back GB
TS66-02-0324 1
Gearbox Back Gasket
TS66-02-0225 1
Gearbox Cap
26 1
Breather Cap - Side Housing
GB/T5783-200027 16
Bolt - Side Drive Cover
TS66-08-01-0028 1
Side Drive Cover
TS66-08-0129 1
Gasket - Side Gear/Chain Case
GB/T894.2-198630 2Snap Ring Ext. (Output Shaft)
31 Shim
TS66-02-0932 1Input Gear - Side Drive
Output Gear ShimTS66-02-0833 3
Drive Shaft 58TS58-02-1034 1
Drive Shaft 66TS66-02-01 1
Drive Shaft 74TS72-02-10 1
REF NO. PART NO. DESCRIPTION QTY
Drive Shaft 81TS82-02-1034 1
Bearing (Output Shaft - Driven End)GB/T276-199435
36
37
38
1
Bolt - Drive Shaft Housing (Outer)GB/T5783-2000 2
Side Panel - LeftTS66-01-04-00 12
Gasket - Drive ShaftTS66-02-07 1
Drive Shaft Tube Housing 58TS48-02-01-0039 3
Drive Shaft Tube Housing 66TS66-02-01-00 1
Drive Shaft Tube Housing 74TS66-01-02-01-00 1
Drive Shaft Tube Housing 81TS72-02-01-00 1
Lifting HookTS82-02-01-0040 1
Oil Seal - Drive Shaft Tube HousingTS66-02-1141 1
Ring GearTS66-02-0642 1
Oil Plug Center GB (Drain Plug)
GB/T3452.1-2005
44 1
Lock Nut - Idler Gear Support Shaft45 1
O-Ring - Idler Gear Support Shaft46 1
Bearing (Idler Gear)GB/T297-199447 2
Snap Ring (Idler Gear)GB/T893.1-198648 1
Idler GearTS66-08-0249 1
Spacer - Idler GearTS66-08-0350 1
Lock Nut - Rotor Support Left Side 1
Retaining WasherGB/T858-1988 1
Bottom GearTS66-08-04 1
Shim 55*40*2TS66-08-0654
53
52
51
1
Snap Ring - Rotor BearingGB/T893.1-198655 1
Gasket - Rotor (ø160*115*0.5)TS66-08-0856 1
Bearing - Rotor (Left Side)GB/T276-199457 1
Oil Seal - Rotor Support (Left Side)58 2
Bearing Support (Left Side)TS66-08-0559 1
Rotor Support Shaft (Left Side)TS66-08-0760 1
Labyrinth Dust Cover (Left Side)TS66-08-0961 1
11

PARTS BREAKDOWN (CONT.) BE-TSxx
Bolt - Bearing Support (Left Side)GB/T5783-200062
Blade Bolt - 12x35 Fine ThreadGB/T5786-200063
Hex Nut M12
Lock Washer 12mm
Blade (Left)TS66-09-01-01 (02)64
Blade (Right)TS66-09-01-01 (02)
Rotor Weldment - 58TS58-09-01-01-0065 1
Rotor Weldment - 66TS66-09-01-01-00 1
Rotor Weldment - 74TS72-09-01-01-00 1
Rotor Weldment - 81TS82-09-01-01-00 1
Labyrinth Dust Cover
(Right Side - Outer)
TS66-09-0166 1
Rotor Support Shaft
(Right Side - Outer)
TS66-09-0367 1
1
1
1
1
1
1
REF NO. PART NO. DESCRIPTION QTY
Oil Seal - 62x45x12
HG4-692-6T68 1
Bearing SupportTS66-09-0469
70
71
72
1
Retaining WasherTS66-09-08 1
Retaining BoltGB/T5783-2000 1
Labyrinth Dust Cover
(Right Side - Inner)
TS66-09-02 1
End Cap - Rotor Right SideTS66-09-0773 1
REF NO. PART NO. DESCRIPTION QTY
Bolt - End Cap Right SideGB/T5783-200074 4
Grease FittingsM10X175 1
Pin - StandTS66-05-0176 1
R-Clip - StandTS66-05-0277 1
Stand BracketTS66-05-02-0078 1
Stand LegTS66-05-01-0079 1
Skid Weldment - LeftTS66-06-0080 1
TS66-06-00
84
1Skid Weldment - Right
81 1Bolt - Tailgate
TS58-07-01-0082 2Tailgate 58
TS66-07-01-00
83
1
Tailgate 66
TS72-07-01-00 1
Tailgate 74
TS82-07-01-00 1
Tailgate 81
TS66-07-02-01 1Tailgate Chain Assembly Ф8
TS66-01-01 1Side Panel - Right
TS66-09-0585 1Gasket1 (Ф 150x108x0.5)
TS66-09-0686 1Gasket2 (Ф 119x95x0.5)
12

PARTS BREAKDOWN - PTO SHAFT BE-TSxx
Complete Female End PTO Shielding
Series 20-40 (Tractor End)
Complete Female End PTO Shielding
Series 60 (Tractor End)
Complete Female End PTO Shielding
Series 20-40 (Implement End)
Complete Female End PTO Shielding
Series 60 (Implement End)
DP1074F-406 1
DP1074F-60
DP1074M-407 1
DP1074M-60
8
9
Slip Clutch Complete
150mm Clutch (2 Disc)
Slip Clutch Complete
180mm Clutch (2 Disc)
Slip Clutch Complete
180mm Clutch (4 Disc)
Complete PTO - Series 40
150mm Slip Clutch
Complete PTO - Series 40
180mm Slip Clutch
Complete PTO - Series 60
200mm Slip Clutch
DP1098-30 1
DP1098-40
DP1098-60
147120 1
147122
147125
REF NO. PART NO. DESCRIPTION QTY
PTO Yoke Series 40DP1075-401 1
PTO Yoke Series 60DP1075-60
2Female Yoke & Tube - Series 40
(Tractor End)
Female Yoke & Tube - Series 60
(Tractor End)
Cross & Bearings - Series 40DP1076-403 2
Cross & Bearings - Series 60DP1076-60
DP1079-40
DP1079-60
Male Yoke & Tube - Series 40
(Implement End)
Male Yoke & Tube - Series 60
(Implement End)
DP1078-404 1
DP1078-60
Friction Disc (4-3/4” OD)180-510-30 2-4
1
Friction Disc (5-1/2” OD)180-510-40
REF NO. PART NO. DESCRIPTION QTY
5
13
