Agri-Fab 24192 User manual

REPAIR PARTS
303 West Ray ond
Sullivan, IL. 61951
217-728-8388
www.agri-fab.co

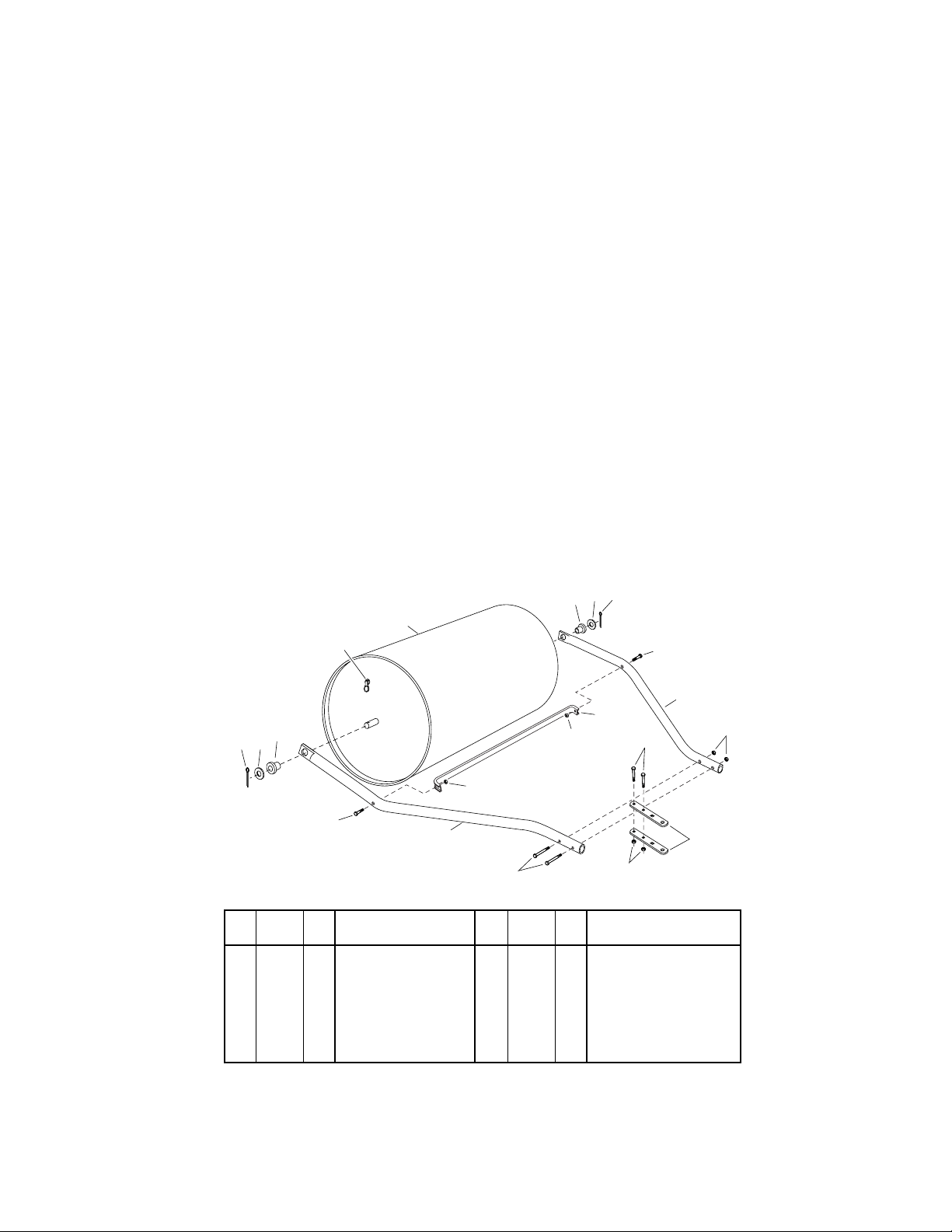

ASSEMBLY INSTRUCTIONS
(SEE ILLUSTRATION BELOW)
1. Asse ble bearings (Ref. 5) into hitch tubes (Ref.
3) so that bearing flange is against outside of hitch
tube. (You ay need to place a block of wood
against bearing and carefully tap with a ha er.)
2. Place hitch tubes (Ref. 3) onto both ends of roller
shaft. Asse ble a flat washer (Ref. 6) onto each
end of roller shaft and secure with two cotter pins
(Ref. 12).
3. Asse ble scraper bar (Ref. 2) to hitch tubes (Ref.
3) using two hex bolts (Ref. 9) and hex lock nuts
(Ref. 10). Do not tighten yet.
4. Asse ble ends of hitch tubes (Ref. 3) together
using two hex bolts (Ref. 7) and hex lock nuts (Ref.
10). Do not tighten yet.
5. Asse ble hitch brackets (Ref. 4) to hitch tubes
(Ref. 3) using two hex bolts (Ref. 8) and hex lock
nuts (Ref.10 ). Do not tighten yet.
6. Tighten bolts and nuts starting with scraper bar
(Ref. 2), then ends of hitch tubes (Ref. 3), and
finally hitch brackets (Ref. 4).
7. Install hitch pin (Ref. 13) through hitch brackets
(Ref. 4) and secure with hair cotter pin (Ref. 14).
1 62811 1 Roller Asse bly
2 24868 1 Scraper Bar
3 48376 2 Hitch Tube
4 24192 2 Hitch Bracket
5 43632 2 Bearing, Plastic
6 43528 2 Flat Washer, 1"
7 46782 2 Hex Bolt, 5/16-18 x 3"
8 43224 2 Hex Bolt, 5/16-18 x 2-1/4"
9 43084 2 Hex Bolt, 5/16-18 x 1-3/4"
10 43064 6 Hex Lock Nut, 5/16-18
11 43709 1 Plug, Lawn Roller
12 43501 2 Cotter Pin, 5/32" x 1-1/2"
13 47623 1 Hitch Pin
14 43343 1 Hair Cotter Pin 1/8"
Printed in USA For No. 48447 (REV. 5/02)
SAFETY PRECAUTIONS
1. Never attach a garden hose to the fill/drain hole
when filling. Dangerous pressure build up could
occur inside roller.
2. Do not fill roller to axi u weight without check-
ing capability of vehicle to safely pull and stop.
3. Never use roller up and down hills; always work across
hills and slopes.
4. Use caution when turning, slowing or stopping.
5. Always drain roller to keep fro freezing.
SPECIFICATIONS:
Roller Drum: 24" Dia. x 48" Wide Welded Steel
O.A. Width: Approxi ately 52"
Bearings: 1" I.D., Replaceable
Tow Hitch: Std. Pin Type - 1/2" Hole
Weight w/ Water: Up to 910 Lbs. Filled with Water
(Note: May be filled with sand)
Approx. Sh. Wt.: Approxi ately 165 Lbs.
1
6
5
9
3
10
4
8
10
7
3
9
5
6
11
2
10
10
12
12
Ref. Part Qty. Description
No. No.
Ref. Part Qty. Description
No. No.
