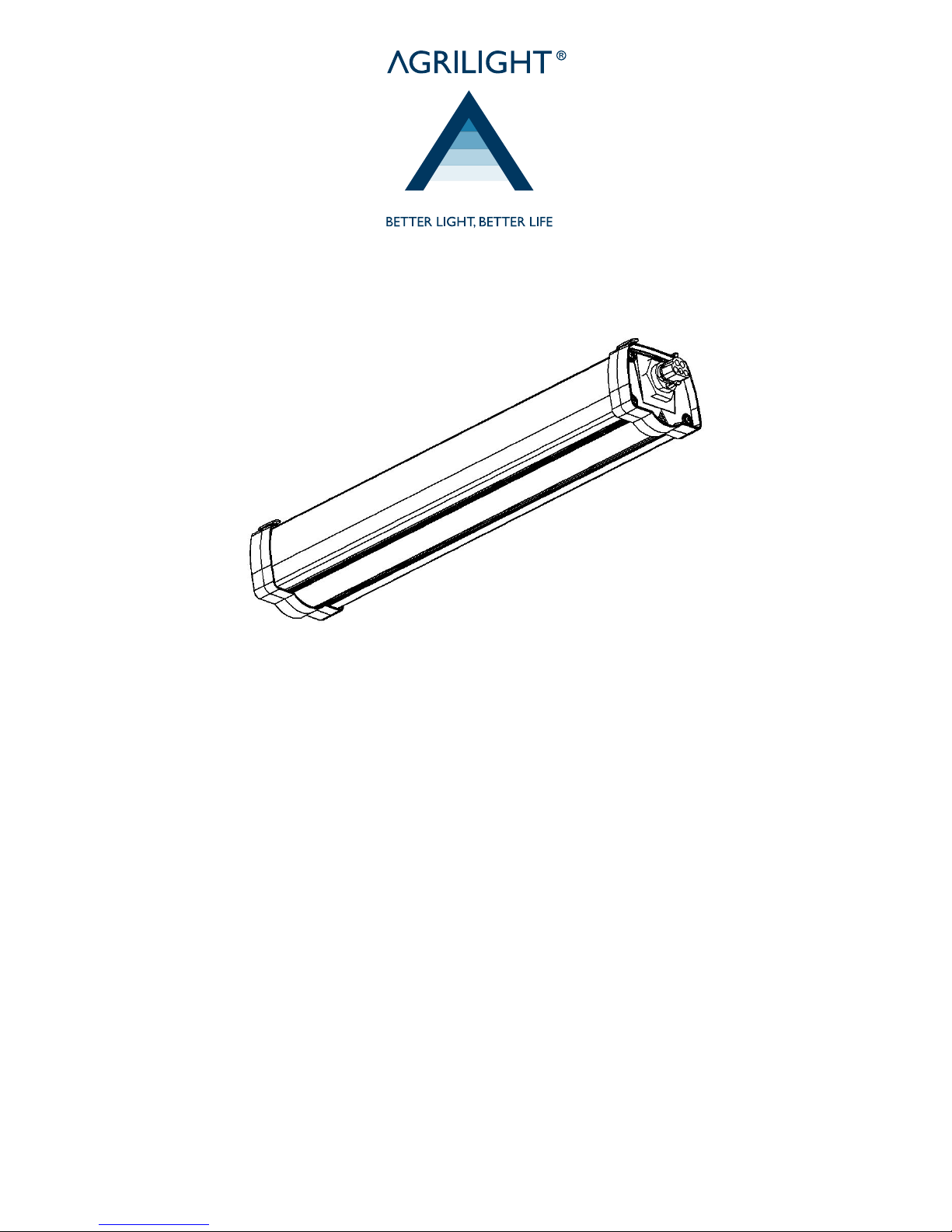

Agrilight AVILED eco User manual

AVILED® eco
Installation and user manual
Original manual V1.0
©Agrilight b.v. 2018

Please read and understand the contents of this manual carefully. Failure to read the
manual can result in serious damage, injury or death. Keep this manual. Make sure that
all operators of the AVILED®eco fixture have read and understand the contents of this
manual.
Always work safe and comply with procedures, regulation and local standards.
Copyright ©Agrilight b.v. 2018
This language version of the manual is verified by the manufacturer (Original manual).
Agrilight b.v. reserves the right to change specifications and/or spare parts without prior notice.
The content of this manual may also be changed without prior notice.
For information about settings, maintenance and repairs not provided for in this manual, please contact the technical department of your dealer.
Agrilight b.v. accepts no liability for damage and/or problems arising from the use of spare parts not supplied by Agrilight b.v..
This manual has been compiled with all possible care. Agrilight b.v. assumes no responsibility for any errors in this manual and/or the consequences of an
erroneous interpretation of the instructions.
All rights reserved. No part of this publication may be reproduced, stored in computerised databases, or made public, in any form or by any means, either
electronic, mechanical, through photocopying, recording or otherwise, without the prior written consent of Agrilight b.v.. This also applies to the associated
drawings and diagrams.

Preface
Thank you for purchasing the AVILED®eco. This manual is intended for the end user and
installer. The manual contains all the information you need to install and use your AVILED®eco.
Furthermore, the manual contains instructions for preventing possible accidents and serious harm
while the product is running. Read this information carefully!
Storing the manual
The Installation and user manual is a part of your product. Store the manual in the immediate
vicinity of the product. Always present a copy of the manual to operators as they work with the
AVILED®eco.
Limitations of the document
The English language version is the original version. This language version of the manual is
verified by the manufacturer (Original manual). All other language versions are translations of the
original English language version.
Agrilight b.v. reserves the right to modify the construction and/or configuration of its products
at any time without any obligation to modify products which have been previously supplied.
The data provided in this manual is based on the most recent information. This data may be
subject to change at a later date, without prior notification. For information regarding adjustment,
maintenance or repair which is not described in this document, please contact your local dealer.
The information in this document concentrates solely on use of the product as intended by the
manufacturer. In the event that the products, parts of the products or procedures are applied in
any way other than that described in this manual, then confirmation must be obtained as to the
correctness and suitability of that use. No rights may be derived from this manual or from the
documentation supplied together with the product. The supplier is bound by no agreement other
than the order confirmation.
This manual contains useful and important information on the correct operation of the product. We
have taken all possible steps to make this manual as correct and as complete as possible. Should
you discover any errors or omissions, please bring this to the attention of Agrilight b.v., so that we
can make amendments. This will enable us to improve our documentation.
Symbols used
The following marking conventions are used in this manual to draw attention to specific topics or
actions:
Warns of a situation that could result in death or serious physical injury and/or may
cause material damage if one does not obey the safety instructions.

Warns of a situation that could result in minor or moderate physical injury and/or may
cause material damage if one does not follow the safety instructions.
Provides additional information that is helpful to do a task or to avoid problems.
This is the CE logo, which indicates that the product meets the legal requirements.
The ENEC symbol is an addition to the CE logo relating to electronic products that
are introduced to the European market.
The ENEC symbol is certified by a third party only, independently of the
manufacturer. It indicates that the product and product location are safe as referred
to in the corresponding European directive.
The symbol on the material, the accessories or packaging indicates that this product
may not be treated as domestic waste.
Photo biological safety Risk group 1, no risk.
Warranty
All electrical and mechanical components of the fixture – if used under normal operating conditions
in combination with the recommended surge protection type 2 – are covered by a five-year
warranty from the original purchase date.
Refer to the General terms and conditions of sale and delivery for further information.
Liability
Agrilight b.v. is not liable for any damages caused by failure to comply with the installation
instructions in accordance with the legislation in your country, or any provisions assigned to
function as substitutes thereof and the above assembly instructions.
Agrilight b.v. additional General terms and conditions of sale and delivery are exclusively
applicable to all deliveries. You can also find these General terms and conditions of sale and
delivery on our website: www.agrilight.com.

Version history
During the lifetime of the AVILED®eco, engineering improvements may result in the need to revise
this manual. It is then at the discretion of Agrilight b.v., if a revision/new version of this manual is
required.
The following table describes the main changes for each document version of this manual.
Version Date Changes
1.0 8 June 2018 Initial version
The information in this document concentrates solely on the installation and use of the AVILED®
eco as intended by Agrilight b.v.. In the event that the products, parts or procedures are applied
in any way other than that described in this manual, then confirmation from Agrilight b.v. must be
obtained as to the correctness and suitability of that use.
Supplements to the manual
Please visit www.agrilight.com for the latest version of the manual.
Manufacturer details
If you need any assistance, or still have questions after reading this manual, we would encourage
you to contact your dealer.
We appreciate all advice, feedback and suggestions from our customers. Please contact:
Agrilight b.v.
Vlotlaan 643
2681 TZ Monster
The Netherlands
T [phone]
[email protected]
www.agrilight.com
Trademarks
All trademarks stated in this manual are registered trademarks of Agrilight b.v..
Terms
Fixture AVILED®eco
Installer Person qualified to install the AVILED®eco

Contents
Preface..............................................................................................................................................3
Storing the manual.......................................................................................................................3
Limitations of the document.........................................................................................................3
Symbols used...............................................................................................................................3
Warranty........................................................................................................................................4
Liability..........................................................................................................................................4
Version history..............................................................................................................................5
Supplements to the manual......................................................................................................... 5
Manufacturer details.....................................................................................................................5
Trademarks...................................................................................................................................5
Terms............................................................................................................................................5
1 Introduction...................................................................................................................................7
2 Description....................................................................................................................................8
2.1 Main components...................................................................................................................8
2.2 Technical specifications......................................................................................................... 8
2.3 Dimensions.............................................................................................................................9
3 Safety...........................................................................................................................................10
4 Installation...................................................................................................................................11
4.1 Installing the fixture..............................................................................................................11
5 Operation.....................................................................................................................................16
5.1 Operating the fixture............................................................................................................ 16
6 Maintenance................................................................................................................................17
6.1 Cleaning................................................................................................................................17
6.2 Questions and Answers.......................................................................................................17
7 Storing or discarding the product........................................................................................... 18
8 Declaration of Conformity.........................................................................................................19
AGRILIGHT B.V.
Contents 6

1 Introduction
The AVILED®eco is intended as a lighting fixture for lighting livestock and agricultural buildings
and halls.
Any use other than the approved intended use described above is considered unintended use.
Agrilight b.v. cannot be held responsible for possible (consequential) damage caused by improper,
incorrect or inadvisable use.
The AVILED®eco is referred to as the "fixture" in this manual. This manual includes all versions of
the fixture.
AGRILIGHT B.V.
Introduction 7

2 Description

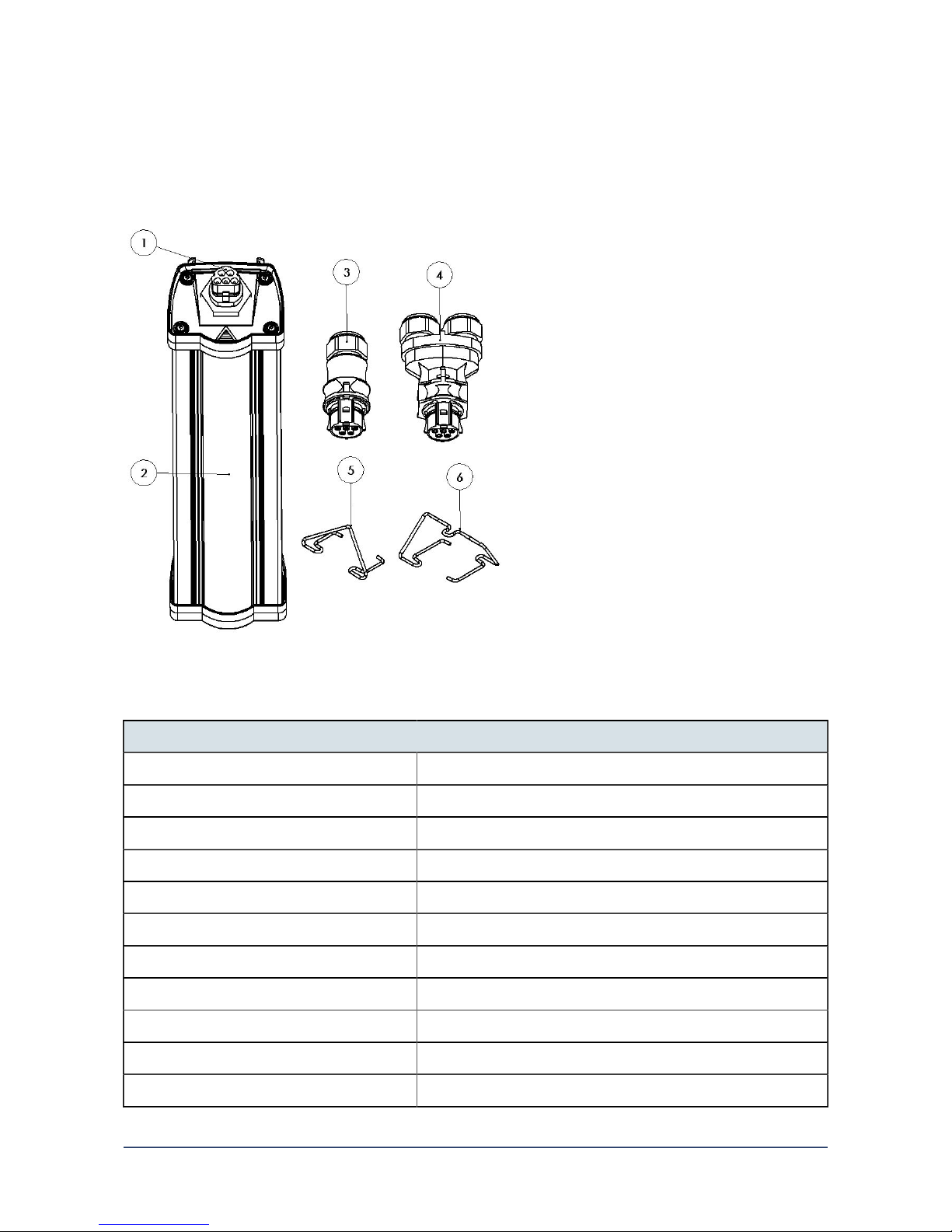

2.1 Main components
The AVILED®eco consists of the following components:
1. Wieland connector Male
2. Lens
3. Wieland connector Female (not
included, order separately)
4. Wieland T connector Female (not
included, order separately)
5. Mounting clip chain
6. Mounting clip ceiling
2.2 Technical specifications
Characteristics
Mains voltage 220-240V (see identification sticker on product)
Frequency 50 / 60Hz
Current 0.06A
Inrush current 5.0A (45µsec at 50% Ipeak)
Power 14W (+/- 5%) (system)
Power factor 0.95
Efficiency 160 Lm/W (system)
Color temperature 4000K (+/- 5%)
Color rendering index CRI 80
Dimming function Yes (1% - 100%) Flicker Free
Dimming signal DALI
AGRILIGHT B.V.
Description 8

Characteristics
Photo biological safety Risk group: RG1
IP class IP65 / IK08
Ambient temperature Ta -20°C ~ +45°C
Unit dimensions (L x B/W x H) 440 x 86 x 74 mm
Packing dimensions (L x B/W x H) 580 x 370 x 90 mm (4 pcs)
Unit weight 1.1 kg
Weight including packaging 4.7 kg (4 pcs)
Maximum cable diameter 10 - 14 mm (Wieland connector)
Expected lifetime (burning hours LED) 100,000 (L90/B50)
Warranty (year) 5
2.3 Dimensions
The AVILED®eco fixture
AGRILIGHT B.V.
Description 9

3 Safety
• The product may only be installed by a qualified person.
• Product installation must satisfy the current applicable standards.
• Switch off the power supply before commencing installation or maintenance work.
• Do not open or disassemble the product. Opening the product can prove hazardous and
will void the warranty.
• If connected, the product or its components are powered by a 230V power supply.
• Never look directly into the light source after connection to protect your eyesight.
• Wait at least 30 minutes after switching off the fixture before you replace any
components, e.g. the led driver. The parts can be hot.
• Make sure that the power cord/box and the lamp cord are connected properly.
• Never suspend a fixture by its power cord or power cable.
• Do not plug or unplug a lamp cord/cable while the fixture is switched on.
• The fixture lens must not be removed as it may damage the sealing. Removing the
fixture lens will terminate the product warranty.
• Do not plug this system into a supply voltage other than indicated on the fixture label.
• The end user is responsible for the proper installation and product use. An incorrect
installation may result in product damage or shortcomings. The warranty will become
void, if the product and/or electronic components are damaged due to an incorrect
installation.
AGRILIGHT B.V.
Safety 10

4 Installation
• The product may only be installed by a qualified person.
• Switch off the power supply before commencing installation.
• The end user is responsible for a correct and safe installation.
• Ensure that the wiring satisfies the requirements as described in the specifications.
• For the electrical connection, you are referred to the Wiring diagram in the manual. In
addition, you must comply with the local legal connecting conditions.
4.1 Installing the fixture
Gather the equipment for mounting the fixture and consult the lighting plan before you start the
installation.
1. Switch off the power supply.
AGRILIGHT B.V.
Installation 11

2. Choose and install the correct mounting brackets for each situation. Other mounting hardware
is not included.
Mounting directly to ceiling
L1 = 390 mm
Mounting with cables/chains
L1 = 390 mm
AGRILIGHT B.V.
Installation 12

Combine brackets mounting to
sloped ceiling
L2 = 405 mm
3. Click the bracket on the fixture.
AGRILIGHT B.V.
Installation 13

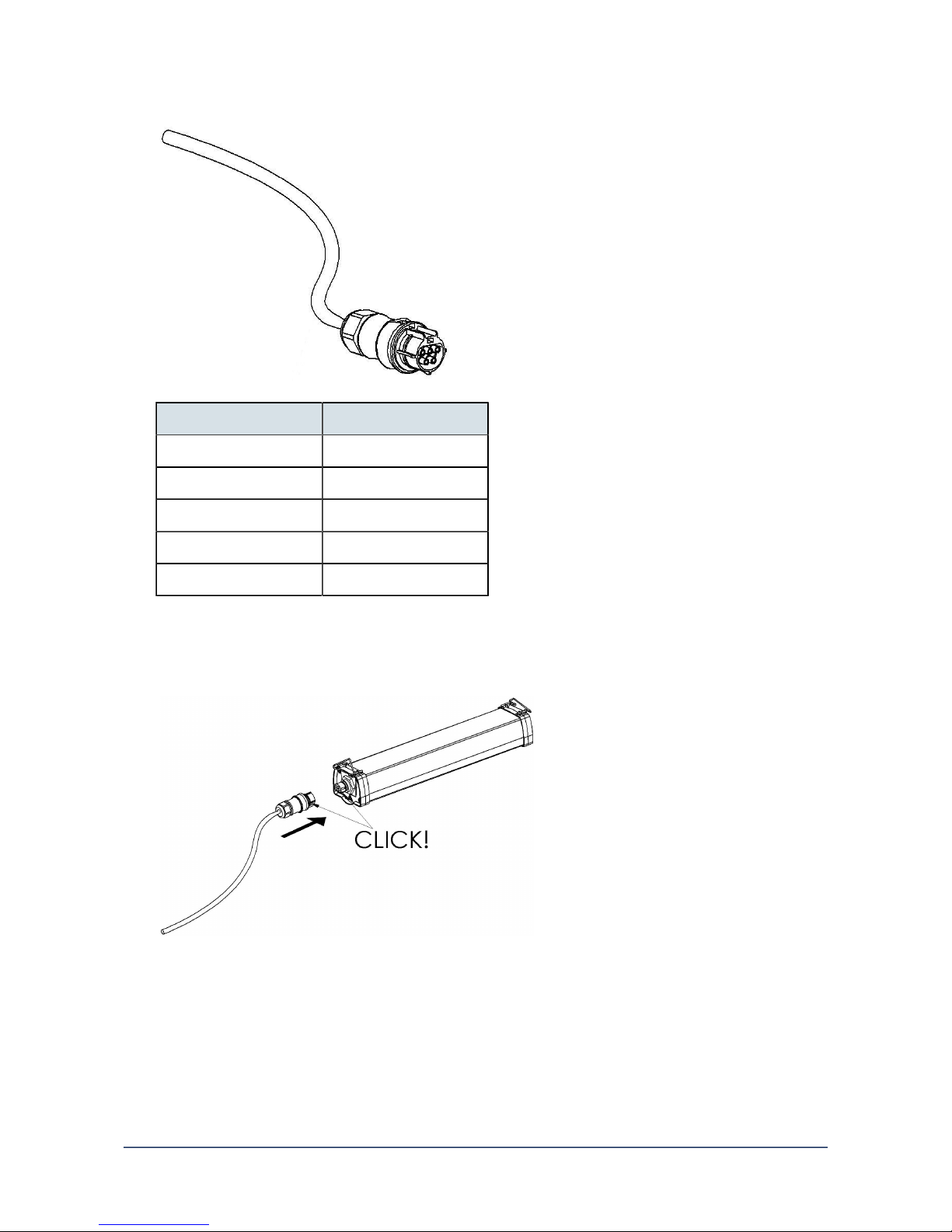

4. Connect the cable to the connector.
Cable Connector
Phase L
Neutral N
Earth PE
Dali + D1
Dali - D2
Table 1: Wiring diagram
5. Connect the fixture.
AGRILIGHT B.V.
Installation 14

6. Switch on the power supply.
AGRILIGHT B.V.
Installation 15

5 Operation
• The AVILED®eco has been developed for the agricultural sector.
• The ambient temperature should not exceed a temperature of 113°F/45°C and a relative
humidity of 70%.
• Maximum concentration NH3 (ammonia) 20ppm.
5.1 Operating the fixture
• In order for the fixture to function properly, the minimum light level must be at least 1%. In
addition, the power supply 230V must be connected.
• The light level (1-100%) can be adjusted using a Dali controller.
• To protect led driver and led, use the surge protection type 2 on the mains.
• Dali controller and surge protection can be ordered by Agrilight.
AGRILIGHT B.V.
Operation 16

6 Maintenance
• Switch off the power supply before commencing maintenance work.
• Do not open or disassemble the product. Opening the product can prove hazardous and
will void the warranty.
6.1 Cleaning
Check the product at regular intervals for build-up of dust and dirt. Clean the product, if necessary.
Contamination can lead to overheating and reduced performance.
Clean the fixture with a dry or slightly damp cloth.
• Never clean the product with corrosive cleaning agents, abrasives or other aggressive
liquids.
• Protect connectors against the ingress of water.
6.2 Questions and Answers
• Do not replace any parts yourself (not even LEDs or LED modules) as it will void the
product warranty.
Questions Answers
Check the power supply voltage.The fixtures do not switch on.
Check for damaged cables, and, if any, have them
replaced by a qualified engineer.
One of the fixtures does not switch
on. Check if the connector is properly connected (see Installing the fixture on page 11).
All fixtures operate in dimmed mode. Check the Dali control signal.
One fixture operates in a dimmed
mode. Check if the D1 and D2 are properly connected.
If all above does not help, replace the fixture and contact
your dealer.
AGRILIGHT B.V.
Maintenance 17

7 Storing or discarding the product
Storing
In the event that the product is to be stored, it must be kept in a dry, clean environment with an
ambient temperature of 0°C ~ +40°C.
Discarding
Dispose the equipment through a recycling centre that handles electronics and
electrical appliances within the EU and in other European countries which use
separate collection systems for used electronics and electrical appliances. By
disposing of the equipment in the proper way, you will be helping to prevent potential
risks to the environment and public health, which might otherwise be caused by
improper handling of the discarded equipment. Recycling of materials contributes to
the conservation of natural resources. Therefore, do not discard your old electrical
and electronic equipment via the domestic waste.
AGRILIGHT B.V.
Storing or discarding the product 18

8 Declaration of Conformity
EC – Declaration of Conformity for machinery (according to Annex II.1.A of the Machine
Directive 2006/42/EC)
We,
Manufacturer:
Agrilight b.v.
Vlotlaan 643
2681 TZ Monster
The Netherlands
T [phone]
[email protected]
www.agrilight.com
Authorized Representative:
Hereby declare on one's own responsibility that the following device(s):
Comply with all relevant provisions of this Directive and those of the following Directive(s) and,
where appropriate, that they are in agreement with the following harmonized standard (s) or parts
thereof:
• LVD 2014/35/EU
• EN60598-1:2015
• EN60598-2-1:1989
• EN62471-5:2015
• EMC 2014/30/EU
• EN55015:2013 and A1:2015
• EN61000-3-2:2014
• EN61000-3-3:2013
• EN61547:2009
CE mark affixed on the product : 2018
Date: June 8th, 2018
Signature:
Name: H. Hondebrink
Position: General Manager
AGRILIGHT B.V.
Declaration of Conformity 19

Agrilight b.v.
Vlotlaan 643
NL-2681 TZ Monster
The Netherlands
[phone]
www.agrilight.com
[email protected]
