AgSense CROP-LINK User manual

2011-16 Crop Link
Flowmeter Wiring Manual
Revised January 1, 2017

Items Covered In This Manual:
Page 1: Crop Link Device Overview
Page 2: Netafim/Dwyer Mechanical Flow Meter Wiring
Page 3: Netafim Octave Flow Meter Wiring
Page 4: GF Signet “Open Collector ”Flow Meter Wiring
Page 5-9: GF Signet 8550 Flow Transmitter Wiring
Page 10: McCrometer Mechanical Flow Meter Wiring
Page 11-12: Seametrics AG2000 Flow Meter Wiring
Page13-14: Endress Hauser Promag P 50/53 Flow Meters
Page 15-16: Siemens MAG5000 Flow Meters
Page 17-19: Seametrics PE102/FT520 Flow Meter Wiring
Page 20-22: GF Signet 9900 Flow Transmitter Wiring
Page 23-24: GF Signet 2551 Mag Meter Wiring
Page 25: McCrometer FlowCom Flow Meter Wiring
Page 26-27: McCrometer McMag 3000 / EA-618 Flow Meter Wiring
Page 28-29: Siemens Sitrans FM MAG 8000 Wiring
Page 30-32: Greyline AVFM 5.0 Flow Meter Wiring
Page 33-34: Senninger Flow Wise SC-3 Flow Meter Wiring
Page 35-36 Banjo MFM300DC Flow Meter Wiring
Page 37-38 Seametrics FT415 Flow Meter Wiring
Page 39-41 Sparling Tiger Mag Flow Meter Wiring
Page 42: Power and Relay Wiring

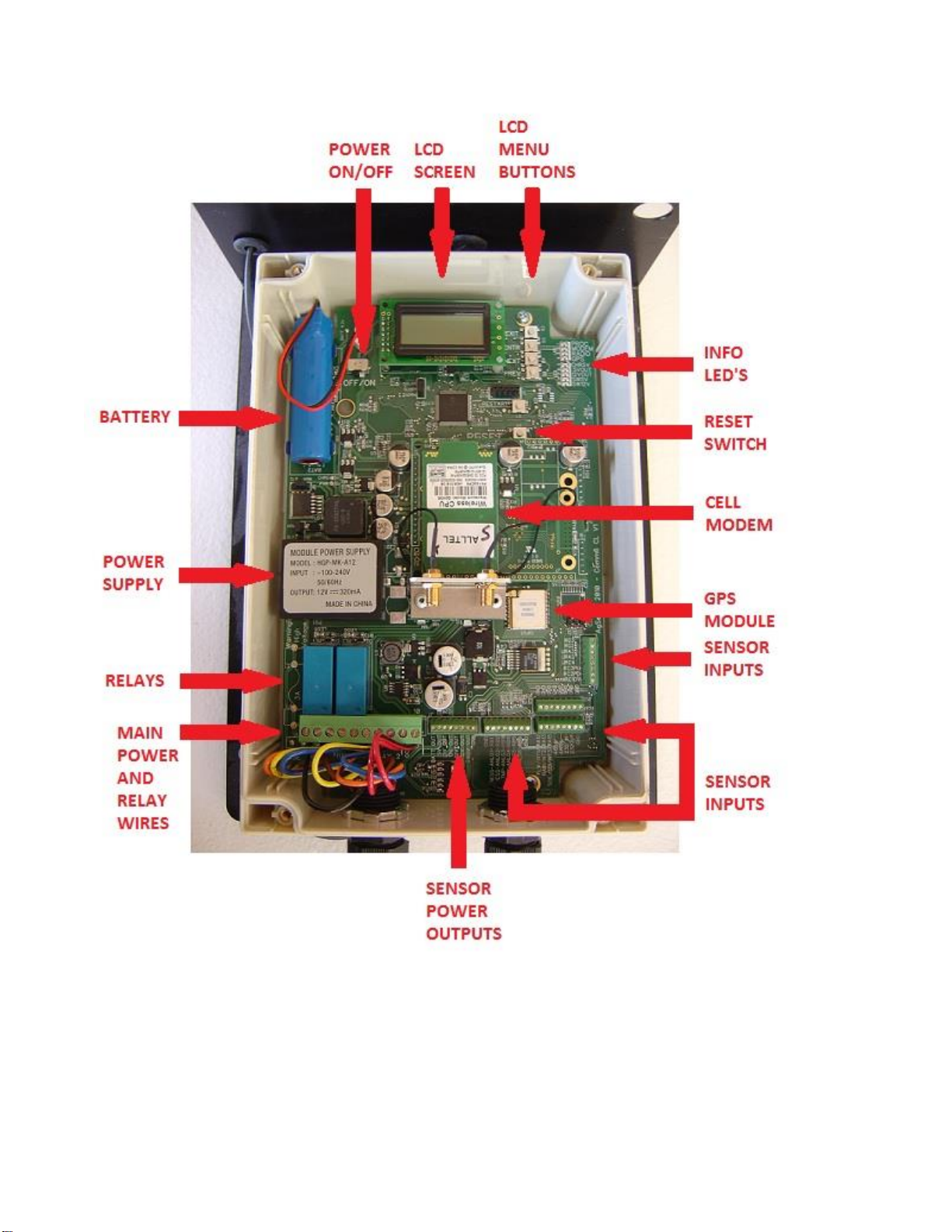

General Overview of the Crop Link Unit
Page 1

Wire Connections for the Netafim/Dwyer Mechanical
Flow Meter
(two wire magnetic reed-switch style)

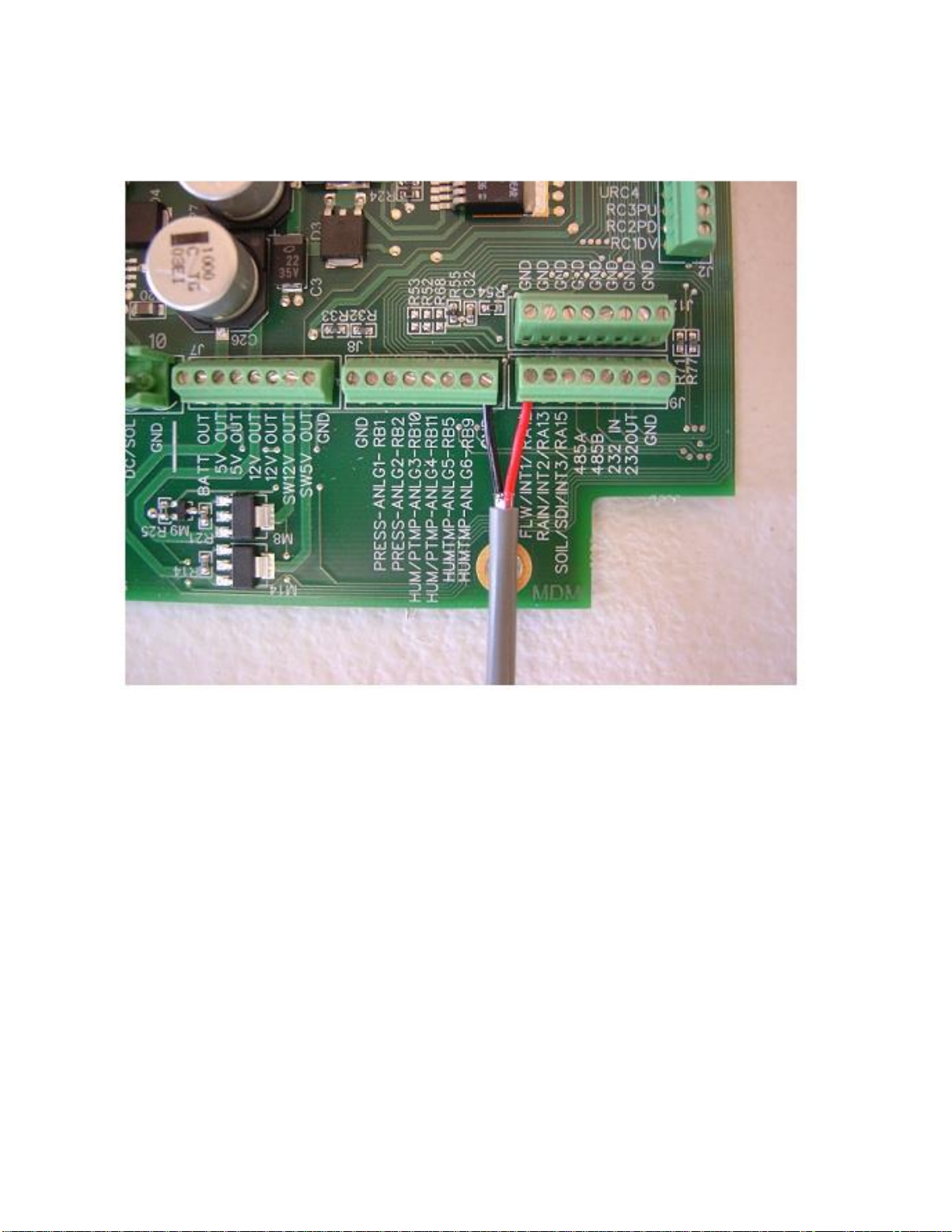

1.Install the Black Wire from the Netafim/Dwyer Flow Meter into any
terminal marked GND as shown in the picture above.
2.Install the Red Wire from the Netafim/Dwyer Flow Meter into the
terminal marked FLW/INT1 as shown in the picture above.
3.Proceed to Page 42 of this manual for power wire connections.
Page 2

Wire Connections for the Netafim Octave Flow Meter
(with pulse output module)

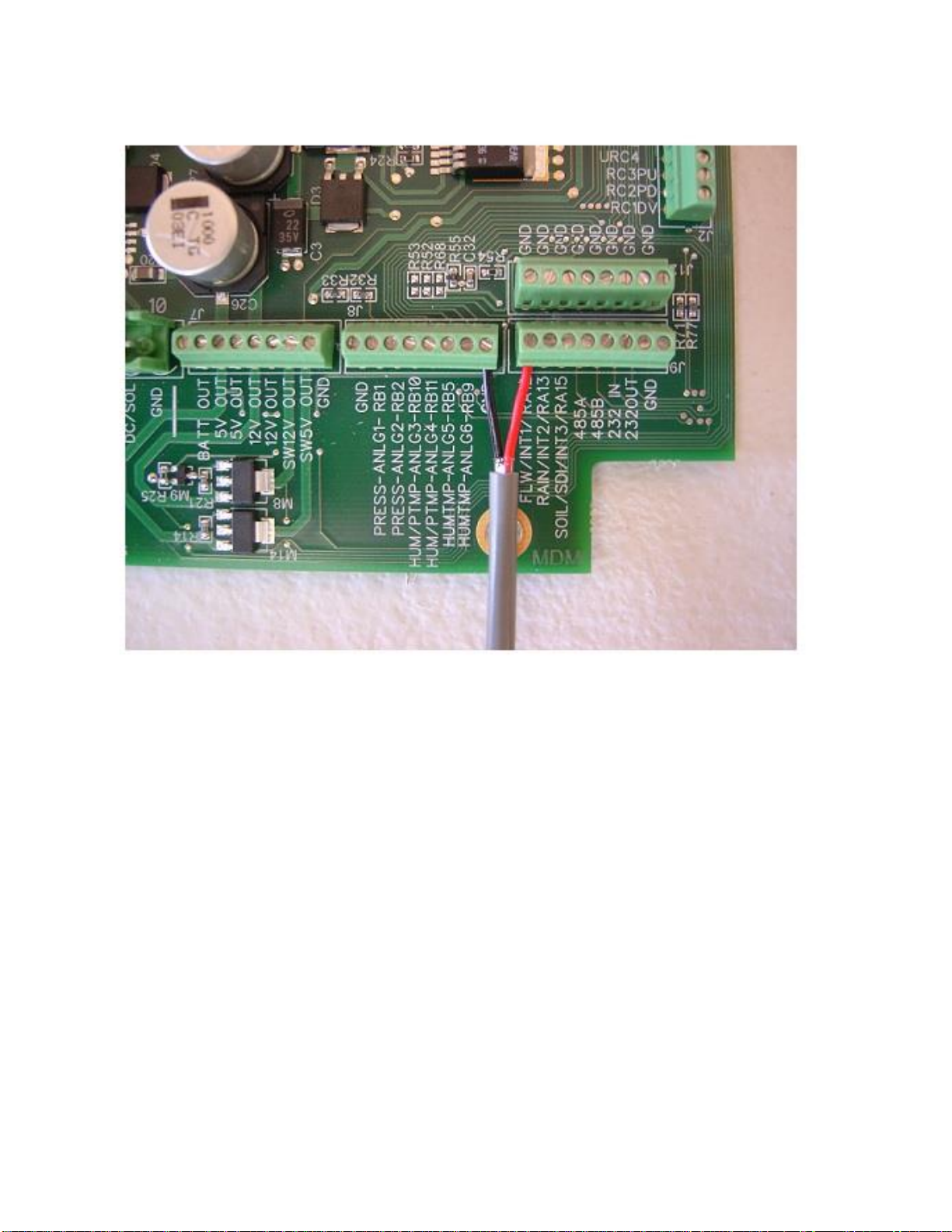

1.Install the Black Wire from the Netafim Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the Netafim Flow Meter into the terminal
marked FLW/INT1 as shown in the picture above.
3.Cut off and/or tape off the Green Wire from the Netafim Flow meter
so that it cannot touch anything.
4.The label on the inside of the Netafim Flow Meter lid will show how
many gallons per pulse that output1 (the red wire) is programmed to
do. You will need that info when configuring this unit on Wagnet.
5.Proceed to Page 42 of this manual for power wire connections.
Page 3

Wire Connections for the GF Signet/Senniger “Open
Collector –Type”Flow Meters
Note: The flow meter must be an “Open Collector”type output.
( For example, models:Ag Rotor 4-3000-5, 2507 mini 198-801-732, 2000
micro 198-822-000 flow meters)
1.Install the Black Wire from the GF Signet Flow Meter into the
terminal marked 5v OUT as shown in the picture above.
2.Install the White/Bare Wire from the GF Signet Flow Meter into any
terminal marked GND as shown in the picture above.
3.Install the Red Wire from the GF Signet Flow Meter into the terminal
marked FLW/INT1 as shown in the picture above.
4.Proceed to Page 42 of this manual for power wire connections.
Page 4

Wire Connections for the GF Signet/Senniger
8550 Flow Transmitter
1.Install the Power Supply, and Flow Meter wires into the GF Signet
8550 Unit as shown above.
2.Install a Red wire into terminal 5 (output+) of the 8550 Unit as shown
above. This wire will connect to the AgSense unit in the steps below.
3.Install a Black wire into terminal 6 (output-) of the 8550 Unit as
shown above. This wire will connect to the AgSense unit in the steps
below.
Page 5

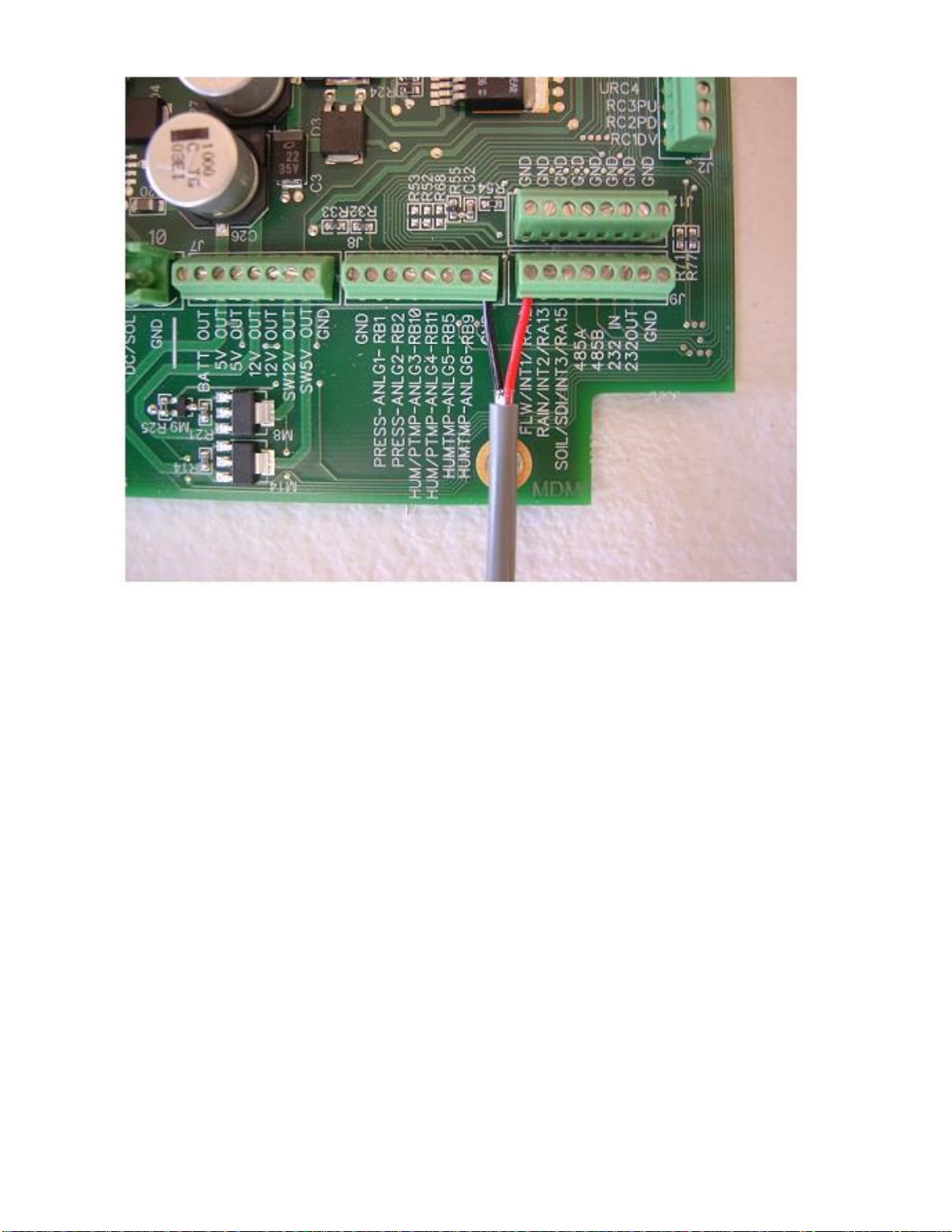

1. Install the Black Wire from the GF Signet 8550 Flow Transmitter into
any terminal marked GND as shown in the picture above.
2. Install the Red Wire from the GF Signet 8550 Flow Transmitter into
the terminal marked FLW/INT1 as shown in the picture above.

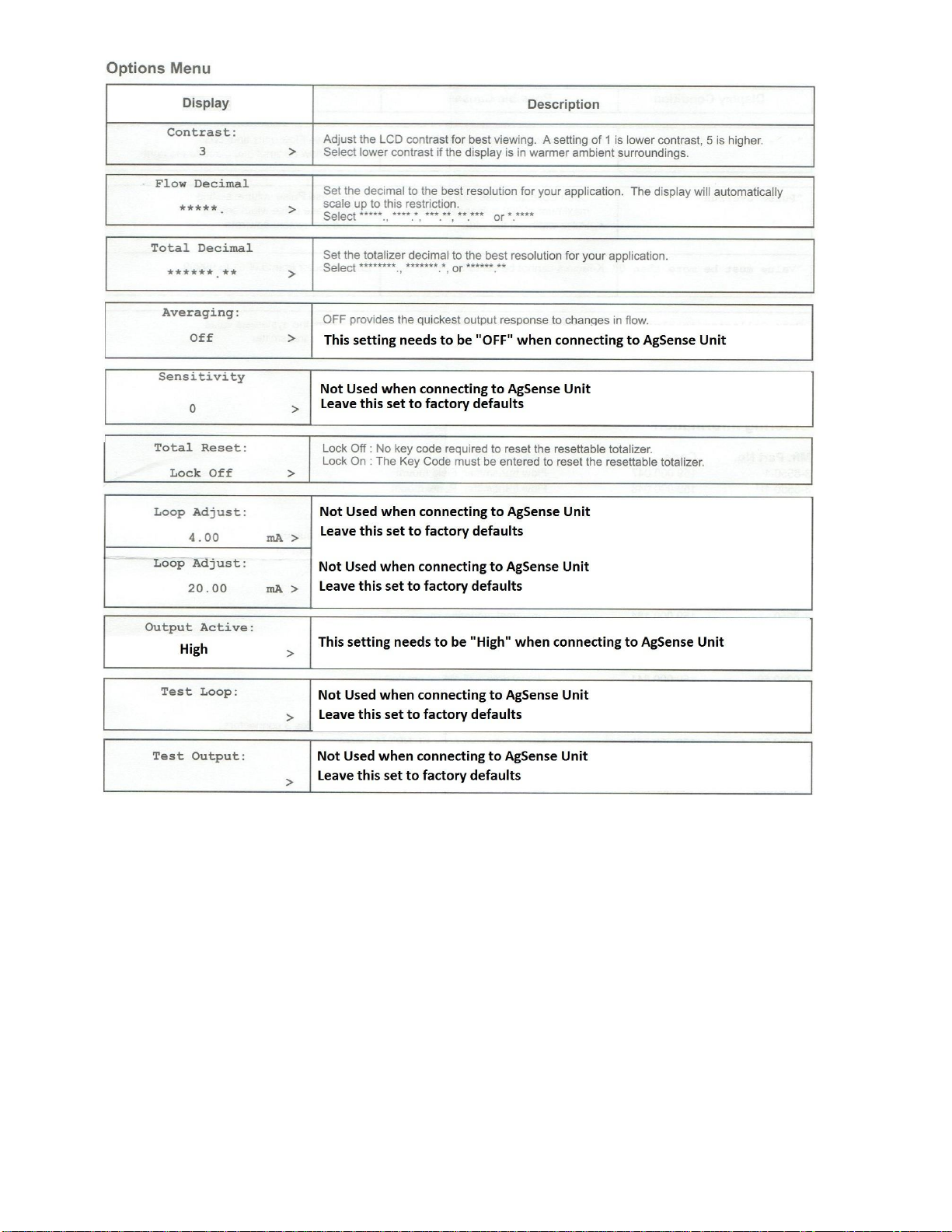

3. Setting up the 8550 Flow Transmitter “calibrate”and “options”
menus –use the charts below to correctly set up the menus in the
8550 Flow Transmitter –you must do this for the AgSense unit to
work properly.
Page 6

Page 7

Page 8

Once these settings are all changed, proceed to page 42 for
AgSense Unit power connections.
Page 9

Wire Connections for the McCrometer Mechanical
Flow Meter with EA-631-xxx module
1.Install the Red Wire from the McCrometer Flow Meter into the
terminal marked 12v OUT as shown in the picture above.
2.Install the Black Wire from the McCrometer Flow Meter into any
terminal marked GND as shown in the picture above.
3.Install the Orange Wire from the McCrometer Flow Meter into the
terminal marked FLW/INT1 as shown in the picture above.
4. Proceed to Page 42 of this manual for power wire connections.
Page 10

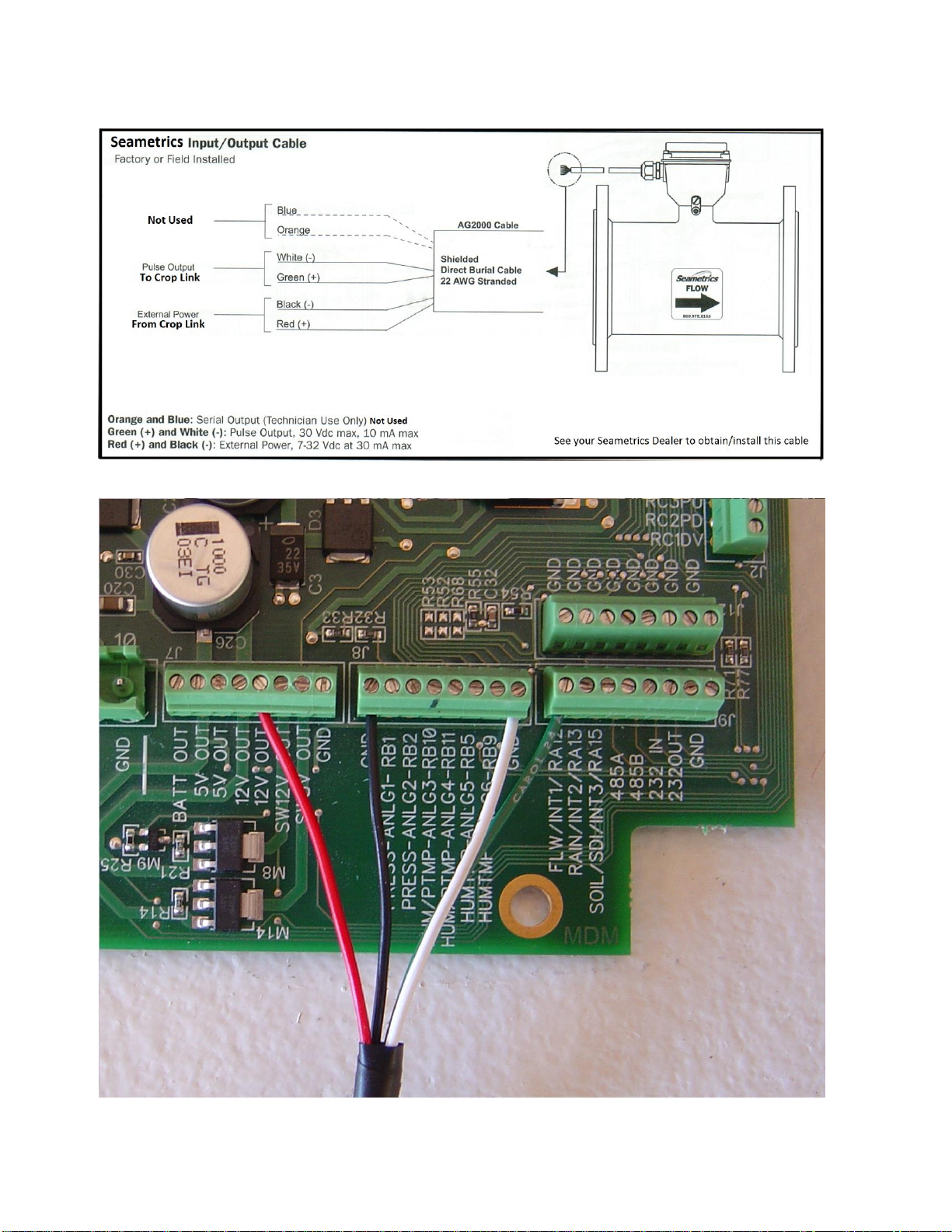

Wire Connections for the Seametrics
AG2000 Flow Meter
Page 11

Note: The Seametrics AG2000 meter must have a manufacture date after
12/06/2006, and must be set to “high frequency”output (which is its factory
default setting) - Most meters will already be set this way from the factory.
1.Install the Red Wire from the Seametrics Flow Meter into the
terminal marked 12v OUT as shown in the picture above.
2.Install the Black Wire from the Seametrics Flow Meter into any
terminal marked GND as shown in the picture above.
3.Install the White Wire from the Seametrics Flow Meter into any
terminal marked GND as shown in the picture above.
4.Install the Green Wire from the Seametrics Flow Meter into the
terminal marked FLW/INT1 as shown in the picture above.
5. Proceed to Page 42 of this manual for power wire connections.
Page 12

Wire Connections for the Endress Hauser Promag P
50/53 Series Flow Meter
120v powered meter shown –meter must be ordered the correct type with
terminals 24 and 25 setup as Frequency Output (pulses)
Page 13

1.Install the Black Wire from the EH Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the EH Flow Meter into the terminal marked
FLW/INT1 as shown in the picture above.
3.Using the menu on the EH flowmeter, be sure that the display of the
flowmeter is set to gallons per minute. Then, using the menu on the EH
flowmeter, set the pulse output to 10 gallons per pulse. (you will need
to enter that info in the crop link config page later)
4.Proceed to Page 42 of this manual for power wire connections.
Page 14

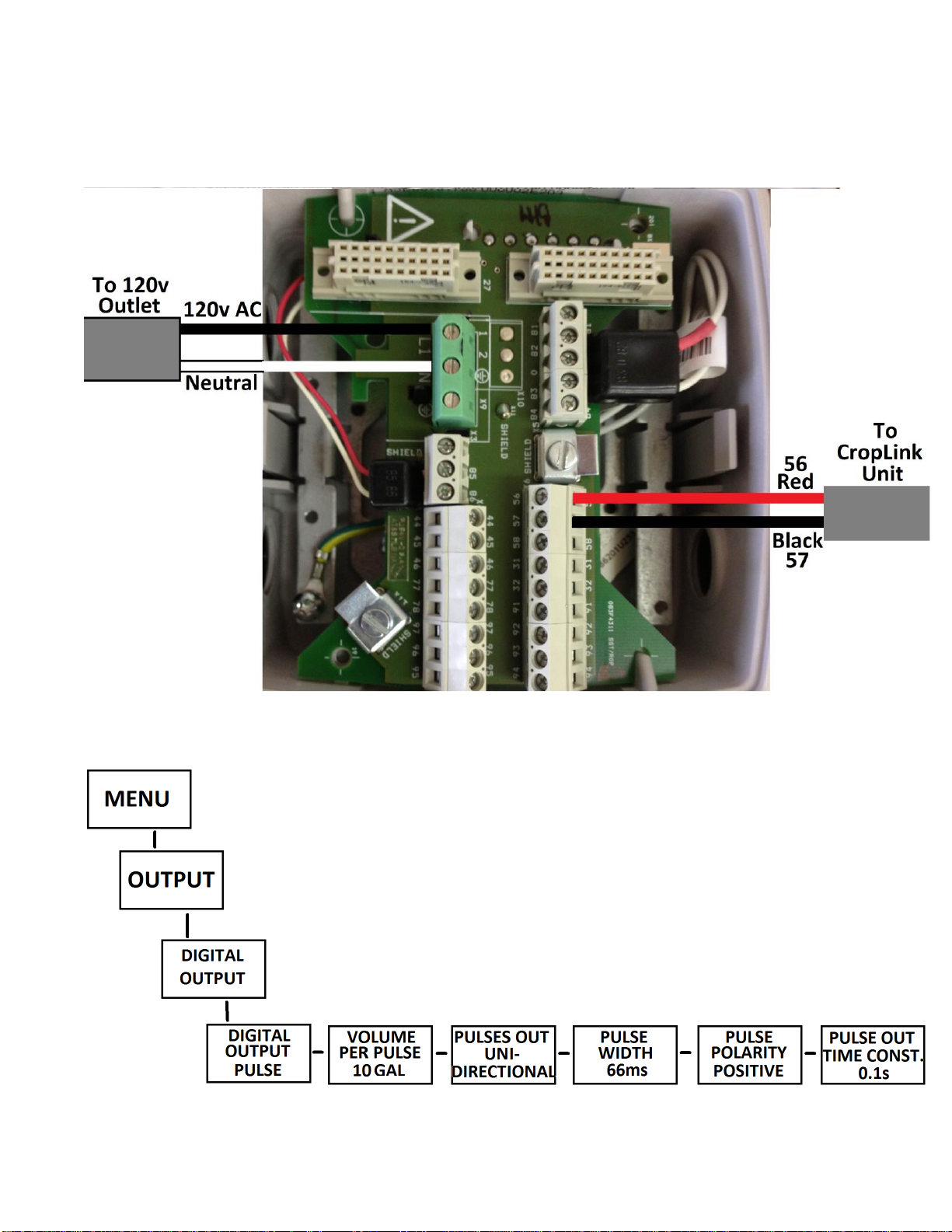

Wire Connections for the Siemens MAG5000 Series
Flow Meters
120v powered meter shown
In the Siemens MAG5000 Menu, you must make sure the following is set:
Page 15

Connection inside AgSense Crop Link Unit
1.Install the Black Wire from the Siemens Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the Siemens Flow Meter into the terminal
marked FLW/INT1 as shown in the picture above.
3.Set the Config on Wagnet for this unit to Siemens, and 10 gallons per
pulse.
4.Proceed to Page 42 of this manual for power wire connections.
Page 16

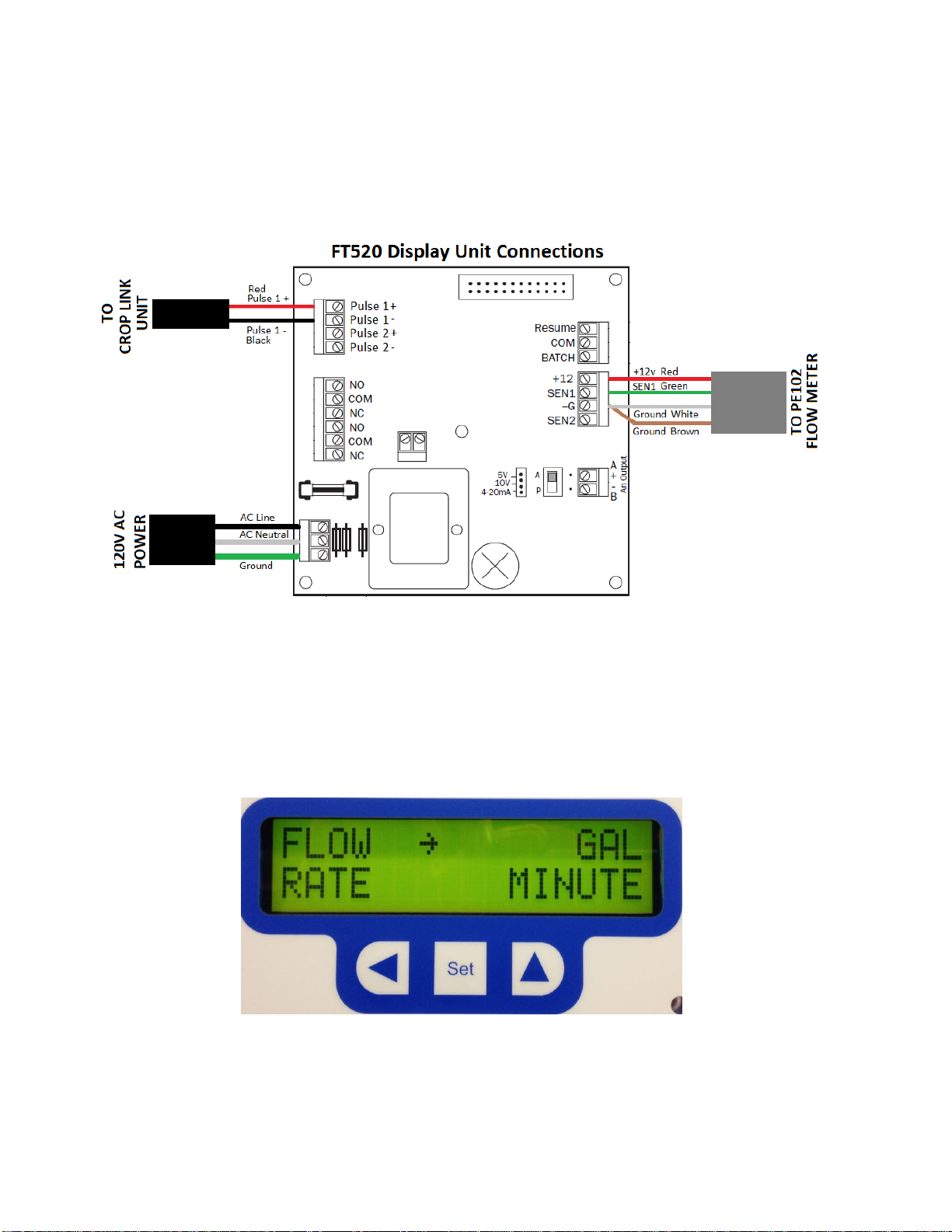

Wire Connections for the Seametrics
FT520 Display / PE102 Flow Meter
Connect the PE102 Flow Meter, the AC Power, and a cable to the
Crop Link unit as shown.
Use the SET button and the arrows on the FT520 display to change
the flow rate to Gallons per Minute as shown below:
Page 17

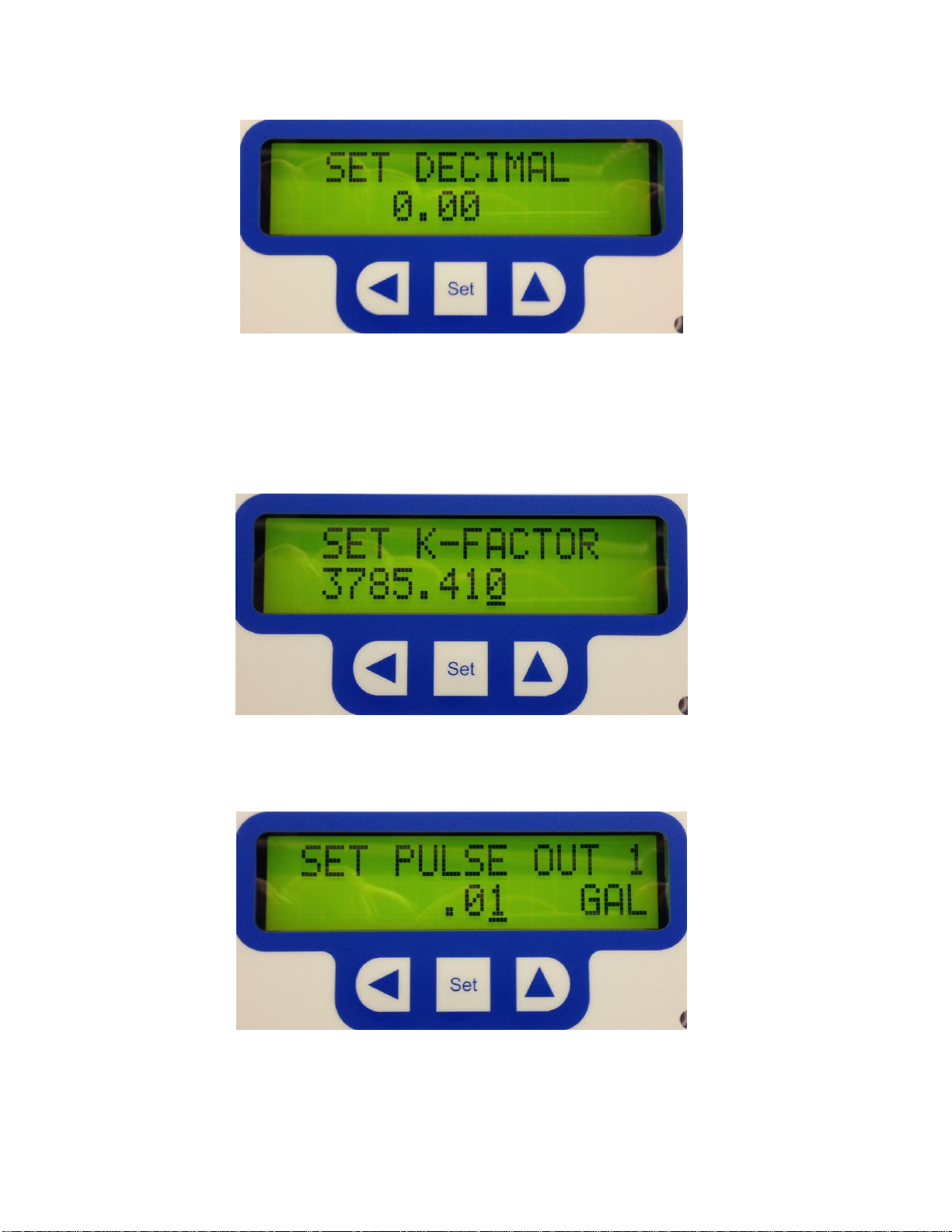

Use the SET button and the arrows on the FT520 display to set the
decimal point for the display as shown below:
Use the SET button and the arrows on the FT520 display to set the
K-FACTOR as shown below: (use the actual K-Factor in the
documentation for your specific flow meter –the number below is
only an example.)
Use the SET button and the arrows on the FT520 display to set the
Pulse Output to the correct scale as shown below:
Page 18
