1 Introduction
This document describes how to connect the QorIQ
LS1021A Tower System Module (TWR-LS1021A-PB) board
and verify its basic operations such as the switches,
connectors, jumpers, push buttons and LED settings, and the
instructions for connecting the peripheral devices.
NOTE
It is assumed that you are familiar with the LS1021A device
and the content of the TWR-LS1021A Reference Manual
(document TWR-LS1021ARM).
The prototype part number of the LS1021A tower board
system is X-TWR-LS1021A-PB and the production part
number is TWR-LS1021A-PB.
The figures listed below show the main features of the
secondary and primary sides of the TWR-LS1021A-PB
board.
Document Number: TWR-LS1021AGS
Rev. 3, 10/2015
Contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.Related documentation . . . . . . . . . . . . . . . . . . . . . . 2
2. Switches and jumpers configuration . . . . . . . . . . . . . . 3
3. Connecting USB UART . . . . . . . . . . . . . . . . . . . . . . . 6
4. Initial board start-up . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Board software configuration . . . . . . . . . . . . . . . . . . . 7
6. JTAG connectivity unit . . . . . . . . . . . . . . . . . . . . . . . . 8
6.1.Connecting JTAG using CodeWarrior TAP . . . . . . 9
6.2.Enabling CMSIS-DAP . . . . . . . . . . . . . . . . . . . . . . 9
7. TWR-LS1021A-PB OOBE demo . . . . . . . . . . . . . . . . 9
8. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TWR-LS1021A Getting Started

TWR-LS1021A Getting Started, Rev. 3
2Freescale Semiconductor
Introduction

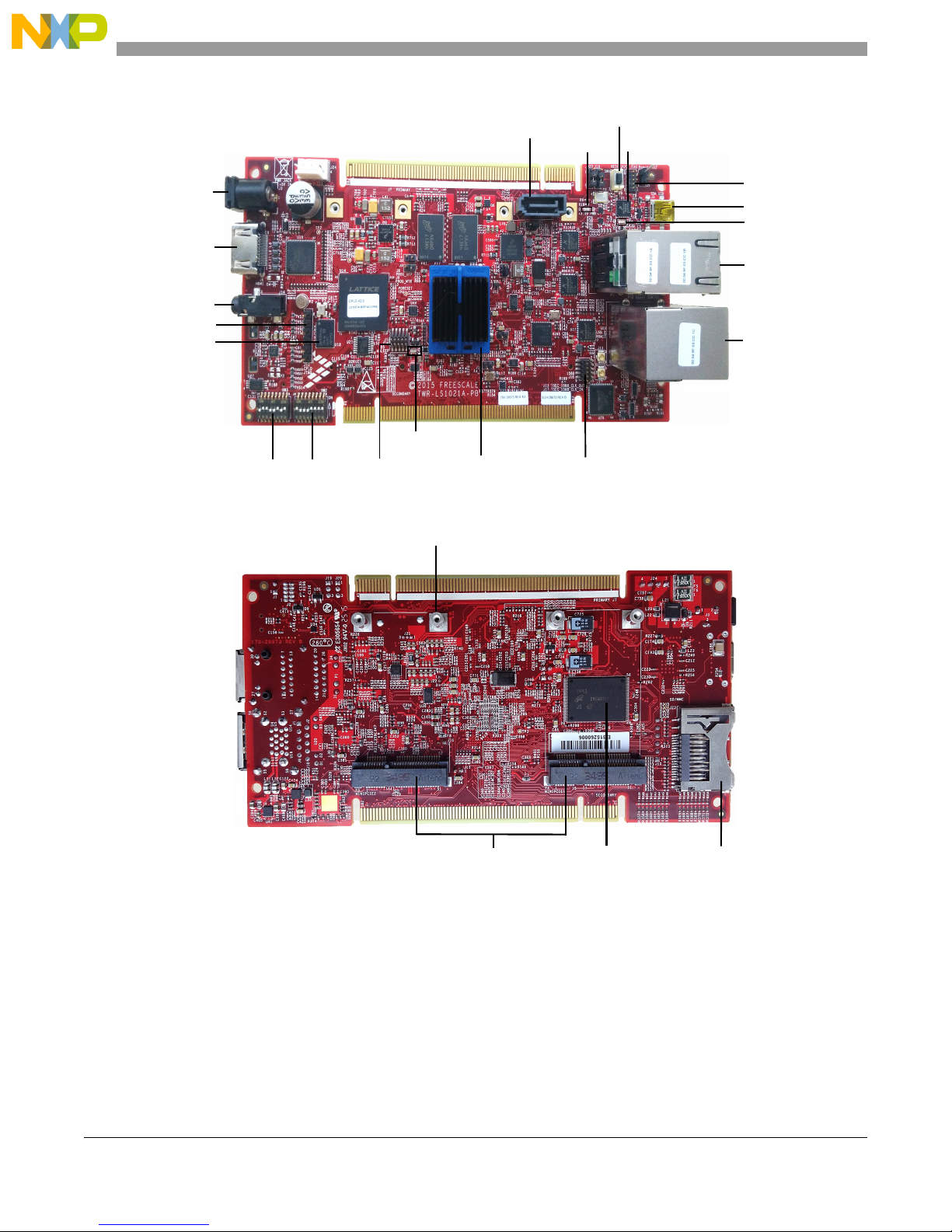

Figure 1. Primary side main features
Figure 2. Secondary side main features
1.1 Related documentation
The following table lists the additional documents and resources that you can refer, for more information
on the TWR-LS1021A-PB board.
Some of the documents listed below may be available only under a non-disclosure agreement (NDA). To
request access to these documents, contact your local field applications engineer or sales representative.


.
5(6(7 
6$7$ 


/(''
93:5

/(''
&06,6'$3
,(((
/6$

-7$*
6:6:

463,
$8',2
&3/'-7$*
+'0,
93:5

/(''
$6/((3

.-7$*
86%6HULDO
9H76(&5*0,,
86%
9H76(&6*0,,
6'6ORW
0LQL3&,H 125)ODVK
0LQL3&OHPRXQWLQJSRVWV

TWR-LS1021A Getting Started, Rev. 3
Freescale Semiconductor 3
Switches and jumpers configuration
2 Switches and jumpers configuration
The TWR-LS1021A-PB board has two 8-way dual in line package (DIP) switch. The default DIP switch
positions provide the working set up values for the board. You need to check the default positions and
verify that the board is operational before changing the switches. The figure below shows the settings for
the switches with their default positions.
Figure 3. Default switch configuration
The table below lists and describes the default switch configurations for the TWR-LS1021A-PB board.
Table 1. Related documentation
Document Description
LS1021A QorIQ Advanced
Multicore Processor Data Sheet
(document LS1021A)
This document lists the electrical characteristics, hardware design considerations, pin
assignments, package information, and ordering information for the LS1021A processor.
LS1021A QorIQ Integrated
Multicore Processor Reference
Manual (document LS1021ARM)
This document describes the LS1021A QorIQ multicore processor and its features, such
as memory map, serial interfaces, power supply, chip features, and clock information.
The SystemID Format for Power
Architecture™ Development
Systems (document AN3638)
This document describes the SystemID, a non-volatile memory device implemented on the
Freescale Semiconductor Power Architecture™ technology-based evaluation and
development platforms.
TWR-LS1021A Reference Manual
(document TWR-LS1021ARM)
This document describes the architecture, tower elevator connections, CPLD system
controller architecture, board configuration and debug support for the QorIQ LS1021A
tower system.
6:>@2))21212))2))212))21 6:>@212))2))2))21212121

TWR-LS1021A Getting Started, Rev. 3
4Freescale Semiconductor
Switches and jumpers configuration
Table 2. Default switch settings
Feature Settings
[OFF=0 ON=1] Option Comments
S2.1 ON RCW Source is NOR NOR RCW_SEL
0 : NOR flash is disabled
»1 : NOR flash is enabled (default)
S2.2 OFF Reserved Must be 0 [OFF]
S2.3 OFF RCW Source is SDHC SDHC RCW_SEL
»0 : SDHC is disabled (default)
1 : SDHC is enabled
S2.4 OFF RCW Source is QSPI QSPI RCW_SEL
»0 : QSPI is disabled (default)
1 : QSPI is enabled
S2.5 ON Bus select is NOR or QSPI IFC/QSPI Bus selection
0 : IFC is disabled, QSPI is enabled
»1 : IFC is enabled, QSPI is disabled (default)
S2.6 ON Differential system clock
selection
Differential system clock selection
0 : Differential sysclk is selected
»1 : Single-ended sysclk is selected (default)
S2.7 ON IFC_CS1 or SPI1_PCS0
selection
IFC_CS1/SPI1_PCS0 selection
0 : IFC_CS1 is disabled, SPI1_PCS0 is enabled
»1 : IFC_CS1 is enabled, SPI1_PCS0 is disabled
(default)
S2.8 ON DIPSW_IN1 CMSIS-DAP enablement control
0 : Uses the K20 IO pin to control the SDA_SWD_EN
connection
»1 : Ties to high to disable the CMSIS-DAP
connection (default)
S3.1 OFF 96 MHz SYSCLK select or
not
96 MHz SYSCLK Selection
»0 : Does not select the 96 MHz as SYSCLK (default)
1 : 96 MHz as SYSCLK is selected
S3.2 ON TEST_SEL_DRV Drive TEST_SEL signal
0 : Non-compliant mode to support boundary scan is
selected
» 1 : JTAG compliant mode is selected (default)
S3.3 ON CLKGEN_FS0
System clock frequency
setting
CLKGEN_FS[0:1]
00 = 66.66 MHz
01 = 80.00 MHz
»10 = 100.00 MHz (default)
11 = 83.33 MHz
S3.4 OFF CLKGEN_FS1
System clock frequency
setting
S3.5 OFF NOR bank select
BANK_SEL
BANK_SEL
» 0 : Vbank0 is selected (default)
1 : Vbank1 is selected
S3.6 ON Signal multiplexed
selection
MUX_SEL
MUX_SEL
0 : 2D-ACE and LPUART1 are selected
» 1 : SPI2 and UCC1&3 are selected (default)

TWR-LS1021A Getting Started, Rev. 3
Freescale Semiconductor 5
Switches and jumpers configuration
The table below lists the jumper settings on the TWR-LS1021A-PB board.
The figure below shows the jumper settings on the board.
Figure 4. Jumper locations on board
S3.7 OFF Reserved Must be 0 [OFF]
S3.8 ON Reserved Must be 1 [ON]
Table 3. Jumper settings
Jumper Size Name/Function Description
J8 1x2 pin PWR_PROG_SFP voltage setting Open: GND (default)
Shorted: 1.8 V
J9 1x2 pin PWR_PROG_MTR voltage setting Open: GND (default)
Shorted: 1.8 V
J11 1x2 pin TA_BB_TMP_DETECT voltage
setting
Open: GND (default)
Shorted: 1.0 V
J15 1x2 pin FA_VL pin voltage setting Open: GND (default)
Shorted: 1.0 V
J19 1x3 pin Console port TX selection 1-2: LPUART1 is selected
2-3: UART1 is selected (default)
J20 1x3 pin Console port RX selection 1-2: LPUART1 is selected
2-3: UART1 is selected (default)
J21 1x3 pin LVDD voltage setting 1-2: LVDD is +2.5 V
2-3: LVDD is +3.3 V (default)
J22 1x3 pin L1VDD voltage setting 1-2: L1VDD is +2.5 V
2-3: L1VDD is +3.3 V (default)
Table 2. Default switch settings
Feature Settings
[OFF=0 ON=1] Option Comments
-
-
-
-
-
-
-
-

TWR-LS1021A Getting Started, Rev. 3
6Freescale Semiconductor
Connecting USB UART
3 Connecting USB UART
The TWR-LS1021A-PB board comes preloaded with the released SDK images in the NOR flash. The
serial connectivity for the TWR-LS1021A-PB board is provided through a mini type B USB connector.
NOTE
You need to install the USB drivers on the host PC before using the serial
terminal. You can get the drivers from the USB memory stick available in
the box, or, you can download these drivers from,
https://mbed.org/handbook/Windows-serial-configuration
After installing the drivers, you need to set up a serial terminal using a PC communication program such
as hyper terminal as listed below:
• Data rate: 115200 bps
• Number of data bits: 8
• Parity: None
• Number of Stop bits: 1
• Flow Control: Hardware/None
Then, select the first COM port assigned to the Virtual COM port.
4 Initial board start-up
The TWR-LS1021A-PB board is powered through a barrel connector. This barrel should be supplied by a
5 V @5 A supply. For more information, see Figure 1.
NOTE
It is normal for the heatsink on the TWR-LS1021A-PB board to become hot
under the standard operating conditions.
To perform the initial board start up and LED check, follow the steps listed below.
1. Turn on the board through the barrel connector.
2. Check for the completion of the reset sequence indicated by the LEDs (see Figure 1 for locations).
For a full description of the LED operations, see Table 4.
3. On start-up, the following LED sequence appears on the board:
a) The LED D1 turns on to indicate that the 3V3 power is available on the board.
b) The LED D5 turns on then off.
c) Any Ethernet activity is indicated by the LEDs on the RJ45 connector.
d) The LED D2 indicates that the CMSIS-DAP USB driver is loaded. If it is blinking, than the
serial port is not available. You need to start up the board at J3, than insert the USB cable on
the board.
The table below lists the LED operations.

TWR-LS1021A Getting Started, Rev. 3
Freescale Semiconductor 7
Board software configuration
5 Board software configuration
The NOR flash on the TWR-LS1021A-PB board is divided in two banks. There are different images in
each banks that supports the different functionality.
NOTE
The TWR-LS1021A-PB board comes pre-programmed with the NOR flash
image.
The bank0 is programmed with the RCW support for the QE, and the bank1 is programmed with the RCW
support for the 2D-ACE. The default is bank0.
The table below shows the switches and jumper settings on the TWR-LS1021A-PB board for the bank0
and bank1.
NOTE
If you enables the 2D-ACE, you have to use the lpuart as the console. The
bootup information displays on the lpuart console by default. For more
information on how to enable the 2D-ACE output, see the 2D-ACE Display
Device Driver User Manual, available in the Yocto source ISO folder of the
USB flash drive shipped with the board.
You can also access the content available in the USB flash drive shipped
with the board, from the following location:
http://www.freescale.com/TWR-LS1021A
Table 4. LED operation
Description Ref Color LED on LED off
3V3 Power D1 Green 3V3 turn on 3V3 turn off
LS1021A ASLEEP D5 Green ASLEEP Out of asleep
CMSIS-DAP status D2 Green CMSIS-DAP driver is
loaded
CMSIS-DAP driver is not
loaded
Ethernet eTSEC1 P1 down Green/Orange ON – Link
Blink - Activity
No Link
Ethernet eTSEC2 P1 up Green/Orange ON – Link
Blink - Activity
No Link
Ethernet eTSEC3 U20 up (above
USB)
Green/Orange ON – Link
Blink - Activity
No Link
Table 5. Switches and jumper settings for NOR flash banks
SW2[1:8] SW3[1:8] J19 J20
BANK0
(default)
10001111 01100101 2-3 2-3
BANK1 10001111 01101001 1-2 1-2

TWR-LS1021A Getting Started, Rev. 3
8Freescale Semiconductor
JTAG connectivity unit
The figure below shows the settings for the bank0 and bank1.
Figure 5. NOR Flash configurations on bank0 and bank1
The figure below shows the TWR-LS1021A-PB block diagram.
Figure 6. TWR-LS1021A-PB block diagram
6 JTAG connectivity unit
This section explains the following two methods to configure the JTAG connectivity unit supported by the
CodeWarrior Development Studio for QorIQ LS series on the TWR-LS1021A-PB board:
•Section 6.1, “Connecting JTAG using CodeWarrior TAP”
%DQN
%DQN
6(5'(6
/DQH$
*5283
(&
*5283
(&
*5283
4(7'0
,&
3&,(
; 6*0,, (&5*0,, &$1 '$&( /38$57 ,&

6*0,, (&5*0,, &$1 &$1 8&& 8$57 ,&

6(5'(6
/DQH%
6(5'(6
/DQH&
6(5'(6
/DQH'

*5283
(&
8$57
3&,(
;
6$7$
6$7$
6$,
3&,H
;
6*0,,
86%
56
5-
6$7$
.LQHWLV
.X&
6*0,,
3+<
5-
0LQL3&OH
86%
86%
3&OH
,&
86%
+8%

((3520
63'&)*
9 '&'& &ORFNV ''5/
[
''5
,&
/DQH$
86%
/DQH&
/DQH%
/DQH'
8$57
/6$
/6$
6'+&
ZR
6':3
-7$* &RUWH[
SLQ
6'6ORW
0LF
+3
-DFN
$XGLR
&RGHF
*URXS
)70
&+>@
6$,
86%
5-
+'5
5*0,,
3+<
,(((
9H76(&
/&'
8&&
/&'
/38$57
,)& ,&
63,
&3/'
)/$6+
125 [
+'0,
WUDQVPLWWHU
463,
+'0, ([SDQVLRQPRGXOHV
FRQQHFWRUV
%RDUGFRPSRQHQWV
6*0,,
3+<

[
[
[
[
[
86%
0LQL3&OH
86%
3&OH
,&

''5/
[
/&'
,)&
63,
,&
*URXS
*URXS
*URXS
*URXS
8&&
)70
&+>@
&$1
&$1
&$1
&$1
63,
[
,&
6$7$3:5
&21
9''FXUUHQW
VHQVRU
9''&FXUUHQW
VHQVRU

TWR-LS1021A Getting Started, Rev. 3
Freescale Semiconductor 9
TWR-LS1021A-PB OOBE demo
•Section 6.2, “Enabling CMSIS-DAP”
6.1 Connecting JTAG using CodeWarrior TAP
To connect the JTAG using the CodeWarrior TAP, perform the following steps:
1. Connect the JTAG connectivity unit to the J12 JTAG connector on the board. The Pin 1 is marked
on the board.
2. Switch on the power to the board.
3. Check for the completion of the reset sequence (see Section 4, “Initial board start-up). Ensure that
the LED D5 turns off.
4. Follow the on-screen instructions.
The JTAG using the CodeWarrior TAP is connected to your board.
6.2 Enabling CMSIS-DAP
The TWR-LS1021A-PB board supports the CMSIS-DAP interface. The CMSIS-DAP interface provides
a standard access to the Coresight debug access port (DAP) of the ARM® Cortex® microcontroller
through the USB.
The board is implemented with the CMSIS-DAP as an on-board interface chip that provides a direct USB
connection to the debugger running on your host machine on one end, and the JTAG connection to the
target device to access the Coresight DAP on the other end.
To enable the CMSIS-DAP interface on your board:
1. You have to change the switch SW2[8] = 0.
2. Ensure that your CW TAP device is not plugged in.
3. Attach the micro USB cable to the J5 USB serial connector.
This provides a serial connectivity and the CMSIS-DAP connection (optional).
For the detailed setup procedure, see the CodeWarrior Development Studio for QorIQ LS series - ARM V7
ISA Getting Started Guide (document CWARMV7GS) from the following location:
http://cache.freescale.com/files/soft_dev_tools/doc/quick_ref_guide/CWARMv7GS.pdf
7 TWR-LS1021A-PB OOBE demo
The out-of-box-experience (OOBE) is a demo program which shows the wireless networking, graphics
and audio playing functionality of the TWR-LS1021A-PB. The image files for the demo are available in
the SD card shipped with the board. You need to insert the SD card into the board to run the demo.
For the detailed instructions to run the demo, see the TWR-LS1021A OOBE Demo Quick Start Guide.pdf
under \OOBE-demo\ folder in the USB flash drive shipped with the board.
You can also access the content available in the USB flash drive shipped with the board, from the following
location:
http://www.freescale.com/TWR-LS1021A

TWR-LS1021A Getting Started, Rev. 3
10 Freescale Semiconductor
Revision History
8 Revision History
The table below lists the revision history of this document.
Table 6. Revision history
Revision
number Date Topic cross-reference Change description
Rev. 3 10/2015 Section 6.2, “Enabling CMSIS-DAP” Updated this section.
Rev. 2 07/2015 Updated the TWR-LS1021A instances to
TWR-LS1021A-PB.
Figure 1 Primary side main features Updated the TWR-LS1021A board images with the
TWR-LS1021A-PB board images.
Figure 3 Default switch configuration Updated the figure for the default settings on
SW3[1:8].
Ta bl e 2 Default switch settings Updated the table for the S2.6, S2.8, and S3.6 switch
settings and descriptions.
Ta bl e 3 Jumper settings Updated the table for the J8, J9, J11, J15, J19, J20,
J21, and J22 jumper settings.
Figure 4 Jumper locations on board Updated the figure for the J8, J9, J11, J15, J21, and
J22 jumper locations.
Figure 5 NOR Flash configurations on
bank0 and bank1
Updated the figure for the TWR-LS1021A-PB board
settings.
Figure 6 TWR-LS1021A-PB block
diagram
Updated the figure for the TWR-LS1021A-PB block
diagram.
Rev. 1 11/2014 Figure 1 Primary side main features Updated the figure for the LED locations.
Figure 3 Default switch configuration Updated the figure for the default settings on
SW3[1:8].
Ta bl e 2 Default switch settings Updated the table for S3.6.
Section 3, “Connecting USB UART” Updated the section for the serial terminal set up
details.
Section 5, “Board software configuration” Updated the section for the switches and jumper
settings, output device as 2D-ACE and two block
diagrams,
Figure 5 NOR Flash configurations on bank0 and
bank1 and Figure 6 TWR-LS1021A-PB block
diagram.
Section 6, “JTAG connectivity unit” Updated the content to create the sub-section,
Section 6.1, “Connecting JTAG using CodeWarrior
TA P ”.
Section 6.2, “Enabling CMSIS-DAP” Added a new sub-section to describe how to enable
the CMSIS-DAP support.
Section 7, “TWR-LS1021A-PB OOBE
demo”
Added a new section to introduce the OOBE demo.
Rev. 0 09/2014 Initial public release.

TWR-LS1021A Getting Started, Rev. 3
Freescale Semiconductor 11
Revision History

Document Number: TWR-LS1021AGS REV 3
Agile Number: 926-28673
Information in this document is provided solely to enable system and software
implementers to use Freescale products. There are no express or implied copyright
licenses granted hereunder to design or fabricate any integrated circuits based on the
information in this document. Freescale reserves the right to make changes without
further notice to any products herein.
Freescale makes no warranty, representation, or guarantee regarding the suitability of its
products for any particular purpose, nor does Freescale assume any liability arising out
of the application or use of any product or circuit, and specifically disclaims any and all
liability, including without limitation consequential or incidental damages. “Typical”
parameters that may be provided in Freescale data sheets and/or specifications can and
do vary in different applications, and actual performance may vary over time. All
operating parameters, including “typicals,” must be validated for each customer
application by customer's technical experts. Freescale does not convey any license
under its patent rights nor the rights of others. Freescale sells products pursuant to
standard terms and conditions of sale, which can be found at the following address:
freescale.com/SalesTermsandConditions.
How to Reach Us:
Home Page:
freescale.com
Web Support:
freescale.com/support
Warranty:
Visit freescale.com/warranty for complete warranty
information.
Freescale, the Freescale logo, and QorIQ are trademarks of Freescale Semiconductor,
Inc., Reg. U.S. Pat. & Tm. Off. Layerscape and QUICC Engine are trademarks of
Freescale Semiconductor, Inc. All other product or service names are the property of
their respective owners. ARM, Cortex, and TrustZone are registered trademarks of ARM
Limited (or its subsidiaries) in the EU and/or elsewhere. All rights reserved.
© 2014-2015 Freescale Semiconductor, Inc.
