  9. AgSense AQUA-TRAC Lite User manual

AgSense AQUA-TRAC Lite User manual

WIRING INSTRUCTIONS
2015-18
AQUA-TRAC Lite
SOIL MOISTURE MONITORING
Items Covered In This Manual:
Page 1: Aqua Trac Lite Device Overview
Page 2: Aqua Trac Lite LED Lights Overview
Page 3: Aqua Trac Lite Mounting Options
Page 4: Connecting a Rain Bucket or Temp Sensor
Page 5: Connecting the Aqua-Check, Hydrascout, Wiseone
Page 6: Connecting the Sentek Soil Moisture Probe
Page 7: Connecting the Sentek Drill & Drop Probe
Page 8: Connecting the Decagon 5TM/5TE/MPS-2
Page 9: Connecting the CS650 / CS655 Sensor
Page 10: Connecting the Enviropro Probe
Page 11: Connecting the Greenshield Probe
Page 12: Connecting the Acclima TDR315L Sensor
Page 13: Configuring the Aqua Trac
Page 14-15: Warranty Information
General Overview of the Aqua Trac Lite
Note 1: Once all sensors are connected and unit is ready to run, you must turn the ON/OFF
switch to the “ON” position, and go to the AgSense User page to finish setup and configuration
of this unit to read the sensors that you have installed.
Note 2: The pins marked SENSOR POWER as shown above should have a jumper connecting
the middle and 5v pins. This selects the power output to the sensors to be 5v. Do not move this
jumper for any reason unless these instructions inform you to do so. Never Remove this jumper
with the power switch turned on –turn the power switch off first or the attached sensors can be
damaged.
Note 3: Only use the charging adapter supplied from AgSense to prevent damage to this unit.
Batteries can take up to 48 hours to fully charge –please check the battery voltage to make sure
they are fully charged (4.2v) at the “Batt 4.2v” hole right by the battery plug in.
Page 1
Aqua Trac Lite LED Lights Overview
Note: All LED’s are off most of the time due to the unit being “asleep” between taking readings.
Below are the descriptions of each LED that comes on during a normal reading, or when the
Check Probe button has been pushed:
PROC LED - This LED blinks at a steady rate to show the processor is working normally.
MODEM LED –This LED blinks when the cell modem in attempting to connect to a cell tower,
and is on steady when the unit has a good cell connection.
RADIO LED –Not used unless unit has a radio installed –This LED blinks when the radio is
attempting to connect to another unit with a radio installed, and is on steady
when the unit has a good radio connection.
GPS LED –This LED blinks when the GPS is attempting to get signal, and is on steady when
good GPS signal is found.
CHR5V LED –This light is on steady when power is applied to the DC Charging Port to charge
the battery
5V/12V LED –This LED is on stead when the unit is taking readings from the sensors.
PROBE LED –This LED blinks when the unit is attempting to read data from the soil moisture
probe, and is on steady when the unit has successfully recieved data from the
soil moisture probe.
SOIL PROBE PWR LED –This LED is on steady when power is turned on to the soil probe.
CELL PWR LED –This LED is on steady when the Cell Modem is turned on to send data.
Page 2
Aqua Trac Lite Mounting Options
-The Aqua Trac Lite can be mounted on a T-post (as shown) or any other
type of post with a diameter 1 ½” or less.
-Holes and Slots are available in two locations on the Aqua Trac Lite bracket
that allow the installer to use any combination of U-bolts, Hose Clamps, or
Large Zip Ties to attach the unit to a post.
Page 3
Wiring a Rain Bucket or a Temperature Sensor
to the Aqua Trac Lite Unit
Wiring a Rain Bucket or Temperature Sensor:
1. Connect the Red wire from the Rain Bucket to the terminal marked RAIN as shown.
2. Connect the Green wire from the Rain Bucket to any terminal marked GND as shown.
1. Connect one Red wire from the Temp Sensor to the terminal marked TMP as shown.
2. Connect the other Red wire from the Temp Sensor to any terminal marked GND as
shown.
NOTE: You can install both GND wires into the same terminal.
Page 4
Wiring the AquaCheck, Hydrascout, or
Wiseone probe to the Aqua Trac Lite Unit
Wiring the AquaCheck, Hydrascout or Wiseone probe:
1. Connect the Blue wire from the probe to the terminal marked SDI as shown.
2. Connect the Yellow/Green stripe wire from the probe to the terminal marked GND as
shown above.
3. Connect the Brown wire from the probe to the terminal marked PWR as shown above.
Page 5
Wiring the Sentek soil moisture probe
to the Aqua Trac Lite Unit
Wiring the Sentek probe:
1. Connect the Blue wire from the Sentek probe to the terminal marked SDI as shown
above.
2. Connect the Yellow wire from the Sentek probe to the terminal marked GND as shown
above.
3. Connect the Red wire from the Sentek probe to the terminal marked PWR as shown
above.
Page 6
Wiring the Sentek Drill & Drop soil moisture
probe to the Aqua Trac Lite Unit
Wiring the Sentek D&D probe:
1. Connect the White wire from the Sentek probe to the terminal marked SDI as shown
above.
2. Connect the Green wire from the Sentek probe to the terminal marked GND as shown
above.
3. Connect the Red wire from the Sentek probe to the terminal marked PWR as shown
above.
Page 7
Wiring the Decagon 5TM, 5TE, or MPS-2
Sensors to the Aqua Trac Lite Unit
Wiring the Decagon 5TM, 5TE, or MPS-2 sensor:
1. Connect the Red wire from the Decagon Sensor to the terminal marked SDI as shown
above.
2. Connect the Bare wire from the Decagon Sensor to the terminal marked GND as shown
above.
3. Connect the White wire from the Decagon Sensor to the terminal marked PWR as shown
above.
Page 8
Wiring the Campbell Scientific
CS650 / CS655 Sensors to the Aqua Trac Unit
Wiring the CS650 / CS655 sensors:
Find the group of terminals (3) with the group label SDI.
1. Connect the Green wire from the CS Sensor to the terminal marked SDI as shown above.
2. Connect the Clear, Black, and Orange wires from the CS Sensor to the terminal marked
GND as shown above. (above shown using a wire nut to connect all 3 wires together)
3. Connect the Red wire from the CS Sensor to the terminal marked PWR as shown above.
Page 9
Wiring the EnviroPro Probe
to the Aqua Trac Unit
Find the group of terminals (3) with the group label SDI.
1. Connect the Blue wire from the Probe to the terminal marked SDI as shown above.
2. Connect the Black wire from the Probe to the terminal marked GND as shown above.
3. Connect the Red wire from the Probe to the terminal marked PWR as shown above.
Page 10

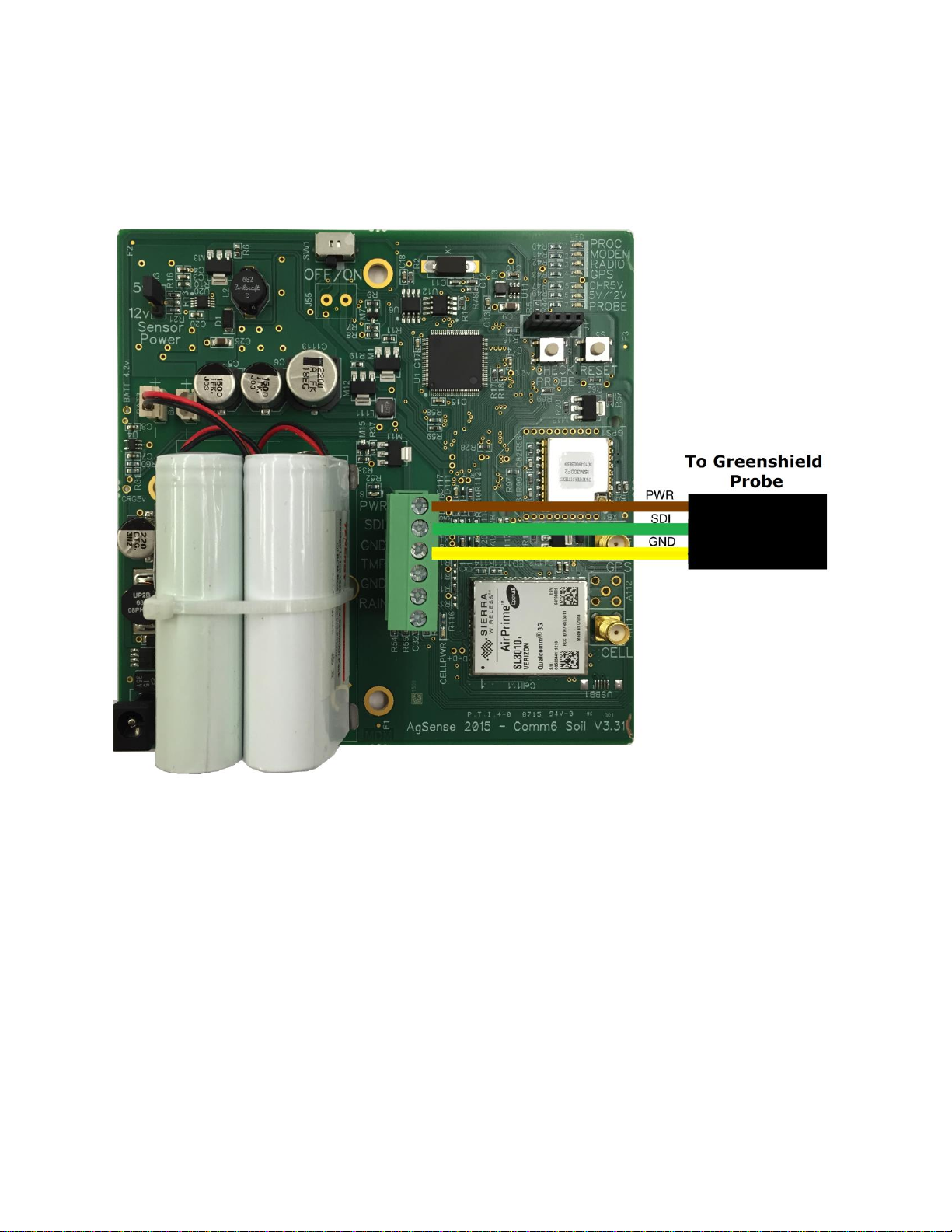

Wiring the Greenshield Probe
to the Aqua Trac Unit
Find the group of terminals (3) with the group label SDI.
1. Connect the Green wire from the Probe to the terminal marked SDI as shown above.
2. Connect the Yellow wire from the Probe to the terminal marked GND as shown above.
3. Connect the Brown wire from the Probe to the terminal marked PWR as shown above.
Page 11
Wiring the Acclima TDR315L Sensor
to the Aqua Trac Unit
Find the group of terminals (3) with the group label SDI.
1. Connect the Blue wire from the Probe to the terminal marked SDI as shown above.
2. Connect the White wire from the Probe to the terminal marked GND as shown above.
3. Connect the Red wire from the Probe to the terminal marked PWR as shown above.
4. Make sure the Sensor Power jumper on the board is set to 12v.
5. If multiple sensors are used, they must be pre-addressed starting at address 0,1,2,3 (max
of 4 sensors)
Page 12
How To Configure an Aqua Trac
1. Go to the AgSense users page , click on the unit that you want to set up, then click the
main configuration button.
2. Give the probe a name/field name in the Alias entry box.
3. Select the type of probe from the drop down menu.
4. Add the probe ID number if known otherwise leave blank.
5. Add the sensor depths for the probe in the spaces provided. If the depths are unknown
they may be left blank. The graph will automatically drop in valves of 4”, 8”, 16” 24”
32” and 40”.
6. If using a Temperature sensor, choose thermistor in the Sensor 5 drop down menu.
7. If using a Rain Bucket, choose Tipping Bucket in the Digital Sensor drop down menu.
8. Save configuration
Main Page Display
Once configured, the probes will display the sensors in a column with the soil moisture value just
to the right. Some probes will also have an additional columns displaying salinity and/or
temperature.
The latitude and longitude of the Aqua Trac can be found in the readings tab on the main page
for each unit.
Page 13
Warranty Information:
All warranty service provided by the AgSense service center, or an authorized technician.
Warranty repairs require a Return Merchandise Authorization Number (RMA);
Have your dealer contact AgSense to obtain this RMA number.
For the Period of :
AgSense will:
60 Days
Money back Guarantee if not satisfied with
product.
2 Years
Repair on any unit that fails due to defect
in materials or workmanship. AgSense
labor and parts would be provided free of
charge during the warranty period. (This
does not include dealer labor.)
What is not covered:
Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance. If you have an installation problem contact your
dealer or installer.
Failure of product resulting from modification to product or due to unreasonable failure to provide
reasonable and necessary maintenance.
Labor necessary to move device from one location to another.
Improper installation of battery.
Failure due to corrosion or water damage.
oUnits installed in direct contact with sprinklers require a tower box or other watertight
protection.
Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of
God.
Damage caused after delivery.
Page 14
Exclusion of implied warranties –Your sole and exclusive remedy is product repair as
provided in this Limited Warranty. Any implied warranties, including the implied
warranties of merchantability or fitness for a particular purpose, are limited to two years
or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for the products
purchased for use within the USA.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This
warranty gives you specific legal rights, and you may also have the other rights which vary from
state to state. To know what your legal rights are, consult your local or state consumer affairs
office or your state’s Attorney General.
DISCLAIMER: The use of Field Commander/Crop Link/Aqua Trac shall not be utilized by
customer as a substitute for the Customer's personal observation of the manner in which
Customer's irrigation equipment is functioning. AgSense specifically advises Customer that this
product is designed to enhance Customer's ability to control existing irrigation equipment and to
provide the Customer with additional information about existing irrigation equipment. Field
Commander/Crop Link/Aqua Trac relies upon GPS, Satellite and Internet technology which not
always functions properly, accordingly, AgSense disclaims any and all responsibility for the
reliability of this technology. Customer acknowledges that AgSense does not have the ability to
control the reliability of GPS, Satellite and Internet Technology. AgSense specifically disclaims
any and all liability for Customer's failure to personally determine whether or not the irrigation
equipment that belongs to Customer is functioning properly. AgSense, its agents, members or
officers will not be liable for Customer's loss of profits, business interruption, or any other type
of consequential damages arising because of the failure to Customer's equipment, GPS, Satellite
or Internet to function properly.
CUSTOMER'S RESPONSIBILITIES: Customer agrees to keep the irrigation equipment upon
which Field Commander/Crop Link/Aqua Trac is installed in good repair and maintenance.
Customer acknowledges the importance of and agrees to keep all safety devices which came with
Customer's irrigation equipment in working order. Customer agrees to keep an end field stop
and barricades in place to prevent damage to the irrigation equipment in the event that Field
Commander/Crop Link/Aqua Trac malfunctions. Customer agrees that Field Commander/Crop
Link/Aqua Trac cannot solely replace the personal monitoring of the operation of irrigation
equipment.
REMEDY: Customer acknowledges that Field Commander/Crop Link/Aqua Trac’s sole
obligation and Customer's exclusive remedy in the event of any material and continuing
nonconformity, defect, or error in the information service shall be to take reasonable corrective
actions upon discovery of the problem.
Page 15
AgSense, LLC
259 Dakota Ave S
PO Box 53
Huron, SD 57350
605-352-8350
www.AgSense.net

Other AgSense Measuring Instrument manuals

AgSense CROP-LINK User manual

AgSense

AgSense CROP-LINK User manual

AgSense CROP-LINK User manual

AgSense

AgSense CROP-LINK User manual

AgSense Crop Link Lite User manual

AgSense

AgSense Crop Link Lite User manual

AgSense Aqua Trac Pro User manual

AgSense

AgSense Aqua Trac Pro User manual

AgSense Crop Link Lite User manual

AgSense

AgSense Crop Link Lite User manual

Popular Measuring Instrument manuals by other brands

Endress+Hauser Liquiline Compact CM72 Brief operating instructions

Endress+Hauser

Endress+Hauser Liquiline Compact CM72 Brief operating instructions

Orbit Merret OMM 323UQC quick start guide

Orbit Merret

Orbit Merret OMM 323UQC quick start guide

Kanomax 6850 instruction manual

Kanomax

Kanomax 6850 instruction manual

LAUREL LAUREATE 2 Series owner's manual

LAUREL

LAUREL LAUREATE 2 Series owner's manual

Extech Instruments 407764 user manual

Extech Instruments

Extech Instruments 407764 user manual

Elma Sagab Volt Stick Bright instruction manual

Elma

Elma Sagab Volt Stick Bright instruction manual

Anritsu ML2400A Series Operation manual

Anritsu

Anritsu ML2400A Series Operation manual

Elitech Inframate-ppm user manual

Elitech

Elitech Inframate-ppm user manual

Fieldpiece HG3 Field manual

Fieldpiece

Fieldpiece HG3 Field manual

NanoSense EP5000M installation manual

NanoSense

NanoSense EP5000M installation manual

Velleman DTO6234N user manual

Velleman

Velleman DTO6234N user manual

SEFRAM MW3027 user manual

SEFRAM

SEFRAM MW3027 user manual

Hanna Instruments HI9064 instruction manual

Hanna Instruments

Hanna Instruments HI9064 instruction manual

Elenco Electronics XK-700 instruction manual

Elenco Electronics

Elenco Electronics XK-700 instruction manual

Keysight Technologies X Series Service guide

Keysight Technologies

Keysight Technologies X Series Service guide

Fema M60-C1 user manual

Fema

Fema M60-C1 user manual

REED DW-6060 instruction manual

REED

REED DW-6060 instruction manual

SATLOOK Micro G2 English Manual

SATLOOK

SATLOOK Micro G2 English Manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
