AgSense Aqua Trac Pro User manual

2013-18 Aqua Trac Pro/Lite
Flowmeter Wiring Manual
Revised January 1, 2018

Items Covered In This Manual:
Page 2: Netafim/Dwyer Mechanical Flow Meter Wiring
Page 3: Netafim Octave Flow Meter Wiring
Page 4-8: GF Signet 8550 Flow Transmitter Wiring
Page 9: McCrometer Mechanical Flow Meter Wiring
Page 10-11: Seametrics AG2000, AG3000/Valley Flow Meter
Page12-13: Endress Hauser Promag P 50/53 Flow Meters
Page 14-15: Siemens MAG5000 Flow Meters
Page 16-18: Seametrics PE102/FT520 Flow Meter Wiring
Page 19-21: GF Signet 9900 Flow Transmitter Wiring
Page 22-23: GF Signet 2551 Mag Meter Wiring
Page 24: McCrometer FlowCom Flow Meter Wiring
Page 25-26: McCrometer McMag 3000/EA-618 Flow Meters
Page 27-28: Siemens Sitrans FM MAG 8000 Wiring
Page 29-31: Greyline AVFM 5.0 Flow Meter Wiring
Page 32-33: Senninger Flow Wise SC-3 Flow Meter Wiring
Page 34-35: Banjo MFM 300DC Flow Meter Wiring
Page 36-37: Seametrics FT415 Flow Meter Wiring
Page 38-40: Sparling Tiger Mag Flow Meter Wiring
Page 41-42: Sparling FT194 Flow Meter Wiring
Page 43: Generic Flow Meter Wiring

Wire Connections for the Netafim/Dwyer Mechanical
Flow Meter
(two wire magnetic reed-switch style)
1.Install the Black Wire from the Netafim/Dwyer Flow Meter into any
terminal marked GND as shown in the picture above.
2.Install the Red Wire from the Netafim/Dwyer Flow Meter into the
terminal marked RAIN as shown in the picture above.
Page 2

Wire Connections for the Netafim Octave Flow Meter
(with pulse output module)
1.Install the Black Wire from the Netafim Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the Netafim Flow Meter into the terminal
marked RAIN as shown in the picture above.
3.Cut off and/or tape off the Green Wire from the Netafim Flow meter
so that it cannot touch anything.
4.The label on the inside of the Netafim Flow Meter lid will show how
many gallons per pulse that output1 (the red wire) is programmed to
do. You will need that info when configuring this unit on Wagnet.
Page 3

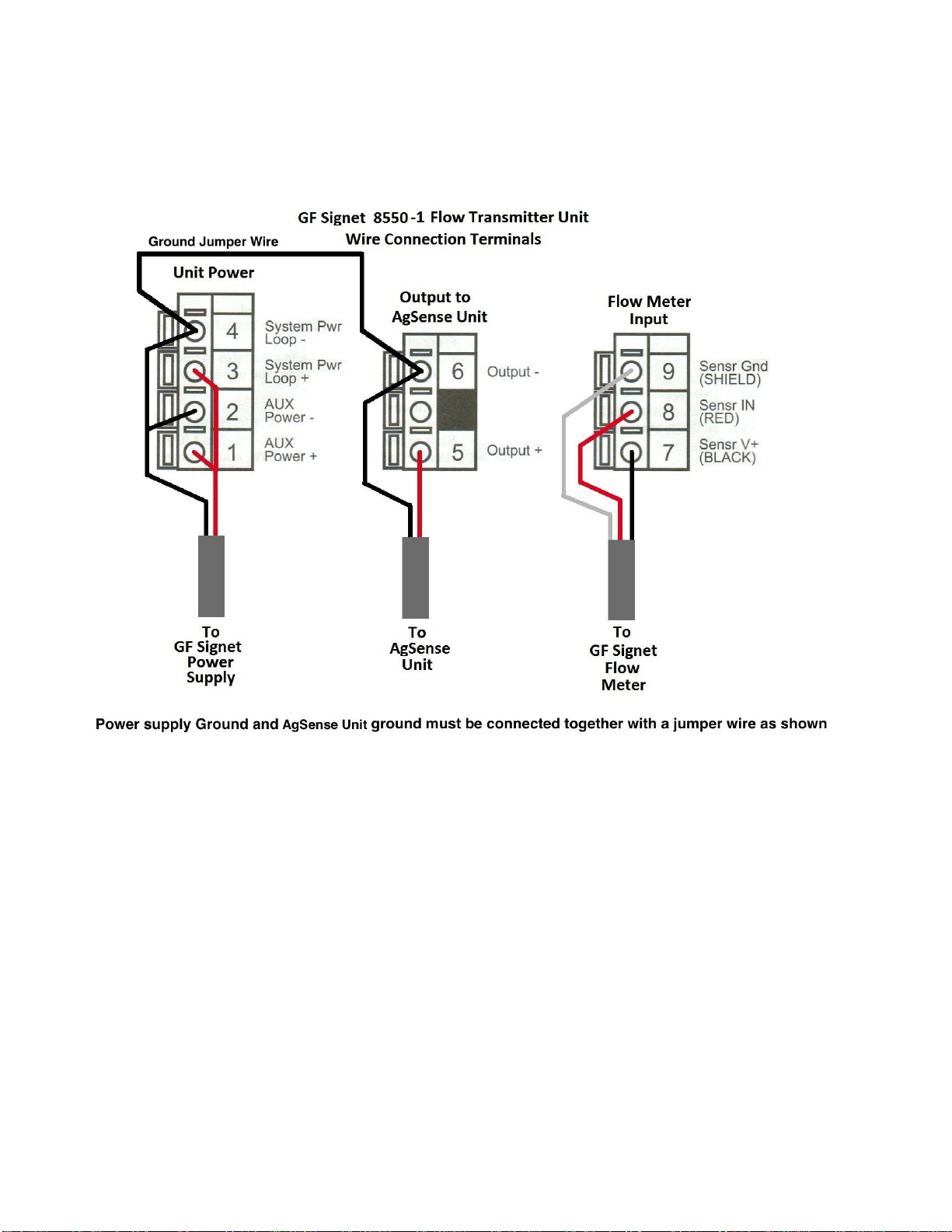

Wire Connections for the GF Signet/Senniger
8550 Flow Transmitter
1.Install the Power Supply, and Flow Meter wires into the GF Signet
8550 Unit as shown above.
2.Install a Red wire into terminal 5 (output+) of the 8550 Unit as shown
above. This wire will connect to the AgSense unit in the steps below.
3.Install a Black wire into terminal 6 (output-) of the 8550 Unit as
shown above. This wire will connect to the AgSense unit in the steps
on the next page.
Page 4

Wire Connections for the GF Signet/Senniger
8550 Flow Transmitter Cont.
1. Install the Black Wire from the GF Signet 8550 Flow Transmitter into
any terminal marked GND as shown in the picture above.
2. Install the Red Wire from the GF Signet 8550 Flow Transmitter into
the terminal marked FLOW as shown in the picture above.

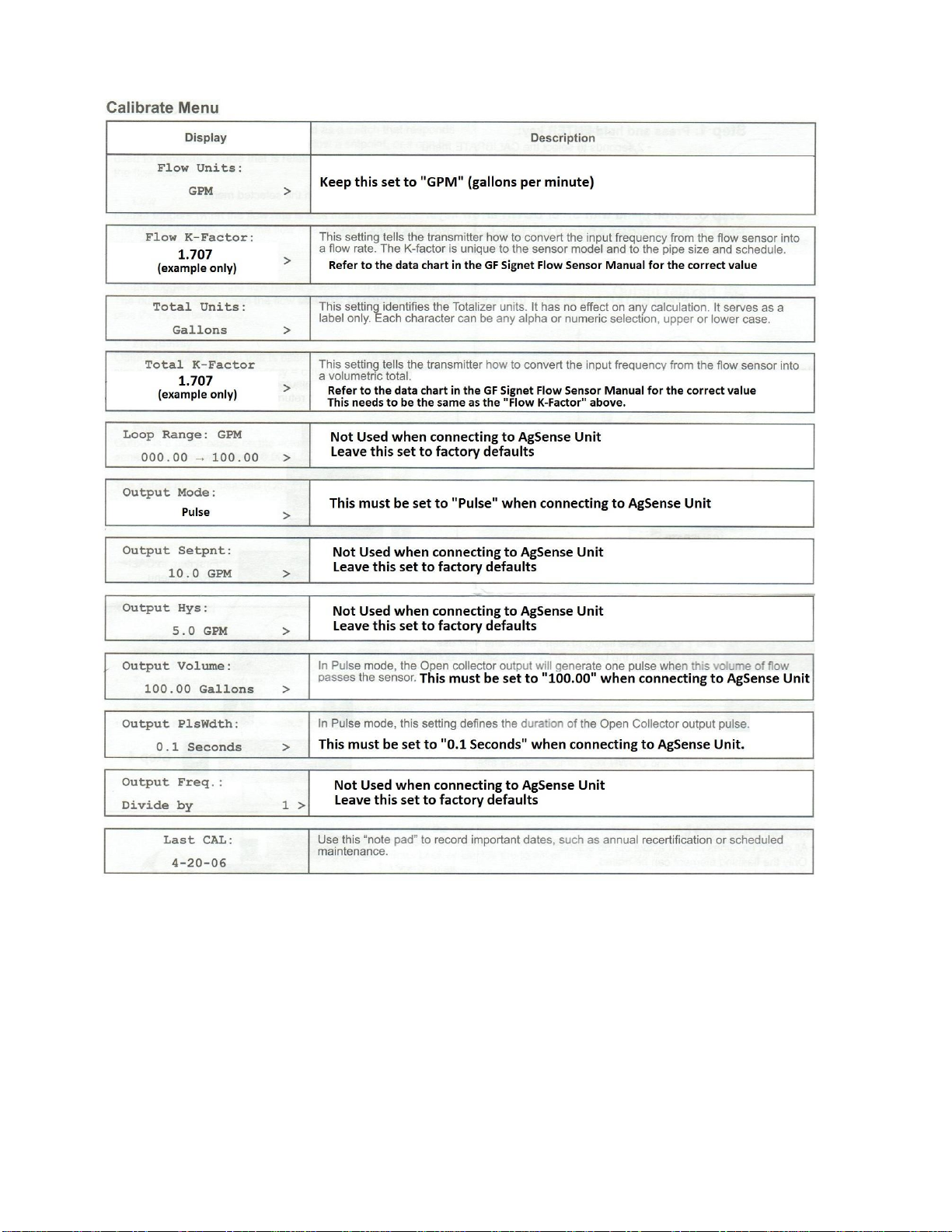

3. Setting up the 8550 Flow Transmitter “calibrate”and “options”
menus –use the charts below to correctly set up the menus in the
8550 Flow Transmitter –you must do this for the AgSense unit to
work properly.
Page 5

Page 6

Page 7

Page 8

Wire Connections for the McCrometer Mechanical
Flow Meter with EA-631-xxx module
The Aqua Trac unit does not support the
McCrometer EA-631 Pulse Module –The new part
number for mechanical McCrometer flow meters is
EA-618-02.
Please use the EA-618-02 Pulse Module for
mechanical flow meter installations.
Please see page 26 for EA-618-02 Wiring.
Page 9

Wire Connections for the Seametrics
AG2000, AG3000/Valley Flow Meter
AgSense
Note: The Seametrics AG2000 can come programmed for High-Frequency pulses or Standard Low
Frequency Scaled Pulse Output (10 or 100 gallons per pulse) –be sure to choose the correct version (HF or
LF) in the AgSense unit configuration.
Note2: When using external power supply with these Seametrics Flow Meters, you should add a
jumper wire from Black (12v-) to the White (pulse -) going to the ICON Link so that all ground
wires are connected together.
Page 10

Wire Connections for the Seametrics
AG2000, AG3000/Valley Flow Meter Cont.
1.Install the White Wire from the Seametrics Flow Meter into any
terminal marked GND as shown in the picture above.
2.Install the Green Wire from the Seametrics Flow Meter into the
terminal marked RAIN as shown in the picture above.
Page 11

Wire Connections for the Endress Hauser Promag P
50/53 Series Flow Meter
120v powered meter shown –meter must be ordered the correct type with
terminals 24 and 25 setup as Frequency Output (pulses)
Page 12

Wire Connections for the Endress Hauser Promag P
50/53 Series Flow Meter Cont.
1.Install the Black Wire from the EH Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the EH Flow Meter into the terminal marked
RAIN as shown in the picture above.
3.Using the menu on the EH flowmeter, be sure that the display of the
flowmeter is set to gallons per minute. Then, using the menu on the EH
flowmeter, set the pulse output to 10 gallons per pulse.
Page 13

Wire Connections for the Siemens MAG5000 Series
Flow Meters
120v powered meter shown
In the Siemens MAG5000 Menu, you must make sure the following is set:
Page 14

Wire Connections for the Siemens MAG5000 Series
Flow Meters Cont.
1.Install the Black Wire from the Siemens Flow Meter into any terminal
marked GND as shown in the picture above.
2.Install the Red Wire from the Siemens Flow Meter into the terminal
marked RAIN as shown in the picture above.
3.Set the Config on Wagnet for this unit to Siemens, and 10 gallons per
pulse.
Page 15

Wire Connections for the Seametrics
FT520 Display / PE102 Flow Meter
Connect the PE102 Flow Meter, the AC Power, and a cable to the
Aqua Trac unit as shown.
Use the SET button and the arrows on the FT520 display to change
the flow rate to Gallons per Minute as shown below:
Page 16

Use the SET button and the arrows on the FT520 display to set the
decimal point for the display as shown below:
Use the SET button and the arrows on the FT520 display to set the
K-FACTOR as shown below: (use the actual K-Factor in the
documentation for your specific flow meter –the number below is
only an example.)
Use the SET button and the arrows on the FT520 display to set the
Pulse Output to the correct scale as shown below:
Page 17

Connect the wires from the FT520 unit into the Aqua Trac:
1.Install the Red Wire from the Seametrics FT520 into the terminal
marked RAIN as shown in the picture above.
2.Install the Black Wire from the Seametrics FT520 into any terminal
marked GND as shown in the picture above.
3.Set the Config on Wagnet for this unit to SeaMetrics PE102/FT520,
and 100 pulses per gallon.
Page 18

Wire Connections for the GF Signet
9900 Flow Transmitter
Connect the Flow Meter, the DC Power, and a cable to the Aqua
Trac unit as shown above.
Page 19
