AHA AOPS-7080 User manual

Model: AOPS-7080

Overview
Icon Descriptions
The icons are used in the manual to serve as an
indication of interest topics or important
messages. Below is a description of these icons:
NOTE: This mark indicates
that there is a note of
interest and is something
that you should pay special
attention on while using the
product
WARNING: This mark
indicates that there is a
caution or warning and it is
something that could damage
your property or product
Copyright and Trademarks
This document is copyrighted, © 2014 All rights
are reserved. The original manufacturer reserves
the right to make improvements to the products
described in this manual at any time without
notice.
No part of this manual may be reproduced,
copied, translated or transmitted in any form or
by any means without the prior written
permission of the original manufacturer.
Information provided in this manual is intended
to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of
third parties that may result from such use.
Acknowledgement
Intel, Pentium and Celeron are registered
trademarks of Intel Corp.
Microsoft Windows and MS-DOS are registered
trademarks of Microsoft Corp.
All other product names or trademarks are
properties of their respective owners.
Compliances and Certification
CE Certification
This product has passed the CE test for
environmental specifications. Test conditions
for passing included the equipment being
operated within an industrial enclosure. In
order to protect the product from being
damaged by ESD (Electrostatic Discharge) and
EMI leakage, we strongly recommend the use
of CE-compliant industrial enclosure products.
FCC Class A Certification
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part
15 of the FCC Rules. These limits are designed
to provide reasonable protection against
harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this equipment
in a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Version 1.0
2

Version 1.0
3
Chapter 1: Introduction 4
System Specification…………………………………………………………………………………………………………. 4
Package Contents...…………………………………………………………………………………………………………….5
Chapter 2: System Components 6
System Drawing ……………………………………………………………………………………………………………….6
Front Connectors………………………………………………………………………………………………………………..7
Rear Connectors…………………………………………………………………………………………………………………8
Chapter 3: Board Connector 9
Connectors and Jumpers List …………………………………………………………………………………………..9
Jumper Settings………………………………………………………………………………………………………………..10
Chapter 4: Hardware Setup 12
Preparing the Hardware Installation……………………………………………………………………..…….…..12
System Memory……………………………………………………………………………………………………..………...12
3G and Wireless Module Installation…………………………………………………………..………………….13
3G SIM Card Installation..………………………………………………………………………………..………………13
Installing the Hard Disk.…………………………………………………………………………………..……………...13
Appendix A: Terms and Conditions 14
Warranty Policy……………………………………………………………………………………………..…………………14
RMA Service…………………………………………………………………………………………………..………………...14
Contents

Chapter 1:
Introduction
Thank you for choosing the AOPS-7080. The
AOPS-7080 is an Open Pluggable Specification
(OPS) for IWB and digital signage application.
The AOPS-7080 addresses IWB and digital
signage market fragmentation and simplify device
installation, usage, maintenance, and upgrades.
This OPS provides a rich I/O capabilities via high-
bandwidth interfaces such as PCI Express 2.0,
Serial ATA 3.0, and Hi- Speed USB 3.0
connectivity.
Other I/O capabilities include an HDMI port, a
MIC-In and Line Out as well as an Intel® i210
Gigabit Ethernet.
Chapter 1.
System Specification
Version 1.0
4
System
CPU
Intel® Core
TM i5-4400E Processor ( 3M
Cache,
up to
3.30 GHz)
BIOS
AMI SPI BIOS
System chipset
Intel® QM87 Express Chipset
System Memory
DDR3L
-1333, 4GB (2GB x 2)
I / O
Storage
2.5" SDD 128GB
USB
2x USB 3.0
Type A in front panel
3x USB 2.0 and 1x USB 3.0 through JAE TX25
80
- pin connector
Mini
- PCIe
1x
mini-PCIexpress socket for mini-card module
Display
Chipset
Intel® integrated
HD 4600
Display
Supported
HDMI: Display port and TMDS through JAE TX25
80
-pin connector
Audio Interface
Chipset
Realtek
ALC886
Interface
Mic
-in, Line-out : Audio L/R through JAE TX25
80
-pin connector
Ethernet
LAN Chip
Intel® i210 Gigabit Ethernet
Ethernet
1x10/ 100/ 1000 Base
-Tx Gigabit Ethernet
Mechanical & Environmental
Power
Requirement
DC 12V, 5A
Operating
Temperature
-
5℃ to +45℃ (32 ∼ 140℉)
Storage
Temperature
-
20℃ to +75℃ (-4 ∼ 158℉)
Size (L x W x H)
119mm(D) x 200mm(W) x 30mm(H
)
(4.69" x 7.87“ x 1.18")
Certification
CE / FCC / KCC
Warning:
While using the OPS, do not
disconnect the power source.
It will be Cause fatal failure

Package Contents
∙ If any items are missing, contact your dealer.
Your package contains the following items:
• AOPS-7080 OPS System (installed Set)
• Drivers and User’s Manual CD
• Adaptor DC12V, 5A
Chapter 1.
Version 1.0
5

Chapter 2:
System Components
System Drawing
Mechanical dimensions of the AOPS-7080.
Unit: mm
Chapter 2.
Version 1.0
6

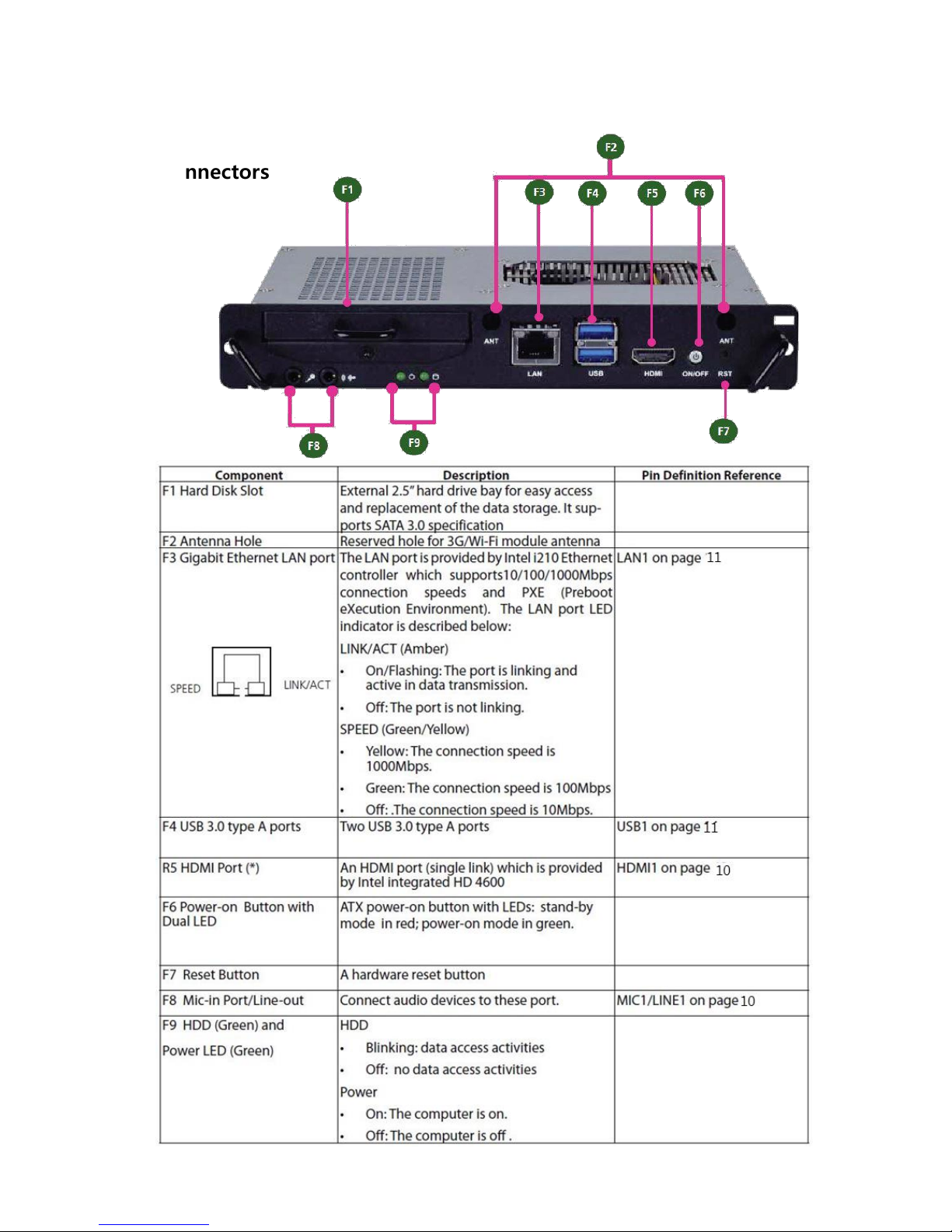

Front Connectors
Chapter 2.
Version 1.0
7

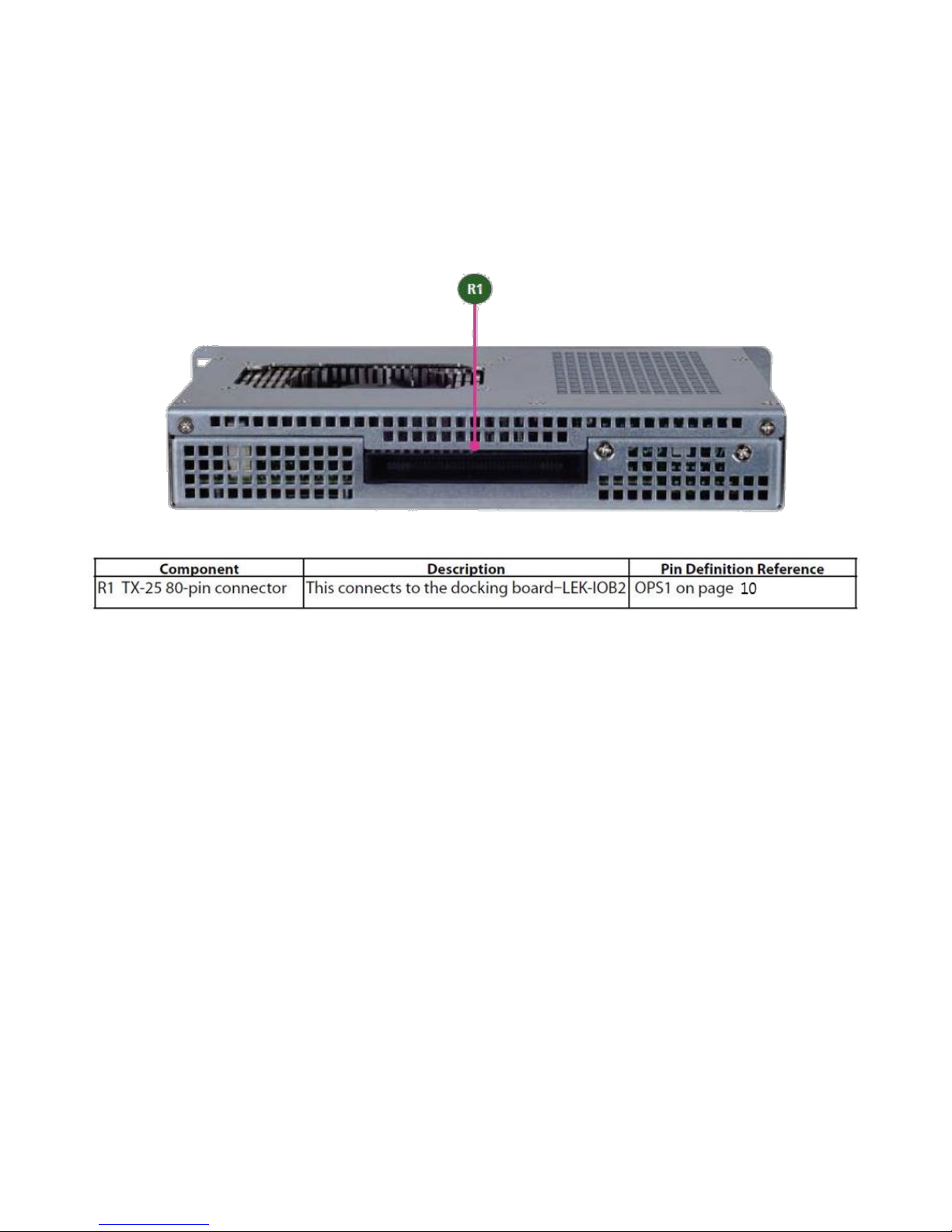

Rear Connectors
Chapter 2.
Version 1.0
8

Connectors and Jumpers List
Chapter 3.
Version 1.0
9
Chapter 3:
Board connector
Connectors and Jumpers List
The tables below list the function of each of the board
connectors by labels shown in the above section. The next
section in this chapter gives pin definitions.
Label Function Pin Definition Ref. Page
OPS Connector JAE TX-25 80-pin Connectors Page 10
Line 1 Line-out Phone Jack Page 10
MIC 1 MIC-in Phone Jack Page 10
HDMI 1 HDMI Connector Page 10
LAN 1 LAN Port Page 11
USB 1 Dual Stack USB type A Connector Page 11
MPCIE 1 Mini-PCIe Connector Page 11
CMOS 1 Clear CMOS Jumper (Inside of set) Page 11

Chapter 3.
OPS Connector (OPS1) Line-out Jack (Line 1)
Microphone Jack (MIC1)
High-Definition Multimedia Interface (HDMI1)
Version 1.0
10

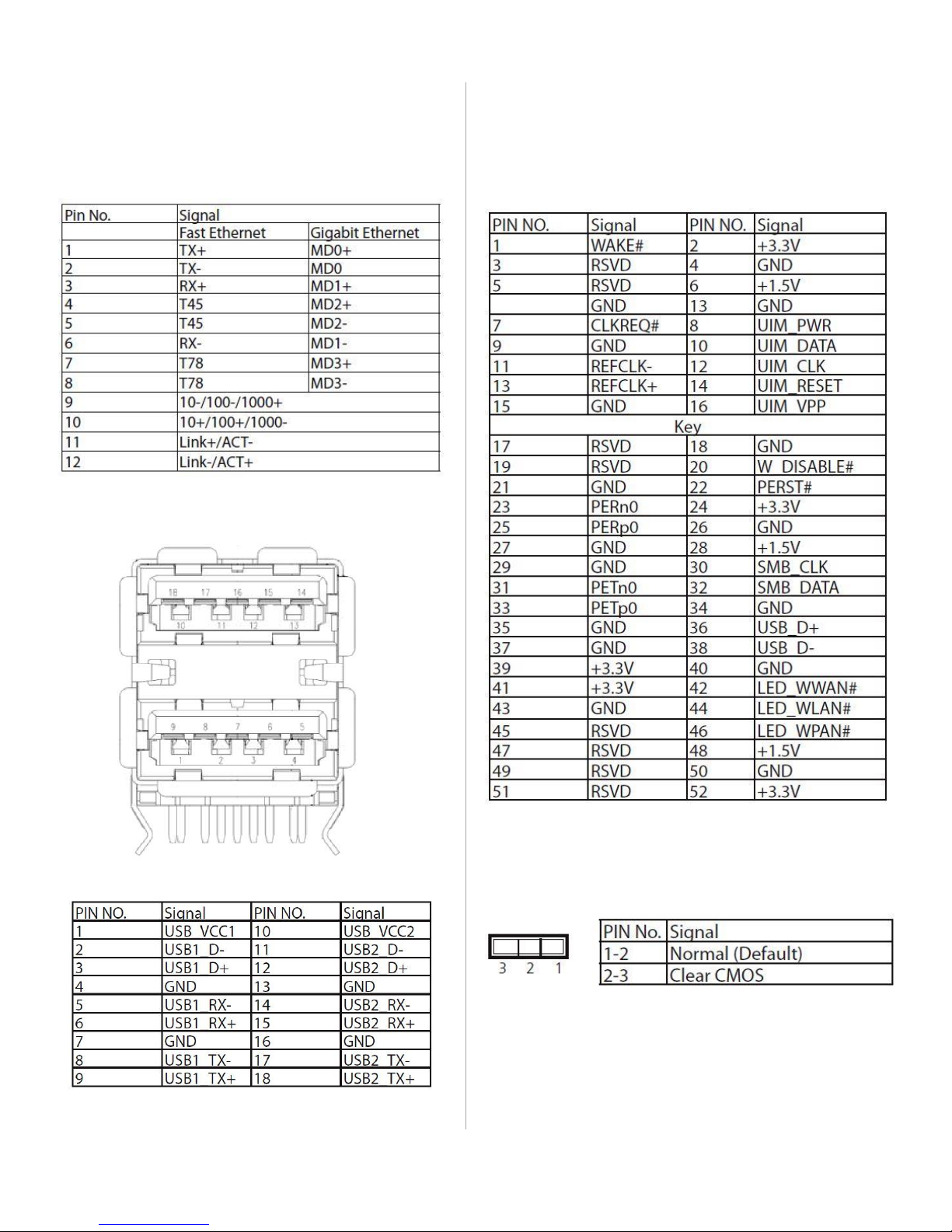

Gigabit Ethernet (LAN1)
Chapter 3.
Dual Stack USB 3.0 Type A Connector (USB1)
Mini PCI-Express with SIM Card Reader(MPCIE1)
Clear CMOS Jumper (CMOS1)
Version 1.0
11

Chapter 4:
Hardware Setup
Preparing the Hardware Installation
Chapter 4.
To access some components and perform
certain service procedures, you must perform
the following procedures first.
WARNING: To reduce the risk of
personal injury, electric shock, or
damage to the equipment, remove
the power cord to remove power
from the server. Portions of the
power supply and some internal
circuitry remain active until power
is removed.
1. Unpowered the AOPS-7080 and make sure
that the power source is removed.
2. It is not required to remove the system’s
top cover for installing most parts of the
system such as the memory, 3G wireless
module, SIM card, and the hard disk.

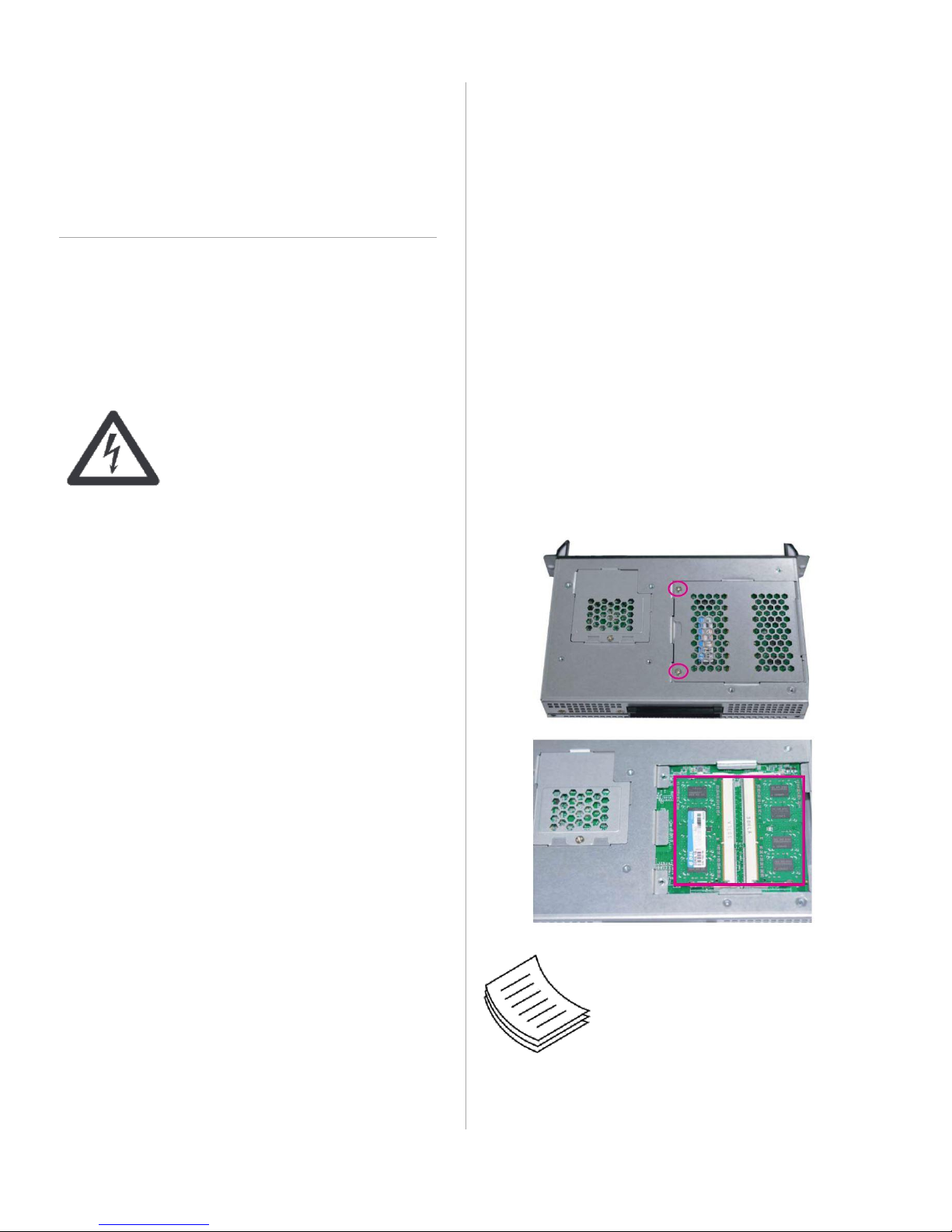

Installing the System Memory
The motherboard supports DDR3L memory that
features data transfer rates of 1333 MHz to meet
the higher bandwidth requirements of the latest
operating system and Internet applications. It
comes with one Double Data Rate 3 Low Voltage
(DDR3L) Small Outline Dual Inline Memory Module
(SO-DIMM) socket.
1. Put the device upside down.
2. Take off the cover of the memory compartment
by unscrewing two screws from its cover.
3. Align the memory module’s key with the
SO-DIMM socket’s key.
4. Install the SO-DIMM.
5. Install the cover back to the system.
Note:
1. SO-DIMMs installed should meet
the required speed which is DDR3L
1333 MHz. Do not install SO-DIMM
supporting different speeds.
2. The motherboards can support
up to 16 GB memory capacity in
maximum.
Version 1.0
12

3G and Wireless Module Installation(Optional)
Chapter 4.
3G SIM Card Installation(Optional)
Installing the Hard Disk
1. Take out the Mini-PCIe and SIM card
compartment’s cover by unscrewing the screws
on the cover.
2. Align the wireless module’s cutout with the
Mini-PCIe slot notch.
3. Insert the wireless module into the connector
diagonally.
4. Push the other end of the wireless module and
secure it in place with the screws.
5. Install the Antenna to the module.
1. Take out the Mini-PCIe and SIM compartment’s
cover by unscrewing the screws on the cover.
2. Unlock the SIM card tray by sliding it outward
and open it.
3. Place the SIM card in the tray. Make sure the
ICs is in contact with the socket. The angled
corner of the SIM ensures that the card fits only
the correct way in the tray.
4. Close and lock the tray. You should feel a click
when the SIM card is locked securely in the
socket.
The system can accommodate one Serial-ATA 2.5”
disk. Follow these steps to install a hard disk
into the AOPS-7080):
1. Take out the hard disk tray from the system.
2. Place hard disk on the hard disk tray and align
the holes of the hard disk with the mounting
holes on the tray.
3. Fix the hard disk on the hard disk tray by
using 2 mounting screws
4. Push the hard disk into the hard disk slot and
secure it with a screw.
Note:
The system only accommodates
2.5” SSD. It supports SATA 3.0
specification.
Version 1.0
13
Open

Warranty Policy
1. All products are under warranty against defects in materials and workmanship for a period of one year
from the date of purchase.
1. Compensation standard of our products in accordance with the Ministry of Finance Notice legitimate
consumer damage will be compensated.
Appendix A:
Terms and Conditions
Product Warranty
Product : Model : Purchase a day : year month day
Customer Name : Phone : Address :
Mutual agency : Phone : Address :
• When requesting repairs and the year of purchase date must be presented above Enough to receive service
so please keep it.
• Major parts of the retention period is 2 years.
1. Warranty for this product to ensure the information contained in the warranty benefits.
2. The warranty period calculated from the date of purchase dated, so please come (Date of purchase. If
this should not check 6 months from date of manufacture from the date of the warranty period shall be
added to.)
3. Not household products also(operating activities, unusual environments, etc.), or industrial products. If
the warranty period of 6 months will apply. (Key parts)
4. This warranty will not be reissued.

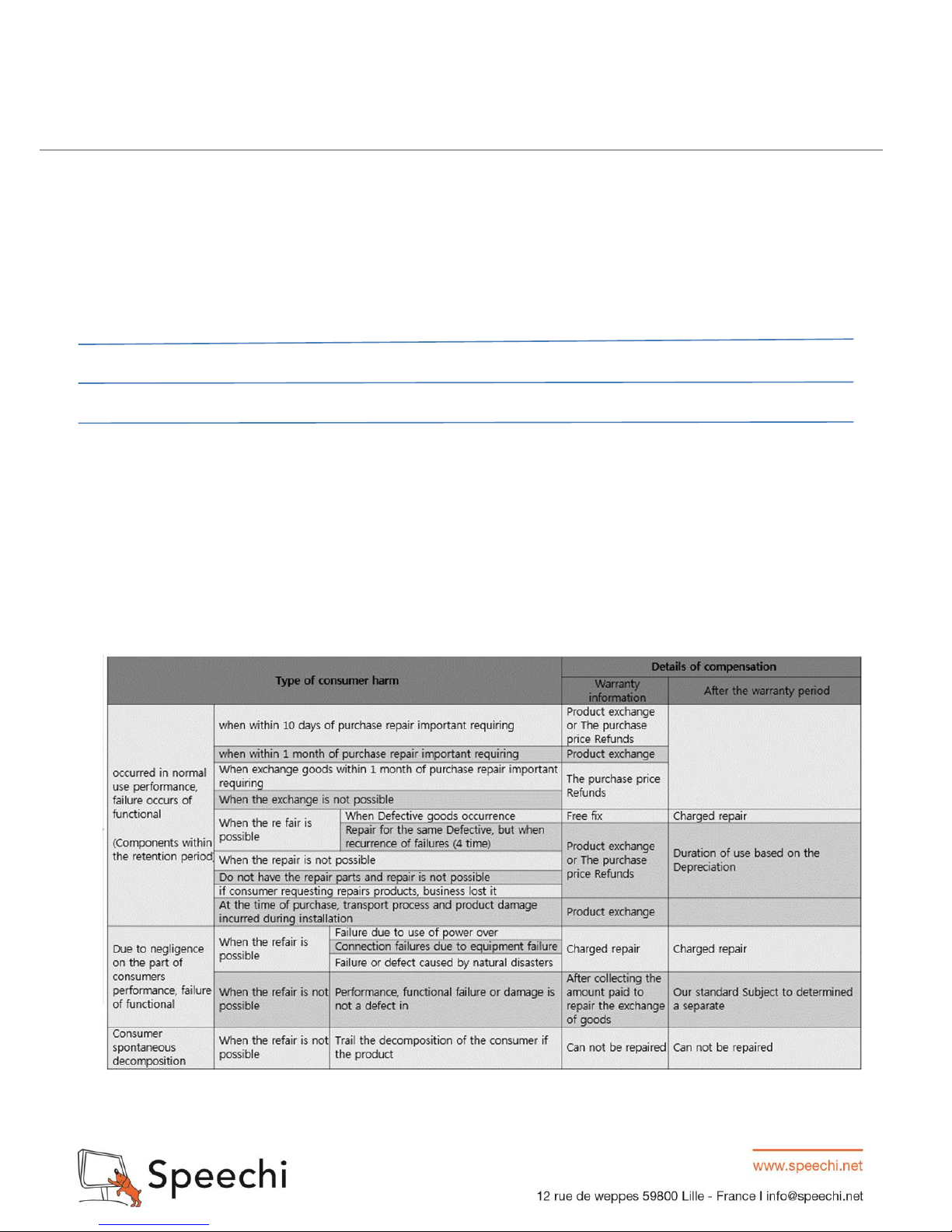

Compensation for consumers guide
• With regard to the product of the three defects in the compensation is not subject.
