Aeolus E50-GF
0RGHOOVSRUW3HJDVXV
3'(36

Aeolus E-50 3D 插页说明书序言
尊敬的顾客你好!感谢你的惠顾或再次选购我们“AHF”产品,Aeolus E50 3D 是在了解
广大爱好者渴望体验电动3D飞行的呼声中诞生的.延续了50 3D的基因和零部件高度互换的
模块化快速组装的理念,让你尽情展现操控E50 3D 带给您的超乎寻常刺激和无穷的飞行乐
趣.整体组装中,只是将马达动力、电池部分与油机的引擎、油箱部分相替代互换;尾撑杆部
分与50 GF略有不同;其余部分请参照原版的组装说明书的皮带传动或轴传动版本的装配方
法.基于,与飞机配套的无刷600级别的马达和22.2V 100A的电子调速器,以及22.2V-5500mAh
以上的动力锂聚合物电池组等周边器材,本产品没有附带,还需要另行购置,请在采购时核实规
格及性能,满足您的个性化使用,并详尽参阅相关产品的使用说明书,让您的爱机发挥出卓越的
性能,体验飞行带给您的愉悦!
Thank you for buying Aeolus helicopter! Aeolus E50 helicopter is updated from Aeolus 50nitro
helicopter, most parts can be interchanged with Aeolus 50 nitro helicopter. Hope Aeolus E50
supplies you more fun.
When assembling this helicopter, you just install the motor, battery instead of the engine and fuel
tank of Aeolus 50 nitro helicopters. Other parts are same as Aeolus 50 nitro helicopter, but the tail
boom brace.
Please note that Aeolus E50 helicopter be released without RCM-BL600XL, Speed controller
220.2V 100A and Li-polymer battery 22.2v-5500mAh and other battery accessories. Do please
confirm the specification of Motor, Speed controller, Battery and other parts are adequate for
Aeolus E50 helicopters when assembling.
G O O D L U C K !

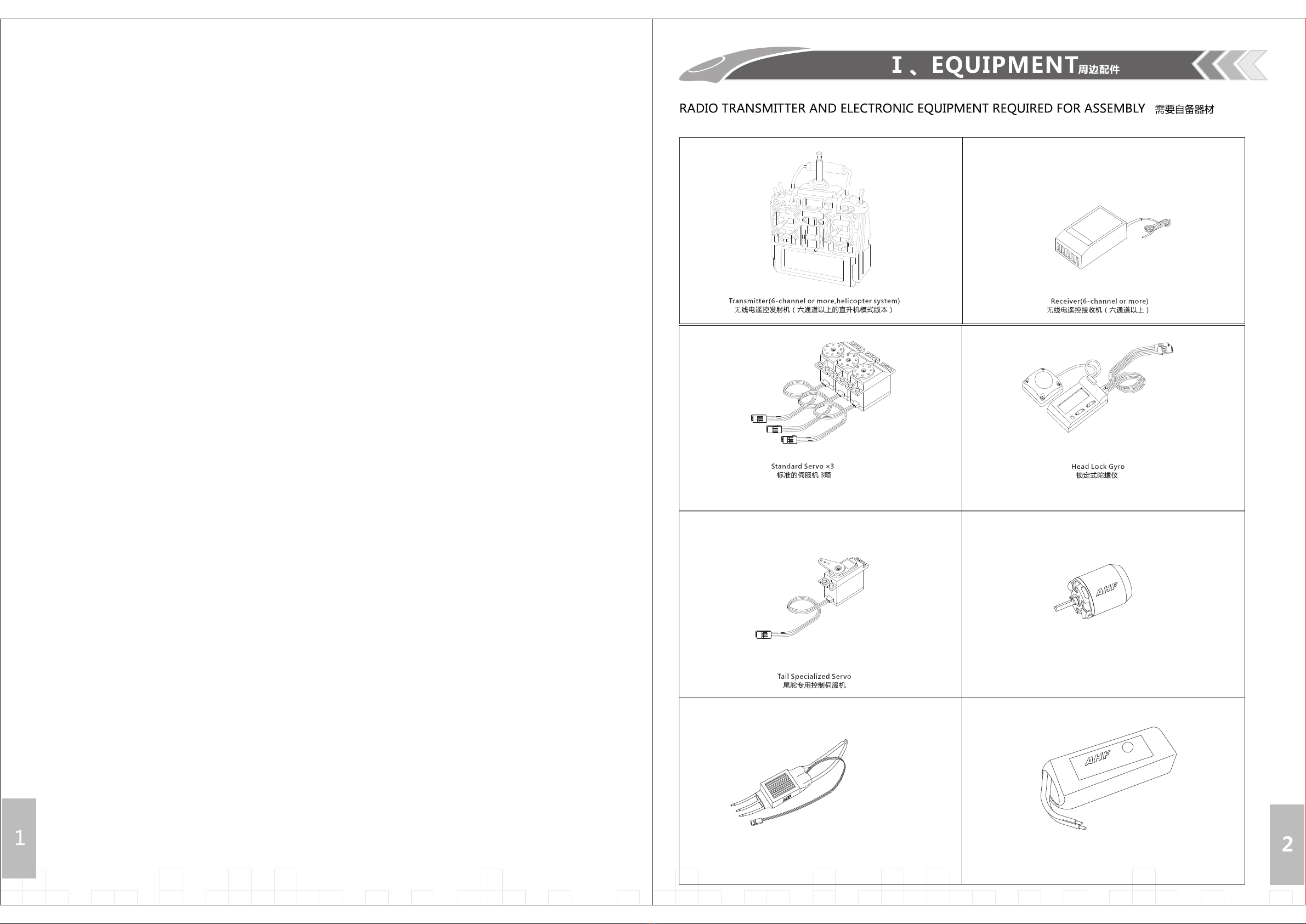

无刷马达 电 子 调 速器 22.2V 1 0 0 A
Speed governor 22.2V 100A
22.2V5500mAh
高倍 率放电动力 锂聚合 物电池 组 22.2V 5500 mA h
li-polymer Battery 22 .2 V 550 0mA h
30C
无刷马达 2 2 .2V 10 6 5KV
Brushless DC Motor 22. 2 V 1065 K V

4
锂聚合物电池平衡充电器
li-polymer Battery Charger

同步带轮
Belt drive gear
M3 x 16 不锈钢内六角螺钉 X 4
Socket head screw M3 x 16 X
4
铝垫圈 X 4
Aluminum washer X 4
马达座
Motor mount
600级无刷马达
600XL BLDC
装配中心距保持在-0.4-0.5mm
重要提示:
同步带轮的端面上有"o"字样的方向朝上装配在马达轴上.

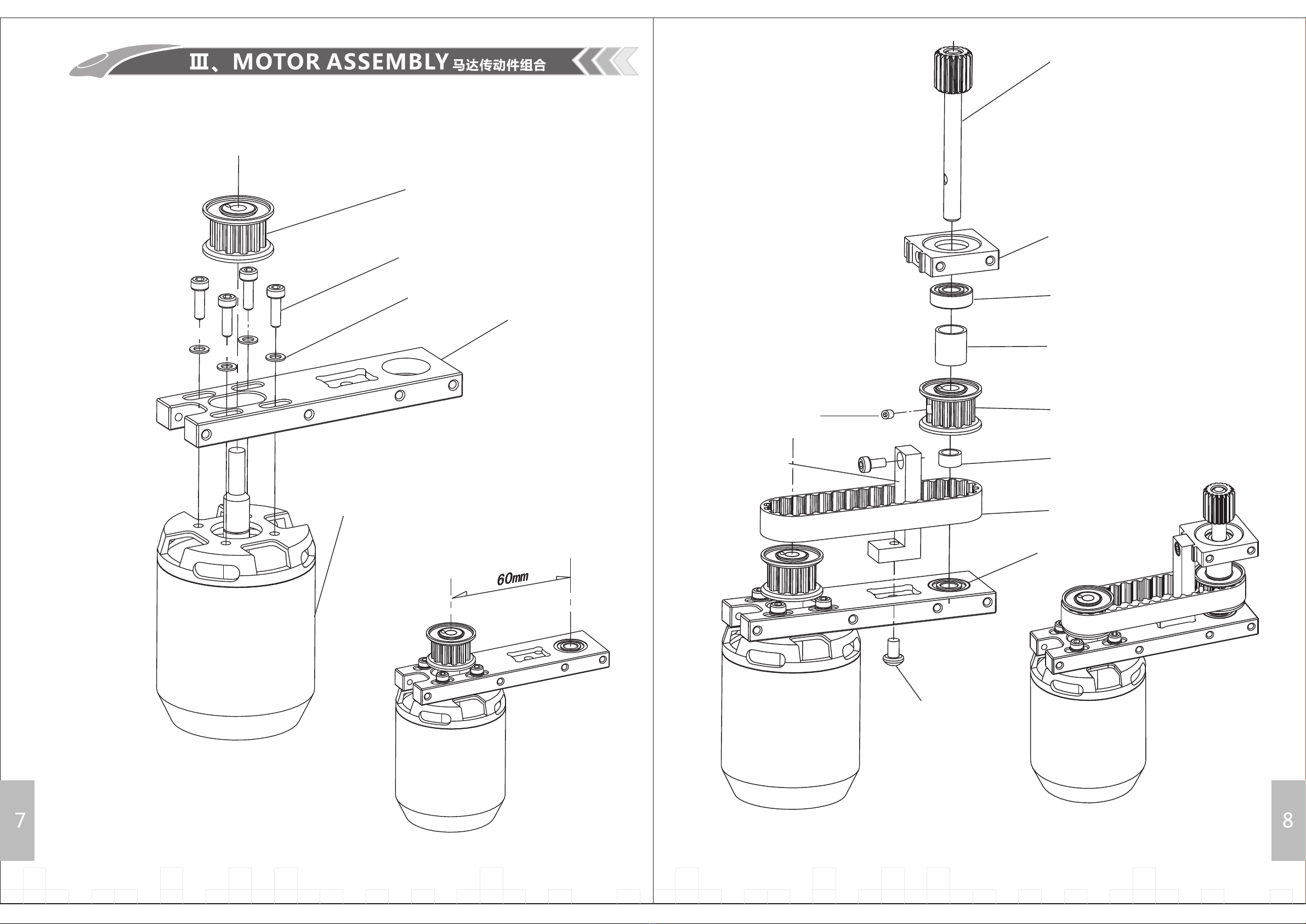

1.马达传动组件组合
1、MOTOR ASSEMBLY
( STEP B )
Note: After assembling the motor pinion gear and main drive gear, the horizontal
distance must be within 0.4-0.5mm and keep the gear mesh at a proper distance.
主动轴齿
Motor pinion gear
轴承座
Bearing mount
6X15X5 轴承
Bearing 6X15 X5
马达座
Motor mount
6 X 8 X 3.4 垫圈
Washer 6 X 8 X 3.4
同步带
Drive belt
轴承座连接件
Bearing mount linker
M4X4 紧定螺钉
Set screw M4 X 4
M4 X 6 半圆头内六角螺钉
Socket buttun head screw M4 X 6
6X15X5 轴承
Bearing 6X15X5
6 X 8 X 11.7 垫圈
Washer 6 X 8 X 11.7

主动轴齿
Motor pinion gear
轴承座
Bearing mount
6X15X5 轴承
Bearing 6X15X5
马达座
Motor mount
6 X 8 X 3.4 垫圈
Washer 6 X 8 X 3.4
同步带
Drive belt
轴承座连接件
Bearing mount linker
M4X4 紧定螺钉
Set screw M4 X 4
M4 X 6 半圆头内六角螺钉
Socket buttun head screw M4 X 6
6X15X5 轴承
Bearing 6X15X5
6 X 8 X 11.7 垫圈
Washer 6 X 8 X 11.7
M3 × 8m m ×1 2
圆柱头内六角螺钉
M3 × 10 m m× 1 2
圆柱头内六角螺钉
3× 8 ×2 m m X 24
垫圈
M3×mm×2
圆柱头内六角螺钉
3× 7 ×0 . 5m m X 2
Washer
垫圈
M3 × 6m m ×6
圆柱头内六角螺钉
机身侧板组合及装配
MAIN FRAME ASSEMBLY
( STEP A-1/A-2/A-3/A-4/C-1/C-2/C-3/C-4 )

M3×38mm×2
M3 ×4m m
M3×4mm
M3×4mm
M3×38mm×2
六方连接杆
内六角螺钉
内六角紧定螺钉
内六角螺钉
内六角紧定螺钉
六方连接杆
M3放松螺帽
内六角紧定螺钉
M3放松螺帽
脚架减震胶套
内六角紧定螺钉
脚架管堵头
脚架管
脚架管堵头
脚 架
脚架减震胶套
机身与脚架组合装配
MAIN FRAME AND LANDING SKID ASSEMBLY
M3×38mm×4 M3×4mm×4
M3放松螺帽
内六角螺钉 内六角紧定螺钉
( STEP D/D-1)
重要提示:
马达动力组可以在组装完成后,安上述,的A/B的装配箭头方法将马达动力组安装到机舱里的相应位置,将马达座与轴承座的螺纹孔与侧板对正校准,
待下步骤将螺钉装上拧紧即可.
Do assemble the motor according to the A/B installation instruction, and confirm the thread hole of motor mount and bearing mount is in the
alignment with main frame.
马达动力组件与机身组合
MOTOR AND MAIN FRAME ASSEMBLY
A: 马达与机身装配
A: Motor and Main Frame Assembly
B: 马达与机身装配
B: Motor and Main Frame Assembly

M3×20mm×2
圆柱头内六角螺钉
垫圈
M3×6mm×6
圆柱头内六角螺钉
3× 8×2 mm X 2
尾撑杆与机身及尾管组合装配
BOOM BRACE, MAIN FRAME AND TAIL BOOM ASSEMBLY
( STEP E-7-3)
3× 8×2 mm X 2 4
垫圈
3× 8×2 mm X 2
垫圈
6.整机的伺服系统装配及连接 SERVO ADJUSTMENT
Elevator(CH2)
升降舵: CH2
Pitch (CH6)
螺 距: CH6
Alieron (CH1)
副 翼: CH1
Pitch (CH6)
螺 距: CH6
Alieron (CH1)
副 翼: CH1
Rudder (CH4)
方向舵: CH4
Pitch (CH6)
螺 距: CH6
Alieron (CH1)
副 翼: CH1
Pitch (CH6)
螺 距: CH6
Alieron (CH1)
副 翼: CH1
Rudder (CH4)
方向舵: CH4
Elevator(CH2)
升降舵: CH2
温馨提示:
电子调速器的安装请参照该产品的使用说明书,与机身的定位安装以自己喜好或体积大小,可在整体伺服系统座的下部或一侧以及侧板的某个部位均
可,以电源线材使用最短为原则.
Note:
Please assemble the speed controller as per
instruction manual of this product. The
place where installed is underside of servo
installation system or one side of frame,
it’s better to use the shortest wire.

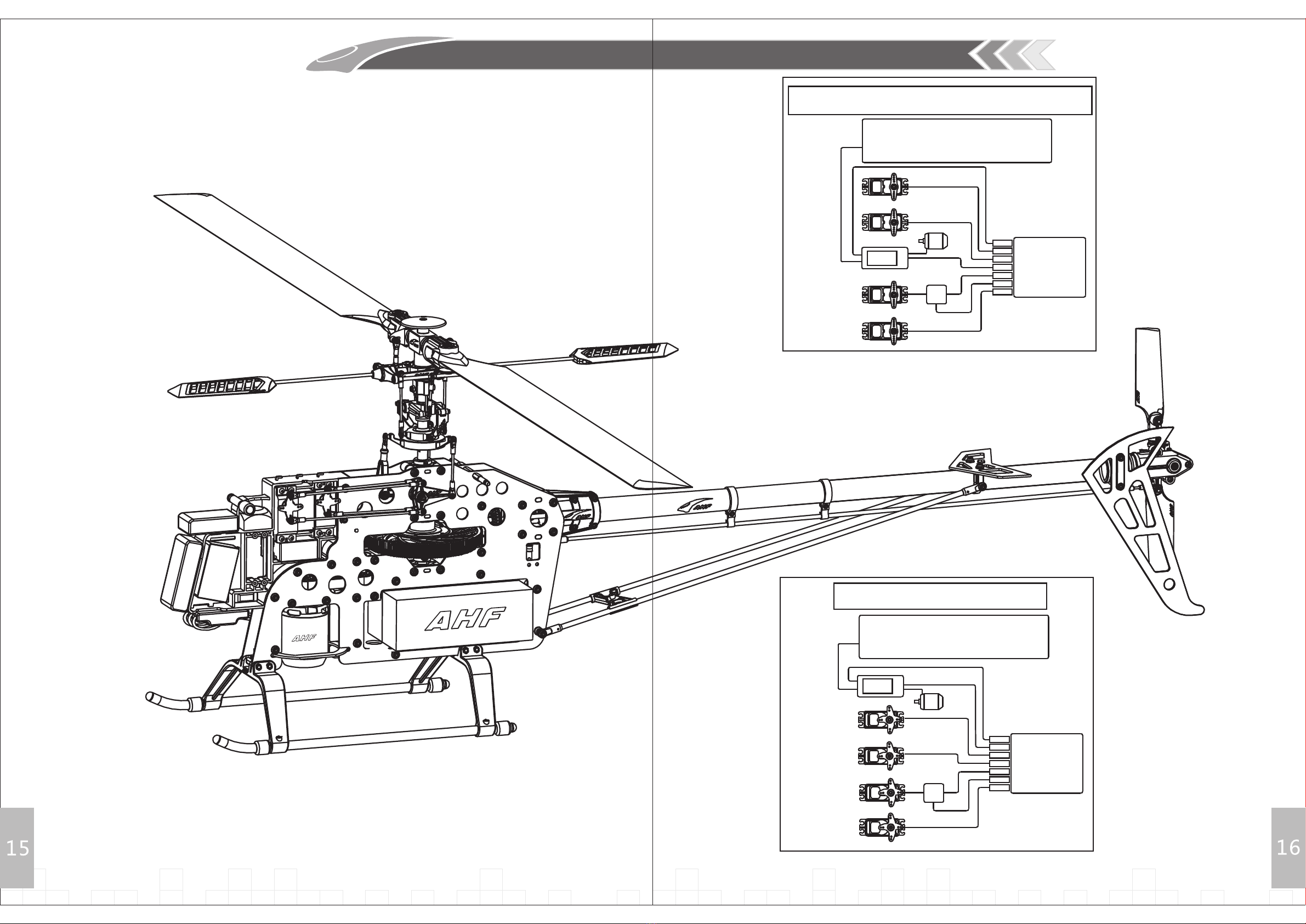

7.整机装配完成图及电子系统连接示意图
GENERAL EQUIPMENT ASSEMBLY & ELECTRIC EQUIPMENT ILLUSTRATION
FUTABA
SERVO
FUTABA
SERVO
FUTABA
SERVO
Gyro
FUTABA
SERVO
Gain ch annel wire
BATTERY
CH 1
CH 2
CH 3
CH 4
CH 5
Pitch
BATTERY
22.2V-5500mAh
6Channel Receiver
Aileron(CH1)
Elevator(CH2)
Throttle(CH3)
Rudder(CH4)
Pitch
FUTABA / HITEC 6 CH receiver wiring
JR SERVO
JR SERVO
JR SERVO
ESC
JR SERVO
Gyro
BATTERY
CH 1
CH 2
CH 3
CH 4
CH 5
Pitch
BATTERY
22.2V-5500mAh
6Channel Receiver
Gain ch annel wire
100 A
UBE C Throttle(CH1)
Aileron(CH2)
Elevator(CH3)
Rudder(CH4)
Pitch
JR 6 CH receiver wiring
重要提示:
飞机组装完成后,请检查螺纹要打螺纹胶,以防飞行中螺钉松脱;旋转轴或滑动部位注意检查,加注适量的润滑油,确保运转顺畅.在进行伺服器和电子调
速器和马达的线缆及电源线的连接,本机需采用六通道以上的FM或2.4G的遥控器(有CCPM功能的进口或国产品牌产品)请依照相应的使用说明书和
右侧的相关品牌遥控器的伺服器/陀螺仪(装在整体伺服系统做中)/无刷马达(安装在马达座上)/电子调速器(以自己的喜好或相应型号体积的大小在适
当位置安装)等电子设备的安装确认连接,实现您的操控功能的实现.
After assembling helicopter, please confirm all screws with glue to avoid looseness and inspect shafts or sliding parts with lube oil to ensure
smooth operation. 6-Channel or 2.4G Receiver is adequate for the requirements of Aeolus E50 helicopter. You will need the following
channels at minimum: Servos, Gyro, Brushless motor, Brushless speed controller, and other electric parts controls.
Motor
Motor
ESC 100 A
UBE C
Ⅶ、GENERAL EQUIPMENT ASSEMBLY & ELECTRIC EQUIPMENT ILLUSTRATION

Aeolus E50 REPAIR PARTS LIST Aeolus E50 零部件选购图表
Part
零 件
Code No.
代 码
Name
名 称
QTY
数量
Remarks
备 注
E50A001
E50A002
E50A003
E50A004
E50A005
E50A006
E50A007
E50A008
E50A009
E50A010
Motor mount *1
马达座 X 1
Bearing
轴 承
Drive belt
同步带
Motor pinion gear
主动齿轴
Main frame (L)
机身侧板(左)
Main frame (R)
机身侧板(右)
Bottom Plate
底 板
Botton plate mount
底板安装座组
Tail boom brace
尾管支撑
Tail boom brace
accessory
尾管支撑附件
Bearing mout *1
轴承座 X 1
Bearing mount linker
轴承连接件 X 1
Socket button head screw
半圆头内六角螺钉 M4X6mm X 1
Hexagon socket head screw
不锈钢圆柱头内六角螺钉 M3X6mm X1
Bearing ø6 x
ø15 x 5 mm
轴 承 X 1
Drive belt 68XL H=10mm
同步带X 1
Pinion gear shaft ø6 x ø59mm X 1
主动齿轴 X 1
Motor pinion gear
主动齿 X 1
Copper washer ø6 x ø 8 x 3.4mm X 1
铜垫圈
Copper washer
ø6 x ø8 x 11.7 mm X 1
铜垫圈
Glass fiber main frame (L)
玻纤机身侧板(左)
Bearing ø 5 x ø9 x 3mm X 1
轴承
Glass fiber main frame (R)
玻纤机身侧板(右)
Bearing ø5 x ø9 x 3mm X 1
轴承
Glass fiber botton plate X 1
玻纤底板
Botton plate mount X 3
底板安装座
Socket screw M3X8mm X12
圆柱头内六角螺钉
Special washer ø3 x ø8x 2mm X 12
特殊垫片
Hex frame spacer L=26mm X 4
六方连接杆
Glass fiber tail boom brace
ø3x ø5 x 481mm X 2
玻纤尾管支撑管
Tail boom brace linker
尾管支撑连接头 X 4
Pin screw ø1.5 x ø6 X 4
弹簧式开口销
Washer ø 3 x
ø8 x 10mm X 2
尾管支撑垫圈
Botton plate mount
底板安装座 X 1
Hexagon socket screw M3x 20mm X 2
不锈钢内六角螺钉
Socket screw M3 X 6mm X 6
圆柱头内六角螺钉
Special washer
ø3 x ø8x 2mm X 2
特殊垫片
Motor mount
马达座组
Aeolus E50 REPAIR PARTS LIST Aeolus E50 零部件选购图表
Part
零 件
Code No.
代 码
Name
名 称
QTY
数量
Remarks
备 注
E50A011
E50A012
Drive pinion gear A
同步带轮A
Drive pinion gear B
同步带轮B
Drive pinion gear A *1
同步带轮A *1
Drive pinion gear B *1
同步带轮B *1
紧定螺钉 M4*4mm *1
Set screw M4*4mm *1
紧定螺钉 M4*4mm *1
Set screw M4*4mm *1
