AHRI TF4B18 THRU 60 Quick start guide

LX SERIES
SPLIT SYSTEM
AIR CONDITIONERS
14 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: TF4B18 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.fraserjohnston.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Standard 5-Years limited parts warranty.
Standard 10-Years limited compressor warranty.
Extended 10-Years limited parts warranty when product is
registered online within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or Internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR INSTALLATION ONLY IN US SOUTHEAST
AND NORTHERN REGIONS AND CANADA
Installation Allowed
®
TECHNICAL
GUIDE
TECHNICAL
GUIDE
5006160-BTG-C-0716
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The TF4B models are a new offering in our successful LX
Series split system air conditioner lineup. These units are opti-
mized for the new 14 SEER Regional Minimum Efficiency in the
Southeast US, and feature a tube-in-fin condenser coil, scroll
compressor, and copper filter-drier. These outdoor units have
been specifically designed to be matched with Johnson Con-
trols Unitary Products indoor coils, furnaces, and air handlers to
provide a complete system solution.
FEATURES
•Quality Coils - Enhanced aluminum fins are mechanically
bonded to copper tubing.
•Scroll Compressor - Featuring the newest generation of
high efficiency scroll compressors.
•Copper filter-drier - The factory installed filter drier features
copper construction for reliable long term protection.
•Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. Select indoor matches with
factory-mounted TXVs are available for quicker system
installation. The factory installed filter-drier and factory
charge for a 15-Ft lineset means less time spent brazing and
charging the system. The small base dimension and reduced
unit clearances make for easier retrofits.
•Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
•Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Titanium colored powdercoat paint further protects
external panels.
•Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven stamped steel coil guard design.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high pressure switch. The
liquid line filter-drier is factory installed to protect the com-
pressor against moisture and debris.
•Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures.
•Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
•Top Discharge - Warm air is blown up, away from the struc-
ture and any landscaping and allows compact location on
multi-unit applications.
•Low Operating Sound Levels - The sturdy cabinet and top
design provides sound performance of 76 dBA or lower.
Compatible accessories for further sound reduction are also
available.
•Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, full corner access, and removable fan guard
allow easy access for unit maintenance.
•Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.

5006160-BTG-C-0716
2 Johnson Controls Unitary Products
LIST OF SECTIONS
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4
COOLING CAPACITY - With Air Handler Coils . . . . . . . . . . . . . . . 5
COOLING CAPACITY - Upflow, Downflow &
Horizontal Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . 9
COOLING CAPACITY - With High Efficiency Motor Furnaces . . 10
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
SOUND POWER RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 37
TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
ALTERNATIVE INSTALLATION CLEARANCES . . . . . . . . . . . . . . 39
PERFORMANCE DATA - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 40
PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 43
PERFORMANCE DATA - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 47
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 51
PERFORMANCE DATA - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 55
PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PERFORMANCE DATA - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 62
NOMENCLATURE
BRAND TT= Factory Branded
PRODUCT TYPE F
C=Air Conditioner (US Northern or
Southeast Region)
H= Heat Pump
F= Fin & Tube Air Conditioner
NOMINAL
SERIES EFFICIENCY
AND STAGING 43= 13 SEER / 1-Stage (US Northern
Region)
4= 14 SEER / 1-Stage (US Southeast
or Southwest Region)
REFRIGERANT BB= R-410A
NOMINAL
UNIT CAPACITY
(MBH) 36
18 = 1.5 Ton 42 = 3.5 Ton
24 = 2 Ton 48 = 4 Ton
30 = 2.5 Ton 60 = 5 Ton
36 = 3 Ton
VOLTAGE
(Voltage-Phase-Hertz) 22= 208/230-1-60
GENERATION
(MAJOR REVISION) 11= 1st Gen
2= 2nd Gen
etc
FACTORY OPTION SS= Standard (No Options)
H= Hard Start Kit
STYLE LETTER
(MINOR REVISION)
NOT USED
FOR ORDERING
AA= Style A
B= Style B
etc

5006160-BTG-C-0716
Johnson Controls Unitary Products 3
‡ Adapter fitting must be field installed for the required 1-1/8” line set.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

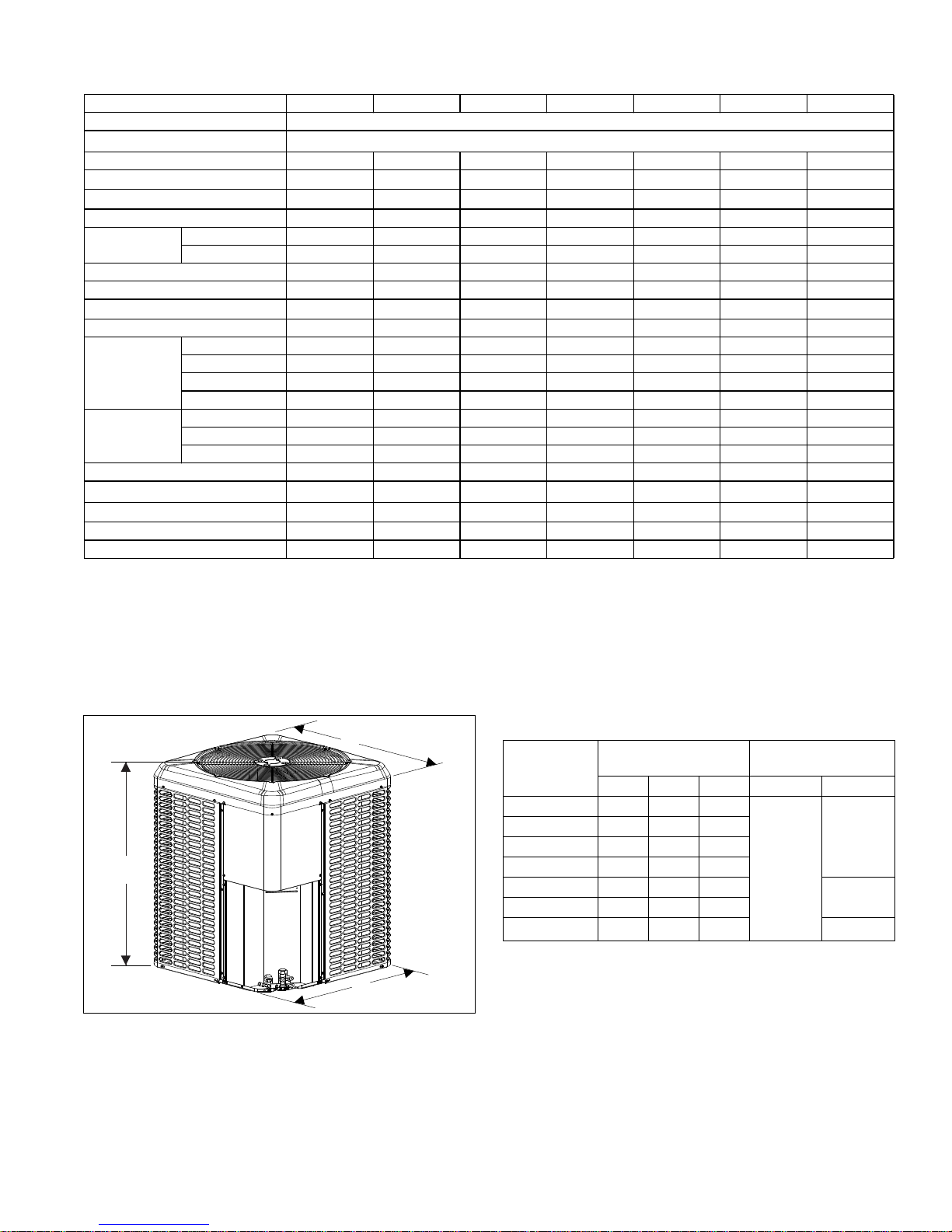

PHYSICAL AND ELECTRICAL DATA
MODEL TF4B1821S TF4B2421S TF4B3021S TF4B3621S TF4B4221S TF4B4821S TF4B6021S
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252
Minimum Circuit Ampacity 11.8 13.6 18.1 20.5 22.1 25.7 31.7
Max. Overcurrent Device Amps 2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
20 20 30 35 35 45 50
Min. Overcurrent Device Amps 3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
15 15 20 25 25 30 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor
Amps Rated Load 9.0 10.2 13.4 15.4 16.6 19.5 24.3
Locked Rotor 47.5 61.6 72.5 83.9 109.0 130.0 144.2
Crankcase Heater No No No No No No No
Factory External Discharge Muffler No No No No No No No
HS Kit Required with TXV 4
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
No No No No No No No
Fan Diameter Inches 18 22 24 24 24 24 26
Fan Motor
Rated HP 1/12 1/8 1/4 1/4 1/4 1/4 1/4
Rated LoadAmps 0.64 0.80 1.30 1.30 1.30 1.30 1.30
Nominal RPM 1000 1075 850 850 850 850 850
Nominal CFM 2125 2850 3775 3775 3550 3625 4025
Coil Face Area Sq. Ft. 14.51 14.58 23.69 23.69 45.95 47.38 51.07
Rows Deep 1111222
Fins / Inch 22 22 22 22 18 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed)5
5. For applications with non-standard vapor line sizes, see the “Applications &Accessories” section of this Technical Guide.
3/4 3/4 3/4 3/4 7/8 7/8 1-1/8‡
Unit Charge (Lbs. - Oz.) 6
6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lineset length (not equivalent length) multiplied by the per foot value.
4 - 15 4 - 15 8 - 4 7 - 5 12 - 10 11 - 5 13 - 2
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 120 131 176 176 230 235 256
&
%
$
$
DIMENSIONS
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
TF4B1821S 36-1/4 24 24
3/8
3/4
TF4B2421S 30 29-1/4 29-1/4
TF4B3021S 39-1/2 35-1/4 31-3/4
TF4B3621S 39-1/2 35-1/4 31-3/4
TF4B4221S 39-1/2 35-1/4 31-3/4 7/8
TF4B4821S 39-1/2 35-1/4 31-3/4
TF4B6021S 39-1/2 38 34-1/4 7/8‡

5006160-BTG-C-0716
4 Johnson Controls Unitary Products
CHARGING PROCEDURES:
1. Check the Factory Unit Charge listed on the unit nameplate to verify the refrigerant charge for the outdoor unit, the smallest matched indoor unit, and the 15 feet
of interconnecting lineset.
2. Verify the indoor metering device and additional charge required for the specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting lineset greater than 15 feet at the rate specified in the Physical and Electrical Table.
4. For installations requiring additional charge, weigh in refrigerant for the specific matching indoor unit and actual lineset length.
5. Once the charge adders for matched indoor unit and for lineset have been weighed in, verify the system operation against the temperatures and pressures in the
Charging Chart for the outdoor unit. Locate Charging Charts on the outdoor unit and also in the Service Data Application Guide on www.upgnet.com. Follow the
Subcool or the Superheat charging procedure in the Installation Manual according to the type of indoor metering device in the system, and allow ten minutes after
each charge adjustment for the system operation to stabilize. Record the charge adjustment made to match the Charging Chart.
6. Permanently stamp the unit data plate with the TOTAL SYSTEM CHARGE defined as follows: TOTAL SYSTEM CHARGE = Base Charge (as shipped) + charge
adder for matched indoor unit + charge adder for actual lineset length + charge adjustments to match the Charging Chart.
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS
Outdoor Unit TF4B1821S TF4B2421S TF4B3021S TF4B3621S TF4B4221S TF4B4821S TF4B6021S
Required TXV 1,2
1. For applications requiring a TXV, use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
BA1 BA1 BB1 BC1 BC1 BC1 BD1
Indoor Unit 3,4,5
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. CF coils cannot be used in horizontal applications.
5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for specified sys-
tem matches. Obtain certified system ratings from www.ahridirectory.org.
Additional Charge, oz
AP18B 0––––––
AP24B 30–––––
AP30B 10 72––––
AP36B 10 720–––
AP36C – 11 22–––
AP42C – 11 220––
AP48(C,D) –––520–
AP60(C,D) ––––920
AE18B 0––––––
AE24B 30–––––
AE30B 850––––
AE36(B,C) 10 720–––
AE42C –––52––
AE48(C,D) –––520–
AE60C ––––920
AE60D ––––292220
AVC18B 0––––––
AVC24B 30–––––
AVC30B 850––––
AVC36(B,C) 10 720–––
AVC42C –––52––
AVC48(C,D) –––520–
AVC60C ––––920
AVC60D ––––292220
CF/CM/CU18(A,B) 0––––––
CF/CM/CU24(A,B) 30–––––
CF/CM/CU30(A,B,C) 850––––
CF/CM/CU36(A,B,C,D) 10 720–––
CF/CM/CU42(B,C,D) – 11 220––
CF/CM/CU48(C,D) –––520–
CF/CM/CU60(C,D) ––––920
CF/CM64D ––––292220
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:

5006160-BTG-C-0716
Johnson Controls Unitary Products 5
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
TF4B1821S AE18BX21 17.5 – 600 18.0 13.7 16.25 13.25
TF4B1821S AE24BX21 17.5 – 600 18.0 13.6 16.25 13.25
TF4B1821S AE30BX21 17.5 – 600 18.0 13.8 16.25 13.25
TF4B1821S AE36BX21 17.5 – 600 18.0 13.4 15.50 12.75
TF4B1821S AE36CX21 21.0 – 600 18.0 13.4 16.00 13.00
TF4B1821S AP18BX21 17.5 – 600 18.0 13.6 15.00 12.50
TF4B1821S AP24BX21 17.5 – 600 18.0 13.5 14.50 12.25
TF4B1821S AP30BX21 17.5 – 600 18.0 13.4 14.75 12.25
TF4B1821S AVC18BX21 17.5 – 600 18.0 13.7 16.25 13.25
TF4B1821S AVC24BX21 17.5 – 600 18.0 13.6 16.25 13.25
TF4B1821S AVC30BX21 17.5 – 600 18.0 13.7 16.25 13.25
TF4B1821S ME08BN21 17.5 CF/CM18B 600 18.0 13.7 16.25 13.25
TF4B1821S ME08BN21 17.5 CF/CM24B 600 18.0 13.6 16.25 13.25
TF4B1821S ME08BN21 17.5 CF/CM30B 600 18.0 13.7 16.25 13.25
TF4B1821S ME08BN21 17.5 CF/CM36B 600 18.0 13.5 16.25 13.25
TF4B1821S ME12BN21 17.5 CF/CM18B 600 18.0 13.6 15.25 12.50
TF4B1821S ME12BN21 17.5 CF/CM24B 625 18.0 13.8 15.50 12.75
TF4B1821S ME12BN21 17.5 CF/CM30B 625 18.0 13.8 15.75 12.75
TF4B1821S ME12BN21 17.5 CF/CM36B 650 18.0 13.9 15.75 13.00
TF4B1821S MVC08BN21 17.5 CF/CM18B 550 18.0 13.2 16.25 13.25
TF4B1821S MVC08BN21 17.5 CF/CM24B 575 18.0 13.4 16.25 13.25
TF4B1821S MVC08BN21 17.5 CF/CM30B 600 18.0 13.7 16.25 13.25
TF4B1821S MVC12BN21 17.5 CF/CM36B 675 18.0 14.0 16.25 13.25
TF4B2421S AE24BX21 17.5 – 800 24.0 18.2 15.75 13.00
TF4B2421S AE30BX21 17.5 – 800 24.0 18.2 16.00 13.25
TF4B2421S AE36BX21 17.5 – 800 24.0 18.2 16.25 13.25
TF4B2421S AE36CX21 21.0 – 800 24.0 18.2 16.25 13.25
TF4B2421S AP24BX21 17.5 – 800 24.0 18.0 14.00 12.00
TF4B2421S AP30BX21 17.5 – 800 24.0 17.8 14.75 12.50
TF4B2421S AP36BX21 17.5 – 900 24.0 19.0 14.25 12.25
TF4B2421S AP36CX21 21.0 – 850 24.0 18.4 14.25 12.25
TF4B2421S AVC24BX21 17.5 – 750 24.0 17.8 15.50 12.75
TF4B2421S AVC30BX21 17.5 – 775 24.0 18.0 16.25 13.25
TF4B2421S AVC36BX21 17.5 – 800 24.0 18.0 16.25 13.25
TF4B2421S AVC36CX21 21.0 – 800 24.0 18.0 16.25 13.25
TF4B2421S ME08BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00
TF4B2421S ME08BN21 17.5 CF/CM30B 800 24.0 18.2 16.25 13.25
TF4B2421S ME08BN21 17.5 CF/CM36B 800 24.0 18.0 16.25 13.25
TF4B2421S ME08BN21 17.5 CF42B 800 24.0 18.0 15.75 13.00
TF4B2421S ME12BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00
TF4B2421S ME12BN21 17.5 CF/CM30B 800 24.0 18.0 16.00 13.25
TF4B2421S ME12BN21 17.5 CF/CM36B 800 24.0 18.0 16.00 13.25
TF4B2421S ME12BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S ME14DN21 24.5 CF/CM30D 800 24.0 18.0 15.50 12.75
TF4B2421S ME14DN21 24.5 CF/CM36D 800 24.0 18.0 15.50 12.75
TF4B2421S ME14DN21 24.5 CF/CM42D 800 24.0 18.0 15.75 13.00
TF4B2421S ME16CN21 21.0 CF/CM24C 875 24.0 18.8 14.50 12.25
TF4B2421S MVC08BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00
TF4B2421S MVC08BN21 17.5 CF/CM30B 700 24.0 17.6 16.00 13.25
TF4B2421S MVC08BN21 17.5 CF/CM36B 775 24.0 17.8 16.25 13.25
TF4B2421S MVC08BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S MVC12BN21 17.5 CF/CM24B 800 24.0 18.0 15.75 13.00
For Notes See Page 8.

5006160-BTG-C-0716
6 Johnson Controls Unitary Products
TF4B2421S MVC12BN21 17.5 CF/CM30B 850 24.0 18.8 16.00 13.25
TF4B2421S MVC12BN21 17.5 CF/CM36B 775 24.0 17.8 16.00 13.25
TF4B2421S MVC12BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S MVC14DN21 24.5 CF/CM30D 800 24.0 18.0 16.25 13.25
TF4B2421S MVC14DN21 24.5 CF/CM36D 850 24.0 18.4 16.25 13.25
TF4B2421S MVC14DN21 24.5 CF/CM42D 825 24.0 18.4 16.25 13.25
TF4B2421S MVC16CN21 21.0 CF/CM42C 900 24.0 19.0 16.25 13.25
TF4B3021S AE30BX21 17.5 – 1000 29.8 21.6 15.25 12.50
TF4B3021S AE36BX21 17.5 – 975 30.0 21.8 15.50 12.75
TF4B3021S AE36CX21 21.0 – 1000 30.0 21.6 16.00 13.00
TF4B3021S AP30BX21 17.5 – 1000 29.6 21.2 14.25 11.75
TF4B3021S AP36BX21 17.5 – 1000 29.6 21.2 14.00 11.75
TF4B3021S AP36CX21 21.0 – 1000 29.6 21.6 14.25 11.75
TF4B3021S AP42CX21 21.0 – 1100 29.8 22.6 14.00 11.75
TF4B3021S AVC30BX21 17.5 – 975 29.8 21.4 15.25 12.50
TF4B3021S AVC36BX21 17.5 – 975 30.0 22.0 15.75 12.75
TF4B3021S AVC36CX21 21.0 – 975 30.0 22.0 16.25 13.25
TF4B3021S ME08BN21 17.5 CF/CM30B 900 29.6 20.8 15.50 12.75
TF4B3021S ME08BN21 17.5 CF/CM36B 900 29.6 20.6 15.75 12.75
TF4B3021S ME08BN21 17.5 CF42B 875 29.6 20.6 15.75 12.75
TF4B3021S ME12BN21 17.5 CF/CM30B 825 29.2 19.8 15.50 12.75
TF4B3021S ME12BN21 17.5 CF/CM36B 1025 30.0 21.8 15.50 12.75
TF4B3021S ME12BN21 17.5 CF42B 975 30.0 21.8 15.50 12.75
TF4B3021S ME14DN21 24.5 CF/CM30D 1050 30.0 22.2 16.00 13.00
TF4B3021S ME14DN21 24.5 CF/CM36D 1025 30.0 22.0 16.00 13.00
TF4B3021S ME14DN21 24.5 CF/CM42D 1000 30.0 21.8 16.25 13.25
TF4B3021S ME16CN21 21.0 CF/CM30C 1075 30.0 22.6 15.25 12.50
TF4B3021S ME16CN21 21.0 CF/CM36C 1100 30.0 22.8 15.25 12.50
TF4B3021S ME16CN21 21.0 CF/CM42C 1000 29.8 21.8 15.00 12.50
TF4B3021S MVC08BN21 17.5 CF42B 825 29.4 20.0 15.50 12.75
TF4B3021S MVC12BN21 17.5 CF/CM30B 850 29.2 19.8 15.25 12.50
TF4B3021S MVC12BN21 17.5 CF/CM36B 1000 30.0 21.6 15.25 12.50
TF4B3021S MVC12BN21 17.5 CF42B 975 30.0 21.8 15.50 12.75
TF4B3021S MVC14DN21 24.5 CF/CM30D 925 30.0 21.0 16.00 13.00
TF4B3021S MVC14DN21 24.5 CF/CM36D 975 30.0 21.4 16.00 13.00
TF4B3021S MVC14DN21 24.5 CF/CM42D 1000 30.0 21.8 16.25 13.25
TF4B3021S MVC16CN21 21.0 CF/CM30C 925 30.0 21.0 16.00 13.00
TF4B3021S MVC16CN21 21.0 CF/CM36C 1025 30.0 22.0 16.00 13.00
TF4B3021S MVC16CN21 21.0 CF/CM42C 900 30.0 21.0 16.00 13.00
TF4B3021S MVC20DN21 24.5 CF/CM36D 1120 30.0 22.8 16.00 13.00
TF4B3021S MVC20DN21 24.5 CF/CM42D 1100 30.0 22.8 15.75 12.75
TF4B3621S AE36BX21 17.5 – 1000 35.6 24.0 15.00 12.50
TF4B3621S AE36CX21 21.0 – 1225 36.0 26.0 15.25 12.50
TF4B3621S AE42CX21 21.0 – 1200 36.0 25.8 15.25 12.50
TF4B3621S AE48CX21 21.0 – 1250 36.0 26.4 15.50 12.75
TF4B3621S AE48DX21 24.5 – 1225 36.0 26.0 15.50 12.75
TF4B3621S AP36BX21 17.5 – 1000 35.0 23.4 14.00 11.75
TF4B3621S AP36CX21 21.0 – 1225 36.0 25.8 14.00 11.75
TF4B3621S AP42CX21 21.0 – 1225 36.0 26.0 14.00 11.75
TF4B3621S AP48CX21 21.0 – 1200 36.0 25.6 14.00 11.75
TF4B3621S AP48DX21 24.5 – 1325 36.0 26.6 14.00 11.75
TF4B3621S AVC36BX21 17.5 – 1025 35.8 24.2 15.00 12.50
For Notes See Page 8.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 7
TF4B3621S AVC36CX21 21.0 – 1125 36.0 25.6 15.50 12.75
TF4B3621S AVC42CX21 21.0 – 1100 36.0 25.4 15.50 12.75
TF4B3621S AVC48CX21 21.0 – 1075 36.0 24.8 15.50 12.75
TF4B3621S AVC48DX21 24.5 – 1350 36.0 27.0 15.50 12.75
TF4B3621S ME12BN21 17.5 CF/CM36B 1025 35.8 24.2 15.00 12.50
TF4B3621S ME12BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25
TF4B3621S ME14DN21 24.5 CF/CM36D 1250 36.0 26.2 15.50 12.75
TF4B3621S ME14DN21 24.5 CF/CM42D 1225 36.0 26.0 15.50 12.75
TF4B3621S ME14DN21 24.5 CF/CM48D 1200 36.0 25.8 15.50 12.75
TF4B3621S ME16CN21 21.0 CF/CM36C 1225 36.0 26.0 15.50 12.75
TF4B3621S ME16CN21 21.0 CF/CM42C 1225 36.0 26.0 15.50 12.75
TF4B3621S ME16CN21 21.0 CF/CM48C 1225 36.0 26.0 15.50 12.75
TF4B3621S ME20DN21 24.5 CF/CM36D 1325 36.0 26.8 14.50 12.25
TF4B3621S ME20DN21 24.5 CF/CM42D 1325 36.0 26.8 14.50 12.25
TF4B3621S ME20DN21 24.5 CF/CM48D 1325 36.0 26.8 14.75 12.25
TF4B3621S MVC08BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25
TF4B3621S MVC12BN21 17.5 CF/CM36B 1025 35.6 24.0 14.50 12.25
TF4B3621S MVC12BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25
TF4B3621S MVC14DN21 24.5 CF/CM36D 975 35.6 23.6 15.25 12.50
TF4B3621S MVC14DN21 24.5 CF/CM42D 1275 36.0 26.4 15.50 12.75
TF4B3621S MVC14DN21 24.5 CF/CM48D 1150 36.0 25.4 15.75 12.75
TF4B3621S MVC16CN21 21.0 CF/CM36C 1100 36.0 25.0 15.50 12.75
TF4B3621S MVC16CN21 21.0 CF/CM42C 1250 36.0 26.2 15.25 12.50
TF4B3621S MVC16CN21 21.0 CF/CM48C 1200 36.0 25.8 15.50 12.75
TF4B3621S MVC20DN21 24.5 CF/CM36D 1120 36.0 25.2 15.50 12.75
TF4B3621S MVC20DN21 24.5 CF/CM42D 1200 36.0 26.0 15.25 12.50
TF4B3621S MVC20DN21 24.5 CF/CM48D 1200 36.0 25.8 15.50 12.75
TF4B4221S AE42CX21 21.0 – 1375 41.0 31.0 14.75 12.50
TF4B4221S AE48CX21 21.0 – 1225 41.0 29.0 15.25 12.75
TF4B4221S AE48DX21 24.5 – 1225 41.0 29.0 15.50 12.75
TF4B4221S AE60CX21 21.0 – 1425 41.5 32.0 15.00 12.50
TF4B4221S AE60DX21 24.5 – 1400 42.0 31.0 15.50 12.75
TF4B4221S AP42CX21 21.0 – 1225 40.0 28.0 14.00 12.25
TF4B4221S AP48CX21 21.0 – 1300 40.5 29.0 14.00 12.25
TF4B4221S AP48DX21 24.5 – 1350 41.0 30.0 14.00 12.25
TF4B4221S AP60CX21 21.0 – 1350 40.5 29.5 14.00 12.20
TF4B4221S AVC42CX21 21.0 – 1275 41.0 29.5 15.00 12.50
TF4B4221S AVC48CX21 21.0 – 1225 41.0 29.0 15.25 12.75
TF4B4221S AVC48DX21 24.5 – 1300 41.5 30.0 15.50 12.75
TF4B4221S AVC60CX21 21.0 – 1275 41.0 30.0 15.25 12.75
TF4B4221S AVC60DX21 24.5 – 1200 41.5 29.0 15.25 12.75
TF4B4221S ME14DN21 24.5 CF/CM42D 1400 41.5 31.0 15.25 12.75
TF4B4221S ME14DN21 24.5 CF/CM48D 1400 41.5 31.0 15.25 12.75
TF4B4221S ME14DN21 24.5 CF/CM60D 1225 41.0 29.5 15.75 13.00
TF4B4221S ME14DN21 24.5 CF/CM64D 1375 42.0 31.0 15.50 12.75
TF4B4221S ME16CN21 21.0 CF/CM42C 1400 41.5 31.0 15.00 12.50
TF4B4221S ME16CN21 21.0 CF/CM48C 1225 41.0 29.0 15.50 12.75
TF4B4221S ME16CN21 21.0 CF/CM60C 1225 41.0 29.5 15.75 13.00
TF4B4221S ME20DN21 24.5 CF/CM42D 1450 41.5 31.5 15.25 12.75
TF4B4221S ME20DN21 24.5 CF/CM48D 1475 42.0 32.0 15.50 12.75
TF4B4221S ME20DN21 24.5 CF/CM60D 1425 42.0 31.5 15.25 12.75
TF4B4221S ME20DN21 24.5 CF/CM64D 1400 42.0 31.5 15.50 12.75
TF4B4221S MVC12BN21 17.5 CF42B 1175 40.0 27.5 14.50 12.25
For Notes See Page 8.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
8 Johnson Controls Unitary Products
— = Not applicable.
MP Modular Air Handlers use Coil Only Ratings.
TF4B4221S MVC14DN21 24.5 CF/CM42D 1375 41.0 31.0 15.25 12.75
TF4B4221S MVC14DN21 24.5 CF/CM48D 1325 41.5 30.0 15.50 12.75
TF4B4221S MVC14DN21 24.5 CF/CM60D 1225 41.0 29.5 15.50 12.75
TF4B4221S MVC14DN21 24.5 CF/CM64D 1325 41.5 30.5 15.75 13.00
TF4B4221S MVC16CN21 21.0 CF/CM42C 1250 41.0 29.0 15.50 12.75
TF4B4221S MVC16CN21 21.0 CF/CM48C 1275 41.0 29.5 15.25 12.75
TF4B4221S MVC20DN21 24.5 CF/CM42D 1225 40.5 29.0 15.00 12.50
TF4B4221S MVC20DN21 24.5 CF/CM48D 1300 41.5 30.0 15.25 12.75
TF4B4221S MVC20DN21 24.5 CF/CM60D 1250 41.5 29.5 16.00 13.25
TF4B4221S MVC20DN21 24.5 CF/CM64D 1250 42.0 29.5 15.50 12.75
TF4B4821S AE48CX21 21.0 – 1425 47.5 34.5 15.25 12.50
TF4B4821S AE48DX21 24.5 – 1425 47.5 35.0 15.50 12.75
TF4B4821S AE60CX21 21.0 – 1425 48.0 35.5 15.50 12.75
TF4B4821S AE60DX21 24.5 – 1400 48.0 35.0 15.75 13.00
TF4B4821S AP48CX21 21.0 – 1300 46.0 32.5 14.00 11.75
TF4B4821S AP48DX21 24.5 – 1600 47.0 34.0 14.00 11.75
TF4B4821S AP60CX21 21.0 – 1600 48.0 36.5 14.00 11.75
TF4B4821S AP60DX21 24.5 – 1600 48.0 36.5 14.00 11.75
TF4B4821S AVC48CX21 21.0 – 1350 48.0 34.0 14.75 12.50
TF4B4821S AVC48DX21 24.5 – 1350 48.0 34.0 15.00 12.50
TF4B4821S AVC60CX21 21.0 – 1350 47.5 34.5 15.25 12.50
TF4B4821S AVC60DX21 24.5 – 1475 48.0 35.5 15.50 12.75
TF4B4821S ME14DN21 24.5 CF/CM60D 1425 48.0 35.5 15.50 12.75
TF4B4821S ME14DN21 24.5 CF/CM64D 1375 48.0 35.0 15.75 12.75
TF4B4821S ME16CN21 21.0 CF/CM48C 1475 48.0 35.5 15.00 12.50
TF4B4821S ME16CN21 21.0 CF/CM60C 1450 48.0 35.5 15.50 12.75
TF4B4821S ME20DN21 24.5 CF/CM48D 1475 48.0 35.5 15.25 12.50
TF4B4821S ME20DN21 24.5 CF/CM60D 1400 48.0 35.0 15.25 12.50
TF4B4821S ME20DN21 24.5 CF/CM64D 1425 48.0 35.0 15.75 12.75
TF4B4821S MVC14DN21 24.5 CF/CM48D 1325 47.0 33.0 15.00 12.50
TF4B4821S MVC14DN21 24.5 CF/CM60D 1350 47.5 34.0 15.25 12.50
TF4B4821S MVC14DN21 24.5 CF/CM64D 1325 48.0 34.0 15.75 12.75
TF4B4821S MVC16CN21 21.0 CF/CM48C 1425 47.5 34.5 15.50 12.50
TF4B4821S MVC16CN21 21.0 CF/CM60C 1650 48.0 37.5 16.25 13.25
TF4B4821S MVC20DN21 24.5 CF/CM48D 1450 48.0 35.0 15.50 12.75
TF4B4821S MVC20DN21 24.5 CF/CM60D 1475 48.0 35.5 15.75 12.75
TF4B4821S MVC20DN21 24.5 CF/CM64D 1375 48.0 35.0 15.75 12.75
TF4B6021S AE60CX21 21.0 – 1625 56.5 39.0 14.25 12.00
TF4B6021S AE60DX21 24.5 – 1775 58.0 41.0 14.50 12.00
TF4B6021S AVC60DX21 24.5 – 1650 57.5 40.0 14.25 12.25
TF4B6021S ME16CN21 21.0 CF/CM60C 1625 56.5 39.0 14.75 12.25
TF4B6021S ME20DN21 24.5 CF/CM60D 1650 56.5 39.0 14.75 12.25
TF4B6021S ME20DN21 24.5 CF/CM64D 1625 58.0 39.5 14.75 12.25
TF4B6021S MVC16CN21 21.0 CF/CM60C 1650 57.0 39.5 15.50 12.75
TF4B6021S MVC20DN21 24.5 CF/CM60D 1700 56.5 39.0 14.50 12.00
TF4B6021S MVC20DN21 24.5 CF/CM64D 1700 57.5 39.5 14.75 12.25
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total
electric power input in watt-hours during the same period.
1. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 9
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
COIL CFM RANGE
(MIN.-MAX.)
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER 1EER
TOTAL SENS.
TF4B1821S CF/CM/CU18A 14.5 450 - 750 600 17.8 13.3 14.00 12.20
TF4B1821S CF/CM/CU18B 17.5 450 - 750 600 17.8 13.3 14.00 12.20
TF4B1821S CF/CM/CU24A 14.5 450 - 750 600 18.0 13.5 14.00 12.20
TF4B1821S CF/CM/CU24B 17.5 450 - 750 600 18.0 13.5 14.00 12.20
TF4B1821S CF/CM/CU24C 21.0 450 - 750 600 18.0 13.5 14.00 12.20
TF4B1821S CF/CM/CU30A 14.5 450 - 750 600 18.0 13.6 14.00 12.20
TF4B1821S CF/CM/CU30B 17.5 450 - 750 600 18.0 13.6 14.00 12.20
TF4B1821S CF/CM/CU30C 21.0 450 - 750 600 18.0 13.6 14.00 12.20
TF4B1821S CF/CM/CU30D 24.5 450 - 750 600 18.0 13.6 14.00 12.20
TF4B1821S CF/CM/CU36B 17.5 450 - 750 600 18.0 13.4 14.50 12.25
TF4B1821S CF/CM/CU36C 21.0 450 - 750 600 18.0 13.4 14.50 12.25
TF4B1821S CF/CM/CU36D 24.5 450 - 750 600 18.0 13.4 14.50 12.25
TF4B1821S CF/CM36A 14.5 450 - 750 600 18.0 13.4 14.50 12.25
TF4B2421S CF/CM/CU24A 14.5 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU24B 17.5 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU24C 21.0 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU30A 14.5 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU30B 17.5 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU30C 21.0 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU30D 24.5 600 - 1000 800 24.0 18.0 14.00 11.75
TF4B2421S CF/CM/CU36B 17.5 600 - 1000 800 24.0 17.8 14.25 12.25
TF4B2421S CF/CM/CU36C 21.0 600 - 1000 800 24.0 17.8 14.25 12.25
TF4B2421S CF/CM/CU36D 24.5 600 - 1000 800 24.0 17.8 14.25 12.25
TF4B2421S CF/CM/CU42C 21.0 600 - 1000 800 24.0 17.8 14.50 12.25
TF4B2421S CF/CM/CU42D 24.5 600 - 1000 800 24.0 17.8 14.50 12.25
TF4B2421S CF/CM36A 14.5 600 - 1000 800 24.0 17.8 14.25 12.25
TF4B2421S CF42B 17.5 600 - 1000 800 24.0 17.8 14.50 12.25
TF4B3021S CF/CM/CU30B 17.5 800 - 1200 1000 29.0 21.0 14.00 11.75
TF4B3021S CF/CM/CU30C 21.0 800 - 1200 1000 29.0 21.0 14.00 11.75
TF4B3021S CF/CM/CU30D 24.5 800 - 1200 1000 29.0 21.0 14.00 11.75
TF4B3021S CF/CM/CU36B 17.5 800 - 1200 1000 29.4 21.2 14.00 11.75
TF4B3021S CF/CM/CU36C 21.0 800 - 1200 1000 29.4 21.2 14.00 11.75
TF4B3021S CF/CM/CU36D 24.5 800 - 1200 1000 29.4 21.2 14.00 11.75
TF4B3021S CF/CM/CU42C 21.0 800 - 1200 1000 29.6 21.4 14.00 11.75
TF4B3021S CF/CM/CU42D 24.5 800 - 1200 1000 29.6 21.4 14.00 11.75
TF4B3021S CF42B 17.5 800 - 1200 1000 29.6 21.4 14.00 11.75
TF4B3621S CF/CM/CU36B 17.5 1000 - 1400 1200 35.0 24.6 14.00 11.75
TF4B3621S CF/CM/CU36C 21.0 1000 - 1400 1200 35.0 24.6 14.00 11.75
TF4B3621S CF/CM/CU36D 24.5 1000 - 1400 1200 35.0 24.6 14.00 11.75
TF4B3621S CF/CM/CU42C 21.0 1000 - 1400 1200 36.0 26.0 14.00 11.75
TF4B3621S CF/CM/CU42D 24.5 1000 - 1400 1200 36.0 26.0 14.00 11.75
TF4B3621S CF/CM/CU48C 21.0 1000 - 1400 1200 36.0 25.6 14.00 11.75
TF4B3621S CF/CM/CU48D 24.5 1000 - 1400 1200 36.0 25.6 14.00 11.75
TF4B3621S CF42B 17.5 1000 - 1400 1200 36.0 26.0 14.00 11.75
TF4B4221S CF/CM/CU42C 21.0 1200 - 1600 1400 40.0 31.0 14.00 12.20
TF4B4221S CF/CM/CU42D 24.5 1200 - 1600 1400 40.0 31.0 14.00 12.20
TF4B4221S CF/CM/CU48C 21.0 1200 - 1600 1400 41.0 30.0 14.00 12.20
TF4B4221S CF/CM/CU48D 24.5 1200 - 1600 1400 41.0 30.0 14.00 12.20
For Notes See Page 10.

5006160-BTG-C-0716
10 Johnson Controls Unitary Products
— = Not Applicable.
MP Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
TF4B4221S CF/CM/CU60C 21.0 1200 - 1600 1400 41.0 30.5 14.00 12.20
TF4B4221S CF/CM/CU60D 24.5 1200 - 1600 1400 41.0 30.5 14.00 12.20
TF4B4221S CF/CM64D 24.5 1200 - 1600 1400 41.5 31.0 14.25 12.25
TF4B4221S CF42B 17.5 1200 - 1600 1225 38.5 27.0 14.00 12.20
TF4B4821S CF/CM/CU48C 21.0 1400 - 1800 1600 46.5 33.5 14.00 11.75
TF4B4821S CF/CM/CU48D 24.5 1400 - 1800 1600 46.5 33.5 14.00 11.75
TF4B4821S CF/CM/CU60C 21.0 1400 - 1800 1600 48.0 36.5 14.00 11.75
TF4B4821S CF/CM/CU60D 24.5 1400 - 1800 1600 48.0 36.5 14.00 11.75
TF4B4821S CF/CM64D 24.5 1400 - 1800 1600 48.0 36.5 14.25 12.25
TF4B6021S CF/CM/CU60C 21.0 1530 - 1930 1715 56.0 39.0 14.00 11.75
TF4B6021S CF/CM/CU60D 24.5 1530 - 1930 1725 56.0 39.0 14.00 11.75
TF4B6021S CF/CM64D 24.5 1530 - 1930 1725 57.5 40.5 14.00 11.75
For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings) (Continued)
UNIT MODEL
COIL CFM RANGE
(MIN.-MAX.)
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER 1EER
TOTAL SENS.
COOLING CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
TF4B1821S TM8V060A12MP11 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00
TF4B1821S TM8V060A12MP11 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25
TF4B1821S TM8V060A12MP11 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25
TF4B1821S TM8V080B12MP11 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25
TF4B1821S TM8V080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25
TF4B1821S TM8V080B12MP11 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25
TF4B1821S TM8V080B12MP11 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25
TF4B1821S TM8X060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00
TF4B1821S TM8X060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00
TF4B1821S TM8X060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25
TF4B1821S TM8X060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25
TF4B1821S TM8X080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00
TF4B1821S TM8X080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25
TF4B1821S TM8X080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25
TF4B1821S TM8X080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TM8X080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8X080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8X080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TM8X080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
TF4B1821S TM8X080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TM8X100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8X100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8X100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TM8X100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
TF4B1821S TM8X100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TM8Y060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00
TF4B1821S TM8Y060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00
TF4B1821S TM8Y060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25
For notes see Page 35.

5006160-BTG-C-0716
Johnson Controls Unitary Products 11
TF4B1821S TM8Y060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25
TF4B1821S TM8Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00
TF4B1821S TM8Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25
TF4B1821S TM8Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25
TF4B1821S TM8Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TM8Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8Y080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TM8Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
TF4B1821S TM8Y080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TM8Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TM8Y100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TM8Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
TF4B1821S TM8Y100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TM9E040A10MP11 14.5 CF/CM/CU18A 600 18.0 13.7 16.00 13.25
TF4B1821S TM9E040A10MP11 14.5 CF/CM/CU24A 575 18.0 13.4 16.00 13.25
TF4B1821S TM9E040A10MP11 14.5 CF/CM/CU30A 600 18.0 13.6 16.25 13.25
TF4B1821S TM9E040A10MP11 14.5 CF/CM36A 600 18.0 13.5 16.25 13.25
TF4B1821S TM9E060B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75
TF4B1821S TM9E060B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00
TF4B1821S TM9E060B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00
TF4B1821S TM9E060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25
TF4B1821S TM9E080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75
TF4B1821S TM9E080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00
TF4B1821S TM9E080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00
TF4B1821S TM9E080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25
TF4B1821S TM9E080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25
TF4B1821S TM9E080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25
TF4B1821S TM9E080C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25
TF4B1821S TM9E080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25
TF4B1821S TM9E080C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25
TF4B1821S TM9E100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25
TF4B1821S TM9E100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25
TF4B1821S TM9E100C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25
TF4B1821S TM9E100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25
TF4B1821S TM9E100C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25
TF4B1821S TM9E100C20MP11 21.0 CF/CM/CU24C 625 18.0 13.8 14.75 12.25
TF4B1821S TM9E100C20MP11 21.0 CF/CM/CU30C 625 18.0 13.8 15.00 12.50
TF4B1821S TM9E100C20MP11 21.0 CF/CM/CU30D 650 18.0 13.8 15.00 12.50
TF4B1821S TM9E100C20MP11 21.0 CF/CM/CU36C 625 18.0 13.5 15.00 12.50
TF4B1821S TM9E100C20MP11 21.0 CF/CM/CU36D 650 18.0 13.9 15.25 12.50
TF4B1821S TM9E120D20MP11 24.5 CF/CM/CU30D 600 18.0 13.7 15.00 12.50
TF4B1821S TM9E120D20MP11 24.5 CF/CM/CU36D 600 18.0 13.4 15.00 12.50
TF4B1821S TM9V040A10MP11 14.5 CF/CM/CU24A 675 18.0 14.3 15.00 12.50
TF4B1821S TM9V060B12MP11 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00
TF4B1821S TM9V060B12MP11 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25
TF4B1821S TM9V060B12MP11 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25
TF4B1821S TM9V060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TM9V080B12MP11 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00
TF4B1821S TM9V080B12MP11 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
12 Johnson Controls Unitary Products
TF4B1821S TM9V080B12MP11 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25
TF4B1821S TM9V080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y040A10MP11 14.5 CF/CM/CU18A 600 18.0 13.7 16.00 13.25
TF4B1821S TM9Y040A10MP11 14.5 CF/CM/CU24A 575 18.0 13.4 16.00 13.25
TF4B1821S TM9Y040A10MP11 14.5 CF/CM/CU30A 600 18.0 13.6 16.25 13.25
TF4B1821S TM9Y040A10MP11 14.5 CF/CM36A 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y060B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75
TF4B1821S TM9Y060B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00
TF4B1821S TM9Y060B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00
TF4B1821S TM9Y060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25
TF4B1821S TM9Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75
TF4B1821S TM9Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00
TF4B1821S TM9Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00
TF4B1821S TM9Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25
TF4B1821S TM9Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25
TF4B1821S TM9Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25
TF4B1821S TM9Y080C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25
TF4B1821S TM9Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y080C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25
TF4B1821S TM9Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25
TF4B1821S TM9Y100C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25
TF4B1821S TM9Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y100C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25
TF4B1821S TM9Y100C20MP11 21.0 CF/CM/CU24C 625 18.0 13.8 14.75 12.25
TF4B1821S TM9Y100C20MP11 21.0 CF/CM/CU30C 625 18.0 13.8 15.00 12.50
TF4B1821S TM9Y100C20MP11 21.0 CF/CM/CU30D 650 18.0 13.8 15.00 12.50
TF4B1821S TM9Y100C20MP11 21.0 CF/CM/CU36C 625 18.0 13.5 15.00 12.50
TF4B1821S TM9Y100C20MP11 21.0 CF/CM/CU36D 650 18.0 13.9 15.25 12.50
TF4B1821S TM9Y120D20MP11 24.5 CF/CM/CU30D 600 18.0 13.7 15.00 12.50
TF4B1821S TM9Y120D20MP11 24.5 CF/CM/CU36D 600 18.0 13.4 15.00 12.50
TF4B1821S TMLV060A12MP11 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00
TF4B1821S TMLV060A12MP11 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25
TF4B1821S TMLV060A12MP11 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25
TF4B1821S TMLV080B12MP11 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25
TF4B1821S TMLV080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25
TF4B1821S TMLV080B12MP11 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25
TF4B1821S TMLV080B12MP11 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25
TF4B1821S TMLX060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00
TF4B1821S TMLX060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00
TF4B1821S TMLX060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25
TF4B1821S TMLX060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25
TF4B1821S TMLX080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00
TF4B1821S TMLX080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25
TF4B1821S TMLX080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25
TF4B1821S TMLX080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TMLX080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TMLX080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TMLX080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TMLX080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 13
TF4B1821S TMLX080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TMLX100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00
TF4B1821S TMLX100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00
TF4B1821S TMLX100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25
TF4B1821S TMLX100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25
TF4B1821S TMLX100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25
TF4B1821S TP9C060B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00
TF4B1821S TP9C060B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25
TF4B1821S TP9C060B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25
TF4B1821S TP9C060B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TP9C080B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00
TF4B1821S TP9C080B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25
TF4B1821S TP9C080B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25
TF4B1821S TP9C080B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25
TF4B1821S TPLC060A12MP12 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00
TF4B1821S TPLC060A12MP12 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25
TF4B1821S TPLC060A12MP12 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25
TF4B1821S TPLC080B12MP12 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25
TF4B1821S TPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25
TF4B1821S TPLC080B12MP12 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25
TF4B1821S TPLC080B12MP12 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25
TF4B2421S TM8V060A12MP11 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50
TF4B2421S TM8V060A12MP11 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50
TF4B2421S TM8V060A12MP11 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50
TF4B2421S TM8V080B12MP11 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50
TF4B2421S TM8V080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75
TF4B2421S TM8V080B12MP11 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75
TF4B2421S TM8V080B12MP11 17.5 CF42B 850 24.0 18.4 15.75 13.00
TF4B2421S TM8X060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75
TF4B2421S TM8X060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25
TF4B2421S TM8X060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25
TF4B2421S TM8X080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00
TF4B2421S TM8X080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25
TF4B2421S TM8X080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25
TF4B2421S TM8X080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
14 Johnson Controls Unitary Products
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TM8X100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TM8X120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TM8Y060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75
TF4B2421S TM8Y060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25
TF4B2421S TM8Y060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25
TF4B2421S TM8Y080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00
TF4B2421S TM8Y080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25
TF4B2421S TM8Y080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25
TF4B2421S TM8Y080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TM8Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TM8Y120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TM9E040A10MP11 14.5 CF/CM/CU24A 750 24.0 17.6 14.75 12.25
TF4B2421S TM9E040A10MP11 14.5 CF/CM/CU30A 775 24.0 18.0 15.25 12.50
TF4B2421S TM9E040A10MP11 14.5 CF/CM36A 775 24.0 17.8 15.25 12.50
TF4B2421S TM9E060B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00
TF4B2421S TM9E060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25
TF4B2421S TM9E060B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9E060B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 15
TF4B2421S TM9E080B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00
TF4B2421S TM9E080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25
TF4B2421S TM9E080B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9E080B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9E080C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9E100C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU24C 825 24.0 18.2 15.25 12.50
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU30C 825 24.0 18.2 15.50 12.75
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.50 12.75
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.2 15.50 12.75
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.2 15.50 12.75
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.0 15.75 13.00
TF4B2421S TM9E100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.75 13.00
TF4B2421S TM9E120D20MP11 24.5 CF/CM/CU30D 825 24.0 18.4 15.75 13.00
TF4B2421S TM9E120D20MP11 24.5 CF/CM/CU36D 800 24.0 18.0 15.75 13.00
TF4B2421S TM9E120D20MP11 24.5 CF/CM/CU42D 800 24.0 18.0 15.75 13.00
TF4B2421S TM9V040A10MP11 14.5 CF/CM/CU24A 675 24.0 16.8 14.25 12.25
TF4B2421S TM9V040A10MP11 14.5 CF/CM/CU30A 700 24.0 17.4 14.75 12.25
TF4B2421S TM9V060B12MP11 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25
TF4B2421S TM9V060B12MP11 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75
TF4B2421S TM9V060B12MP11 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25
TF4B2421S TM9V060B12MP11 17.5 CF42B 825 24.0 18.2 16.25 13.25
TF4B2421S TM9V080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25
TF4B2421S TM9V080B12MP11 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75
TF4B2421S TM9V080B12MP11 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25
TF4B2421S TM9V080B12MP11 17.5 CF42B 825 24.0 18.2 16.25 13.25
TF4B2421S TM9V080C16MP11 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25
TF4B2421S TM9V100C16MP11 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25
TF4B2421S TM9Y040A10MP11 14.5 CF/CM/CU24A 750 24.0 17.6 14.75 12.25
TF4B2421S TM9Y040A10MP11 14.5 CF/CM/CU30A 775 24.0 18.0 15.25 12.50
TF4B2421S TM9Y040A10MP11 14.5 CF/CM36A 775 24.0 17.8 15.25 12.50
TF4B2421S TM9Y060B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00
TF4B2421S TM9Y060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25
TF4B2421S TM9Y060B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9Y060B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9Y080B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00
TF4B2421S TM9Y080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25
TF4B2421S TM9Y080B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
16 Johnson Controls Unitary Products
TF4B2421S TM9Y080B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9Y080C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25
TF4B2421S TM9Y100C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU24C 825 24.0 18.2 15.25 12.50
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU30C 825 24.0 18.2 15.50 12.75
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.50 12.75
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.2 15.50 12.75
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.2 15.50 12.75
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.0 15.75 13.00
TF4B2421S TM9Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.75 13.00
TF4B2421S TM9Y120D20MP11 24.5 CF/CM/CU30D 825 24.0 18.4 15.75 13.00
TF4B2421S TM9Y120D20MP11 24.5 CF/CM/CU36D 800 24.0 18.0 15.75 13.00
TF4B2421S TM9Y120D20MP11 24.5 CF/CM/CU42D 800 24.0 18.0 15.75 13.00
TF4B2421S TMLV060A12MP11 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50
TF4B2421S TMLV060A12MP11 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50
TF4B2421S TMLV060A12MP11 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50
TF4B2421S TMLV080B12MP11 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50
TF4B2421S TMLV080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75
TF4B2421S TMLV080B12MP11 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75
TF4B2421S TMLV080B12MP11 17.5 CF42B 850 24.0 18.4 15.75 13.00
TF4B2421S TMLX060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75
TF4B2421S TMLX060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25
TF4B2421S TMLX060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25
TF4B2421S TMLX080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00
TF4B2421S TMLX080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25
TF4B2421S TMLX080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25
TF4B2421S TMLX080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 17
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TMLX100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50
TF4B2421S TMLX120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50
TF4B2421S TP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25
TF4B2421S TP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75
TF4B2421S TP9C060B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25
TF4B2421S TP9C060B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25
TF4B2421S TP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25
TF4B2421S TP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75
TF4B2421S TP9C080B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25
TF4B2421S TP9C080B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25
TF4B2421S TP9C080C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25
TF4B2421S TP9C100C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25
TF4B2421S TPLC060A12MP12 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50
TF4B2421S TPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50
TF4B2421S TPLC060A12MP12 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50
TF4B2421S TPLC080B12MP12 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50
TF4B2421S TPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75
TF4B2421S TPLC080B12MP12 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75
TF4B2421S TPLC080B12MP12 17.5 CF42B 850 24.0 18.4 15.75 13.00
TF4B3021S TM8V060A12MP11 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00
TF4B3021S TM8V060A12MP11 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25
TF4B3021S TM8V080B12MP11 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25
TF4B3021S TM8V080B12MP11 17.5 CF42B 850 29.4 20.2 15.25 12.50
TF4B3021S TM8V080C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50
TF4B3021S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75
TF4B3021S TM8V080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75
TF4B3021S TM8V100C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50
TF4B3021S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75
TF4B3021S TM8V100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75
TF4B3021S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50
TF4B3021S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50
TF4B3021S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50
TF4B3021S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50
TF4B3021S TM8X060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50
TF4B3021S TM8X060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50
TF4B3021S TM8X080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50
TF4B3021S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50
TF4B3021S TM8X080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
18 Johnson Controls Unitary Products
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75
TF4B3021S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75
TF4B3021S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8Y060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50
TF4B3021S TM8Y060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50
TF4B3021S TM8Y080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50
TF4B3021S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50
TF4B3021S TM8Y080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75
TF4B3021S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
Johnson Controls Unitary Products 19
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75
TF4B3021S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00
TF4B3021S TM9E040A10MP11 14.5 CF/CM/CU30A 875 29.0 20.0 14.25 12.00
TF4B3021S TM9E040A10MP11 14.5 CF/CM36A 875 29.2 20.0 14.50 12.00
TF4B3021S TM9E060B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9E060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9E060B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50
TF4B3021S TM9E080B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9E080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9E080B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50
TF4B3021S TM9E080C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50
TF4B3021S TM9E080C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50
TF4B3021S TM9E080C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50
TF4B3021S TM9E080C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50
TF4B3021S TM9E100C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50
TF4B3021S TM9E100C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50
TF4B3021S TM9E100C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50
TF4B3021S TM9E100C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50
TF4B3021S TM9E100C20MP11 21.0 CF/CM/CU30C 975 30.0 21.6 15.75 12.75
TF4B3021S TM9E100C20MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.75 12.75
TF4B3021S TM9E100C20MP11 21.0 CF/CM/CU42C 975 30.0 21.8 16.00 13.00
TF4B3021S TM9E120D20MP11 24.5 CF/CM/CU30D 975 30.0 21.6 16.00 13.00
TF4B3021S TM9E120D20MP11 24.5 CF/CM/CU36D 975 30.0 21.4 16.00 13.00
TF4B3021S TM9E120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.8 16.25 13.25
TF4B3021S TM9V060B12MP11 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50
TF4B3021S TM9V060B12MP11 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50
TF4B3021S TM9V060B12MP11 17.5 CF42B 925 29.8 21.0 15.50 12.75
TF4B3021S TM9V080B12MP11 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50
TF4B3021S TM9V080B12MP11 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50
TF4B3021S TM9V080B12MP11 17.5 CF42B 925 29.8 21.0 15.50 12.75
TF4B3021S TM9V080C16MP11 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75
TF4B3021S TM9V080C16MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75
TF4B3021S TM9V080C16MP11 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75
TF4B3021S TM9V100C16MP11 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75
TF4B3021S TM9V100C16MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75
TF4B3021S TM9V100C16MP11 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75
TF4B3021S TM9V100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.25 12.50
TF4B3021S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.4 15.25 12.50
TF4B3021S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 30.0 22.8 16.25 13.25
TF4B3021S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 30.0 23.0 15.50 12.75
TF4B3021S TM9Y040A10MP11 14.5 CF/CM/CU30A 875 29.0 20.0 14.25 12.00
TF4B3021S TM9Y040A10MP11 14.5 CF/CM36A 875 29.2 20.0 14.50 12.00
TF4B3021S TM9Y060B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9Y060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9Y060B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50
TF4B3021S TM9Y080B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9Y080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50
TF4B3021S TM9Y080B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50
TF4B3021S TM9Y080C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.

5006160-BTG-C-0716
20 Johnson Controls Unitary Products
TF4B3021S TM9Y080C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50
TF4B3021S TM9Y080C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50
TF4B3021S TM9Y080C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50
TF4B3021S TM9Y100C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50
TF4B3021S TM9Y100C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50
TF4B3021S TM9Y100C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50
TF4B3021S TM9Y100C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50
TF4B3021S TM9Y100C20MP11 21.0 CF/CM/CU30C 975 30.0 21.6 15.75 12.75
TF4B3021S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.75 12.75
TF4B3021S TM9Y100C20MP11 21.0 CF/CM/CU42C 975 30.0 21.8 16.00 13.00
TF4B3021S TM9Y120D20MP11 24.5 CF/CM/CU30D 975 30.0 21.6 16.00 13.00
TF4B3021S TM9Y120D20MP11 24.5 CF/CM/CU36D 975 30.0 21.4 16.00 13.00
TF4B3021S TM9Y120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.8 16.25 13.25
TF4B3021S TMLV060A12MP11 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00
TF4B3021S TMLV060A12MP11 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25
TF4B3021S TMLV080B12MP11 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25
TF4B3021S TMLV080B12MP11 17.5 CF42B 850 29.4 20.2 15.25 12.50
TF4B3021S TMLV080C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50
TF4B3021S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75
TF4B3021S TMLV080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75
TF4B3021S TMLV100C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50
TF4B3021S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75
TF4B3021S TMLV100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75
TF4B3021S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50
TF4B3021S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50
TF4B3021S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50
TF4B3021S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50
TF4B3021S TMLX060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50
TF4B3021S TMLX060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50
TF4B3021S TMLX080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50
TF4B3021S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50
TF4B3021S TMLX080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75
TF4B3021S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75
TF4B3021S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00
For notes see Page 35.
COOLING CAPACITY - With High Efficiency Motor Furnaces1(Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
