AIBOTIX Aibot X6 V2 User manual
Aibot X6 V2
User Manual
Version 5.4
English
2Aibot X6 V2, Introduction
1 Introduction
Purchase Congratulations on the purchase of the Aibot X6 V2.
This manual contains important safety directions as well as instructions for
setting up the product and operating it. Refer to "1 Safety Directions" for
further information.
Read carefully through the User Manual before you switch on the product.
Keep for future reference!
Product identifica-
tion
The model and serial number of your product are indicated on the type plate.
Always refer to this information when you need to contact your agency or
Aibotix authorised service workshop.
Validity of this
manual
This manual applies to the Aibotix Aibot X6 V2 with firmware version 2.4 or
higher.
Contact Aibotix GmbH
Ludwig-Erhard-Straße 14
34131 Kassel
Germany
www.aibotix.com
Support
Symbols The symbols used in this manual have the following meanings:
Trademarks • CompactFlash and CF are trademarks of SanDisk Corporation
• Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
All other trademarks are the property of their respective owners.
e-mail: [email protected]
Phone: +49 561 473949-0
e-mail: [email protected]
Phone: +49 561 473949-51
Type Description
DANGER Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, may result in minor or
moderate injury.
NOTICE Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, may result in appreciable
material, financial and environmental damage.
Important paragraphs which must be adhered to in prac-
tice as they enable the product to be used in a technically
correct and efficient manner.
Aibot X6 V2, Introduction 3
Available
documentation
The documents in the following list are provided in print format. Read and
follow the instructions in these documents.
Refer to the following resources for documentation/software:
• http://www.aibotix.com
Name Description/Format
Aibot X6 V2 User
Manual
All instructions required in order to operate the product
to a basic level are contained in the Aibot X6 V2 User
Manual. Provides an overview of the product together
with technical data and safety directions.
AiProFlight User
Manual
All instructions required in order to operate the
provided software are contained in AiProFlight User
Manual.
RC Transmitter User
Manual
All instructions required for a safe use of the RC Trans-
mitter. All functions and controls are product-specific
and explained in the Aibot X6 V2 User Manual.
Battery Safety Sheet All instructions and safety directions in order to
operate and handle the provided batteries.
Battery Charger User
Manual
All instructions and safety directions in order to
operate and handle the provided Battery Charger.
Power Supply Unit
User Manual
All instructions and safety directions in order to
operate and handle the provided Power Supply Unit.
Package Information
Leaflet
Contains a list of delivery container contents.
Training Copter User
Manual
All instructions and safety directions in order to
operate and handle the provided Training Copter.
4Aibot X6 V2, Introduction
Terms and abbrevi-
ations
The following terms and abbreviations can be found in this manual:
Term Description
ACC GNSS accuracy
AGL Altitude above Ground Level
BAT Battery Voltage
CFK Carbon Fibre Laminate
CH Coming Home
DEC Declination
DIS Distance from Home Point
FLT Flight Time
GNSS Global Navigation Satellite System
GPS Global Positioning System
G/S Ground Speed
HDG Heading in Degrees
HGH PREC High Precision GNSS
ICAO International Civil Aviation Organization
INC Inclination
ISA International Standard Atmosphere
LiPo Lithium Polymer
LV Live Video
LVP Live Video Package
MAG Quality of Magnetic Field
OAT Outside Air Temperature
PH Position Hold
PIT Angle of Pitch
POI Point of Interest
RC Radio Control
RF Radio Frequency
ROL Angle of Roll
SAT Quantity of Satellites
STANDARD Standard GPS
TAS True Airspeed
VFR Visual Flight Rules
VNE Velocity Never Exceed
WP Waypoint
Aibot X6 V2, Table of Contents 5
1 Table of Contents
In this manual ChapterPage
1 Safety Directions 8
1.1 General Introduction 8
1.2 Definition of Use 9
1.3 Limits of Use 9
1.4 Responsibilities 10
1.5 Hazards of Use 10
1.6 Electromagnetic Compatibility EMC 14
2 Description of the System 15
2.1 Container Contents 15
2.2 Aibot X6 V2 15
2.2.1 General 15
2.2.2 Dimensions 15
2.3 RC Transmitter Graupner MC 32 16
2.3.1 General about the RC Transmitter 16
2.3.2 Configuration of the RC Transmitter 16
2.3.3 Binding the RC Transmitter to the Aibot X6 V2 17
2.3.4 Telemetry Menu 17
2.3.5 Controls 18
2.4 Battery charger 20
2.5 Battery 20
3 Operation 21
3.1 General ground handling 21
3.1.1 Charging the Batteries 21
3.1.2 Transfer software to the Aibot X6 V2 22
3.1.3 Propellers 22
3.1.4 Assembly of the system 24
3.1.5 Preparation of the launch site 25
3.1.6 Compass Calibration 26
3.2 General Limitations 28
3.2.1 Radio Signal 28
3.2.2 Airspeed 28
3.2.3 Temperatures 29
3.2.4 Engine and engine controller 29
3.2.5 Payload and Weight 29
3.2.6 Center of Gravity 30
3.2.7 Flight and manoeuvre 30
3.2.8 Operation type 30
3.2.9 Wind 30
3.2.10 Flight execution in winds 30
3.2.11 Maximum flight time 30
3.2.12 Flight execution in rain 31
3.3 User Interface 32
3.3.1 Status LEDs 32
3.3.2 Acoustic Buzzer 33
6 Aibot X6 V2, Table of Contents
3.3.3 Voice Response 33
3.4 Safety Features 36
3.4.1 Assist Mode (Altitude Regulation) 36
3.4.2 Minimum Altitude 36
3.4.3 Automatic Takeoff and Landing 37
3.4.4 Care Free 38
3.4.5 GPS Assistance 39
3.4.6 GPS Cage 40
3.4.7 Start Prevention System 41
3.4.8 Battery Failsafe 41
3.4.9 RC Lost Failsafe 42
3.4.10 Blackbox 43
3.5 Normal Procedures Ground Preparation 43
3.5.1 Flight preparation 43
3.5.2 Pre-Flight Check 45
3.5.3 Before Transportation 46
3.6 Normal Procedures (GPS and Assist Mode) 47
3.6.1 Takeoff 47
3.6.2 Climb 48
3.6.3 Descent 48
3.6.4 Landing 49
3.6.5 Abort Landing (Assist Mode) 49
3.6.6 After Landing (Assist Mode) 50
3.6.7 Dynamic Position Hold 50
3.6.8 Waypoint Flight 51
3.6.9 Dynamic Point of Interest 52
3.6.10 Coming Home 53
3.7 Normal Procedures Manual Mode 54
3.7.1 Manual Takeoff 54
3.7.2 Manual Climb 55
3.7.3 Manual Descent 55
3.7.4 Manual Landing 56
3.7.5 Manual Abort Landing 56
3.7.6 After Landing (Manual Mode) 56
3.8 Abnormal and Emergency Procedures 57
3.8.1 Disturbance of the Magnetic Field 57
3.8.2 Disturbance of GPS 58
3.8.3 Battery Warning 59
3.8.4 Ultrasonic Sensor Failure 60
3.8.5 Lost RC communication 61
3.8.6 Unfamiliar Noise 62
3.8.7 Ditching - Emergency landing on water 63
3.8.8 Lost visual contact 64
3.8.9 Unknown Orientation of the Aibot X6 V2 65
3.8.10 Finding a Lost Aibot X6 V2 66
3.8.11 Incident Report 66
4 Care and Transport 67
4.1 Transport 67
4.2 Storage 67
Aibot X6 V2, Table of Contents 7
4.3 Cleaning and Drying 67
4.4 Maintenance Plan 67
4.5 Service Intervals 68
5 Accessories 69
5.1 Camera Gimbal 69
5.2 On-top Mount 69
5.3 Camera Connection 70
5.4 Live Video Package 70
8 Aibot X6 V2, Safety Directions
1 Safety Directions
1.1 General Introduction
Description The following directions enable the person responsible for the product, and the
person who actually uses the equipment, to anticipate and avoid operational
hazards.
The person responsible for the product must ensure that all users understand
these directions and adhere to them.
About Warning
Messages
Warning messages are an essential part of the safety concept of the instru-
ment. They appear wherever hazards or hazardous situations can occur.
Warning messages...
• make the user alert about direct and indirect hazards concerning the
use of the product.
• contain general rules of behaviour.
For the users‘ safety, all safety instructions and safety messages shall be
strictly observed and followed! Therefore, the manual must always be available
to all persons performing any tasks described here.
DANGER, WARNING, CAUTION and NOTICE are standardised signal words for
identifying levels of hazards and risks related to personal injury and property
damage. For your safety, it is important to read and fully understand the
following table with the different signal words and their definitions! Supple-
mentary safety information symbols may be placed within a warning message
as well as supplementary text.
Type Description
DANGER Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, may result in minor or
moderate injury.
NOTICE Indicates a potentially hazardous situation or an unin-
tended use which, if not avoided, may result in appreciable
material, financial and environmental damage.
Important paragraphs which must be adhered to in prac-
tice as they enable the product to be used in a technically
correct and efficient manner.
Aibot X6 V2, Safety Directions 9
1.2 Definition of Use
Intended use • Surveying (cartography, construction sites, highway construction, etc.).
• Remote Sensing (land use, environment, biodiversity, change detection,
etc.).
• Monitoring (land-slips, agriculture, disaster management, etc.).
• Publicity (panoramic views, specific objects, etc.).
• Capturing and recording images.
• Measuring raw data and computing coordinates using carrier phase and
code signal from GNSS satellites (GNSS Systems).
Reasonably fore-
seeable misuse
• Operate the product without certification by Aibotix or an approved
partner.
• Use of the product without instruction.
• Use outside of the intended use and limits.
• Disabling safety systems.
• Removal of hazard notices.
• Opening the product using tools, for example screwdriver, unless this is
permitted for certain functions.
• Modification or conversion of the product.
• Use after misappropriation.
• Inadequate safeguards at the working site.
• Use with accessories from other manufacturers without the prior written
explicit approval of Aibotix.
• Use of products with obvious damages or defects.
1.3 Limits of Use
Environment Suitable for use in an atmosphere appropriate for permanent human habita-
tion: not suitable for use in aggressive or explosive environments.
DANGER Local safety authorities and safety experts must be contacted before working
in hazardous areas, or close to electrical installations or similar situations by
the person in charge of the product.
Legal Regulations It is the sole responsibility of the user who operates the system to provide for
correct registration and compliance of the legal regulations for the system at
the location of the flight execution.
The legal use of the following system components must be checked before
flight execution:
• Aibot X6 V2 Flight System
• RC Transmitter
• Video Transmitter
• Interface for telemetry data
10 Aibot X6 V2, Safety Directions
1.4 Responsibilities
Manufacturer of
the product
Aibotix GmbH, 34131 Kassel, Germany, hereinafter referred to as Aibotix, is
responsible for supplying the product, including the user manual and original
accessories, in a safe condition.
Person respon-
sible for the
product
The person responsible for the product has the following duties:
• To ensure that the national laws, regulations and conditions for the oper-
ation of the product are respected.
• To understand the safety instructions on the product and the instructions
in the user manual.
• To ensure that it is used in accordance with the instructions.
• To be familiar with local regulations relating to safety and accident preven-
tion.
• To inform Aibotix immediately if the product and the application becomes
unsafe.
• To be accountable for the training and the deployment of personnel who
use the product and for the safety of the equipment in use.
• To ensure that it is allowed to use the product in the planned area of oper-
ation.
• To maintain the protection of privacy.
Service technician
• Meet Aibotix training requirements.
• Know the purpose of the product and has read and understood the instruc-
tions in the user manual.
• Be familiar with all known hazards up to the assembly level described in the
service manual.
• Be familiar with all functions and is capable of inspecting and correcting
them in accordance with the service manual.
Aircraft Installer
• Be authorised for installation of payloads on aircraft.
• Know and follow strictly the regulations given by the FAA authorities.
• Know what types of aircraft modifications have to be certified by the FAA
or national aviation associations and act accordingly.
1.5 Hazards of Use
General The Aibot X6 V2 may only be operated after instruction, training and certifica-
tion by Aibotix or an approved partner, regardless which mode of use or config-
uration is selected.
Despite of all automatic functions and safety technology, the operator is the
sole responsible person for the safe flight and the final takeoff decision.
Any automatic function is based on the analysis of the output data of several
sensors, for example compass, GPS or barometer. These sensors may provide
inaccurate or wrong values through external effects, for example distur-
bances/abnormalities in the magnetic field of the earth or GPS interferences.
Aibot X6 V2, Safety Directions 11
If you discover this kind of disturbance during a flight execution in an assisted
flight, immediately follow the procedures published in this manual.
WLAN interference The Aibot X6 V2 may not carry any WLAN enabled equipment. This restriction
includes cellphones or similar devices.
Anything operating wirelessly on other frequencies may only be used with the
express written consent of Aibotix. If you ignore this warning, any warranty will
be void.
Many modern cameras are equipped with WLAN capabilities.
The WLAN capabilities of the accessories must be checked beforehand and
turned off during flight. If you experience any difficulties, contact Aibotix.
DANGER Rotating Blades
Risk of serious injuries due to cut-off or crushing fingers.
Precautions:
• Keep away from blades while equipment is in operation.
• Disconnect the battery before working on the blades.
DANGER Crash due to a general malfunction.
Risk of serious injuries and damages because of falling device.
Precautions:
• Do not fly above humans.
• Do not fly above dangerous places.
DANGER Crash due to interfering signals.
Interfering signals can lead to malfunction of the device. Risk of serious injuries
and damages because of falling device.
Precautions:
• Do not fly in the vicinity of airports, military installations or strong trans-
mitters.
• To avoid interference, maintain a minimum distance of 5 kilometres from
these areas.
DANGER Crash due to limited operation time.
The operation time of the battery is limited. Risk of serious injuries and
damages because of falling device.
Precautions:
• Always monitor the capacity of the battery.
• Respect the warning signals for low battery.
• Keep in mind to plan an energy reserve for coming back and landing.
• Always operate the Aibot X6 V2 with two batteries.
DANGER Crash due to own downwash.
The device can fly in his own turbulences. Risk of serious injuries and damages
because of falling device.
Precautions:
• Avoid a straight vertical descent.
• Descend in spiral movements or in a ’zig-zag’ motion.
• Be aware of the downwash of the rotor blades when flying near ground.
DANGER Crash due to downwash near ground.
Downwash of the own rotor blades can lead to turbulences. Risk of serious
injuries and damages because of falling device.
12 Aibot X6 V2, Safety Directions
Precautions:
• Be aware of the downwash of your own rotor blades when flying near
ground.
DANGER Crash due to weak batteries at low outdoor temperatures.
At low outdoor temperatures, the batteries cannot provide their full energy.
Risk of serious injuries and damages because of falling device.
Precautions:
• Respect the general limitations.
• Keep batteries warm before operating the device at low outdoor tempera-
tures.
• Be aware of shorter flight times at temperatures below 10 °C OAT.
DANGER Crash due to overheating motors or electronics
At high outdoor temperatures, the motors or parts of the electronics can over-
heat. Risk of serious injuries and damages because of falling device.
Precautions:
• Respect the general limitations.
• Shorten your flights at temperatures above 30 °C OAT.
• Maintain a cool-down phase between flights.
• Do not store the system in direct sunlight.
• Land immediately if a temperature warning appears.
DANGER Crash due to mental fatigue of the operator
The operation of the Aibot X6 V2 causes considerable mental fatigue. Failure
to observe these precautions may cause the operator to lose concentration
and lead to an accident.
Precautions:
• Do not fly longer than two hours without taking a rest.
• Do not fly with poor health.
DANGER Hazards due to glaring sun
The glaring sun can compromise your eyesight and may lead to an accident.
Also a permanent view to the sky on a bright day may stress your eyes.
Precautions:
• Do not fly longer than 2 hours without taking a rest.
• Always have sun glasses with you, to protect your eyes against the
sunlight.
• If possible, consider the position of the sun when choosing the position of
the operator. Make sure that no glare occurs during the mission.
WARNING Overheating Batteries
Risk of explosion or fire.
Precautions:
• Protect batteries against high temperatures.
• Always use the provided battery charger.
WARNING Short circuit of battery
Risk of fire, electric shock and damage.
Precautions:
• Do not open the battery housing.
• Keep away any metallic or wet objects from the battery connectors.
Aibot X6 V2, Safety Directions 13
WARNING Hazards due to obstacles in the environment
During flight operations, there is a danger of accidents occurring if the user
does not pay attention to the surrounding environment including both, the
airspace and the ground space of the operating area.
Precautions:
• Avoid to change your position while operating the product.
• A qualified and trained observer is always recommended to assist the oper-
ator with environment monitoring.
WARNING If the product is improperly disposed of, the following can happen:
• If polymer parts are burnt, poisonous gases are produced which may impair
health.
• If batteries are damaged or are heated strongly, they can explode and
cause poisoning, burning, corrosion or environmental contamination.
• By disposing of the product irresponsibly you may enable unauthorised
persons to use it in contravention of the regulations, exposing themselves
and third parties to the risk of severe injury and rendering the environment
liable to contamination.
Precautions:
CAUTION Components may get hot during operation and stay hot after operation.
Risk of burning injuries.
Precautions:
• Avoid touching hot components.
• Wait until hot components cool down after operation.
• Wear gloves if you have to touch possibly hot components.
CAUTION Adjustment of Trim
A trim adjustment of the joysticks can lead to unfamiliar steering behaviour and
crash. By default, the adjustment of the trim is deactivated.
Precautions:
• Do not change the trim by yourself.
• If you want to change the trim or if you changed the trim unintentionally,
contact Aibotix service.
CAUTION Sensors may provide wrong data
A malfunction may occur if the environmental information is inconsistent or not
comprehensive. The functionality of some Safety Features relies on the infor-
mation of one or more of the following sensors: Pressure Sensor, Ultrasonic
Sensor, GPS, Magnetic Compass.
Precautions:
• Be aware that sensors may provide wrong data and always be ready to take
over manual control.
The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with the
national regulations in force in your country.
Always prevent access to the product by unauthorised
personnel.
14 Aibot X6 V2, Safety Directions
1.6 Electromagnetic Compatibility EMC
Description The term Electromagnetic Compatibility is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radia-
tion and electrostatic discharges are present, and without causing electromag-
netic disturbances to other equipment.
WARNING Electromagnetic radiation can cause disturbances in other equipment.
Although the product meets the strict regulations and standards which are in
force in this respect, Aibotix cannot completely exclude the possibility that
other equipment may be disturbed.
CAUTION There is a risk that disturbances may be caused in other equipment if the
product is used with accessories from other manufacturers, for example field
computers, personal computers or other electronic equipment, non-standard
cables or external batteries.
Precautions:
Use only the equipment and accessories recommended by Aibotix. When
combined with the product, they meet the strict requirements stipulated by the
guidelines and standards. When using computers or other electronic equip-
ment, pay attention to the information about electromagnetic compatibility
provided by the manufacturer.
CAUTION Disturbances caused by electromagnetic radiation can result in erroneous
measurements.
Although the product meets the strict regulations and standards which are in
force in this respect, Aibotix cannot completely exclude the possibility that the
product may be disturbed by intense electromagnetic radiation, for example,
near radio transmitters, two-way radios or diesel generators.
Precautions:
Check the plausibility of results obtained under these conditions.
Radios or digital
cellular phones
Use of product with radio or digital cellular phone devices:
WARNING Electromagnetic fields can cause disturbances in other equipment, in installa-
tions, in medical devices, for example pacemakers or hearing aids and in
aircraft. It can also affect humans and animals.
Precautions:
Although the product meets the strict regulations and standards which are in
force in this respect, Aibotix cannot completely exclude the possibility that
other equipment can be disturbed or that humans or animals can be affected.
• Do not operate the product with radio or digital cellular phone devices in
the vicinity of filling stations or chemical installations, or in other areas
where an explosion hazard exists.
• Do not operate the product with radio or digital cellular phone devices near
to medical equipment.
• Do not operate the product with radio or digital cellular phone devices in
aircraft.
Aibot X6 V2, Description of the System 15
2 Description of the System
2.1 Container Contents
Main components A package list with all components is enclosed in the transport case.

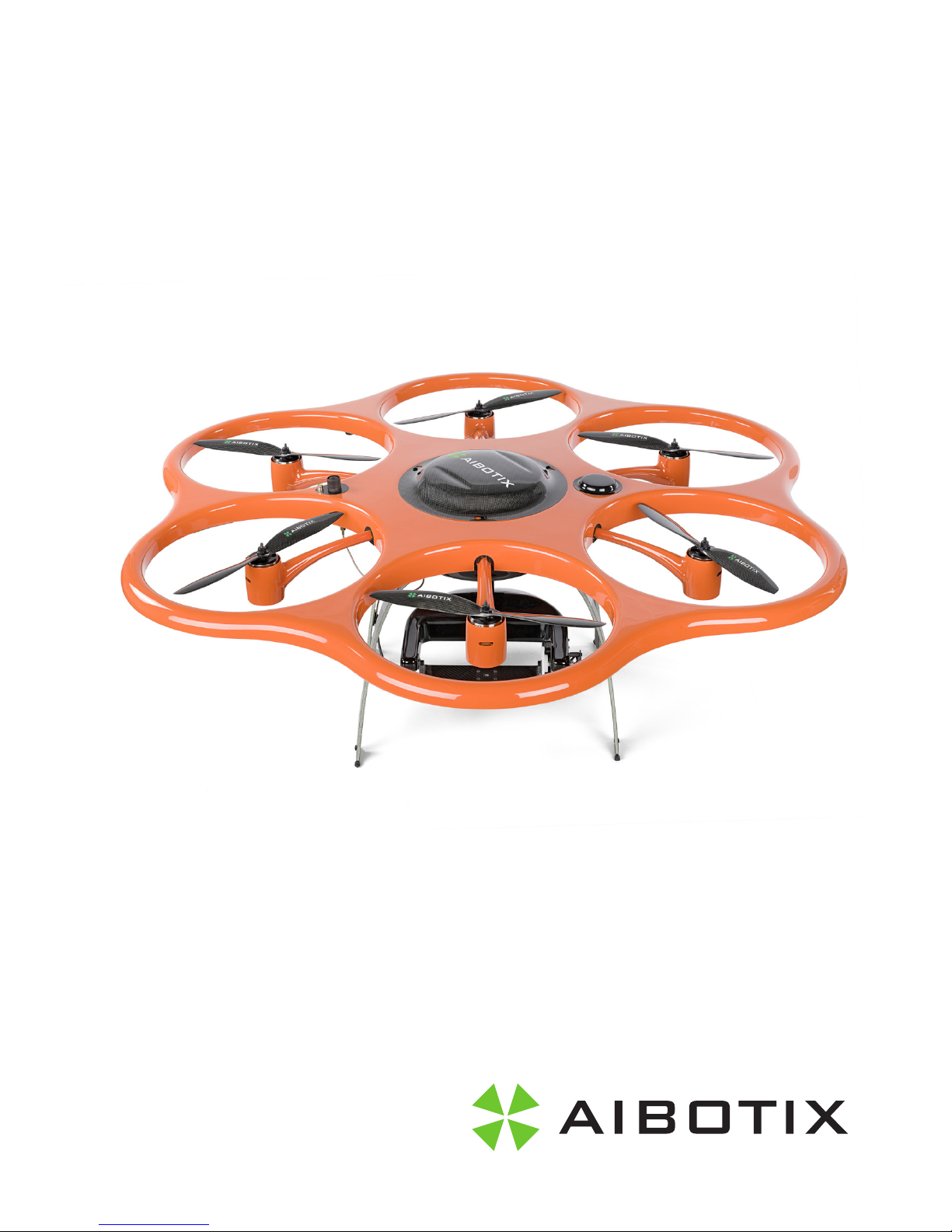

2.2 Aibot X6 V2
2.2.1 General
General The Aibot X6 V2 is an unmanned aerial vehicle. It comes with six electric
powered rotor blades. The Aibot X6 V2 is operated by a ground control unit and
is able to fly in Manual Mode or Assisted Mode. The Aibot X6 V2 serves as a
mount for measuring instruments.
2.2.2 Dimensions

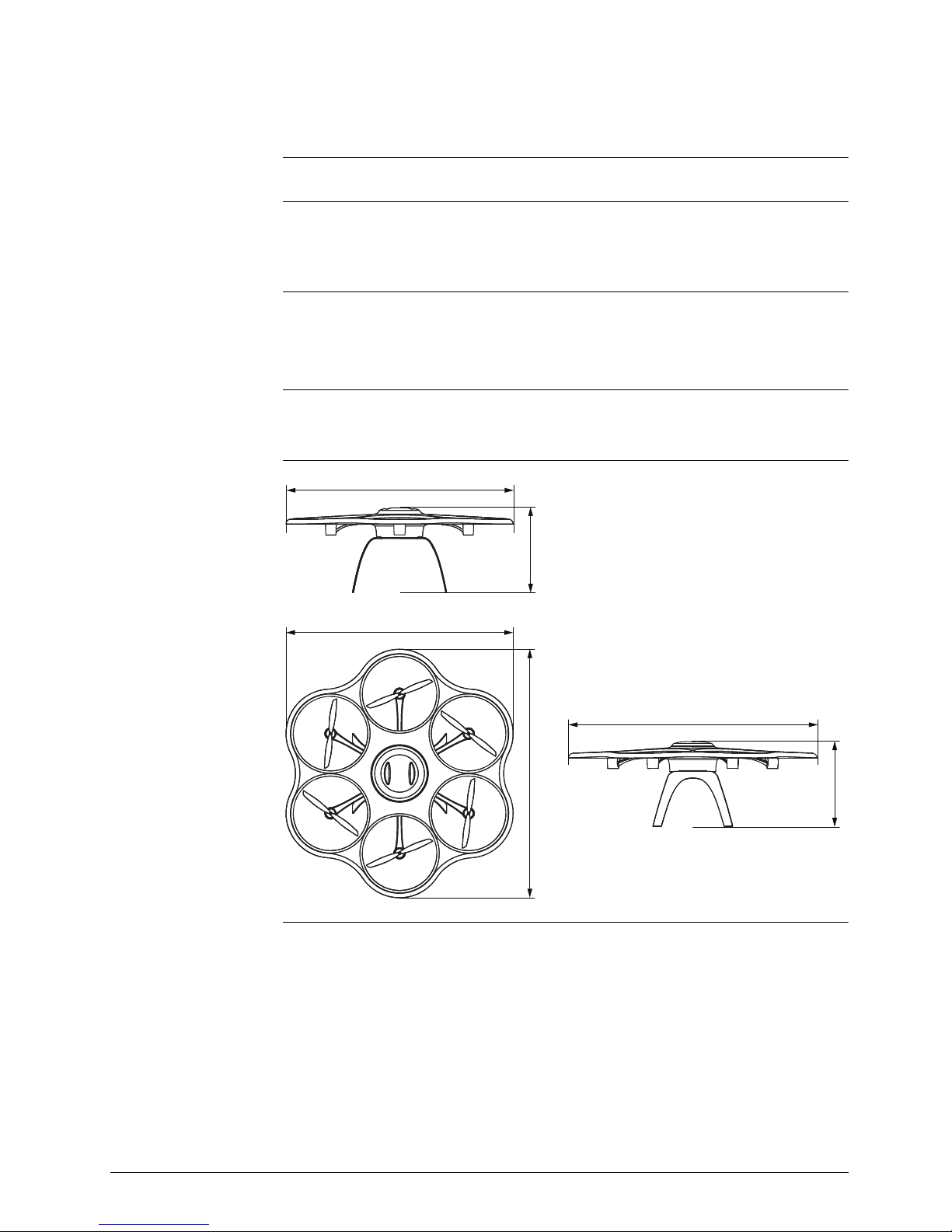

Aibot X6 V2 dimen-
sions
105 cm
96 cm
39 cm
96 cm
39 cm
105 cm
16 Aibot X6 V2, Description of the System
2.3 RC Transmitter Graupner MC 32
2.3.1 General about the RC Transmitter
General Read and follow the provided RC Transmitter User Manual. This chapter
provides additional product-specific information to operate the Aibot X6 V2.
CAUTION Adjustment of Trim
A trim adjustment of the joysticks can lead to unfamiliar steering behaviour and
crash. By default, the adjustment of the trim is deactivated.
Precautions:
• Do not change the trim by yourself.
• If you want to change the trim or if you changed the trim unintentionally,
contact Aibotix service.
Safety • Read and follow the RC transmitter manual and safety instructions
provided on the USB flash drive or in print.
• Do not change the firmware or software; Aibotix does not accept liability
for damage due to RC transmitter modification if not advised to do so.
• Do not use the teacher-/student mode unless you have the instruction and
permission by Aibotix. There is a high risk of misusing this function which
may lead to a crash landing of the system.
Charging Charging the RC transmitter with the included charger may take up to 15 hours.
Do not use third party chargers or plugs designed for other battery types. The
RC transmitter must be turned off during the whole time of the charging
process. Never switch on the RC transmitter while it is connected to the battery
charger.
State of charge can only be checked when battery charger is disconnected.
2.3.2 Configuration of the RC Transmitter
Stick modes The RC Transmitter can be used in two different stick configurations. In Aibotix
trainings and in all documents, stick mode 2 is used by default.
• In stick mode 1, the throttle is on the right side of the RC transmitter.
• In stick mode 2, the throttle is on the left side of the RC transmitter.
It is only allowed to operate the Aibot X6 V2 in stick mode 2.
By default the system comes already configured with stick mode 2.
Before takeoff, check if stick mode 2 is selected:
1) Press the SET-key to open the general menu.
2) Select the submenu “base setup model”.
3) Navigate to “Stick mode”. If stick mode is already 2, leave the menu by
pressing ESC.
4) To change the stick mode press SET and choose “stick mode 2". To save
your choice press SET again.
Aibot X6 V2, Description of the System 17
2.3.3 Binding the RC Transmitter to the Aibot X6 V2
Binding By default the system comes already bound correctly.
Before using the Aibot X6 V2, it is necessary to check if it is bound to the RC
Transmitter in a proper way. If you cannot get communication to the Aibot X6
V2, you may have to bind the RC Transmitter again.
1) Switch on the RC Transmitter
2) A box appears asking whether to turn RF ON or OFF. To create a bind to the
Aibot X6 V2, choose OFF and confirm with SET.
3) Press SET to enter the main menu.
4) Select “Base setup model” and confirm with SET again.
5) Navigate to “bind”.
6) Turn on the Aibot X6 V2 by plugging in the batteries.
7) Push and hold the bind button. The bind button is on the bottom of the
Aibot X6 V2 near both antennas from the receiver.
8) After holding the bind button on the Aibot X6 V2 for at least 3 seconds,
press SET on the RC transmitter while continuing to hold the bind button.
The binding is established now.
9) When “n/v” is replaced with “bind” on the RC transmitter, a bind has been
successfully established.
10) Leave the menu by pressing ESC.
2.3.4 Telemetry Menu
Telemetry The telemetry menu of the RC transmitter displays real-time information about
the Aibot X6 V2.
To enter the telemetry menu:
1) Hold ESC for two seconds.
2) Navigate to “SETTING & DATA VIEW” with the UP and DOWN buttons on the
right and press SET.
3) Press UP once with the right side buttons.
There are four different information pages available. The selected page is indi-
cated on the bottom left side of the telemetry window. To choose another
page, press LEFT or RIGHT with the right side buttons.
Do only use the “Acc Calib” function if advised by Aibotix.
18 Aibot X6 V2, Description of the System
2.3.5 Controls

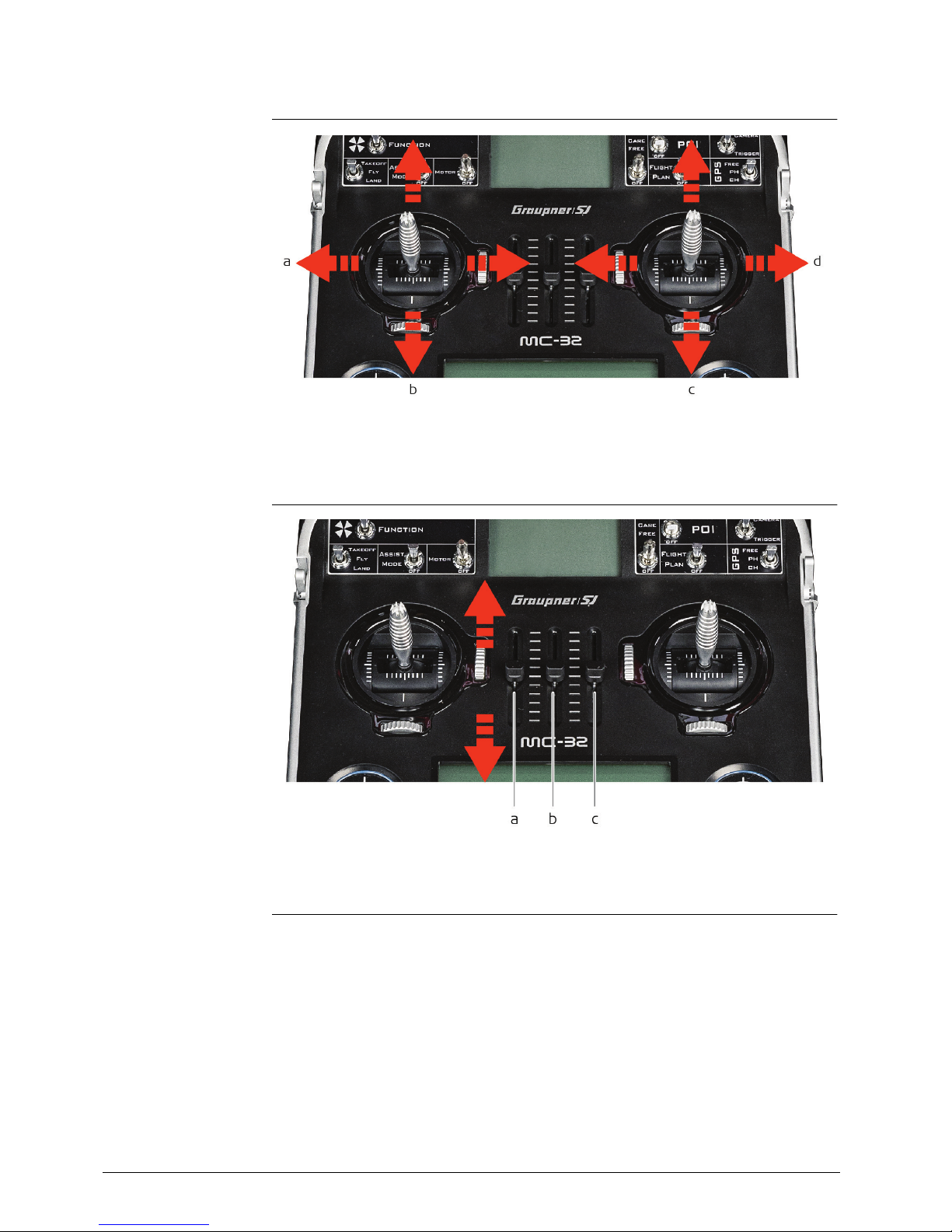

Joysticks
Sliders
a) Yaw
b) Throttle
c) Pitch
d) Roll
a) Camera zoom function (if equipped)
b) Manual camera pitch function
c) Not used
Aibot X6 V2, Description of the System 19
Toggle Switches
On-top controls
a) 3-way switch: TAKEOFF, FLY, LAND. For automatic takeoff and landing.
b) 2-way-switch auto return. For additional functions.
c) 2-way-switch: ASSIST MODE ON or OFF. Automatic altitude control function.
Only switchable when activated in the AiProFlight configuration. Default:
ON.
d) 2-way-switch lockable: Motor ON or OFF.
e) 2-way-switch lockable: CARE FREE ON or OFF. Assisted Orientation of the
Aibot X6 V2.
f) 2-way-switch: POI ON or OFF. Dynamic definition of a Point of Interest
flight.
g) 2-way-switch. FLIGHT PLAN ON or OFF. Start or stop waypoint navigation.
h) 2-way-switch auto return. Manual triggering of a connected camera.
Starts/Stops trigger interval in combination with FUNCTION toggle switch.
i) 3-way-switch: FREE, PH, CH. GPS position hold and coming home functions.
a) Not used
b) Not used
c) Not used
d) Speaker
e) Antenna
f) Power ON or OFF
g) Indicator lights
h) Camera roll function
i) Not used
20 Aibot X6 V2, Description of the System
2.4 Battery charger
Overview
2.5 Battery
General The Aibot X6 V2 uses rechargeable lithium polymer batteries (LiPos).The used
LiPo type is a five cell battery. Each LiPo cell has a nominal voltage of 3.7 volts.
A five cell battery has a nominal voltage of 18.5 volts.
• Lowest Voltage: 16.5 V - empty battery
• Maximum Voltage: 21 V - fully charged battery
Only use the batteries provided by Aibotix.
Technical data
Safety • Read and follow the enclosed Battery Safety Sheet.
• The Aibot X6 V2 can only be operated with two batteries. Never operate
the Aibot X6 V2 with one battery only.
• Do not store the LiPo batteries at a voltage below 19 V.
• Discharge the batteries completely before disposing them. Use the
discharge process functionality provided by the battery charger.
a) Power supply unit
b) Battery charger
c) Battery balancer
d) Battery charging cable
e) Battery
Nominal Voltage 18.5 V
Capacity 5000 mAh
Energy 92.5 Wh
Table of contents
