AIC SB201-VG User manual

UM_SB201-VG_v1.2_062419
SB201-VG
Storage Server Barebone
User's Manual

Content
Table of Contents
Preface������������������������������������������������������������������������������������������������� i
Safety Instructions ������������������������������������������������������������������������������ ii
About This Manual������������������������������������������������������������������������������ iv
Chapter 1� Product Features ��������������������������������������������������������������1
1.1 Box Contents ...........................................................................................1
1.2 Specications ..........................................................................................2
1.3 Feature .....................................................................................................3
Chapter 2� Hardware Setup ����������������������������������������������������������������6
2.1 Central Processing Unit Setup ............................................................... 6
2.1.1 Processor Installation ........................................................................................6
2.1.2 CPU heatsink.......................................................................................................9
2.2 System Memory.....................................................................................10
2.2.1 DIMM Installation ............................................................................................ 10
2.2.2 DIMM Installation Order .................................................................................. 11
2.3 Top Cover ...............................................................................................13
2.4 Power Supply Unit Module....................................................................14
2.5 Fan Module ............................................................................................15
2.6 Hard Disk Drive ......................................................................................16
2.7 HDD Backplane Module.........................................................................18
2.8 Slide Rail Installation.............................................................................19
Chapter 3� Hardware Settings ���������������������������������������������������������� 22
3.1 Motherboard Block Diagram.................................................................22
3.2 Motherboard Content List .....................................................................23
3.3 Motherboard Layout ..............................................................................24
3.4 Connector and Jumper.........................................................................25
3.4.1 Connector......................................................................................................... 25
3.4.2 Jumper ............................................................................................................ 31
3.5 System LED Indicator ...........................................................................32
3.5.1 Front Panel LED Indicator ............................................................................... 32
3.5.2 Rear Panel LED Indicator................................................................................. 32
3.5.3 Internal LED...................................................................................................... 33

Chapter 4. BIOS Conguration Settings ������������������������������������������� 41
4.1 Navigation Keys.....................................................................................41
4.2 BIOS Setup .............................................................................................42
4.2.1 Menu................................................................................................................. 42
4.2.2 Startup.............................................................................................................. 42
4.3 Main .......................................................................................................45
4.3.1 Main.................................................................................................................. 45
4.4 Advanced................................................................................................46
4.4.1 Peripheral Conguration ................................................................................. 46
4.4.2 Video Conguration......................................................................................... 46
4.4.3 Socket Conguration....................................................................................... 46
4.4.4 PCH Conguration........................................................................................... 50
4.4.5 H2o IPMI Conguration................................................................................... 54
4.4.6 H2o Event Log Cong Manager ...................................................................... 55
4.5 Security ..................................................................................................56
4.5.1 Security ............................................................................................................ 56
4.6 Power......................................................................................................57
4.6.1 Power ............................................................................................................... 57
4.7 Boot ........................................................................................................58
4.7.1 Boot .................................................................................................................. 58
4.8 Exit..........................................................................................................59
4.8.1 Exit.................................................................................................................... 59
Chapter 5. BMC Conguration Settings�������������������������������������������� 60
5.1 Network Settings ...................................................................................60
5.2 Web GUI..................................................................................................63
Chapter 6� Technical Support����������������������������������������������������������� 67
Content

Copyright © 2018 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.

Document Release History
Release Date Version Update Content
January
2018 1User's Manual release to public.
Febuary
2019 1.1 Content update
June
2019 1.2 New cover

i
Copyright
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photo-static, recording
or otherwise, without the prior written consent of the manufacturer.
Trademarks
All products and trade names used in this document are trademarks or registered
trademarks of their respective holders.
Changes
The material in this document is for information purposes only and is subject to change
without notice.
Warning
1. A shielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential
that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
Disclaimer
AIC shall not be liable for technical or editorial errors or omissions contained herein.
The information provided is provided "as is" without warranty of any kind. To the
extent permitted by law, neither AIC or its afliates, subcontractors or suppliers will be
liable for incidental, special or consequential damages including downtime cost; lost
profits; damages relating to the procurement of substitute products or services; or
damages for loss of data, or software restoration. The information in this document
is subject to change without notice.
Instruction Symbols
Special attention should be given to the instruction symbols below.
NOTE This symbol indicates that there is an explanatory or
supplementary instruction.
CAUTION
This symbol denotes possible hardware impairment. Upmost
precaution must be taken to prevent serious harware damage.
WARNING
This symbol serves as a warning alert for potential body
injury. The user may suffer possible injury from disregard or
lack of attention.
Preface

Before getting started, please read the following important cautions:
• All cautions and warnings on the equipment or in the manuals should be noted.
• Most electronic components are sensitive to electrical static discharge. Therefore, be
sure to ground yourself at all times when installing the internal components.
• Use a grounding wrist strap and place all electronic components in static-shielded
devices. Grounding wrist straps can be purchased in any electronic supply store.
• Be sure to turn off the power and then disconnect the power cords from your system
before performing any installation or servicing. A sudden surge of power could
damage sensitive electronic components.
• Do not open the system’s top cover. If opening the cover for maintenance is a must,
only a trained technician should do so. Integrated circuits on computer boards are
sensitive to static electricity. Before handling a board or integrated circuit, touch
an unpainted portion of the system unit chassis for a few seconds. This will help to
discharge any static electricity on your body.
• Place this equipment on a stable surface when install. A drop or fall could cause injury.
• Please keep this equipment away from humidity.
• Carefully mount the equipment into the rack, in such manner, that it won’t be
hazardous due to uneven mechanical loading.
• This equipment is to be installed for operation in an environment with maximum
ambient temperature below 35°C.
• The openings on the system are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
• Never pour any liquid into ventilation openings. This could cause fire or electrical
shock.
• Make sure the voltage of the power source is within the specication on the label when
connecting the equipment to the power outlet. The current load and output power of
loads shall be within the specication.
• This equipment must be connected to reliable grounding before using. Pay special
attention to power supplied other than direct connections, e.g. using of power strips.
• Place the power cord out of the way of foot traffic. Do not place anything over the
power cord. The power cord must be rated for the product, voltage and current marked
on the product’s electrical ratings label. The voltage and current rating of the cord
should be greater than the voltage and current rating marked on the product.
• If the equipment is not used for a long time, disconnect the equipment from mains to
avoid being damaged by transient over-voltage.
• Never open the equipment. For safety reasons, only qualied service personnel should
open the equipment.
Safety Instructions
ii

• If one of the following situations arise, the equipment should be checked by service
personnel:
1. The power cord or plug is damaged.
2. Liquid has penetrated the equipment.
3. The equipment has been exposed to moisture.
4. The equipment does not work well or will not work according to its user manual.
5. The equipment has been dropped and/or damaged.
6. The equipment has obvious signs of breakage.
7. Please disconnect this equipment from the AC outlet before cleaning. Do not
use liquid or detergent for cleaning. The use of a moisture sheet or cloth is
recommended for cleaning.
• Module and drive bays must not be empty! They must have a dummy cover.
CAUTION
The equipment intended for installation should be placed in Restricted Access
Location.
CAUTION
There will be a risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions. After performing any installation or
servicing, make sure the enclosure is correct in position before turning on the power.
CAUTION
This unit may have more than one power supply. Disconnect all power sources before
maintenance to avoid electric shock.
iii

Thank you for selecting and purchasing the SB201-VG.
This user's manual is provided for professional technicians to perform easy hardware
setup, basic system congurations, and quick software startup. This document pellucidly
presents a brief overview of the product design, device installation, and rmware settings
for SB201-VG. For the latest version of this user's manual, please refer to the AIC website:
https://www.aicipc.com/en/productdetail/20884.
Chapter 1 Product Features
SB201-VG is a high-performance storage server barebone that is specically designed to
accommodate diverse corporations and enterprises for managing heavy workloads and
multiple applications.
Chapter 2 Hardware Setup
This chapter displays an easy installation guide for assembling the hardware in this
product. Utmost caution for proceeding to set up the hardware is highly advised. Most of
the components are highly fragile and vulnerable to exterior influence. Do not endanger
the device by placing the device in an unstable environment.
Chapter 3 Hardware Settings
This chapter elucidates the overall layout of the system barebone, including multifarious
connectors, jumpers, and LED descriptions. These descriptions assist users to congure
different settings and functions of the motherboard, as well as to conrm the location of
each connector and jumper.
Chapter 4 BIOS Conguration Settings
This chapter introduces the key attributes of BIOS, including the descriptions and option
keys for diverse functions. These details provide users to effortlessly navigate and
congure the input/output devices.
Chapter 5 BMC Conguration Settings
This chapter illustrates the diverse functions of IPMI BMC, including the details on logging
into the web page and assorted denitions. These descriptions are helpful in conguring
various functions through Web GUI without entering the BIOS setup. For more information
of BMC congurations, please refer to IPMI BMC (Aspeed AST2500) User's Manual for a
more detailed description.
Chapter 6 Technical Support
For more information or suggestion, please contact the nearest AIC corporation
representative in your district or visit the AIC website: http://www.aicipc.com/en. It is our
greatest honor to provide the best service for our customers.
About This Manual

Chapter 1. Product FeaturesSB201-VG User Manual
1
Spica User Manual Chapter 1. Product Features
Chapter 1� Product Features
SB201-VG is a high density storage server that includes mother board, chassis, power
supply, and HDD backplane. For more information about our product, please visit our
website at http://www.aicipc.com/en.
Before removing the subsystem from the shipping carton, visually inspect the physical
condition of the shipping carton. Exterior damage to the shipping carton may indicate
that the contents of the carton are damaged. If any damage is found, do not remove
the components; contact the dealer where the subsystem was purchased for further
instructions. Before continuing, rst unpack the subsystem and verify that the number
of components in the shipping carton is accurate and in good condition.
1�1 Box Contents
This product contains the components listed below.
Please conrm the number and the condition of the components before
installation.
• Chassis
(includes power supply, fan
& hard disk drive tray)
• Power cord (vary per region)
• 28" Slide rail x 1 set (optional)
Product features are subject to change without notice�

2
Chapter 1. Product FeaturesSB201-VG User Manual
1.2 Specications
Dimensions
(W x D x H)
mm : 430 x 646.2 x 88.2
inches : 17 x 25.4 x 3.5
Motherboard AICServer Board Virgo
Processor
Processor
Support
• Intel® Xeon® Scalable Processors
(Skylake and next gen. CPU)
• Supports CPU TDP up to 140W
UPI Speeds10.4 GT/s, 9.6 GT/s
Socket Type Socket P0 (LGA-3647 Socket)
Chipset Support Intel® Lewisburg C620 series PCH
System Memory
• 6 x memory channels per CPU,
1 x DIMM per channel
• 12 x DIMM slots support:
2666/2400MHz RDIMM/LRDIMM
(feature supports up to DDR4 2933MHz
by next gen. process upgrade)
- up to 192GB RDIMM SRx4
- up to 384GB RDIMM DRx4
- up to 1536GB RDIMM 3DS 8Rx4
- up to 768GB LRDIMM QRx4
- up to 1536GB LRDIMM 3DS 8Rx4
• Intel® NVM DIMM (Apache Pass) support by
next gen. Purley Refresh CPU
FrontPanel System power on/off, System ID, System reset, 1x USB 3.0 Type A
LEDs Power status, Drive activity, Network activity, System ID
Drive BaysExternal 2.5" hot swap
24
2 (7mm, rear)
Backplane Options
1 x 24-port 12Gb SAS backplane with 28-PHY
expander chip and 3 SFF-8643 connectors
1 x 24-port 12Gb SAS backplane with 3
SFF-8643 connectors
Expansion Slots PCIe 3.0 • 2 x16 slots (LP)
• 3 x8 slots (LP)
System BIOS
BIOS TypeInsyde UEFI BIOS
BIOS
Features
• ACP
• PXE
• WOL
• AC loss
recovery
• SMBIOS
• Serial console
redirection
• BIOS Boot
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe Hotplug
On-board
Devices
SATA/SAS
Intel® Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) +
2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Broadcom SAS IOC SAS3008 supports up to 8
ports 12G SAS via 2 x SFF-8643 mini-SAS HD
(optional)
BMC
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN,
Serial over LAN
• SMASH Support
• HTML5
Network
Controllers
• Intel® PCH (Lewisburg) Integrated 10GbE
LAN Controller with dual 10GbE SFP+
(KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicated
management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics &
Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Rear I/O
LAN
• 2 x 10GbE SFP+
• 1 x GbE RJ45 dedicated to BMC
management
USB 2 x USB 3.0 Type A
VGA 1 x external DB-15 VGA port
Serial Port 1 x external DB-9 COM port
Power Supply 800W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~240V,50/60Hz,10-5A
System Cooling 3 x 80x38mm hot swap fans
System
Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
• HTML5
Environmental • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (w/ PSU & Rail)
kgs : 31
lbs : 68.2
Packaging
Dimensions(W x D x H)
mm : 605 x 880 x 322
inches : 23.8 x 34.7 x 12.7
Mounting Standard28" tool-less slide rail

3
Chapter 1. Product FeaturesSB201-VG User Manual
1�3 Feature
SB201-VG is a reliable 2U storage server barebone with 24 hot swap drives bays at the
front and two 7mm at the rear. This product is designed to accommodate the serverboard,
Virgo, which supports Intel® C620 PCH chipset and 12 DDR4 2400/2666Mhz EEC UDIMM
to offer greater perfomance, efciency, and utility for our customers. Featuring Intel®
C620 PCH system chipset, which is emphasized for its accelerated speed and expansion,
this product enhances these advantages by integrating flexible IO usage and system ex-
pansion into to provide greater bandwidth and utilization.
In addition to the noteworthy features of the barebone, SB201-VG provides immediate
and efcient management with Onboard Baseboard Management Controller and greater I/
O extension. Featuring IPMI 2.0 and Aspeed AST2500 Advanced PCIe Graphics, the serv-
er board offers support for iKVM, Media Redirection, Smash Support, IPMI over LAN, and
Serial over LAN.
• 2U 24-Bay high density storage server
• Supports two Intel® Xeon® Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal
conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port
• Customizable to meet your requirements

4
Chapter 1. Product FeaturesSB201-VG User Manual

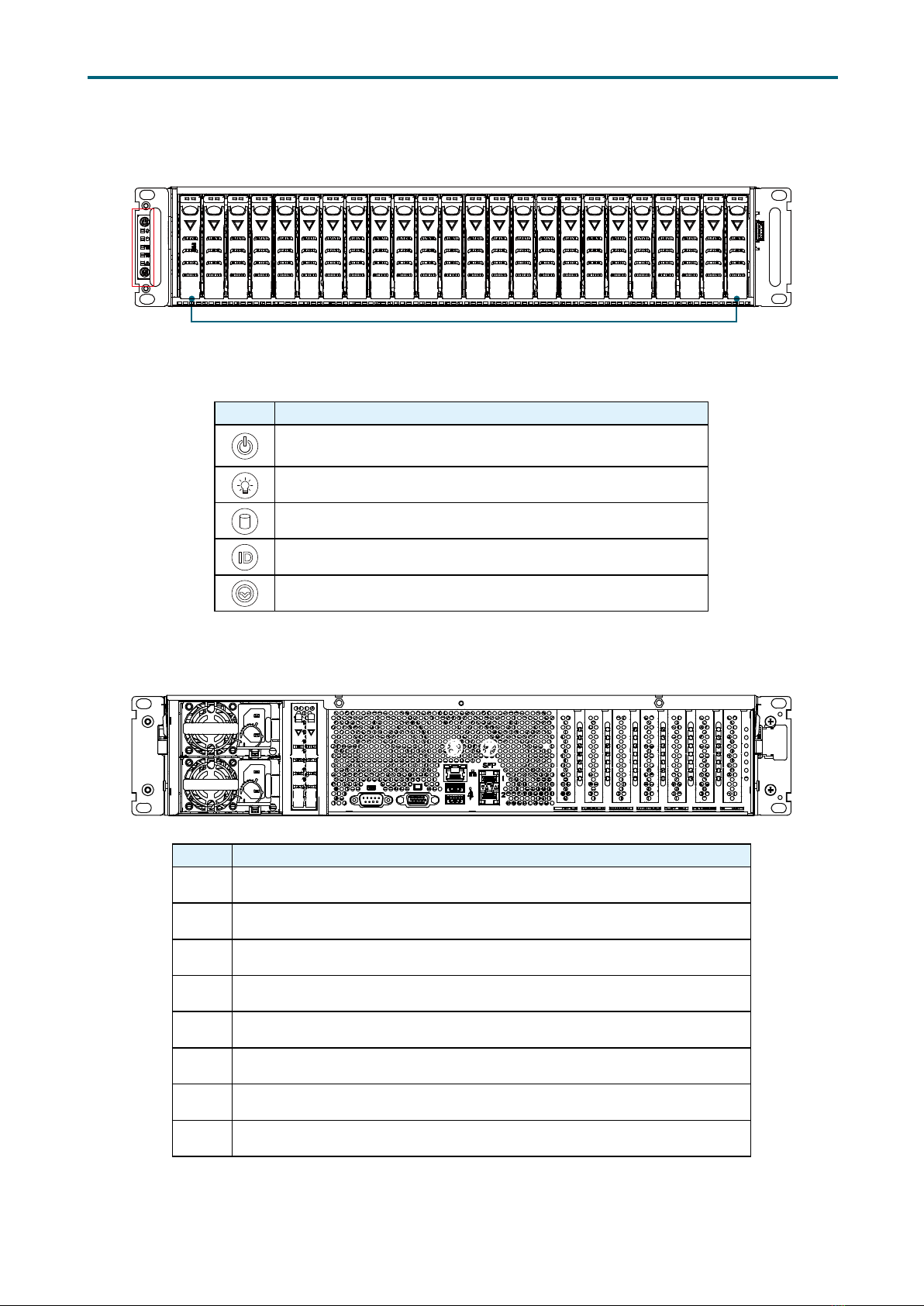

Front Panel
System LED Indicator and Switch
Item Description
Power Button
System Power LED
Drive Activity LED
System ID LED
System Reset Button
Rear Panel
Item Description
1800W 1+1 redundant power supply 80+ Platinum
22 x 2.5 inch hotswap drive (7mm)
31 x DB-9 COM port
41x DB-15 VGA port
51 x GbE RJ45 dedicated to BMC management port
62 x USB 3.0 port
72 x GbE RJ45
8PCIe 3.0 slot
  
2.5-inch hot swap drive bay






5
Chapter 1. Product FeaturesSB201-VG User Manual
Top View
Item Description
9Virgo Motherboard
10 3 x 80 x 38mm system fans



6
Chapter 2. Hardware Setup
SB201-VG User Manual
This chapter provides the graphic detail and basic instruction for hardware installation.
Turn off the system and unplug all peripheral devices before proceeding.
2�1 Central Processing Unit Setup
The serverboard supports dual Xeon scalable processors and Socket P0 (LGA-3647).
2�1�1 Processor Installation
To ensure a safe and easy setup, you need to prepare before installation:
 a T20 Torx screwdriver
 ESD wrist strap/mat and conductive foam pad
 Safe and stable environment
CAUTION
The pins of the processor socket are vulerable and easily susceptible to damage if ngers
or any foreign objects are pressed against them. Please keep the socket protective cover on
when the processor is not installed.
CAUTION
When unpacking a processor, hold the processor only by its edges to avoid touching the
contacts.
Standard Processor Assembly:
A standard processor assembly is comprised of PHM(Processor Heatsink Module)
components and processor socket assembly.
Chapter 2� Hardware Setup
This information is provided for professional technicians only.

7
Chapter 2. Hardware SetupSB201-VG User Manual
Processor Socket Assembly:
The server board includes two processor sockets (LGA-3647), supports one or two of
the Intel® Xeon® Processor Scalable Family and has a Thermal Design Power (TDP)
of up to 165W on selected models.
PHM (Processor Heatsink Module) Component:
This information is provided for professional technicians only.

8
Chapter 2. Hardware Setup
SB201-VG User Manual
PHM Screw Installation Order:
The PHM sits level with the processor socket assembly. The PHM is NOT installed
properly if it does not sit level with the processor socket assembly. Once the PHM is
seated over the processor socket assembly, the four heat sink torque screws must be
secured in the following order as shown below.
Processor Heat Sink – Top View with Screw Tightening Order
CAUTION
Failure to tighten the heatsink screws in the specied order may cause damage to the
processor socket assembly. Heat sink screws should be tighted to 12 in-lbs torque
according to the ndicated order on the top of the heatsink label.



This information is provided for professional technicians only.

9
Chapter 2. Hardware SetupSB201-VG User Manual
2�1�2 CPU heatsink
CAUTION
There may be possible thermal during physical contact with the heatsink. Avoid moving
the heatsink after it has contacted the top of the CPU. Too much movement could
disturb the layer of thermal compound, causing voids and leading to ineffective heat
dissipation and component damage.
This information is provided for professional technicians only.

10
Chapter 2. Hardware Setup
SB201-VG User Manual
2�2�1 DIMM Installation
 Unlock the DIMM socket by pressing the retaining clips outward.
 Insert the memory module into the slot. Make sure that the DIMM notch is
accurately positioned.
 Close the retaining clips to complete installation.
This information is provided for professional technicians only.
DIMM n
otch
2�2 System Memory

11
Chapter 2. Hardware SetupSB201-VG User Manual
2�2�2 DIMM Installation Order
DIMM Numbers DIMM ARRANGMENT
2 DIMMs
CPU1 CPU0
JDIMM_L0 JDIMM_C0
JDIMML0 JDIMMC0
JDIMMK0 JDIMMB0
JDIMMJ0 JDIMMA0
JDIMMG0 JDIMMD0
JDIMMH0 JDIMME0
JDIMMI0 JDIMMF0
CPU 1CPU 1 CPU 0CPU 0
JDIMML0 JDIMMC0
JDIMMK0 JDIMMB0
JDIMMJ0 JDIMMA0
JDIMMG0 JDIMMD0
JDIMMH0 JDIMME0
JDIMMI0 JDIMMF0
CPU 1CPU 1 CPU 0CPU 0
4 DIMMs
CPU1 CPU0
JDIMM_L0 JDIMM_C0
JDIMM_J0 JDIMM_A0
JDIMML0 JDIMMC0
JDIMMK0 JDIMMB0
JDIMMJ0 JDIMMA0
JDIMMG0 JDIMMD0
JDIMMH0 JDIMME0
JDIMMI0 JDIMMF0
CPU 1CPU 1 CPU 0CPU 0
6 DIMMs
CPU1 CPU0
JDIMM_L0 JDIMM_C0
JDIMM_J0 JDIMM_A0
JDIMM_I0 JDIMM_F0
JDIMML0 JDIMMC0
JDIMMK0 JDIMMB0
JDIMMJ0 JDIMMA0
JDIMMG0 JDIMMD0
JDIMMH0 JDIMME0
JDIMMI0 JDIMMF0
CPU 1CPU 1 CPU 0CPU 0
8 DIMMs
CPU1 CPU0
JDIMM_L0 JDIMM_C0
JDIMM_J0 JDIMM_A0
JDIMM_G0 JDIMM_D0
JDIMM_I0 JDIMM_F0
