aidacare ASPIRE LSS390680 User manual

USER MANUAL
INLINE WEIGH SCALE

32 www.aspirecare.com.au

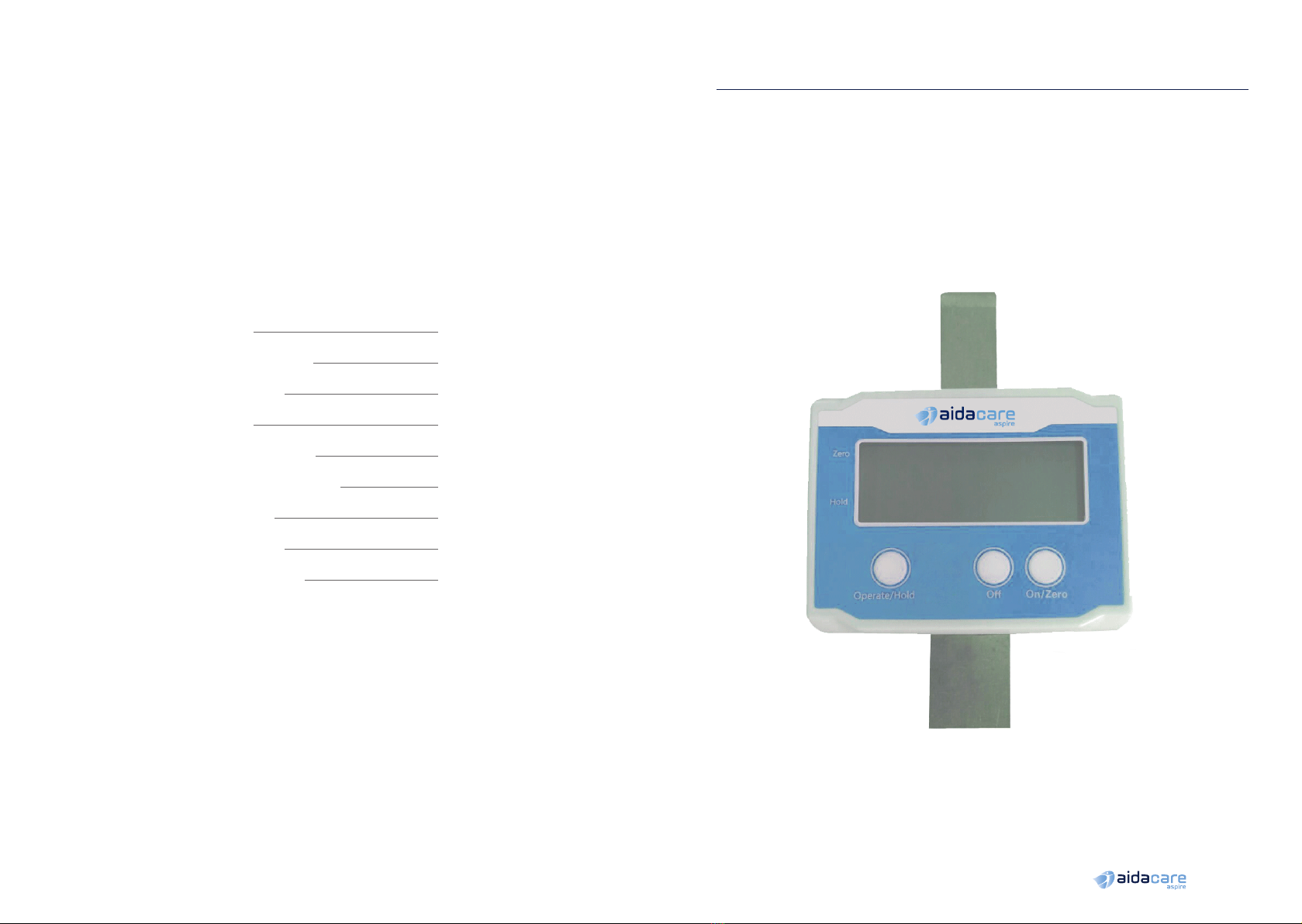

TABLE OF CONTENTS
• The ASPIRE Inline Weigh Scale allows for an accurate weight measurement to be taken by a carer
when a patient is suspended in a sling.
• The ASPIRE Inline Weigh Scale has been tested to hold a maximum Safe Working Load (SWL) of
320kg.
• The ASPIRE range of patient lifting solutions have been designed and tested to comply with AS/NZ
ISO 10535: 2011.
1. OVERVIEW
1. Overview
2. Safety Precautions
3. Parts Glossary
4. Assembly
5. Preliminary Checks
6. Weigh Scale Operation
7. Maintenance
8. Specifications
9. Limited Warranty
3
4
5
6
7
7
8
8
9

54 www.aspirecare.com.au
Intended Use of the Product
The ASPIRE Inline Weigh Scale has been designed to weigh human patients with the assistance of one
carer or attendant.
The ASPIRE Inline Weigh Scale should ONLY be used with Aidacare approved patient slings & lifters,
which have been chosen and assessed by a competent trained health professional. For a complete list of
all compliant lifting slings and patient lifters, please contact Aidacare on 1300 133 120.
Approved Patient Lifters for use with the ASPIRE Inline Weigh Scale
• Aidacare Aspire A150F Patient Lifter
• Aidacare Aspire A205 Patient Lifter
• Aidacare Aspire 200 Patient Lifter
• Aidacare Aspire A320 Patient Lifter
IMPORTANT – only approved patient lifters, slings and accessories are compatible with this Inline Weigh
Scale. If you are unsure please contact Aidacare on 1300 133 120.
The correct and appropriate use of the ASPIRE Inline Weigh Scale reduces the risks associated with
manual patient weighing.
Safety Considerations
ALWAYS ensure that attendants have read this guide before operating this patient scale.
ALWAYS use slings and lifters that are assessed and considered suitable by a trained healthcare professional.
ALWAYS ensure the area around the lifter and patient is clear of obstructions.
DO NOT operate a patient lifter without training in the safe operation of lifters and slings. IF IN DOUBT DO NOT USE.
DO NOT use the weigh scale where any doubt exists regarding the safety of the scale including but not limited to wear or
damage with particular importance to be placed on the yoke and lifter sling attachment points.
DO NOT use the scale with slings showing any signs of wear or damage, including fraying.
DO NOT exceed the 320kg safe working load of the ASPIRE Inline Weigh Scale.
DO NOT use the weigh scale when transporting a patient. It is not designed to be used during patient lifter transportation.
DO NOT use on standing lifters.
Intended Use
The intended use of the ASPIRE Inline Weigh Scale is the measurement of patient weight.
2. SAFETY PRECAUTIONS

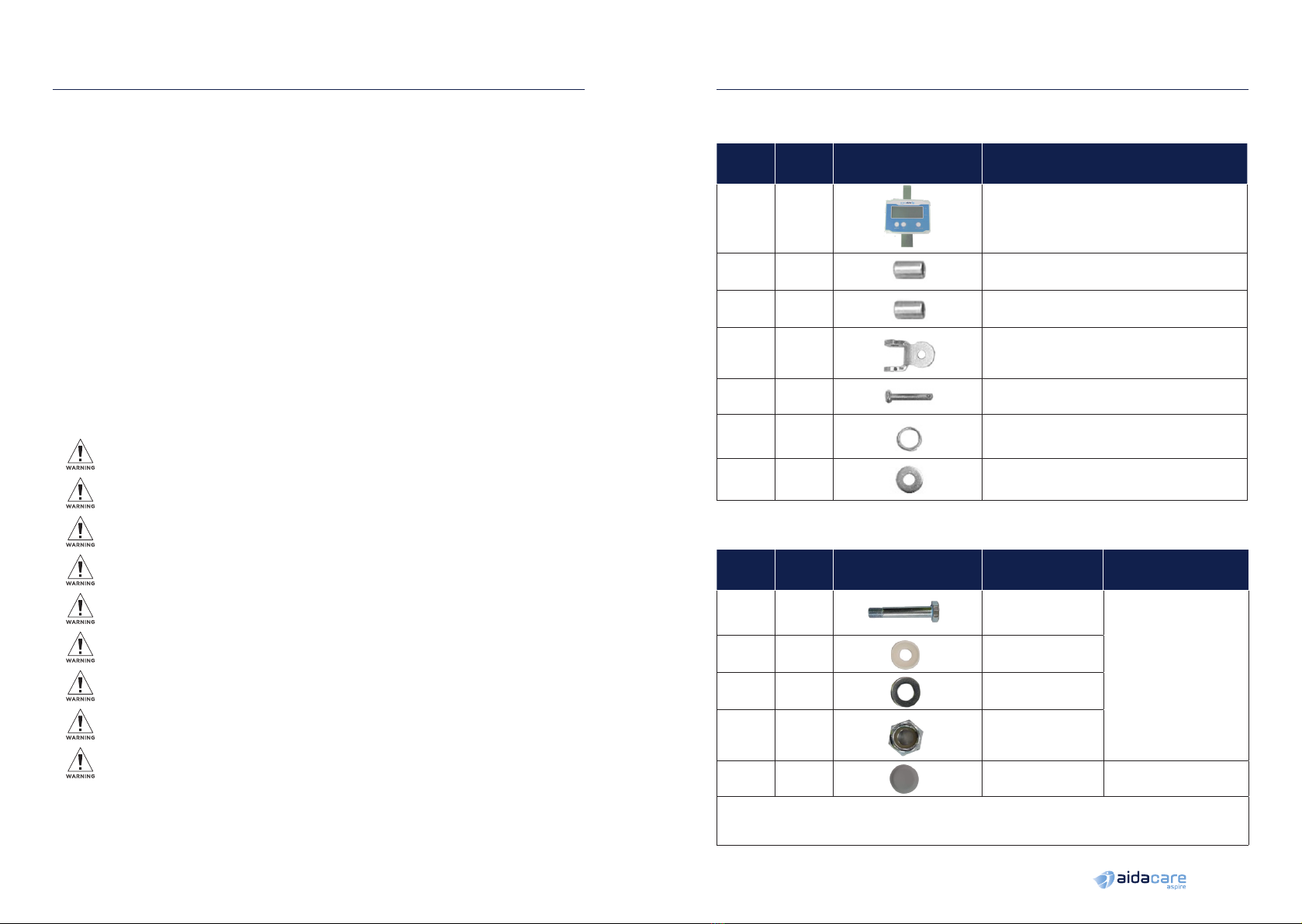

The Aspire In Line Weigh Scale comes with the following standard components:
3. PARTS GLOSSARY
Where pins and split rings are not desired, they can be replaced with nuts and bolts (not included) as below:
Item QTY Picture Descprition
1 1 Scale
2 1 Bushing 1220
3 1 Bushing 1020
4 1 Universal bracket
5 2 Pin
6 2 Key ring
7 2 Washer
Item QTY Picture Descprition Aidacare Item Number
8 1 M10 Bolt
GSP390923*
9 2 M10 Washer
10 2Nylon Washer
11 1 M10 Locknut
12 4Plastic Cover GSP390911^
NOTE:
* 2pcs of GSP390923 required per weigh scale
^ 4pcs of GSP390911 required per weigh scale

76 www.aspirecare.com.au

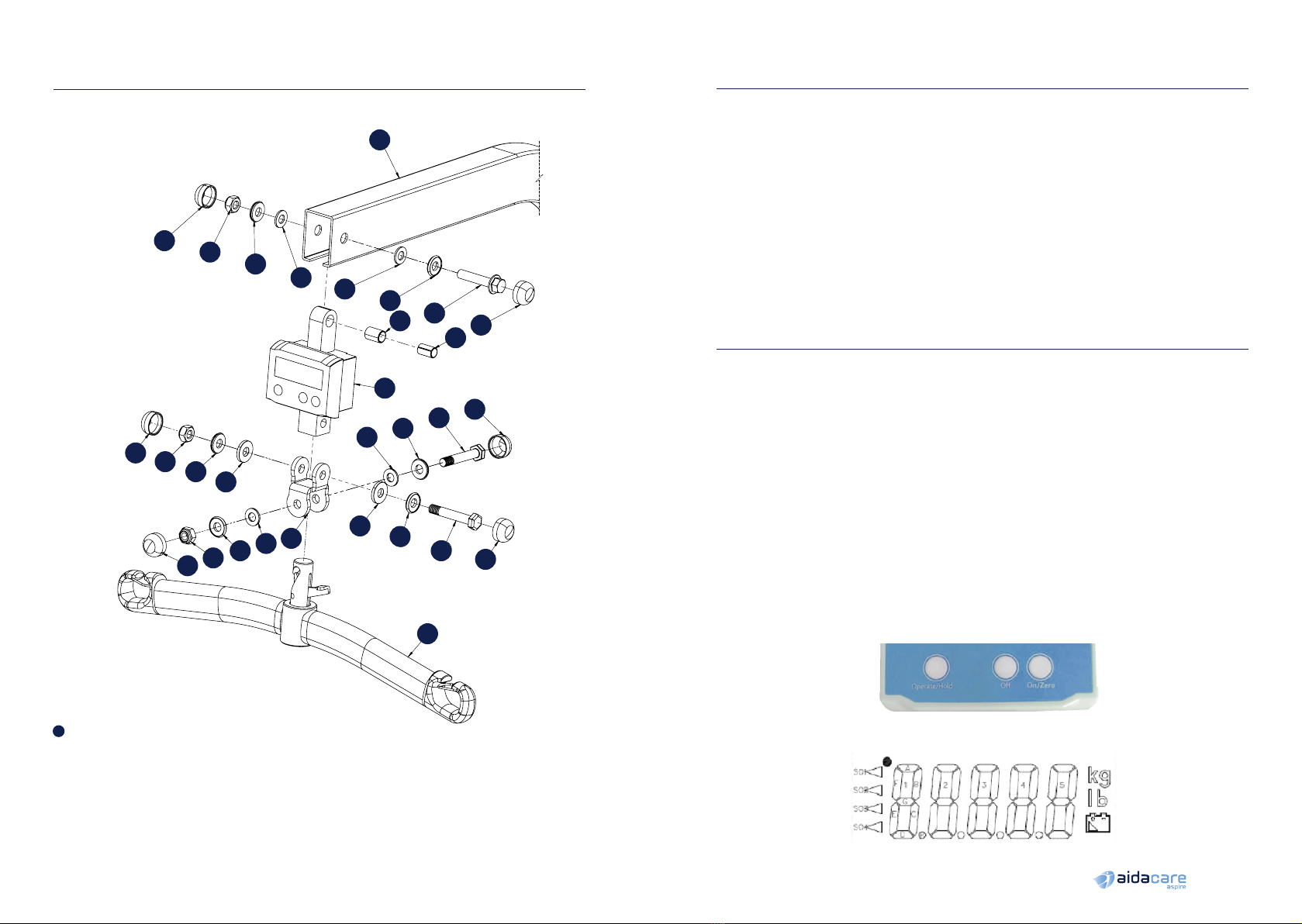

1. Insert and connect 9V battery into weigh scale.
2. Remove the Spreader Bar (S) from lifter boom (B) and retain items marked ‘X’.
NOTES:
a. Some lifters have a link (L) which will force the weigh scale to mount side-ways on lifters. This
link may be removed to allow the weigh scale to mount directly to the boom however the installer
needs to check weigh scale fits correctly and allows free movement without interference when
installed.
The link (L) is to be retained when installing on Aspire 200 lifters.
b. If removing the link then ensure it is kept in a safe location for when lifter is used without the
Aspire In Line Weigh Scale.
c. Aspire 200 Lifter boom shown below. Your lifter boom may vary. Do not remove any part of the
lifter boom (including any extension pieces).
4. ASSEMBLY
B
X
32
1
45
7
X
X
X
5
6
6
X
X
7
S
XXX
XXX
B
7
7
32
61
5
64 5
S
NORMAL ASSEMBLY
WARNING! For normal assembly: ensure the latch from spreader bar is installed on the opposite
side to the top split ring.
B
X
X
X
X
X
L
S
NOTE: Image is for illustration purposes
only and actual installation may dier
depending on lifter and whether the link
Lis retained.
3. Assemble the weigh scale as shown below. Note that items marked ‘X’ are retained from Step 2.

98 www.aspirecare.com.au
5. PRELIMINARY CHECKS
6. WEIGH SCALE OPERATION
After installing the ASPIRE Inline Weigh Scale as per 4. Assembly, these checks should be completed
prior to initially using the weigh scale:
1. Check scale is mounted safely and securely.
2. Check that the battery has sucient charge. If battery symbol appears on screen, battery needs to
be replaced.
3. Check that sling is correctly mounted on the spreader bar as per current manual handling
guidelines.
1. Place sling to be used onto spreader bar without patient/resident/user.
2. Press the scale faceplate ON/ZERO button to zero-out the sling weight (this weight will remain
zeroed out until the O button is pressed).
3. Carefully lift the patient/resident/user in the sling, performing the procedure so that all of the
weight is supported by the lift. Stabilise the movement of the sling after lifting.
4. Weight will display on the scale. Press the Operate/Hold button to hold the weight displayed.
To reset the scale to zero, press the Operate/Hold button again.
5. Lower patient/resident/user safely.
6. If you are weighing another individual using the same sling, perform the lift and their weight will
display. Press Operate/Hold to maintain their weight on the scale display.
7. Press the O button when the weighing procedure is complete.
8. The scale will automatically power o five minutes after measurement has been completed.
KEYBOARD ILLUSTRATION
DISPLAY ILLUSTRATION
INSTRUCTIONS FOR USE
ALTERNATIVE ASSEMBLY WITH NUTS AND BOLTS
X
X
X
10
10
X
X
X
2
3
1
12
8
9
10
10
9
11
12 12
8
9
7
4
7
9
11
12
B
S
XXX
XXX
B
10
10
3
2
1
10 9812
9
812
10
12
9
12
9
11
4
7
11
7
S
NOTE: Image is for illustration purposes
only and actual installation may dier
depending on lifter and whether the link
Lis retained.

1110 www.aspirecare.com.au
To prolong the working life of the weigh scale and for trouble free operation it is recommended that
periodic inspections should be performed routinely by a technician who is suitably qualified and well
acquainted with the design, use and care of patient lifters.
If inspection reveals that the safety of the weigh scale is jeopardised in any way the lifter should be
IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such and the owner notified.
CLEANING
As needed, wipe scale gently, using mild soap or a mild disinfectant.
NOTICE: DO NOT wash under water pressure or steam clean. DO NOT use
solvents, abrasive cleaners, or scouring pads to clean scale.
BATTERY REPLACEMENT
When the low battery indicator appears in the display’s right corner, replace the battery by following the
steps below:
1. Open the scale back battery compartment.
2. Remove battery and replace with a 9V alkaline battery. Ensure battery polarity is correct.
3. Close the scale back battery compartment.
If the scale is not used for an extended period of time, remove the battery.
7. MAINTENANCE
8. SPECIFICATIONS
Model Number LSS390680
Capacity 320 kg
Resolution 1/3,000 ±1d
Division 0.1 kg
Power Source 9V alkaline battery x 1
Temperature Operating 32°F ~ 104°F (0°C ~ 40°C)
Storage 32°F ~ 158°F (0°C ~ 70°C)
Dimensions (W x H x D) 90mm x 72mm x 55mm
Product Weight 0.675kg
LCD Display 66mm x 32.4mm
Display Description
Five digit indication
Kg unit mode
Low power alarm battery symbol
S1 “Zero” indication
S4 “Hold” indication
9. LIMITED WARRANTY
AIDACARE warrants its products to be free from defects in materials and workmanship under normal
use and service and will within the period stated below, from the date of purchase, repair or replace
without cost to the original customer, any part assembly or portion thereof which shall be returned to
AIDACARE and from OUR inspection shows to be defective.
1. Inline Weigh Scale - 2 Years
2. Battery - 1 Year
WARRANTY IS CONTINGENT UPON ANNUAL SERVICING BEING COMPLETED FOR THE LENGTH OF
THE WARRANTY PERIOD.
AIDACARE cannot be held responsible for any personal injury, damage to the weigh scale or damage to
property as a result of the improper or unsafe use of the product.
No warranty claim shall apply where the product or any part thereof has been modified, varied, altered
or damaged either accidentally or through improper or negligent use.
No warranty claim shall apply where the weigh scale is repaired or serviced by parties other than those
accredited and or approved by Aidacare.
Warranty does not extend to items or components which may require replacement due to normal wear
and tear (e.g. battery) for which AIDACARE nor its distributors can be held responsible.

1312 www.aspirecare.com.au
NOTES NOTES

ASUM21.7 100122
AIDACARE PTY LTD
Building 3A, 1 Moorebank Avenue,
Moorebank NSW Australia 2170
1300 133 120 | www.aspirecare.com.au
MADE IN TAIWAN
