Gima Glass Body Fat Analyzer Parts list manual

M27090-M-Rev.1.01.16
Gima S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) Italy
Italia: tel. [phone] - fax [phone]
Export: tel. [phone]/221/225 fax [phone]
[e-mail] - [e-mail]
www.gimaitaly.com
BILANCIA CON ANALIZZATORE DI GRASSO CORPOREO
GLASS BODY FAT ANALYZER SCALE
PÈSE-PERSONNE AVEC ANALYSEUR DE GRAISSE CORPORELLE
BÁSCULA CON ANALIZADOR DE GRASA CORPORAL
BALANÇA COM ANALIZADOR DE GORDURA CORPORAL
ΖΥΓΑΡΙΑ ΜΕ ΑΝΑΛΥΤΗ ΣΩΜΑΤΙΚΟΥ ΛΙΠΟΥΣ
WAGA Z ANALIZATOREM TKANKI TŁUSZCZOWEJ CIAŁA
LS203-B
Fabbricante
Manufacturer
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, No.105, Dongli Road, Torch Development District,
Zhongshan, Guangdong, 528437, China
Made in P.R.C.
Teme l’umidità
Keep dry
Conservare al riparo della luce solare diretta
Keep away from sunlight
MANUALE D’USO E MANUTENZIONE
USE AND MAINTENANCE BOOK
INSTRUCTIONS DE FONCIONNEMENT ET ENTRETIEN
MANUAL DE USO Y MANTENIMIENTO
MANUAL DE USO E MANUTENÇÃO
ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ ΚΑΙ ΣΥΝΤΗΡΗΣΗΣ
PODRĘCZNIK EKSPLOATACJI I KONSERWACJI
ATTENZIONE: Gli operatori devono leggere e capire completamente questo manuale
prima di utilizzare il prodotto.
ATTENTION: The operators must carefully read and completely understand the present
manual before using the product.
AVIS: Les opérateurs doivent lire et bien comprendre ce manuel avant d’utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender completamente este manual
antes de utilizar el producto.
ATENÇÃO: Os operadores devem ler e entender completamente este manual antes
de usar o produto.
ΠΡΟΣΟΧΗ: Οι χειριστές αυτού του προϊόντος πρέπει να διαβάσουν και να
καταλάβουν πλήρως τις οδηγίες του εγχειριδίου πριν από την χρήση του.
UWAGA: przed rozpoczęciem użytkowania wyrobu operatorzy muszą przeczytać
podręcznik i upewnić się, iż wszystko to, co jest w nim napisane jest dla nich jasne i zrozumiałe

11
Safety and Usage Information
The warning signs and symbols are essential to ensure your correct and safe use of this product and
protect you and others from injury. Please kindly nd the meanings of the warning signs and symbols,
which you may encounter in the label and user manual, as follows:
Symbol for “THE OPERATION GUIDE
MUST BE READ”
Symbol for “MANUFACTURER”
The Bluetooth Combination Mark Symbol for “DIRECT CURRENT”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of
with household waste. Please recycle
where facilities exist. Check with your
local authority or retailer for recycling
advice”
Symbol for “MANUFACTURE DATE”
SN Symbol for “SERIAL NUMBER”
CAUTION
Body Fat Analyzer offers you a seamless way to manage your health.
Please be aware that this device is designed for healthy population over 10 years old self-measuring and
self-monitoring body compositions. Any information provided by this device is in no way meant to treat,
cure or prevent any disease or illness from happening. If in doubt, contact your physician.
This device is contraindicated for any female subject who may be suspected of, or is pregnant. Otherwise,
the effects of this device on the fetus are unknown.
This device is contraindicated for any person who is connected to a wearable or implantable electronic
device or instrument such as a pacemaker or debrillator.
This device should not be used for anyone who is acutely or chronically ill because of suffering from a
disease or taking medications that affect your water levels. The accuracy of readings for these patients
has not been veried. Specic medical advice should be obtained from a physician.
The product is equipped with data transmission function. It may emit electromagnetic energy so as to
perform its intended function. Nearby portable and mobile RF communications equipment can affect the
performance of the product. And the device can interfere vicinity electrical equipment.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modications of this equipment is allowed. This may result in increased EMISSIONS or
decreased IMMUNITY of the product.
Please use the device according to the user manual. Any misuse can cause electric shock,burns, re
and other unexpected hazards.
Please use and storage the device under the environment which was provided in the user manual.
Don’t expose the device to extreme temperatures, direct sunlight, moist or corrosive environment.
Do not step on the scale when your body or feet are wet, especially after bathing or showering to prevent slipping.
Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of small
parts is dangerous or even fatal.
Please don’t use the device out of lifetime any more because degraded sensors and electrodes, or
loosened electrodes can degrade performance or cause other problems.
If you have an allergy to stainless steel, please avoid to contact to the electrodes of the device.
The patient is an intended operator. The patient can measure, transmit data and charge battery under
normal circumstances and maintain the device and its accessories according to the user manual.
ENGLISH

12
INDICATIONS FOR USE
The Body Fat Analyzer measures weight and uses bio-electrical impedance analysis (BIA) technology
to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy
children 10-17 years old and healthy adults. It is intended for use in the domestic setting only.
Tips
To ensure the accuracy of measurement, please follow below instructions when you start
measurement.
- Place the scale on a at, hard surface. Soft surface such as carpet will affect the performance of the scale.
- Step onto the platform with bare feet. Stand still and keep full contact with the electrodes until the
measurement is complete.
- Start measurement at least two hours after Getting up or Dinning.
- Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning.
- Always start measurement in the same time slot and on the same scale located on the same at, hard
surface.
- For maximum accuracy and repeatability , it is recommended that you should use the device in the
same time of the day and on the same location.
- The condition of the skin on the bottom of your feet can affect the reading. The natural effects of aging
or activity can make this skin hard. Take the reading with clean, slightly damp feet for best accuracy. If
you are having a problem on operating this scale please contact customer service.
- Body fat percentage estimates will vary with the amount of water in the body, and can be affected by
dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense
exercise, etc.
ENGLISH

13
Device Components
LCD Display
Electrode Electrode
UNIT and activation Button
Battery Compartment
List
1. Glass Body Fat Analyzer
2. Four AAA-size Batteries
3. User Manual
LCD Display
Kilogram Data transmitting
Stone Pending to transmit to wireless
wellness system
Pound Low Battery
Bioelectrical Impedance Analysis
ENGLISH

14
General Instructions
Glass Body Fat Analyzer applies BIA (Bio-impedance Analysis)
technology. A small amount of weak current ows through the human body so as to detect the bio-
impedance and estimate body fat. The electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also possesses the
characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone with an wearable
or implantable medical electronic instrument, such as a pacemaker, must avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults.
Insert the Batteries
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5VAAA) into the battery compartment according to the polarity
indications
marked inside the compartment.
* The digits “8888” will be shown on the LCD.
Close the battery door and wait until the digits “00” are shown on the LCD.
When the symbol appears, the device will power off. Then you shall replace with a new set of
batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries
and scrapped device.
If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries
before storing.
Install App and Pair-Up
With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments, which are
equipped with Bluetooth function in line with BLE Technical Specications as well as BLP Protocol
established by global organization Bluetooth SIG, are capable to receive your personal health data.
iOS supported devices: Iphone4S or above version; Ipod touch 5 or above version; Ipad 2 or above
version; Ipad mini or above version.
Android supported devices: devices with Android OS 4.4 or above version and supports Bluetooth 4.0.
(latest Android devices manufatured after the 2014).
Just simply install the specially-designed App “MedM App” and pair up your scale with your mobile or
portable equipments. The App can be downloaded on App store (iOS devices) or Google play (Android
devices).
Turn on Bluetooth and the MedM App App. Make sure both are ON when pair-up is proceeding.
Press and hold “UNIT” button in the back of the scale to start
pair-up.
Symbol and symbol will be shown on the LCD
alternatively, indicating pair-up is proceeding.
If SUCCEED, symbol will be shown on the LCD.
If FAIL, symbol “E1” will be shown on the LCD.
ENGLISH

15
Select Measurement Unit
With batteries correctly installed, press “UNIT” button in the back
of the scale to select measurement unit. The default measurement
unit is “lb”. You may press “UNIT” button to choose among pound,
kilogram and stone.
Daily Measurement
With original SENSE ON patent technology, the scale will switch on as you step on
the platform barefooted.
Stand still and keep full contact with the electrodes until the LCD stops blinking “BIA”.
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
it will process data transmission.
(Please refer to Data Transmission for more details.)
Data Transmission
With the scale successfully pair-up with your smartphone, the measurement data will
be transmitted to your mobile via Bluetooth.
The symbol will disappear after successful data transmission, and you may check your personal health
data stored in your smartphone.
If the data transmission fails, the symbol will remain. The pending measurement data will be temporarily
kept in the scale and transmitted to your smartphone when next measurement is complete.
Data transmitting
Data ready to transmit to the App:
-If SUCCEED, the symbol disappears;
-If FAIL, the symbol remains.
ENGLISH

16
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol . And the Analyzer
may interfere vicinity electrical equipment.
To enable the data transmission function, this product should be paired to a Bluetooth 4.0 end.
How to mitigate possible interference?
1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1 meter
to 10 meters. Please ensure no obstacles between the Analyzer and the Bluetooth end so as to obtain
quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission /
Transmitter) should be kept at least 1 meter away from the Analyzer.

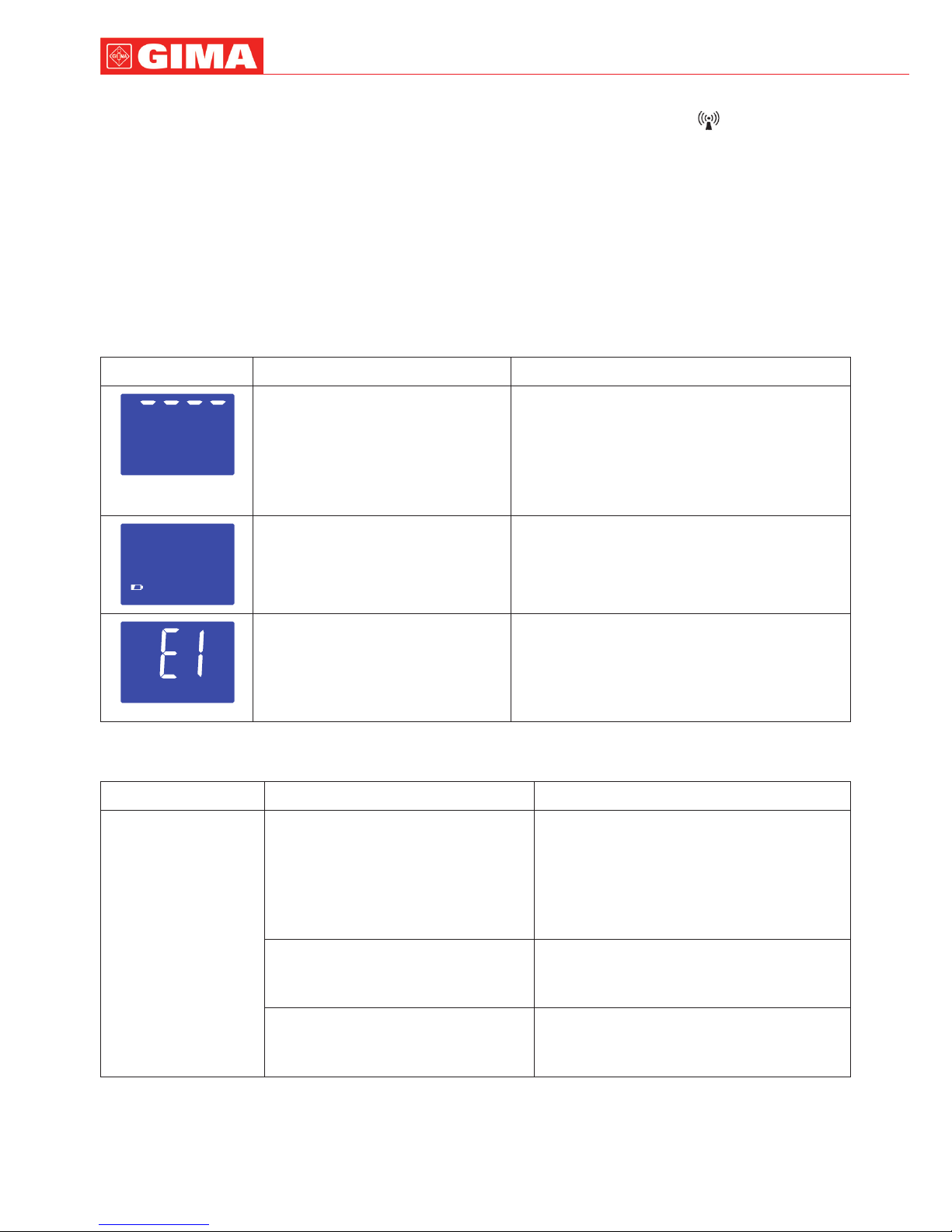

Error Prompt
Error Description Solution
Overload. The device will power
off.
Stop using this scale for measurement.
Low Battery. The device will
power off.
Replace all four batteries at the same time.
Please purchase the authorized batteries for
replacement.
Failure of pairing up your scale
with your smartphone.
Please check below items:
-Bluetooth is ON.
-App is ON.
-Both devices are within the transmission
distance of Bluetooth.
When Measuring ...
Problem Root Cause Solution
Abnormal measuring
results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Incorrect posture Please step on the platform barefooted
and stand still.
The device is located on the soft
ground such as a carpet OR on a
rugged surface.
Please place the device on a at, hard
surface.
Cold body that may results in bad
blood circulation.
Warm up your hands and feet to resume
blood circulation and then measure again.
ENGLISH

17
Problem Root Cause Solution
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Cold Electrodes. Place the device in a warm room for a while
and then measure again.
Either your hands or your feet
are too dry.
Wipe your feet with a damp cloth, keeping them
slightly damp when starting measurement.
No display on LCD
when the device
powers on.
Batteries not yet installed. Install the batteries. (Please refer to Insert
the Batteries)
Worn batteries. Replace all four batteries at the same time.
Please purchase the authorized batteries for
replacement.
CANNOT proceed
to analyze body fat.
Step onto the platform wearing
socks or shoes.
Please keep barefooted during the
measurement, and keep full contact with the
electrodes as well.
The device powers
off automatically.
Low battery. Replace all four batteries at the same time.
Please purchase the authorized batteries for
replacement.
When Data Transmitting ...
Problem Root Cause Solution
Data transmission
failed.
Bluetooth is OFF. Turn ON the Bluetooth via Settings.
App is OFF. Press the icon to turn ON your app.
Out of range of Bluetooth
transmission.
Place your smartphone closer to the scale.
ENGLISH

18
Specications
Product Name Glass Body Fat Analyzer
Dimension Scale: 321x321x23.5mm (Approximately)
Net Weight Approximately 1.98kg ( Excluding the dry cells)
Display Digital LCD with White Backlight
Measurement Unit Kilogram / Stone / Pound
Measurement Range 5kg to 150kg / 0st: 11lb to 23st: 8lb / 11lb to 330lb
Division 0.1kg / 0.2lb
Accuracy 5-50kg: ±0.3kg; 50-100kg: ±0.4kg; 100-150kg: ±0.5kg;
Working Environment Temperature: 5°C to 40°C Humidity: 15% RH to 93% RH
Atmospheric pressure: 70kPa to 106kPa
Storage Environment Temperature: -20°C to 60°C Humidity: ≤93% RH
Atmospheric pressure: 50kPa to 106kPa
Power Source 6V (Four AAA-size Batteries)
Turn on Method SENSE ON technology
Auto-OFF The scale will turn off after about 10 seconds if there is no
operation
Accessories 1. Four AAA-size batteries
2. User Manual
Mode of Operation Continuous Operation
Degree of protection Type BF applied part
Protection against ingress of water IP21, It means the device could protected against solid foreign
objects of 12.5 mm and greater, and against vertically falling
water drops
Software Version A0
Bluetooth Module No. AW8001
ENGLISH

19
Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and Don’ts:
- DO use a dry soft cloth to wipe the dust.
- DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
- DON’T wash the device with water or immerse it in water.
- DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
- DON’T disassemble this device. If you have any problems, please contact the distributor. (Please refer
to Warranty for contact information)
Do not dispose of batteries in re. Batteries may explode or leak. Remove the batteries
if the scale will not be used for a long period.
EMC Guidance
1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to
be installed and put into service according to the EMC information provided in the ACCOMPANYING
DOCUMENTS.
2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless
telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least
a distance d = 3,3 m away from the equipment.
(Note. As indicated in Table 6 of IEC 60601-1-2:2007 for ME EQUIPMENT, a typical cell phone with a
maximum output power of 2 W yields d = 3,3 m at an IMMUNITY LEVEL of 3 V/m)
Disposal: The product must not be disposed of along with other domestic waste. The users
must dispose of this equipment by bringing it to a specic recycling point for electric and
electronic equipment. For further information on recycling points contact the local authorities,
the local recycling center or the shop where the product was purchased. If the equipment is
not disposed of correctly, nes or penalties may be applied in accordance with the national
legislation and regulations.
GIMA WARRANTY CONDITIONS
Congratulations for purchasing a GIMA product.
This product meets high qualitative standards both as regards the material and the production. The
warranty is valid for 12 months from the date of supply of GIMA.
During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected
parts due to production reasons. Labor costs and personnel traveling expenses and packaging not
included.
All components subject to wear are not included in the warranty.
The repair or replacement performed during the warranty period shall not extend the warranty.
The warranty is void in the following cases: repairs performed by unauthorized personnel or with non-
original spare parts, defects caused by negligence or incorrect use.
GIMA cannot be held responsible for malfunctioning on electronic devices or software due to outside
agents such as: voltage changes, electro-magnetic elds, radio interferences, etc.
The warranty is void if the above regulations are not observed and if the serial code (if available) has
been removed, cancelled or changed.
The defected products must be returned only to the dealer the product was purchased from. Products
sent to GIMA will be rejected.
ENGLISH
