For a complete operation manual (35.1 MB), scan QR code to download
it from the manufacturer’s website: www.aiphone.com/ix-op-man
This operation guide describes the basic
functions of your IX Series Master Station
IX-MV Master Station
IX-MV Consumer Operation Guide |1 of 2
January 2015
Icon Status
Communication in progress
(G = Normal Y = Priority R = Urgent)
Incoming / Outgoing call in progress
(G = Normal Y = Priority R = Urgent)
Receiving calls in queue
(002 = 2 stations calling)
Incoming / Outgoing page in progress
(G = Normal R = Urgent)
Microphone on (PRIVACY mode off)
Microphone off (PRIVACY mode on)
On-hold, call transferring
Monitoring in progress
Door release activated (unlocking)
Settings screen is displayed
Screen adjustment in progress
Search in progress
An error has occurred
Processing selected function
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the Door Release
Button to unlock the
entrance during a call.
Door Release Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the ADJUST
Button to compensate
for low or bright
backlight conditions
when viewing video
from a door station.
ADJUST Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push , , , or to
control the cursor when
making menu selections.
Cursor Control Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the Enter
Button to make a
menu selection.
Enter Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFER
PRIVACY
LIST
Push and hold the PRIVACY Button to mute the microphone when AUTO ANSWER
is off (the caller can still be heard through the speaker). When AUTO ANSWER is on,
privacy will mute the microphone until the TALK Button is pushed or the Handset is lifted.
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the TRANSFER Button to manually send an answered call to another master
station within the address book (an orange LED on the button blinks when transferring).
To automatically send incoming
calls to another master station within the
address book (ABSENT TRANSFER),
use the SETTING Button to program a set
destination. Once programmed, push the
TRANSFER Button to toggle this feature
on or off (an orange LED on the button
remains lit when the feature is activated).
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY
LIST Push the LIST Button to view stations
and groups within the address book.
Use the Cursor Control and Enter
Buttons to make selections.
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the SETTING Button to view
all setting options for your specifi c
master station. Use the Cursor
Control and Enter Buttons to make
selections. A status icon appears on
screen when a function is in operation
(see chart below).
Operation Buttons

SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
For a complete operation manual (35.1 MB), scan QR code to download
it from the manufacturer’s website: www.aiphone.com/ix-op-man
This operation guide describes the basic
functions of your IX Series Master Station
IX-MV Master Station
IX-MV Consumer Operation Guide |1 of 2
January 2015
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST

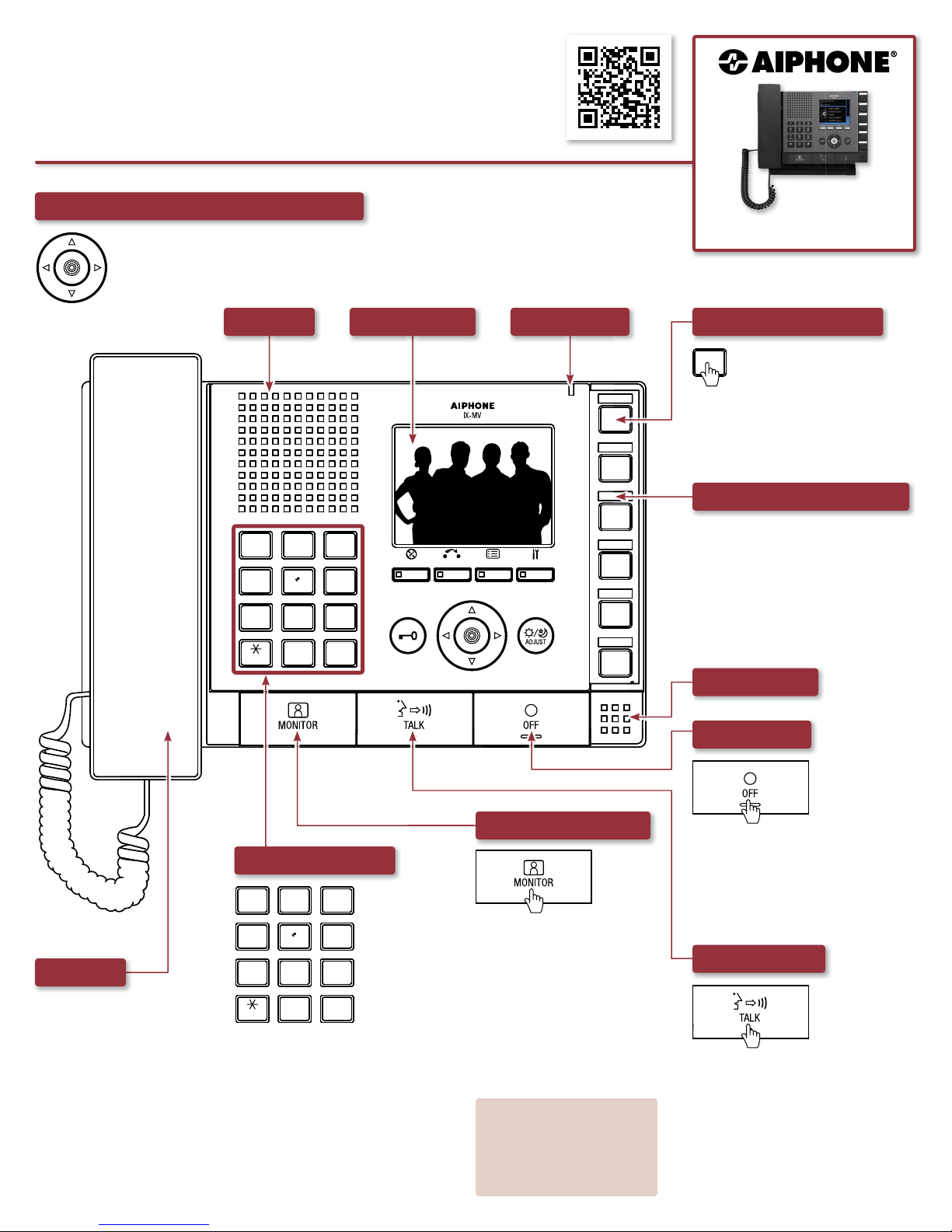

Push the TALK
Button to answer
an incoming call
or respond to an
incoming page*. Once answered, the
conversation becomes hands-free.
To make a call, search for the station
or group using the Keypad Buttons or
the LIST Button. Once selected, push
the TALK Button to establish the call.
TALK Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the OFF
Button to end
a call (this does
not turn off the
device). If in MONITOR mode, push
the OFF Button to stop monitoring.
If receiving a page, push the OFF
Button to stop the page from going
to your specifi c master station.
OFF Button
Speaker LCD Screen
Microphone
Status LED
Pick up the Handset to
answer an incoming call or
respond to an incoming page*.
Hang up the Handset to end
the conversation. To make a
call, search for the station
or group using the Keypad
Buttons or the LIST Button.
Once selected, pick up the
Handset to establish the call.
Handset
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push the LIST Button and
use the Cursor Control
and Enter Buttons to select
a desired station. Once
selected, push the
MONITOR Button to begin
monitoring activity where
the station is located.
MONITOR Button
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Push a Speed Dial Button to
call or page the station or
group programmed for each
corresponding button. To program
speed dial options and their priority
levels, use the SETTING Button.
Speed Dial Buttons
When a station or group is
programmed for a speed dial
function, fi ll out the name
card with the corresponding
name or number and place it
under the transparent cover
for quick reference.
Name Card and Cover
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
Use the Keypad Buttons to search
for a station or group by number.
To search by name, push the LIST
Button and use the Cursor Control
and Enter Buttons to select a
search option. Once selected,
use the Keypad Buttons to type
the name of the station or group.
Keypad Buttons
SETTING
1
4
GHI
7
PQRS
#0
ABC
JKL
TUV
5
8
2
6
9
WXYZ
MNO
3
DEF
TRANSFERPRIVACY LIST
See “IX-MV Master Station Operation Guide |1 of 2”to
read how the Cursor Control and Enter Buttons operate.
Cursor Control and Enter Buttons
*Lifting the Handset or pushing
the TALK Button during a paging
announcement will cancel / stop
the page throughout the system.
This includes any emergency
paging notifi cations or alerts.
