air choice AP-126D User manual

C-0
AIR PURIFIER OPERATING INSTRUCTIONS
MODEL NO.: AP-126D
Email: [e-mail]
Thank you for purchasing this product. For better and more
safety using, please read this manual thoroughly before
operation and retain for future reference.

C-1
IMPORTANT SAFEGUARDS:
Before using an electrical product, basic safety precautions
should always be observed, including the following:
DANGER
▲Do not immerse the appliance in water or liquid. To reduce
the risk of electric shock, fire or injury to persons
▲Do not use any corrosive or flammable liquids to clean the
appliance to reduce the risk of electric shock, fire or injury to
persons.
WARNING
▲Before starting up the product, please check whether the
voltage.
marked on the rating label is consistent with the local voltage.
Using inappropriate voltage and power outlet will damage and
harm others.
▲Periodically check the electric cable of the product. If the
electric cable is damaged, it must be replaced by after-sales
service in order to avoid danger.
▲Do not use this product if the plug, power cord, or product
itself is damaged.
▲This product is not intended to use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
▲Never operate the product without supervision. Children

C-2
should be supervised by a responsible adult to ensure that they
do not play with the product.
▲Do not block the air inlet and outlet to avoid damage due to
overheating. Place away from soft objects such as curtains.
ATTENTION
▲Do not use this appliance when you have used indoor
smoke-type insect repellents or in places with oily residues,
burning incense or chemical fumes.
▲Recommend to use individual electric supply socket and not
to use an extension socket, in order to avoid the danger of
overheating in the outlet. Using inappropriate voltage
and power outlet will damage and harm others.
▲Place the product on a flat, firm and safe place. Do not put
it on the table edge or the tilted area, in order to avoid
dropping or damaging the product accidentally.
▲Please make sure there’s a 30cm distance between the object
and the product which including a top side, front and back side
As well.
▲Do not place anything on top of the product or sit on the
product.
▲Do not place the product directly under the air conditioner to
prevent condensation from dripping into the product.
▲Do not operate the product without filters or with damaged
filters.
▲To avoid shortening life span or damaging your product, do
not use the machine with parts or accessories that are not
original. Otherwise, the warranty of the product will be invalid.
▲Do not hit the product with hard objects (especially the air
inlet and outlet).

C-3
▲Always lift or move the product with the handle on the back
of the product。
▲Do not put your fingers or other objects into the air outlet, to
avoid injury and damage the product.
▲Do not operate the product in the area where gasoline,
painting
or flammable liquids are around. Keep the
product away from heat or hot units, as it may cause an
explosion
▲Do not attempt to fix the product on your own when it is not
functioning. There are no user serviceable parts in your
appliance. Unauthorized dismantling or servicing will void the
product warranty. If you need maintenance, please send it back
to the service center for assistance
▲Always unplug the appliance after use. When unplugging the
power cord, hold the plug top, not the power cord.
▲Before cleaning, repairing or moving the product, you must
unplug it. Do not use volatile liquids or hard
cloth to clean the product, as to prevent the product from
scratching.
▲Not to place it where the product is exposed to condensation,
due to big temperature changes.Operate it under
room temperature between 00-350
▲To prevent interference, place the product at least 2 meters
away from appliances that use airborne waves (such as
televisions, radios, and radio control clocks).
▲This product is not designed for outdoor use nor at humidity
area such as the bathroom. It is designed for indoor use only.
▲This product does not remove carbon monoxide (CO) or
helium (Rn), so it cannot be used as a safety device in the event
of a burning or hazardous chemical accident.

C-4
PARTS DESCRIPTION
A、Cover；B、HEPA Filter (The Pre-filter is in surface)；C、
Switch Button；D、Air outlet
Pre-Filter – Intercept the hair, dander and other large particle
contamination; prolong the service life of HEPA filter.
HEPA Filter – HEPA can help to remove PM2.5 and efficient
removal of the dust particle in 0.3 microns, including parts of
PM2.5 and PM5-10 particle.
INSTALLATION OF FILTER
Please be reminded to take away the plastic bag before putting
the filters in the air purifier.
Note： Place the product securely before removing or loading the
Filter.
Be sure to install the filter in place.

C-5

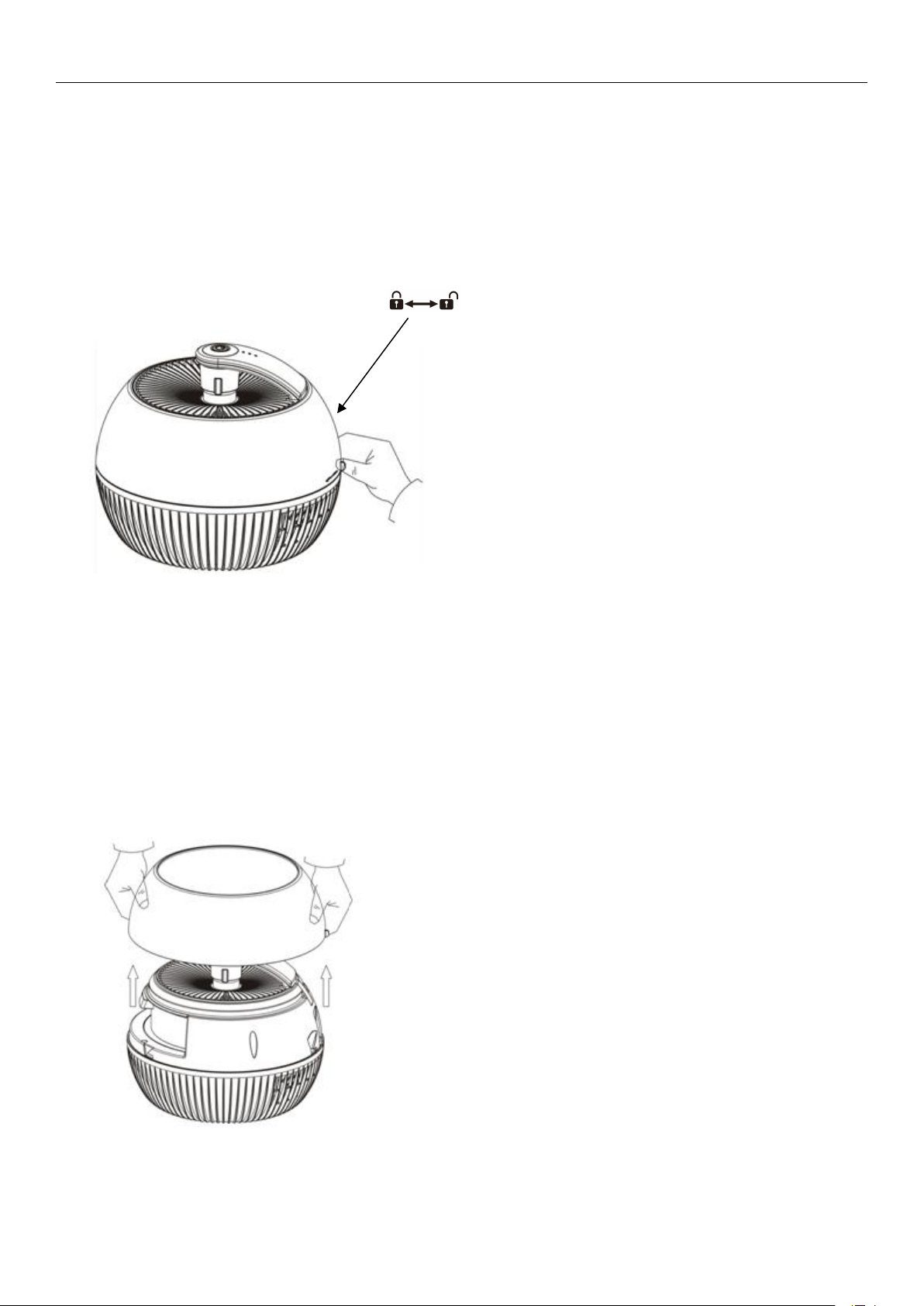

1. Hold your hands on the upper cover, unlock the upper cover
by rotating it in the counter-clockwise direction. Rotate “OPEN”
to the icon position and then stop. (Fig.1 )
2. Hold the upper cover with both hands and remove the upper
cover（Fig. 2）
（Fig 1）
（Fig. 2）

C-6
3. Take away HEPA filter by pulling the handle on the side of the
filter slightly. (Fig.3)
4. Take the HEPA filter out of the plastic bag. (Fig.4)
Note: Please be reminded to take away the plastic bag before
putting the filters in the air purifier.
(Fig.3)

C-7
5. Put back the HEPA filter into the appliance, and fix the
filter properly。(Fig.5)
6. Replace the upper cover. Square the upper cover with both
hands, align them on the top cover with the icon
（Fig.6）
Push
the upper cover into the product and combine it with the
product，then hold the upper cover ribs by hand and rotate
the upper cover to the direction of and turn it to the bottom
to stop.（Fig.7）
(Fig.4)
（Fig.6 ）
（Fig.7 ）
(Fig.5)

C-8
6. Untie the cord power belt, plug in the socket and start to use
the appliance. (Fig.8、9)
（Fig.8 ）
（Fig.9）

C-9
OPERATION INSTRUCTION
Operation Panle
Buttons
Button
Name
Function
Press 1
time
ON/LO
W
The pilot light of “L” is on ，the machine
turn on and the fan speed is low;(the
negative ion is auto-start)
Press 2
times
MIDDL
E
The pilot light of “M” is on, the fan speed
is middle；
Press 3
times
HIGH
The pilot light of “H” is on, the fan speed
is High；
Press 4
times
OFF
Turn off the machine

C-10
MAINTAINCE & CLEANING
（Note: Please unplug the appliance before maintain or clean
it.）
Appliance Surface
Please do regularly clean the dust inside and outside, to avoid
dust gathering.
1) Use the soft and dry cloth to clean the surface of the
appliance.
2) Use the soft and dry cloth to clean the air inlet and outlet of
the appliance.
Filter
HEPA filter is not washable. Recommend to use the soft brush or
vacuum cleaner to clean the dust on the surface or put under
sunshine from time to time, which helps to extend the lifetime
of the two filters.
TROUBLESHOOTING
This section summarizes the most common problems you could
encounter with the appliance. If you are unable to solve the
problem, contact the Consumer Care Center in your country.

C-11
Problem
Possible Causes & Solution
The appliance
cannot turn on
1. The appliance is unplugged.
Check if the plug is loose.
2.The cover is not well assembled.
Re-assemble the cover referring to the
“INSTALLATION OF FILTER” section.
Air flow from air
outlet at low
level
1. The plastic bags of filter are not
removed.
Take away the plastic bags.
2. Objects are blocking the air outlet.
Clear the objects from the air outlet.
3. Filters are dirty.
Clean or replace the filter.
Air purifier
performance is
not obvious and
no improvement
in air quality
1. Filters are not installed yet.
Install the filters.
2. Doors or windows are always kept open.
Pollutants outside flowed into the room
continuously. Therefore, it takes a longer
time to purify the air.
Do not place the appliance too near the
window unless the window is closed
3. The product is placed in a too tight area
or objects blocking nearby.
Place the appliance in the area with good
airflow environment.
4. Filters are dirty resulting in filtration
efficiency.
Clean or replace the filter.
Bad smell
blowing
from the air
outlet
1. Many people are smoking in a room
which suddenly generates a lot of odor
and pollutants.
Recommend to allow fresh air in the
room.
2. Filters are too dirty.
Clean or replace the filter.

C-12
PRODUCT SPECIFICATION
Model No.
AP-126D
Rated Voltage/ Frequency
120V AC 60Hz
Rated Power
35W
Recommend Coverage
12-15m2
CADR
120 m³/h
Negative Ion Density
＞2million pcs /cm3
Noisy Level
33-52dB
Product Dimension
(Diameter X Width X Height)
275 X 275 X 232mm

C-13
CONTACT US
Thank you for choosing AIR CHOICE product. If you have any
question please contact us directly:
Email:[e-mail]
WARRANTY
AIR CHOICE warrants this product against defects in materials
and/or workmanship under normal use for a period of ONE (1)
YEAR from the date of purchase by the original purchaser
(“Warranty Period”). If a defect arises and a valid claim is
received within the Warranty Period, at its option, AIR CHOICE
will either 1) repair the defect at no charge, using new or
refurbished replacement parts, or 2) replace the product with a
new product that is at least functionally equivalent to the
original product, or provide a store credit in the amount of the
purchase price of the original product. A replacement product
or part, including a user-installable part installed in accordance
with instructions provided by AIR CHOICE, assumes the
remaining warranty of the original product. When a product or
part is exchanged, any replacement item becomes your property
and the replaced item becomes AIR CHOICE’s property. When a
store credit is given, the original product must be returned to
AIR CHOICE and becomes AIR CHOICE’s property. To obtain

C-14
warranty service, e-mail AIR CHOICE Limited Warranty Service at
Email: [e-mail]. Please be prepared to
describe the product that needs service and the nature of the
problem.
This warranty does not apply to: a) damage caused by failure to
follow instructions relating to product’s use or the installation of
components; b) damage caused by accident, abuse, misuse, fire,
floods, earthquake or other external causes; c) damage caused
by service performed by anyone who is not a representative of
AIR CHOICE; d) accessories used in conjunction with a covered
product; e) a product or part that has been modified to alter
functionality or capability; f) items intended to be periodically
replaced by the purchaser during the normal life of the product
including, without limitation, batteries or light bulbs; g) any
product sold “as is” including, without limitation, floor
demonstration models and refurbished items; or h) a product
that is used commercially or for a commercial purpose.
