Air Lift QuickShot 25690 User manual

MN-369 • (121801) • ECR 8971
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
Failure to read these instructions can result in an
incorrect installation.
INSTALLATION GUIDE
™
Kit 25690
Onboard Compressor
Control System
™

Introduction ................................... 2
Important Safety Notice .............................................2
Notation Explanation ................................................2
Installation Diagram ............................ 3
Installing the QuickShot System .................. 4
Recommended Compressor Locations ..................................4
Air Line Installation .................................................5
Limited Warranty and Return Policy ............... 9
Replacement Information ........................ 9
Contact Information ............................ 9
TABLE OF CONTENTS

MN-369
2
Introduction
The purpose of this publication is to assist with the installation, maintenance and
troubleshooting of the QuickShot system.
It is important to read and understand the entire installation guide before beginning installation
or performing any maintenance, service or repair. The information here includes step-by-
step installation information.
Air Lift Company reserves the right to make changes and improvements to its products and
publications at any time. For the latest version of this manual, contact Air Lift Company at
[phone] or visit our website at www.airliftcompany.com.
IMPORTANT SAFETY NOTICE
The installation of this kit does not alter the Gross Vehicle Weight Rating (GVWR) or payload
of the vehicle. Check your vehicle’s owner’s manual and do not exceed the maximum load
listed for your vehicle.
Gross Vehicle Weight Rating: The maximum allowable weight of the fully loaded vehicle
(including passengers and cargo). This number — along with other weight limits, as well
as tire, rim size and ination pressure data — is shown on the vehicle’s Safety Compliance
Certication Label.
Payload: The combined, maximum allowable weight of cargo and passengers that the truck
is designed to carry. Payload is GVWR minus the Base Curb Weight.
NOTATION EXPLANATION
Hazard notations appear in various locations in this publication. Information which is
highlighted by one of these notations must be observed to help minimize risk of personal
injury or possible improper installation which may render the vehicle unsafe. Notes are used
to help emphasize areas of procedural importance and provide helpful suggestions. The
following denitions explain the use of these notations as they appear throughout this guide.
INDICATES IMMEDIATE HAZARDS WHICH WILL RESULT IN SEVERE PERSONAL
INJURY OR DEATH.
INDICATES HAZARDS OR UNSAFE PRACTICES WHICH COULD RESULT IN SEVERE
PERSONAL INJURY OR DEATH.
INDICATES HAZARDS OR UNSAFE PRACTICES WHICH COULD RESULT IN DAMAGE
TO THE MACHINE OR MINOR PERSONAL INJURY.
Indicates a procedure, practice or hint which is important to highlight.
NOTE
DANGER
CAUTION
WARNING

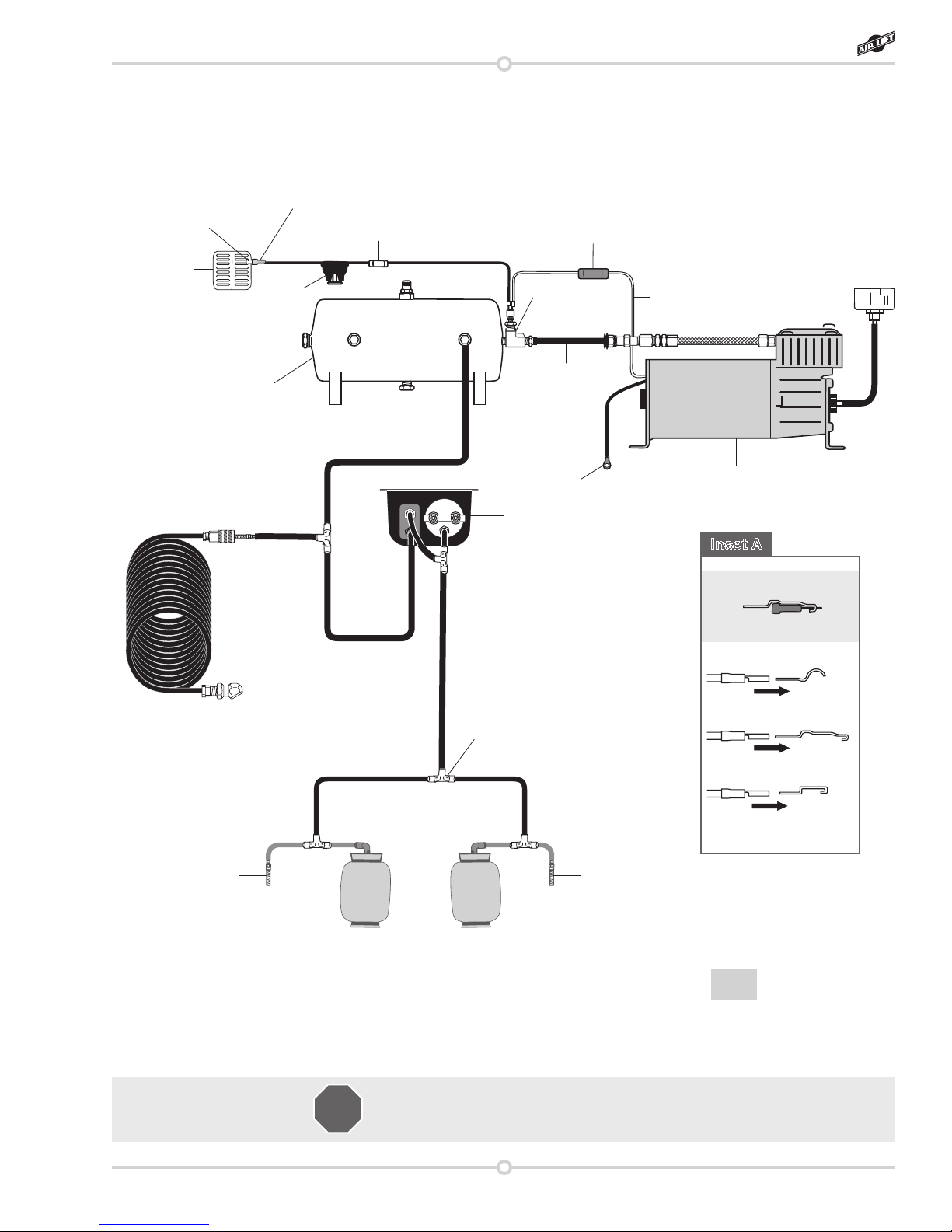

QuickShot

MN-369 3
Fuse Box
Fuse Adapter
Female Terminal
Fuse
Butt Connector
Butt Connector
Panel Assembly
(Figs. 4 & 5)
Pressure Switch
(110-145 PSI)
(Inset A)
Air Tank
(Fig. 7)
Tee Fitting
Air Springs
(Previously Installed)
Inflation Valve
Auxiliary Inflation Hose
Inflation Valve
(Fig. 8)
Supply Line (Red)
1/4" Air Line
Ring Terminal Compressor
(Fig. 2)
Ground
Air Filter
Inflation Valve
g. 1
Installation Diagram
Inset A
Adapter #1
Adapter #2
Adapter #3*
Adapter
Fuse
*Uses 3/16” (smaller) Female
Push On Connector
QuickShot
STOP! Missing or damaged parts? Call Air Lift customer
service at [phone] for a replacement part.
Missing or damaged parts? Call Air Lift customer
service at [phone] for a replacement part.

MN-369
4

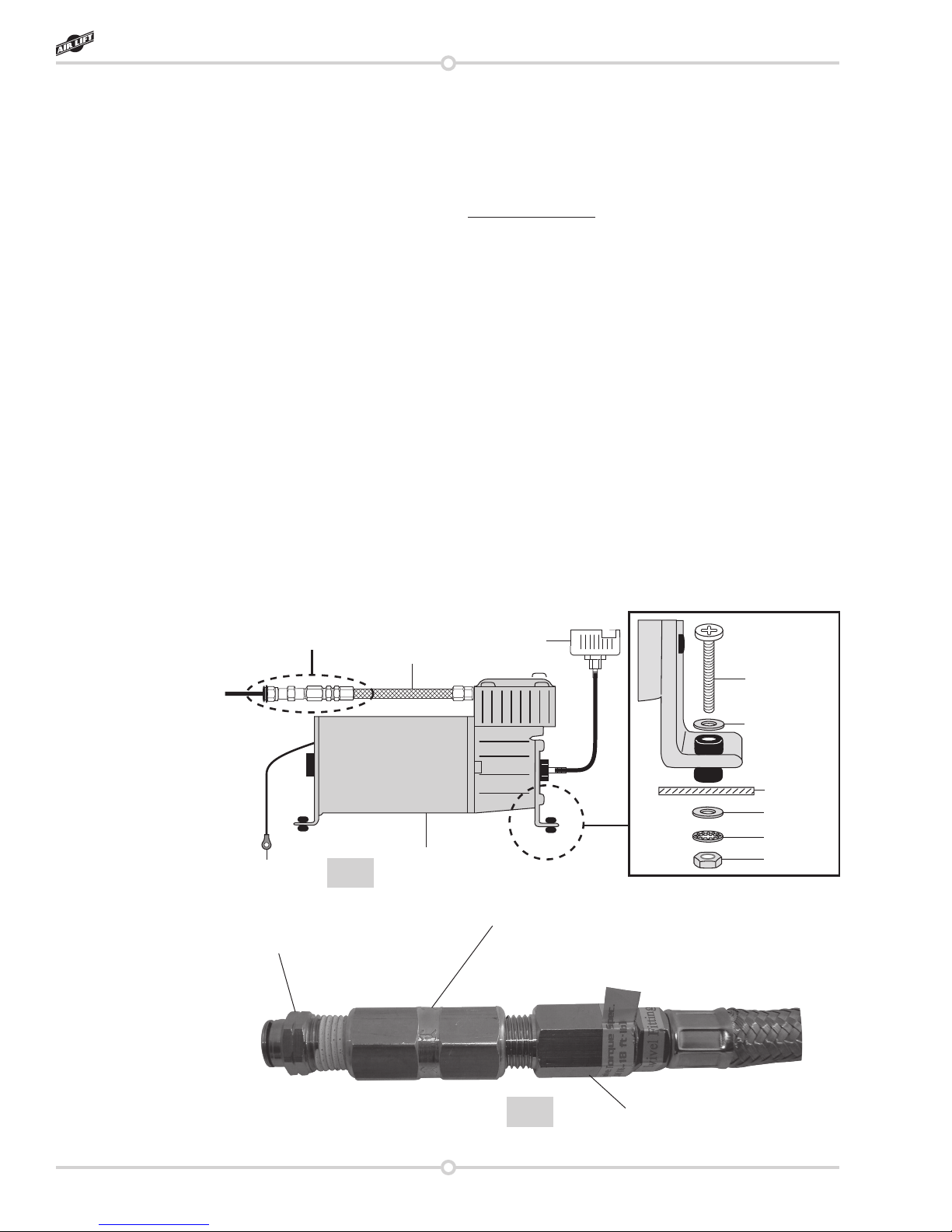

Installing the QuickShot System
Mounting Bolt
Flat Washer
Vehicle Body
Flat Washer
Star Washer
Nut
Ring Terminal
Compressor
Ground
Air Filter
Leader Hose
see Figure 3
g. 2
RECOMMENDED COMPRESSOR LOCATIONS
Important
LOCATE COMPRESSOR IN DRY, PROTECTED AREA ON VEHICLE.
DIRECT SPLASH OR EXCESSIVE MOISTURE CAN DAMAGE
THE COMPRESSOR AND CAUSE SYSTEM FAILURE.
Disclaimer: If you choose to mount the compressor outside the vehicle please keep in
mind the compressor body must be shielded from direct splash and the intake should be
snorkeled inside the vehicle. If the compressor does not include a remote mount air lter or
if mounting the compressor outside the vehicle, make sure to orient the compressor intake
lter so that all moisture can easily drain.
Please also remember...
• To avoid high heat environments
• To avoid mounting the compressor under the hood.
• To check to be sure the compressor harness #2 will reach the compressor and connect
to harness #1.
• The compressor can be mounted in any position — vertical, upside down, sideways,
etc. (please refer to the instruction manual).
Install the tting on the
end of the check valve.
Install the check valve onto the end of the compressor
leader hose. Be sure the arrow on the check valve is
in the direction of ow.
Compressor Leader Hose
g. 3
QuickShot

MN-369 5

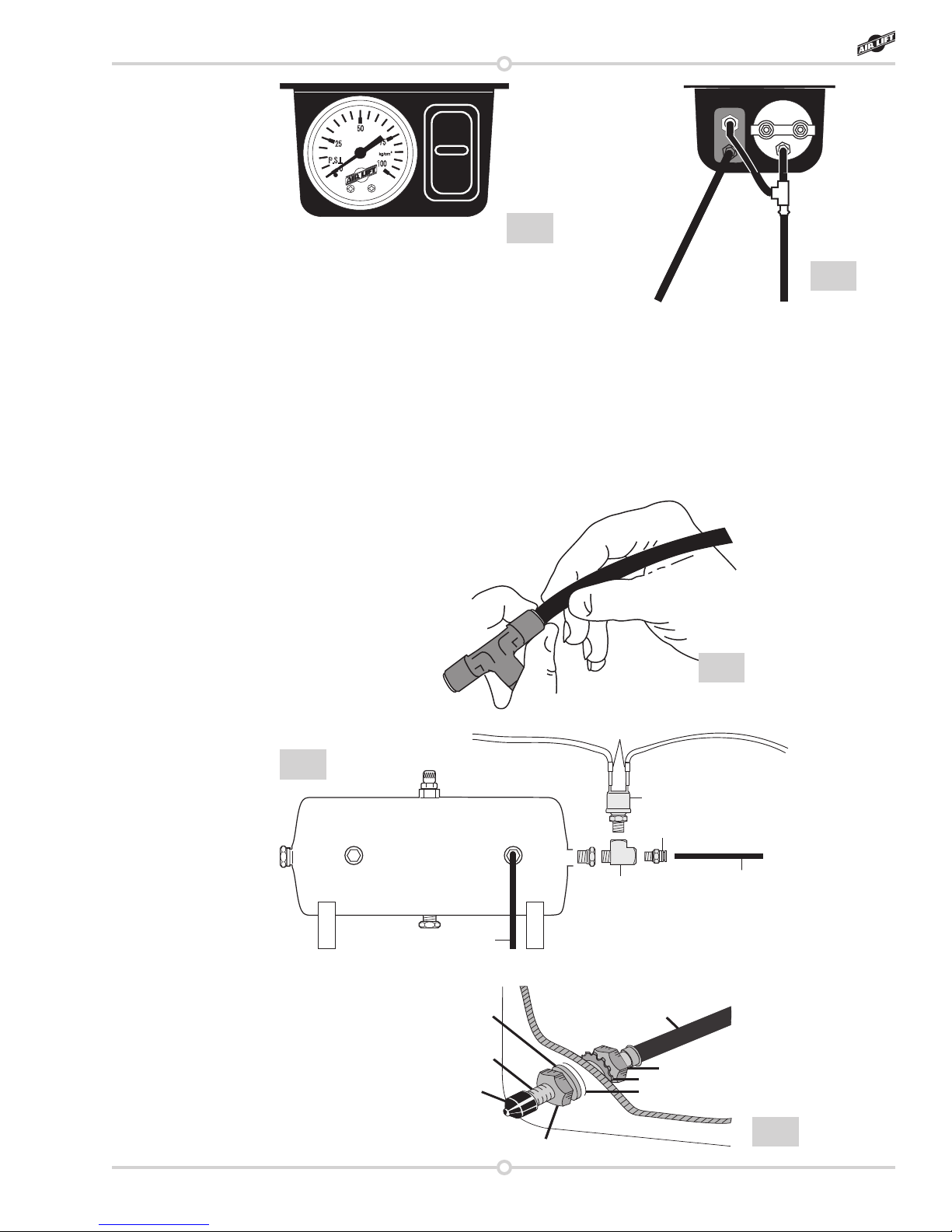

Apply Thread Sealant to All Threaded Connection
s
Street Tee
Straight Fitting
Pressure Switch
Female Terminals
To the Fuse Box To the Compressor
Power Wire
To Air Springs
From the Compressor
Air Line
Air Line
g. 7
Air line to
air spring
Hex nut
Hex nut
Valve
Cap
Schrader
valve
Star washer
Rubber washer
Flat
washer
g. 8
100
75
50
25
kg/cm
2
P.S.I.
0
Fig.3 MN 155
PANEL ASSEMBLY
Inate:
Push Up
Deate:
Push Down
g. 4
AIR LINE INSTALLATION
Cut off excess air line squarely, using a sharp knife or air line cutter. Install the air
line into the self locking tting. Push and slightly turn the cut end of the air line into
the tting as far as it will go. A denite click can be heard and or felt when the air
line is seated. The air line should go in approximately 9/16” (14mm).

g. 6
g. 5
Air line from
the air tank
Air line to
the air springs
Air Line from
the Air Tank
Air Line to
the Air Springs
QuickShot

MN-369
6
Notes
QuickShot

MN-369 7
Notes
QuickShot

MN-369
8
Notes
QuickShot

MN-369 9
Air Lift Company reserves the right to make changes and improvements to its products
and publications at any time. For the latest version of this manual, contact Air Lift
Company at [phone] or visit www.airliftcompany.com.
Limited Warranty and Return Policy
Air Lift Company provides a 2-year limited warranty to the original purchaser of QuickShot™
from the date of original purchase, that the products will be free from defects in workmanship
and materials when used on cars and trucks as specified by Air Lift Company and under normal
operating conditions, subject to the requirements and exclusions set forth in the full Limited
Warranty and Return Policy that is available online at www.airliftcompany.com/warranty.
For additional warranty information contact Air Lift Company customer service.
Replacement Part Information
If replacement parts are needed, contact Air Lift customer service. Most parts are
immediately available and can be shipped the same day.
Contact Air Lift Company customer service at [phone] first if:
• Parts are missing from the kit.
• Need technical assistance on installation or operation.
• Broken or defective parts in the kit.
• Wrong parts in the kit.
• Have a warranty claim or question.
Contact the retailer where the kit was purchased:
• If it is necessary to return or exchange the kit for any reason.
• If there is a problem with shipping if shipped from the retailer.
Contact Information
Mailing address P.O. Box 80167
Lansing, MI 48908-0167
Shipping address 2727 Snow Road
for returns Lansing, MI 48917
Phone Toll free: [phone]
International: [phone]
Email [e-mail]
Web address www.airliftcompany.com
