ElECTRIC BELT SANDER
INSTRUCTION MANUAL
1/2 in. x 18 in. (12.7 mm x 457.2 mm)
20,000 RPM(/min), 4637 SFPM (1413 SMPM)
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Original Instructions

• Due to our continuing programme of research and development, the specifications herein are subject to change without
notice. Note : Specifications may differ from country to country.
• Noise : The typical A-weighted noise level determined according to EN62841, Uncertainty (K) : 3 dB(A)
• Vibration : The vibration total value (tri-axial vector sum) determined according to EN62841, Uncertainty (K) : 1.5 m/s²
The following show the symbols used for the equipment. Be sure that you understand their meaning before use.
Intended use
The tool is intended for the sanding of wood, plastic and metal materials as well as painted surfaces.
Power supply
The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only
be operated on single-phase AC supply.
Do not dispose of electric equipment together with household waste material!
In observance of European Directive 2002/96/EC on waste electric and electronic equipment and its imple-
mentation in accordance with national law, electric equipment that have reached the end of their life must be
collected separately and returned to an environmentally compatible recycling facility.
110-120V
AU-001003 AE-001003
220-240VVoltage
Model
Belt Size
in. (mm)
Motor Speed
Belt Speed
SFPM (SMPM)
Product Net WT.
lb. (kg)
Width
in. (mm) 6.02 (153.0)
16.34 (415.0)
2.74 (69.5)
65 (76) 66.5 (77.5)
1.88 (6.16) 1.93 (6.33)
2.74 (69.5)
16.34 (415.0)
6.02 (153.0)
Length
in. (mm)
Height
in. (mm)
Noise Level dBA
Pressure (Power)
Vibration Level
m/s²(ft/s²)
3.04 (1.38) 3.04 (1.38)
4637 (1413) 4637 (1413)
20,000 RPM (/min) 20,000 RPM (/min)
1/2 x 18
(12.7 x 457.2)
1/2 x 18
(12.7 x 457.2)
SPECIFICATIONS
SYMBOLS
Wear eye protection
Wear respiratory protection
Wear hearing protection
Read operator instructions before using
Only for EU countries
Prufstelle Testing and Certification Institute
Technischer Überwachungsverein Rheinland
United States and Canada Approved Mark
1Revision : 2018-08
B-E1BS01-AV-8

WARNING :
Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire
and/or serious injury. The term “power tool” in all of the warnings listed below refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
Please make sure that the side cover has been closed properly before operating.
Work area safety
1.Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
2.Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
3.Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical safety
4.Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
5.Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
6.Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
7.Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
8.When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric shock.
Personal safety
9.Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
10.Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropri-
ate conditions will reduce personal injuries.
11.Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools with
your finger on the switch or plugging in power tools that
have the switch on invites accidents.
12.Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
13.Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
14.Dress properly. Do not wear loose clothing or jewel-
lery. Keep your hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
15.If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
Power tool use and care
16.Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was
designed.
17.Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
18.Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
19.Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any other
condition that may affect the power tools operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
GENERAL SAFETY RULES
SAVE THESE INSTRUCTIONS
2Revision : 2018-08
B-E1BS01-AV-8

21. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
22. Use the power tool, accessories and tool bits etc. in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
Service
23. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
24. Follow instruction for lubricating and changing
accessories.
25. Keep handles dry, clean and free from oil and grease.
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to belt sander safety rules. If you use this tool
unsafely or incorrectly, you can suffer serious
personal injury.
1. Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a “live”
wire will make exposed metal parts of the tool “live” and
shock the operator.
2. Ventilate your work area adequately when you perform
sanding operations.
3. Some material contains chemicals which may be toxic.
Take caution to prevent dust inhalation and skin contact.
Follow material supplier safety data.
4. Always use the correct dust mask/respirator for the
material and application you are working with.
5. Always use safety glasses or goggles. Ordinary
eye or sun glasses are NOT safety glasses.
6. Hold the tool firmly with both hands.
7. Make sure the belt is not contacting the workpiece
before the switch is turned on.
8. Keep hands away from rotating parts.
9. Do not leave the tool running. Operate the tool only
when hand-held.
10. This tool has not been waterproofed, so do not use
water on the workpiece surface.
WARNING :
MISUSE or failure to follow the safety rules
stated in this instruction manual may cause
serious personal injury.
CAUTION:
These accessories or attachments are recommended for
use with your AirVANTAGE tool specified in this manual.
The use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita service center.
For European countries only
EC Declaration of Conformity
We AirVANTAGE Corporation as the responsible
manufacturer declare that the following AirVANTAGE
machine(s):
Designation of Machine:
Model No./ Type: AU-001003, AE-001003
We : X'POLE PRECISION TOOLS INC
No.530-1, Sec.2, Guoling Rd., Zhongli Dist., Taoyuan City
320, Taiwan R.O.C.
declare in sole responsibility that the equipment to which
this declaration applies, complies with these normative
documents:
● Machinery Directive: 2006/42/EC
● EMC Directive: 2014/30/EU
and conforms to the following EN standard,
● EN 62841-1
● EN 62841-2-4
Signature
Name, Surname :
Position/ Title : Quality assurance manager
Date : 2018 / 08
Specific Safety Rules
ACCESSORIES
SAVE THESE INSTRUCTIONS.
3Revision : 2018-08
B-E1BS01-AV-8

1
2
3
6
4
57
8
10
11
12
13
39
42
14
15
40
16
9
17
19
20
21
22
18
23
43
26
27 30
27
22
31
32
33
34
35
36
37
38
41
29
28
43
36
4
24
25
22
Revision : 2018-08
B-E1BS01-AV-8

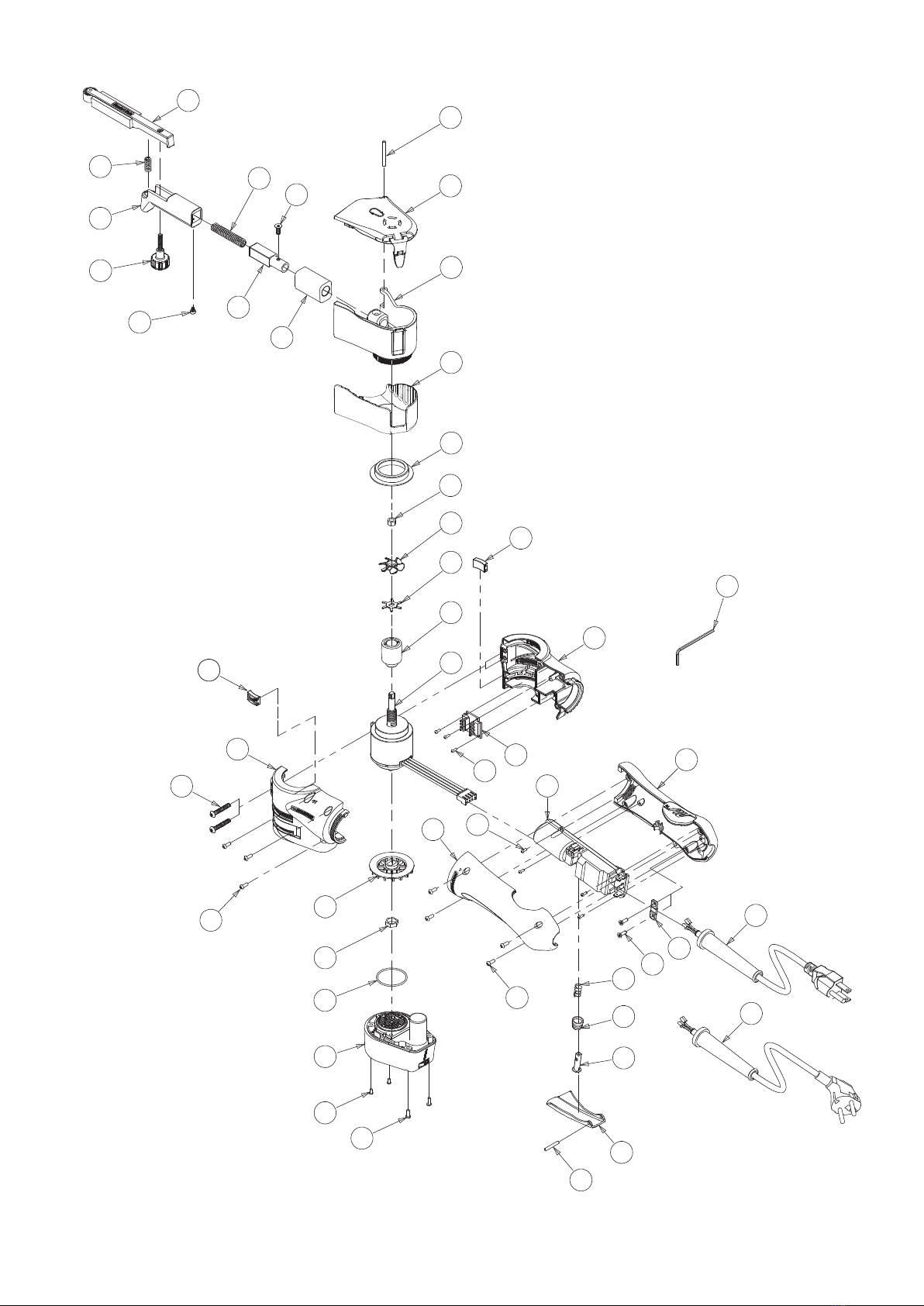

PARTS LIST
ITEM P/N DESCRIPTION QTY
1 EOSB0049 FILE BELT ARM, (STANDARD STYLE) 1
2 XPA2031 SPRING,TRACKING BIAS 1
3 EOSB0009 TRACKING ARM MOUNT 1
4 EOSB0010 TRACKING / CONTROL KNOB 1
5 XPA2039 SCREW,SHCS (M3x5) 1
6 XPA2036 SPRING-BELT TENSION 1
7 XPA2038 TRACKING ARM POST 1
8 XPA0767 HEX SOCKET COUNTERSUNK HEAD MACHINE SCREW(M4x10) 1
9 XPA2046 DUST COVER 1
10 XPA2024 PIN, 3x32mm 1
11 EOSB0050 BELT COVER AND LATCH ASSEMBLY 1
12 EOSB0012 BELT HOUSING 1
13 EOSB0056 SCREW(M6) 1
14 EOSB0004 COOLING FAN(SMALL) 1
15 EOSB0065 DRIVE PULLEY 1
116 EOSB0032 MOTOR 110-120V ASSEMBLY
116 EOSB0033 MOTOR 220-240V ASSEMBLY
17 EOSB0005 COOLING FAN(LARGE) 1
18 EOSB0057 SCREW(3/8-24) 1
19 EOSB0011 O-RING(O/R 30x1.5 N70) 1
1
20 EOSB0041 PCB(DC) 110-120V ASSEMBLY
1
20 EOSB0047 PCB(DC) 220-240V ASSEMBLY
21 S6-3006A HEX.SOCKET BUTTON HEAD SCREW(M3x6) 2
22 S6-3008A HEX.SOCKET BUTTON HEAD SCREW(M3x8) 9
23 EOSB0019 MOTOR HOUSING(RIGHT) 1
24 EOSB0020 MOTOR HOUSING(LEFT) 1
25 S6-3014A HEX.SOCKET BUTTON HEAD SCREW(M3x14) 2
26 EOSB0042 PCB(BRIDGE) 1
27 S7-2006A BUTTON HEAD SCREW(M2x6) 7
28 EOSB0017 HANDLE(RIGHT) 1
29 EOSB0018 HANDLE(LEFT) 1
130 EOSB0038 PCB(AC) 110-120V
130 EOSB0044 PCB(AC) 220-240V
31 EOSB0061 SPRING 1
32 EOSB0023 DUST BOOT 1
33 EOSB0022 VALVE STEM 1
134 EOSB0006 LEVER (AV) 110-120V
134 EOSB0007 LEVER (AV) 220-240V
35 XPA2027 SPRING PIN 1
36 EOS50174-I12 POWER CORD ASSEMBLY 1
36 EOS50173-I12 POWER CORD ASSEMBLY 1
37 EOS50105 CORD SUPPORT PLAT 1
38 S5-3010B HEX SOCKET HEADLESS SET SCREW(M3x10) 2
39 EOSB0048 DUST COVER 1
40 EOSB0060 WASHER 1
41 XPA2329 WRENCH,2.5mm L-KEY 1
42 EOSB0062 BELT COVER 1
43 EOSB0064 PLUG 2
5Revision : 2018-08
B-E1BS01-AV-8

To Install/Remove Belt :
1. Disconnect the electric power supply.
2. Flip the Belt Cover Latch up to release the Belt Cover.
3. Rotate the Belt Cover upward, exposing the Drive
Pulley.
4. Pull back the Tracking Arm Mount to gain and hold
slack in the belt.
5. Remove and replace the belt, then release the
Tracking Arm Mount to regain tension in the belt.
6. Rotate the Belt Cover downward, and flip the Belt
Cover Latch down, securing the Belt Cover.
7. Connect the air line.
8. Adjust belt tracking by turning the knob to the left or
right as needed, while the machine is running.
To Install/Change Contact Arm :
1. Disconnect the electric power supply.
2. Flip the Belt Cover Latch up to release the Belt Cover.
3. Rotate the Belt Cover upward, exposing the Drive
Pulley.
4. Pull back the Tracking Arm Mount to gain and hold
slack in the belt.
5. Remove the belt.
6. Remove the Tracking Knob.
7. Remove the Contact Arm and replace with the desired
arm. Make sure the tab on the end of the arm is in the
channel of the Tracking Arm Mount. (See Fig. 3.)
8. Replace the Tracking Knob and tighten it into the
threaded hole on the Contact Arm so the Contact Arm is
as straight as possible.
9. Install the abrasive belt and secure the Belt Cover.
10. Connect the electric power supply and adjust belt
tracking by turning the Tracking Knob as needed while
the machine is running.
To Adjust Belt Housing Position :
1. Disconnect the electric power supply.
2. Loosen M3 cap screws “A” and “B”: (See Fig. 4.)
3. Rotate the Belt Housing to the desired position.
Detents indicate the positions within a 360 degree range.
4. Tighten M3 cap screws “A” and “B”:
To Adjust Handle/Lever Position :
1. Disconnect the electric power supply.
2. Loosen M3 cap screws “C” and “D”: (See Fig. 4.)
3. Rotate the Handle/Lever to the desired position.
Detents indicate the positions within a 360 degree range.
4. Tighten M3 cap screws “C” and “D”:
To Adjust Belt Tracking :
1. While the tool is running, turn the Tracking Knob to the
left or right, so the abrasive belt runs centered over
contact arm wheel. (See Fig. 2.)
2. Always apply the returning side of the belt to the
workpiece to maintain proper tracking.

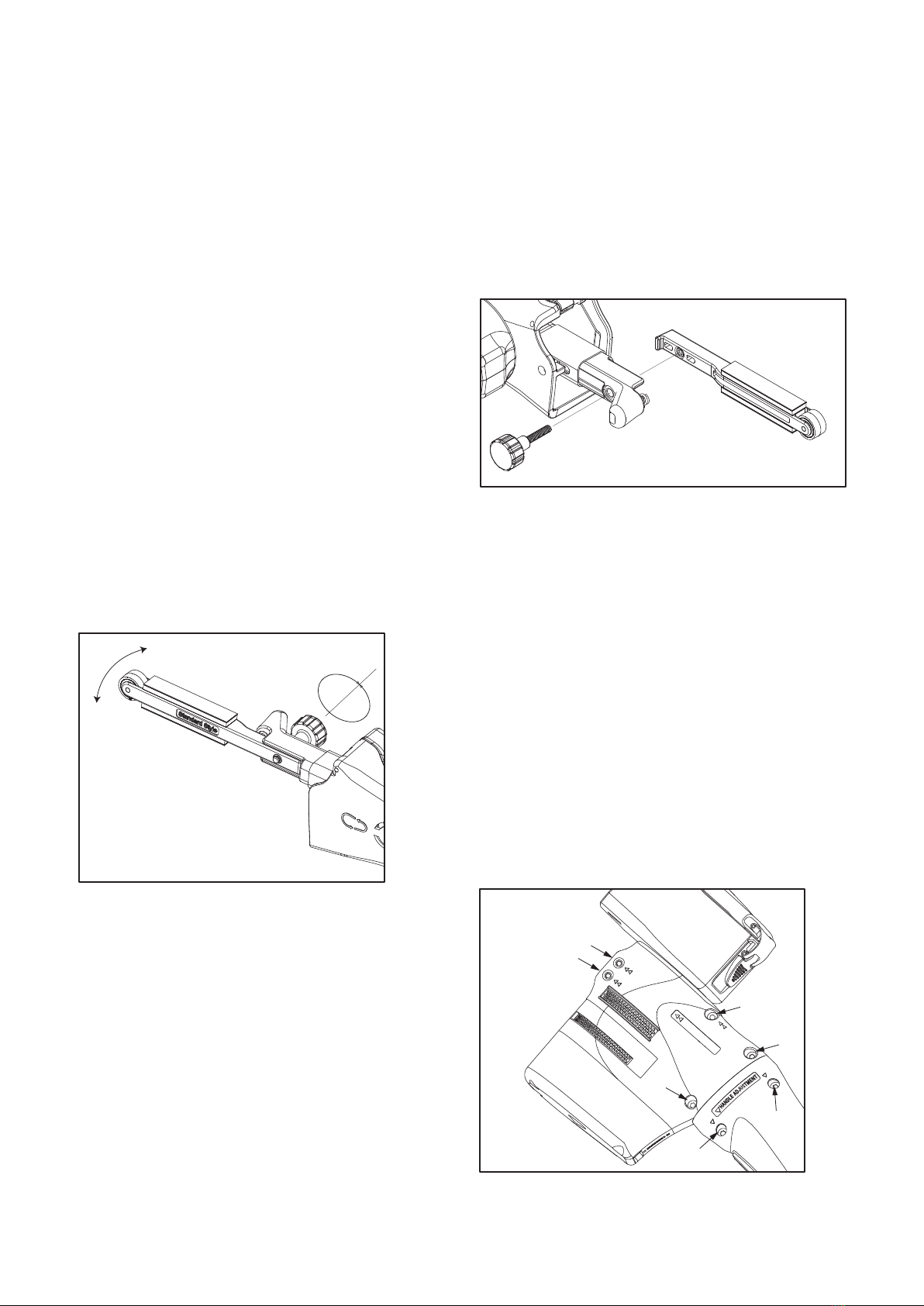

Mounting and Removing
Abrasive Belt
Adjusting Belt Tracking
Adjusting Belt Housing
and Handle Position
Mounting and Removing
Contact Arms
Fig. 3
Fig. 2
6
B
C
D
C
D
A
A
ANGLE ADJUSTMENT
Fig. 4
Revision : 2018-08
B-E1BS01-AV-8

Brushless Electric Belt-Sander Overload and Overheat Protections
7
(1) 2-Step Overload Protection
a) The LED indicator will turn from a flashing green light into a flashing red light whenever the PCB detects a
power overload.
b) The tool will stop automatically within approximately 5 seconds to prevent long-term overloading damage.
The LED indicator will flash red until the tool stops.
c) Release the lever and push again to restart the Belt-Sander. The LED indicator will turn from a flashing red
light back into a flashing green light.
(2) Motor Overheat Protection
a) The Belt-Sander detects for 2 temperature points (T1&T2) to initiate the overheat protection system. T2 is the
higher temperature.
b) When the motor temperature rises to T1, the tool speed may drop with heavy sustained usage, but may not
affect the speed with lighter usage. At T1, the LED indicator will flash red 3 times periodically. The Belt-Sander
can resume operation once it has fully cooled down and the LED indicator has turned back to a flashing green
light.
c) If not given an opportunity to cool down when motor temperate has reached T1, the temperature of the motor
will reach T2. The tool will automatically shut down automatically with 3 beeping sounds; the LED indicator will
also flash red 3 times periodically. Wait until the motor has completely cooled down and the LED indicator has
turned back to a flashing green light. During the cooling period, the user will hear 3 beeping sounds when
pressing down the lever. This shows that the tool is still under Overheat Protection mode.
(3) PCB Heat Protection
When the PCB reaches the protection point, the tool will stop automatically with 5 beeping sounds; the LED
indicator will turn into a flashing red light. The LED indicator will keep flashing red until the PCB has fully cooled
down. Once the PCB has fully cooled, it will turn back into a flashing green light. The tool can then resume
operation by pressing the lever again.
Overload Stop
5sec
Flash Green Light Flash Red Light
Restart
Flash Green Light
Normal use
Flash Green Light
Protection Point Stop Point
Normal use T1 T2
Cool Down
Cool Down ( 3 Flash Red Light )
* 3 Flash Red Light
* Speed drop
with heavy usage
Revision : 2018-08
B-E1BS01-AV-8
3 beeping sounds

AirVANTAGE™ Tools
1966 West Holt Ave. Pomona, CA 91768.
Telephone: [phone].
No.530-1, Sec. 2, Guoling Rd., Zhongli Dist.,
Taoyuan City 320, Taiwan (R.O.C.)
